Summary

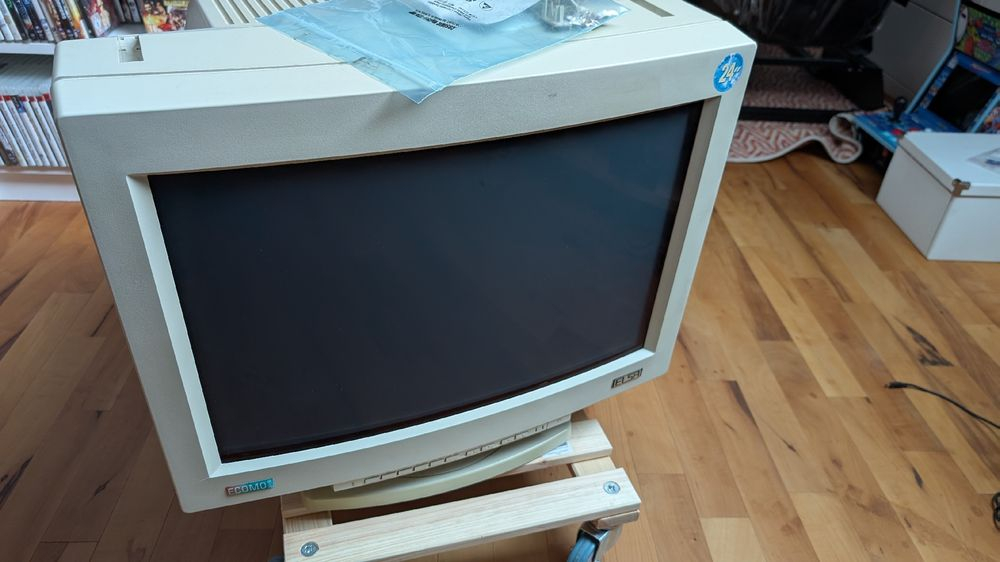

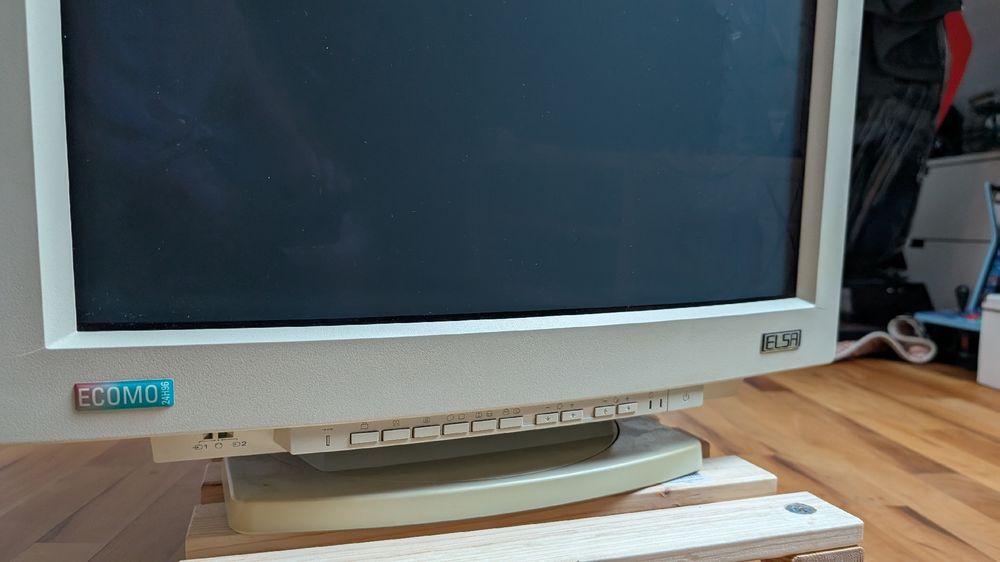

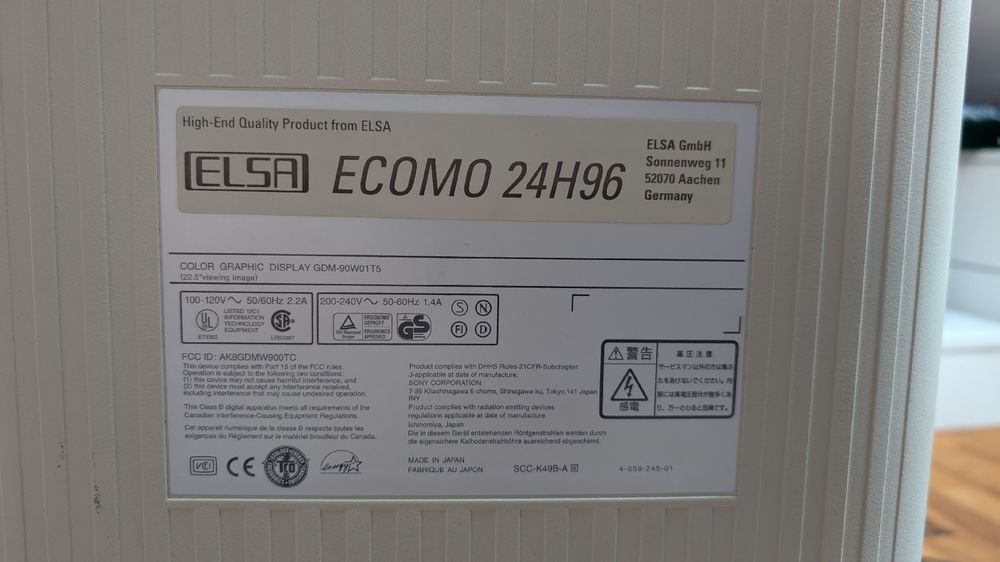

The ELSA Ecomo 24H96 is a rebadge of the lesser-known precursor to the famous Sony FW900. The W900 features a curved tube and a slightly lower scan range. It still supports 1080p but is very picky about the sync porch from game consoles. You can sometimes get it to work using Extron sync boxes that allow for horizontal position adjustment. 720p works much easier.

MAXIMUM REFRESH RATES

• Sony 16:10: 1920 x 1200/76 Hz
• Sony 16:9: 1920 x 1080/85 Hz

PRESET GRAPHICS MODES

• VGA Graphics: 640 x 480/60 Hz Sony 16:9: 1920 x 1080/60 Hz
• VGA Text: 720 x 400/70 Hz Sony 16:9: 1920 x 1080/72 Hz
• VESA: 1280 x 1024/75 Hz Sony 16:9: 1920 x 1035/60 Hz
• VESA: 1600 x 1200/75 Hz Sony 16:10: 1600 x 1024/76 Hz
• Sony 16:10: 1920 x 1200/76 Hz

COLOUR TEMPERATURE CONTROL

• Normal mode: 5000 K/6500 K/9300 K, variable
• Expert mode: 5000 K/6500 K/9300 K, variable,
• RGB Bias/Gain

Variable Aperture Grille Pitch

• (0.25 - 0.28 mm)

Literature

• Sales Brochure
• Service Manual (Full, including schematics)
• Supplement
• Owner's Manual

Notes

This monitor shares the same flyback as the Sony BVM D24.
