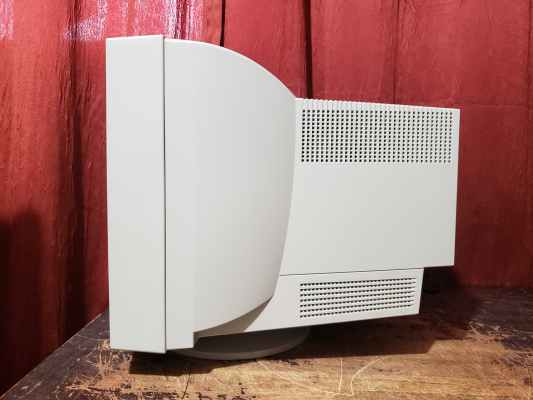

emachines eView 17p
June 22, 2026, 4:18 am
June 23, 2026, 1:00 am
Edit Page
Summary
The eMachines eView is an affordable 17-inch monitor you simply plug in and play. It provides a 1,280 x 1,024 maximum resolution at a 60 Hz refresh rate; a flat screen with an antiglare coating helps cut distortion and glare. The eView is compatible with PC platforms and has a viewable screen size of 15.8 inches and 0.27mm dot pitch. Its onscreen, digitally controlled menu makes it easy to use. The eView's low cost makes it the perfect choice for bargain shoppers interested in Web browsing, desktop publishing, word processing and spreadsheet use, and much more. The eView is Energy Star compliant and comes backed with an extendable one-year parts-and-labor warranty. Also available in 15-inch size, the eView monitor is an unbeatable bargain in its class.
Media & Promo Materials
- emachines Product Page
- Amazon Product Page
- Consumer Reports July 2001
- Consumer Reports Home Computer Buying Guide 2002
- Consumer Reports Buying Guide 2002
Gallery
| Specifications | |
|---|---|
| Brand: | emachines |
| Manufacturer: | KDS |
| Model: | 17p |
| Series: | eView |
| Viewable Size: | 16" |
| Input Signals: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 72 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |

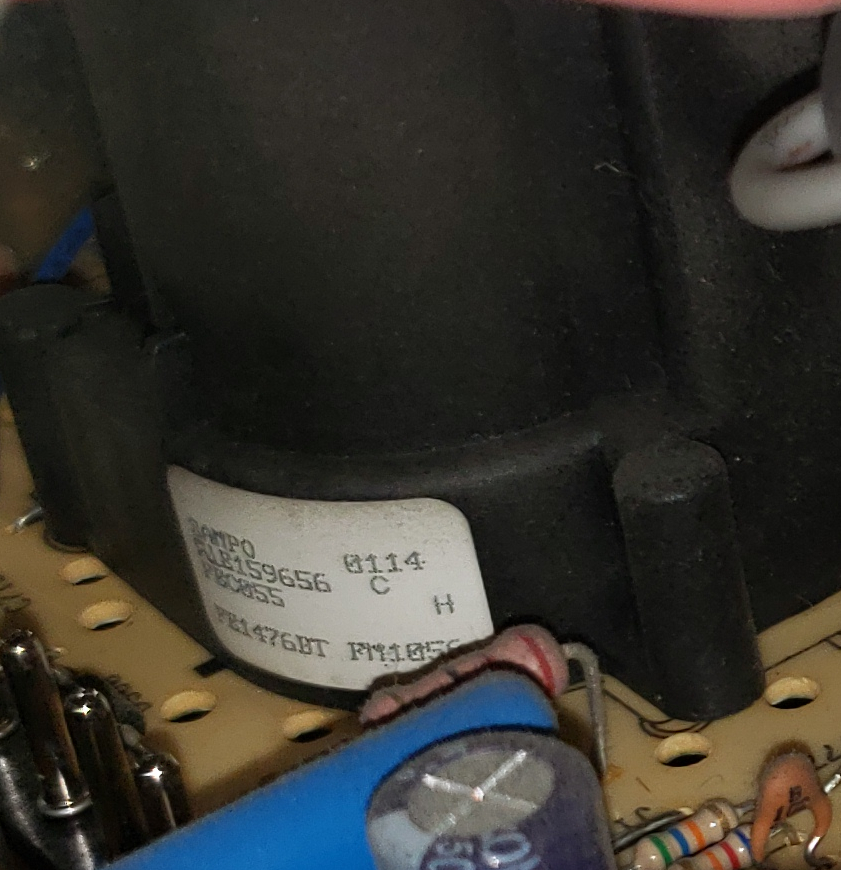

| Flyback: | E159656 |
| Focus Type: | Dual |

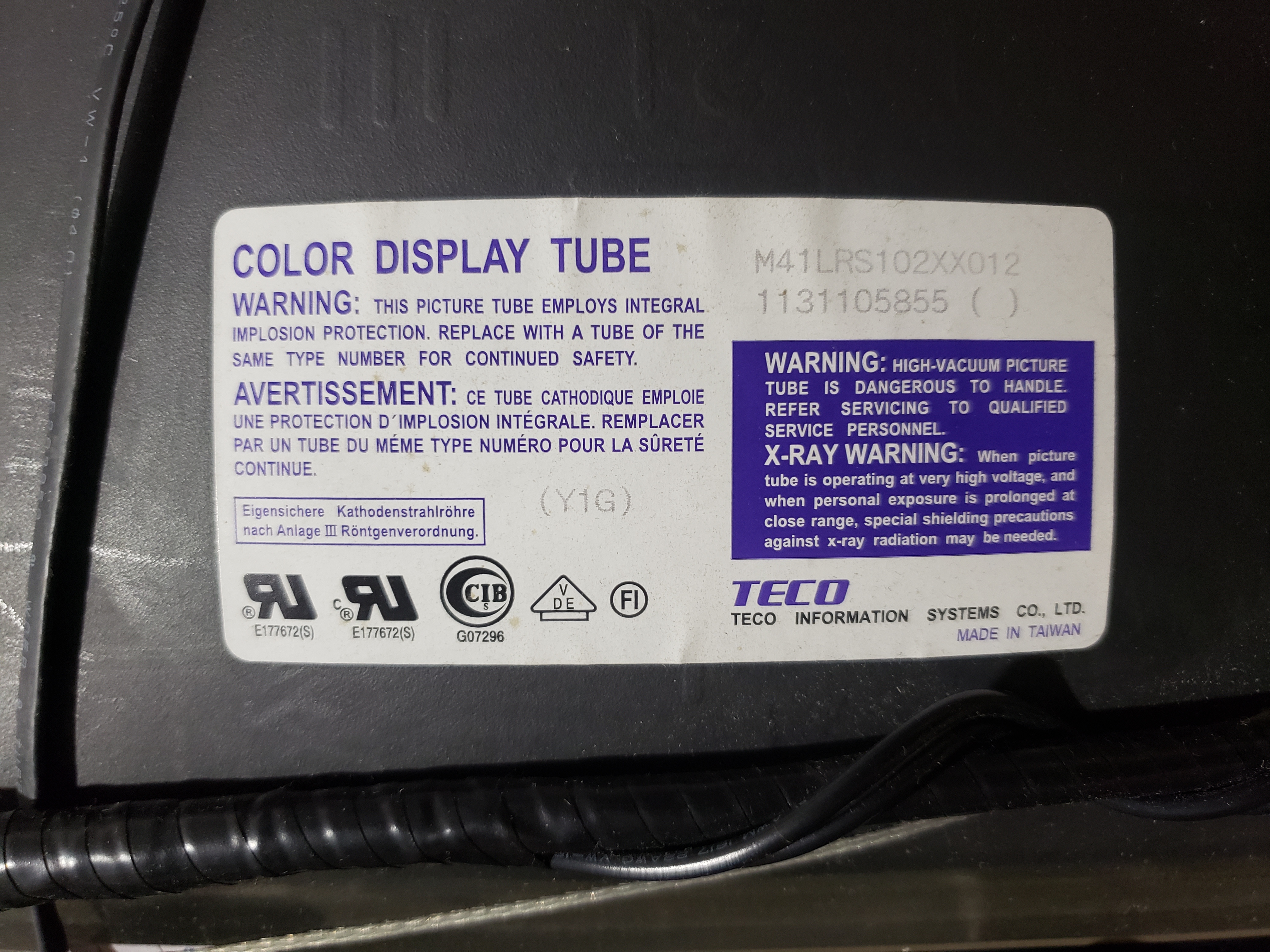

| Tube: | M41LRS102XX , M41LRS102XX012 |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm, .27 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |

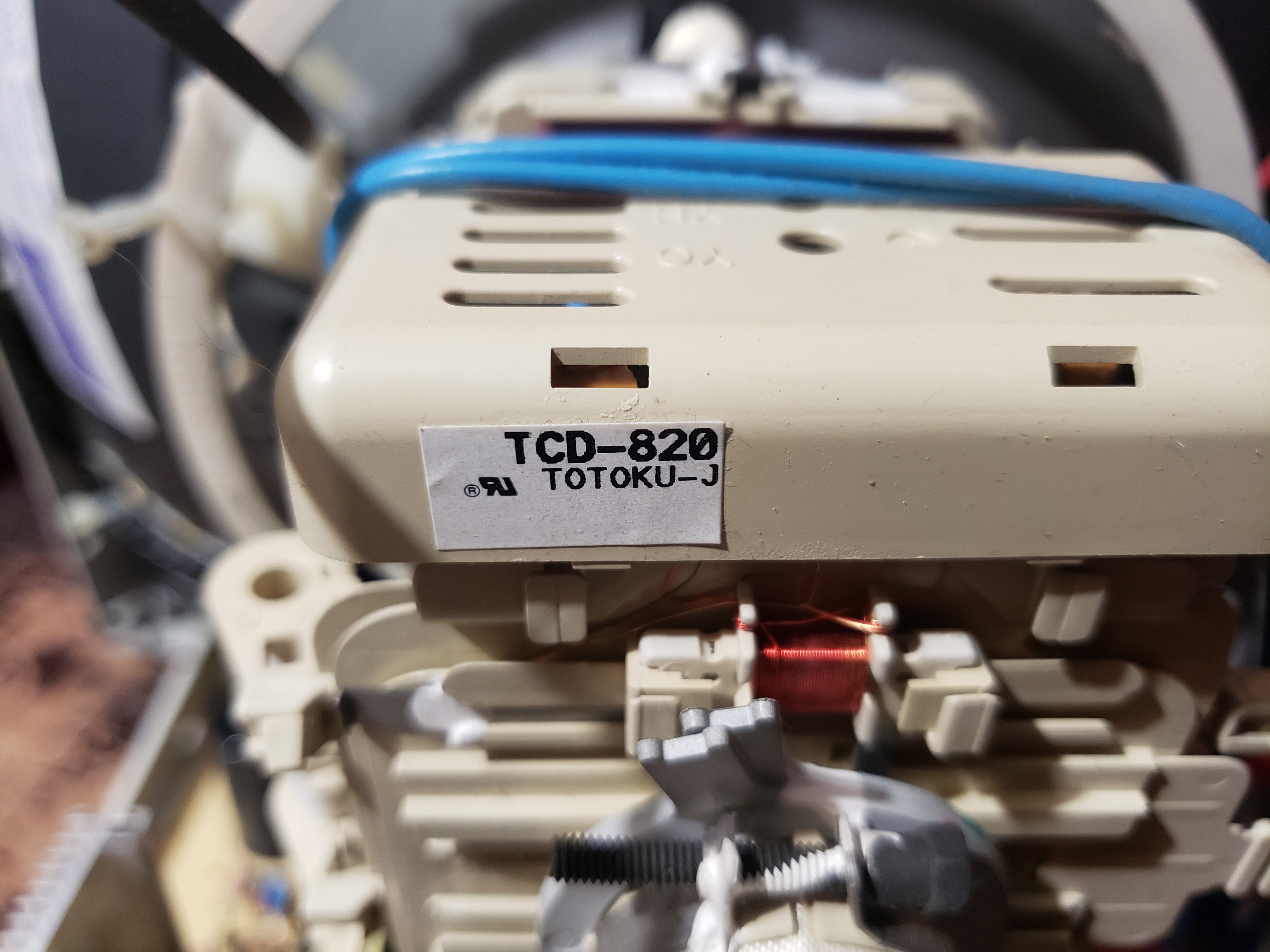

| Yoke: | TOTOKU-J |
| Yoke Horz. Inductance: | .1282 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.973 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.53 ohm |
| Yoke Vert. Resistance: | 8.22 ohm |
| Speakers: | None |
| Chassis: | C718 |
| Weight: | 42 lbs (19.1 kg) |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 299 USD |
| Country of Manufacture: | China |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
