Summary

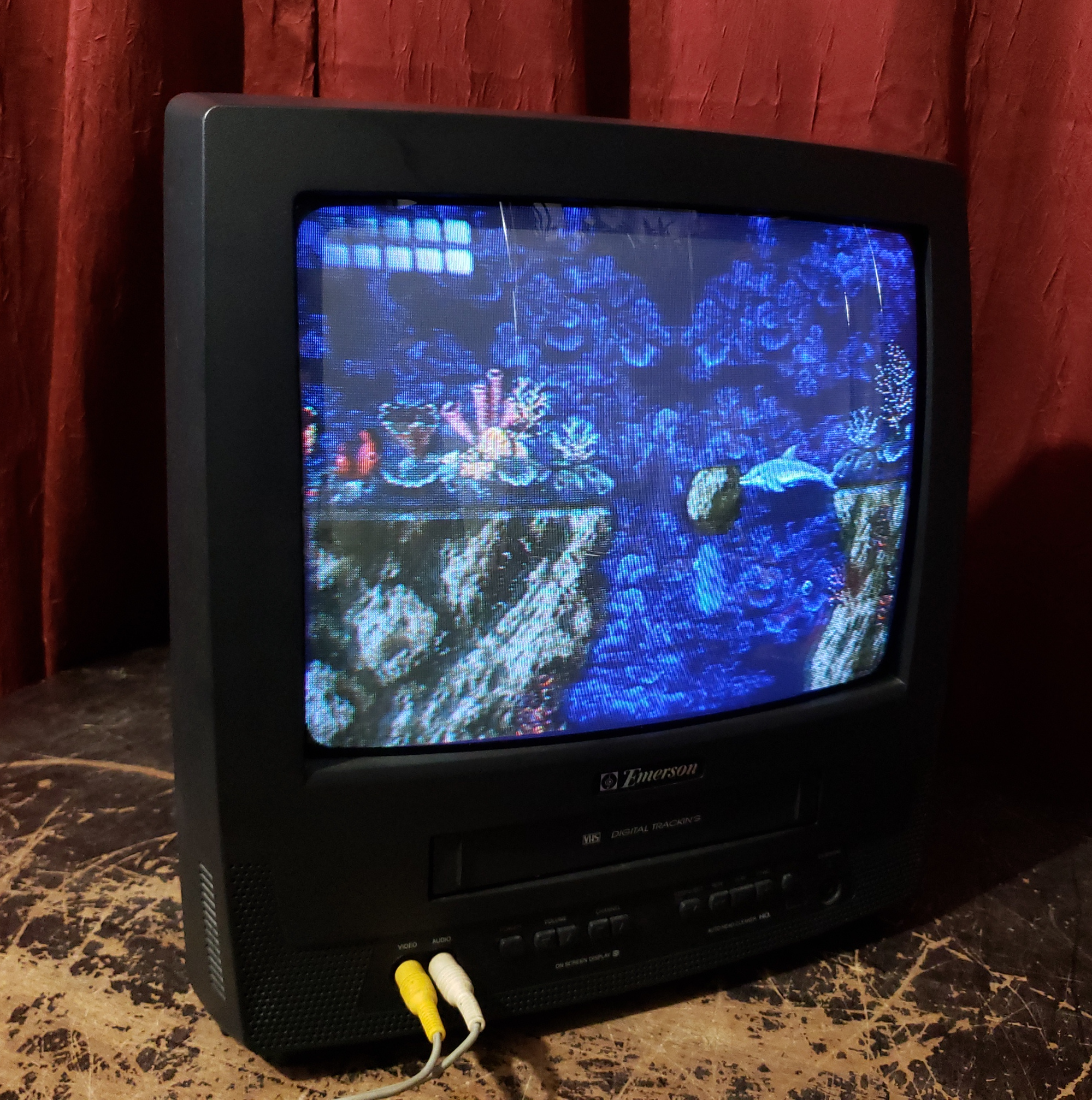

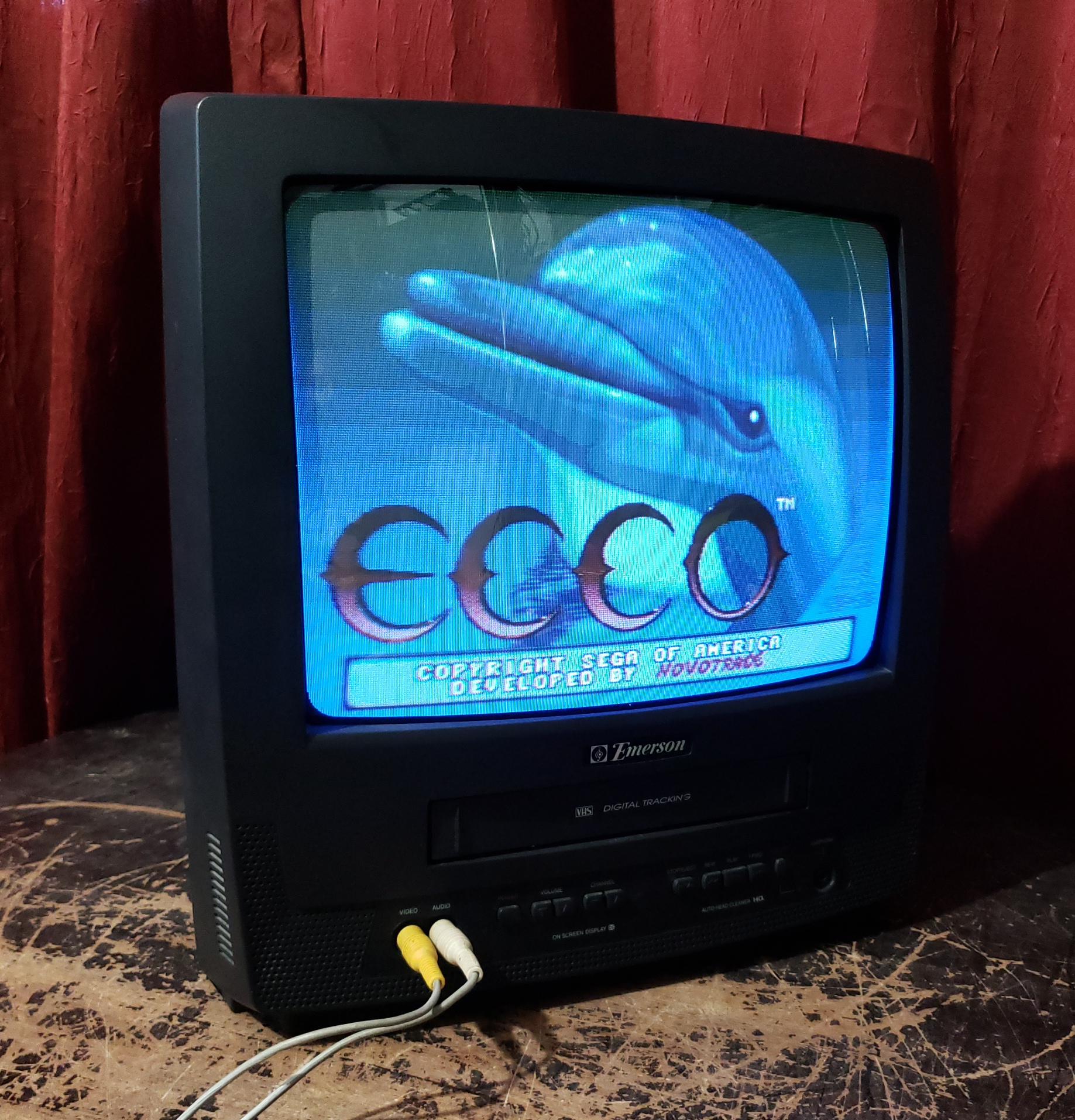

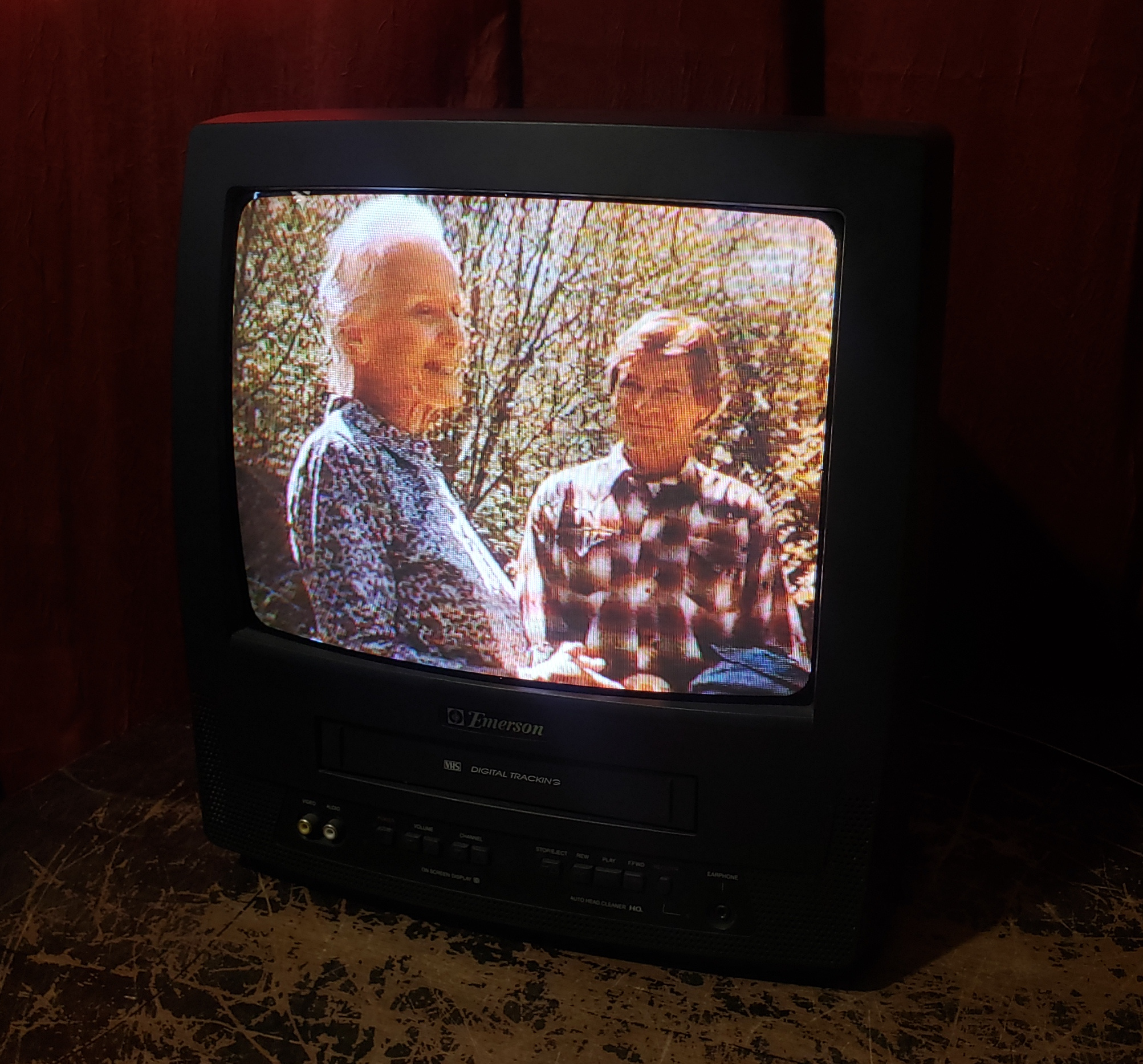

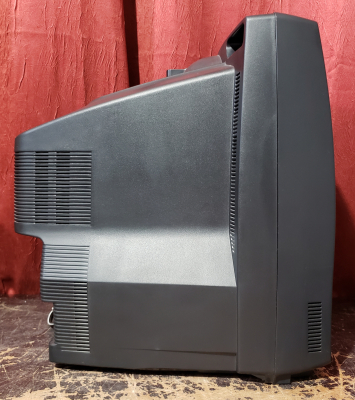

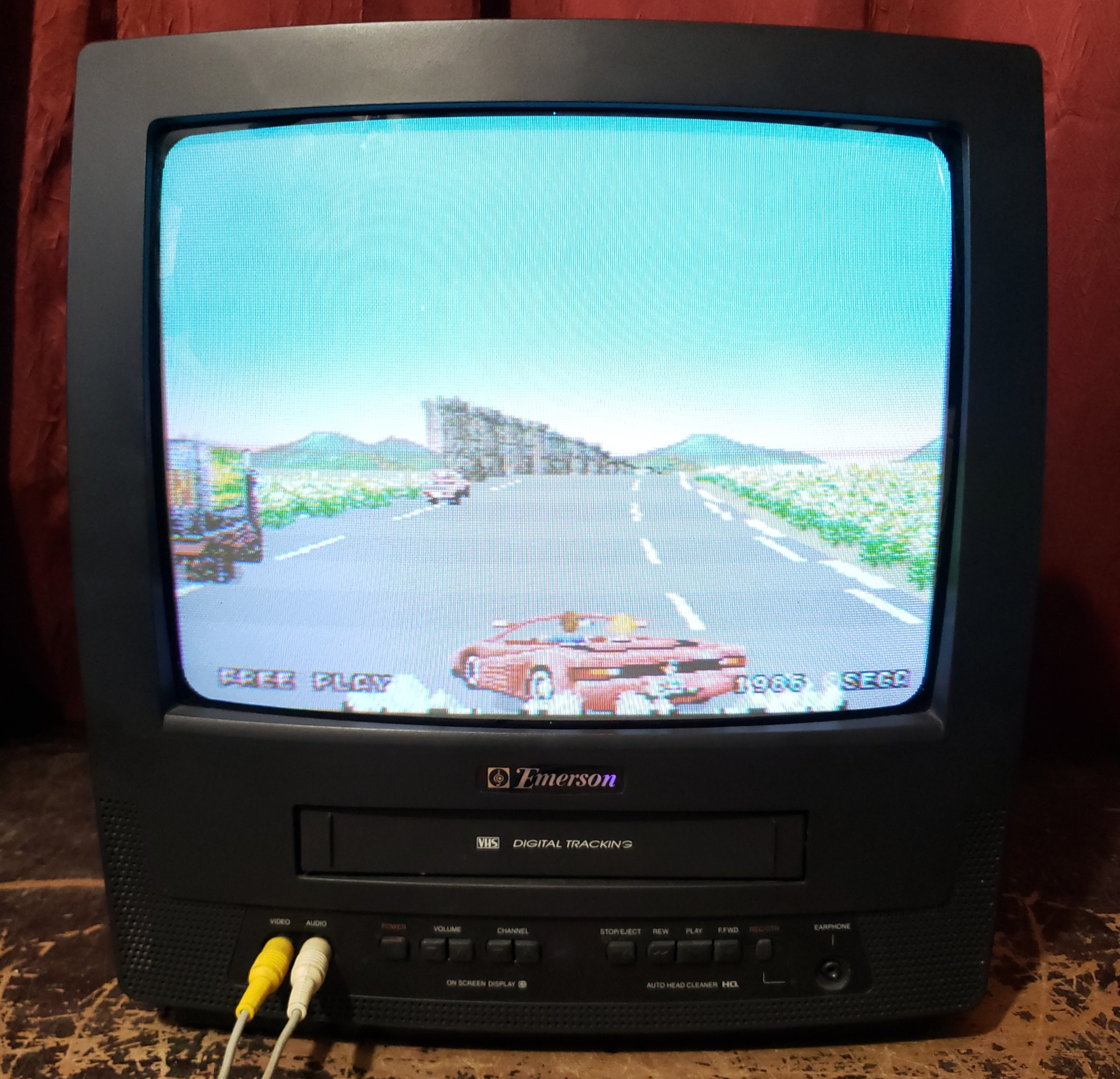

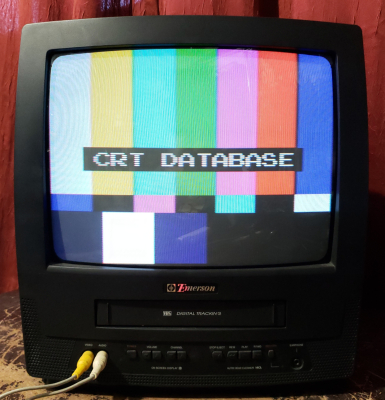

13" TV/VCR combo manufactured by Funai and sold under the Emerson brand. Has composite and RF inputs. TV only has mono audio.
Manuals
Media & Promo Materials
Notes
User menu can be accessed with the channel buttons, and navigated with the VCR buttons. STOP and PLAY move up and down, and F.FWD selects.
Repair Notes

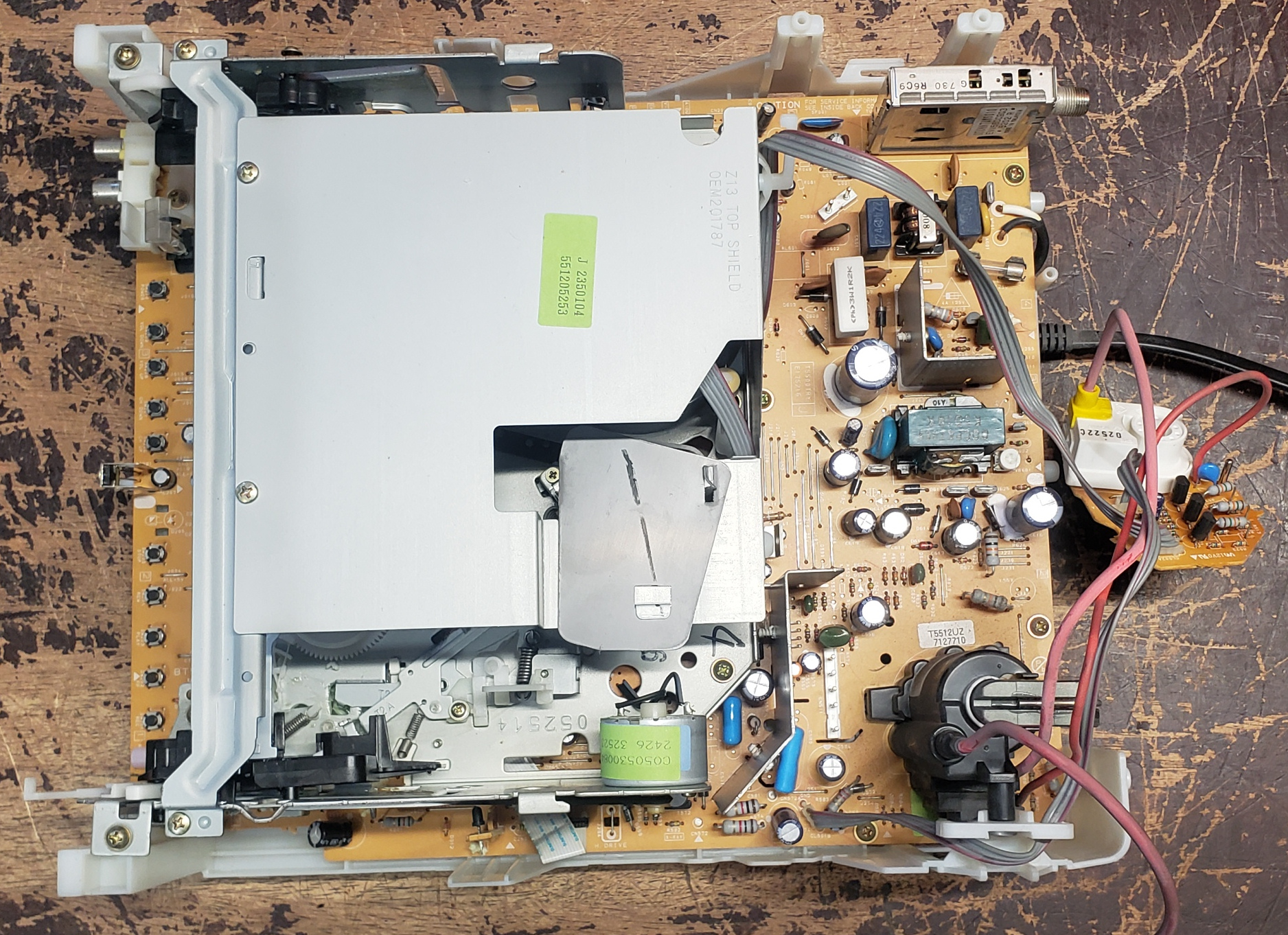

Unit pictured would shut off after a VHS tape was inserted. Spraying the mode switch with QD Contact Cleaner fixed the issue. It was not necessary to disassemble the mode switch mechanism, spraying the outside of the mechanism which is beneath the VCR tray worked.

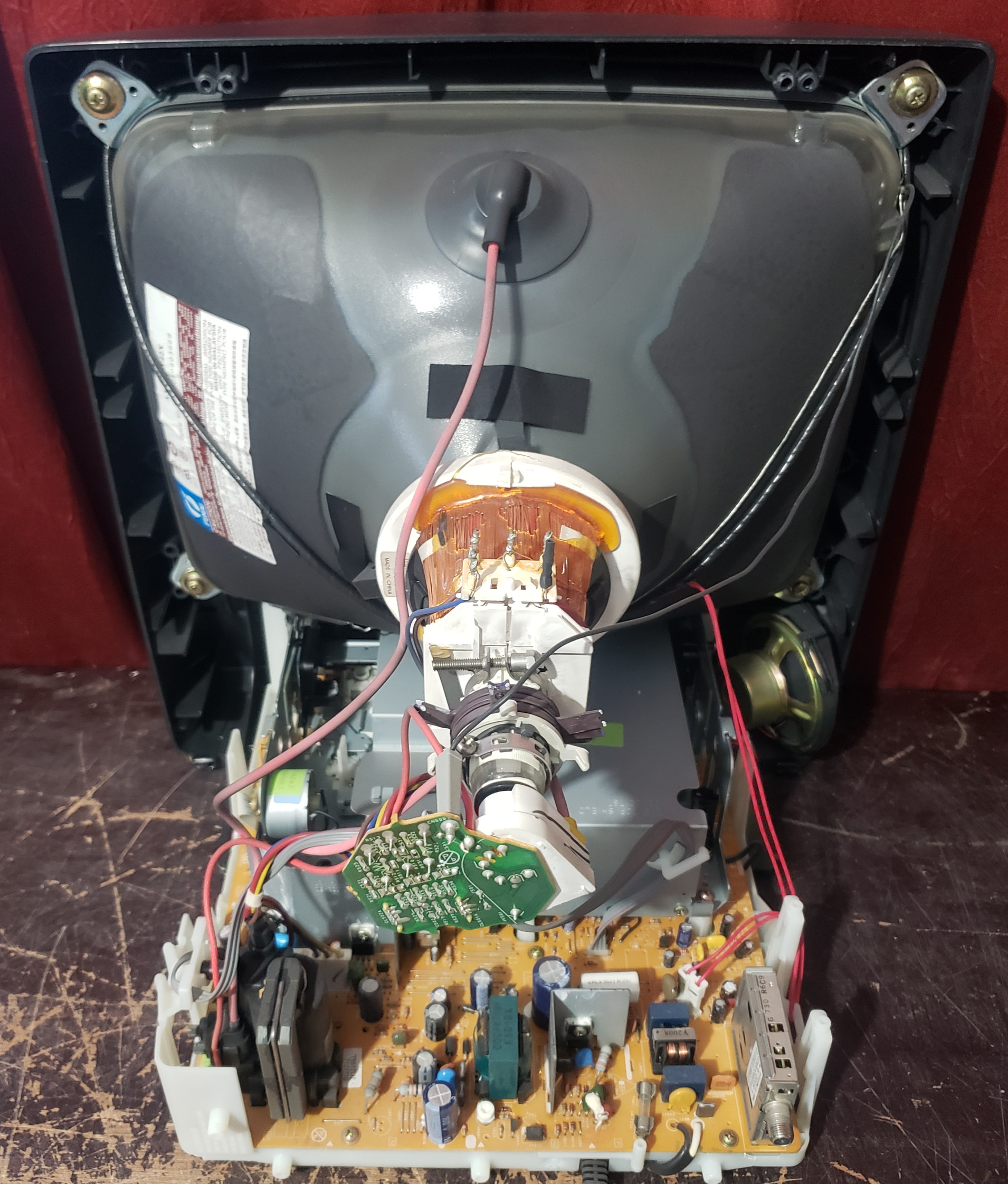

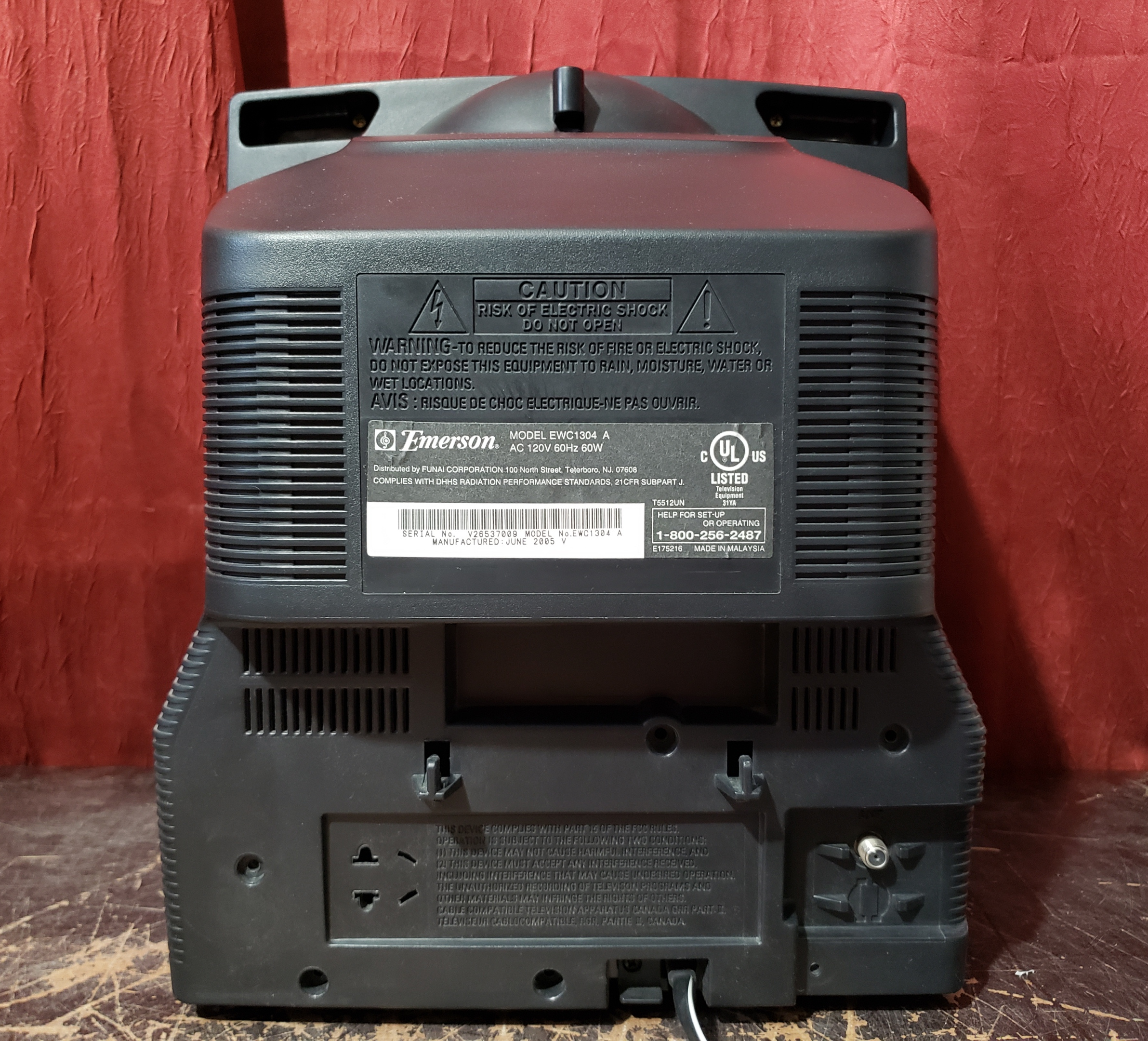

Gallery
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC1304 A |
| Series: | EWC |
| Viewable Size: | 13" |

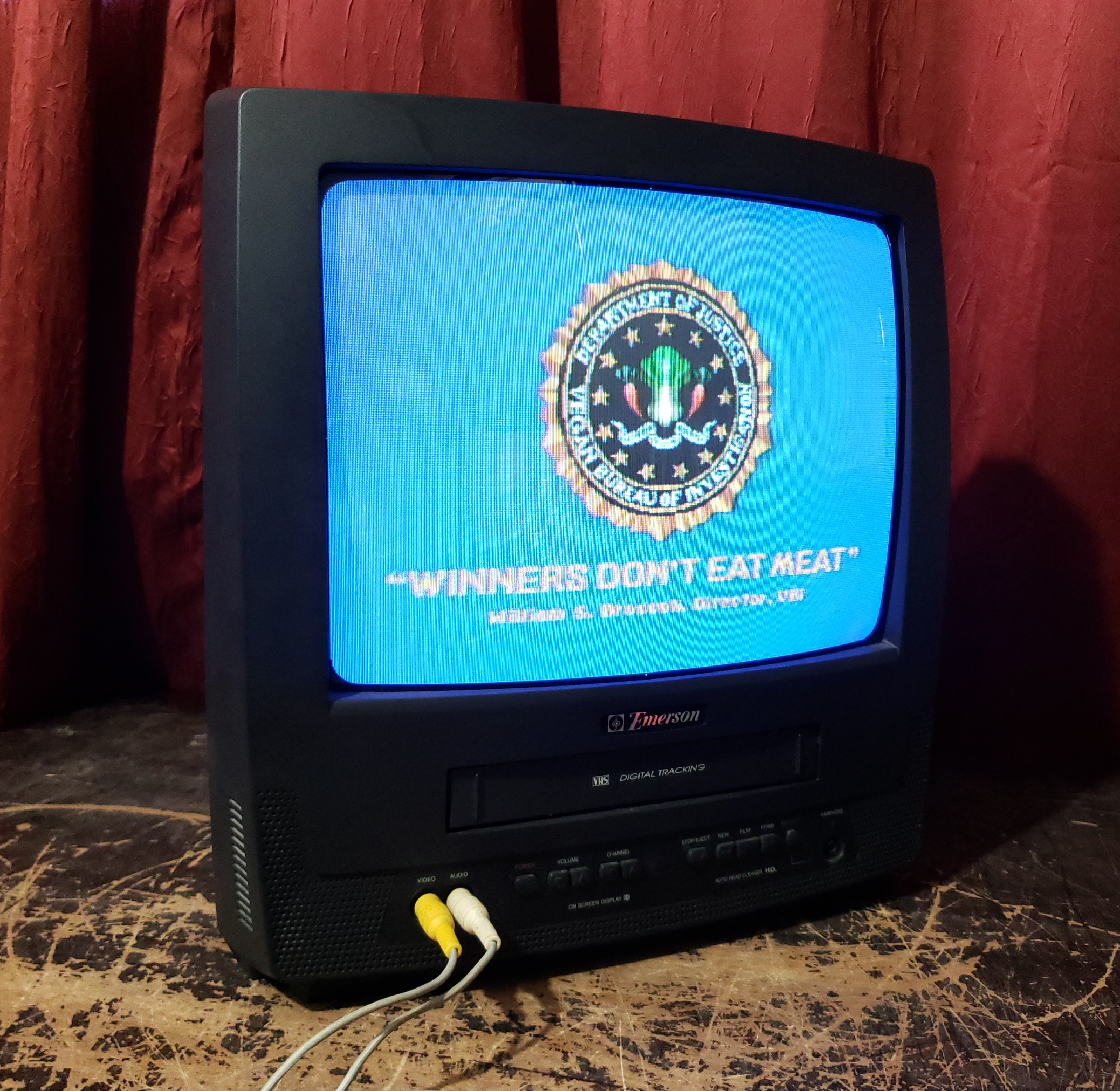

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

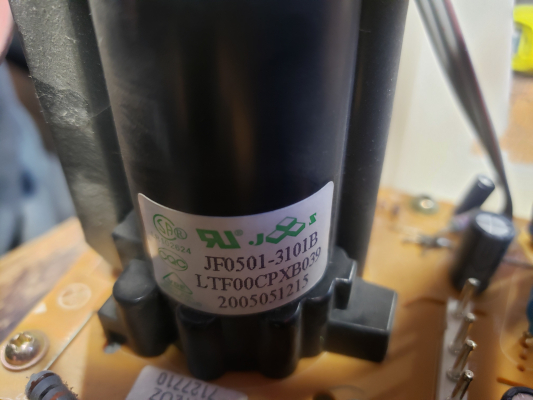

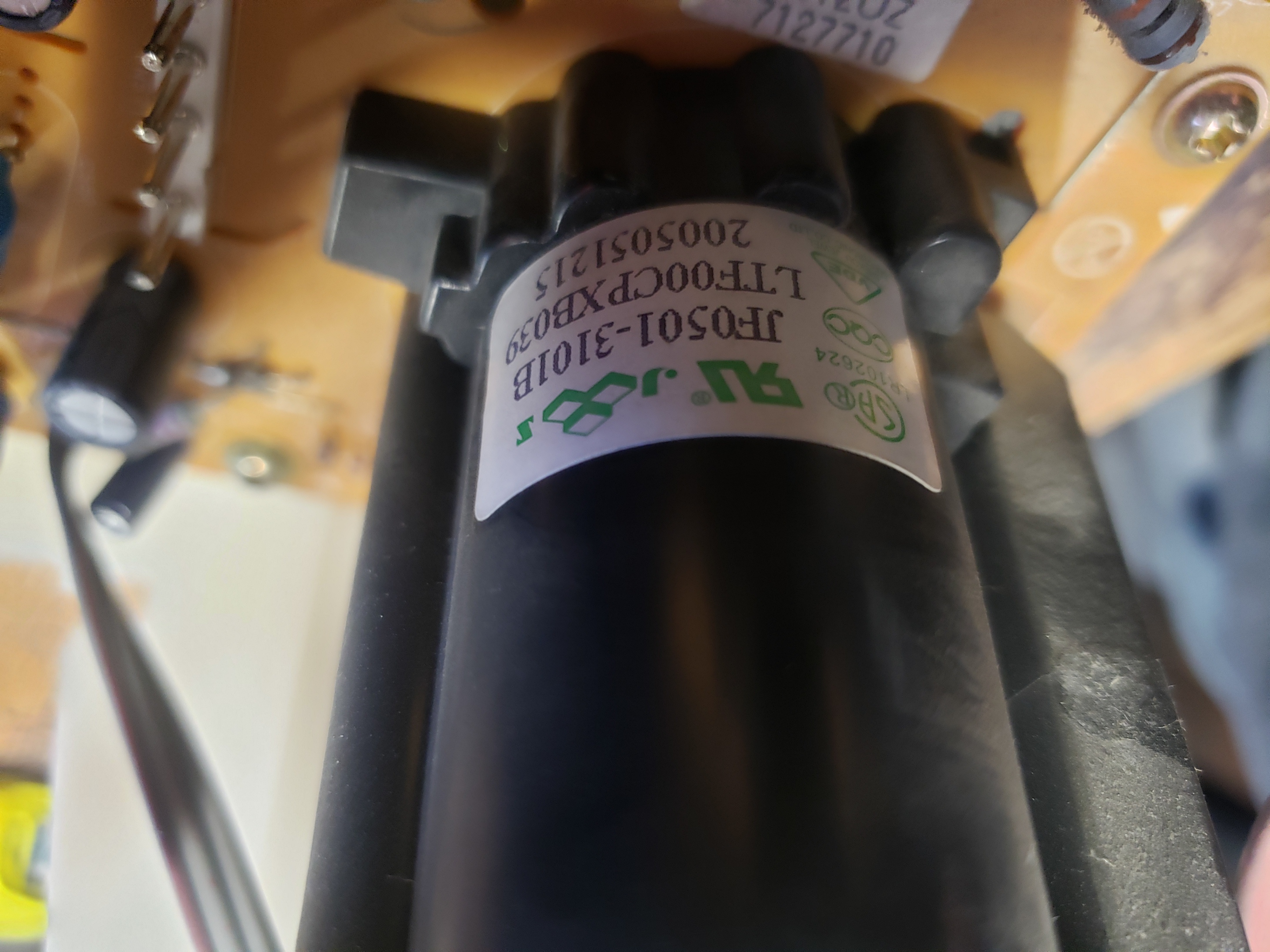

| Flyback: | JF0501-3101B |
| Focus Type: | Single |

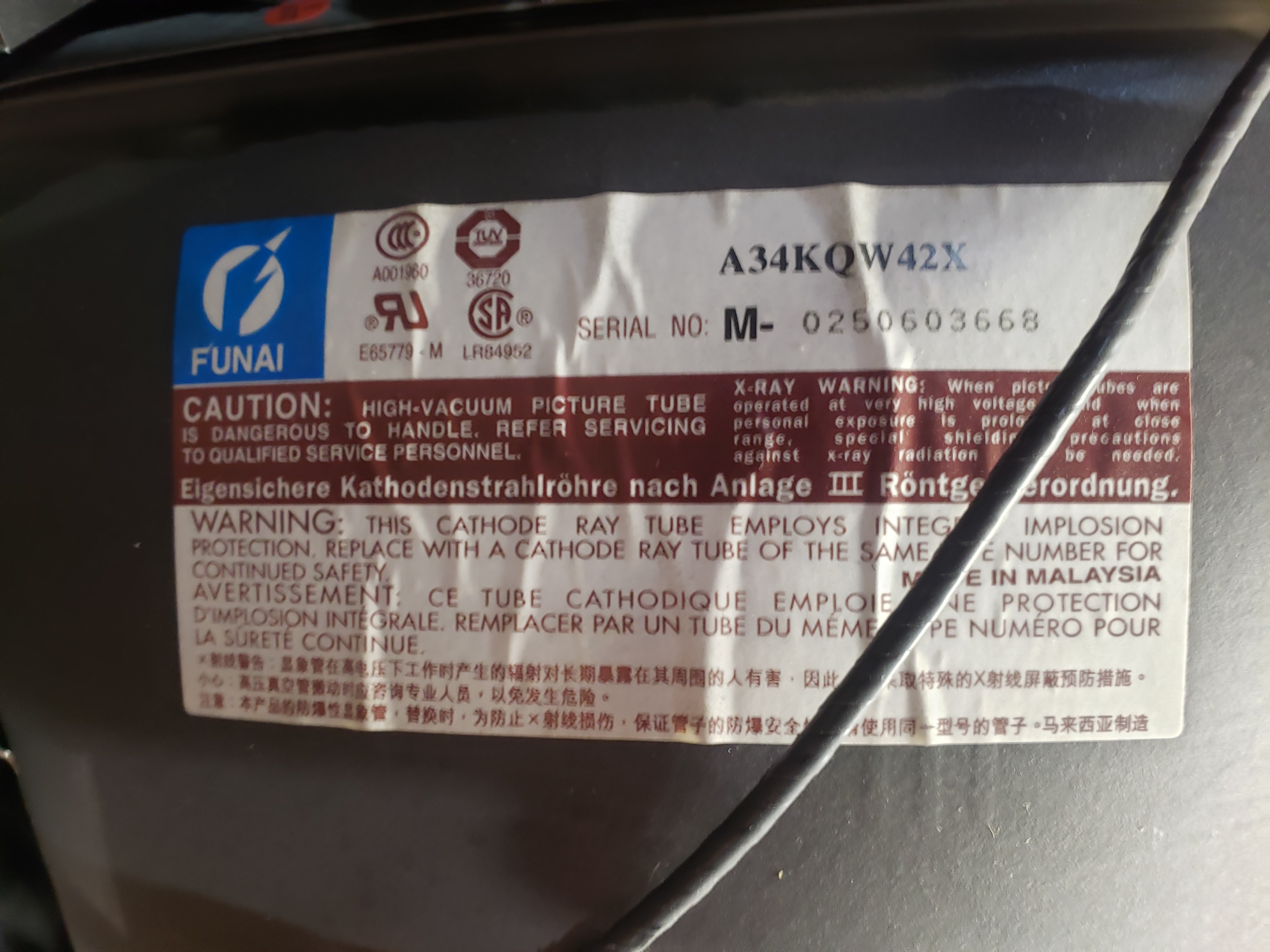

| Tube: | A34KQW42X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

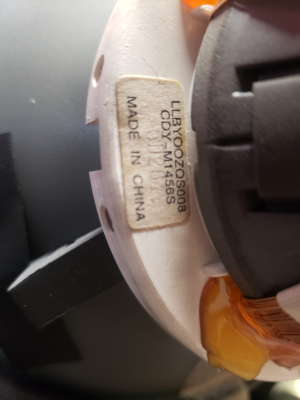

| Yoke: | LLBYOOZQS008 |
| Speakers: | Mono, Headphone Jack |
| Remote: | N0159UD, N0162UD |
| Chassis: | 0ESA05886 |
| Weight: | 23.11 lbs (10.5 kg) |
| Dimensions (W/H/D): |
367 x 389 x 377 mm
(14.4 x 15.3 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 96 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
