Summary

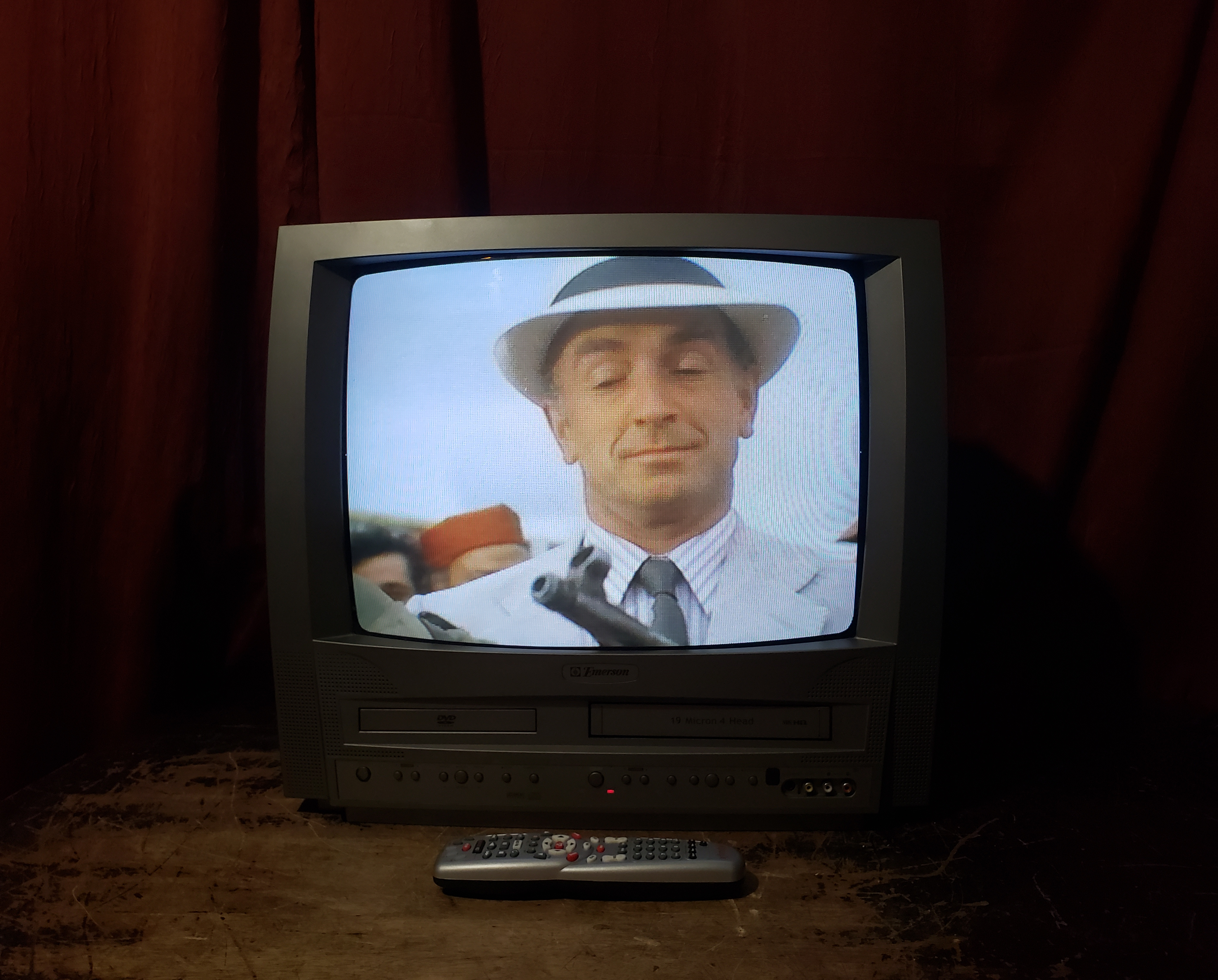

Combining a Television, DVD player, and a VCR all in one compact unit, TV / VCR / DVD Combos from Emerson are great space-savers. Also, combo units eliminate pesky wires which makes setup a breeze. And best of all, all the functions can be controlled by one remote, from one menu. 19" Television with DVD Video Player/CD Audio Player and 4-Head HiFi VCR.
Manuals
Media & Promo Materials
Notes

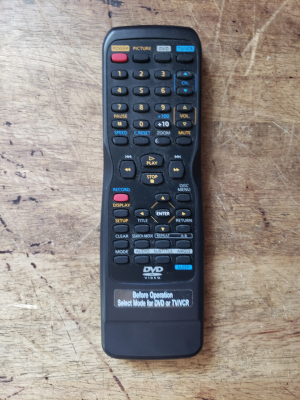

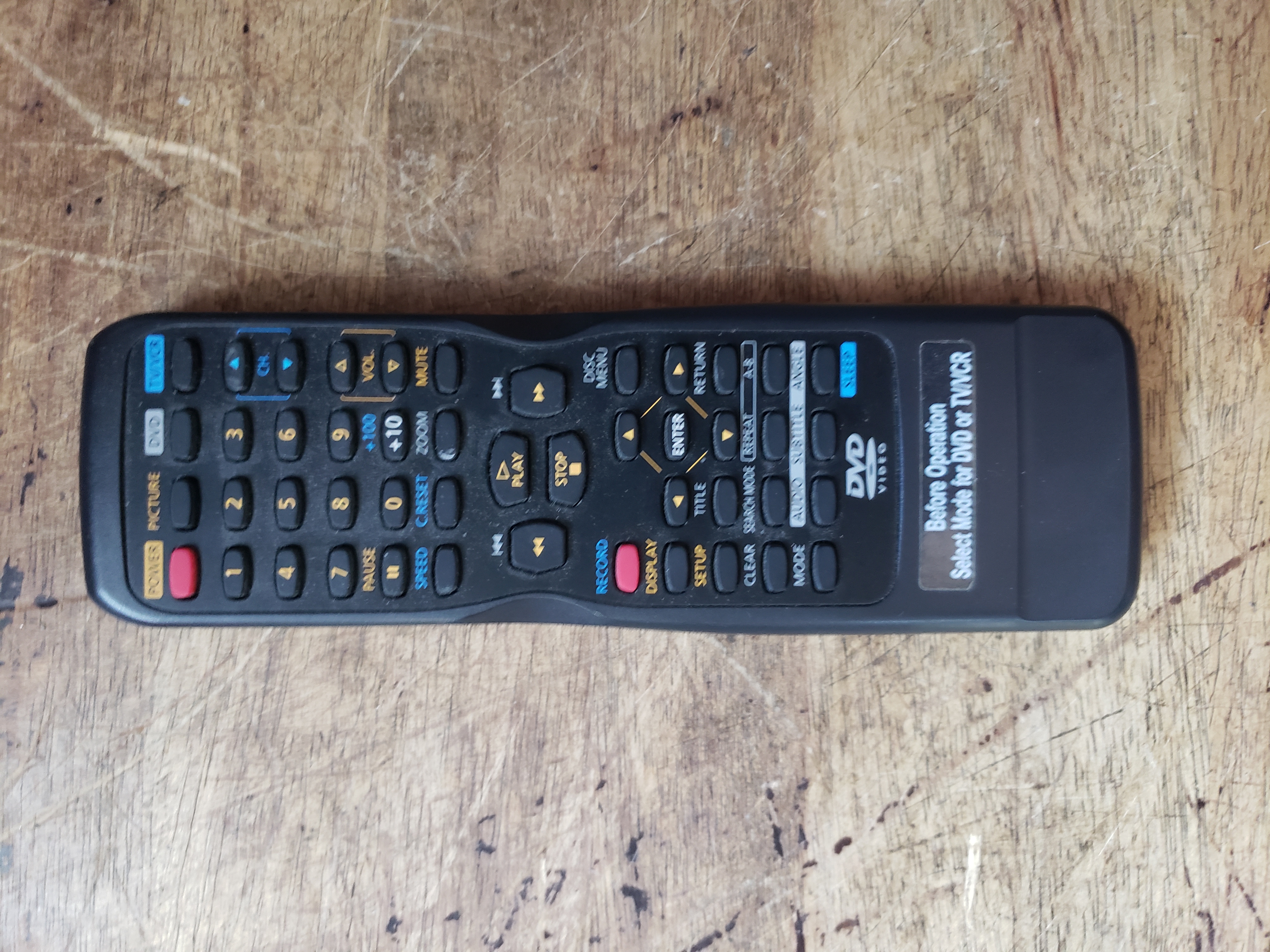

The Xfinity remote pictured is not the original remote, but it was able to be programmed to control most functions with code 11963. But a remote with a dedicated 'Picture' button is still needed to adjust picture settings.
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWC19T5 |
| Series: | EWC |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

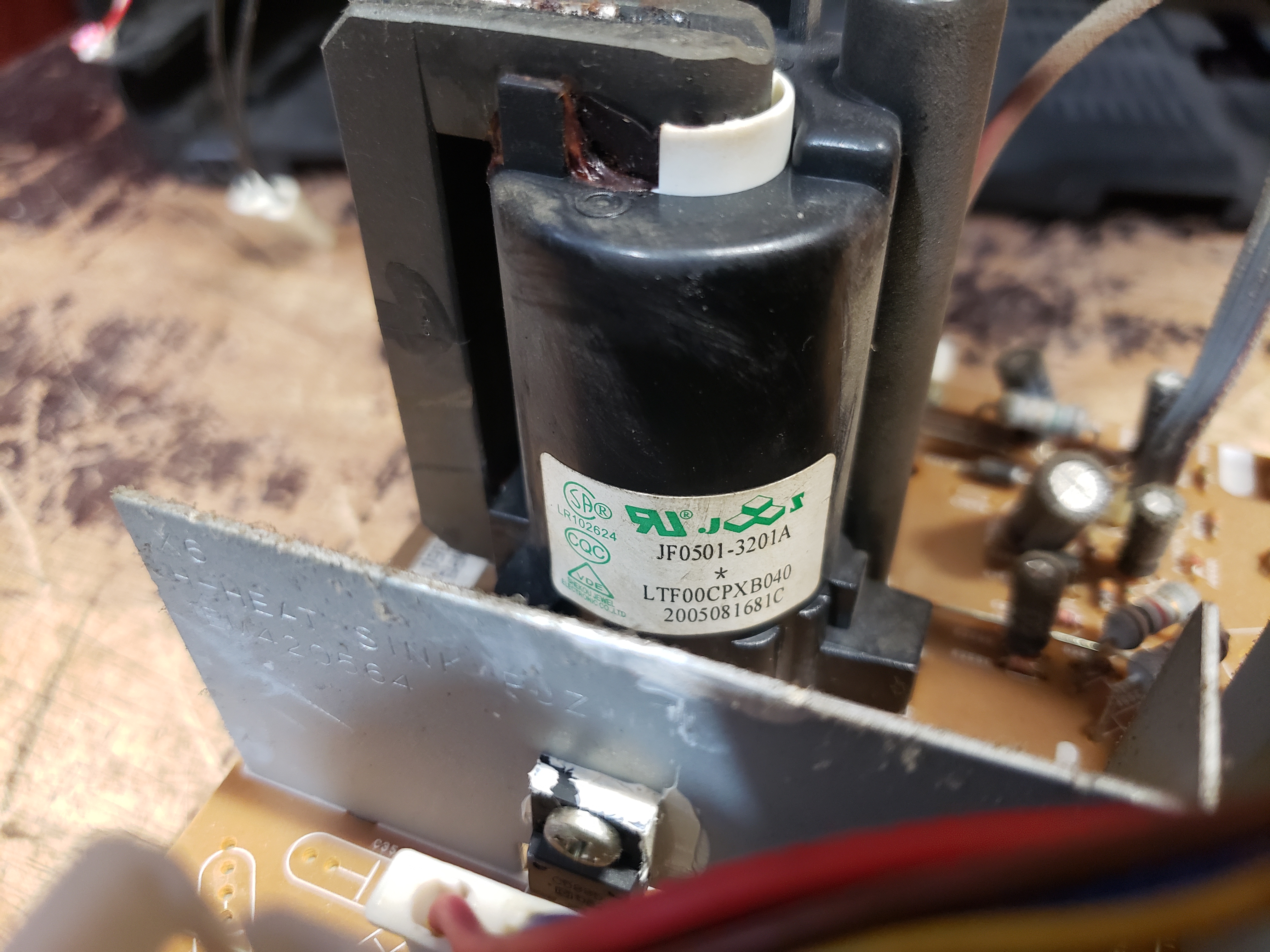

| Flyback: | JF0501-3201A, LTF00CPXB040 |
| Focus Type: | Single |

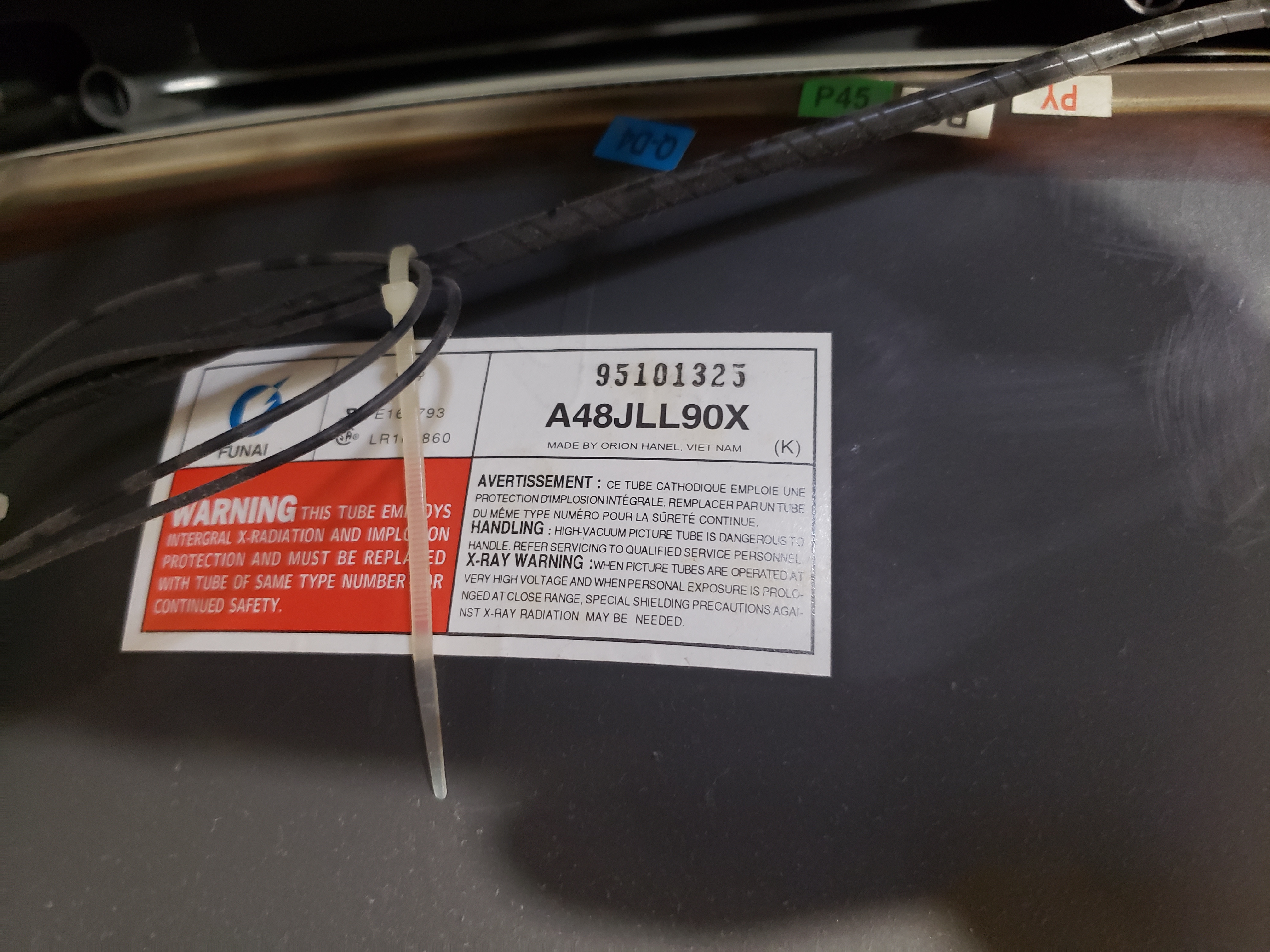

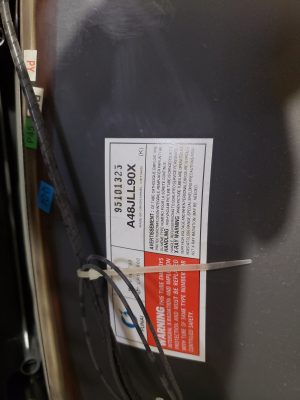

| Tube: | A48JLL90X , Orion Hanel |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | LLBYOOZMS016, 330P510 |
| Yoke Horz. Inductance: | 2.131 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.51 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.848 ohm |
| Yoke Vert. Resistance: | 15.06 ohm |
| Speakers: | Stereo, Headphone Jack, 1W x 2 |
| Remote: | NE211UD |
| Chassis: | T0151UB |
| Weight: | 45.2 lbs (20.5 kg) |
| Dimensions (W/H/D): |
556 x 500 x 477 mm
(21.9 x 19.7 x 18.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Tag: | Needs Yoke Info, Needs IC Info |
