Emerson EWC20D5
Eli Krause
October 20, 2025, 11:54 am
October 20, 2025, 2:05 pm
October 20, 2025, 11:54 am
October 20, 2025, 2:05 pm
Summary
20-inch Flat-Screen Combo DVD player/TV. Built-in DVD player features DVD, CD, CD-R, and CD-RW playback. Virtual surround sound. Front A/V input jacks.
Made by Funai and sold at Wal-Mart.
Manuals
Notes
The channel buttons allow for switching between the inputs and the DVD player. Requires a compatible remote with a "Picture" button in order to access picture settings.
The DVD player is connected to the jungle chip using Y/C, which could be modded with a switch to add an S-Video input.

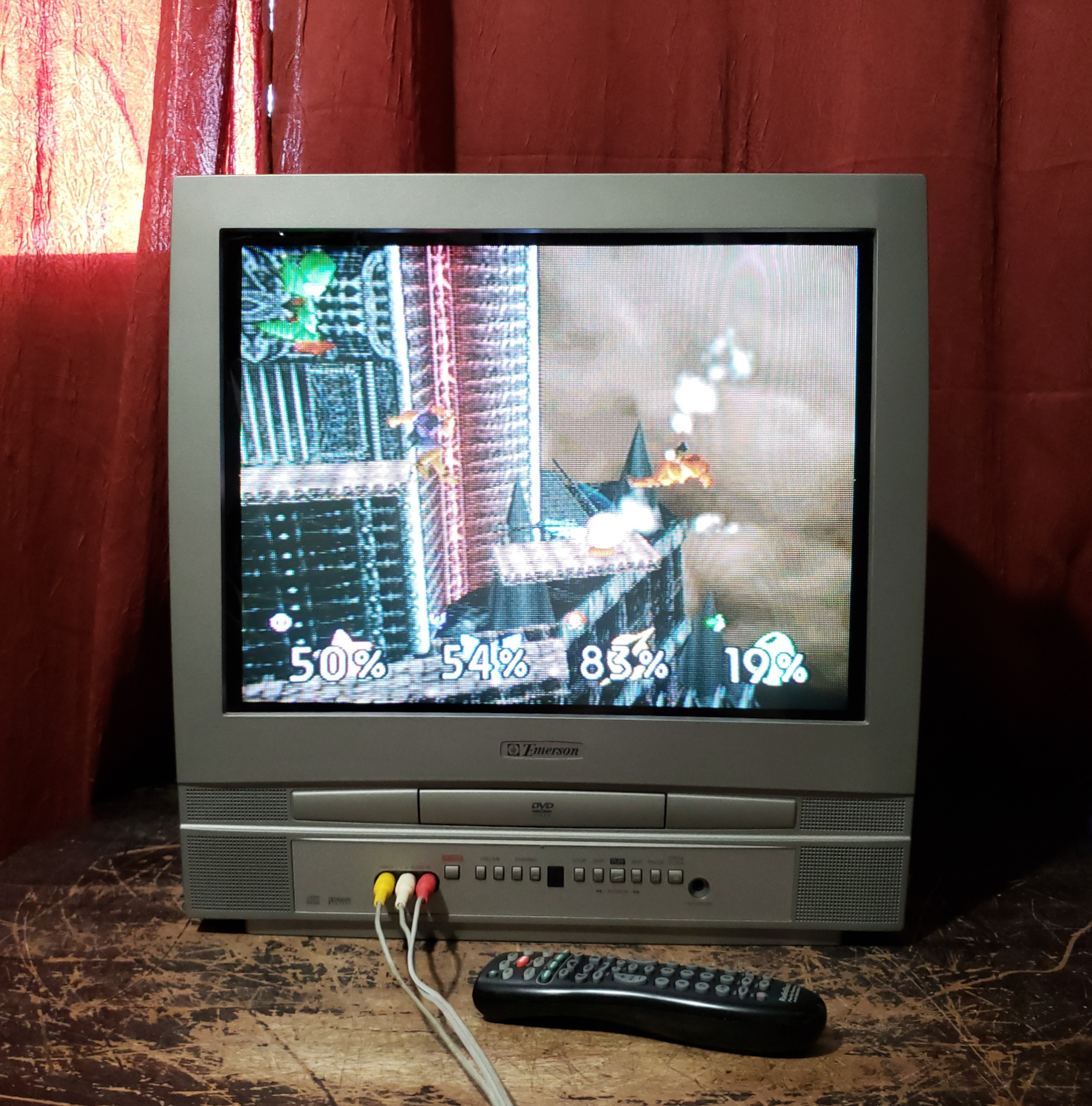

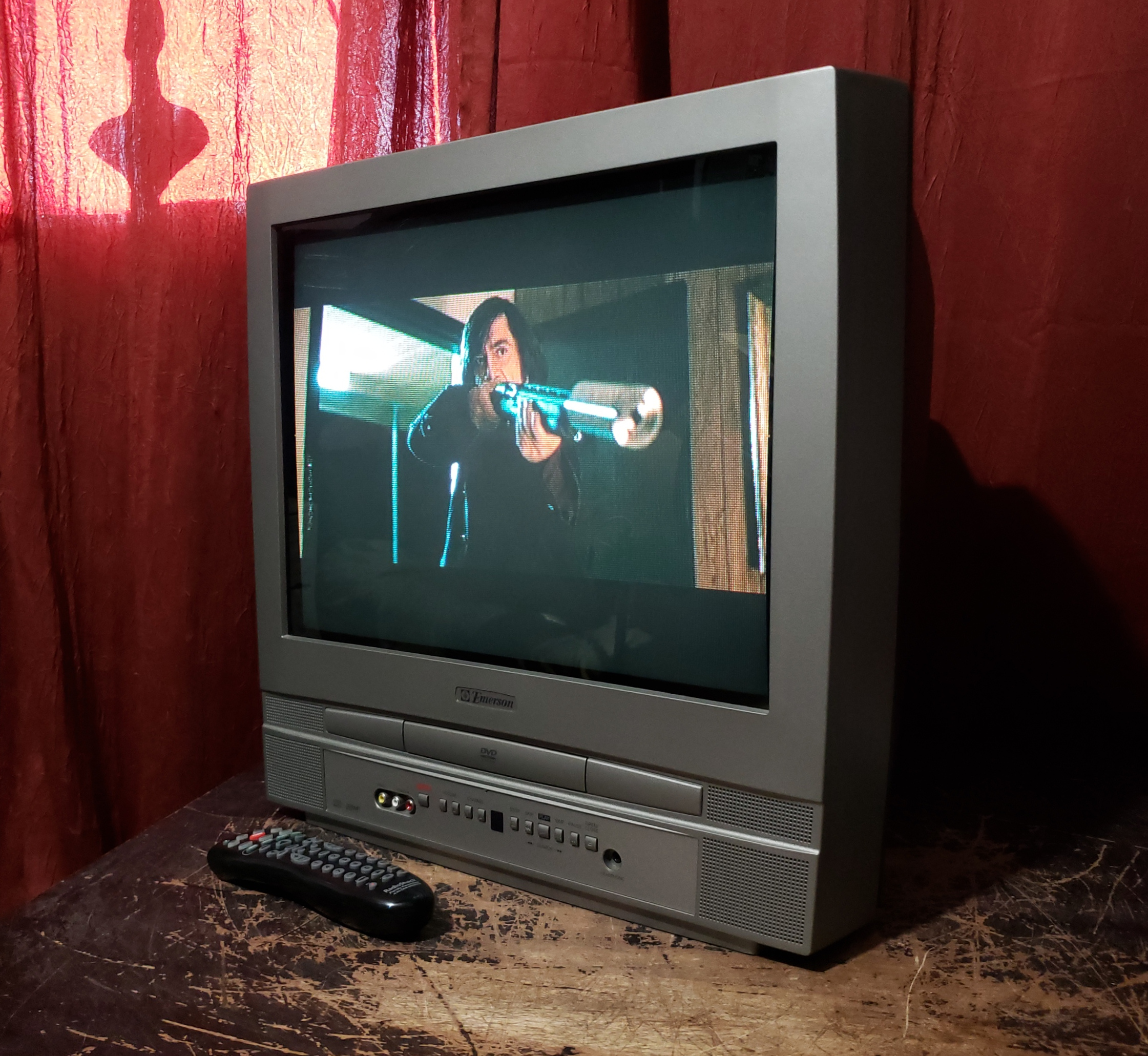

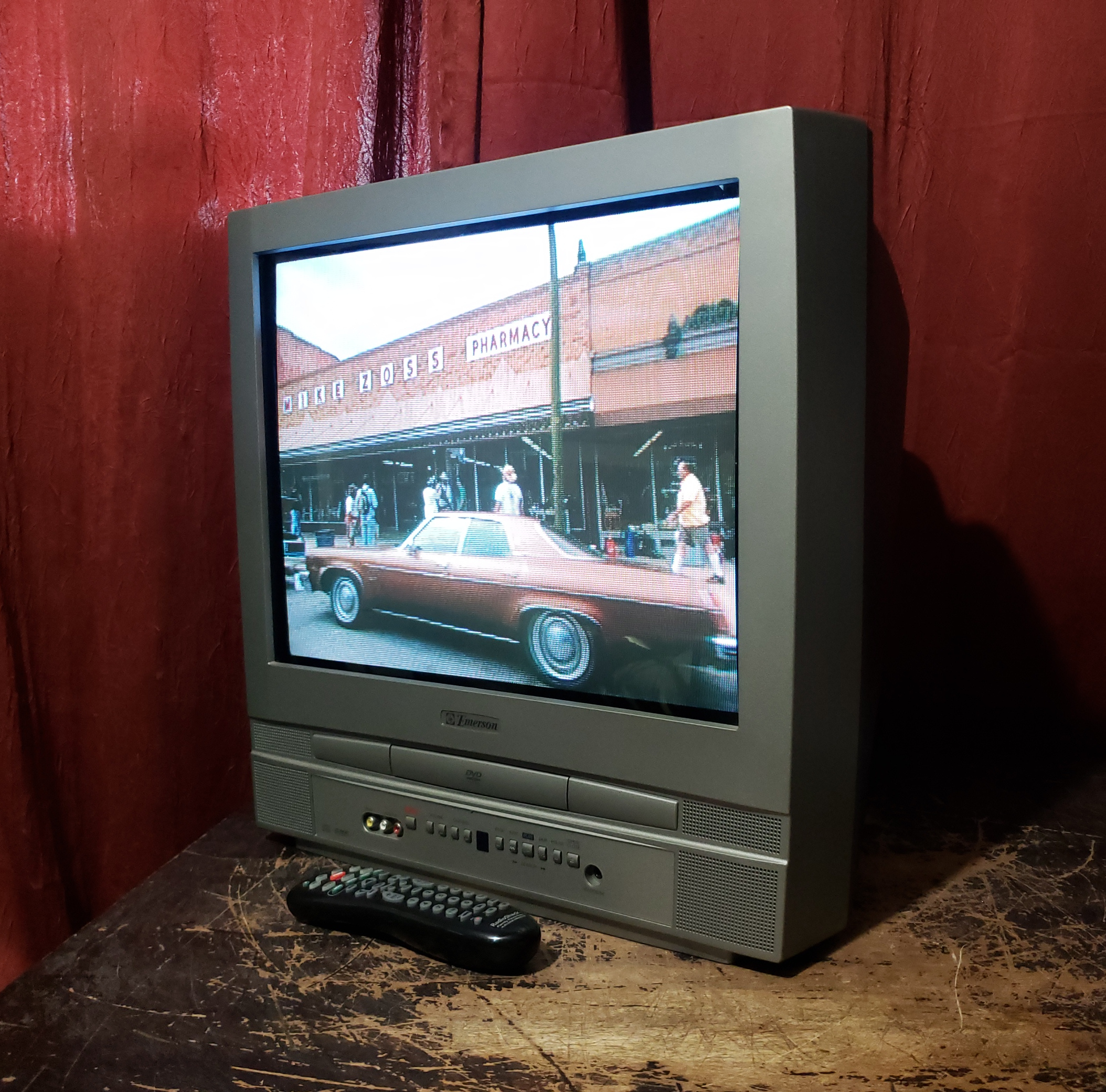

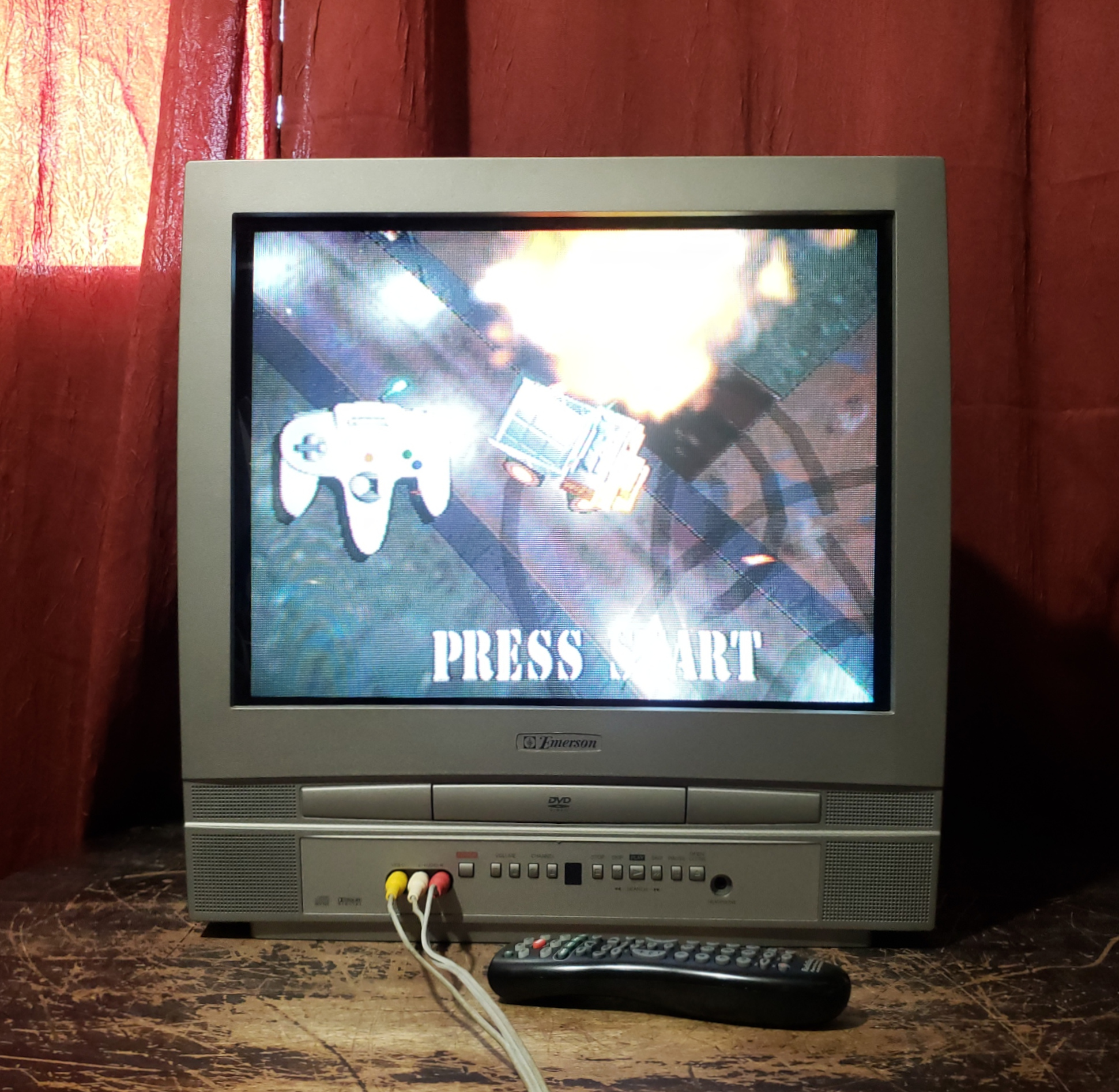

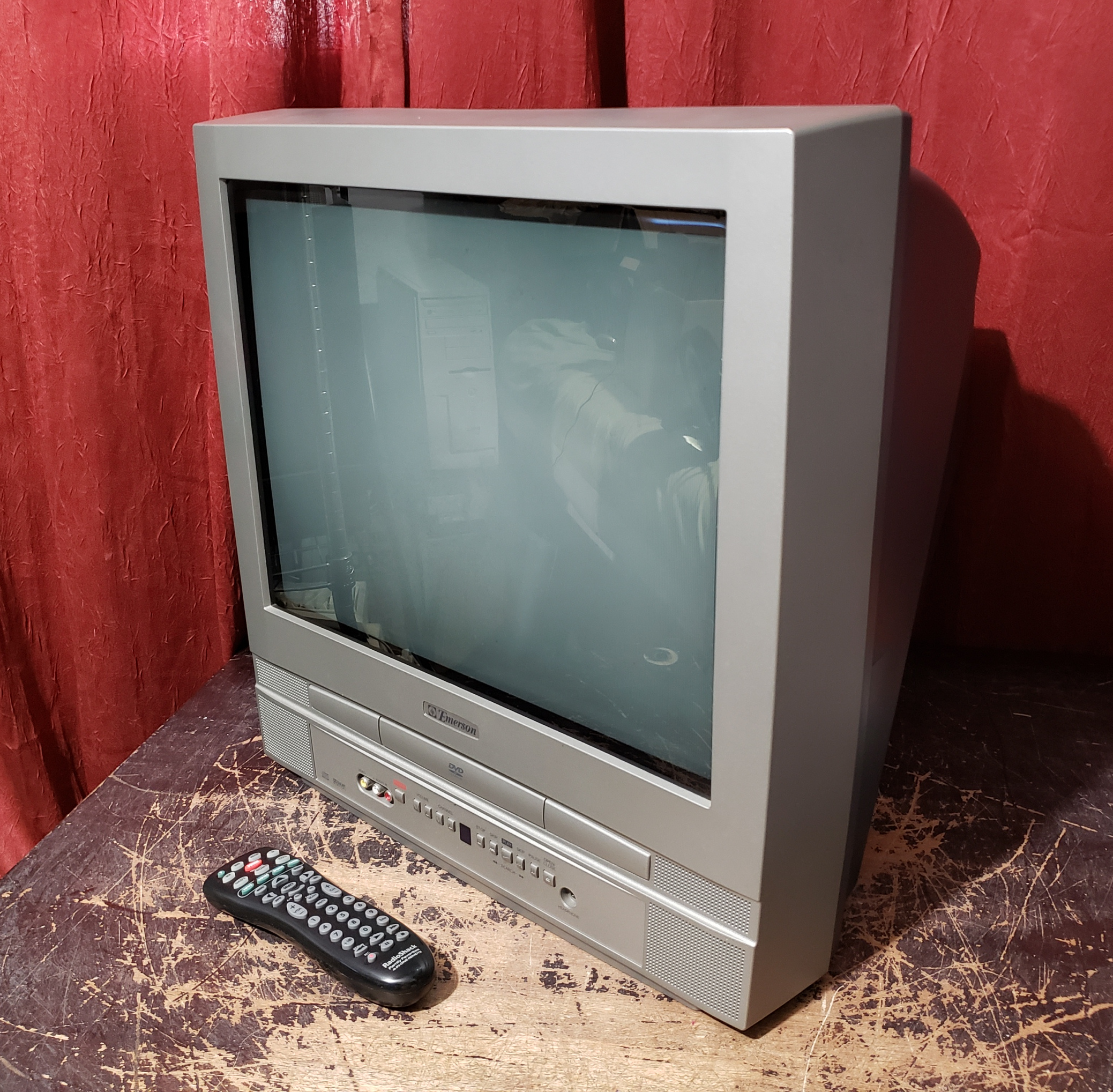

The remote pictured is not the original remote, but was able to be programmed to control both TV and DVD functionality (Radio Shack 4-In-One Family Favorites Remote). But because it does not have a 'Picture' button, the picture settings could not be adjusted.
Gallery









Specifications | |
---|---|

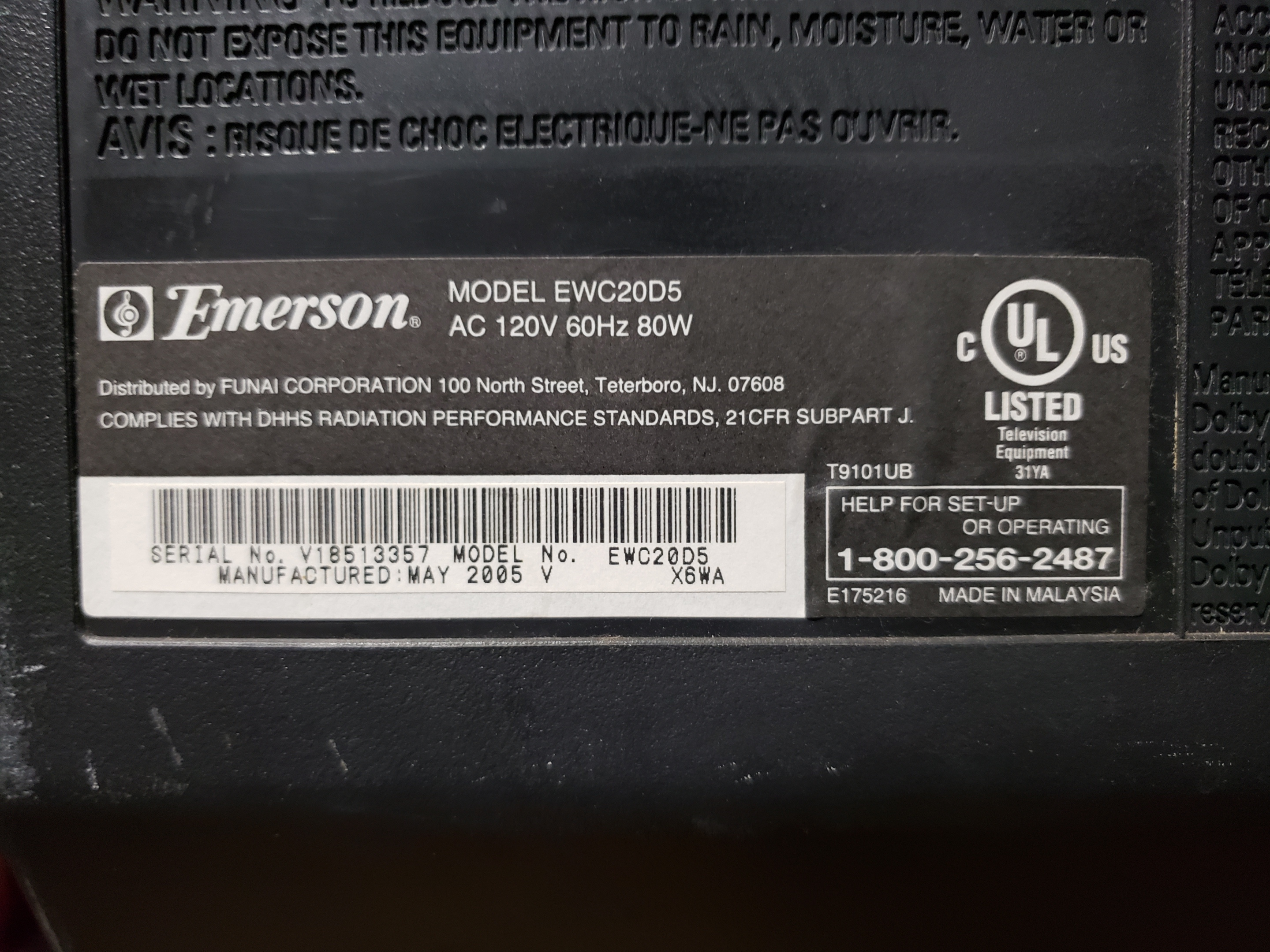

Brand: | Emerson |
Manufacturer: | Funai |
Model: | EWC20D5 |
Series: | EWC |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | TT2140LS-YB11 |
Vertical Output IC: | LA78041 |
Jungle IC: | M61271M8-056FP |
Comb Filtering: | None |
Flyback: | LTF00CPS2030 |
Focus Type: | Single |
Tube: | A51MAJ196X |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Yoke: | LLBY00ZSY010 |
Speakers: | Stereo, 1W x 2 |
Remote: | NE208UD |
Chassis: | TD810UA |
Weight: | 46.3 lbs (21 kg) |
Dimensions (W/H/D): |
512 x 514 x 503 mm
(20.1 x 20.2 x 19.8") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2005 |
MSRP: | 159 USD |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
Tag: | Needs Yoke Info |
