Summary

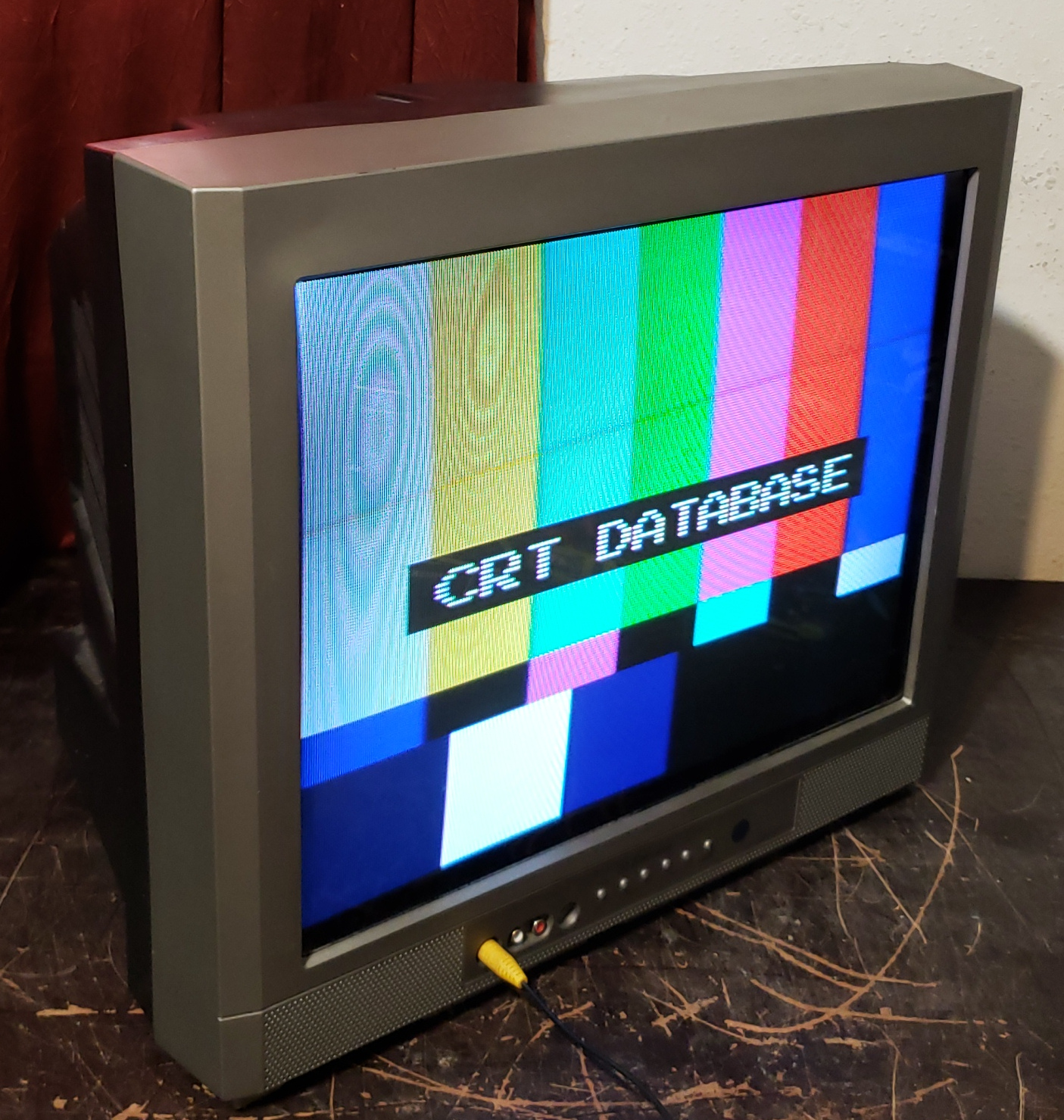

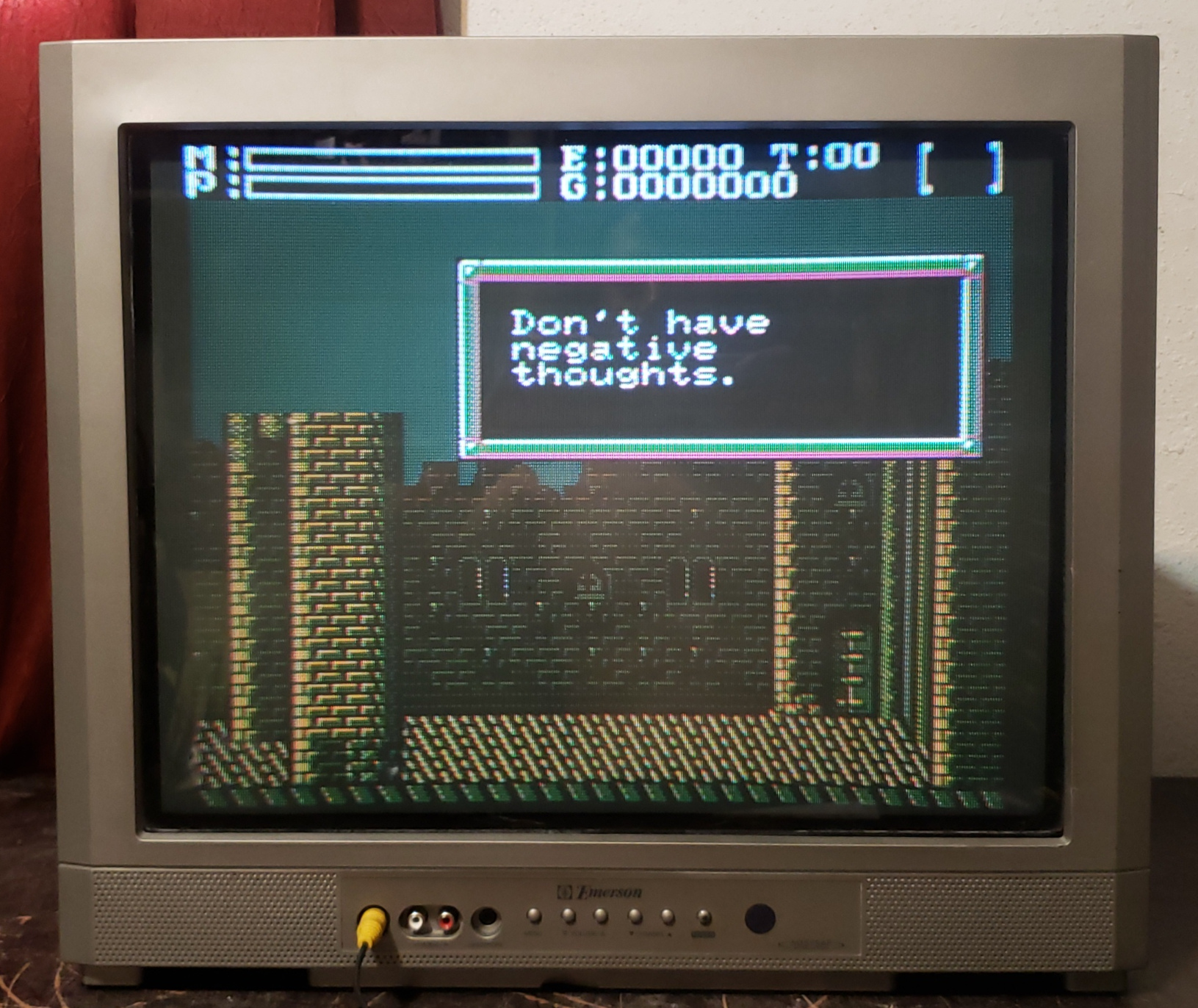

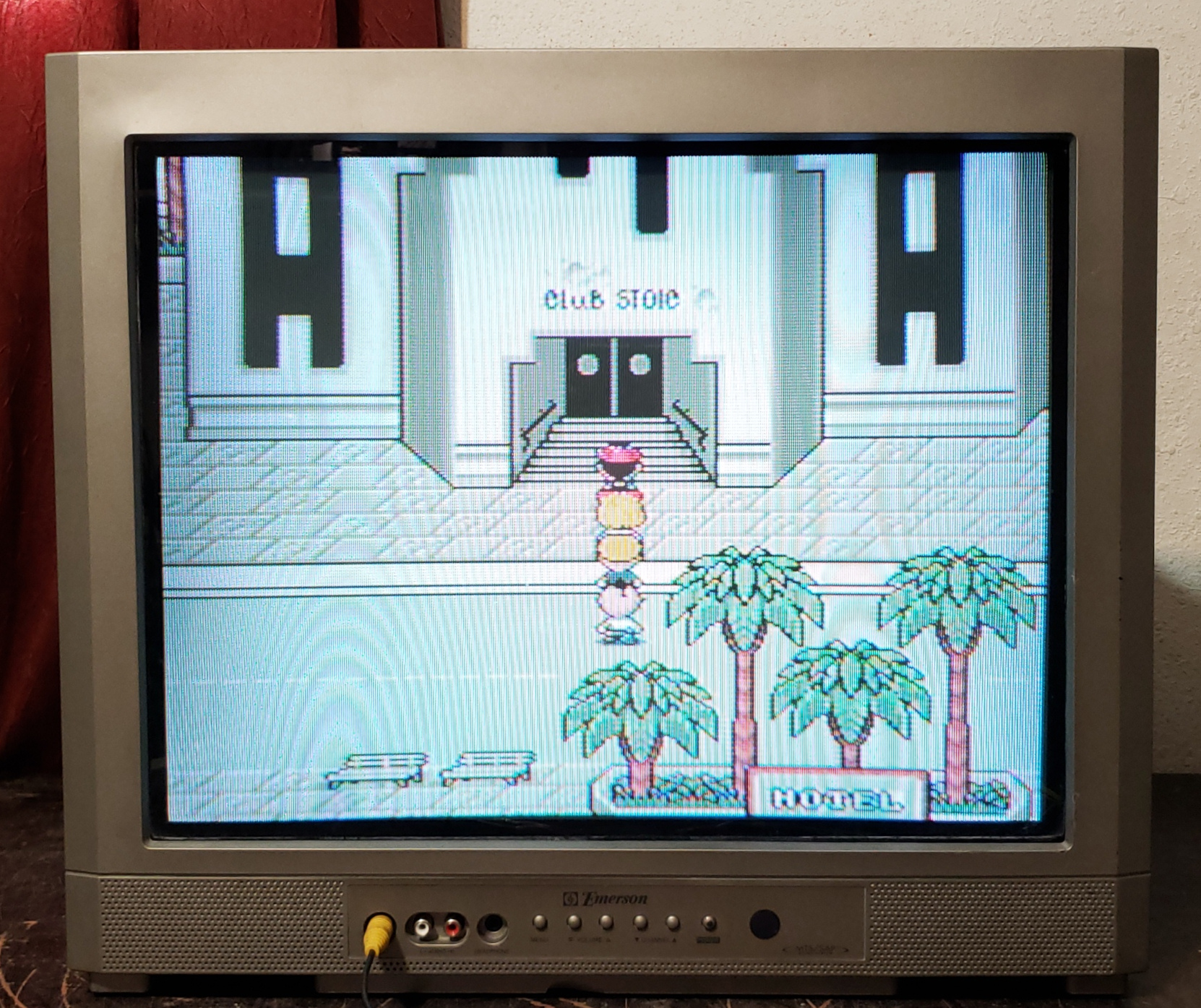

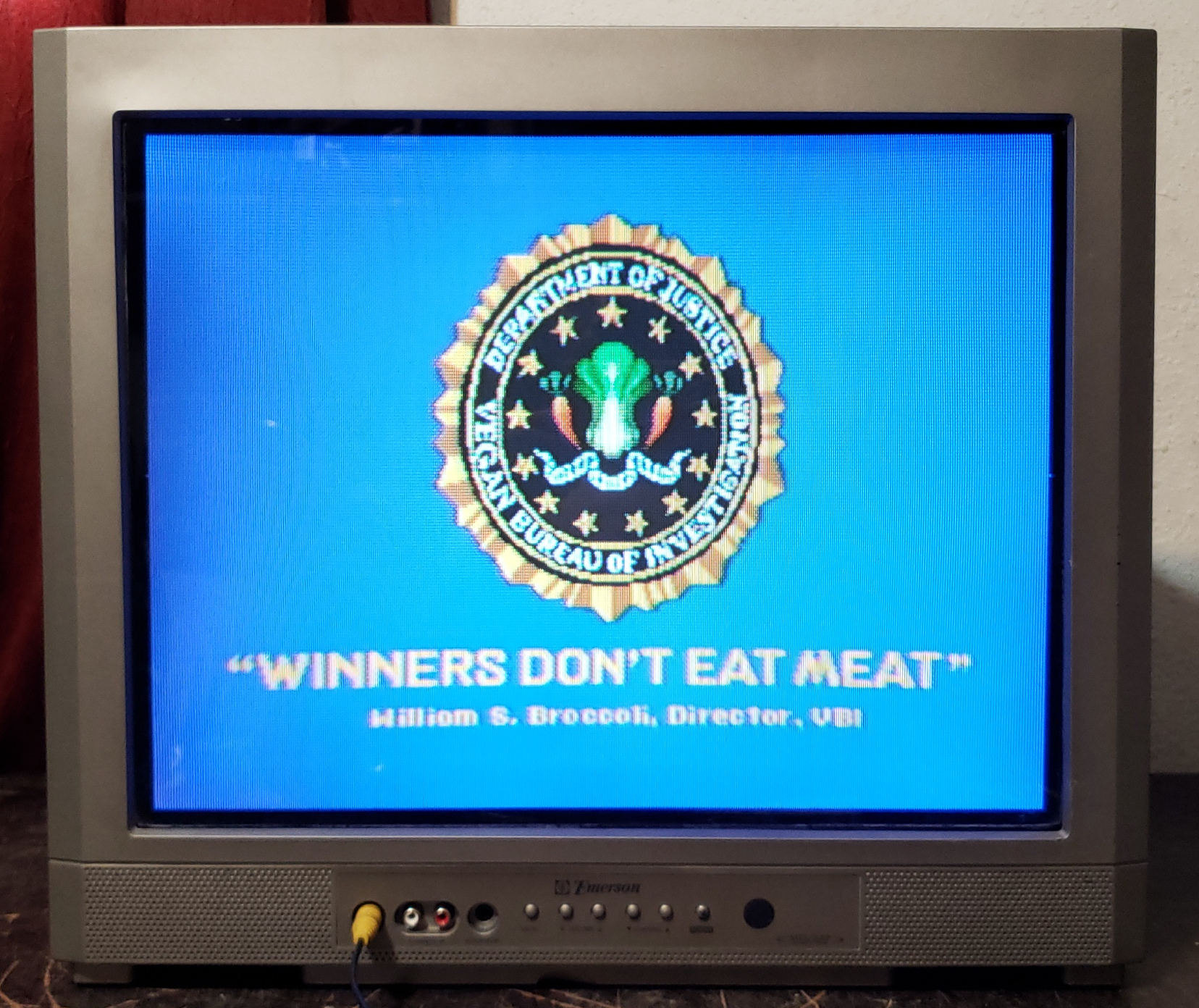

Emerson's 20-inch, flat-screen EWF2004 is stylish, compact, and affordable. It offers stereo speakers, front audio/video inputs for your camcorder or game console, and a rear-panel S-video connection for your DVD player or DVR. A convenient front-panel menu button simplifies setup even if you misplace the remote control.
Manuals
- User Manual
- Service Manual for the similar EWF2004
Media & Promo Materials
- Emerson Product Page for the similar EWF2004
Notes
A remote is needed to switch inputs.
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Funai |
| Model: | EWF2004A |
| Series: | EWF |
| Viewable Size: | 20" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5885000RF |
| Vertical Output IC: | LA78040A |
| Jungle IC: | M61271M8-058FP |
| Comb Filtering: | Notch |

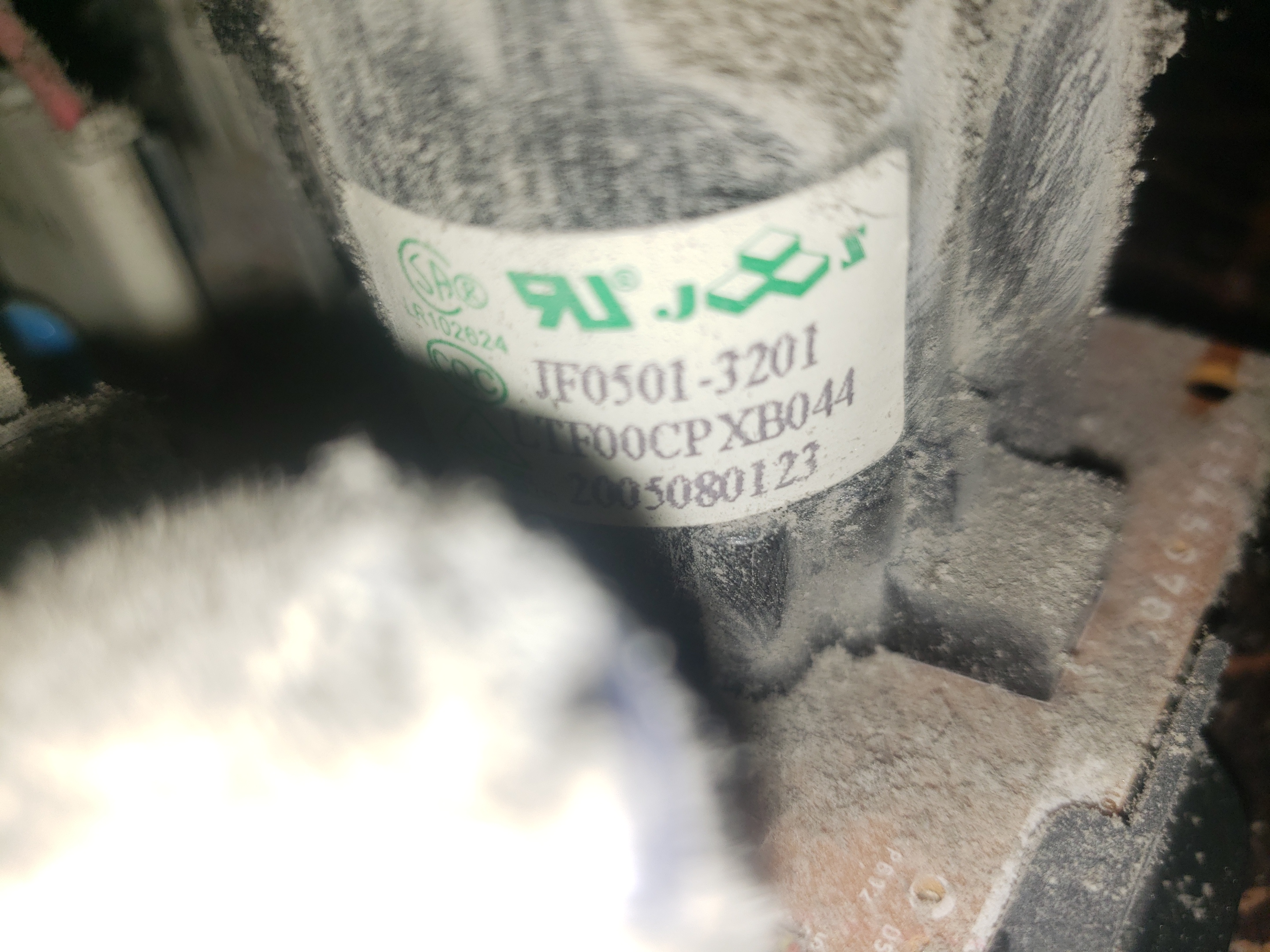

| Flyback: | JF0501-3201 |
| Focus Type: | Single |

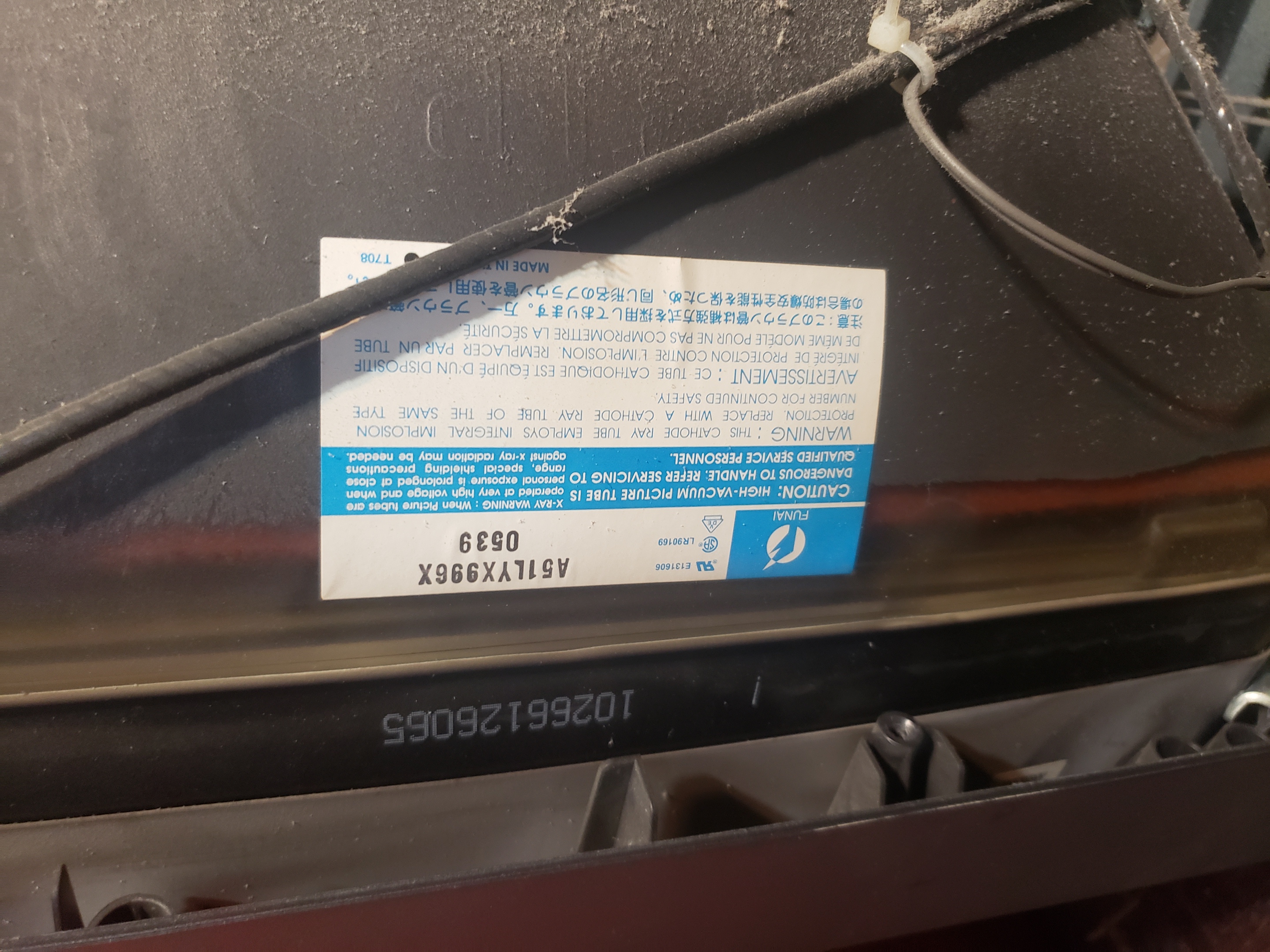

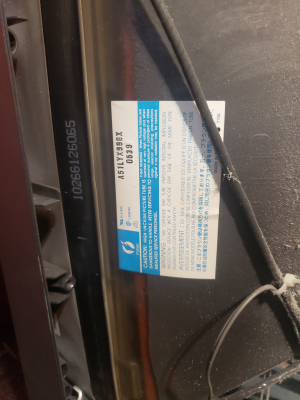

| Tube: | A51LYX996X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

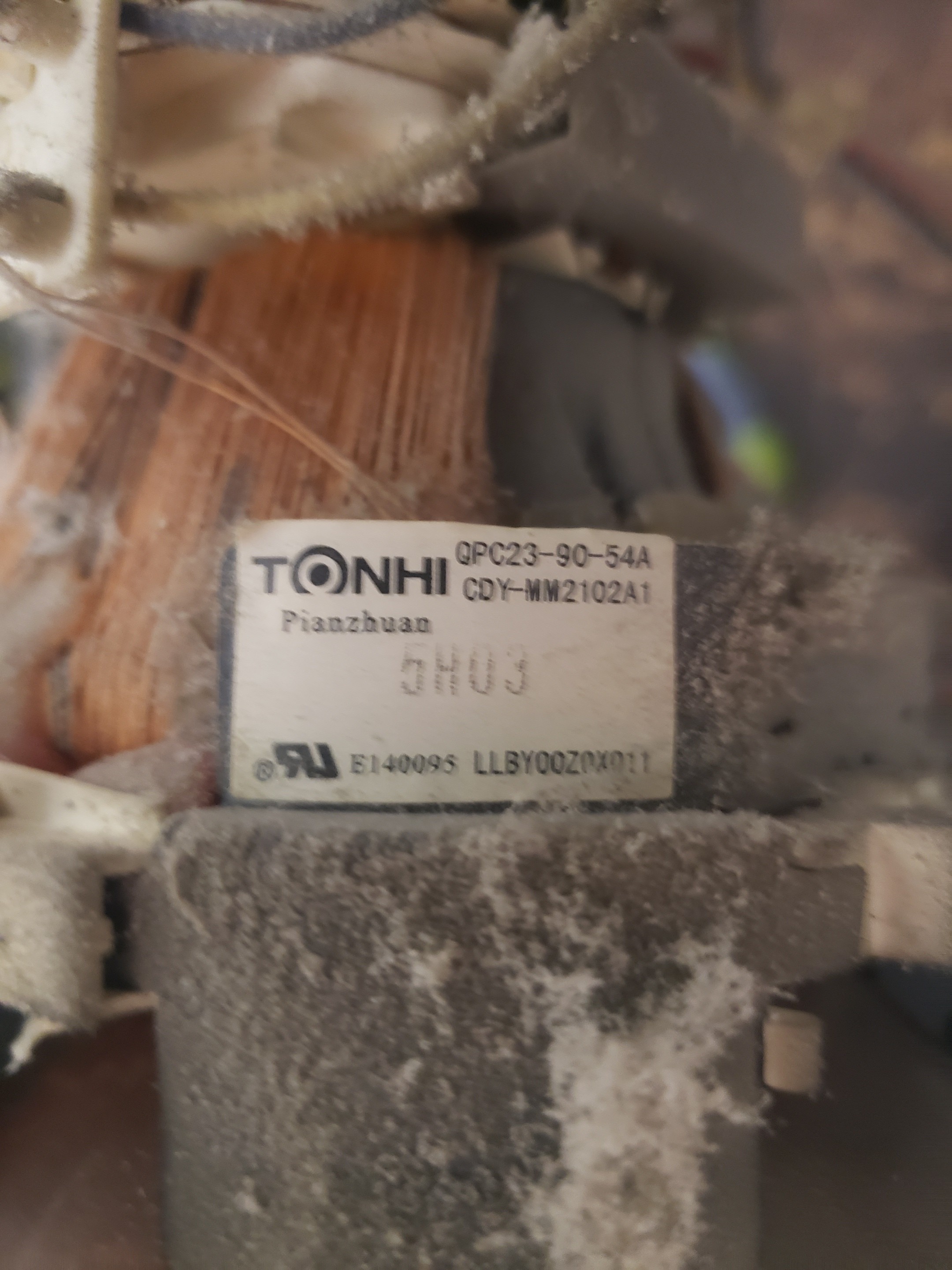

| Yoke: | QPC23-90-54A |
| Yoke Horz. Resistance: | 4.0 ohm |
| Yoke Vert. Resistance: | 16.2 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | NE116UD |
| Weight: | 44.1 lbs (20 kg) |
| Dimensions (W/H/D): |
506 x 435 x 455 mm
(19.9 x 17.1 x 17.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 119 USD |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
