Summary

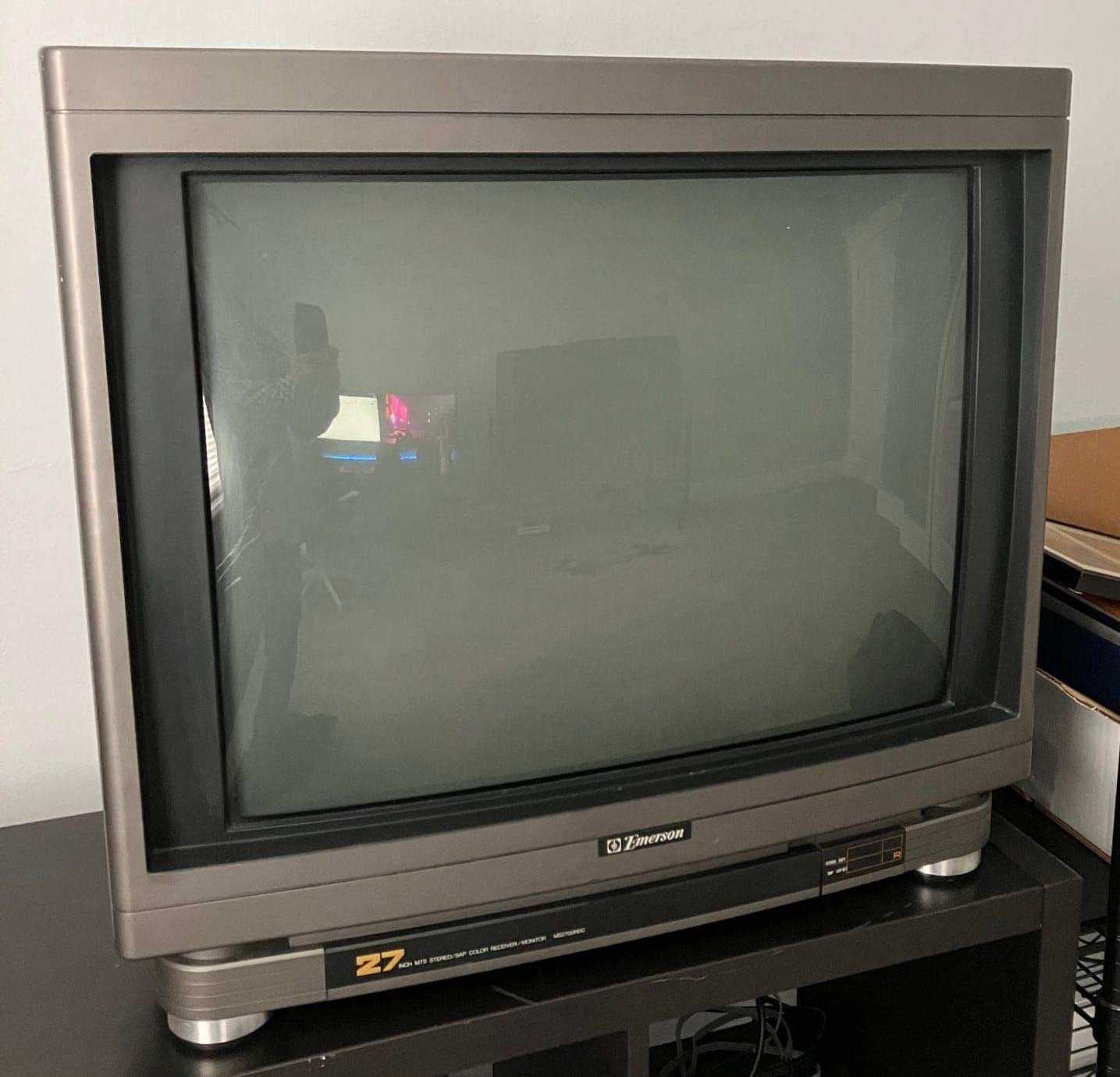

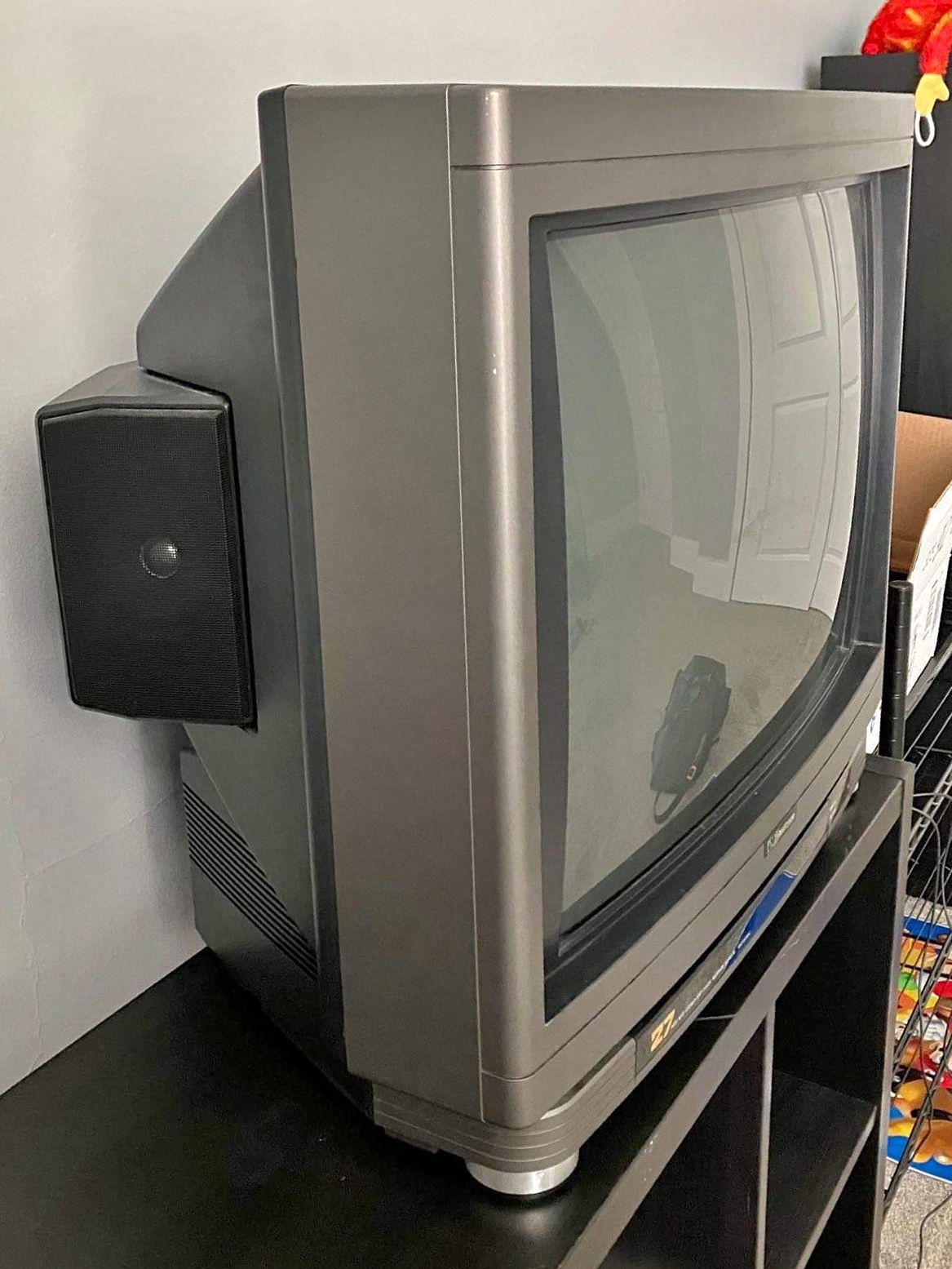

High-end 27" CRT by Emerson from 1988. Has RF, composite, and s-video inputs and high quality stereo speakers. Originally manufactured by Orion in Thailand and assembled with the tube in the USA.

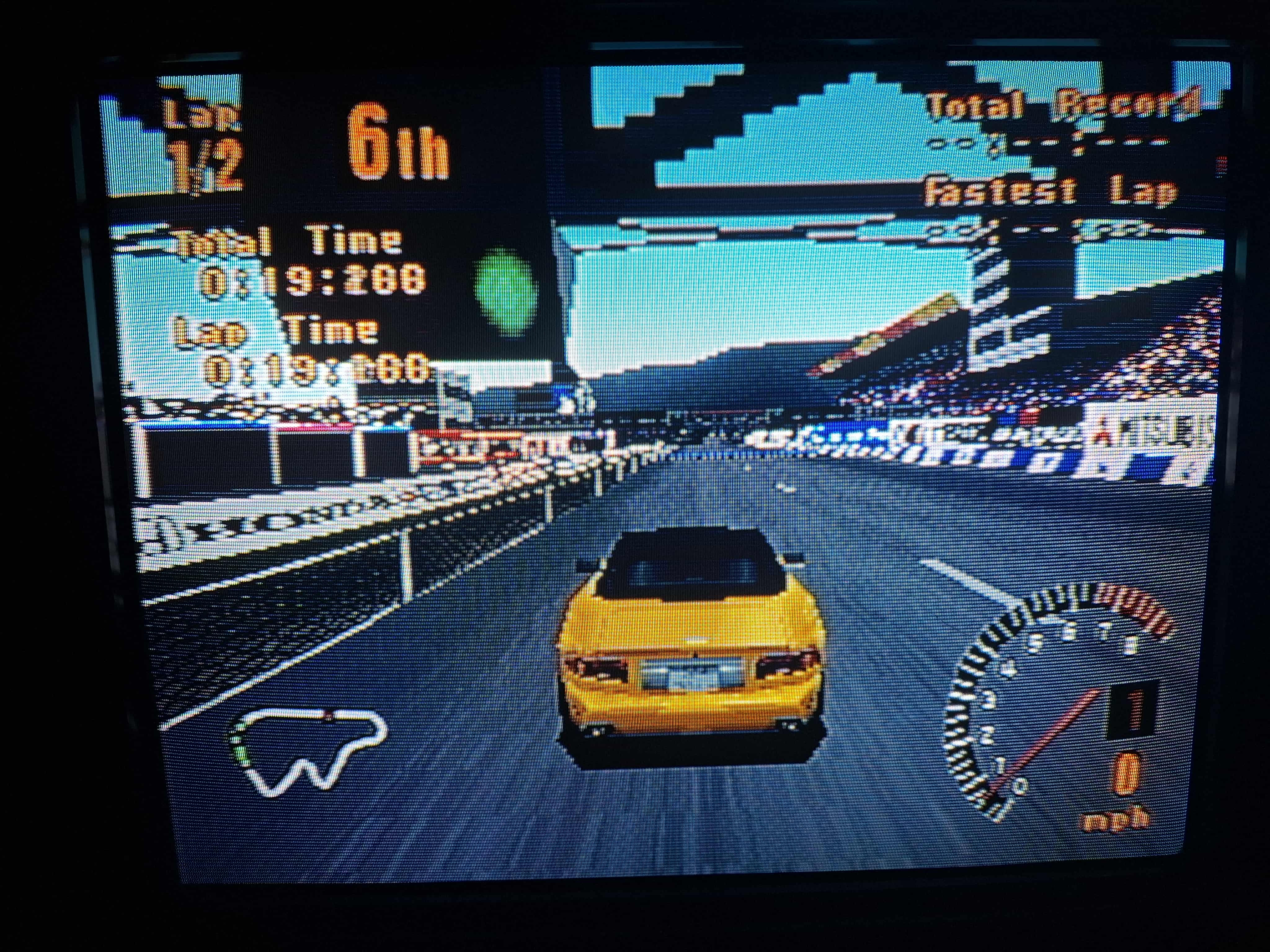

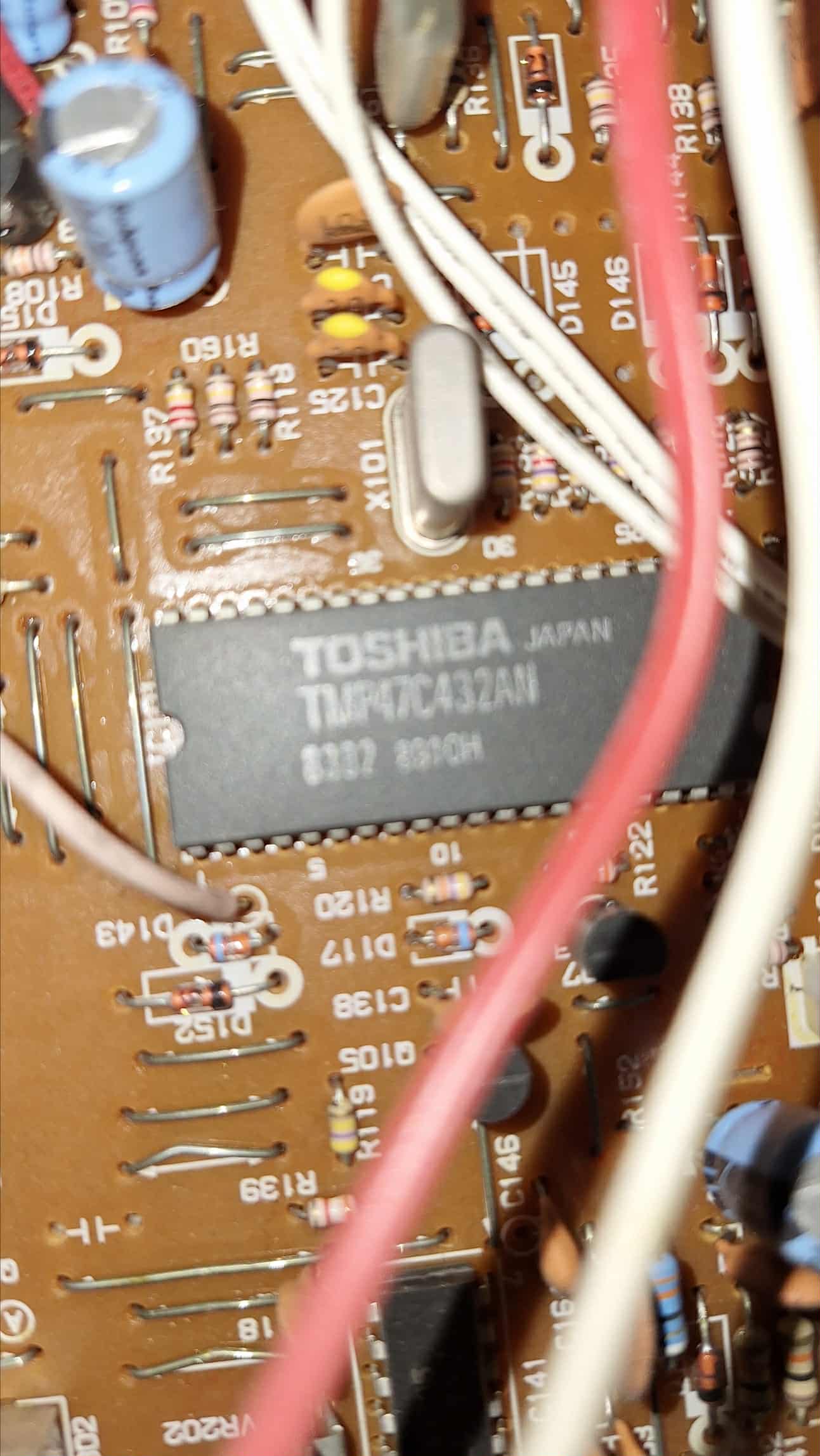

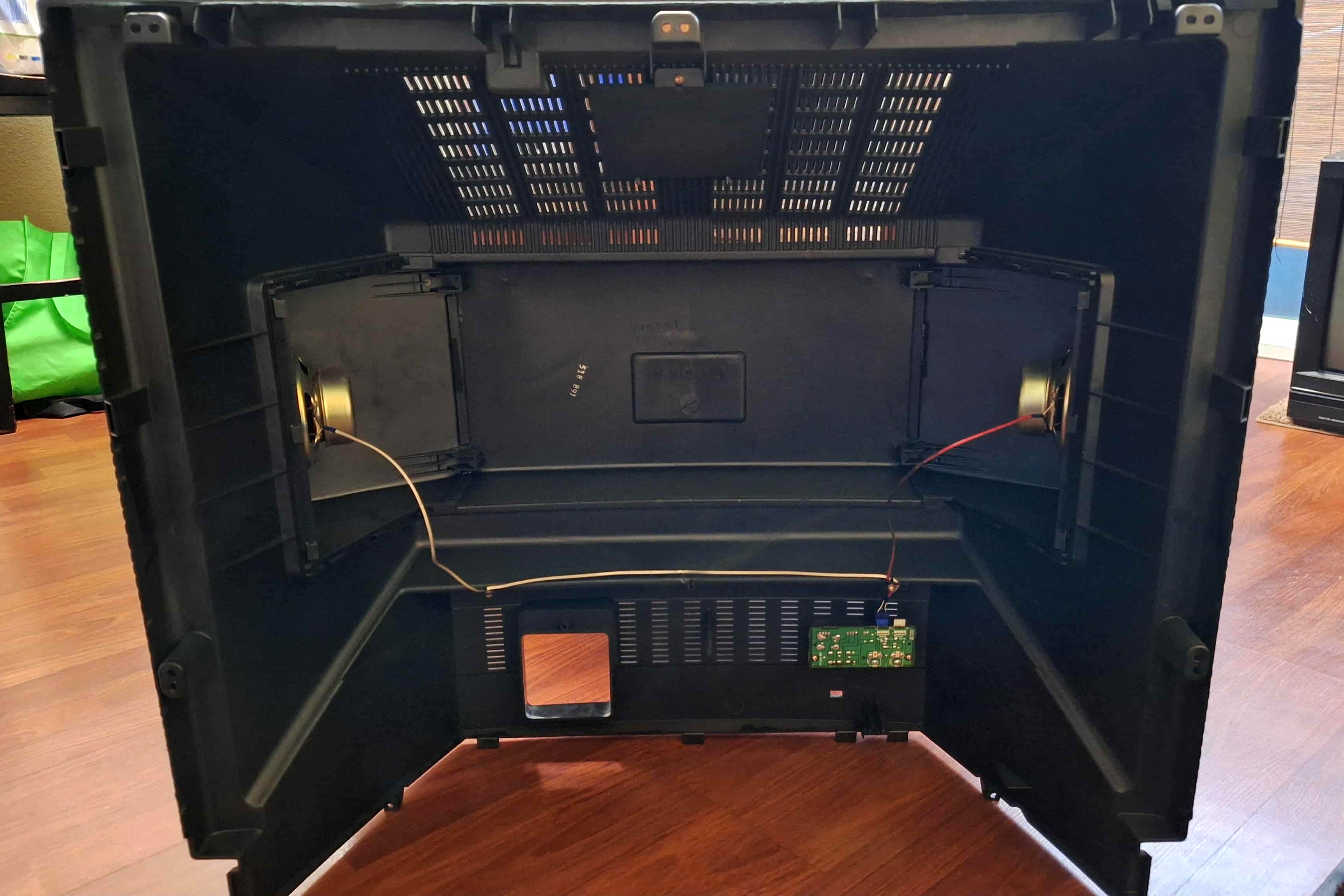

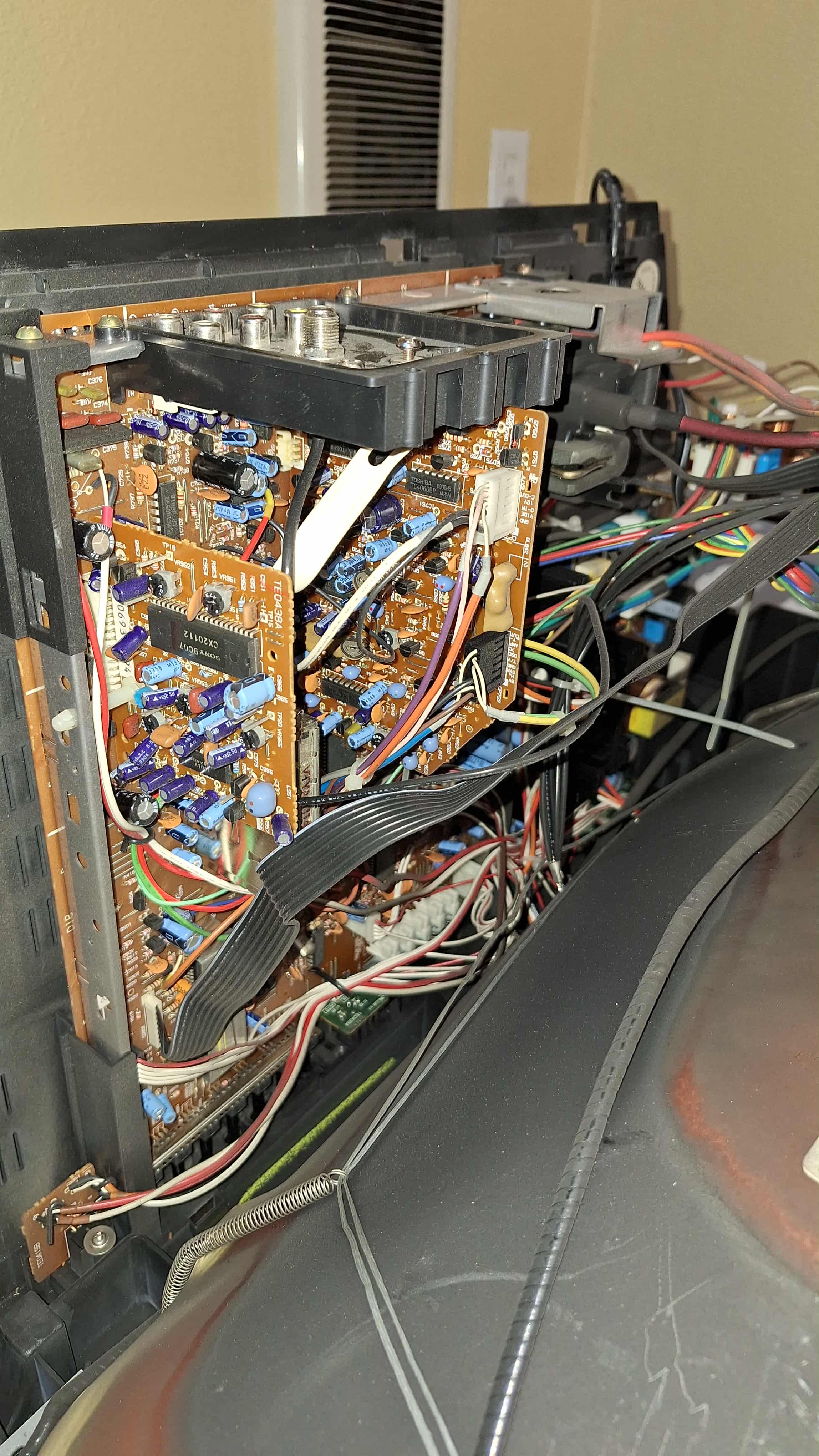

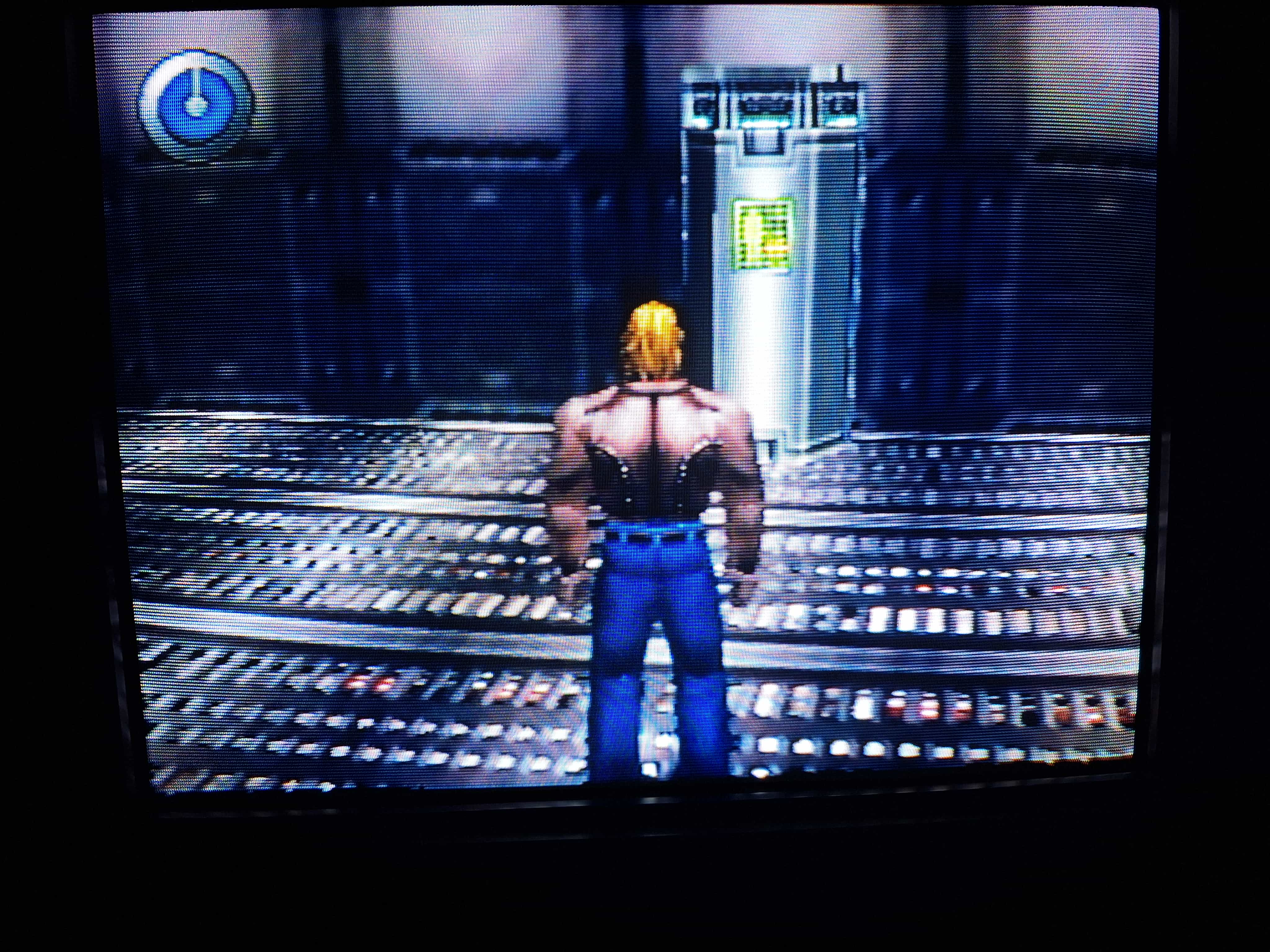

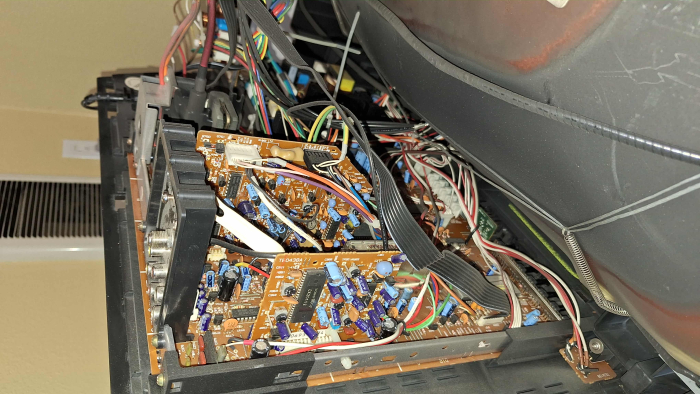

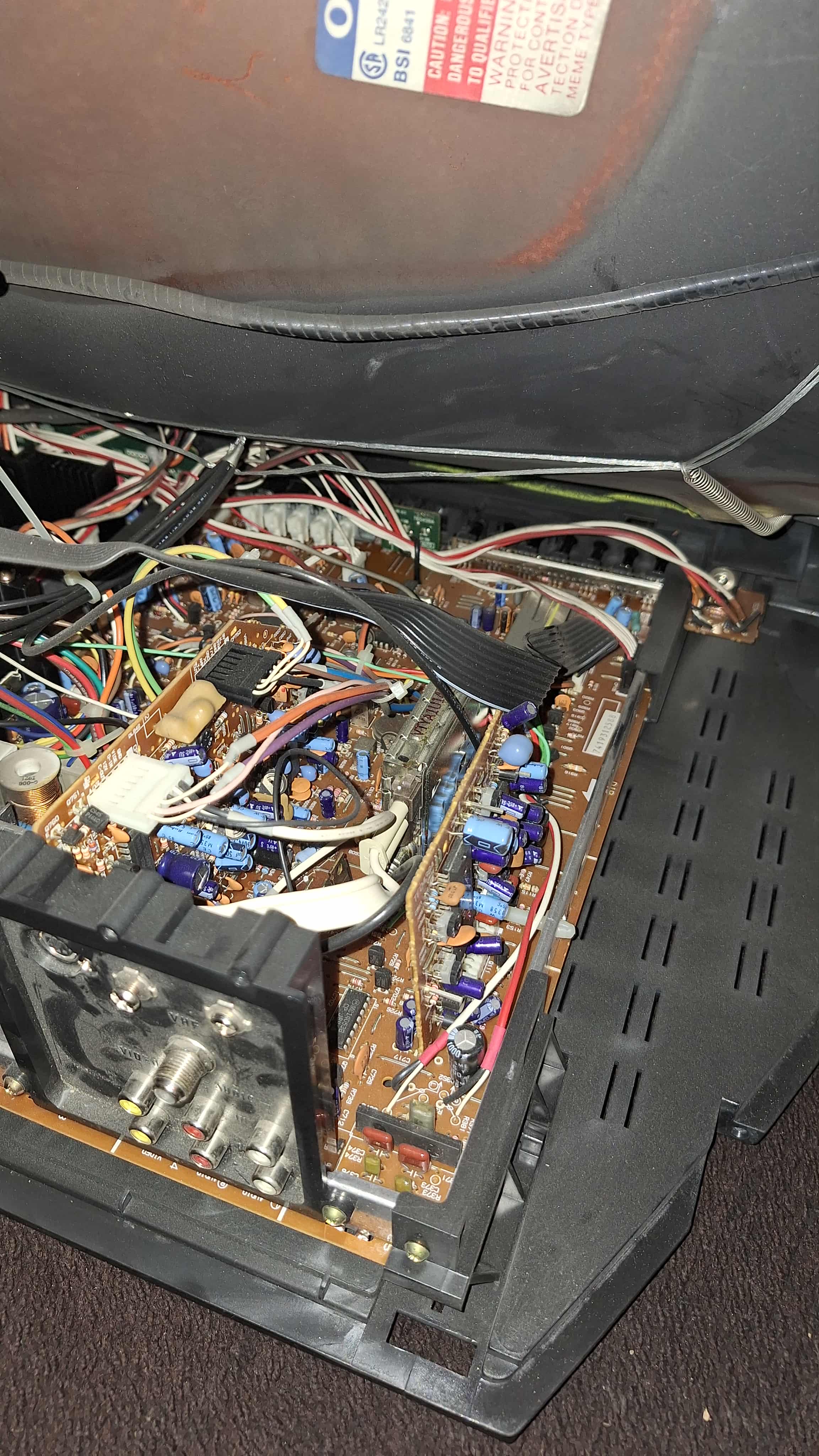

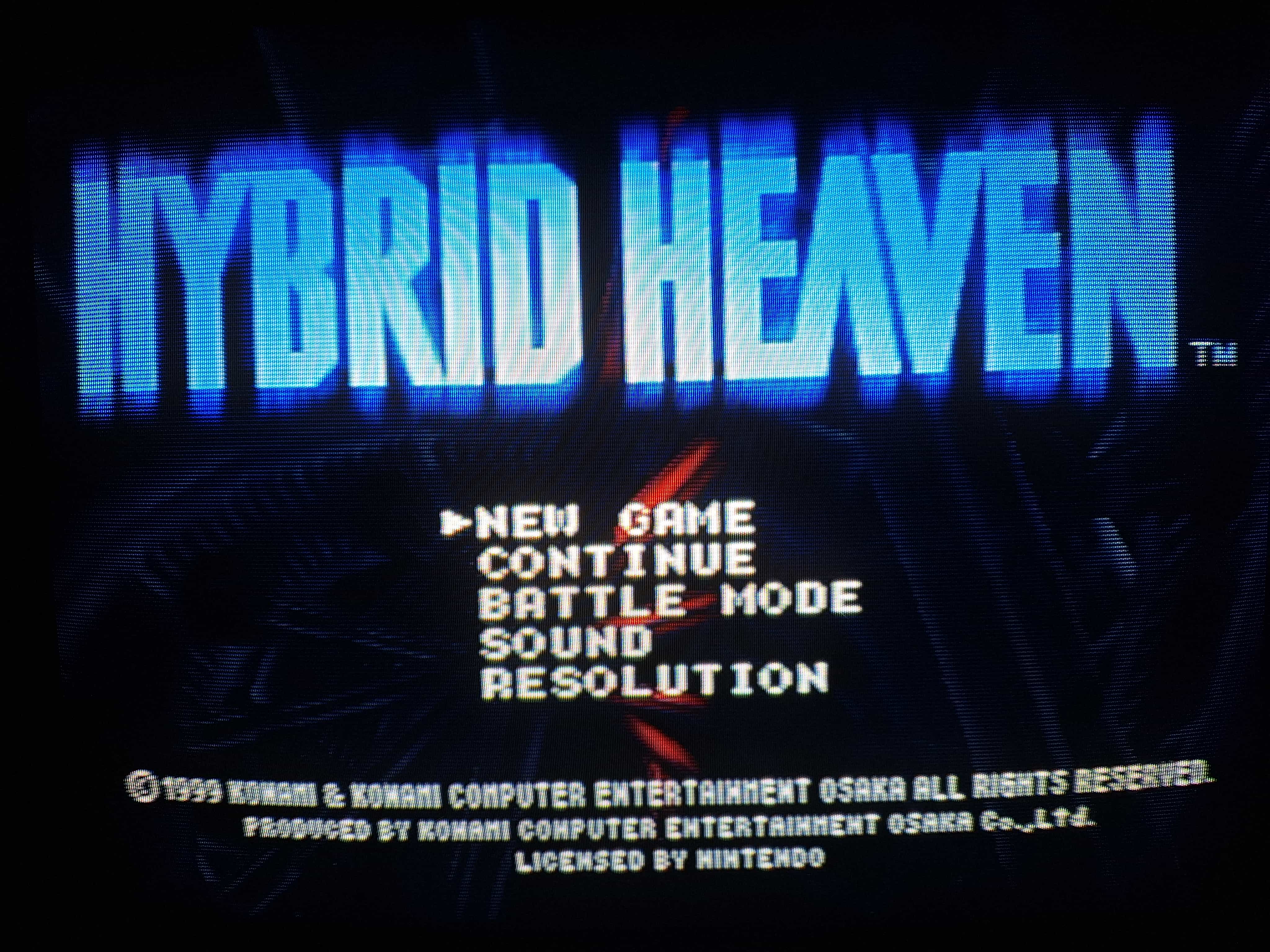

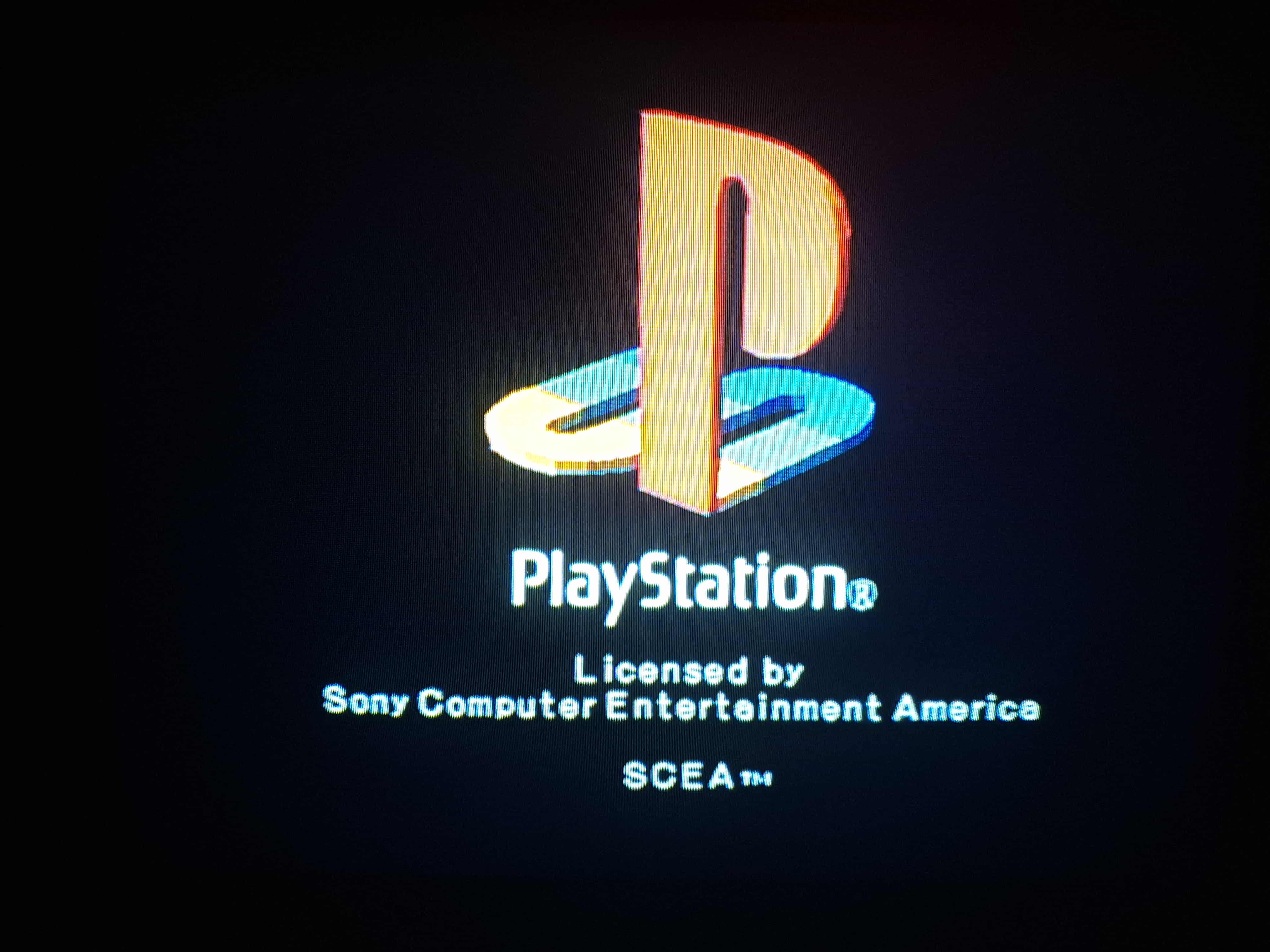

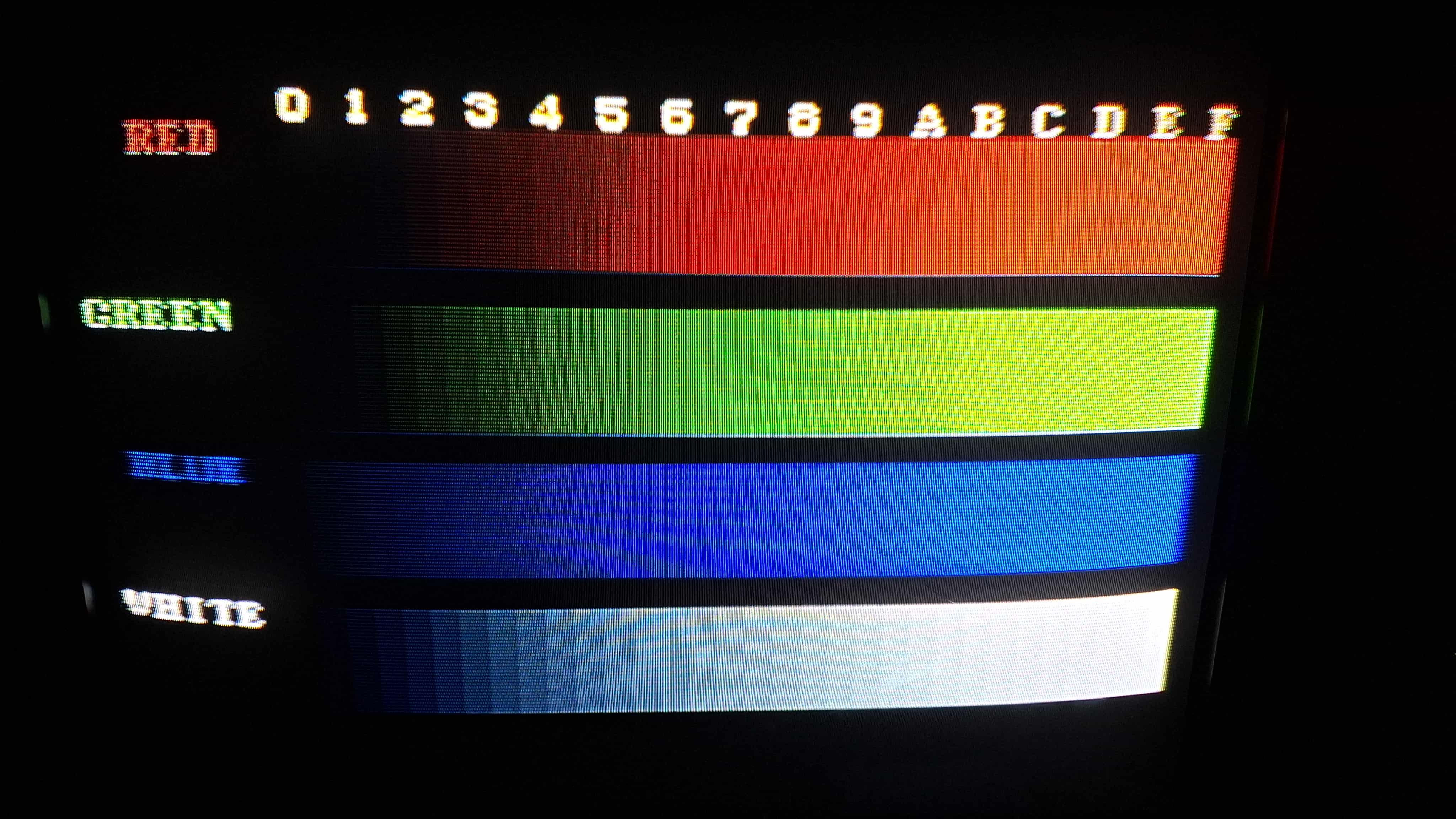

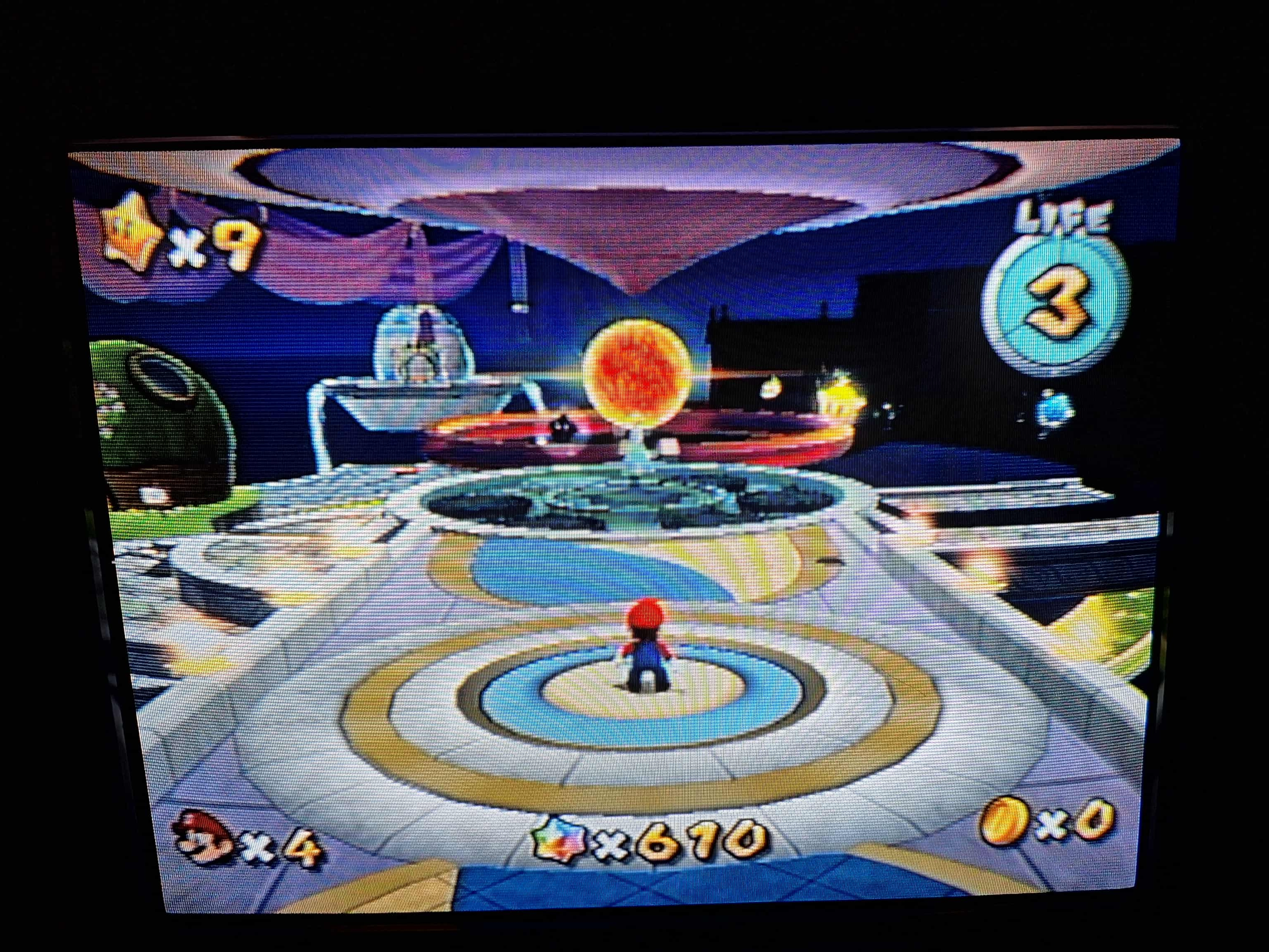

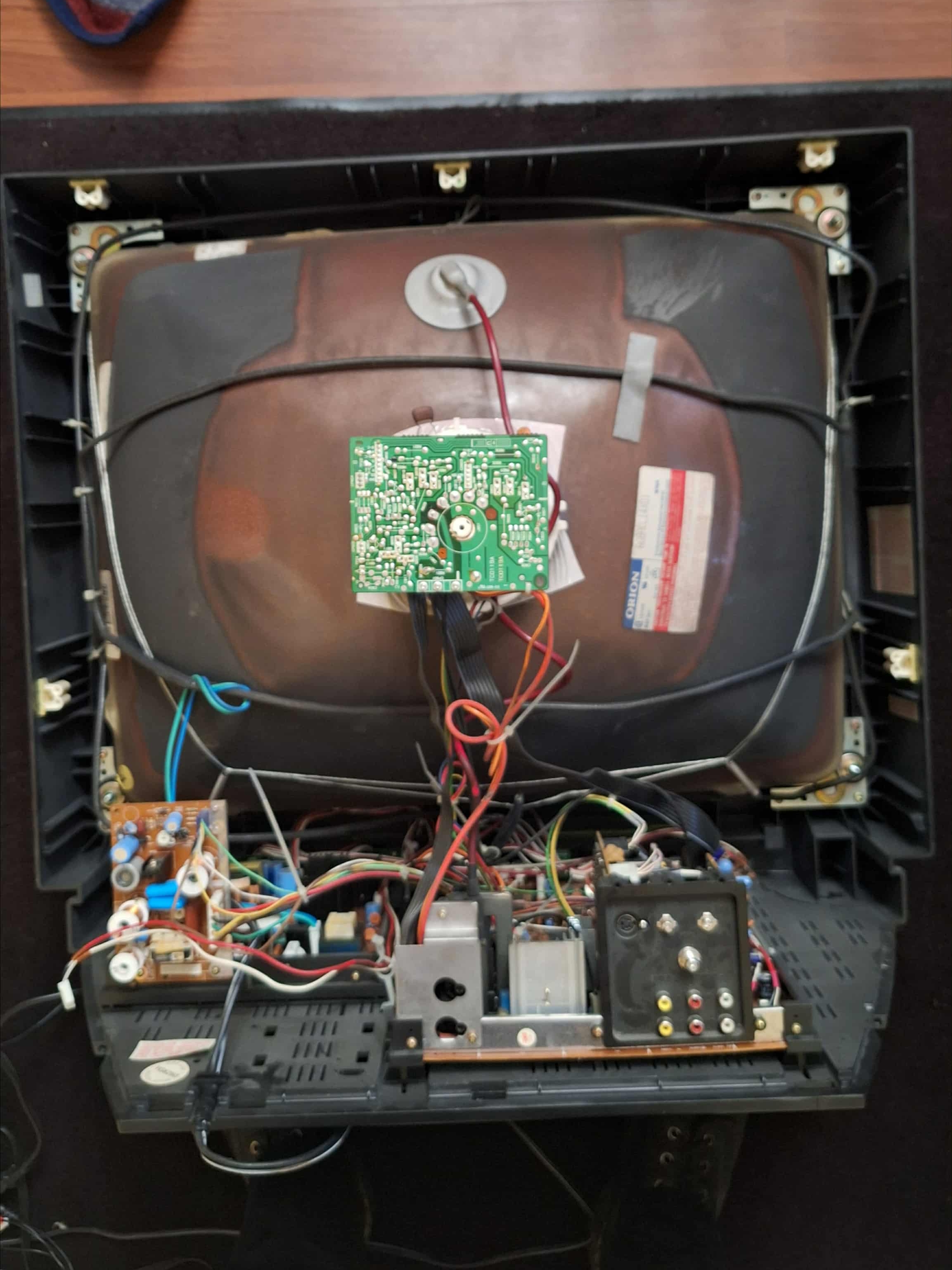

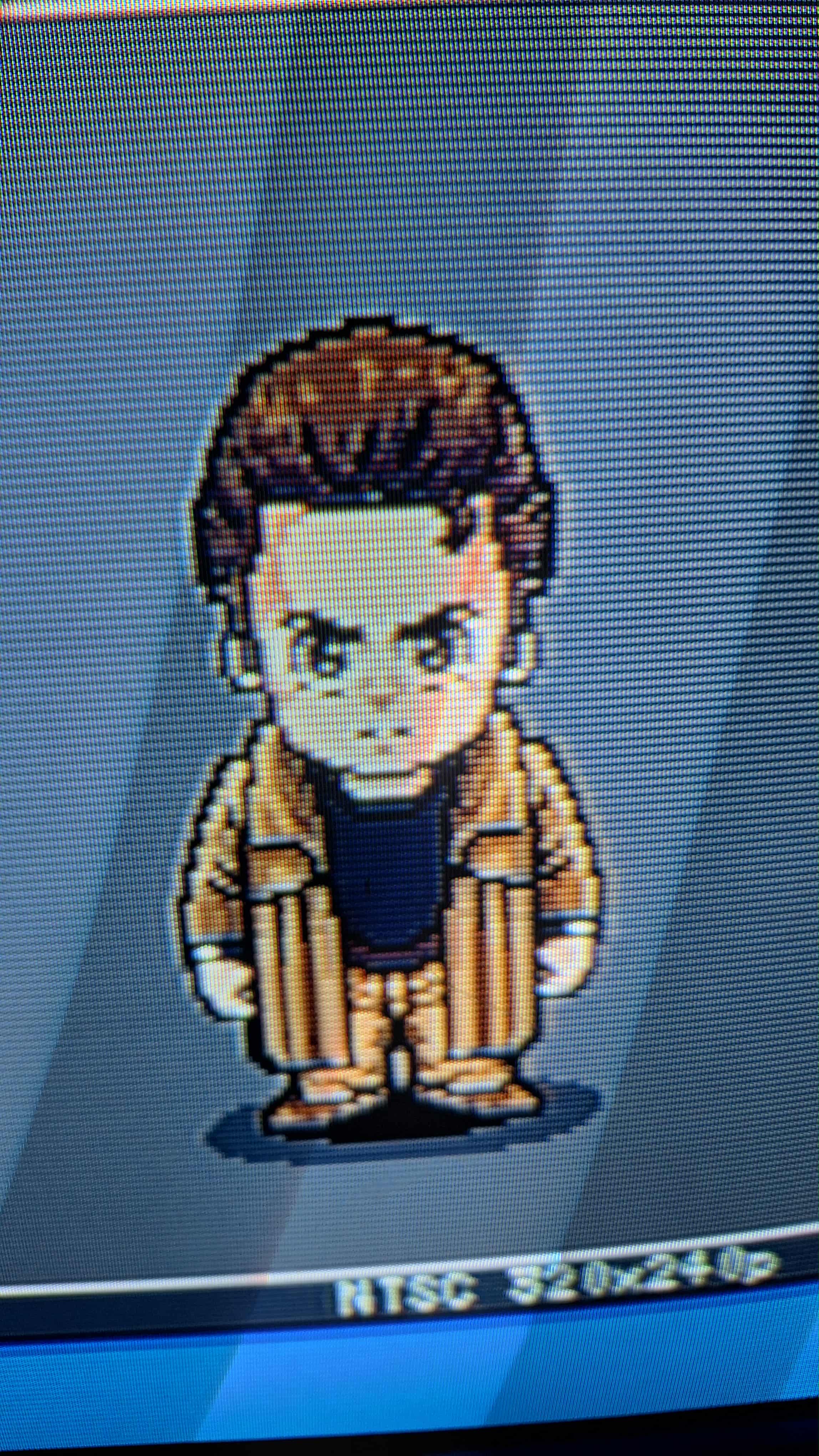

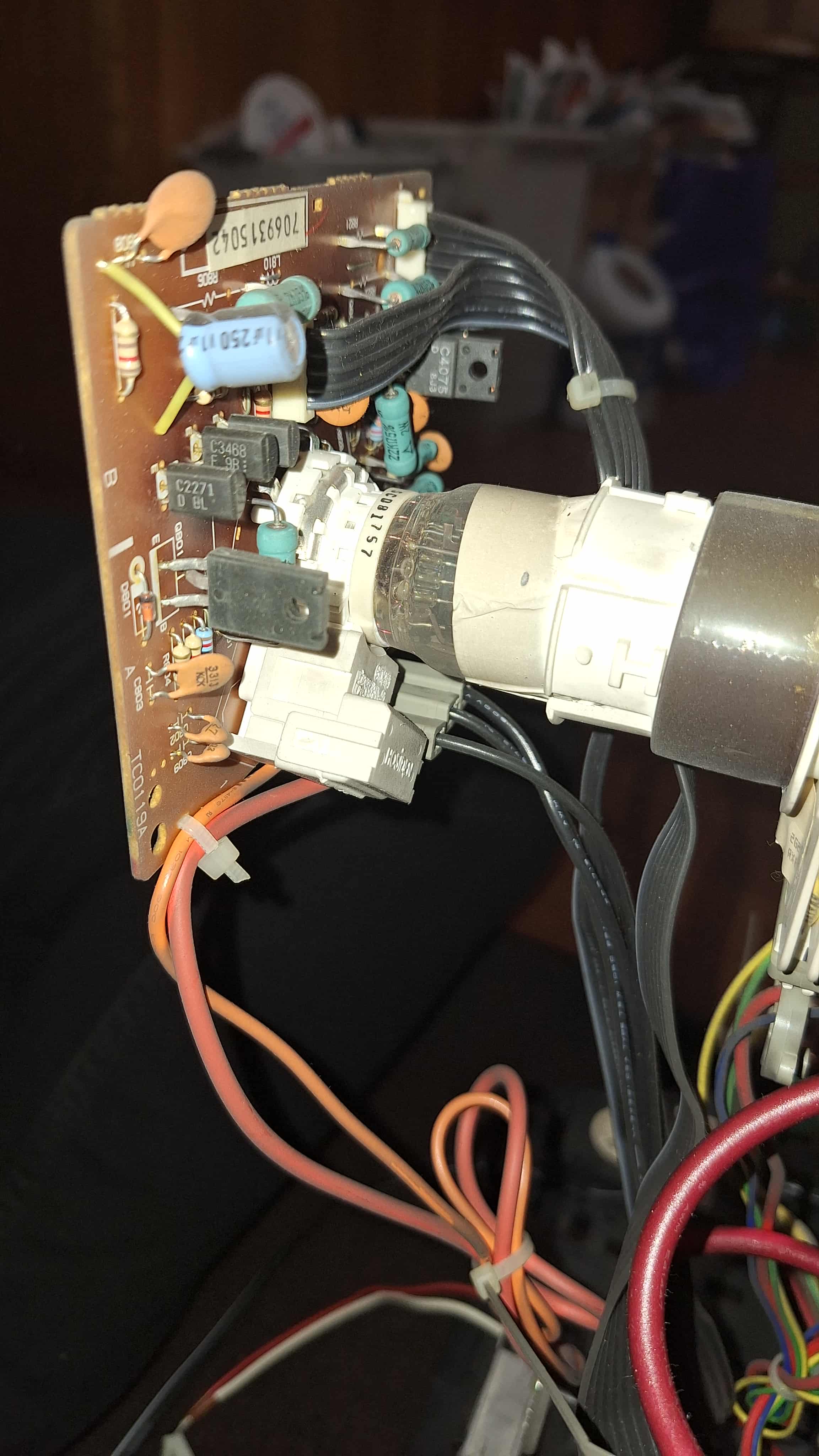

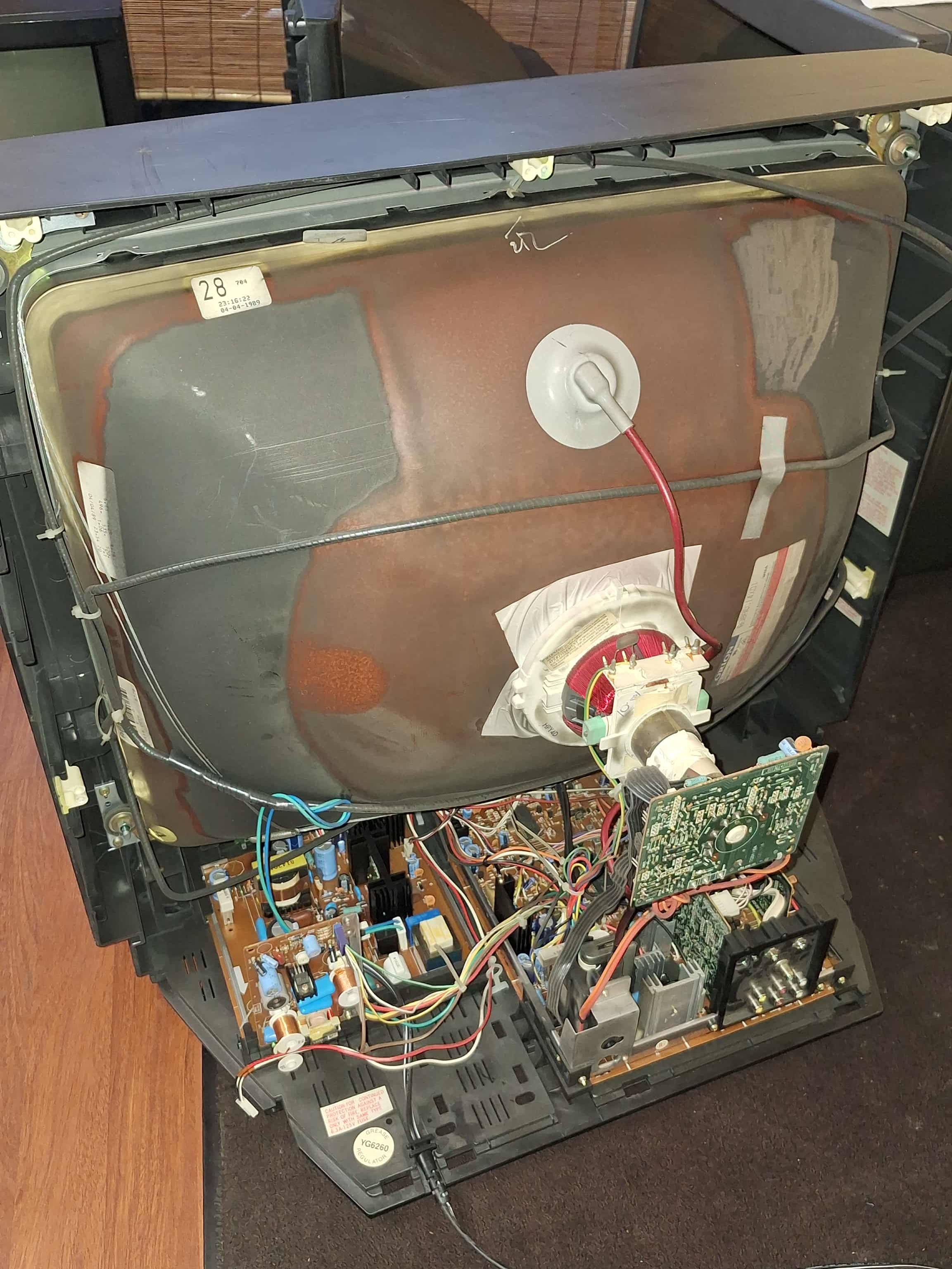

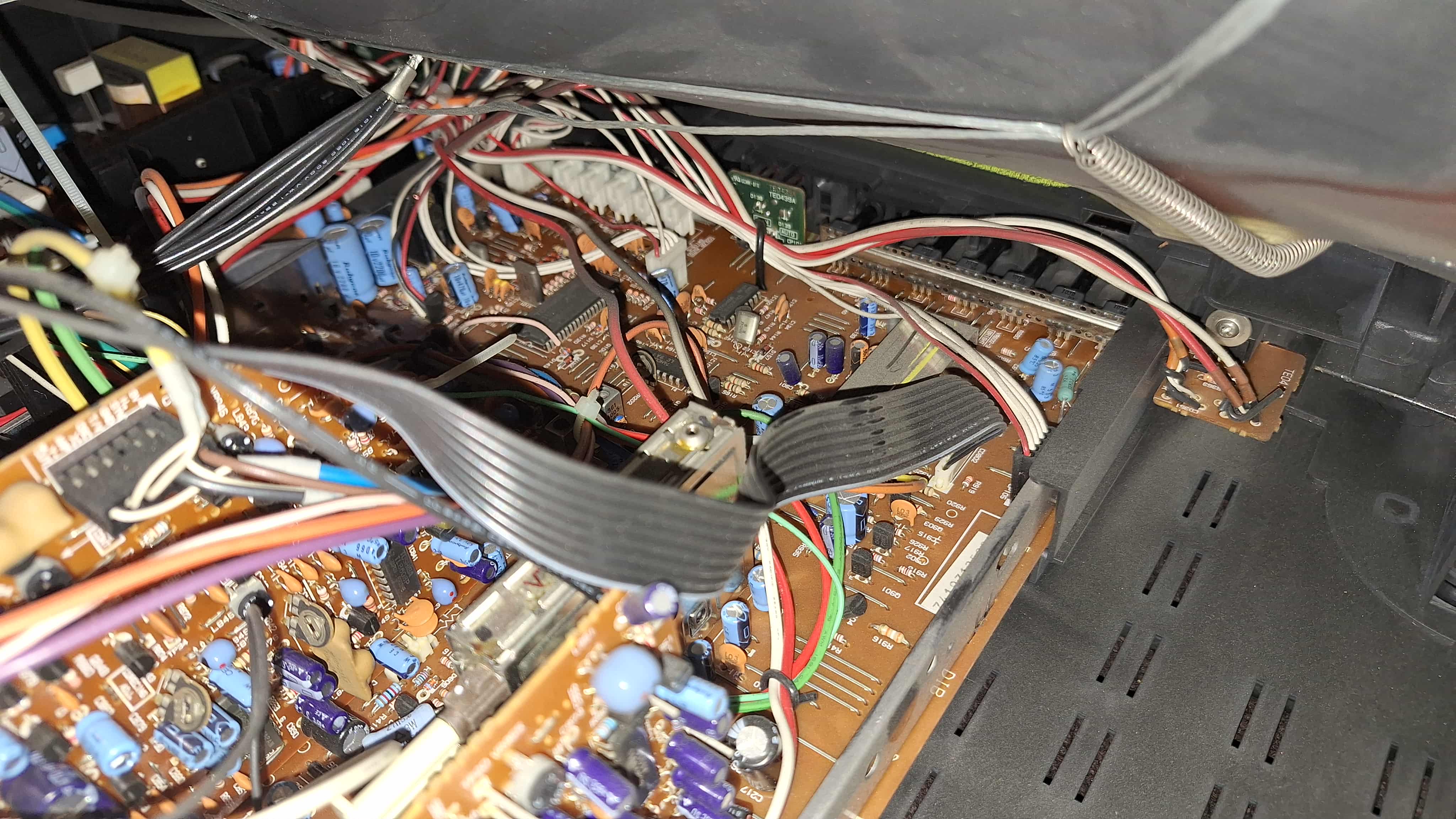

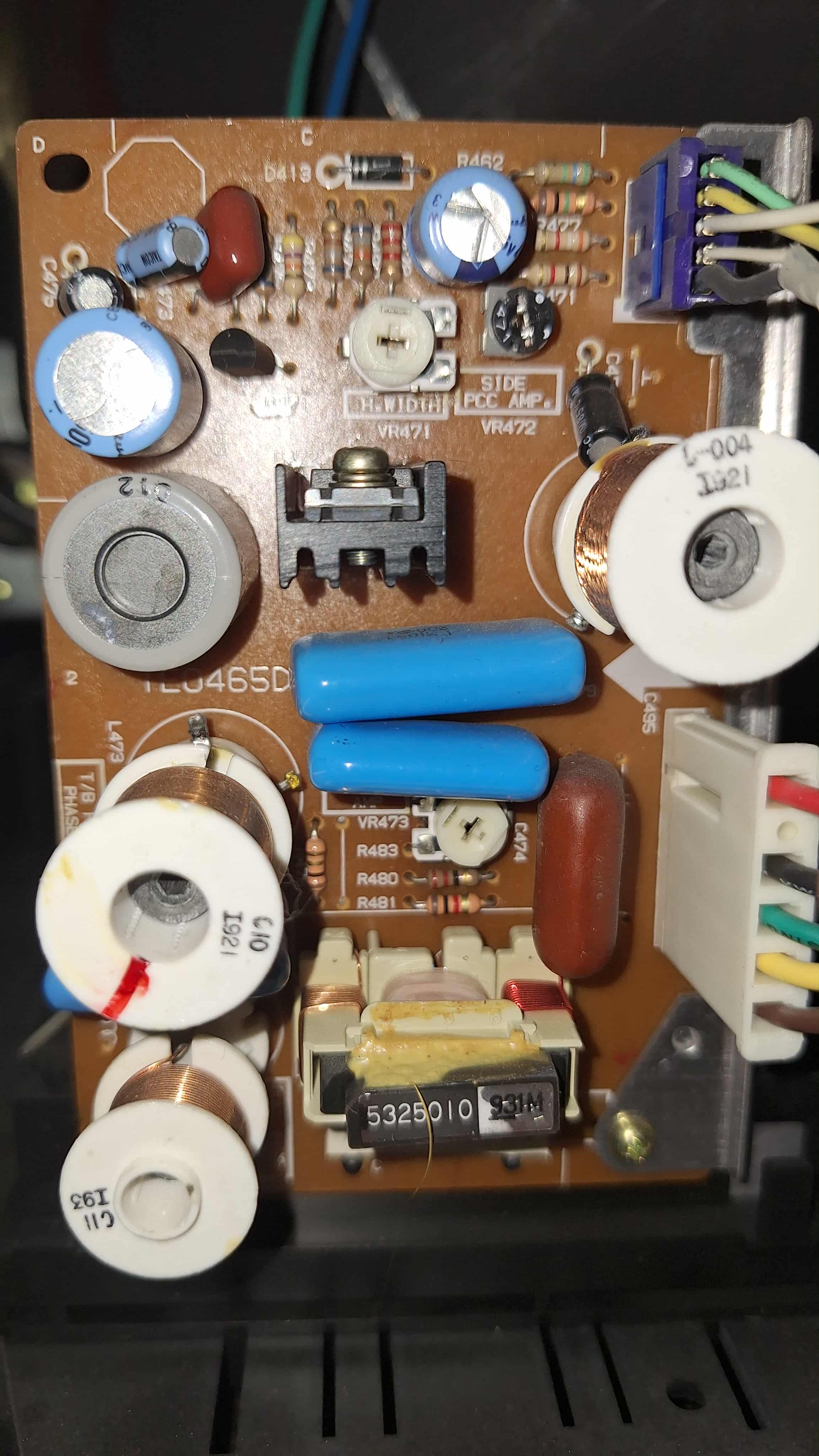

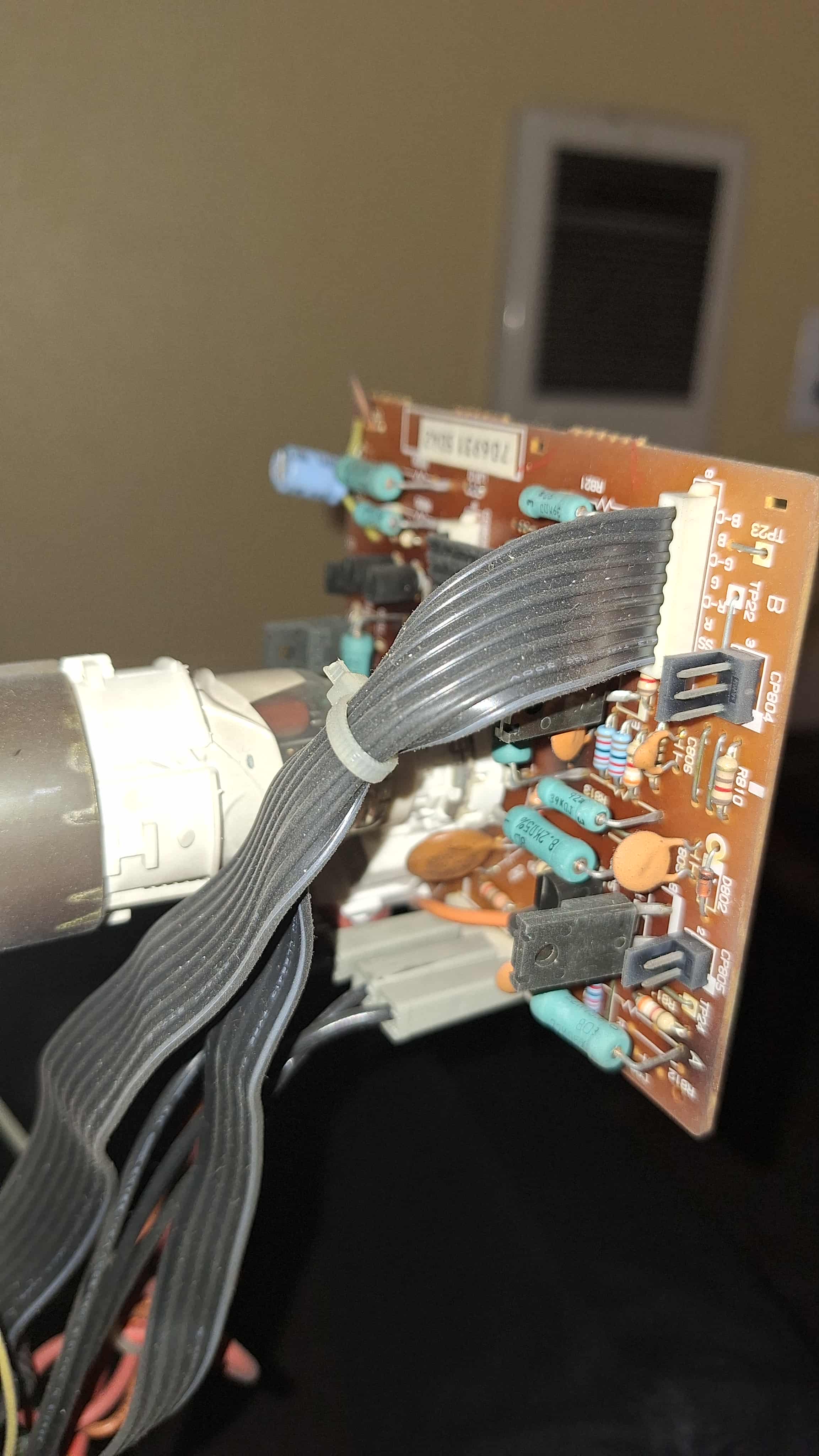

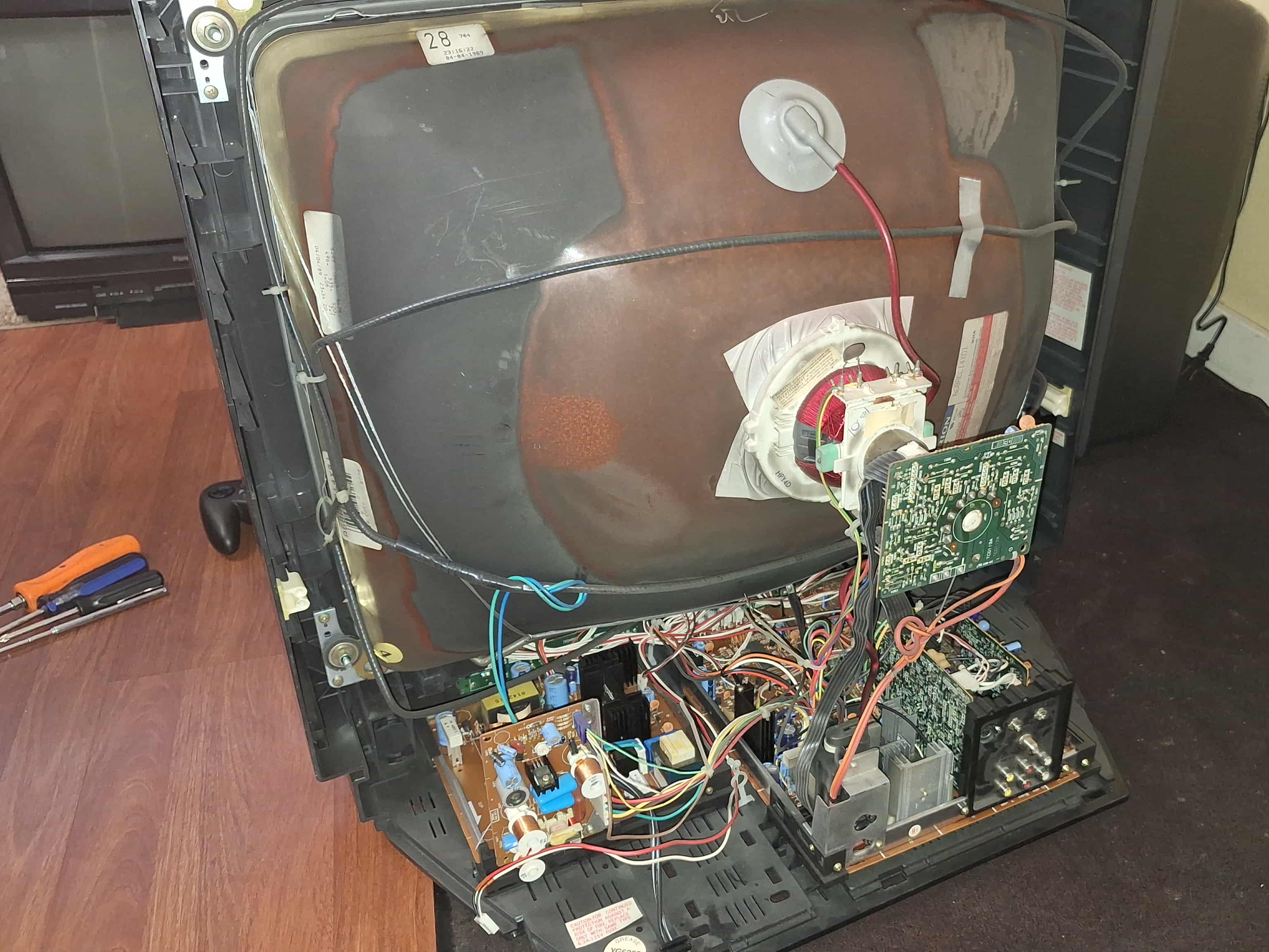

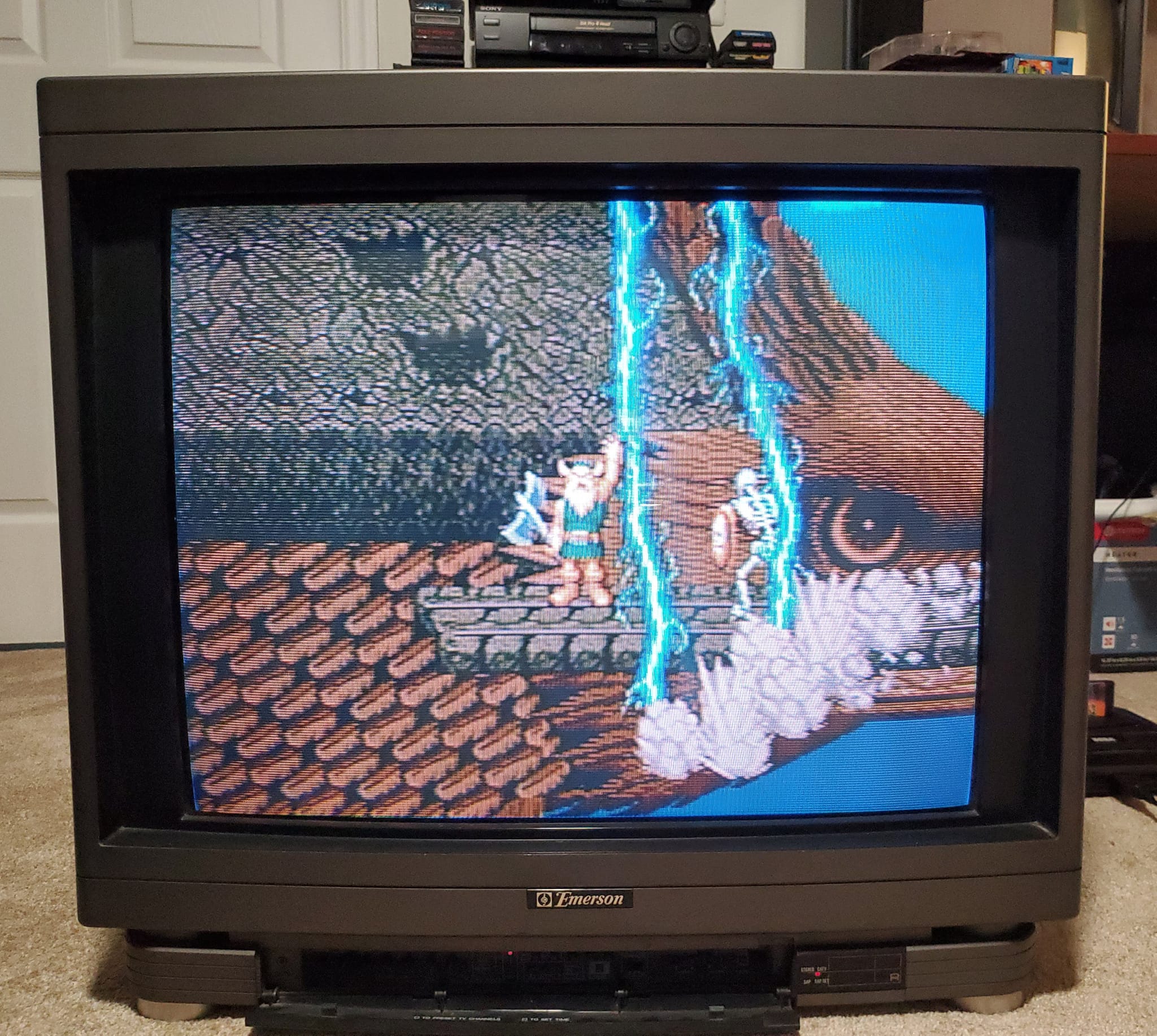

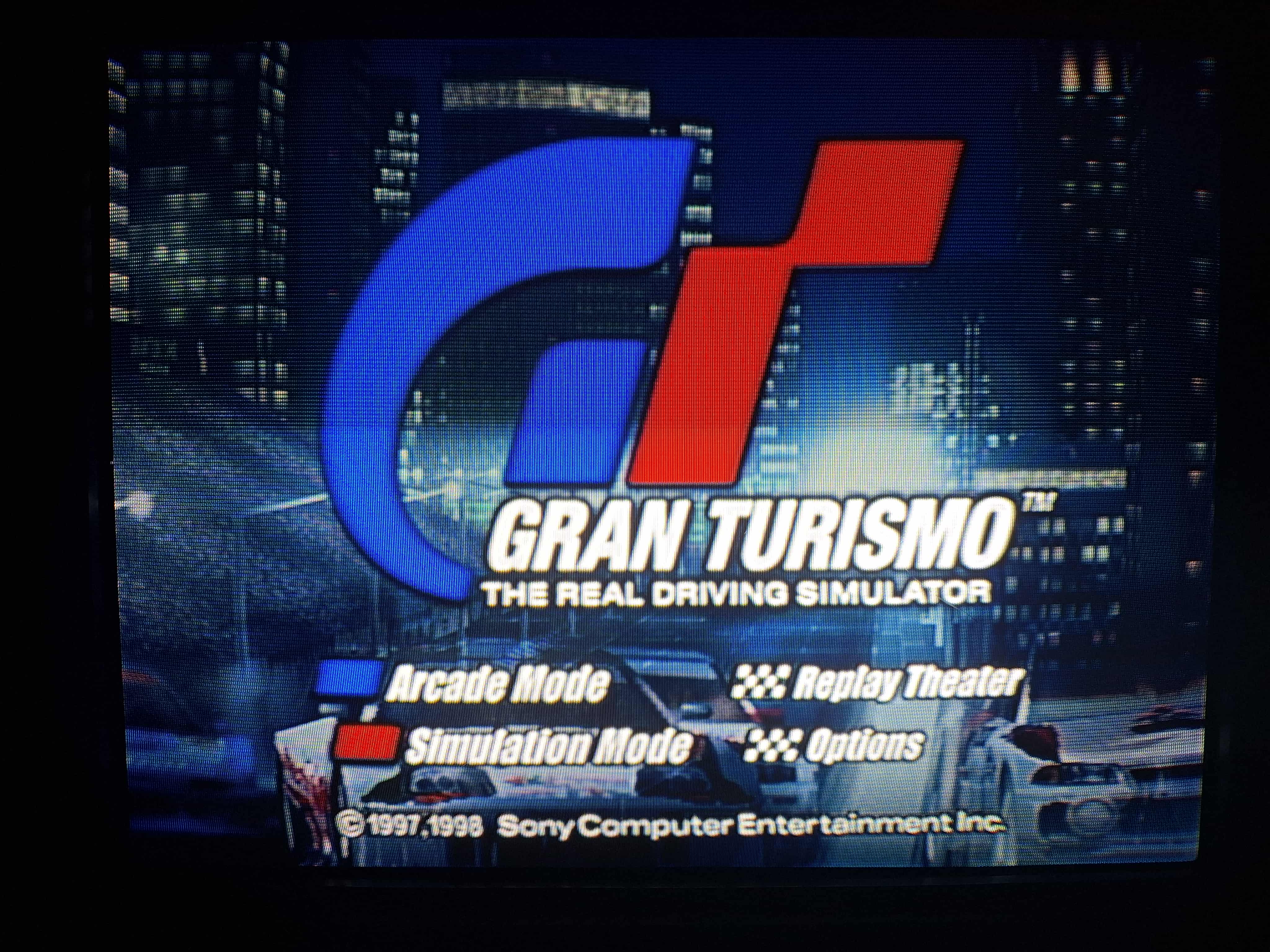

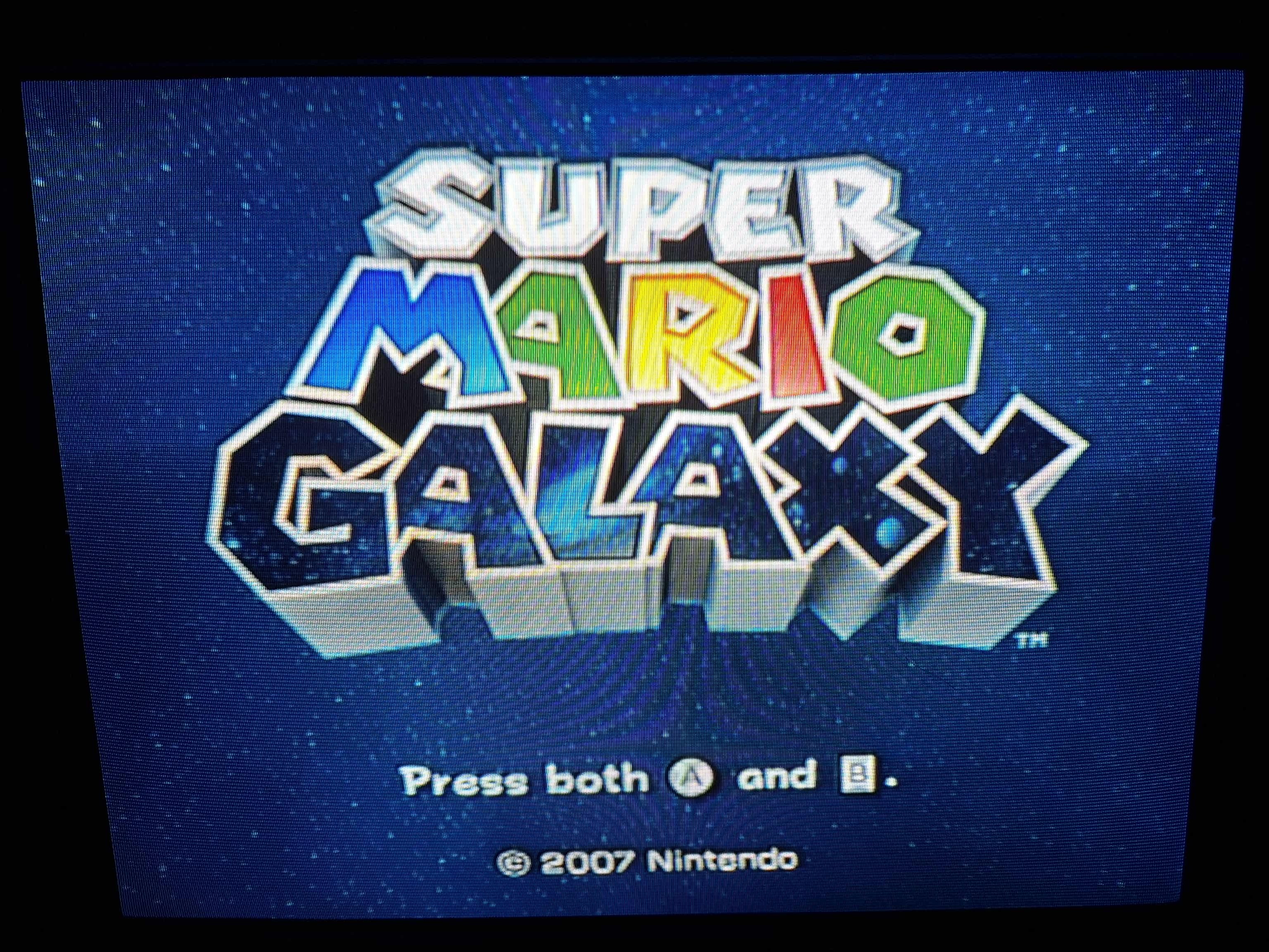

(Special thanks to Cole Seidel for the gameplay and internal pics!)
Manuals
(None at this time.)
Notes

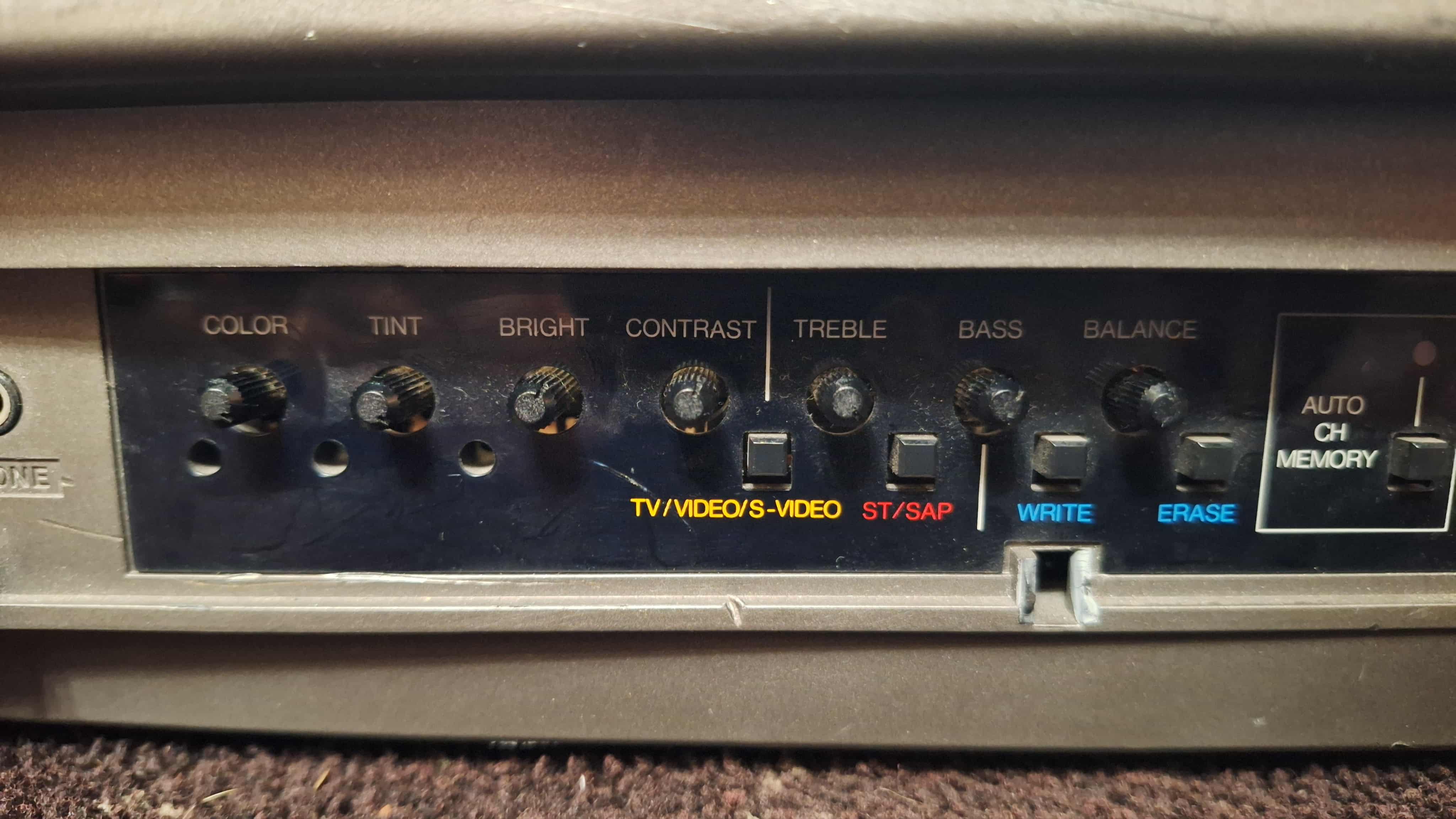

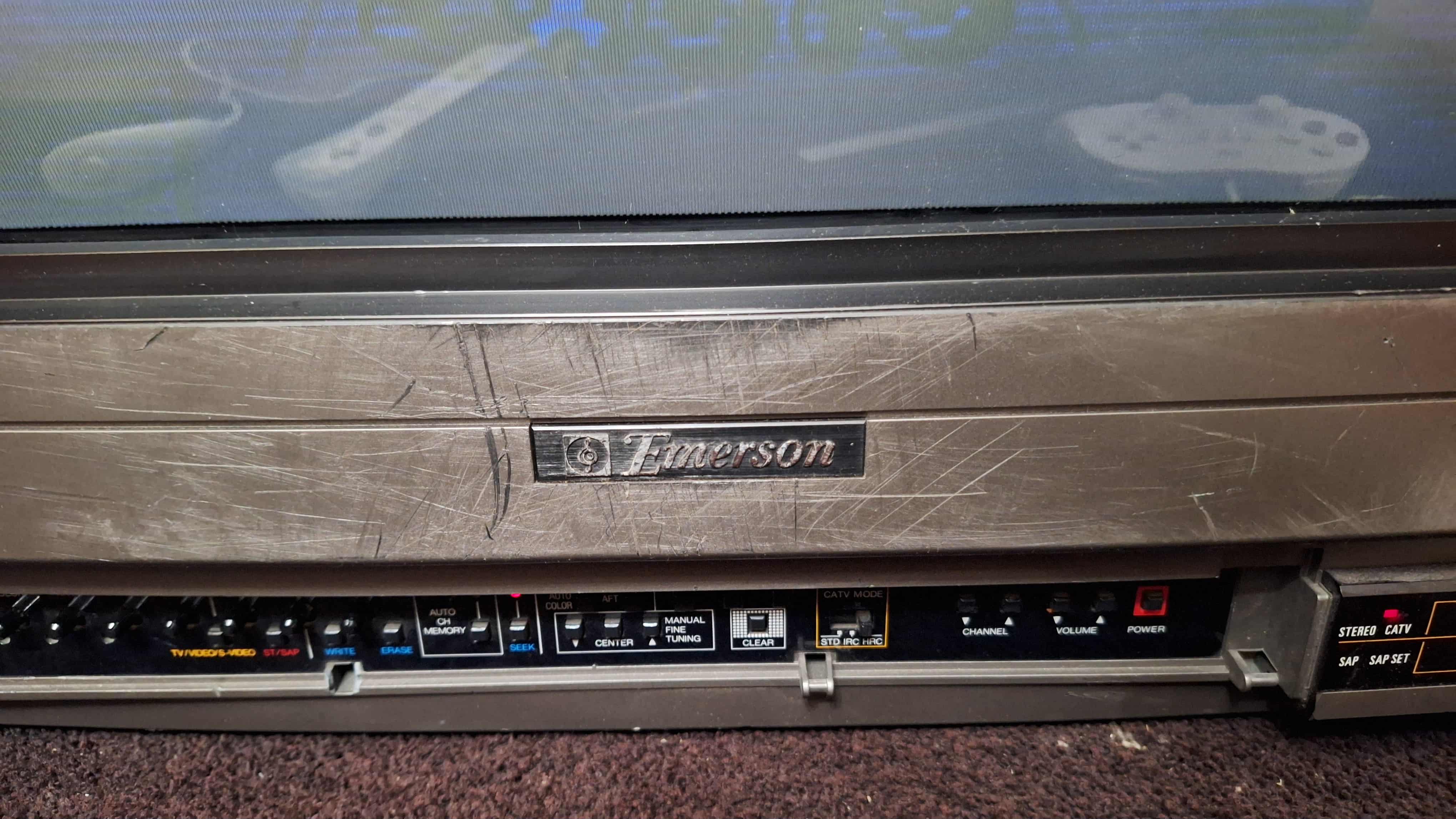

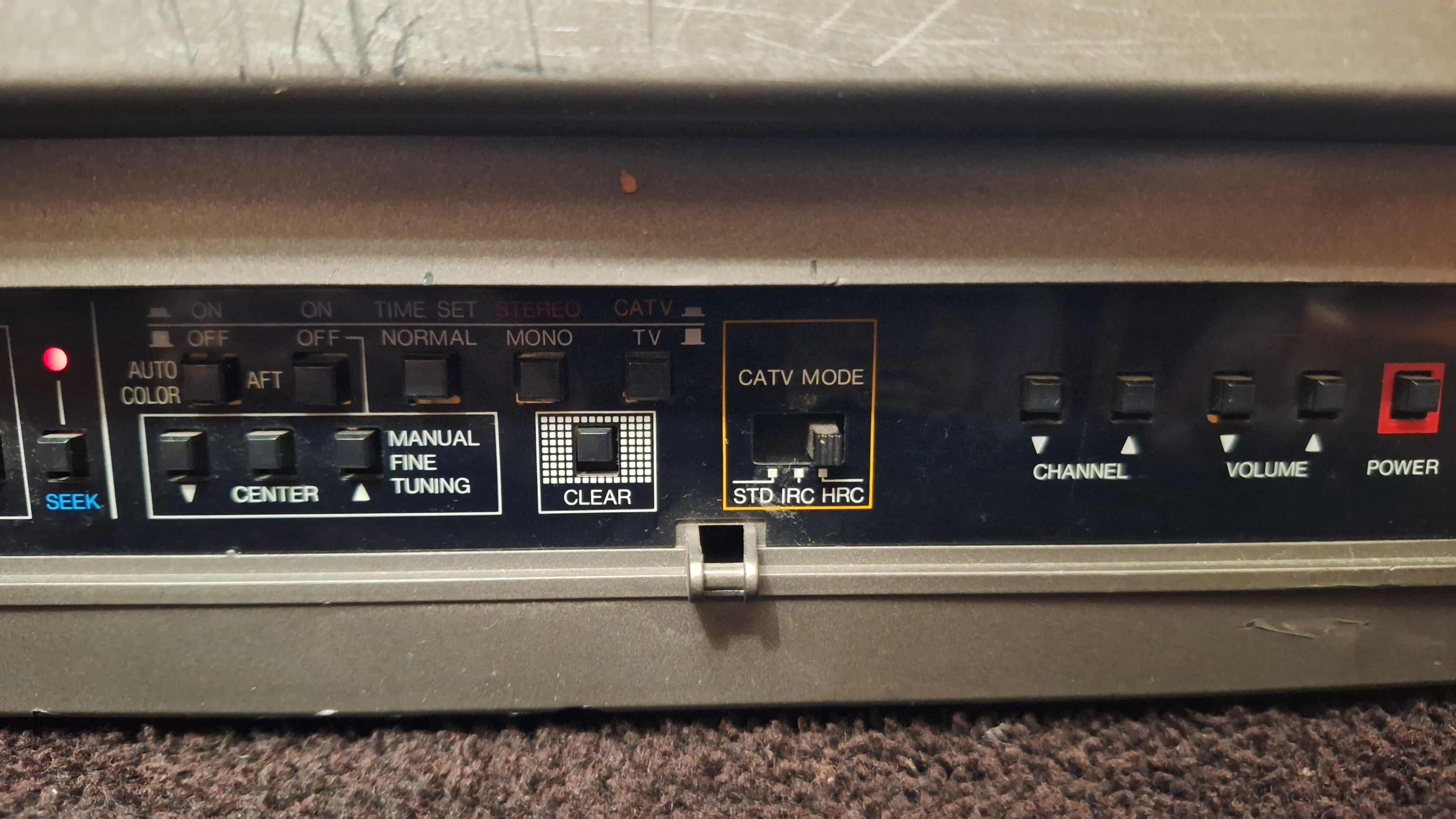

The features and sound quality on this set were impressive for the time, especially on a chassis made by Orion. The set has a digital comb filter, manual fine tuning, auto color, and even a button on the tv itself to turn off the picture but keep the sound still playing. Cool stuff!
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Orion |
| Model: | MS2700RD |
| Series: | MS |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Linecount: | 500 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

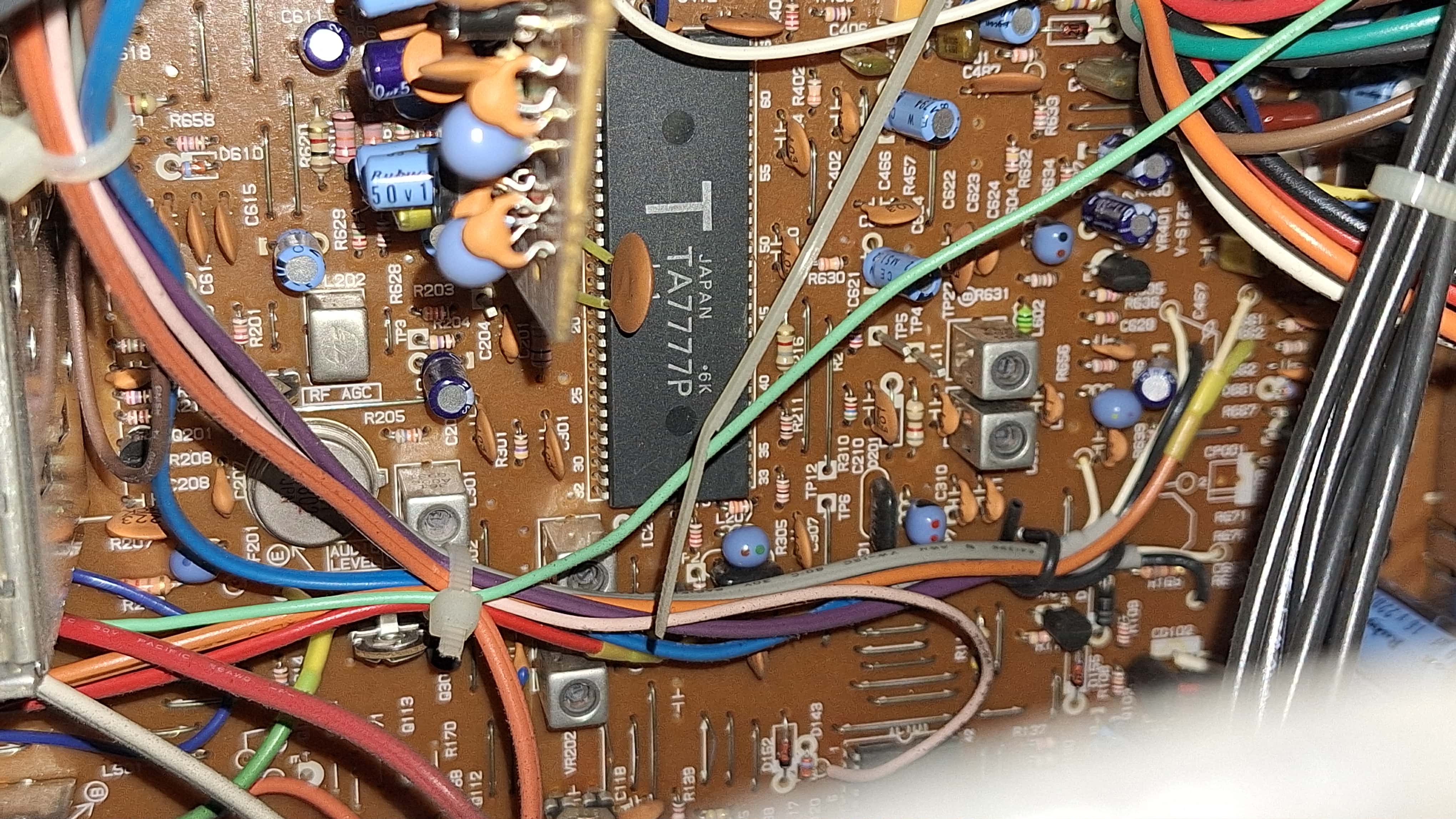

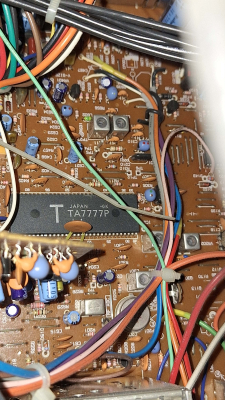

| Jungle IC: | Toshiba, TA7777P, TA7777N |
| Comb Filtering: | 2-Line Digital |

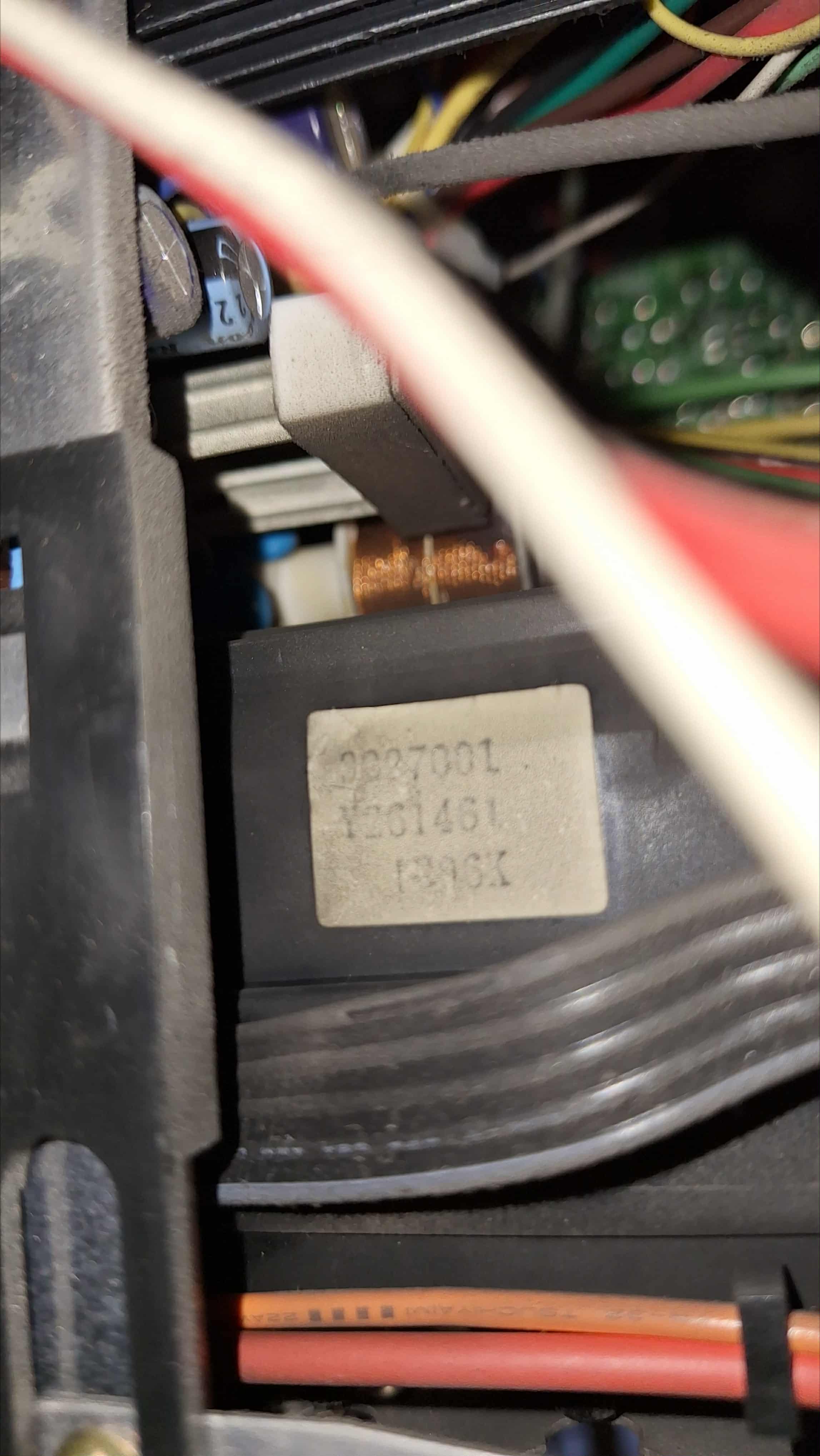

| Flyback: | Y261461 |
| Focus Type: | Single |

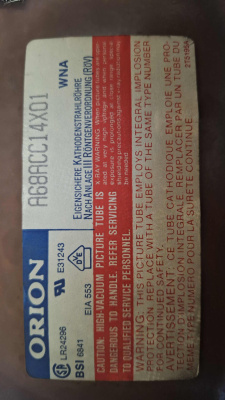

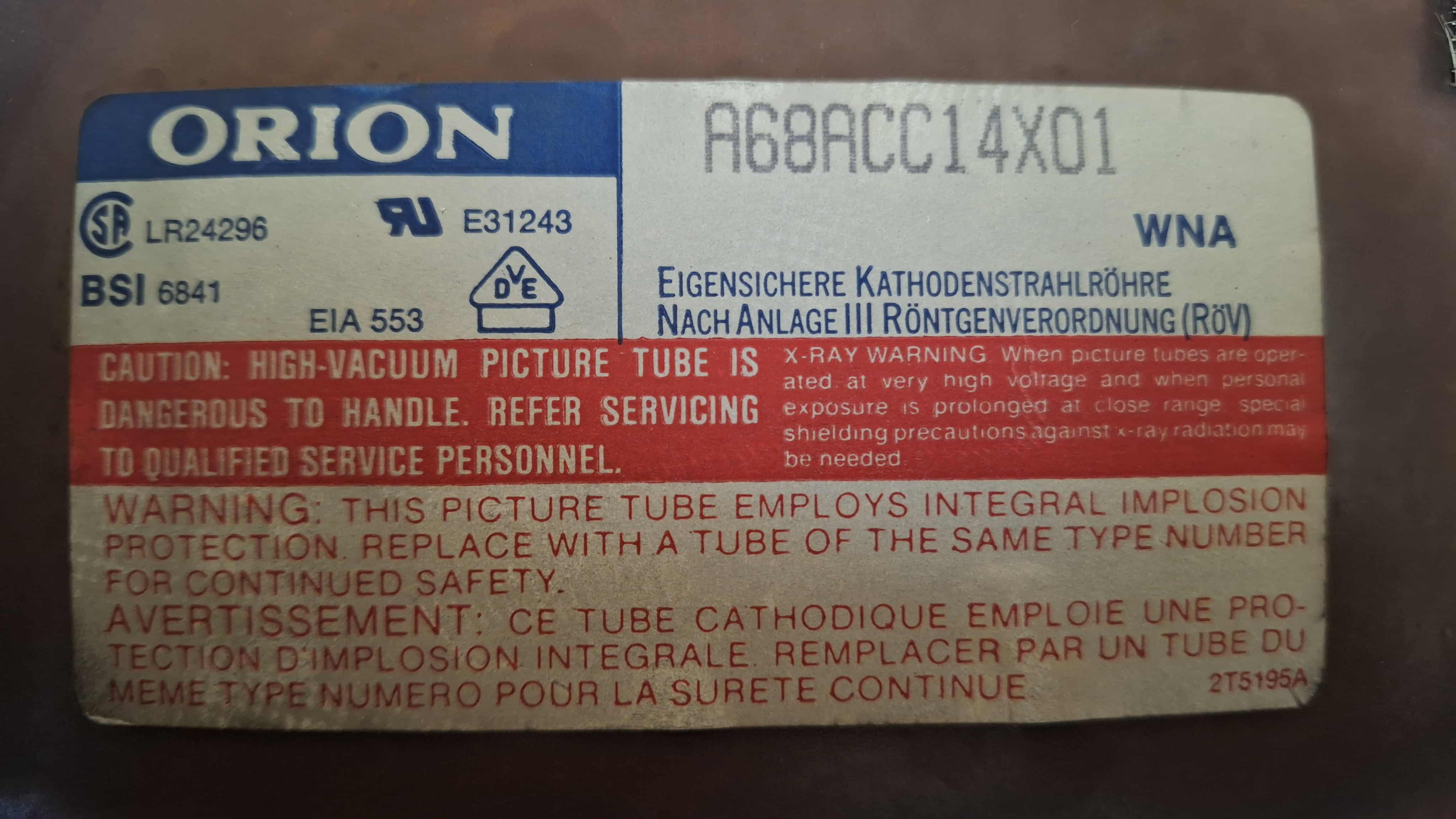

| Tube: | RCA , A68ACC14X , A68ACC14X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

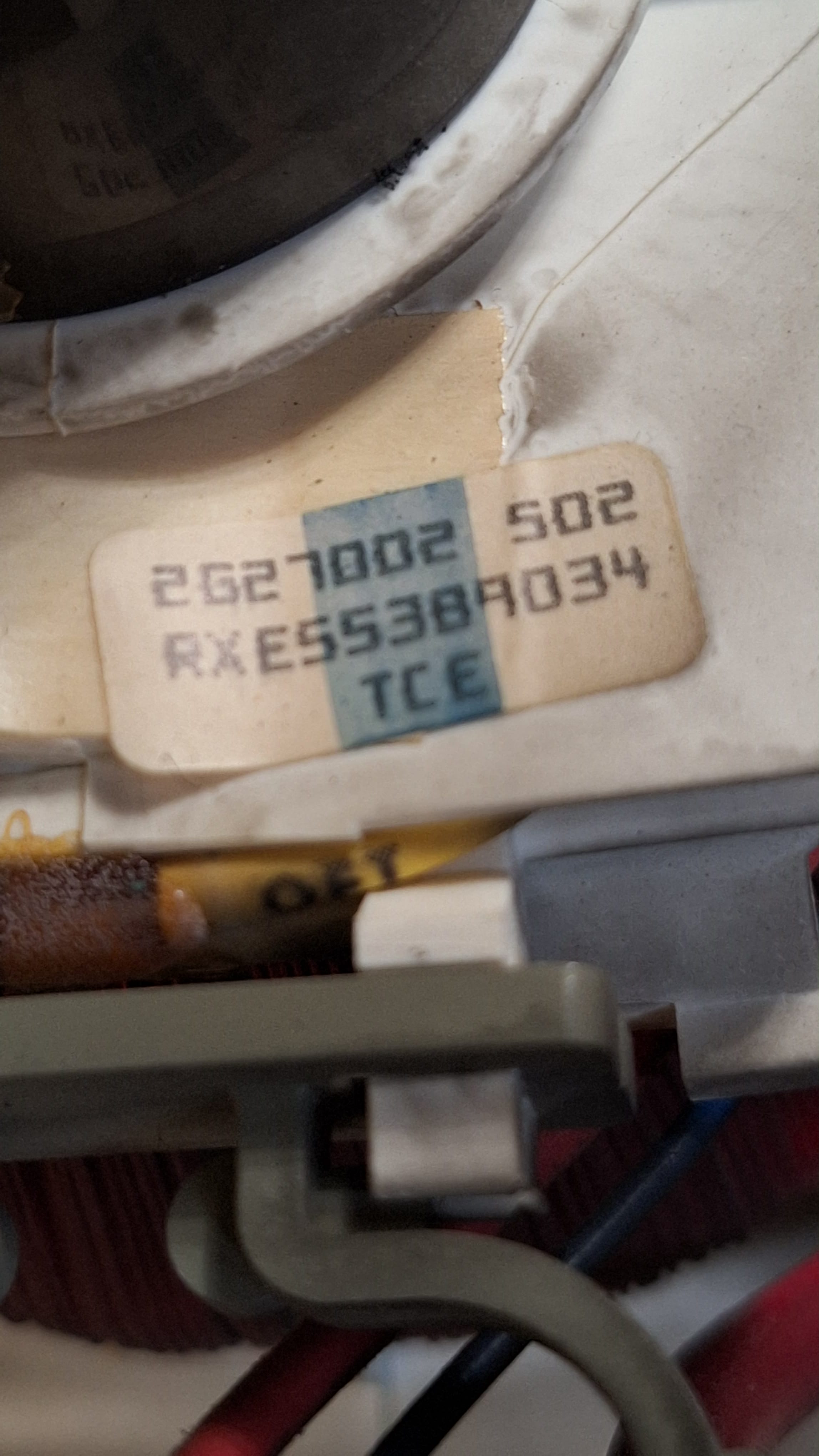

| Yoke: | 2G27002-502 |

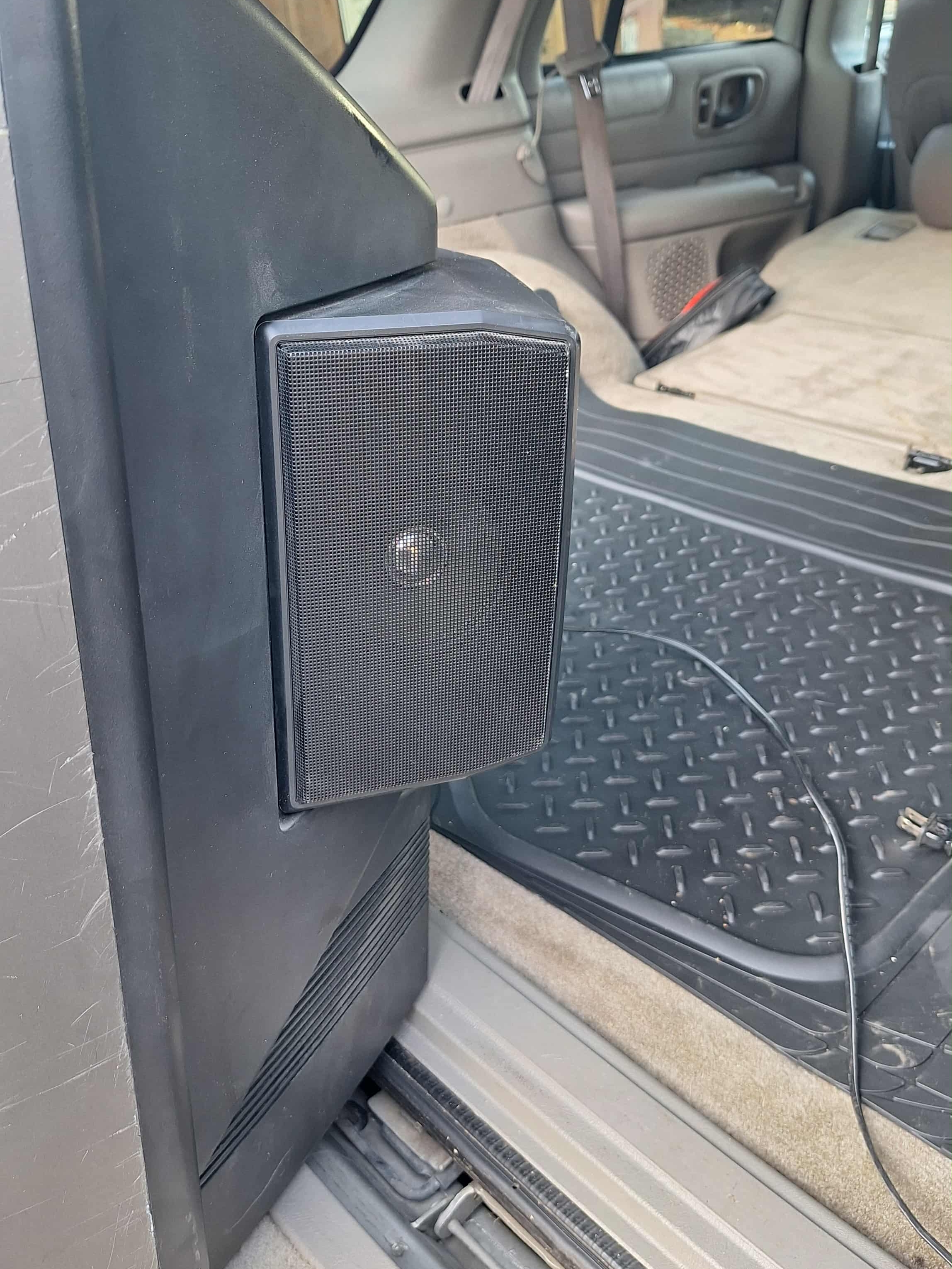

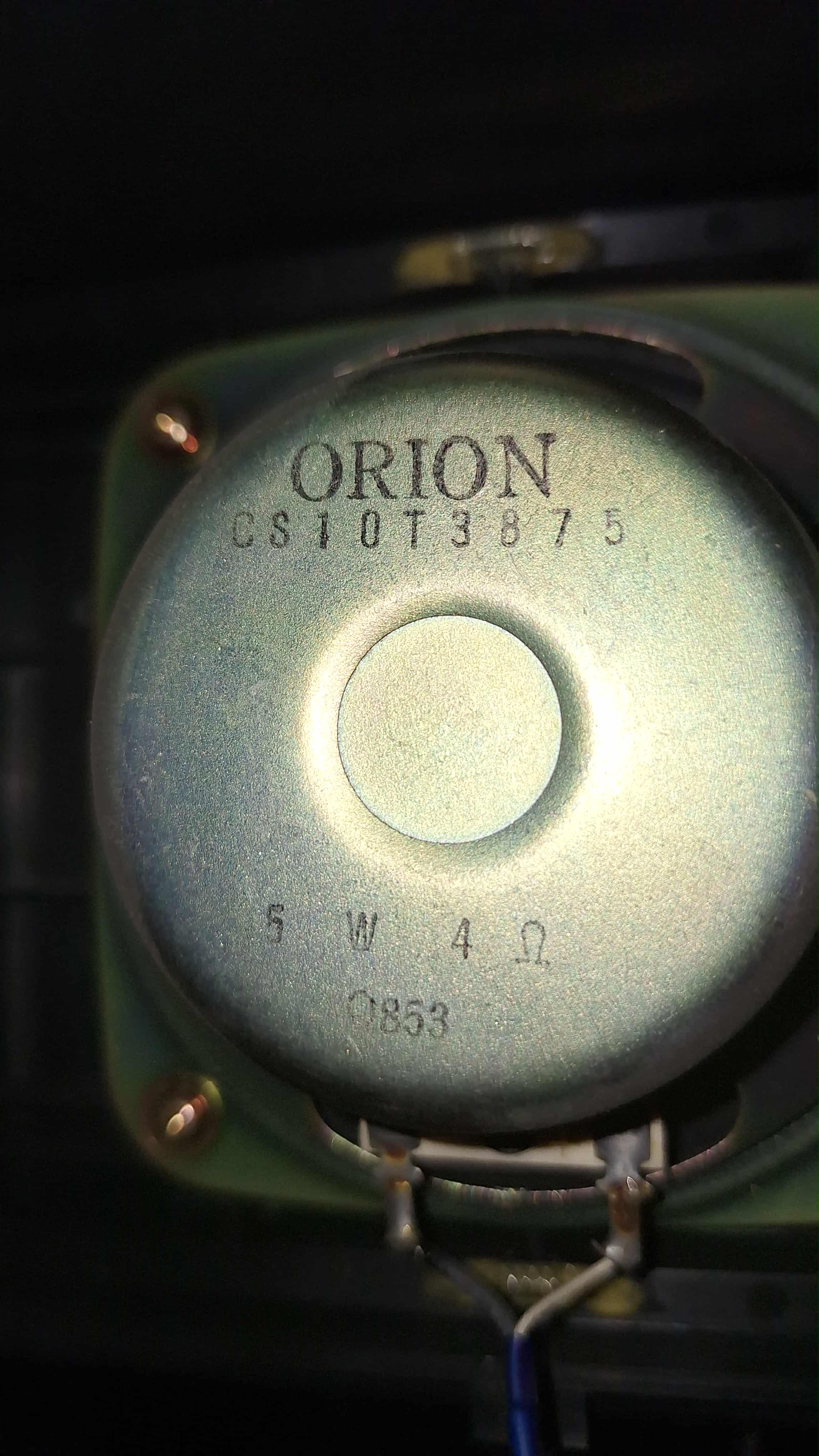

| Speakers: | Stereo, 5W x 2 |

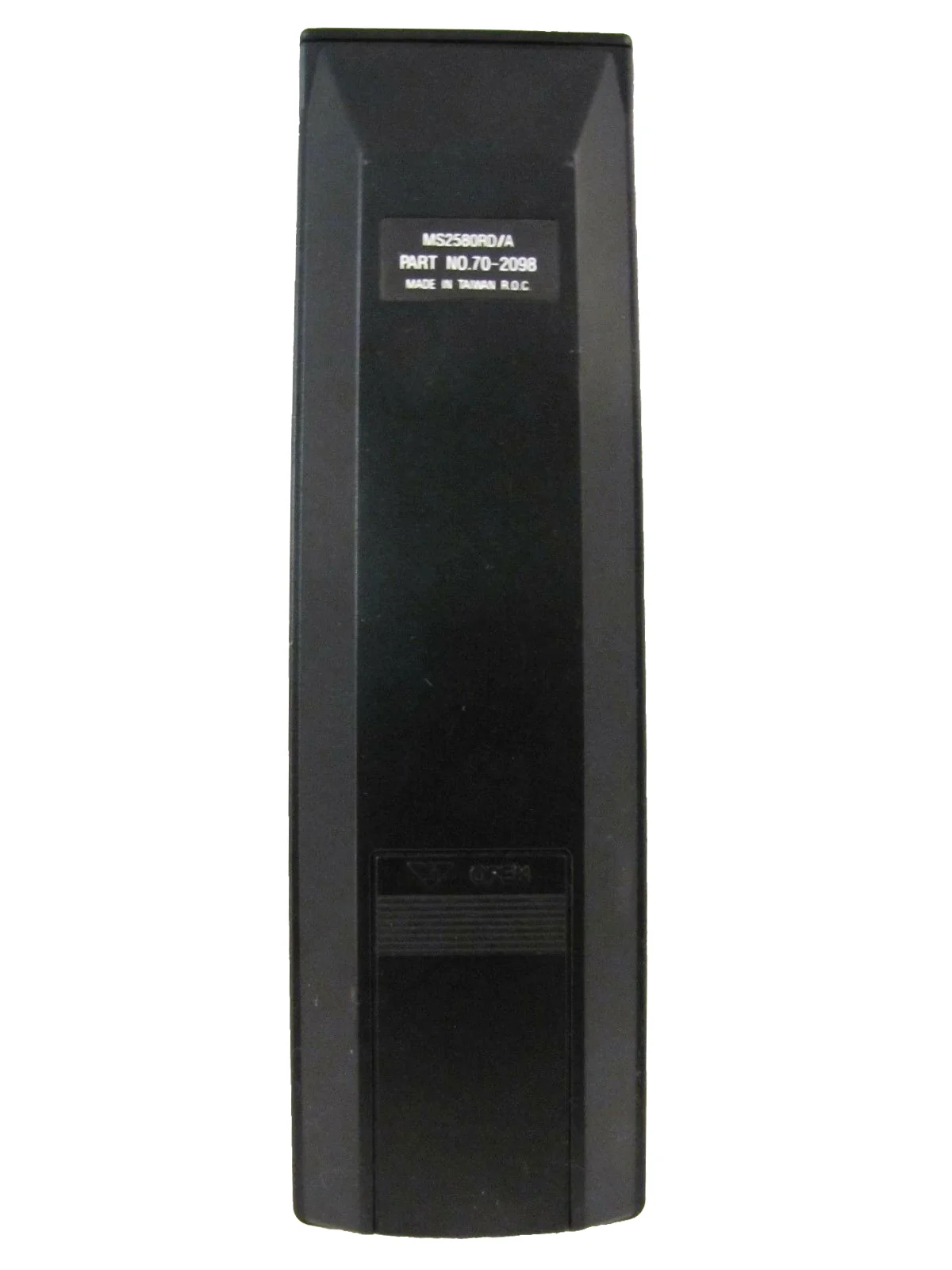

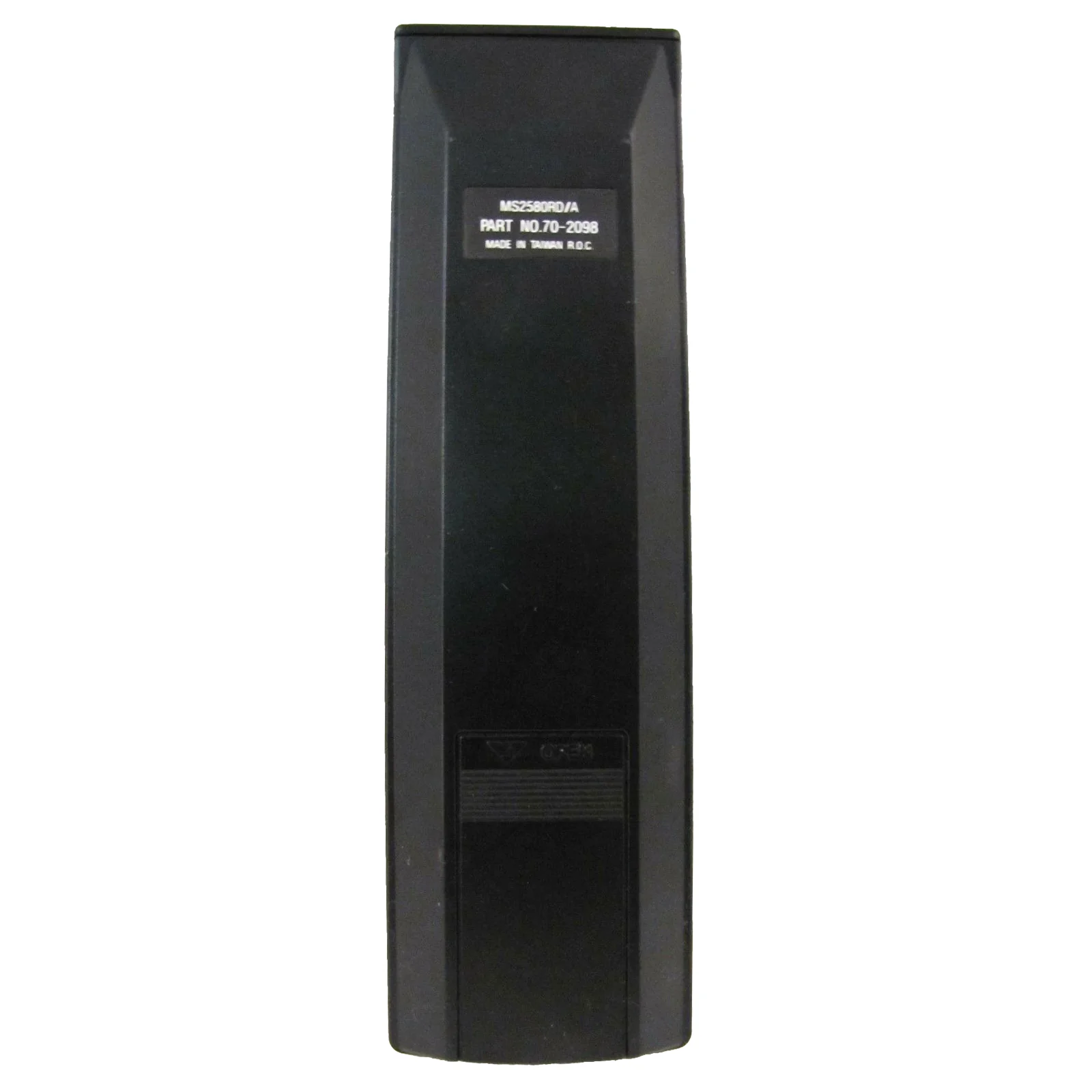

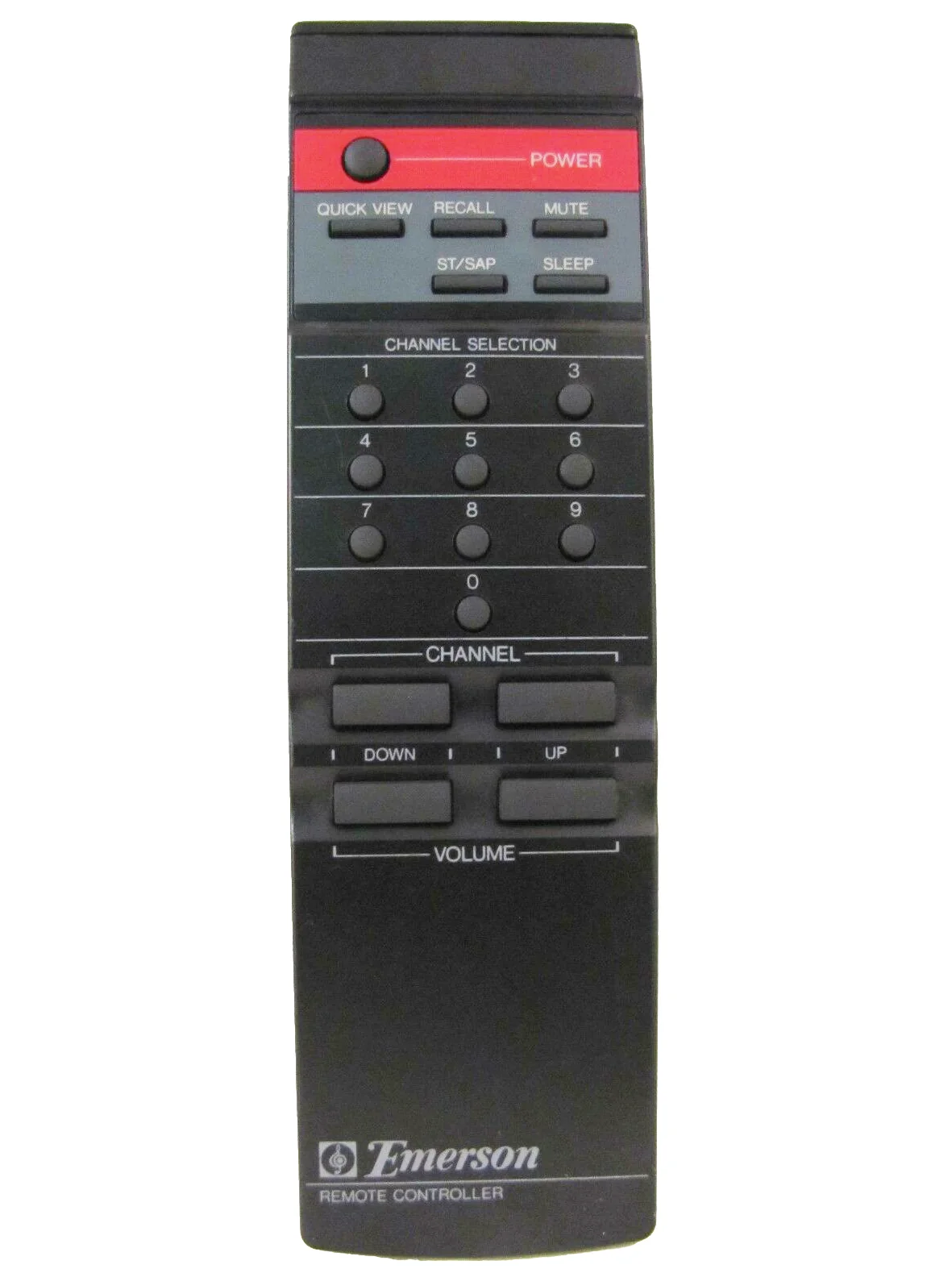

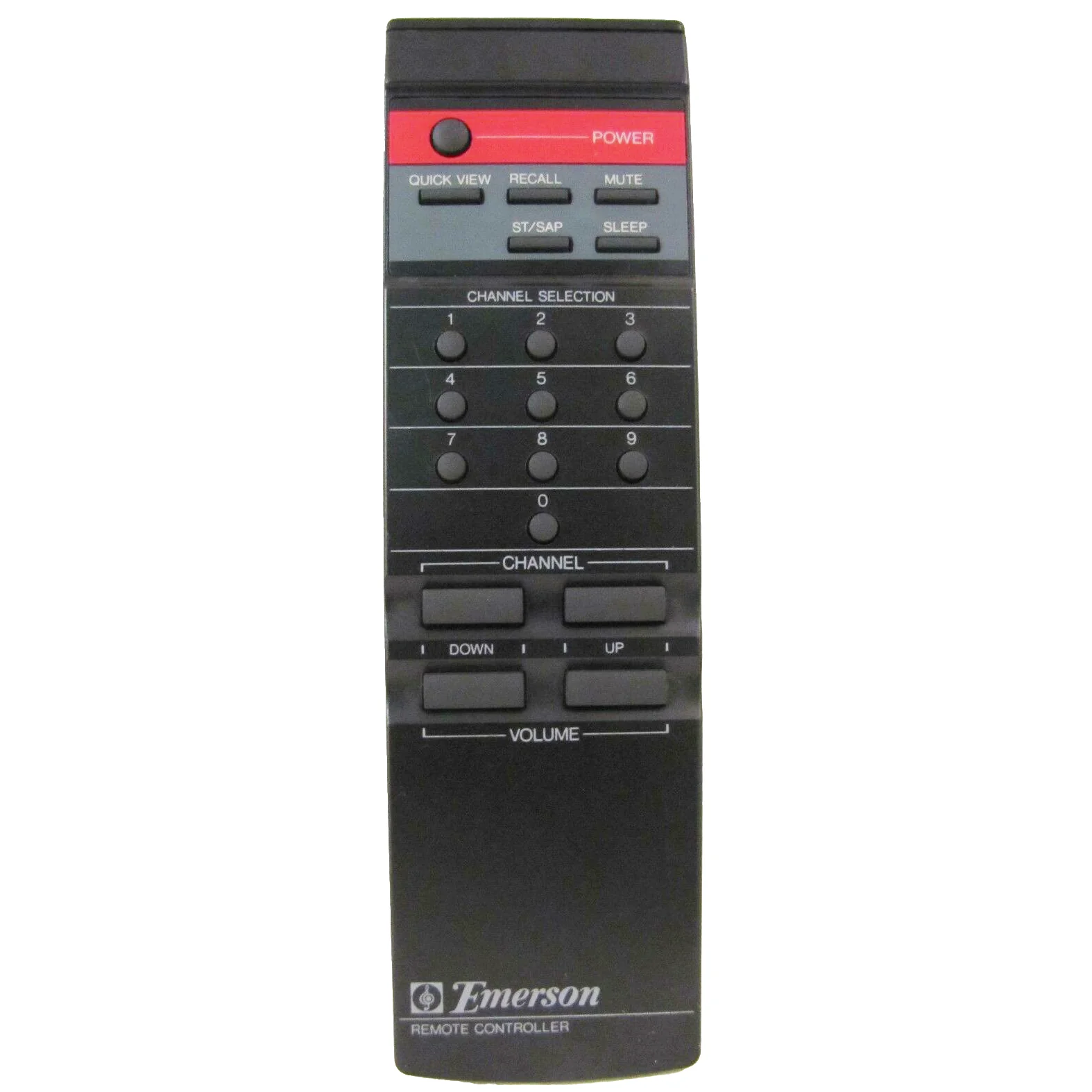

| Remote: | 70-2098 |

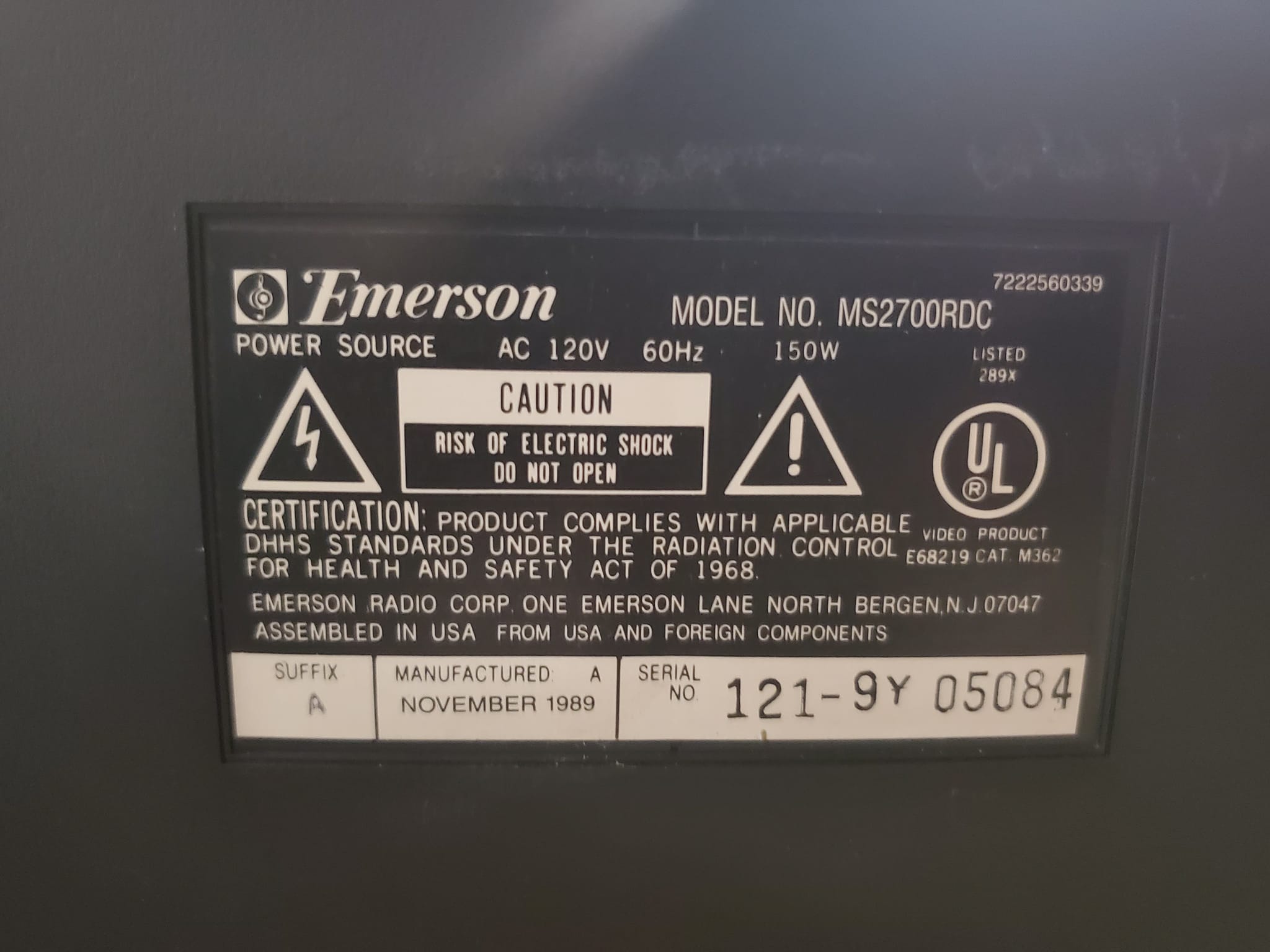

| Chassis: | M362 |
| Weight: | 79.4 lbs (36 kg) |
| Dimensions (W/H/D): |
700 x 630 x 435 mm
(27.5 x 24.8 x 17.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 1999 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
