Emerson TC0910R

Eli Krause
October 29, 2024, 5:56 pm
November 24, 2024, 7:51 pm

Summary

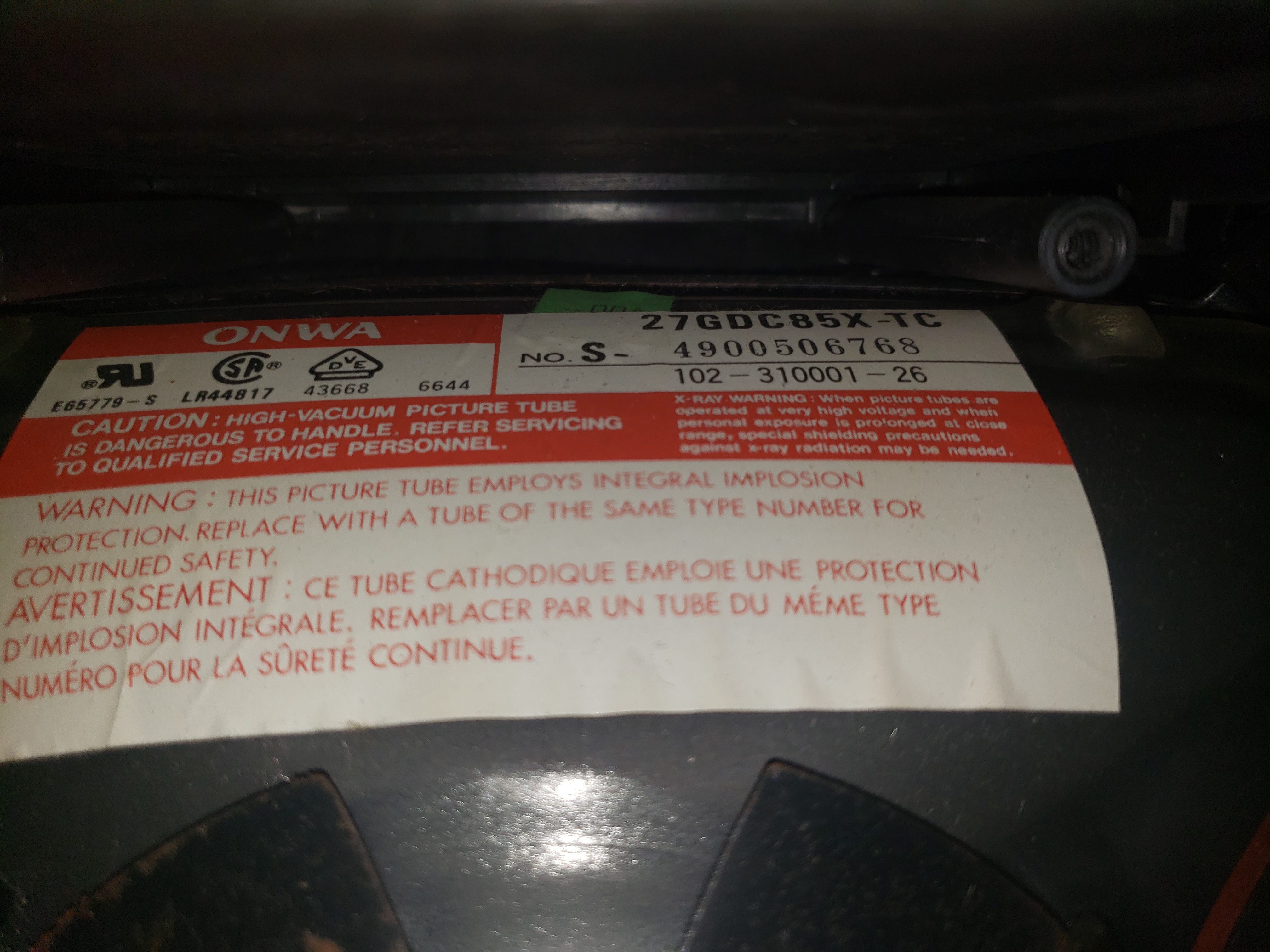

Color 9" manufactured by Onwa of Korea.

Literature

No documentation is freely available online at this time.

Notes

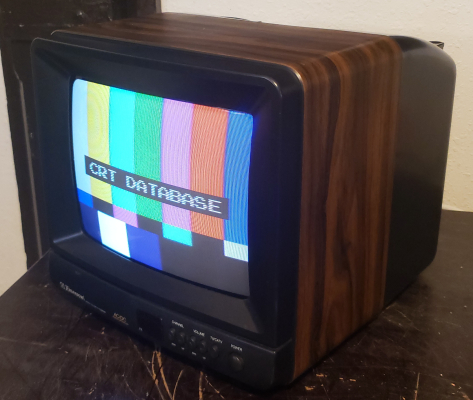

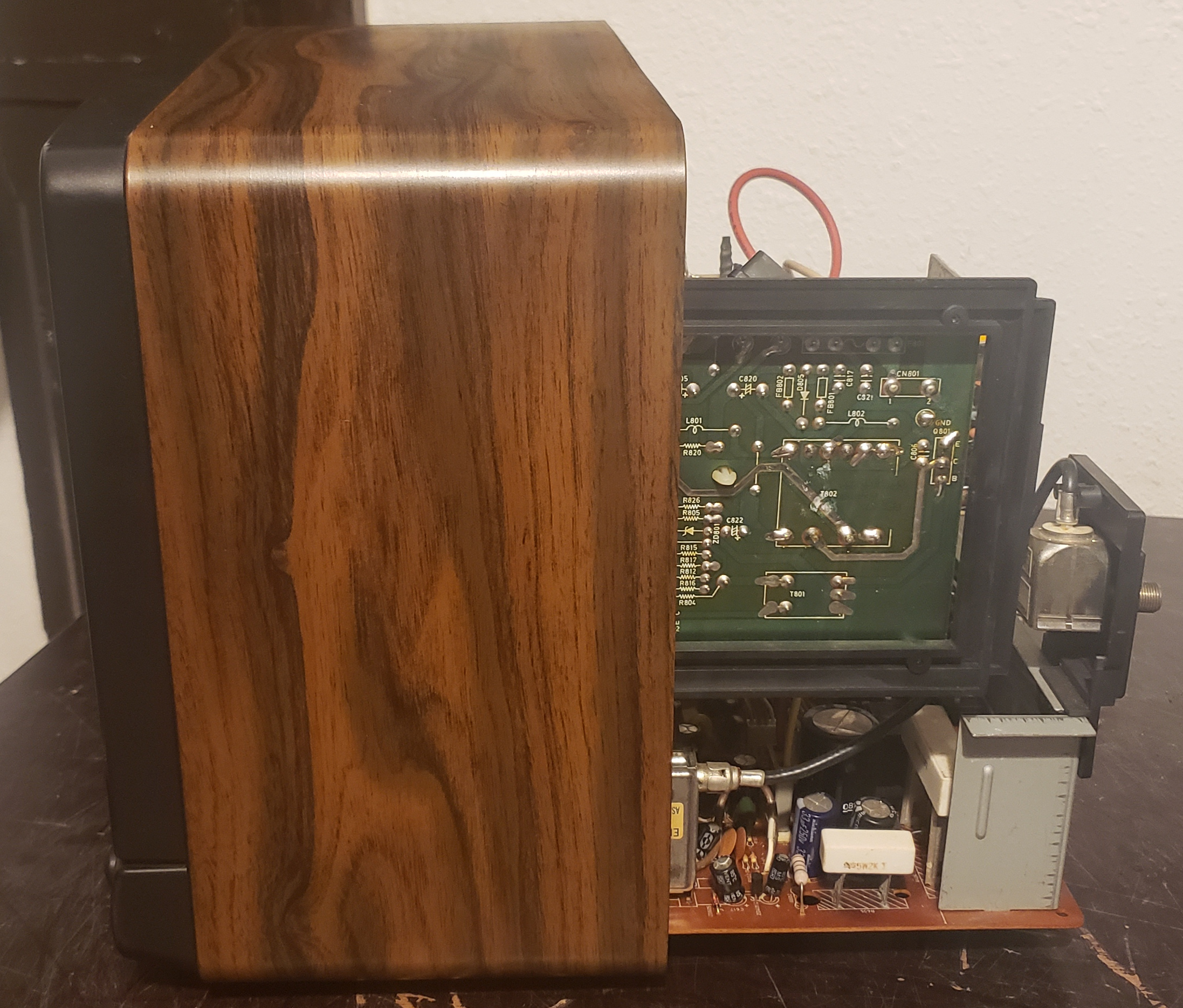

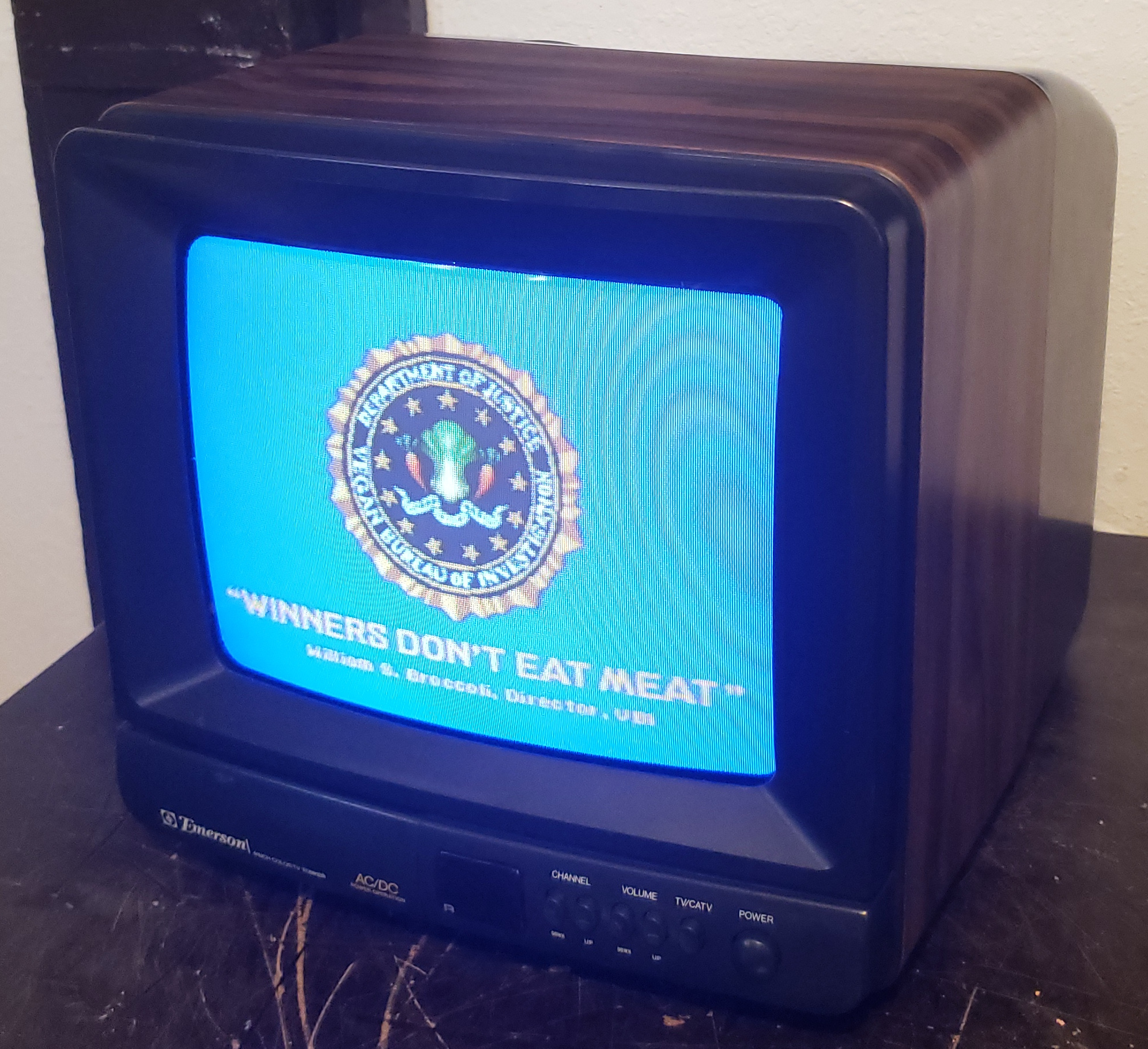

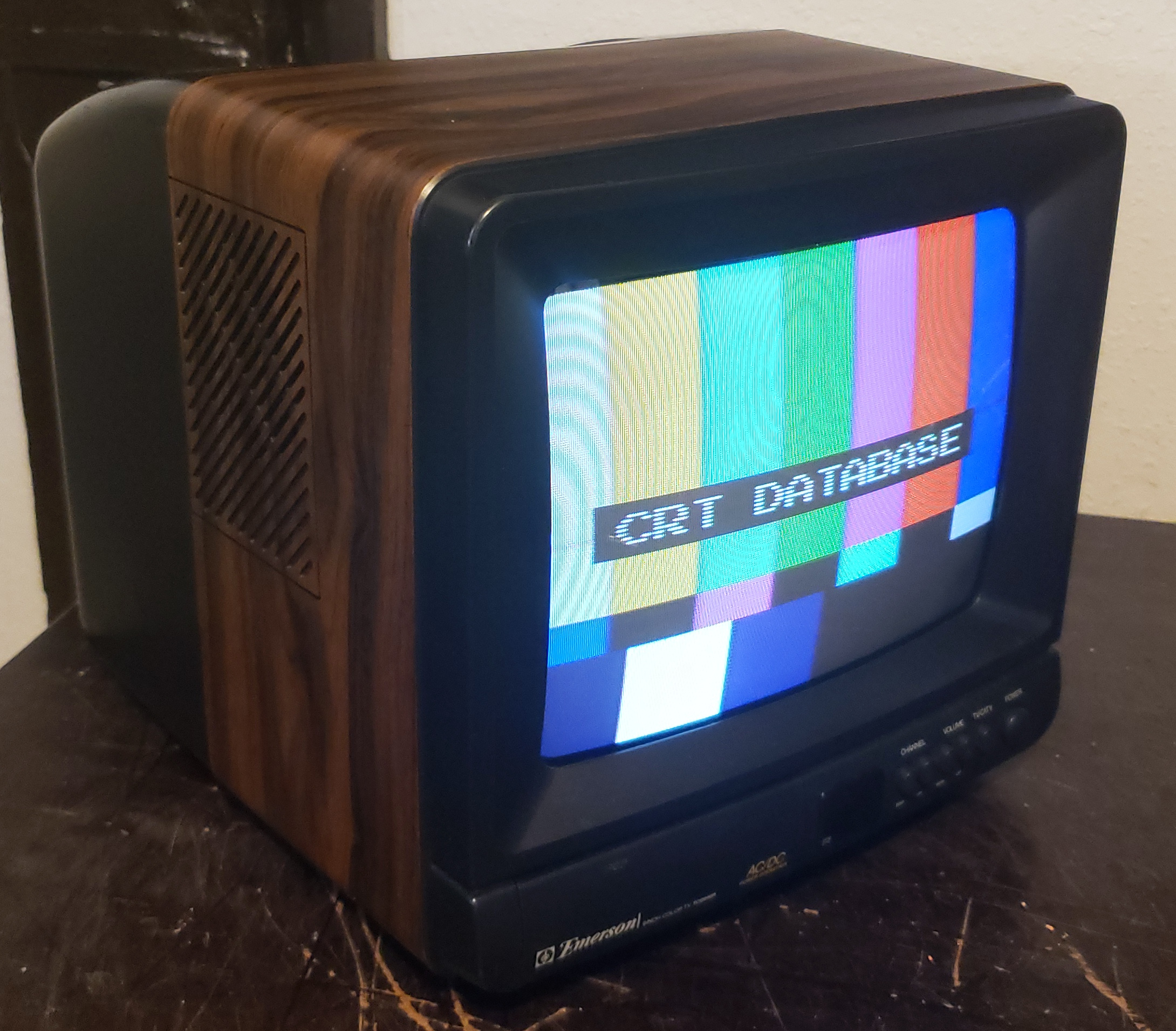

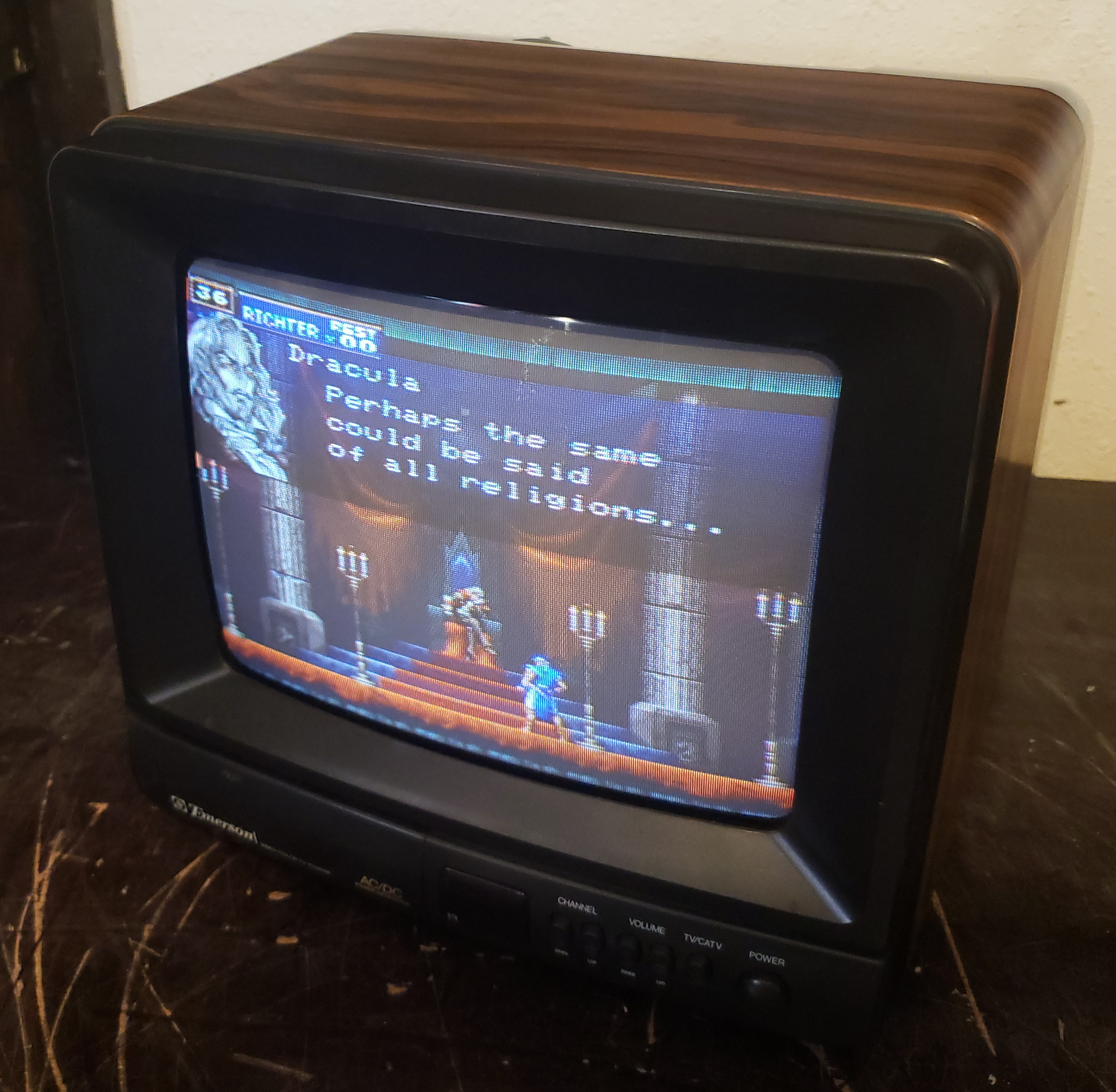

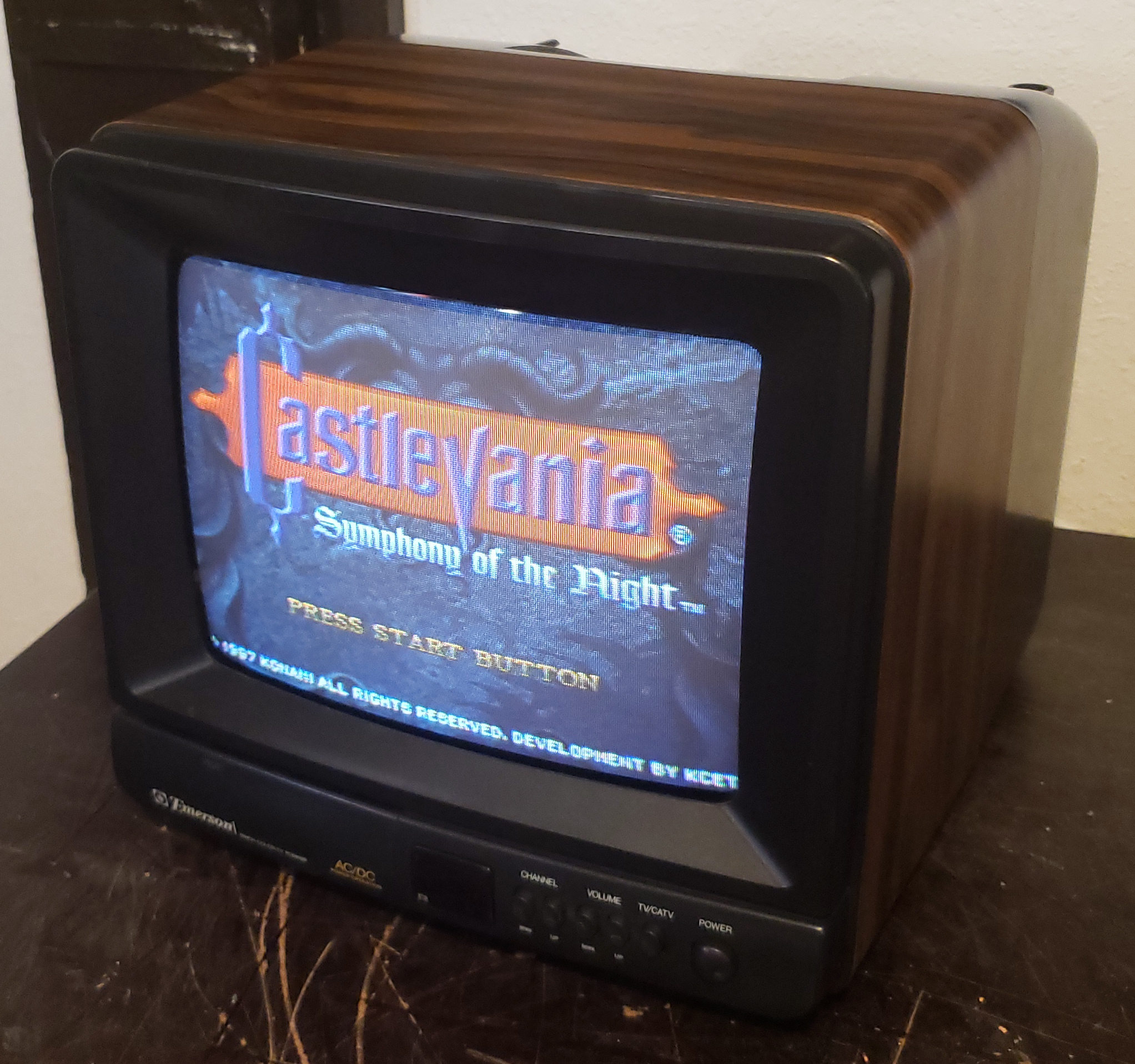

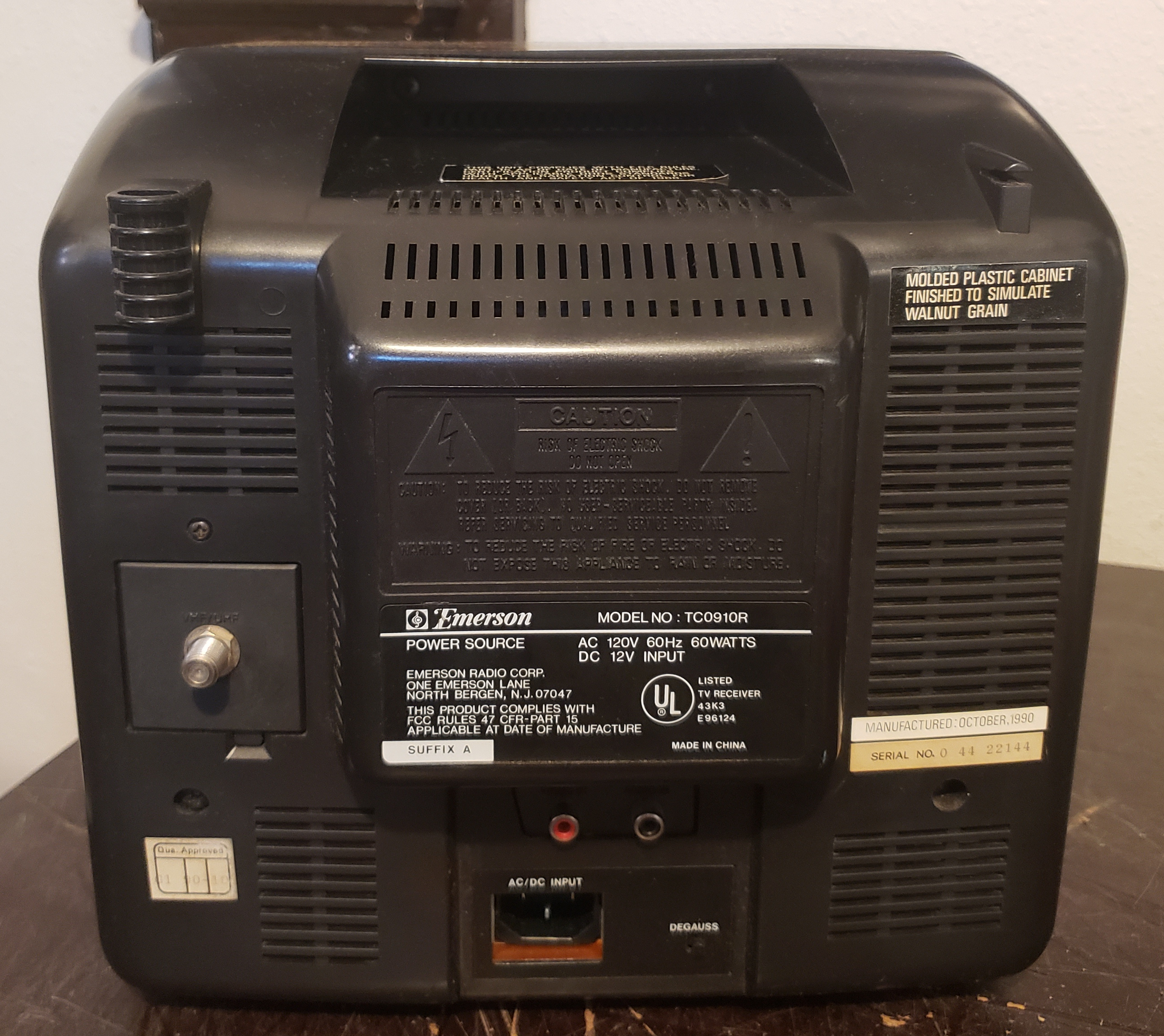

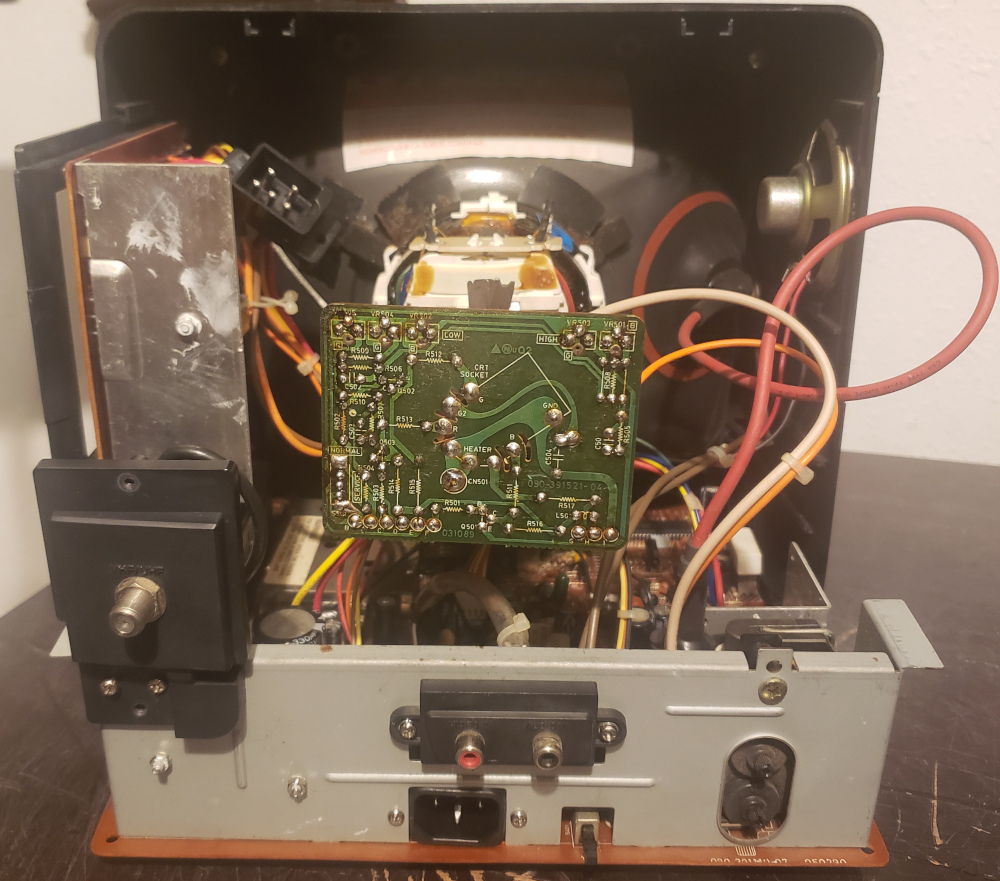

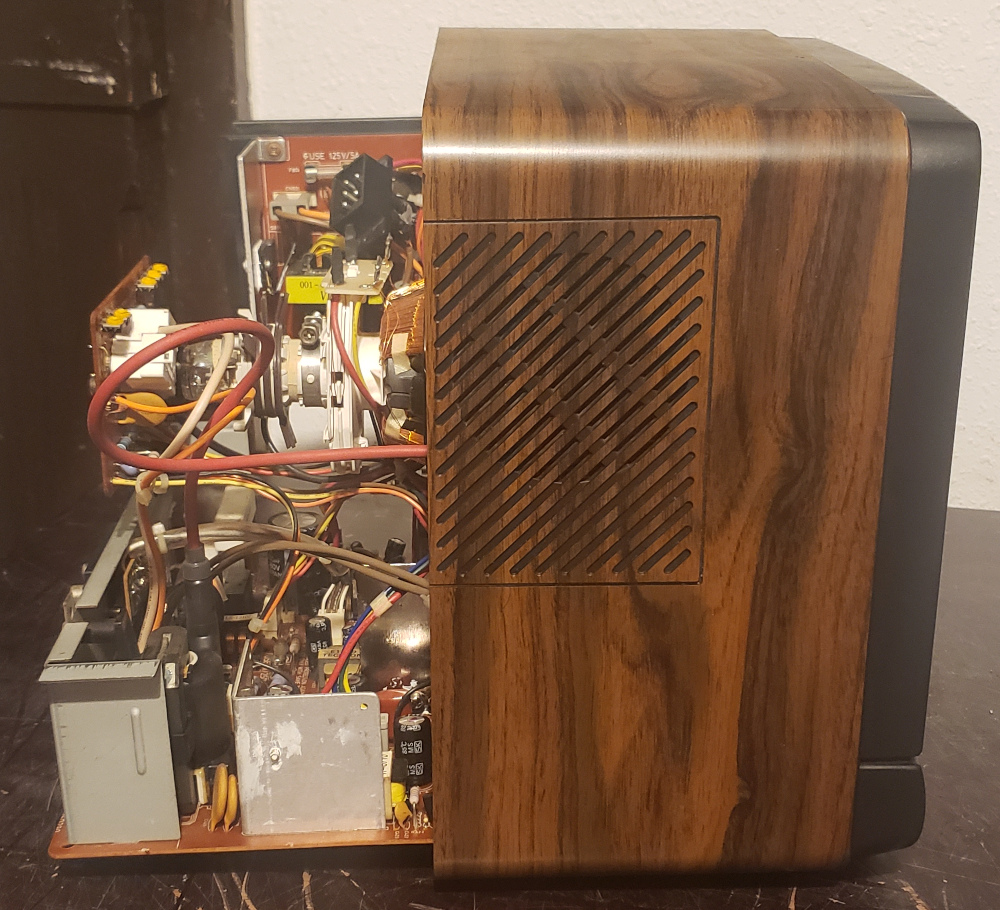

There is an internal potentiometer to adjust vertical height. This jungle chip does not appear to have a separate chroma input, so it is not readily S-Video moddable, despite having an isolated chassis. Composite video itself is presented well with minimal artifacting, though as with some other sets 9" and below there can be a bit of a screen-door effect on the raster. The set pictured had its original 5-pin Taiho power jack replaced wth a C14 connector. To use the original 5-pin jack, the prong closer to the notch on the set is neutral (wider blade of wall AC plug), and the prong further from the notch is hot (narrower blade of wall AC plug).

Gallery

Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R Emerson TC0910R
