Summary

Portable color 9" with an RF input.

Literature

No documentation is freely available online at this time.

Notes

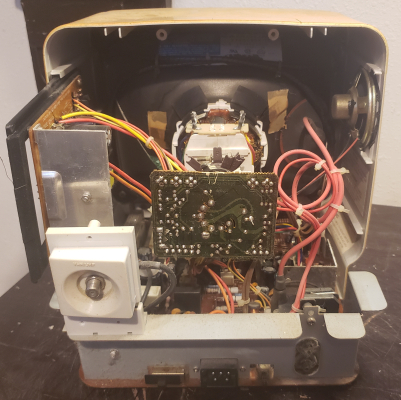

This jungle chip has a separate chroma input so it may be readily S-Video moddable. A composite mod should be readily doable as well due to having an isolated chassis.

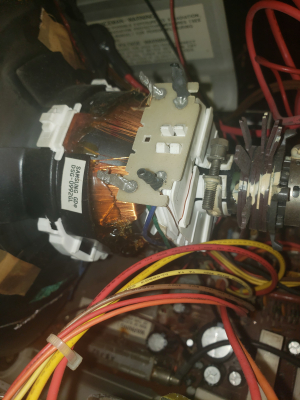

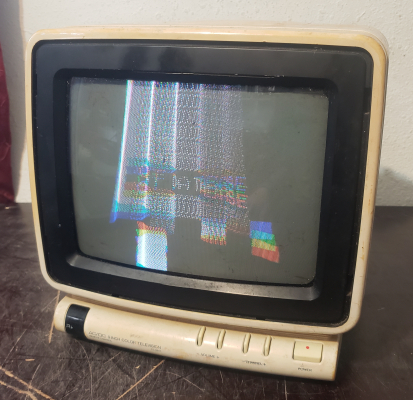

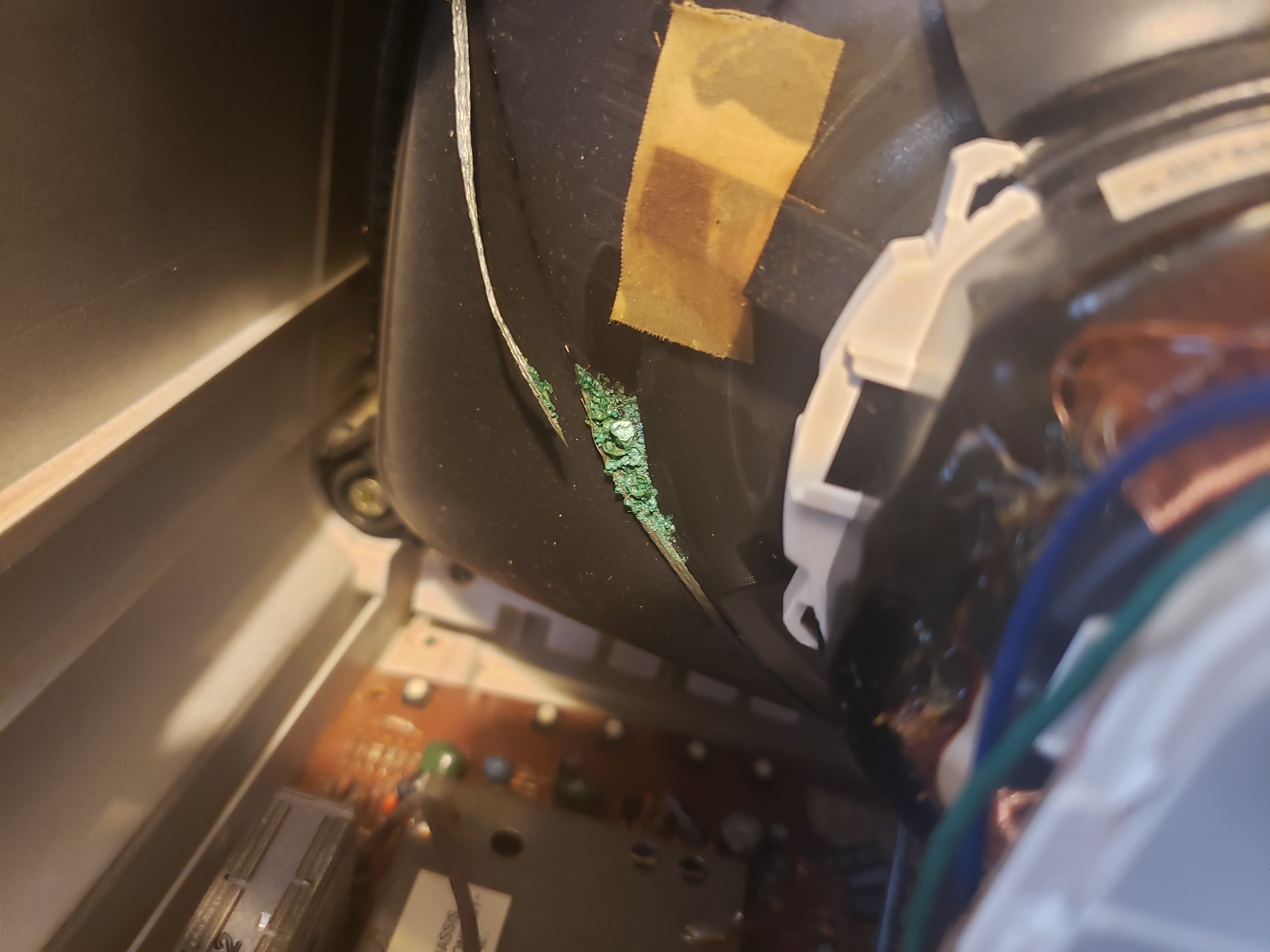

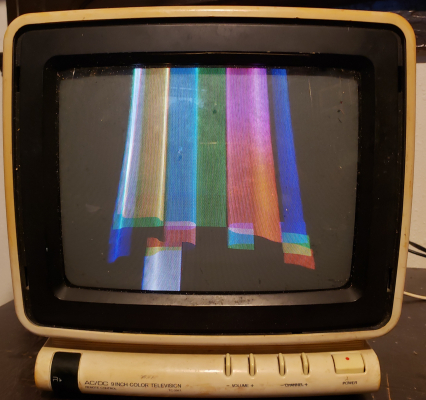

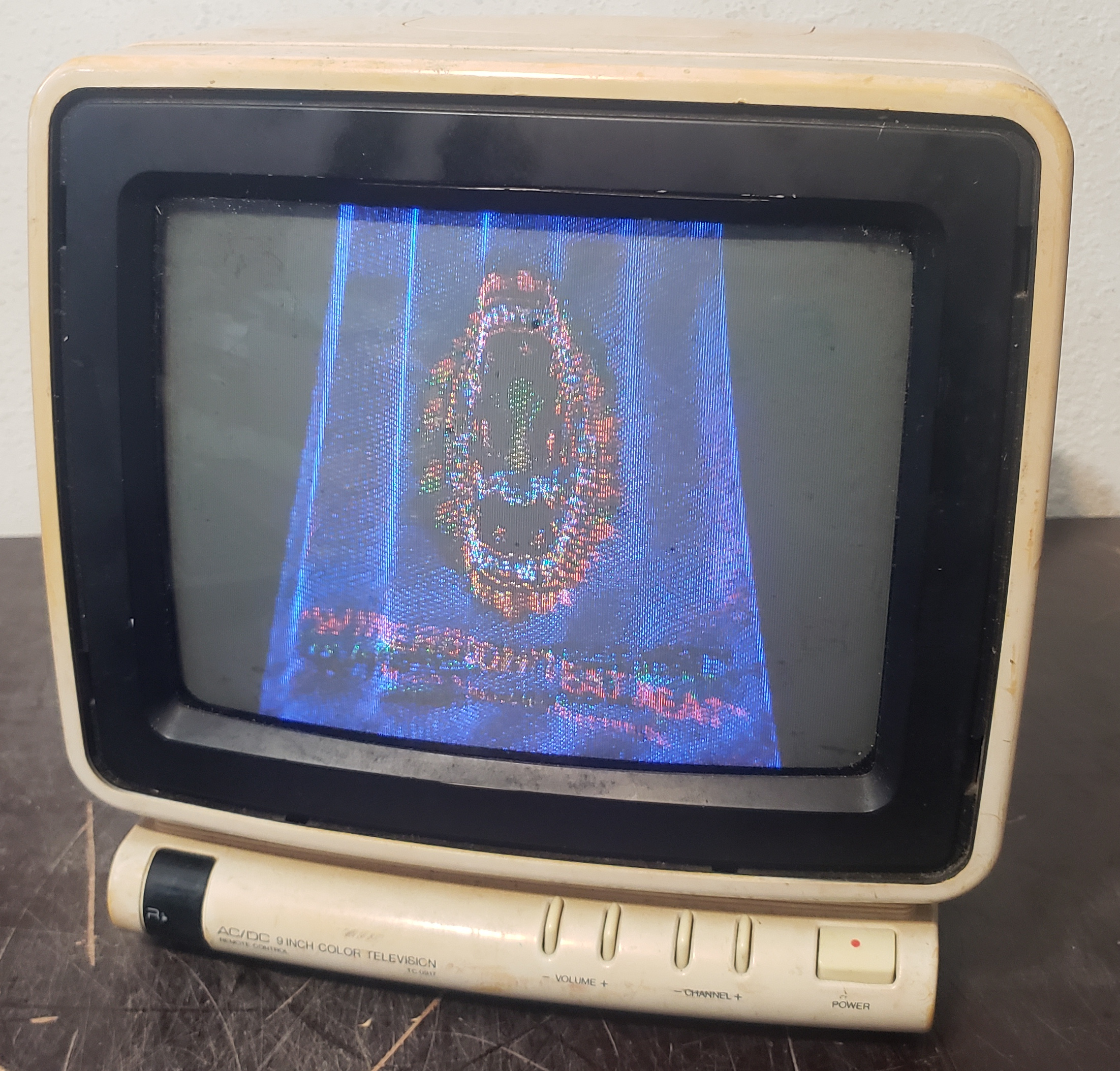

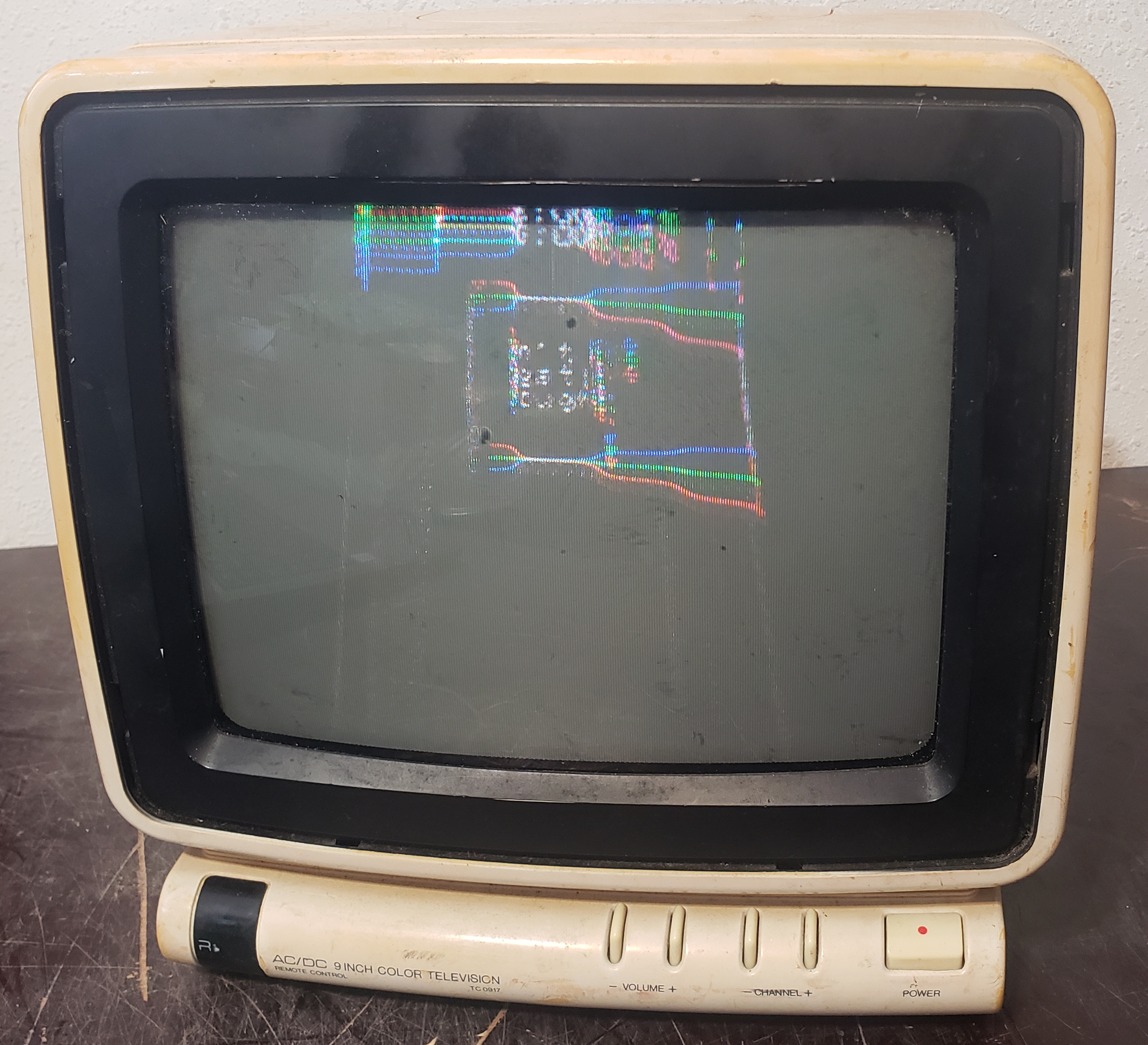

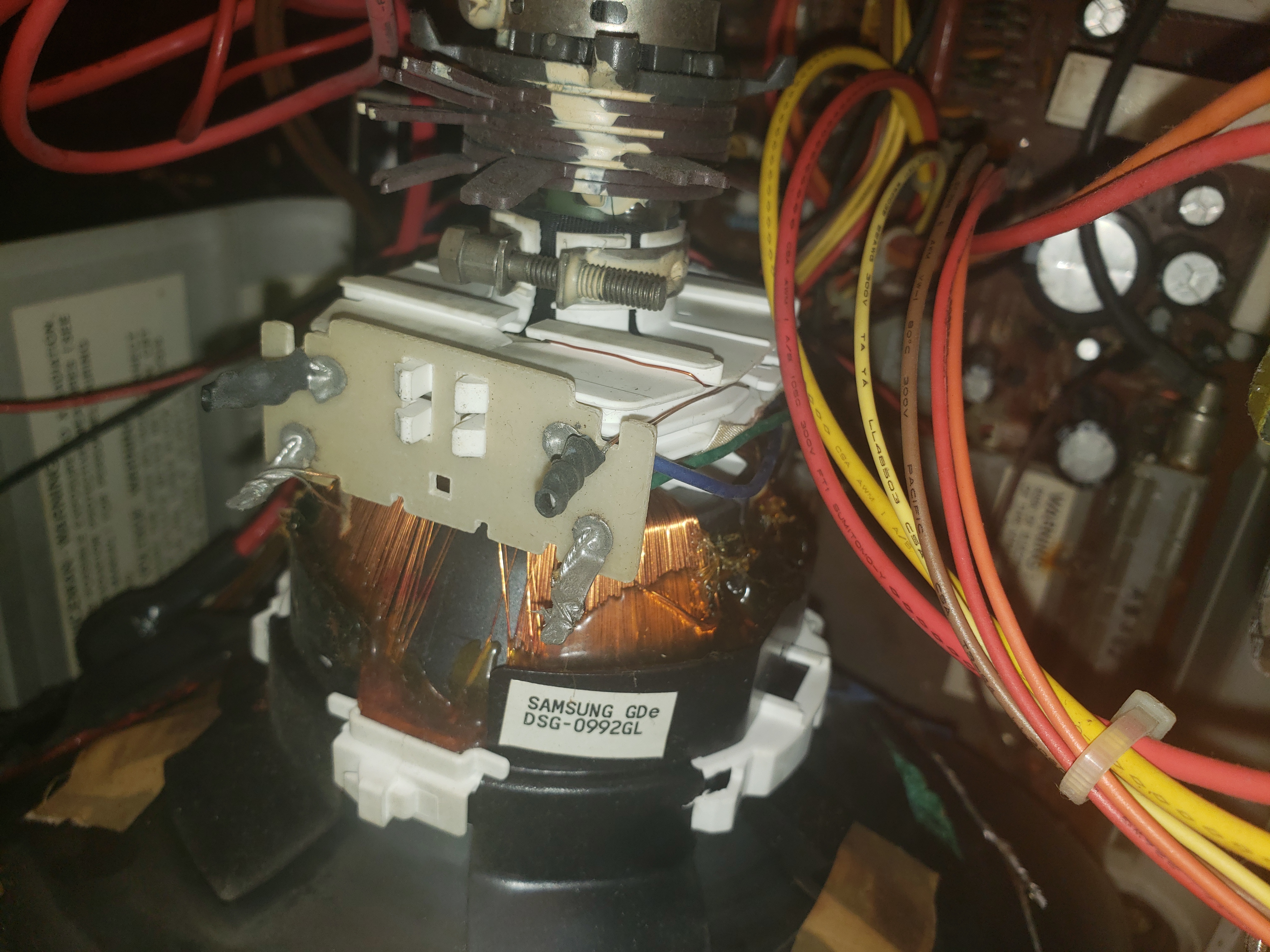

Subject pictured has a bad yoke.

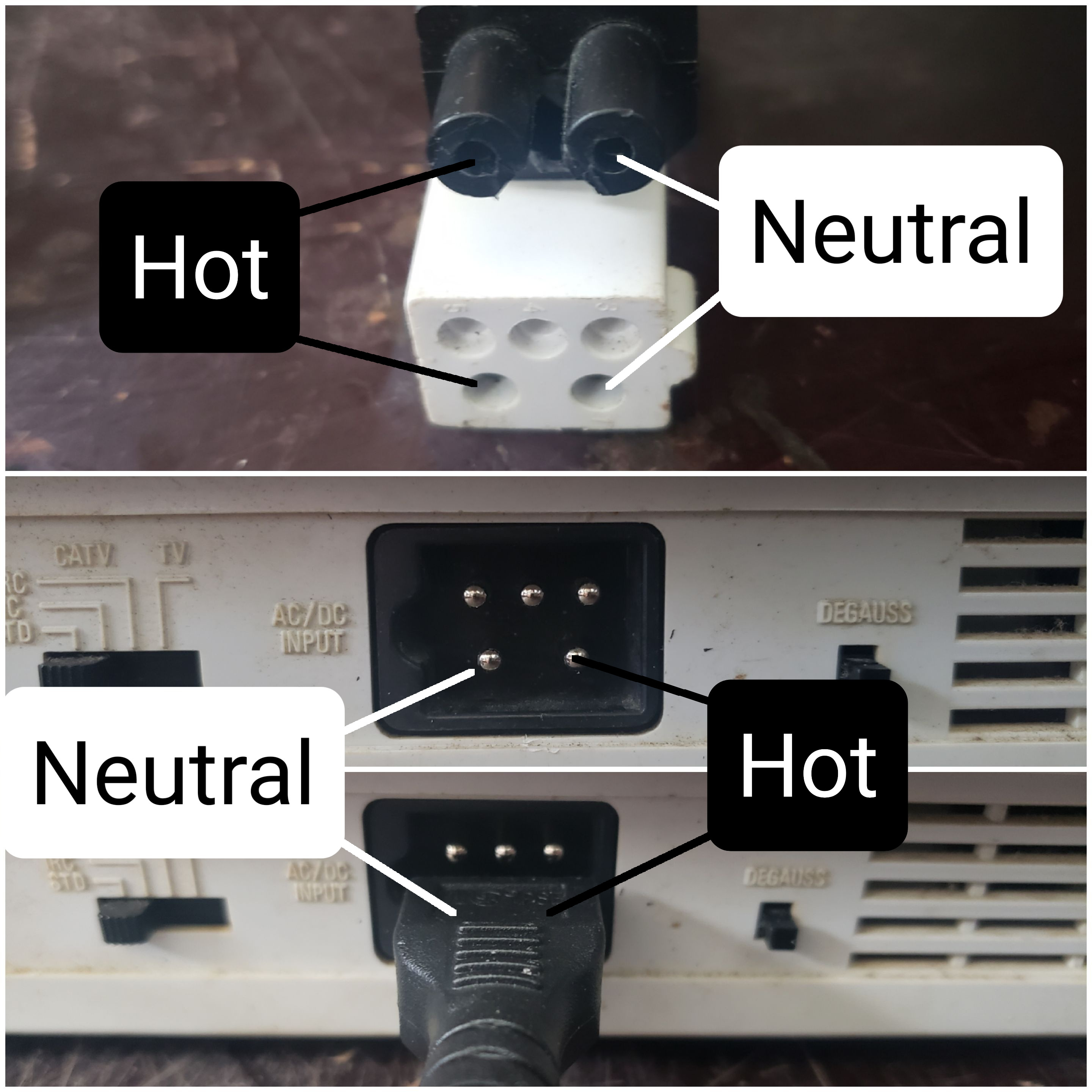

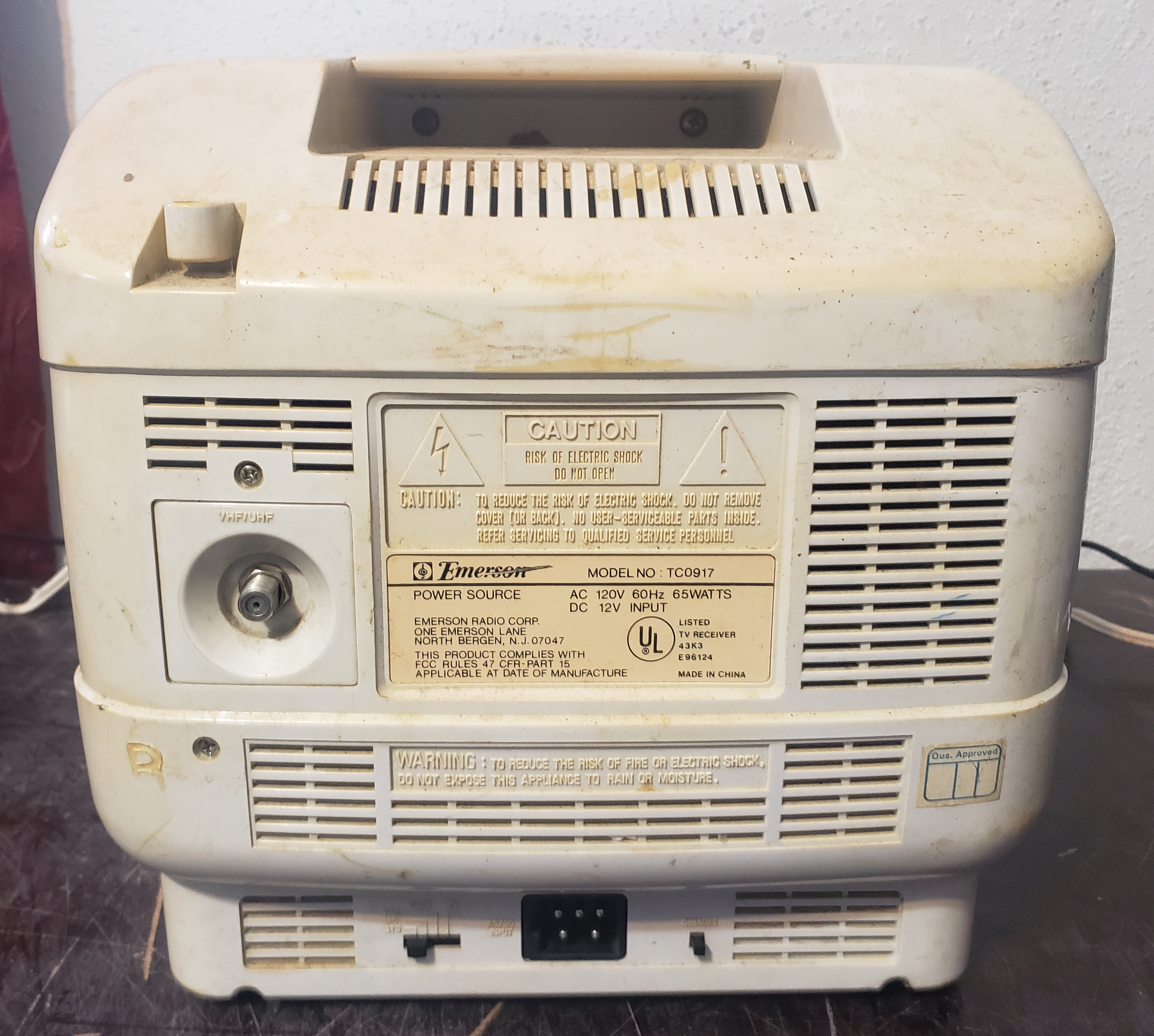

A 5-pin Taisho connector for power supports either AC or DC. The prong closer to the notch on the set is neutral (wider blade of wall AC plug), and the prong further from the notch is hot (narrower blade of wall AC plug).
