Summary

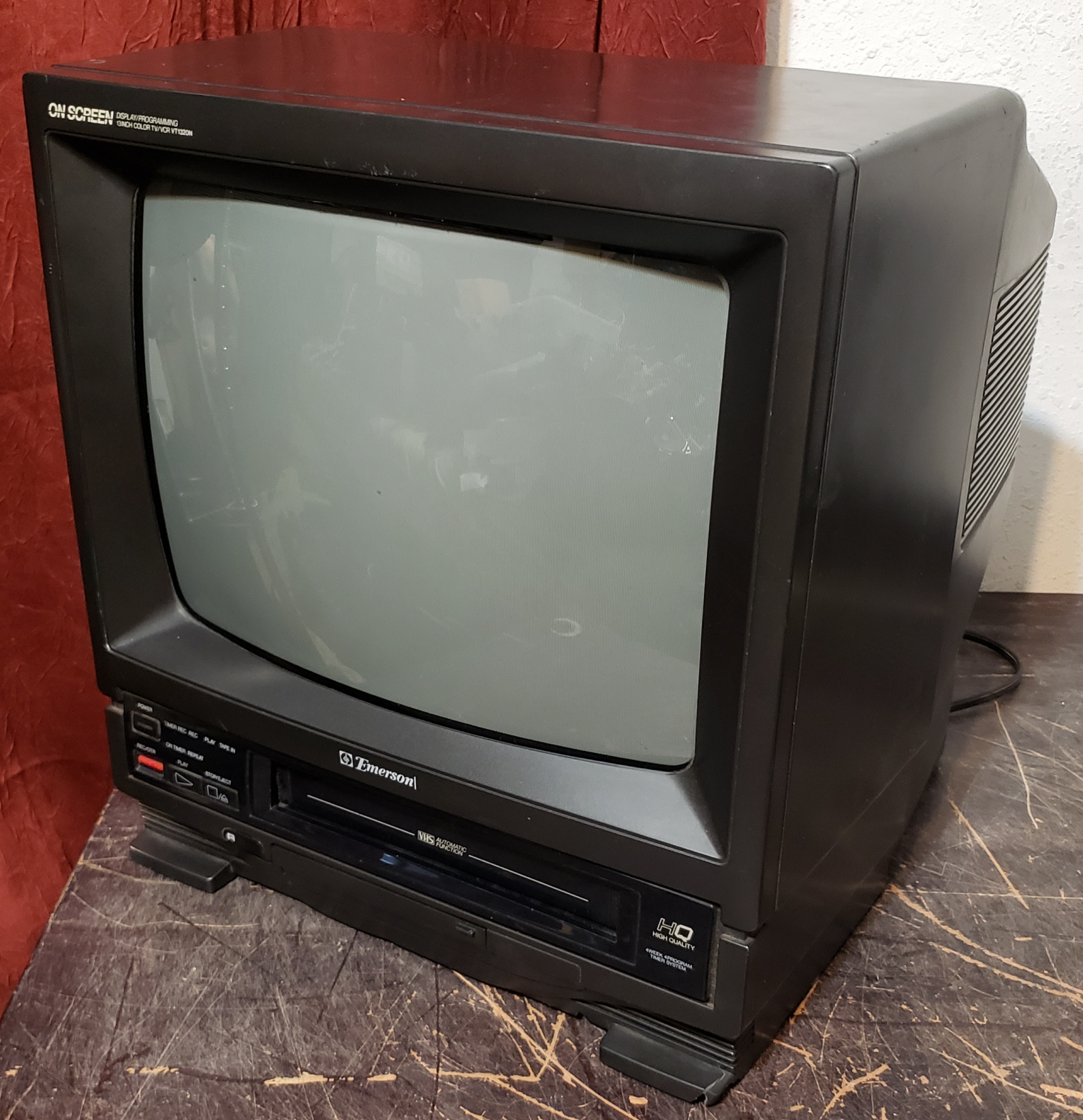

13" TV/VCR combo. Manufactured by Orion and sold under the Emerson brand. Later Emerson TVs would be manufactured by Funai.
Manuals
No documentation is available online at this time.
Media & Promo Materials
- Reviewed in Video Review magazine, Aug. 19911(not freely available online)
Notes

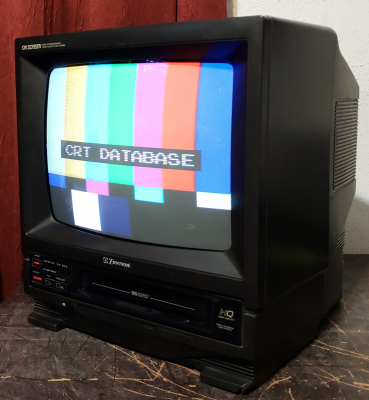

A remote is needed to adjust picture settings, which are forgotten if the unit is unplugged. The default contrast level is maxed out, which on the unit pictured would completely blow out the highlights.
VCR is prone to failure by not accepting/loading tapes.
Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Orion |
| Model: | VT1320N |
| Series: | VT |
| Viewable Size: | 13" |

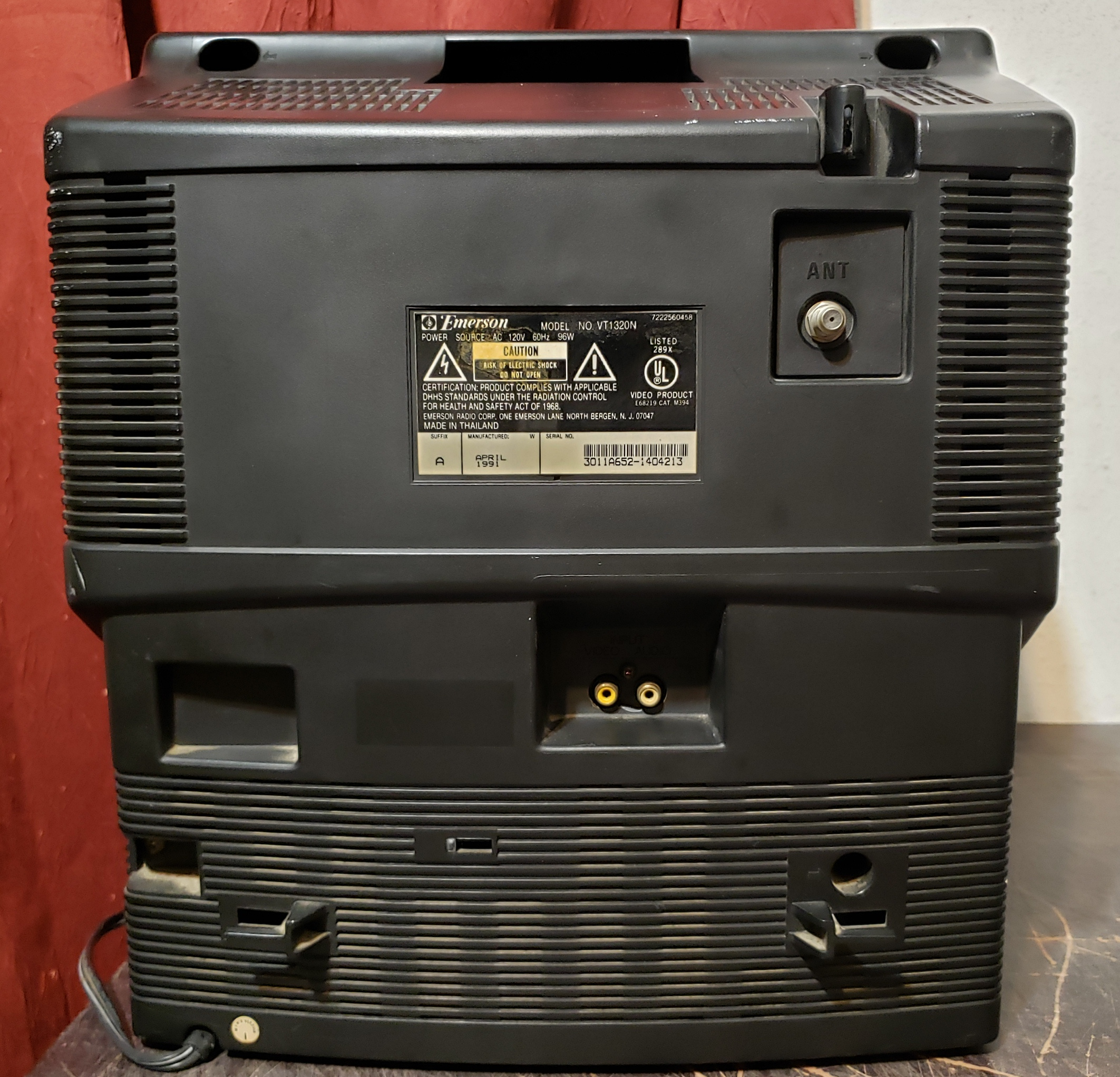

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle: | M52025SP, Mitsubishi |
| Comb Filtering: | None |
| Focus Type: | Single |

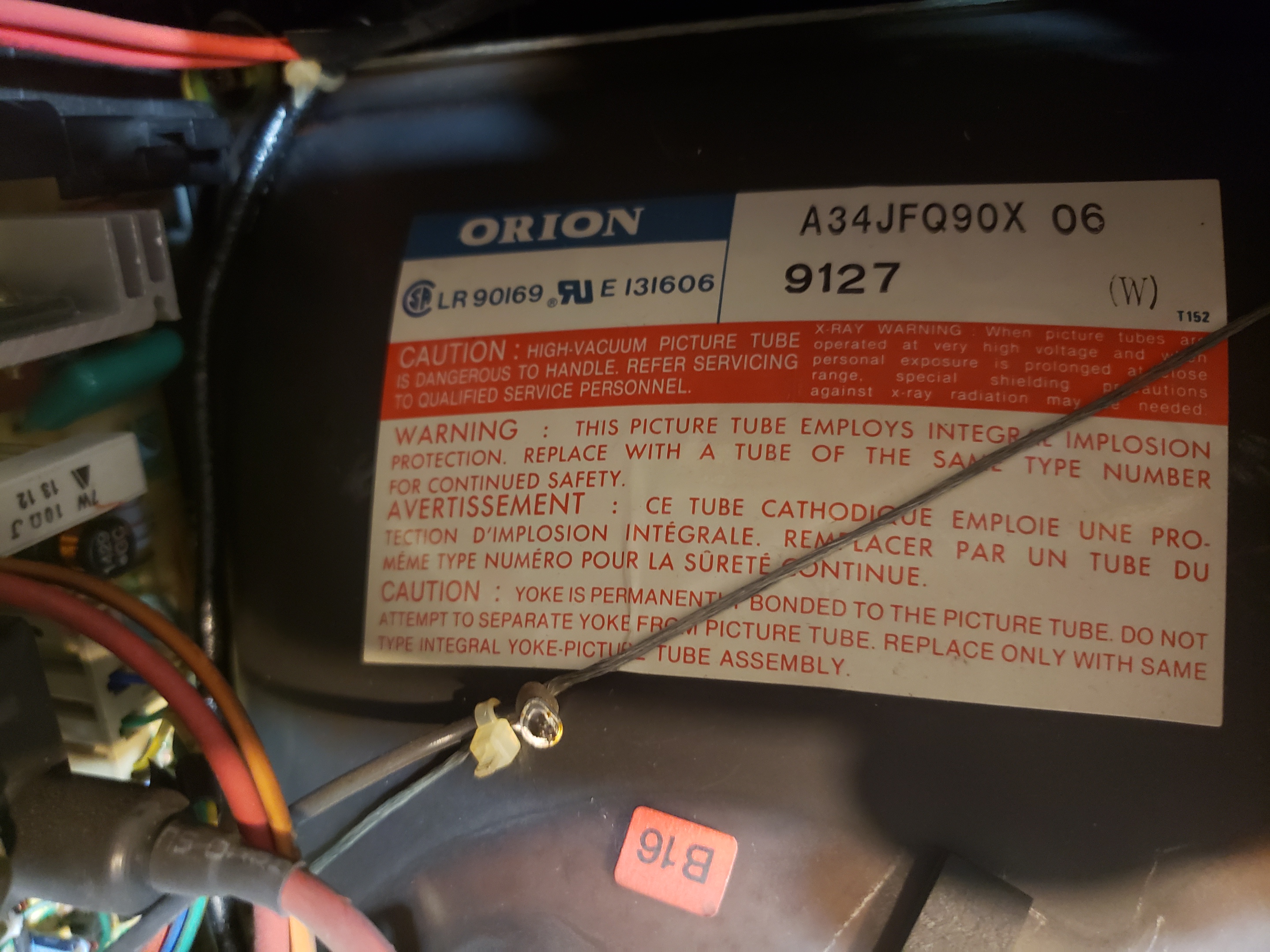

| Tube: | A34JFQ90X , A34JFQ90X06 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | YS-58507 |
| Yoke Horz. Resistance: | 3.3 ohm |
| Yoke Vert. Resistance: | 15.1 ohm |
| Speakers: | Mono |
| Weight: | 35 lbs (15.9 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1990 |
| MSRP: | 469 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
