Emerson VT1321
Matt Ross
April 20, 2024, 5:56 pm
April 20, 2024, 5:56 pm
Summary
13" TV/VCR combo. Manufactured by Orion and sold under the Emerson brand. Later Emerson TVs would be manufactured by Funai.
Literature
No documentation is available online at this time.
Notes
While the TV does have an on screen display, it does not have a service menu and relies on internal potentiometers for adjustment.

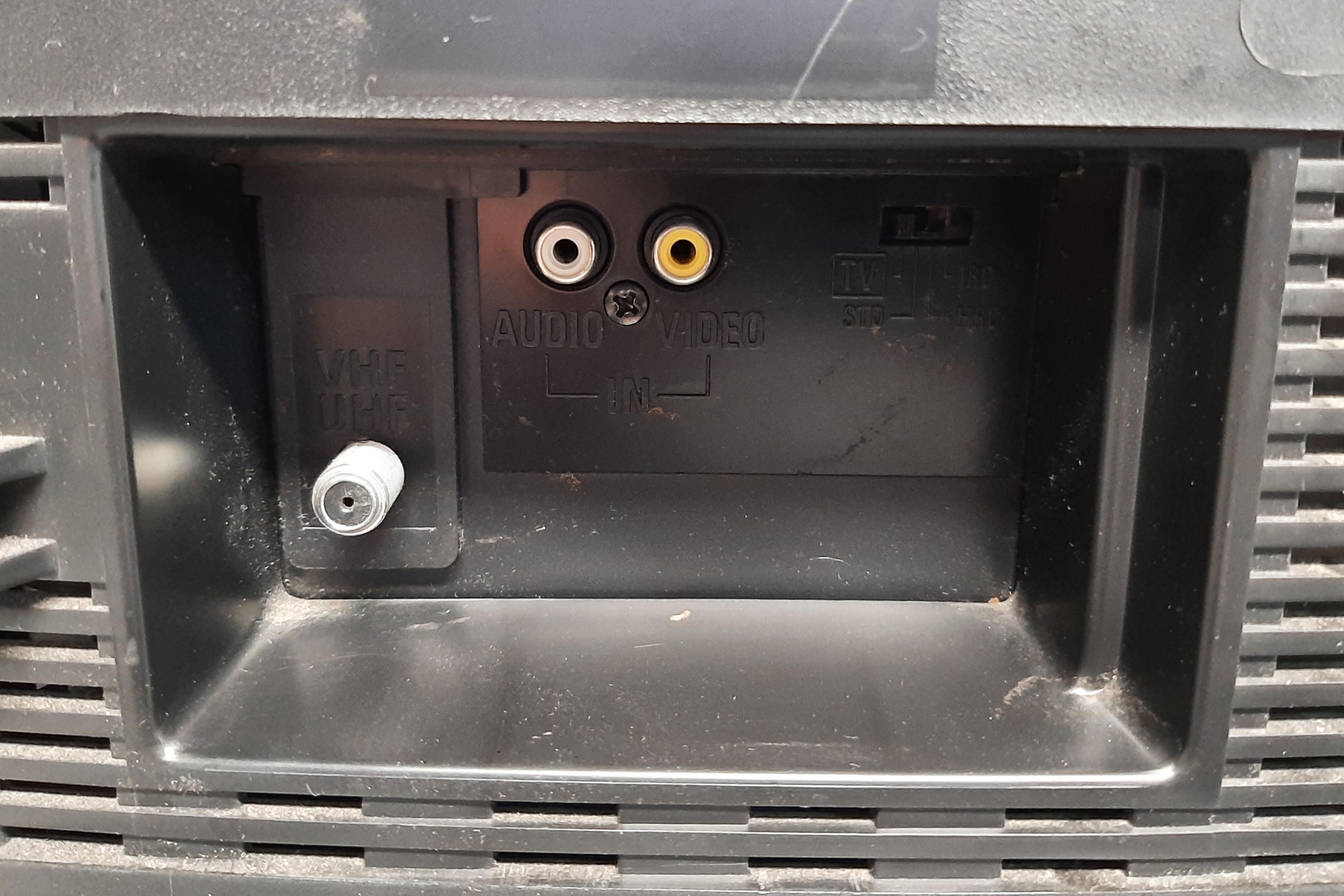

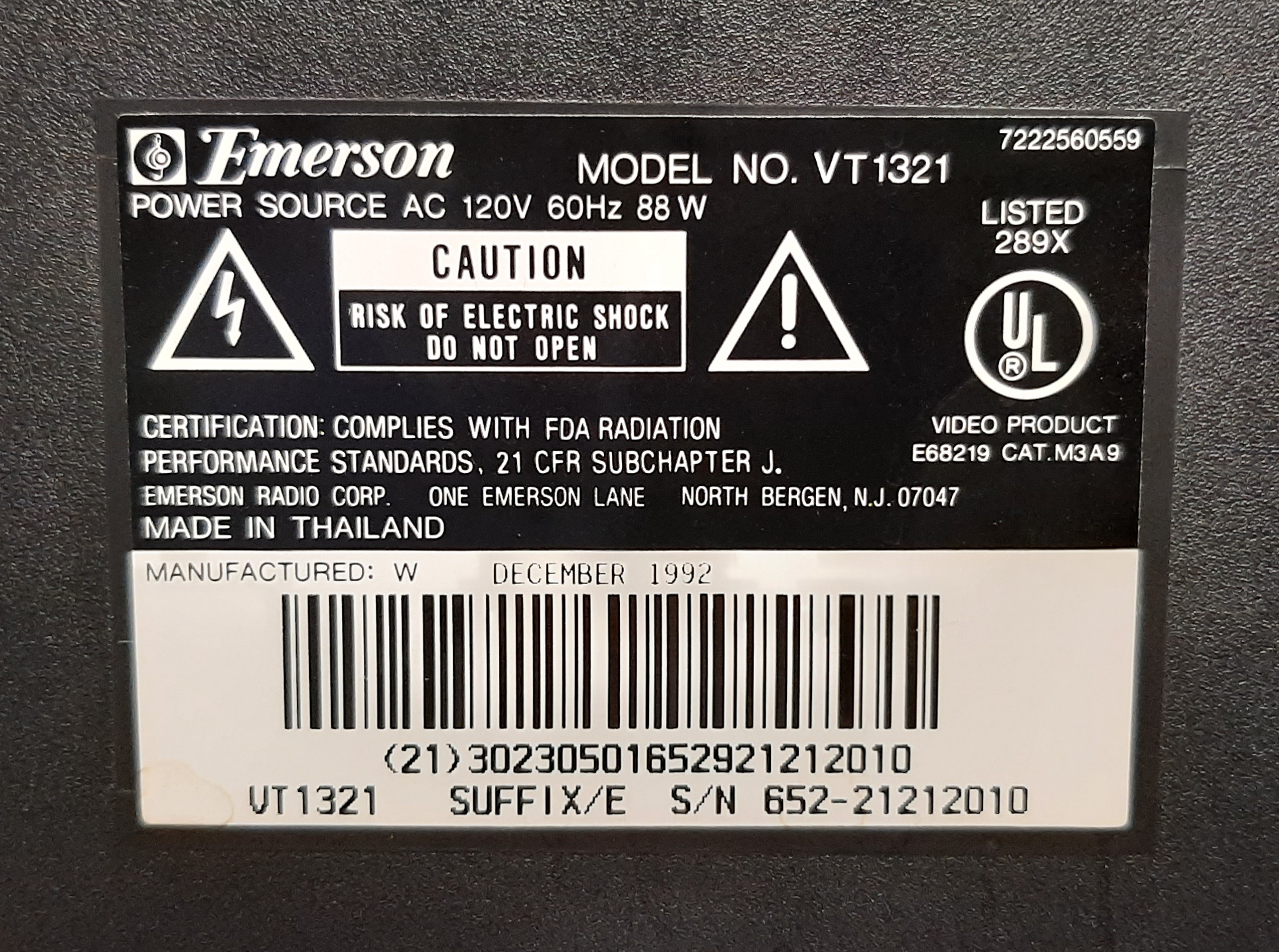

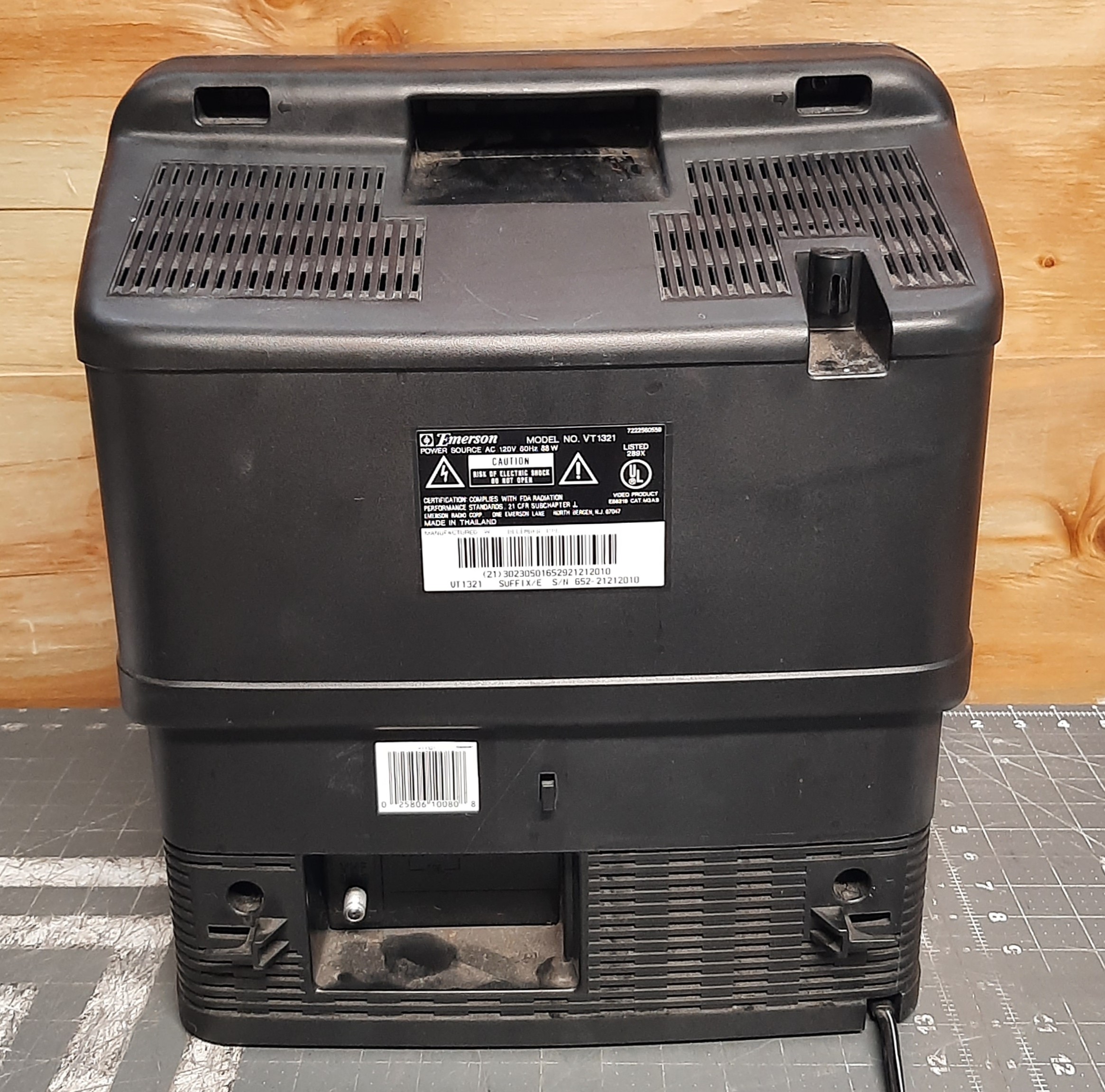

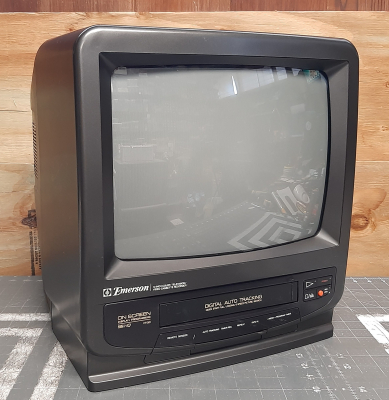

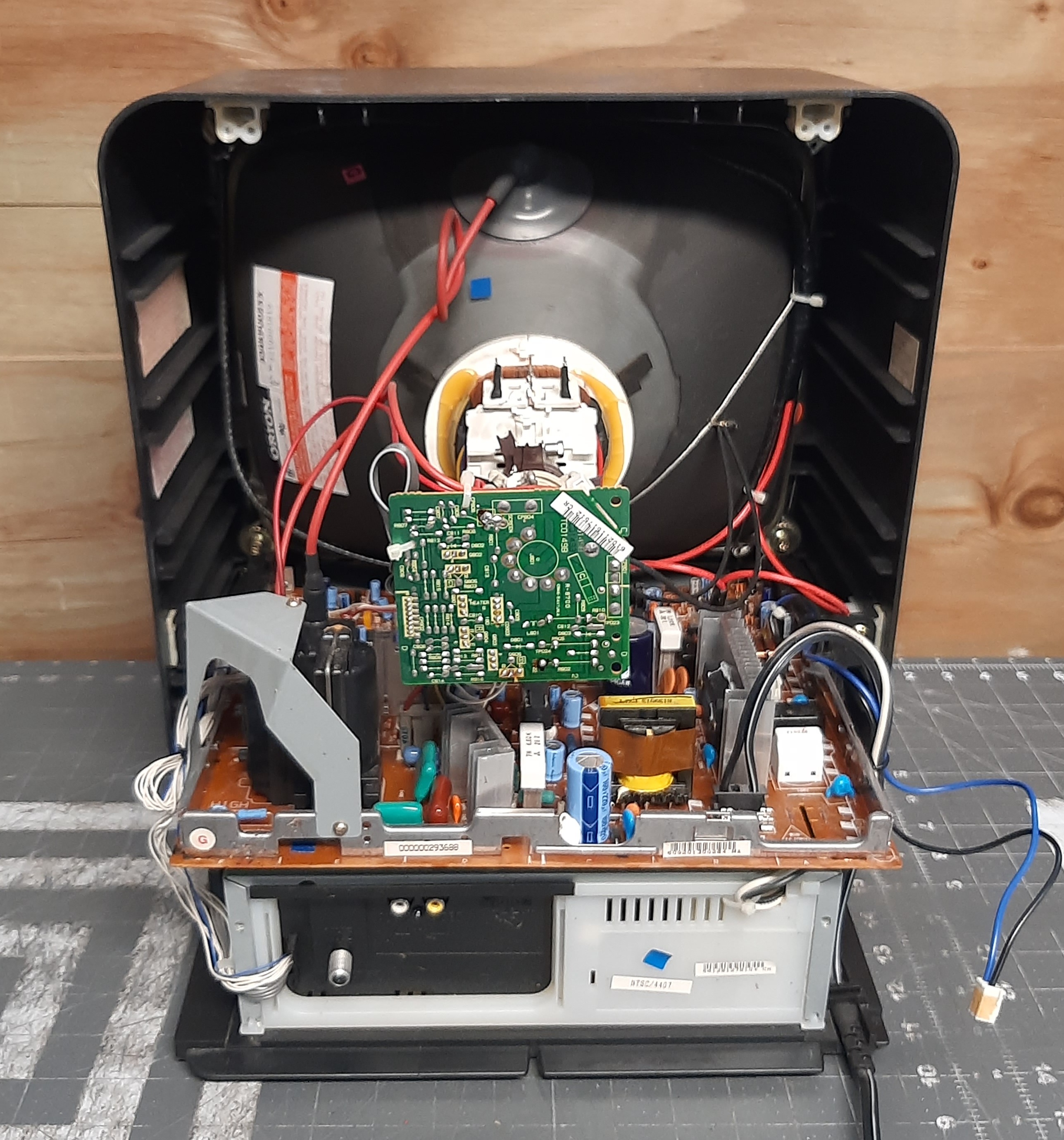

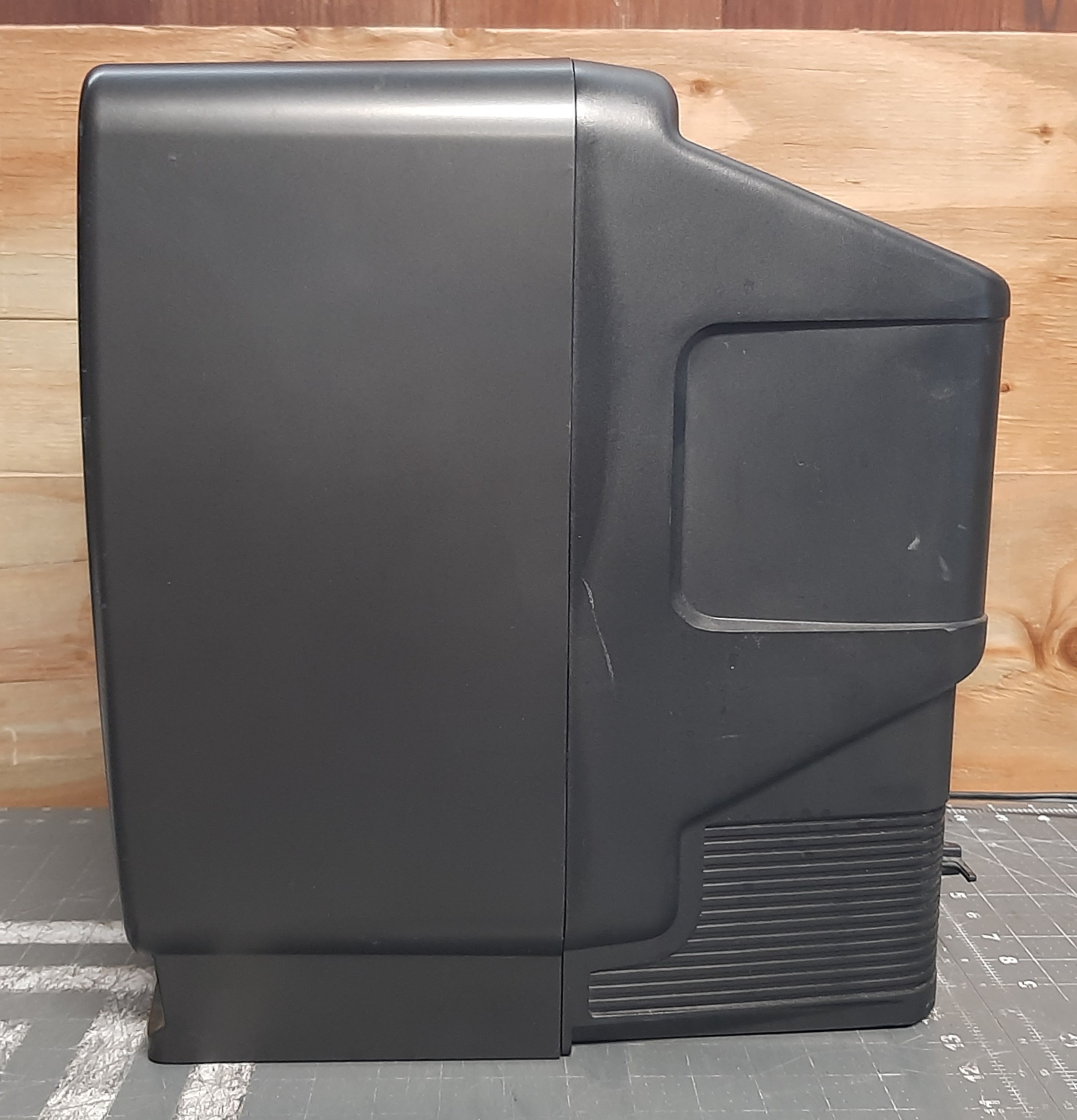

Gallery
| Specifications | |
|---|---|
| Brand: | Emerson |
| Manufacturer: | Orion |
| Model: | VT1321 |
| Series: | VT |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Resolutions: | 240p, 480i |
| Horizontal Max: | 15 kHz |
| Vertical Max: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D2331 |
| Vertical Output IC: | TA8403K |
| Jungle: | M52039SP |
| Flyback: | 3213003 |
| Tube: | A34KPU02XX |
| Deflection: | 90 deg. |
| Mask: | Slot |
| Tint: | Dark |
| Yoke: | 153-213C |
| Yoke Horz. Inductance: | 2.086 mH |
| Yoke Vert. Inductance: | 30.24 mH |
| Yoke Horz. Resistance: | 3.0 ohms |
| Yoke Vert. Resistance: | 15.8 ohms |
| Speakers: | Mono |
| Application: | Consumer |
| Launched: | 1992 |
| Country of Manufacture: | Thailand |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on |
