Summary

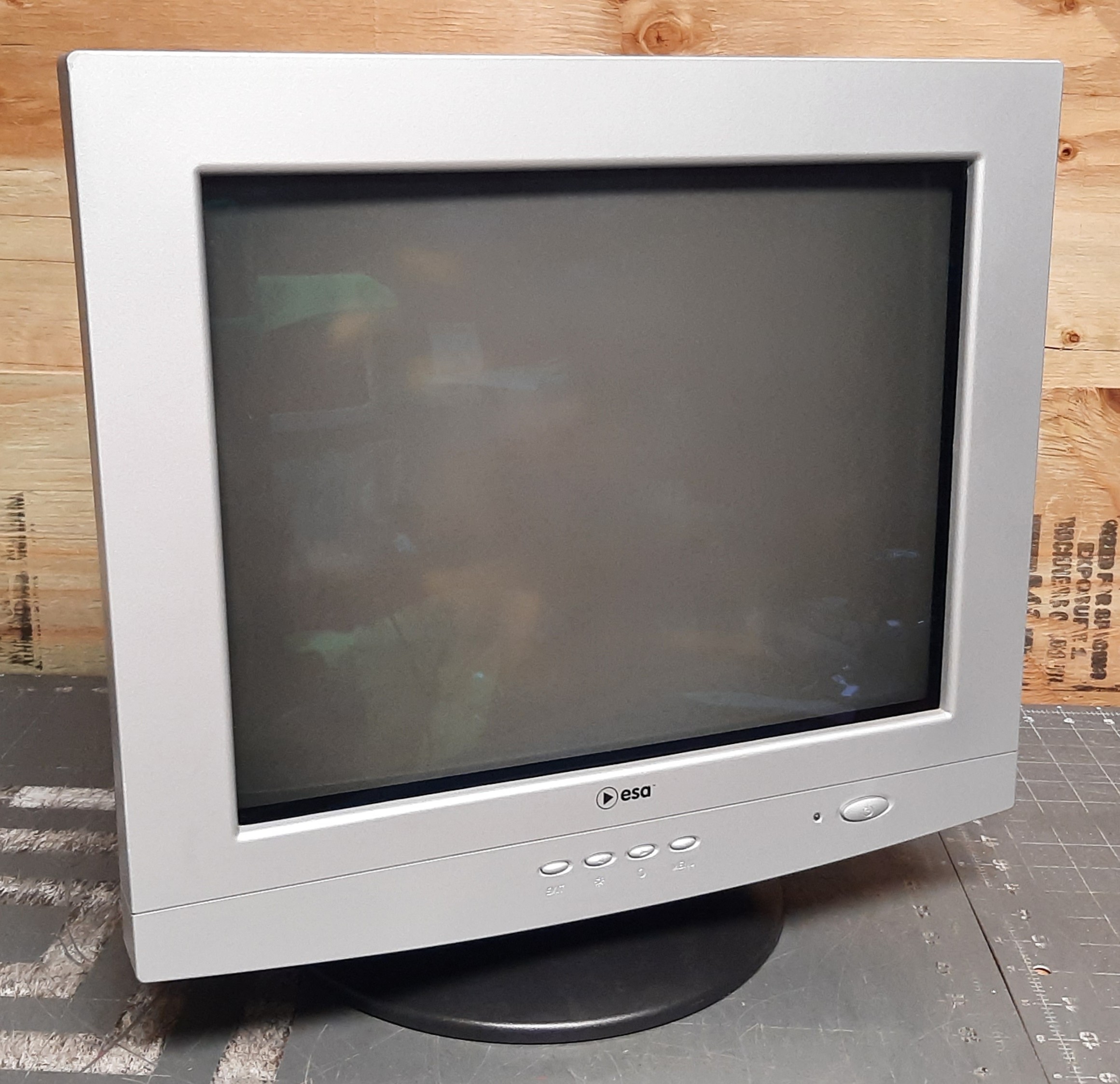

Late model, entry level 17" PC monitor. Made by AOC, it appears to be identical to the Envision EN-775E. Envision Peripherals and esa shared the same business address. Features a flat shadow mask tube. Similar in appearance to the Dell E773C (also made by AOC).
Manuals
Notes
Many of AOC's monitors used a jog wheel for menu navigation, which is reflected in their OSD design. The options are arranged in a circle, with arrow buttons moving the selection clockwise or counterclockwise.
Gallery
| Specifications | |
|---|---|
| Brand: | esa |
| Manufacturer: | AOC |
| Model: | E17CRT1 |
| Series: | Color Monitor |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 28 kHz, 73 kHz |
| Vertical Scan Range: | 48 Hz, 163 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Flyback: | 79A763 |
| Focus Type: | Dual |
| Tube: | Samsung , M41QCJ761X , M41QCJ761X172 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | SCD-17507 |
| Yoke Horz. Inductance: | 0.13247 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.367 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.446 ohm, .446 ohm |
| Yoke Vert. Resistance: | 8.31 ohm |
| Speakers: | None |
| Weight: | 30.8 lbs (14 kg) |
| Dimensions (W/H/D): |
410 x 402 x 420 mm
(16.1 x 15.8 x 16.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v, 240v, 100v, Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual |
