Summary

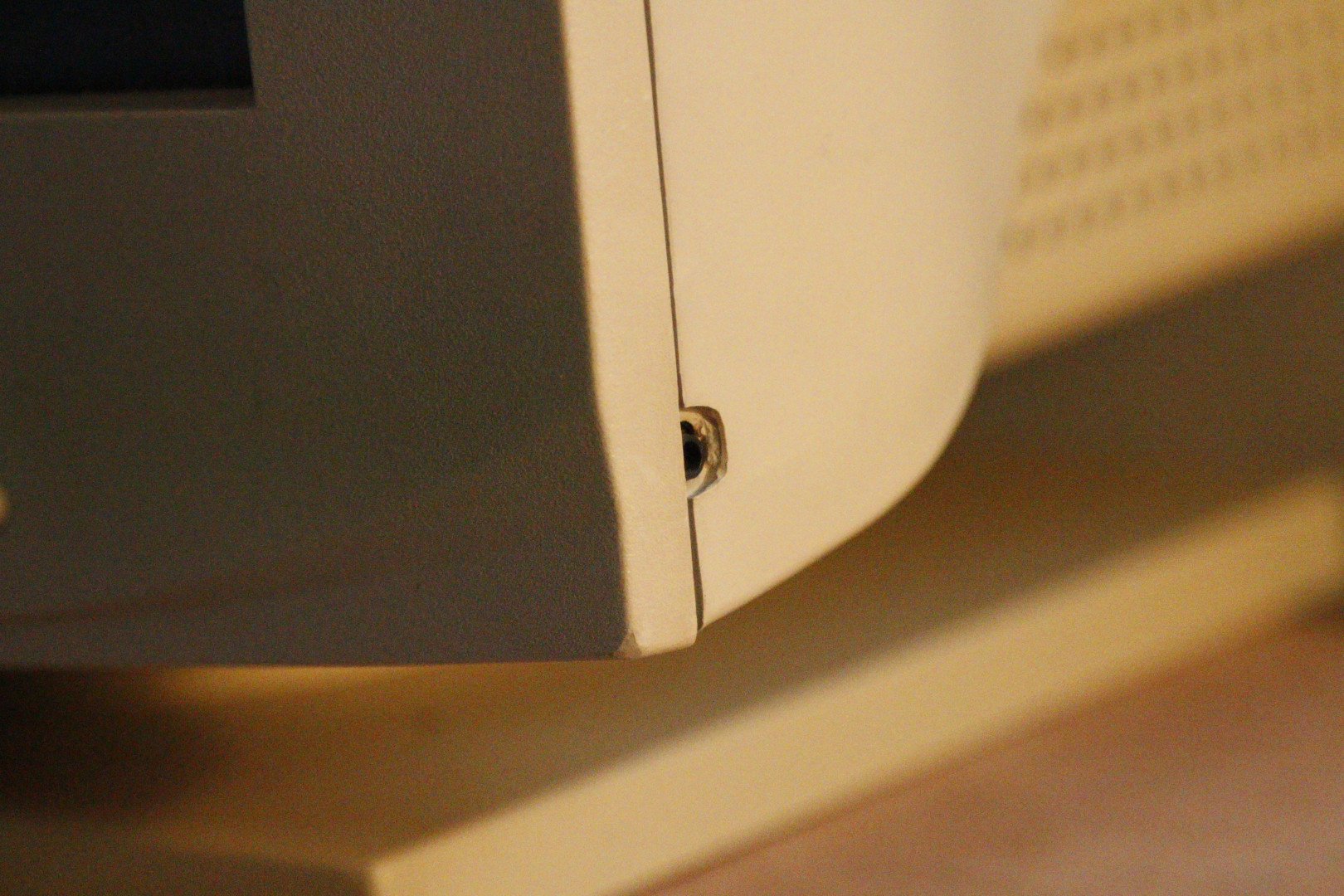

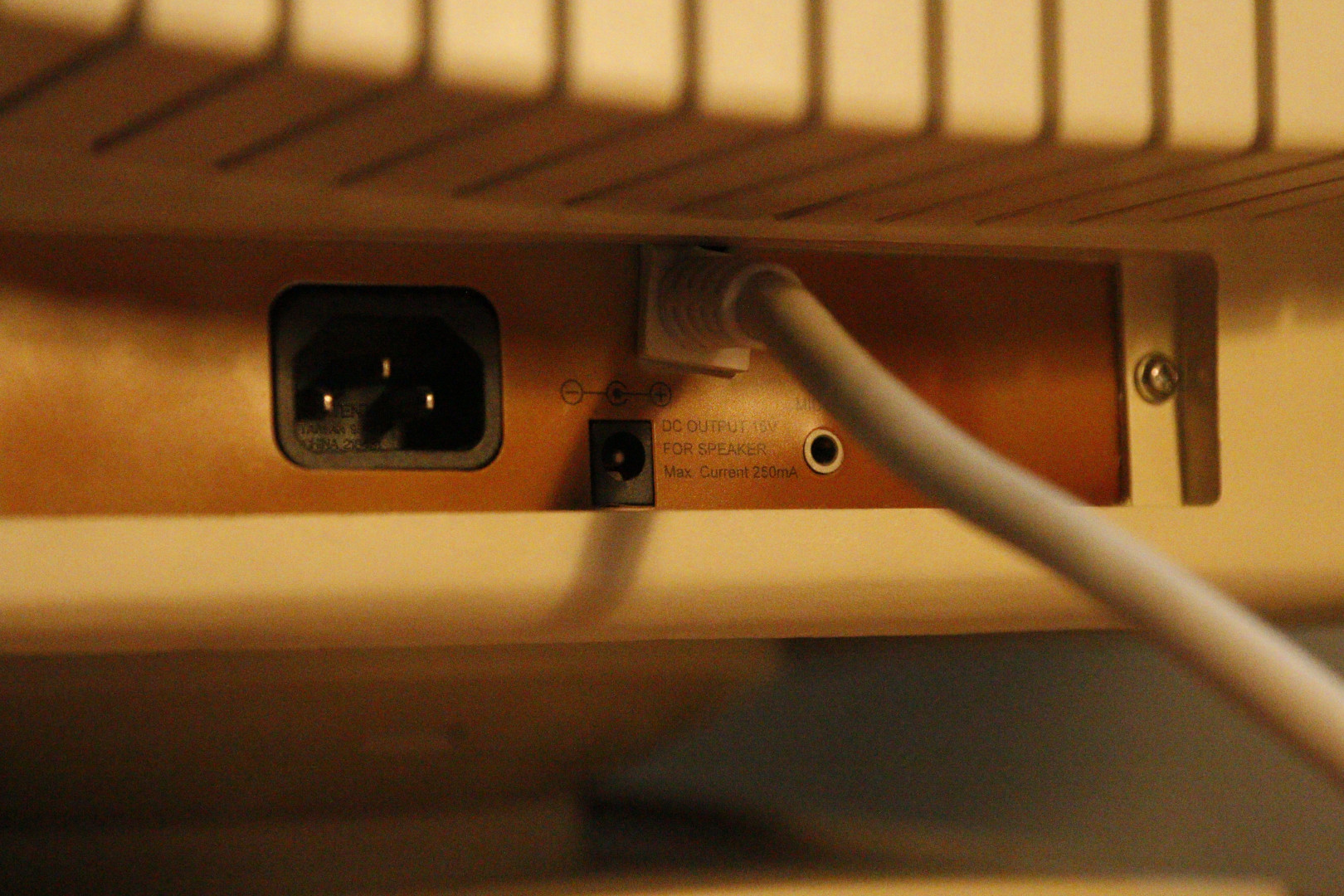

Average 17" PC CRT monitor made by Fujitsu. Capable of a 72 kHz horizontal scan range and 160Hz vertical. For inputs has VGA, mono 3.5mm audio jacks on the left and right side, along with a stereo port on the rear of the monitor for an internal amplifier.

Gallery

Fujitsu 772M (C771) Fujitsu 772M (C771) Fujitsu 772M (C771) Fujitsu 772M (C771) Fujitsu 772M (C771) Fujitsu 772M (C771) Fujitsu 772M (C771)
Specifications
Brand: Fujitsu
Manufacturer: Fujitsu
Model: 772M(C771)
Series: Fujitsu
Viewable Size: 16"
Input Signals: VGA
Sync: HV Sync
Native Resolutions: SVGA, SXGA, VGA, XGA
Horizontal Scan Range: 30 kHz, 72 kHz
Vertical Scan Range: 50 Hz, 160 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Deflection: 90°
Mask: Shadow
Pitch: 0.25 mm
Tint: Light
Speakers: 4W x 1, Dual Mono
Remote: None
Weight: 37.5 lbs (17 kg)
Dimensions (W/H/D): 418 x 417 x 419 mm
(16.4 x 16.4 x 16.5")
Application: Computer Monitor
Cabinet Material: Plastic
Country of Manufacture: China
Market: Europe
Power Standard: Universal
Mounting: Swivel Base
Degaussing: Automatic on Power-on, Manual
Tag: Community Submission, Needs Owners Manual, Needs Pictures, Needs Service Manual, Needs Tube Info, Needs Yoke Info
