Fujitsu Siemens 151E (5Elr)
Matt Ross
April 8, 2026, 10:32 am
April 8, 2026, 10:32 am
Summary

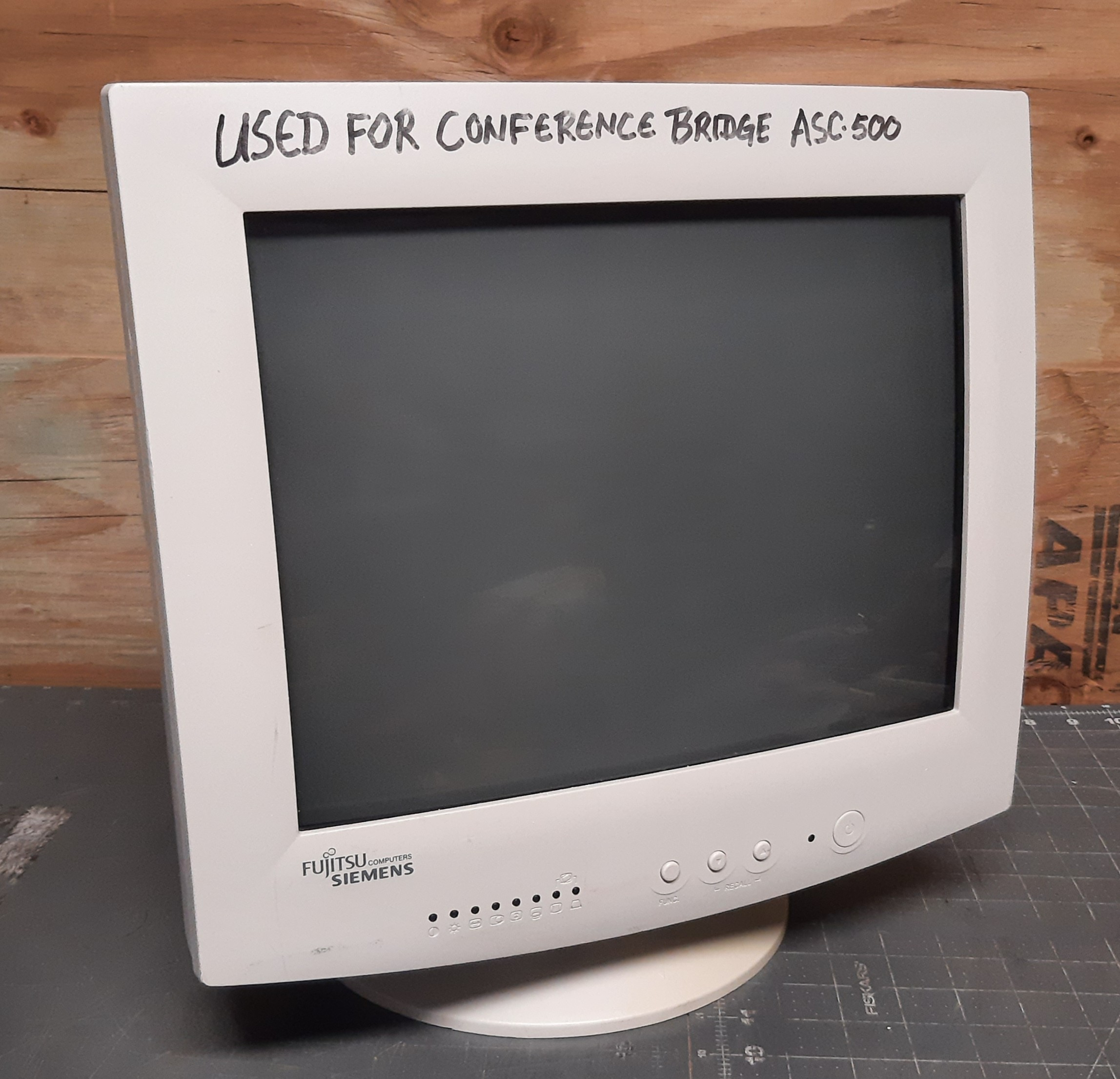

15" PC monitor, sold by Fujitsu with their "Fujitsu Siemens" computers. Manufactured by AOC, it appears to be identical to the AOC Spectrum 5Elr. With a max scan rate of 54 kHz, it's designed for 800x600 at 85 Hz or 1024x768 at 60 Hz..
Manuals
Notes
This model has a higher than average yoke inductance, similar to some professional monitors such as the JVC TM-H150CG and the Ikegami HTM-1517R. It would likely be a good tube donor for those models.
Gallery
| Specifications | |
|---|---|
| Brand: | Fujitsu |
| Manufacturer: | AOC |
| Model: | 151E |
| Series: | Fujitsu Siemens |
| Viewable Size: | 14" |
| Input Signals: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 54 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, Front Mounted Buttons |
| Vertical Output IC: | TDA9302H |
| Flyback: | 79A355-4-AS |
| Focus Type: | Single |

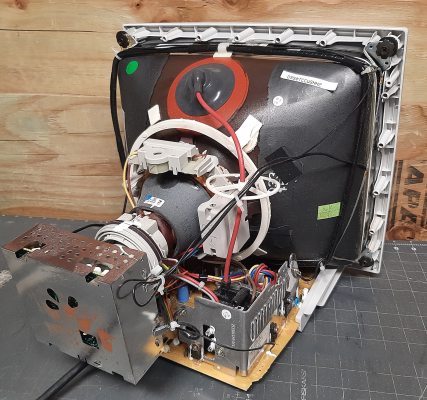

| Tube: | LG.Philips , M36EDR320X , M36EDR320X304 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 0.2954 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 2.584 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.52 ohm |
| Yoke Vert. Resistance: | 6.39 ohm |
| Speakers: | None |
| Weight: | 26 lbs (11.8 kg) |
| Dimensions (W/H/D): |
360 x 362 x 387 mm
(14.1 x 14.2 x 15.2") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Market: | North America, Europe |
| Power Standard: | 120v, 240v, 100v, Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Yoke Info, Needs Pictures |
