Summary

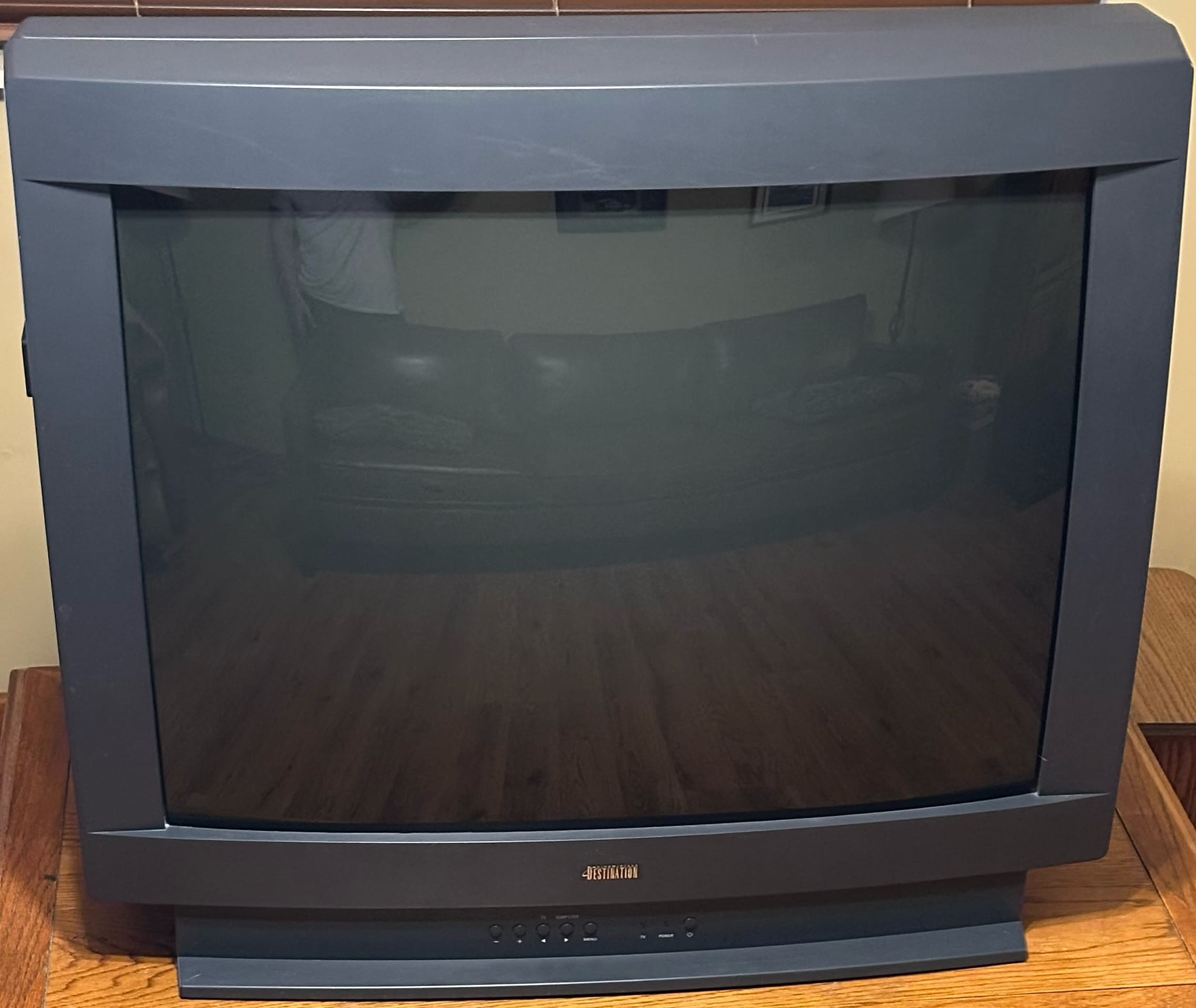

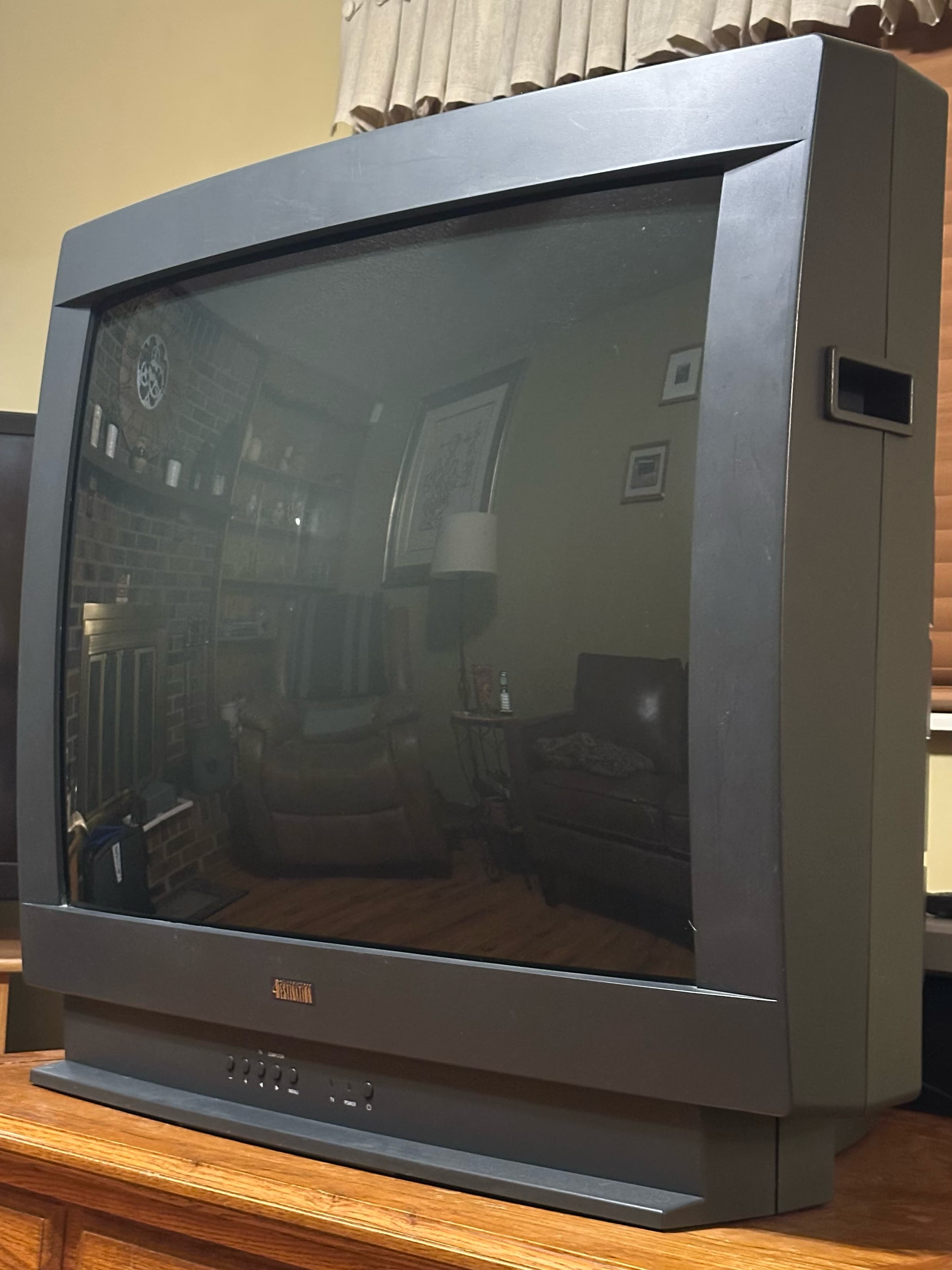

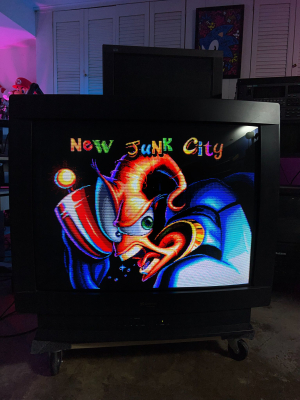

36" Multimedia PC-TV monitor hybrid by Gateway. Originally manufactured by DIVA Labs in Taiwan in 1997.
Articles
Manuals
Notes

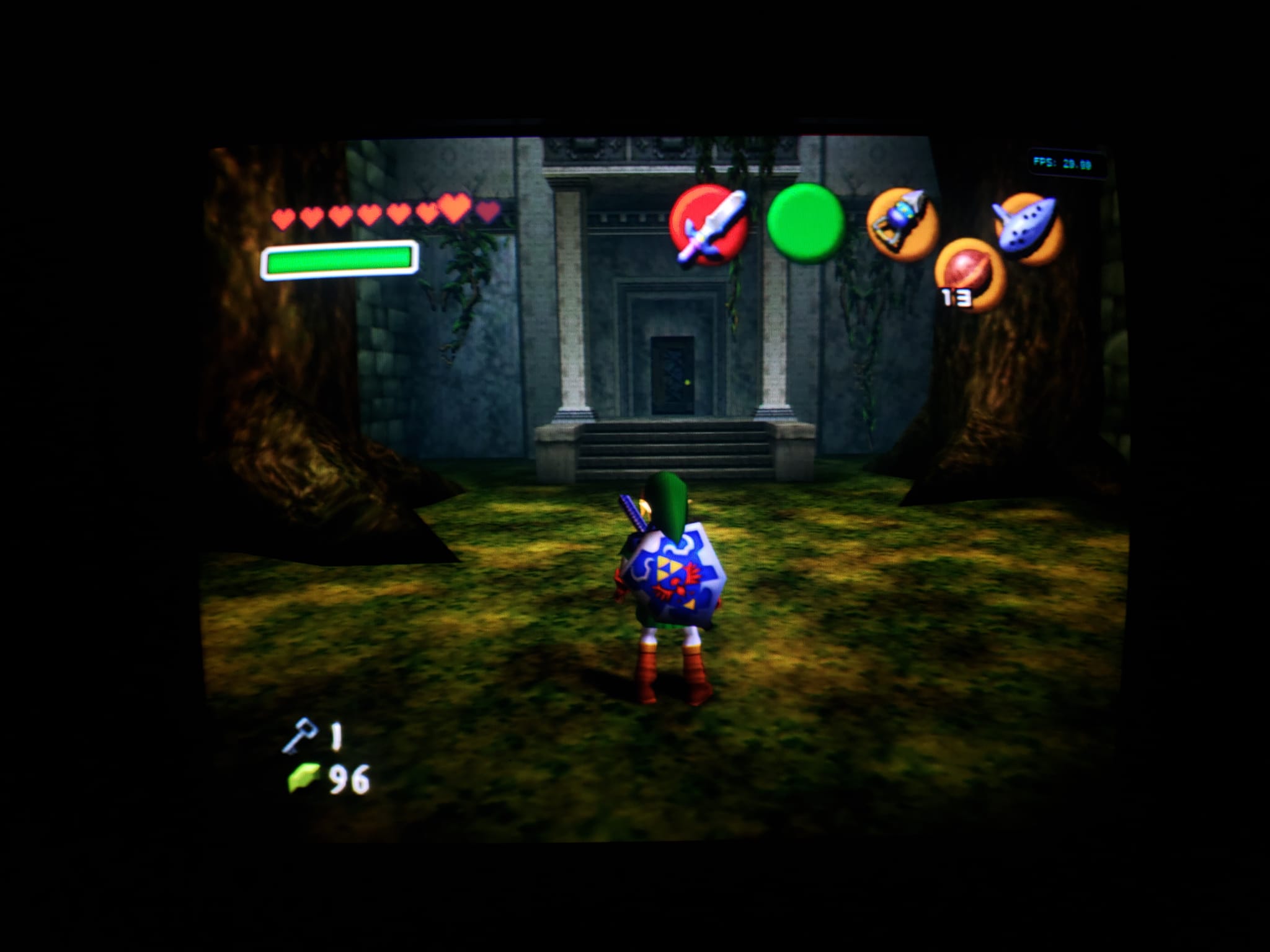

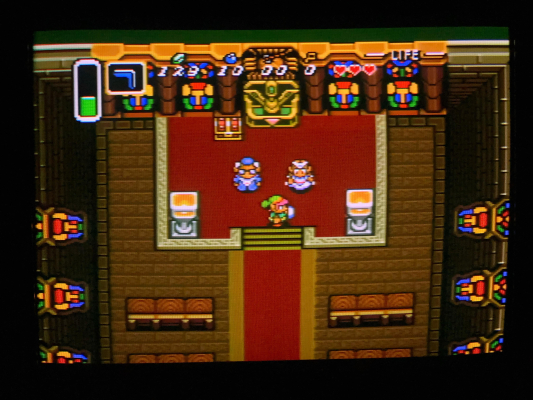

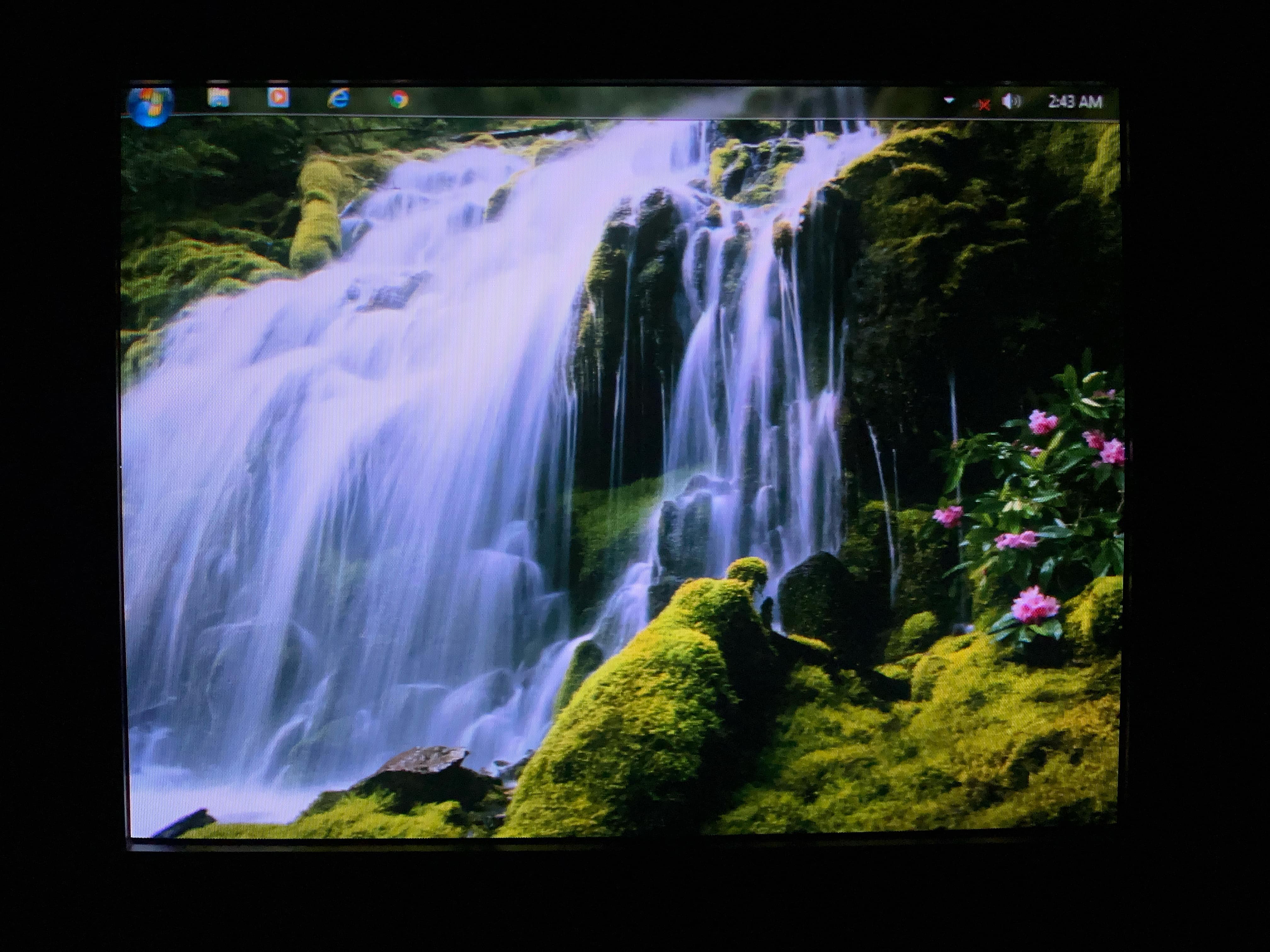

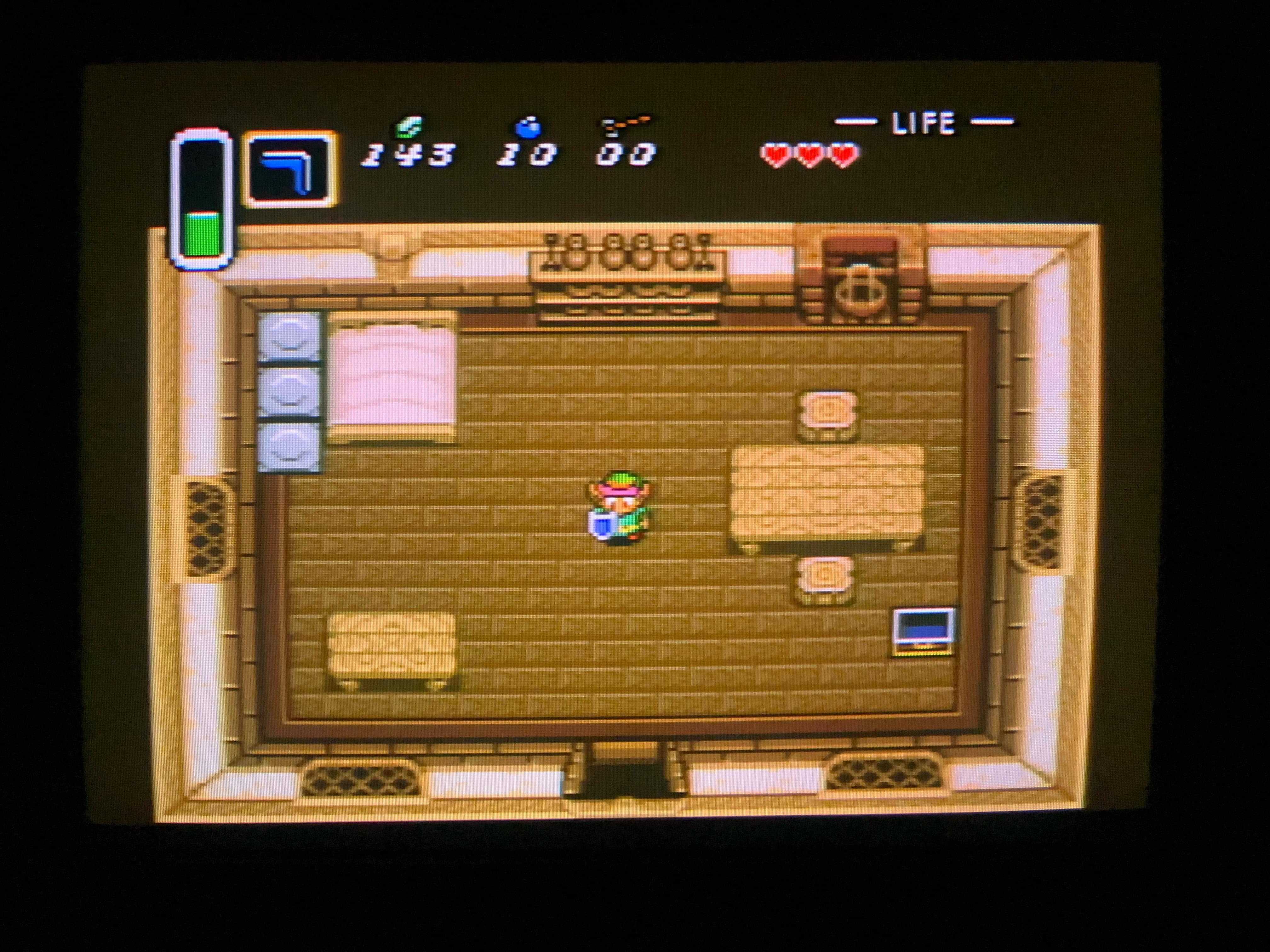

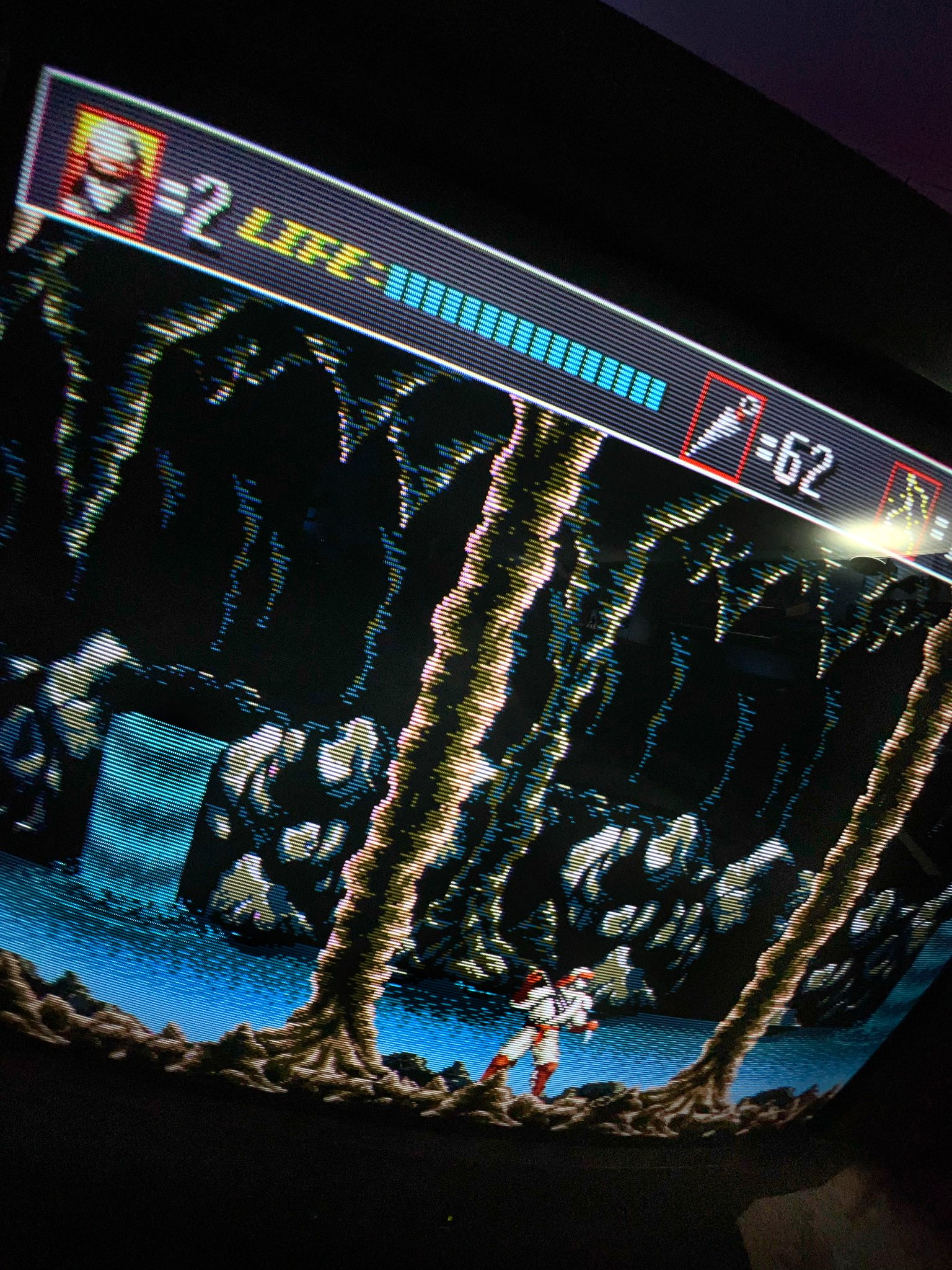

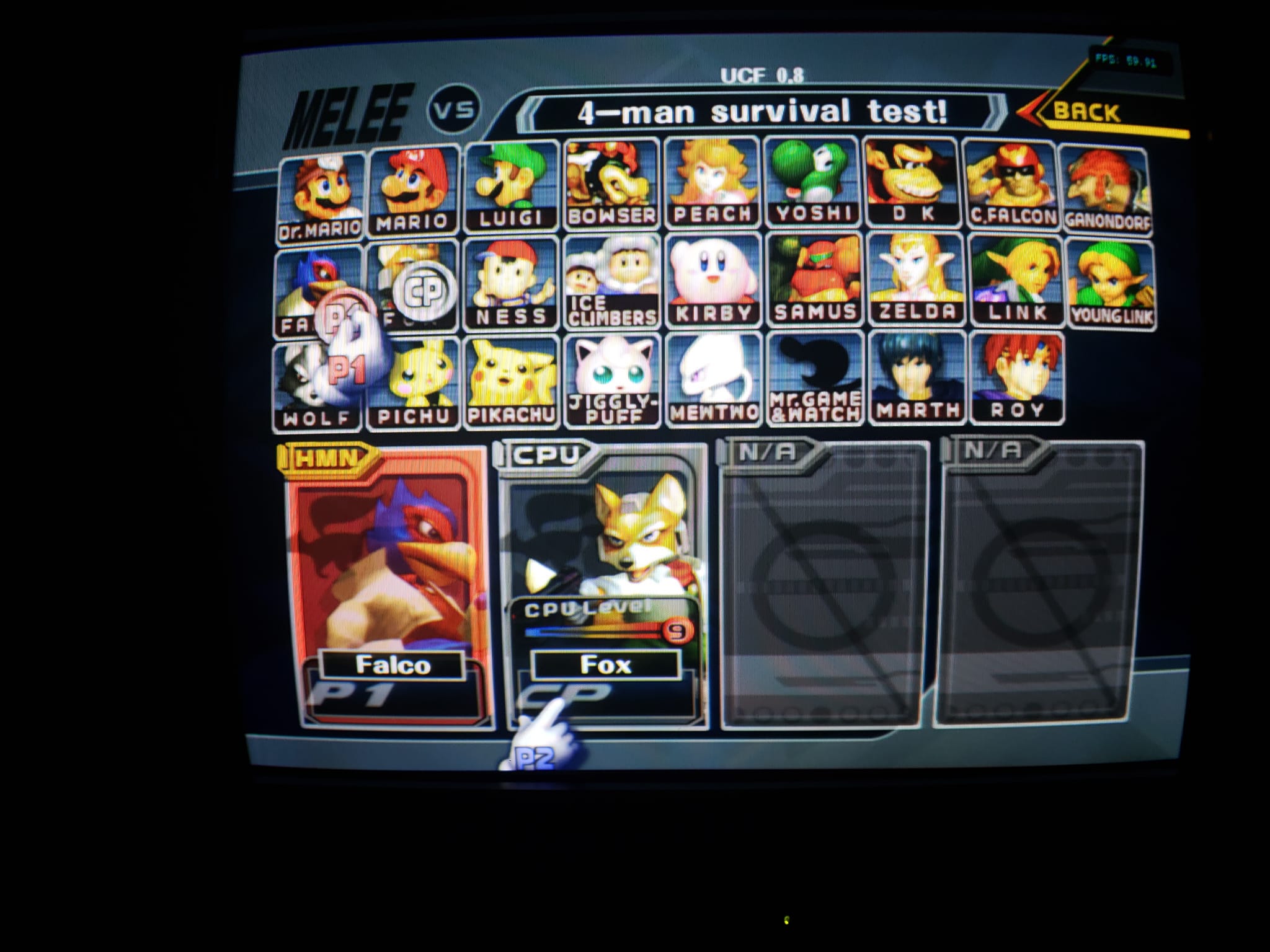

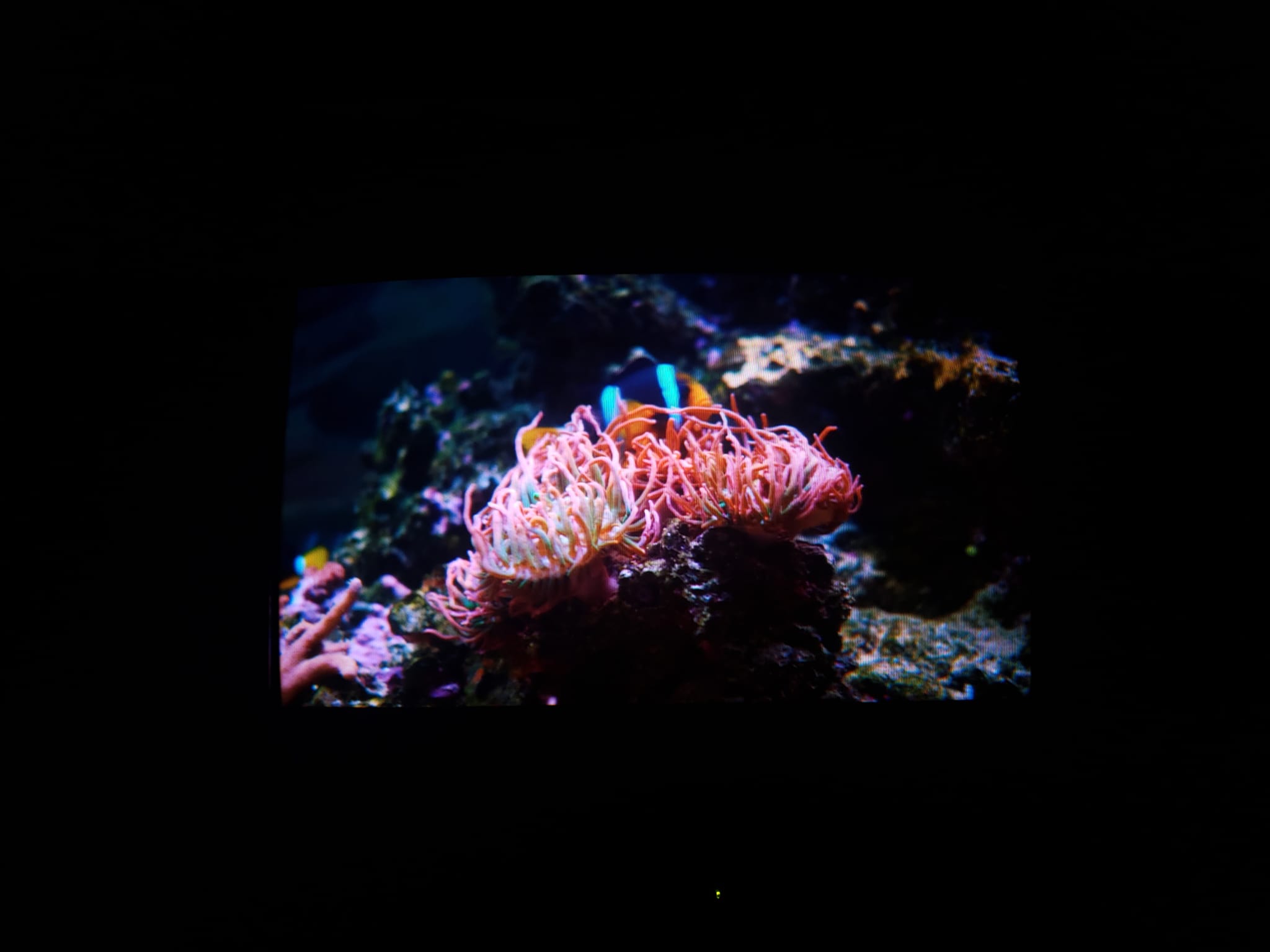

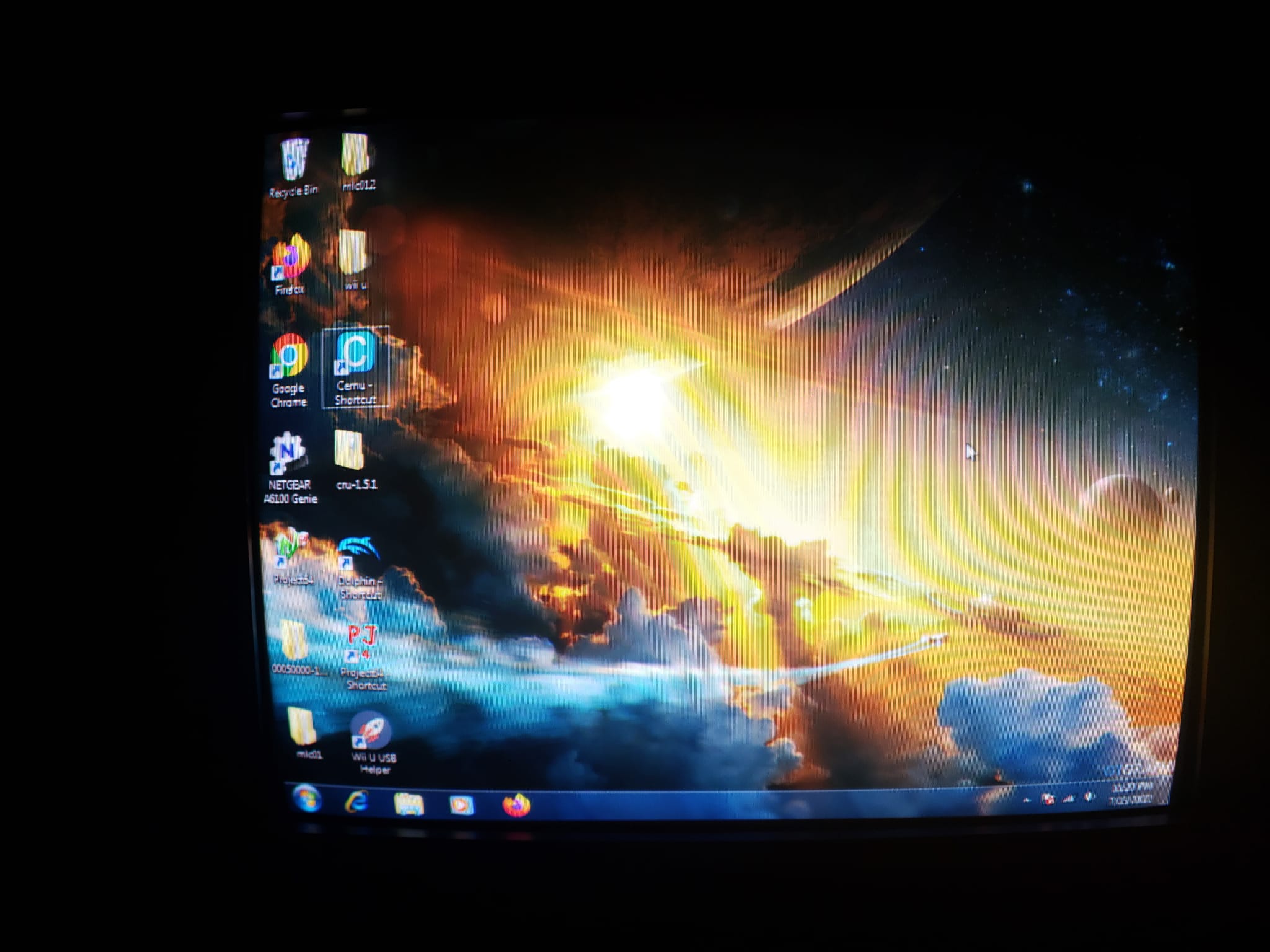

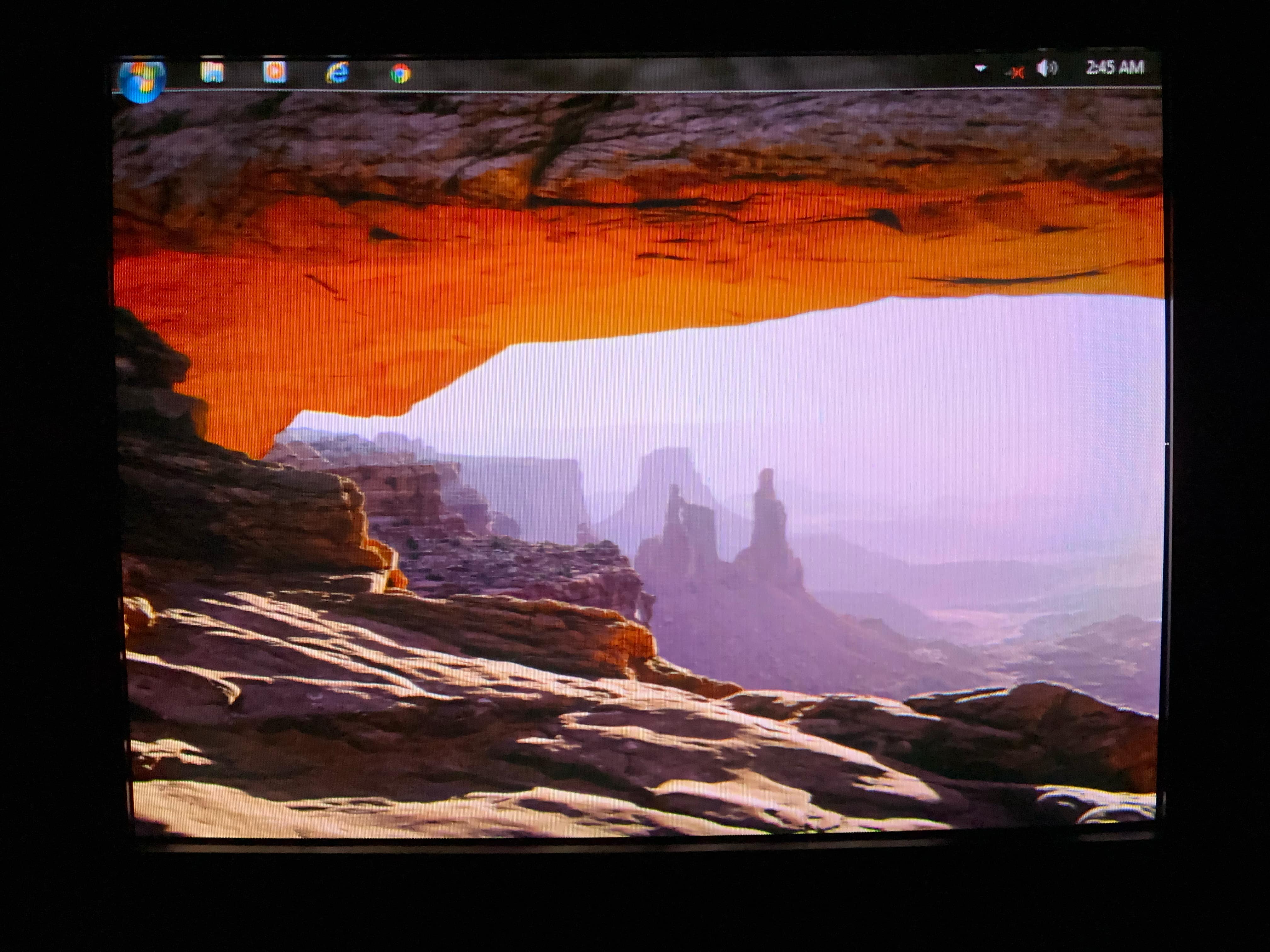

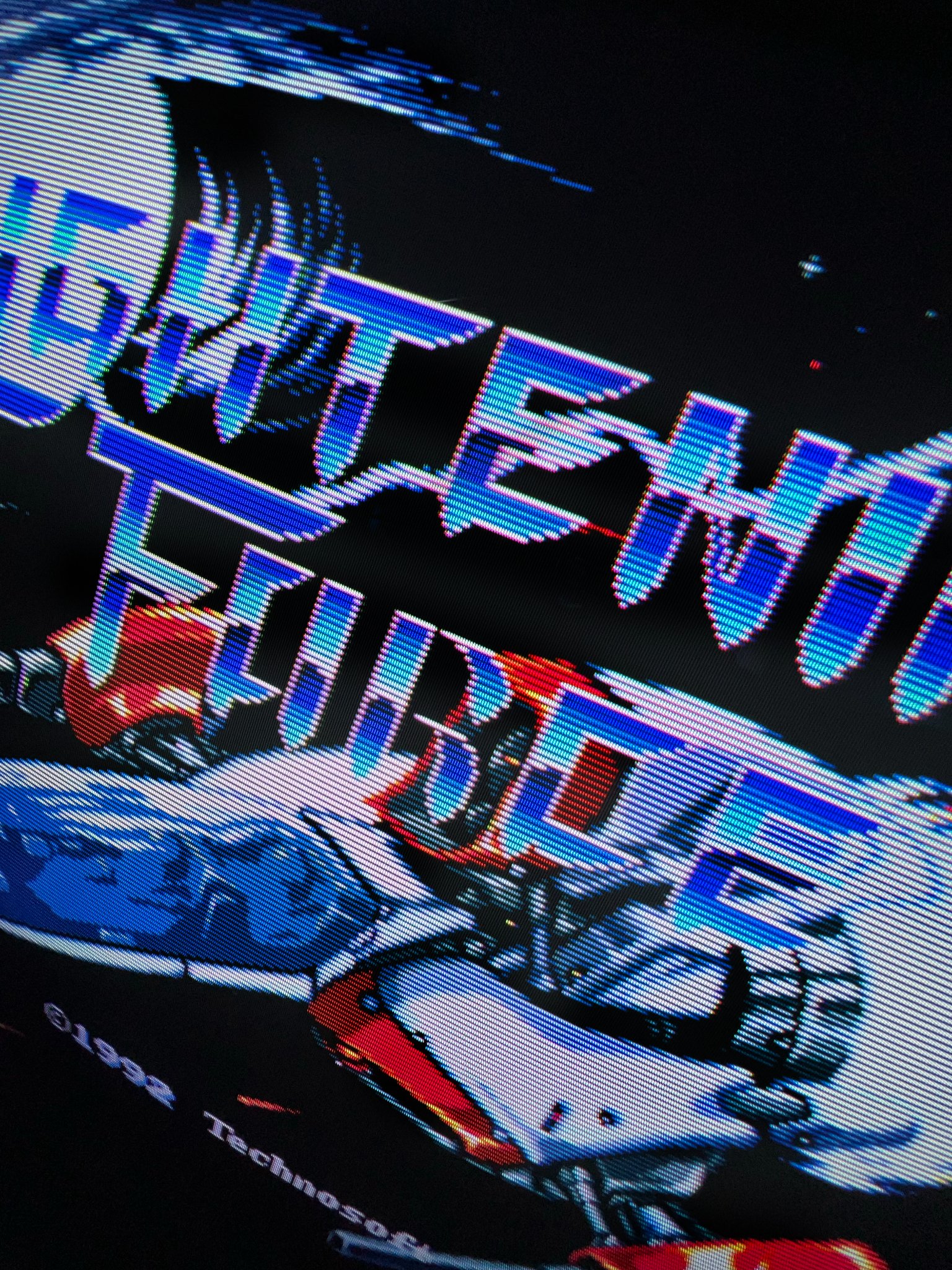

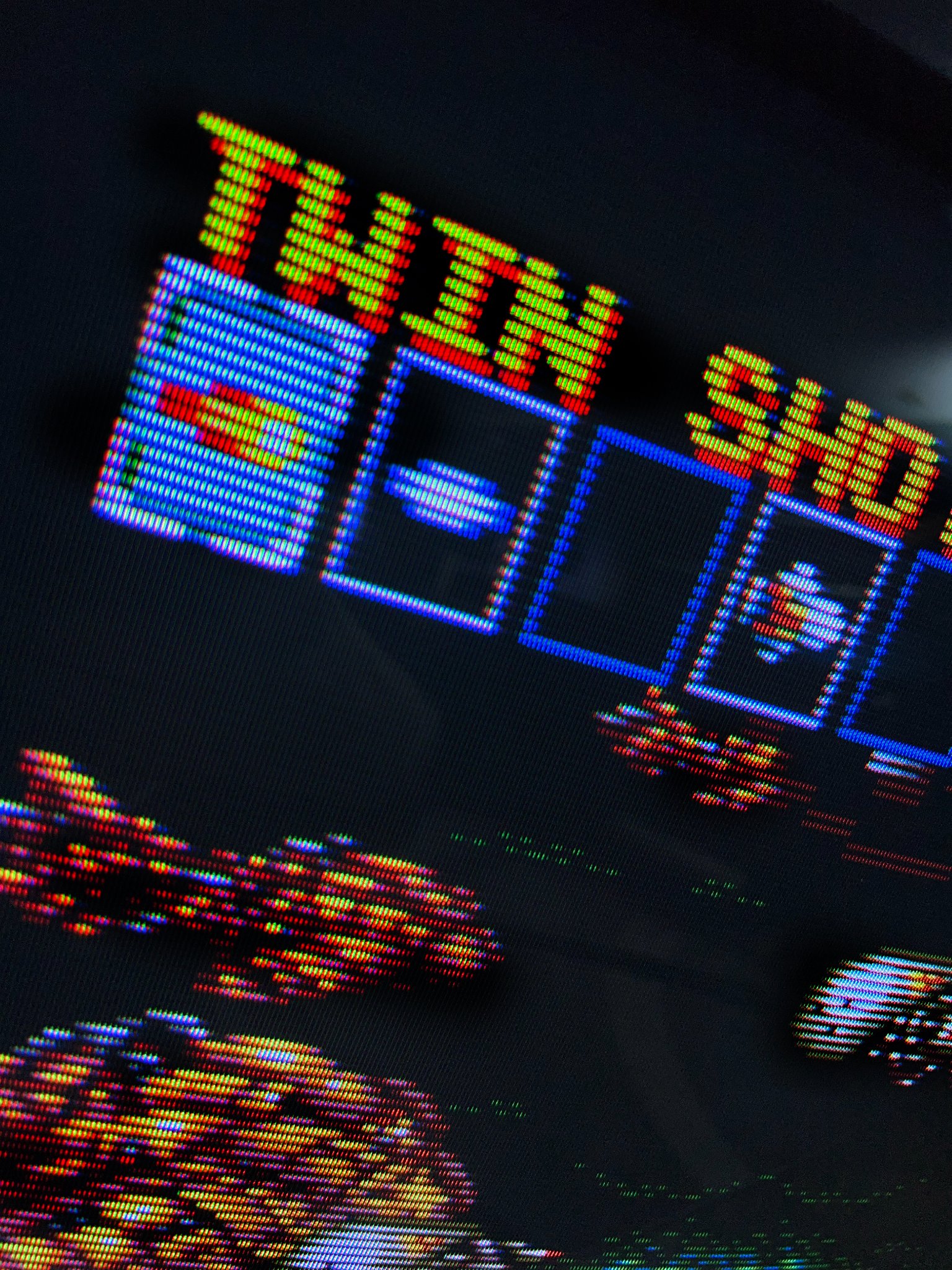

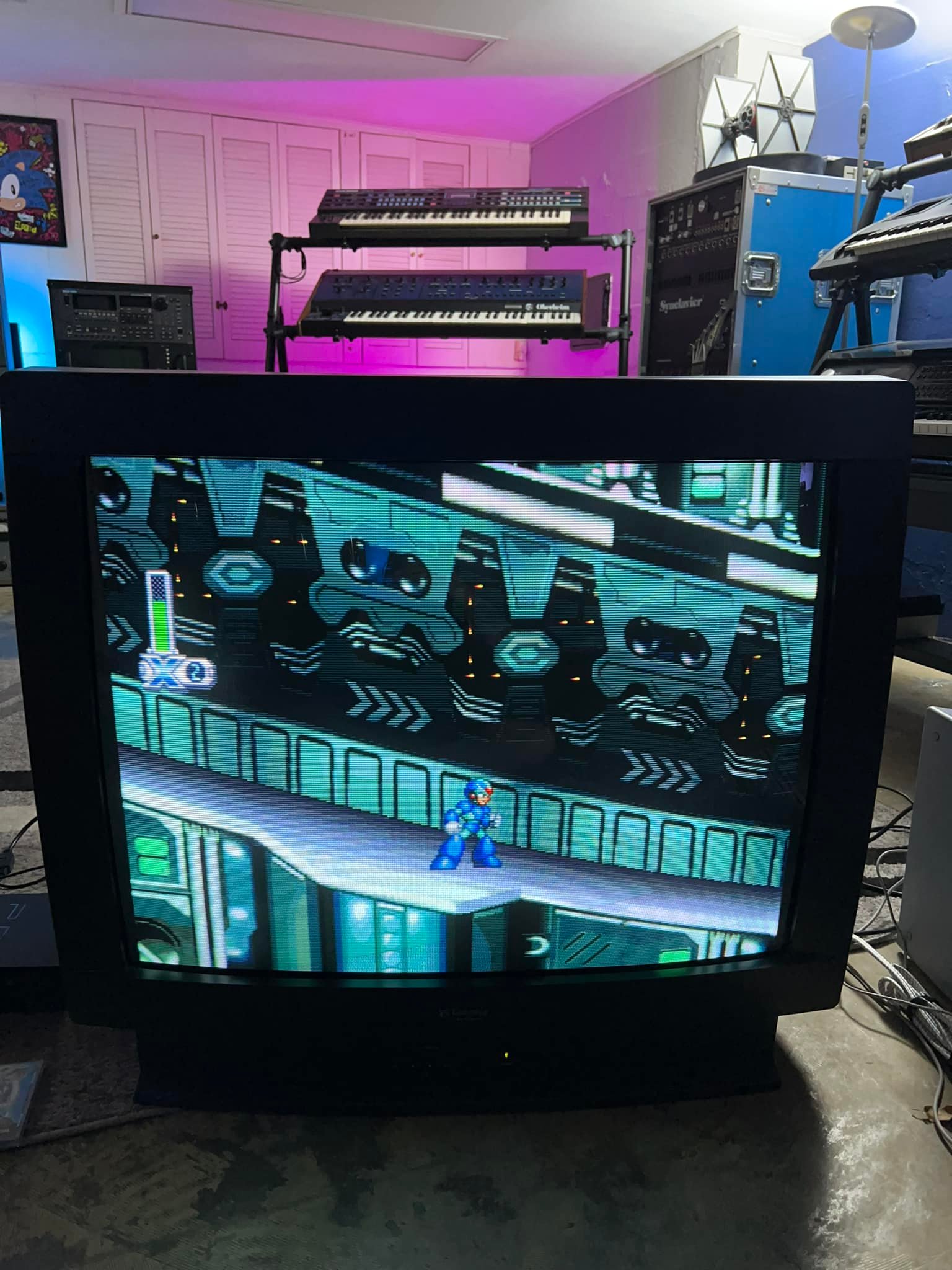

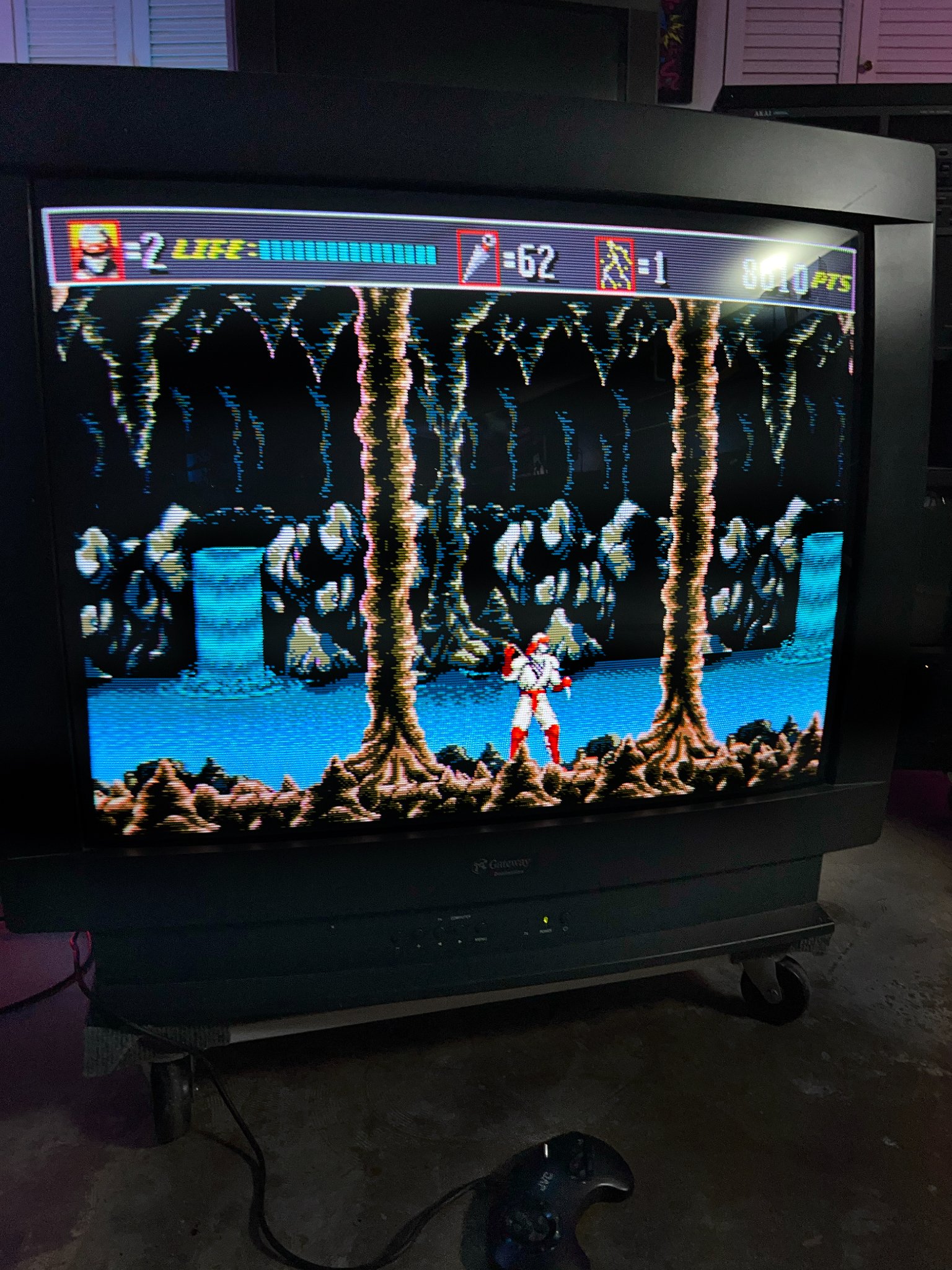

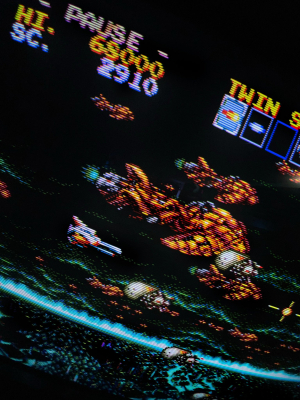

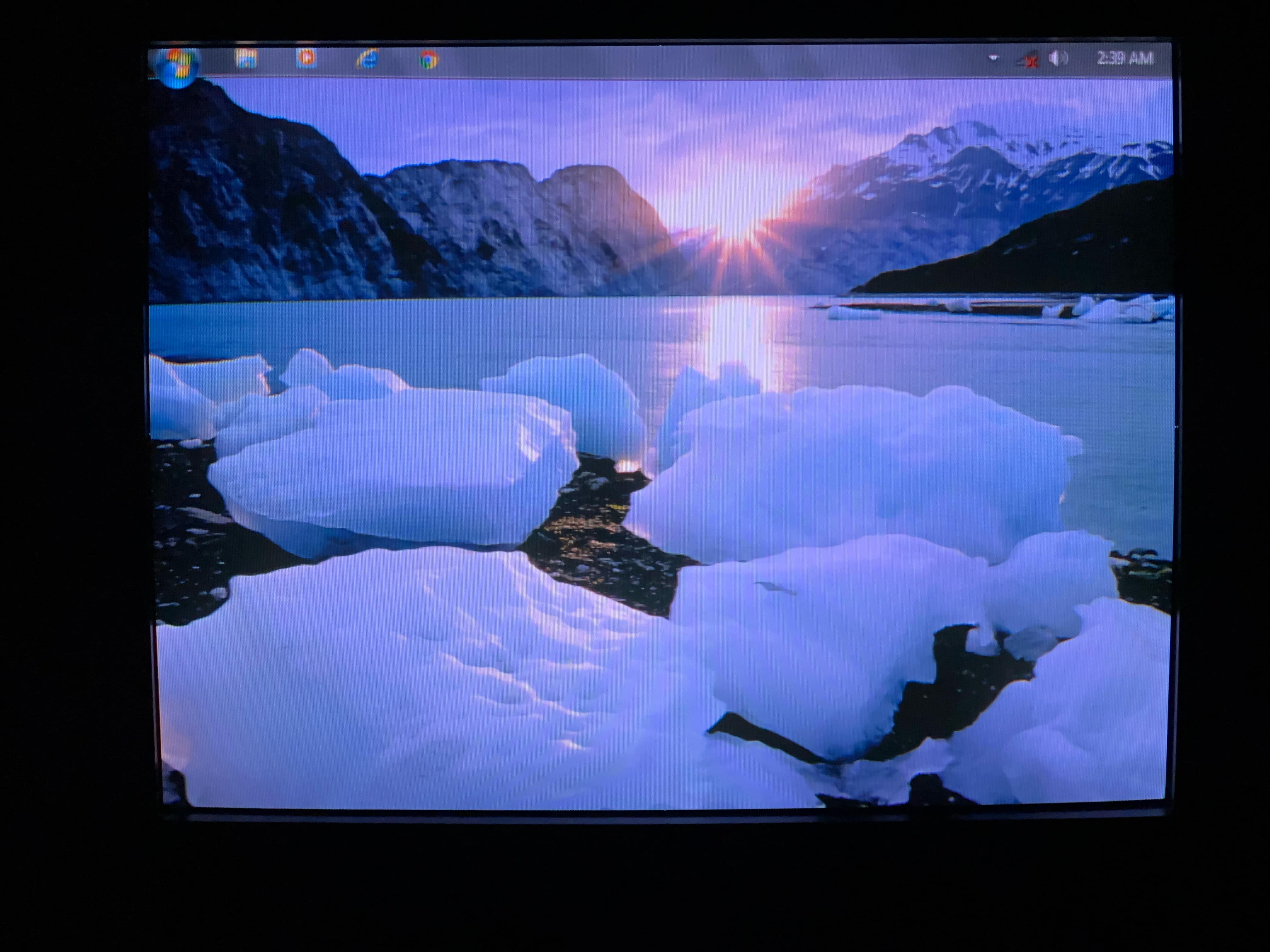

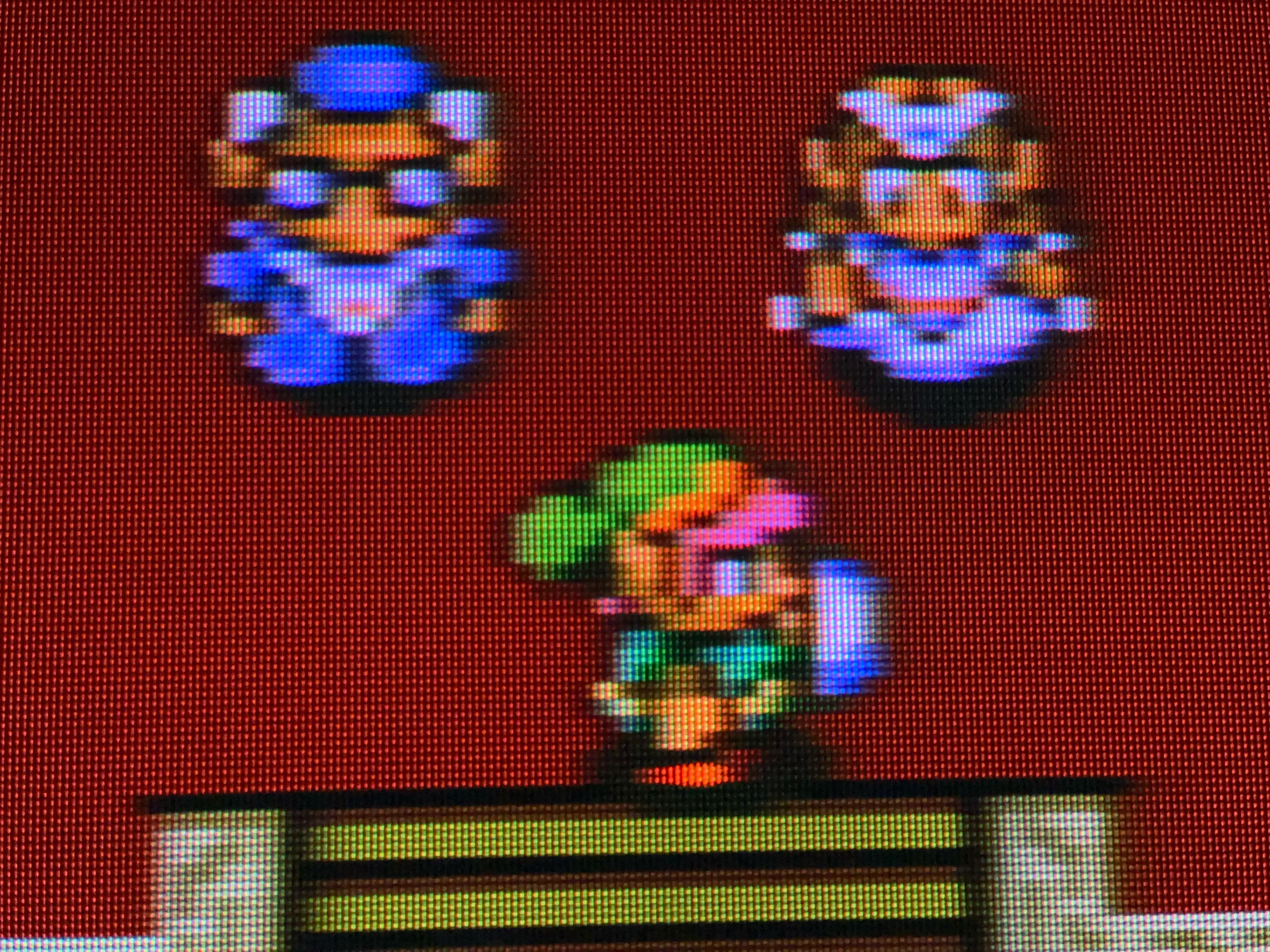

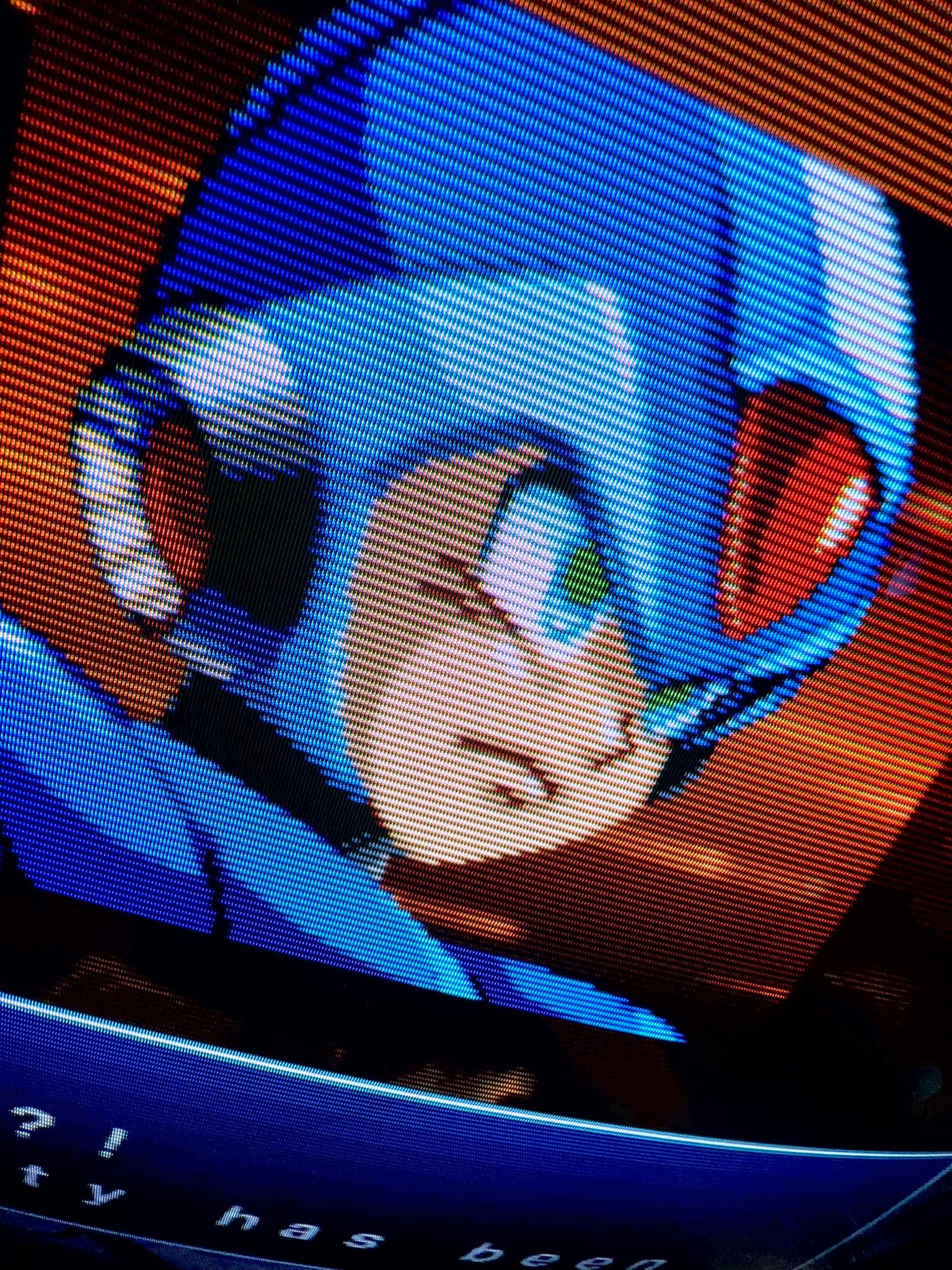

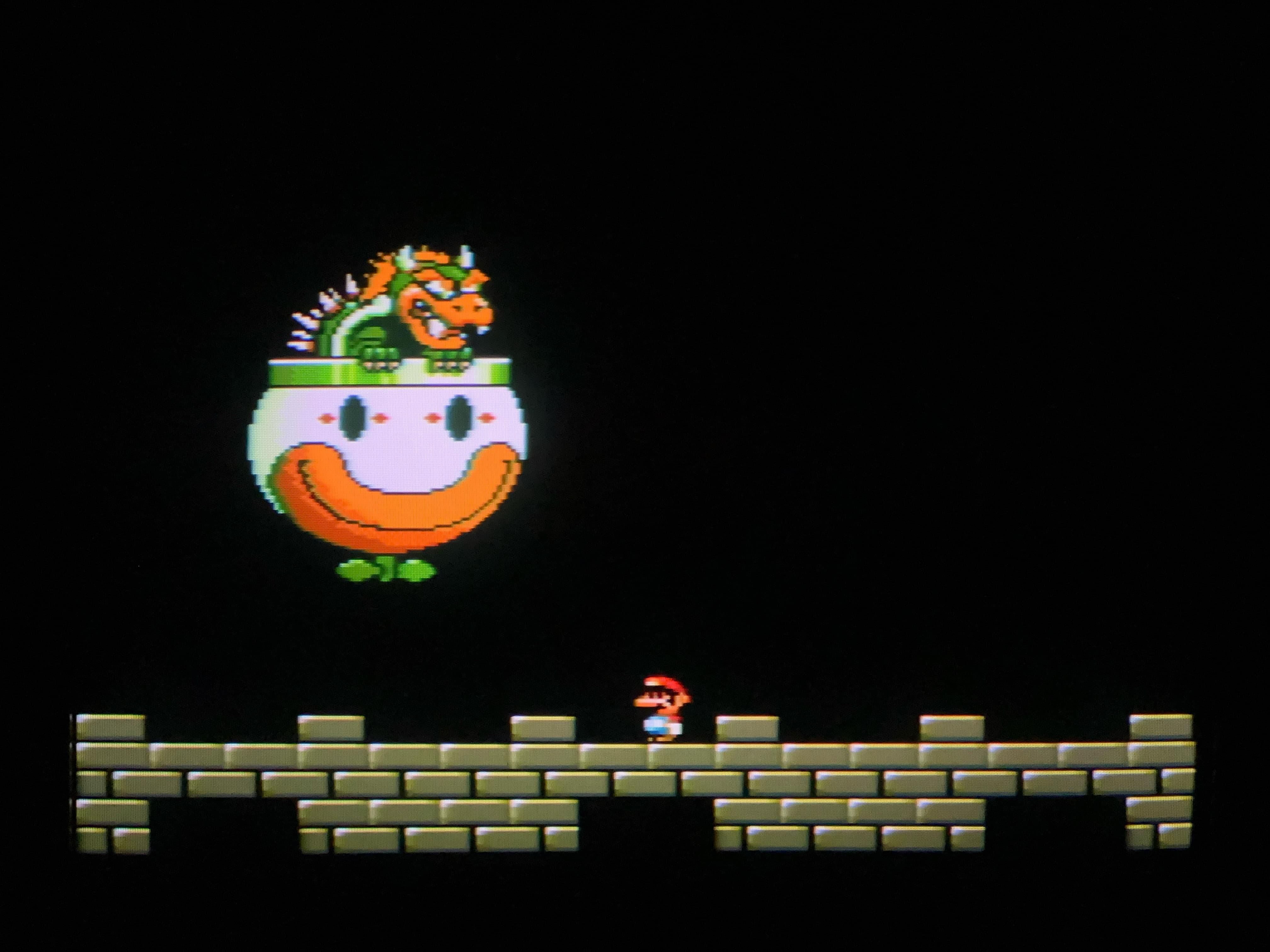

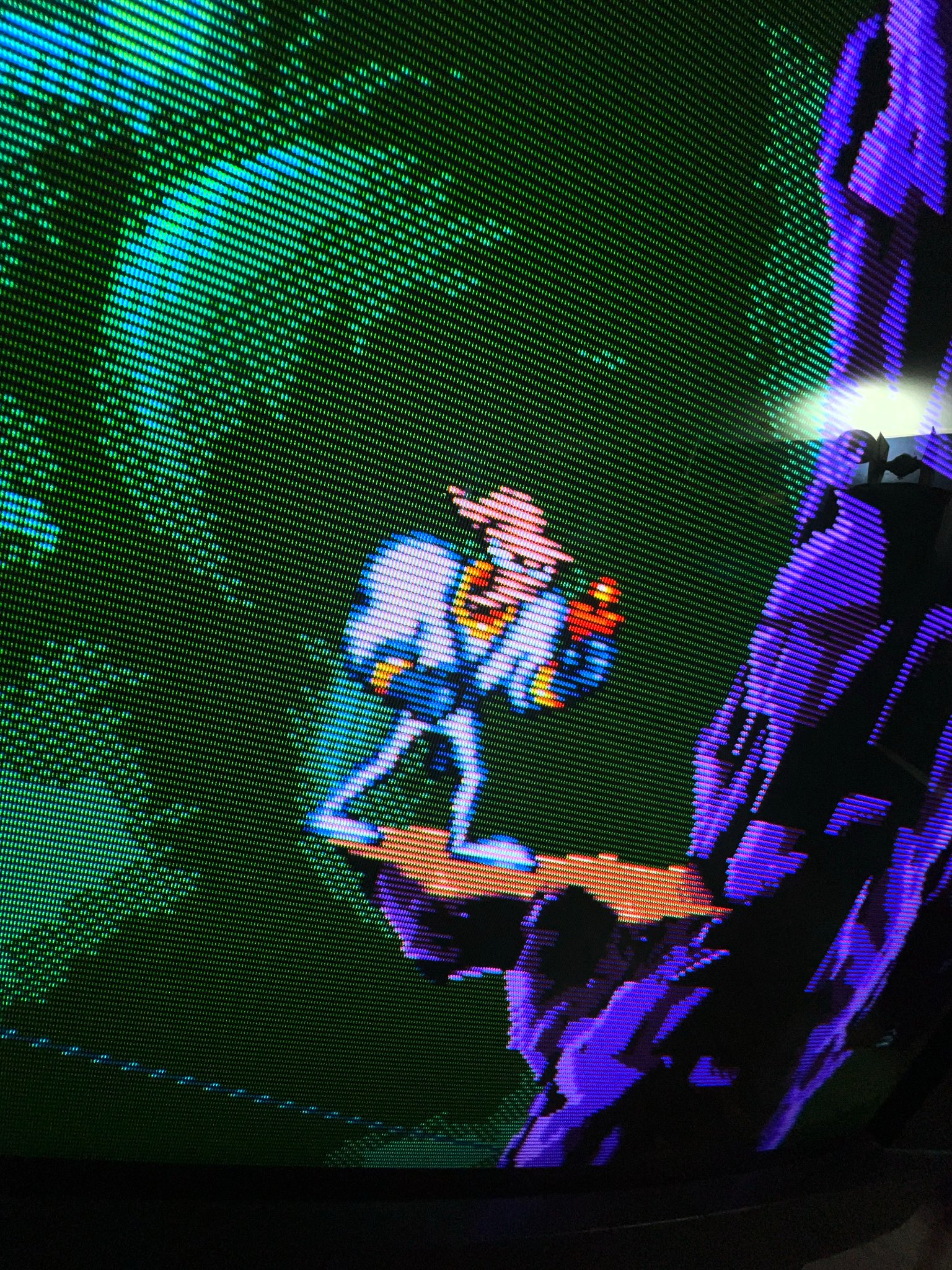

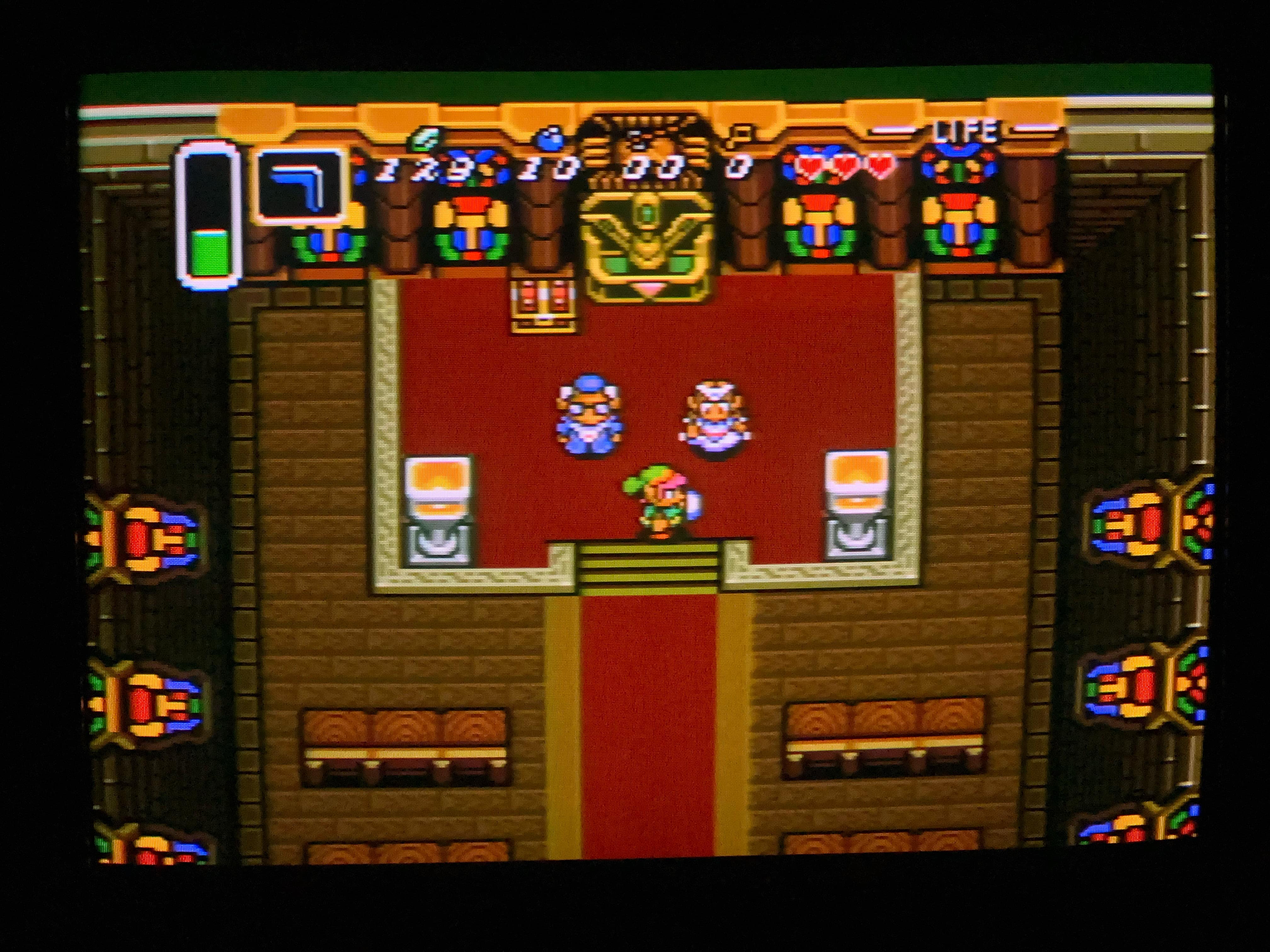

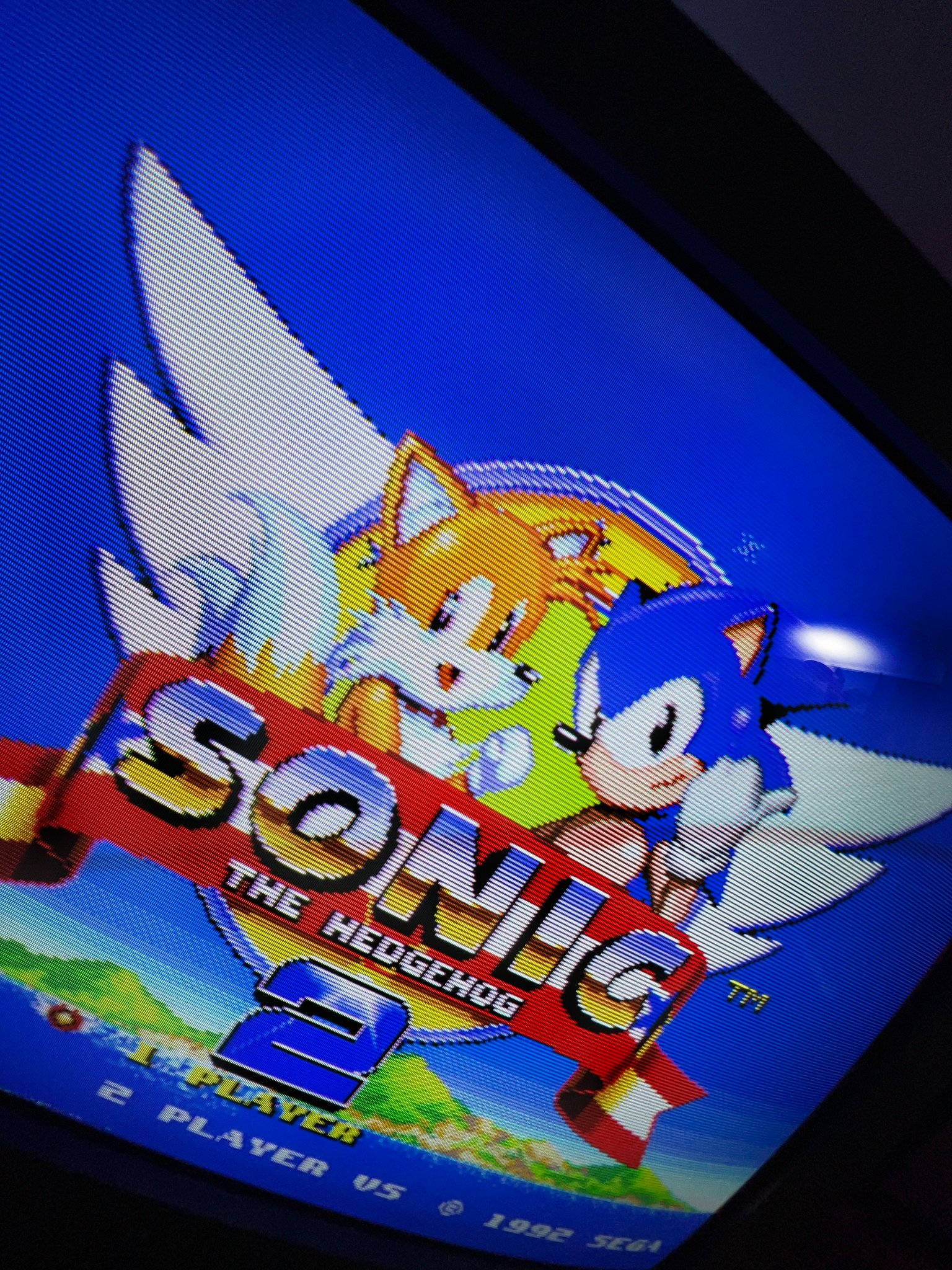

This monitor supports 480p at 60, 72, and 75hz, 400p at 70hz, and 600p at 60hz. NTSC video signals from the PC inputs and tuner are linedoubled and deinterlaced to 480p. (Some of the pics you see are of 240p games linedoubled with an external scaler and artificial scanlines added.)
According to the official webpage:
An Additional DDC command that invokes high-gain and data modes:
- High-gain mode enhances brightness, contrast, width, height, and color temperature of 6,500°K
- Data mode is used for data work using a color temperature of 9,300°K and lower brightness and contrast levels for better focus

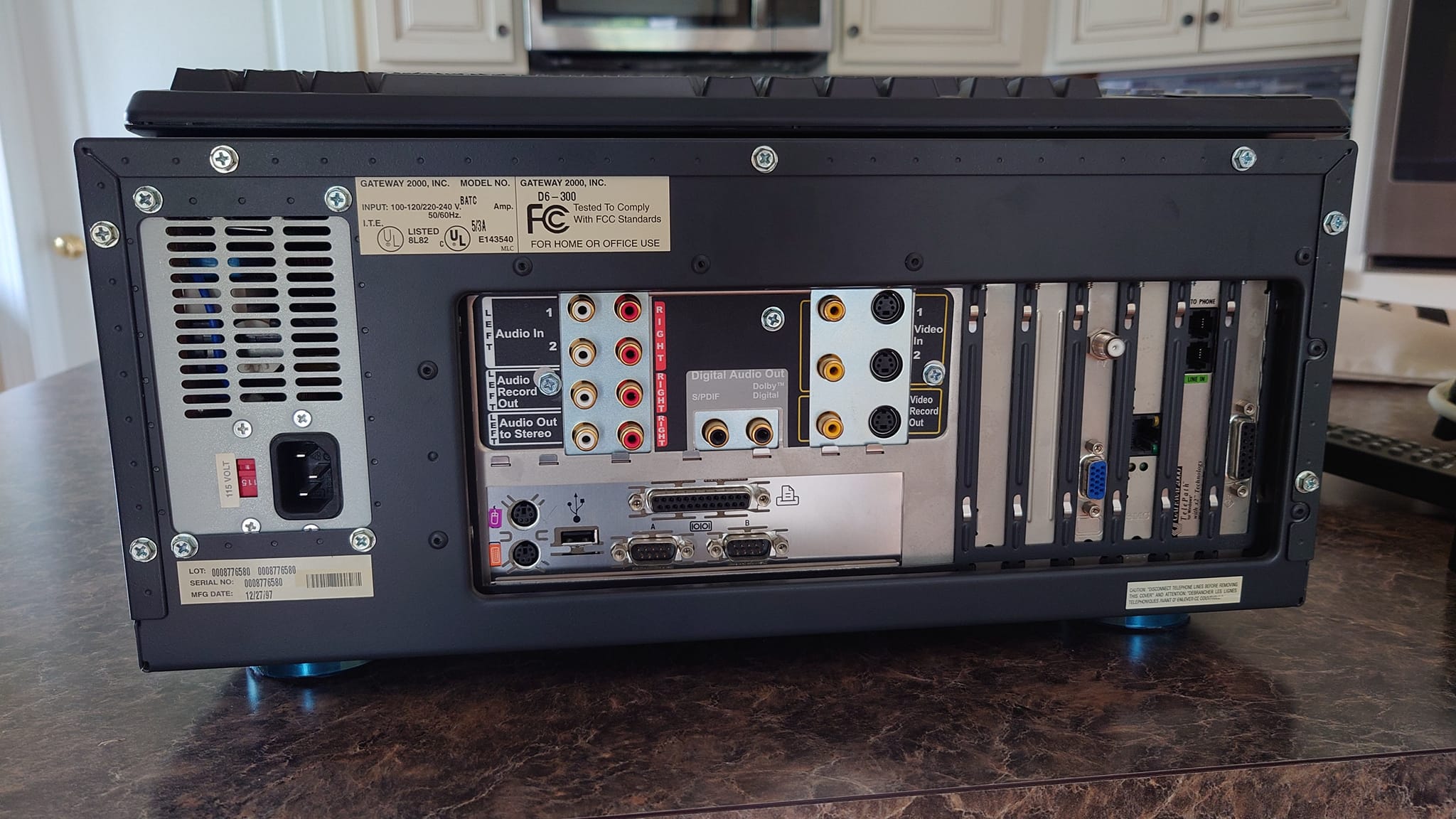

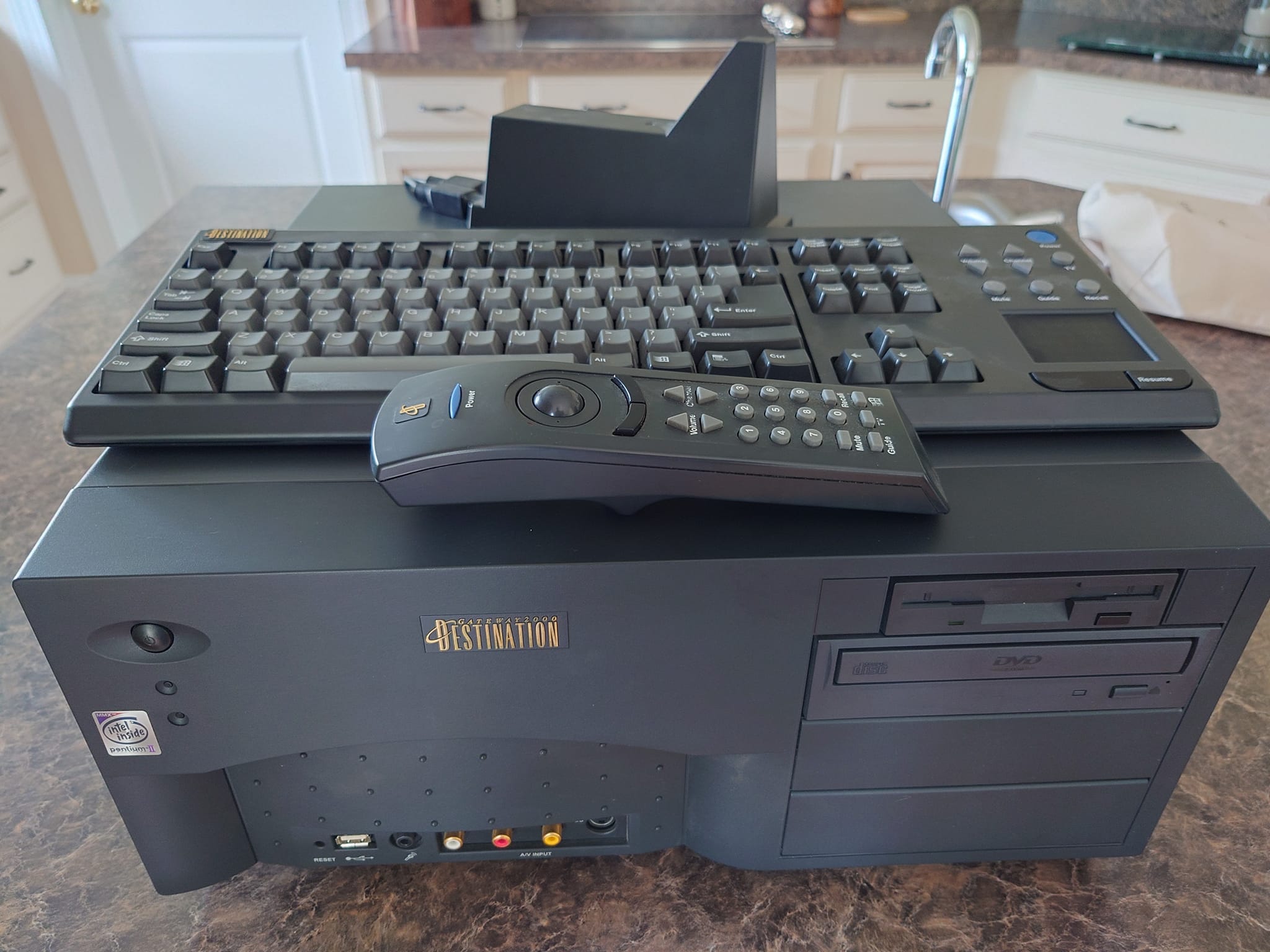

This monitor was introduced as an upgrade to the DL31, and intended for use with Gateway's D6-300 computer:

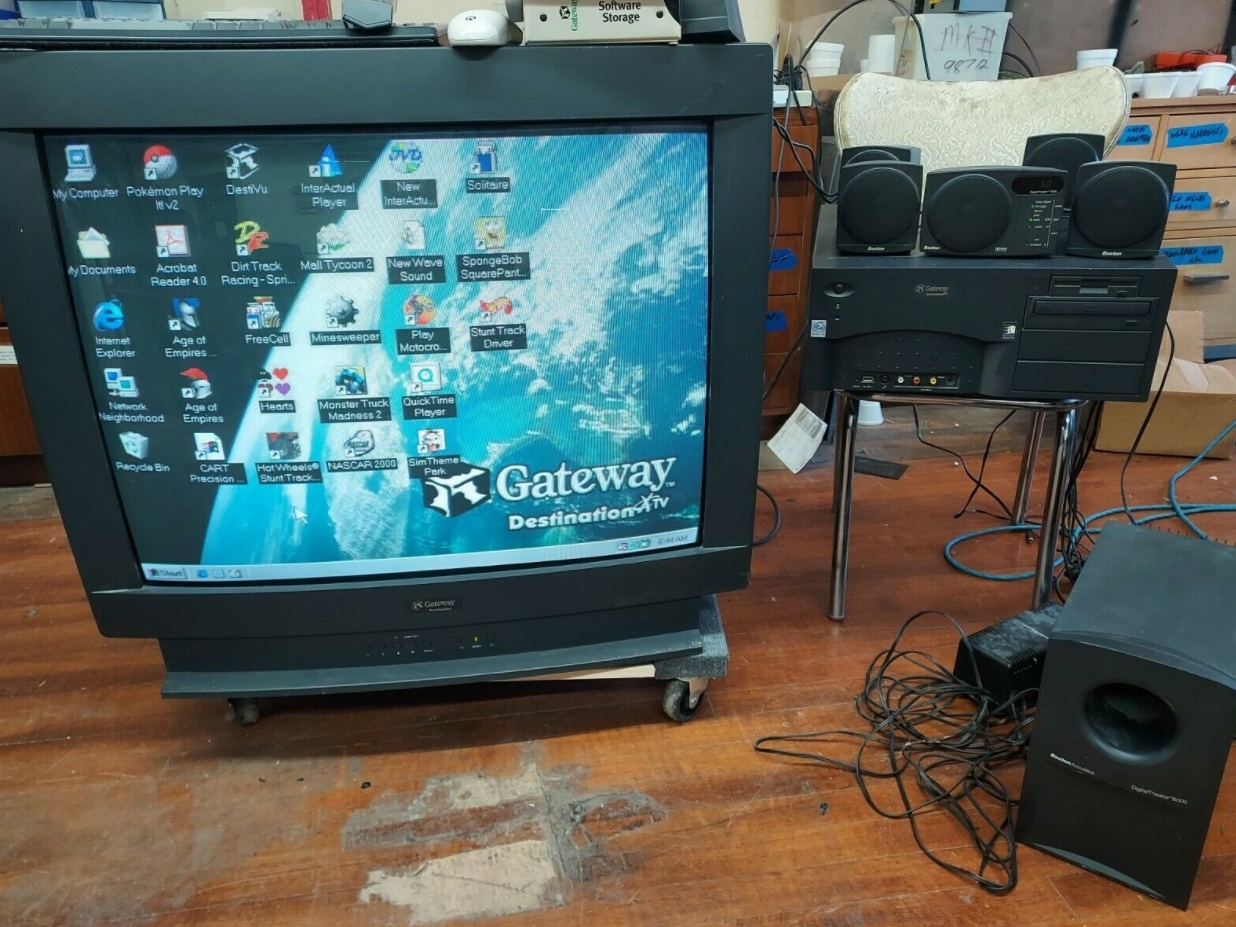

Gallery


































Specifications | |
---|---|
Brand: | Gateway |
Manufacturer: | DIVA Laboratories |
Model: | DL36 |

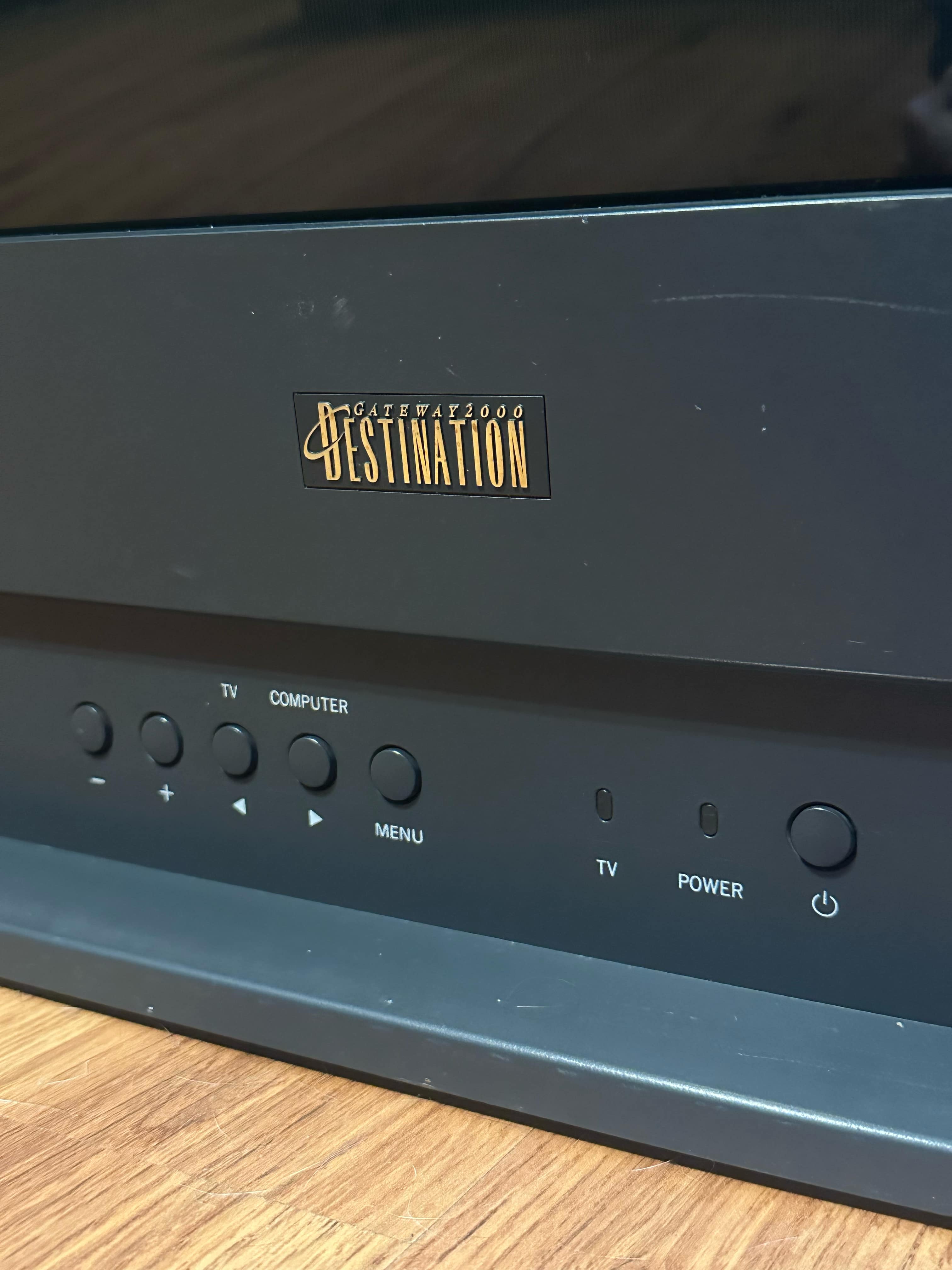

Series: | Destination |
Viewable Size: | 36" |
Inputs: | VGA, Composite, S-Video |
Sync: | HV Sync |
Native Resolutions: | VGA, SVGA |
Scaled Resolutions: | 240p, 480i |
Horizontal Scan Range: | 30 kHz, 37.9 kHz |
Vertical Scan Range: | 60 Hz, 70 Hz, 72 Hz, 75 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Expansions: | Input Cards |

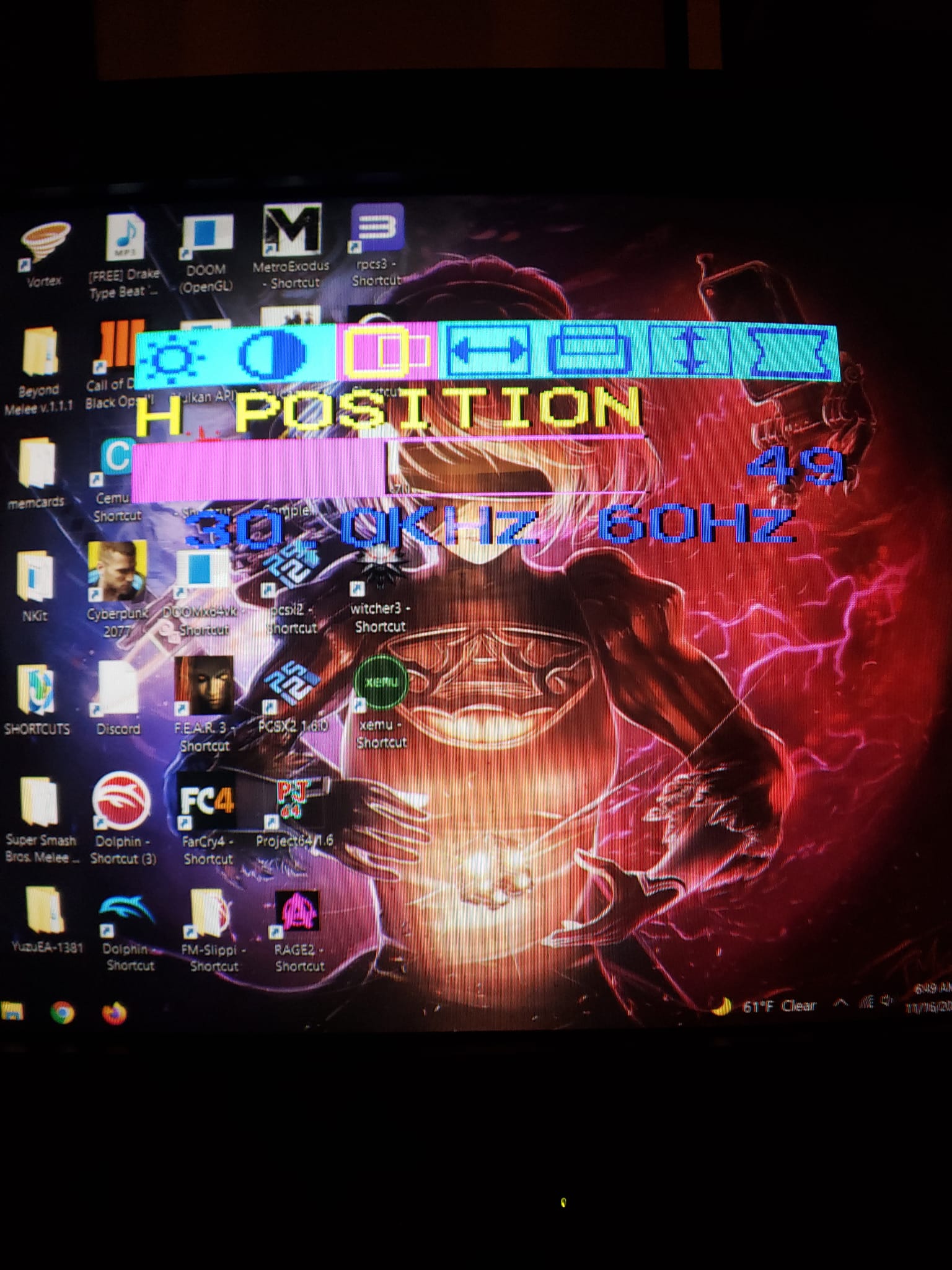

Adjustments: | OSD Customer Controls, OSD Service Menu |

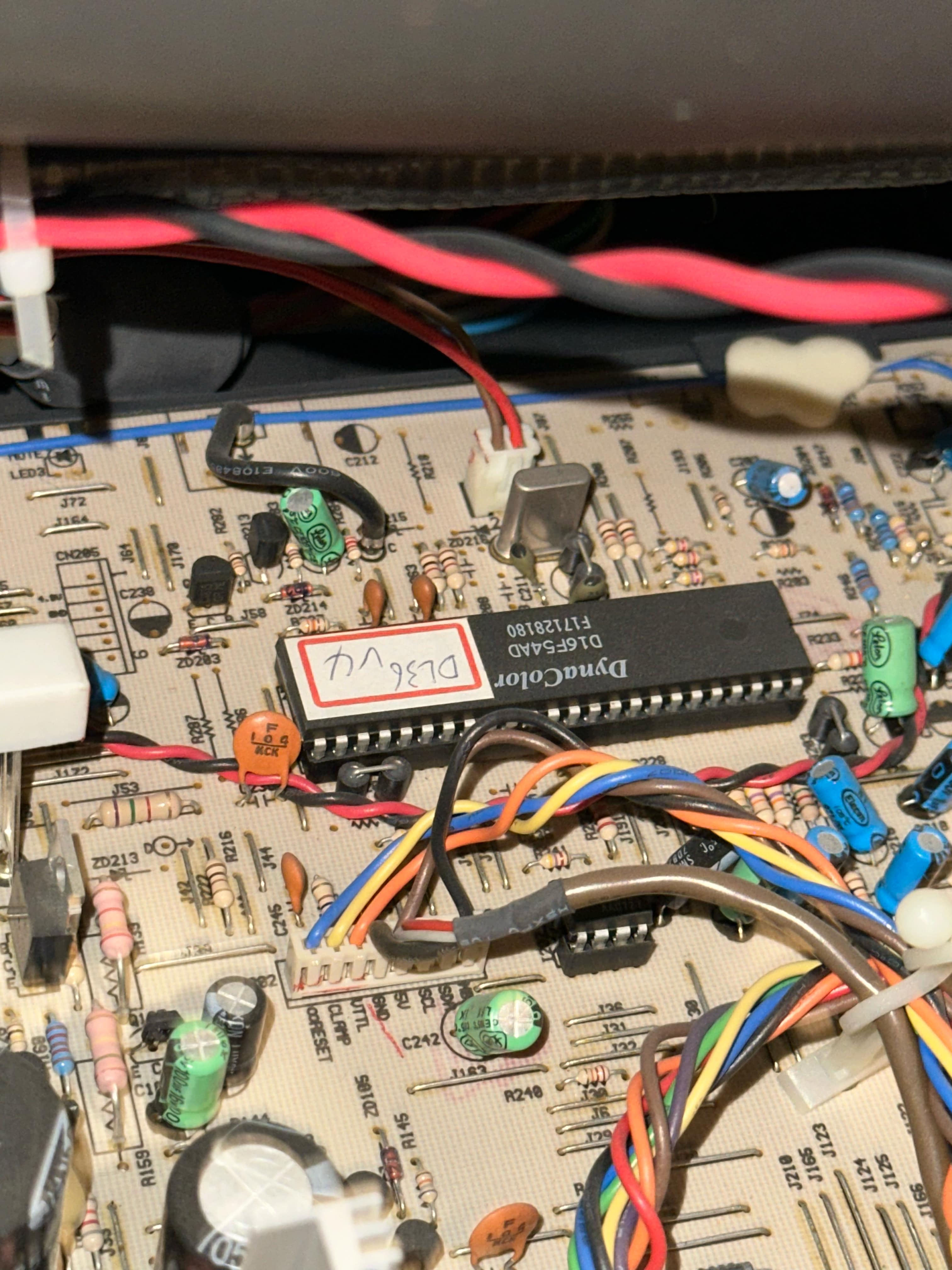

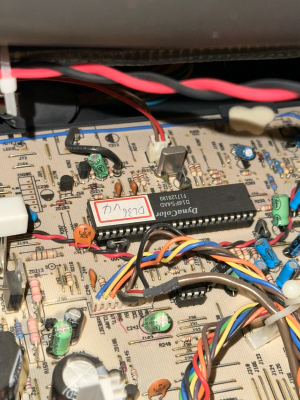

Jungle: | Dynacolor, D16F54AD |

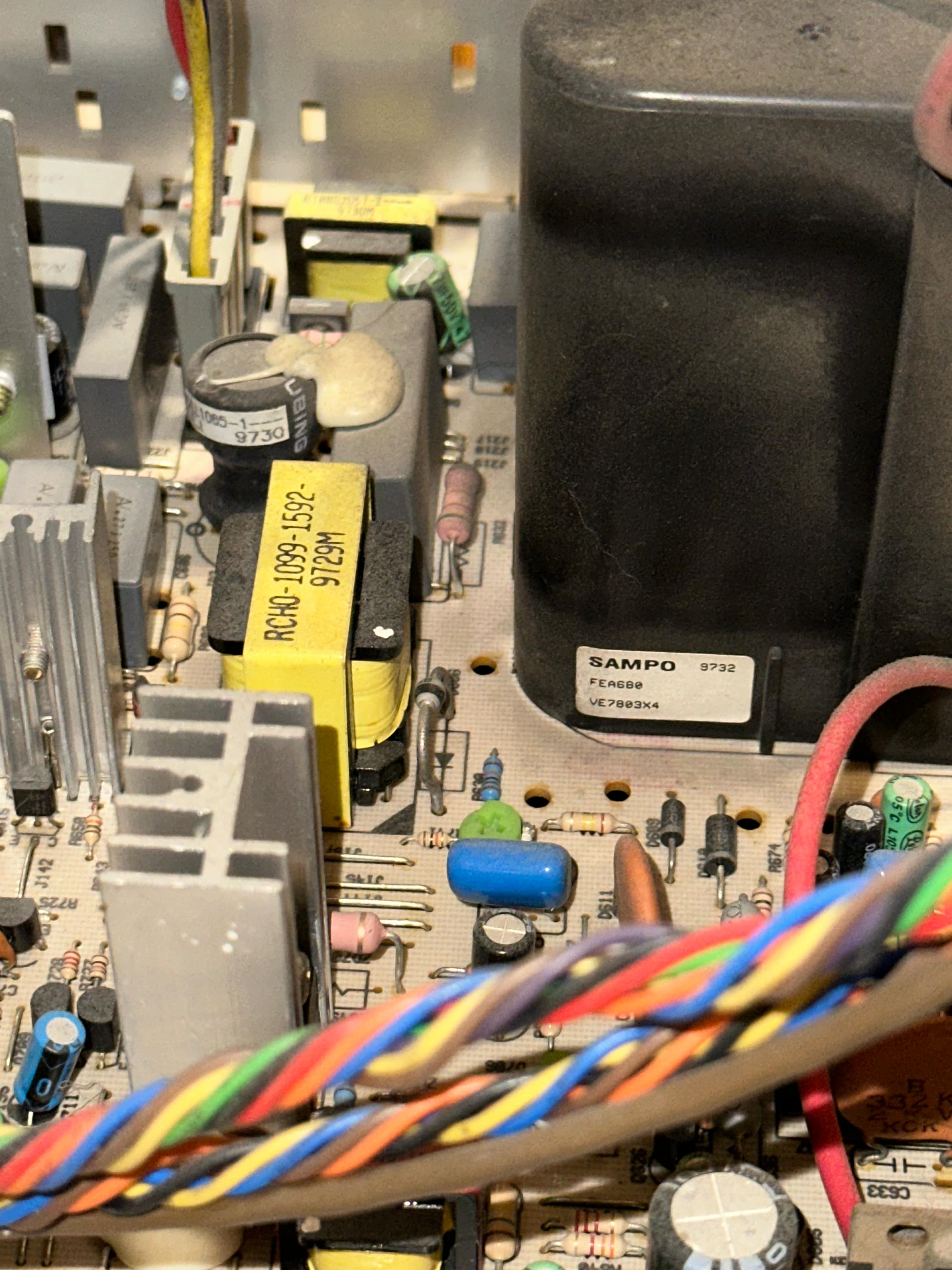

Flyback: | Sampo, FEA680 |
Focus Type: | Dual |

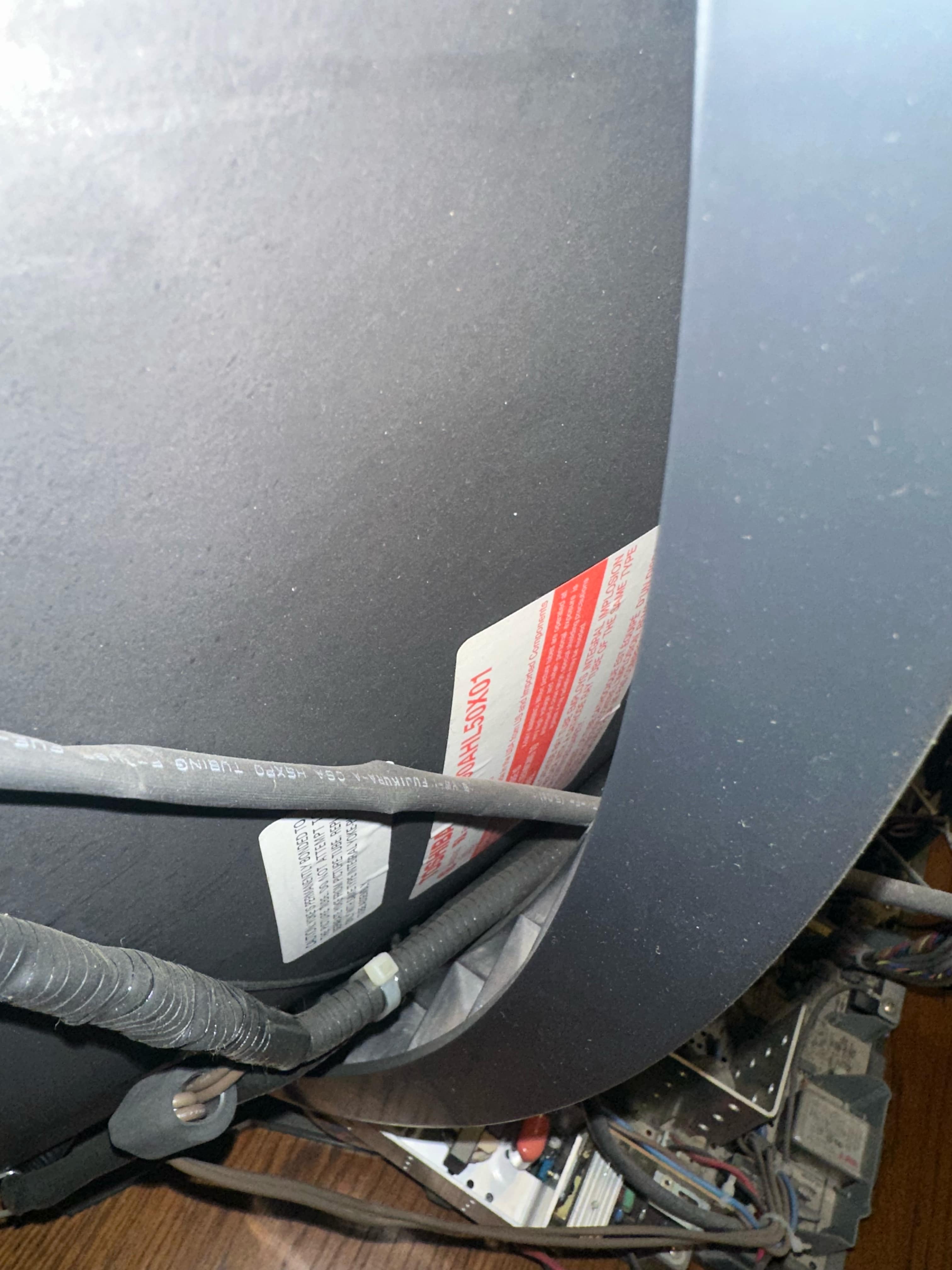

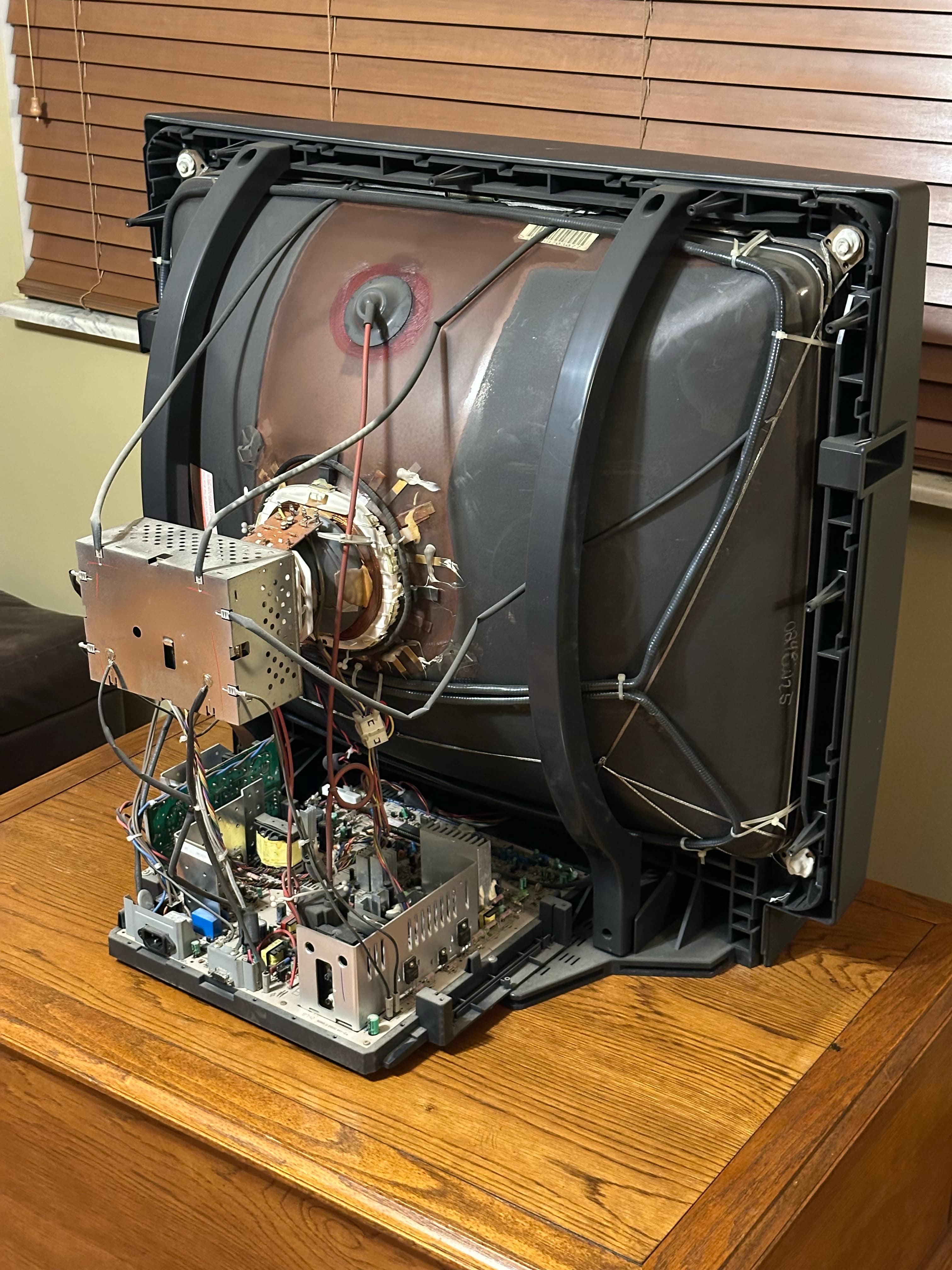

Tube: | Toshiba , M90AHL50X , M90AHL50X01 |
Heater Voltage: | 6.3v |
Deflection: | 110° |
Mask: |
Slot
![]() |
Pitch: | 0.9 mm, 1.1 mm |
Tint: | Dark |
Removable Glare Film: | No |

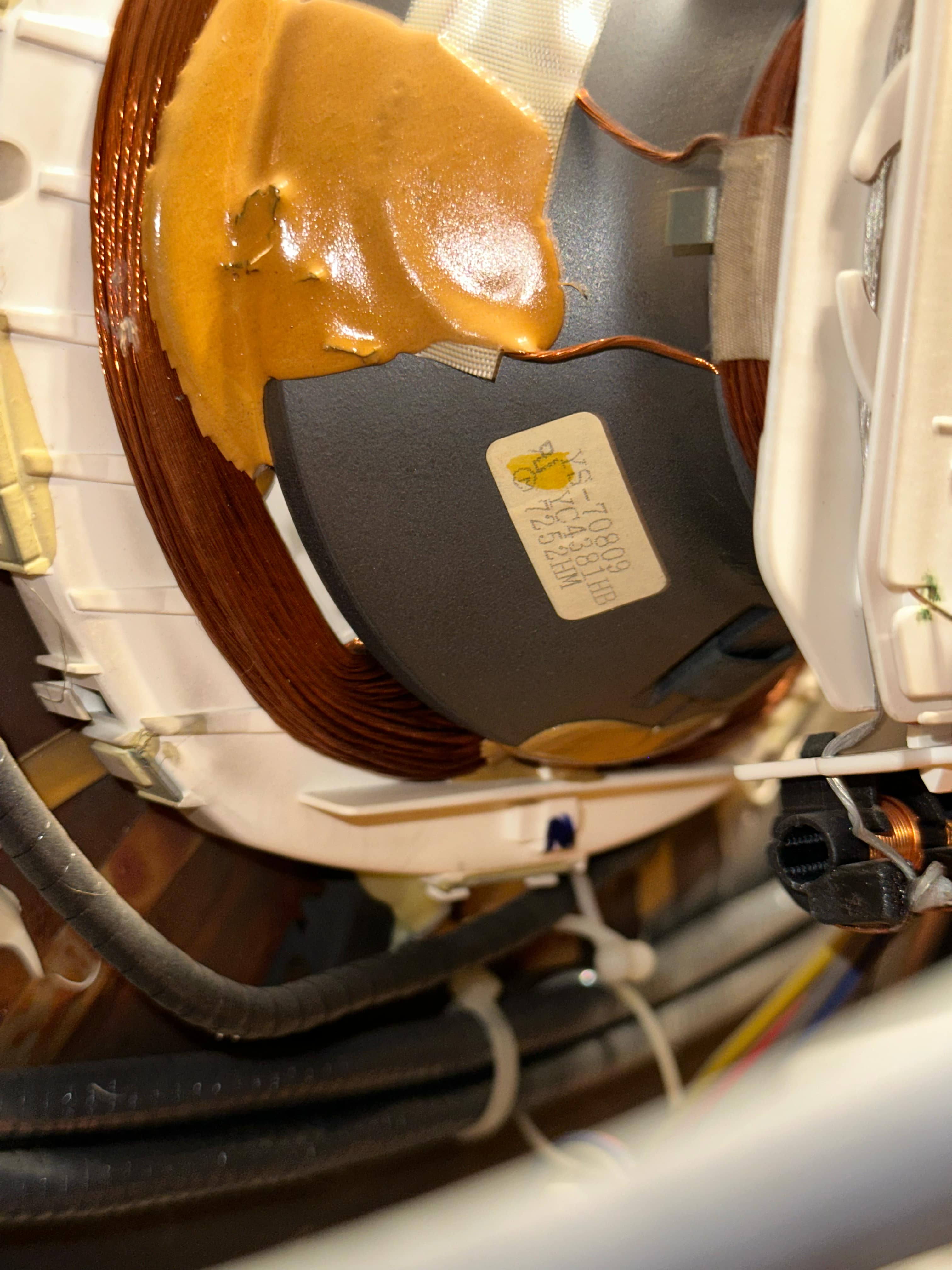

Yoke: | YS-70809 |
Speakers: | None |
Weight: | 218 lbs (98.9 kg) |
Dimensions (W/H/D): |
880 x 790 x 650 mm
(34.6 x 31 x 25.5") |
Application: | Computer Monitor |
Cabinet Material: | Plastic |
Launched: | 1997 |
MSRP: | 3000 USD |
Country of Manufacture: | Taiwan |
Market: | North America |
Power Standard: | 120v |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
