Summary

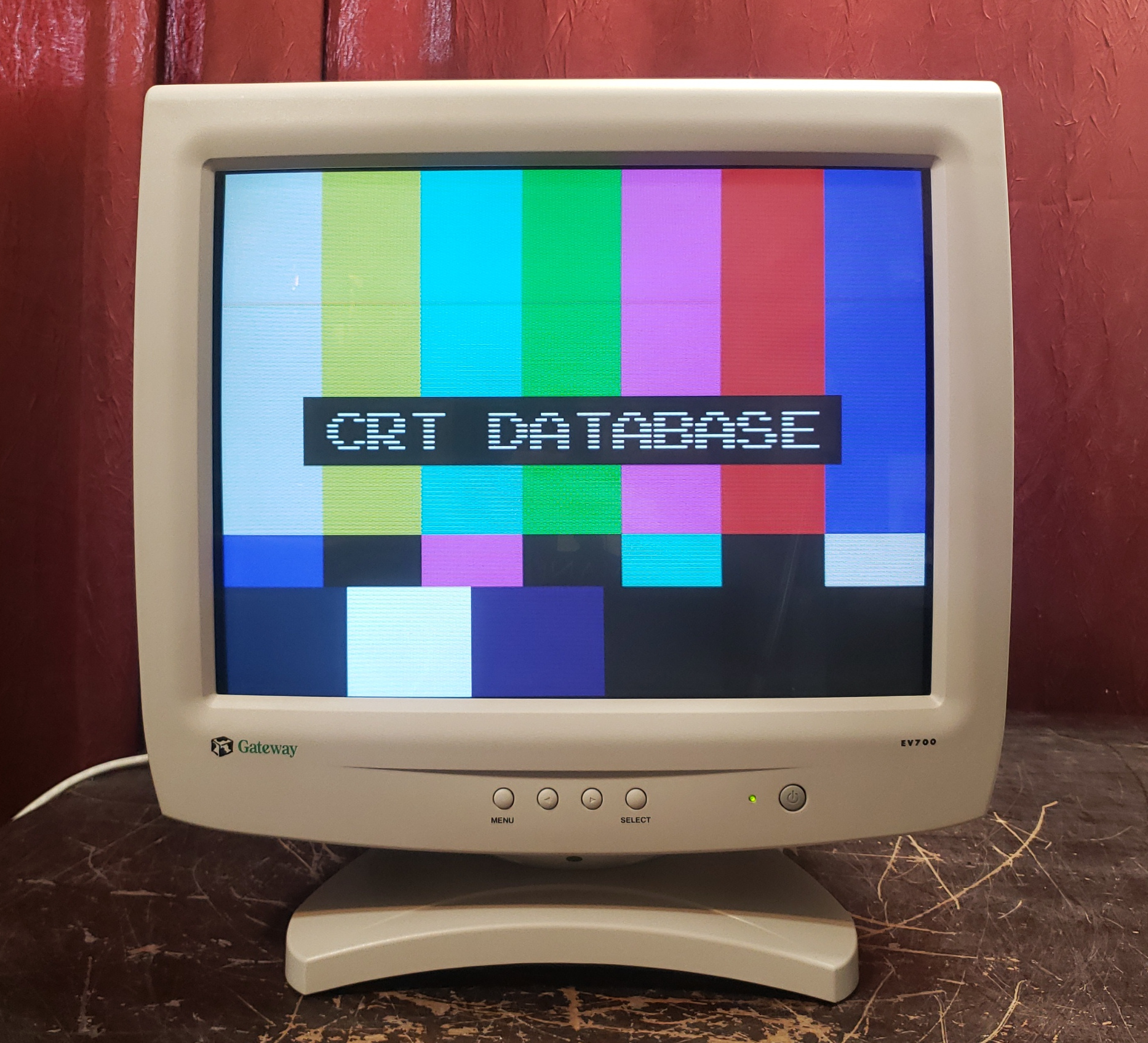

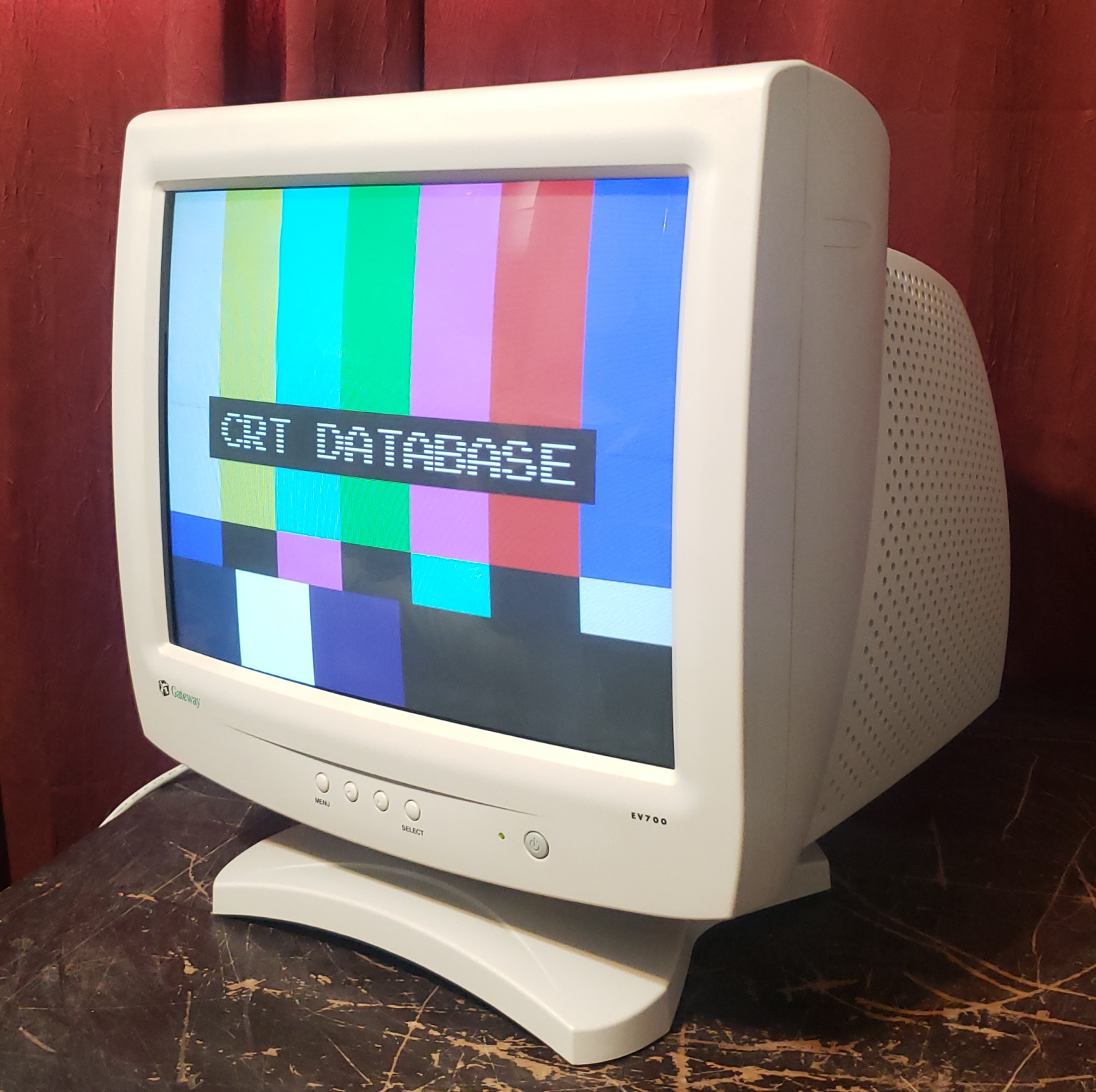

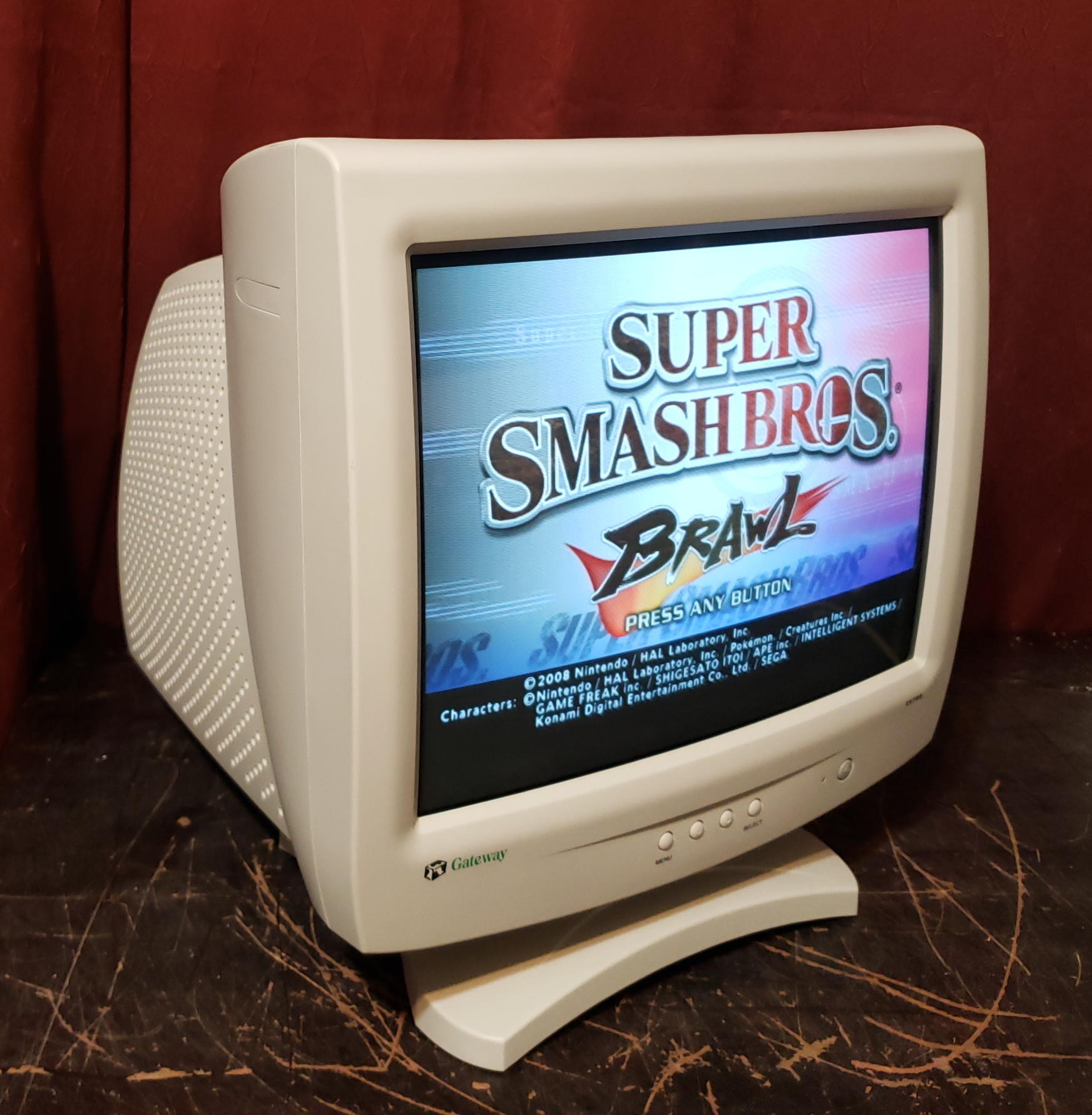

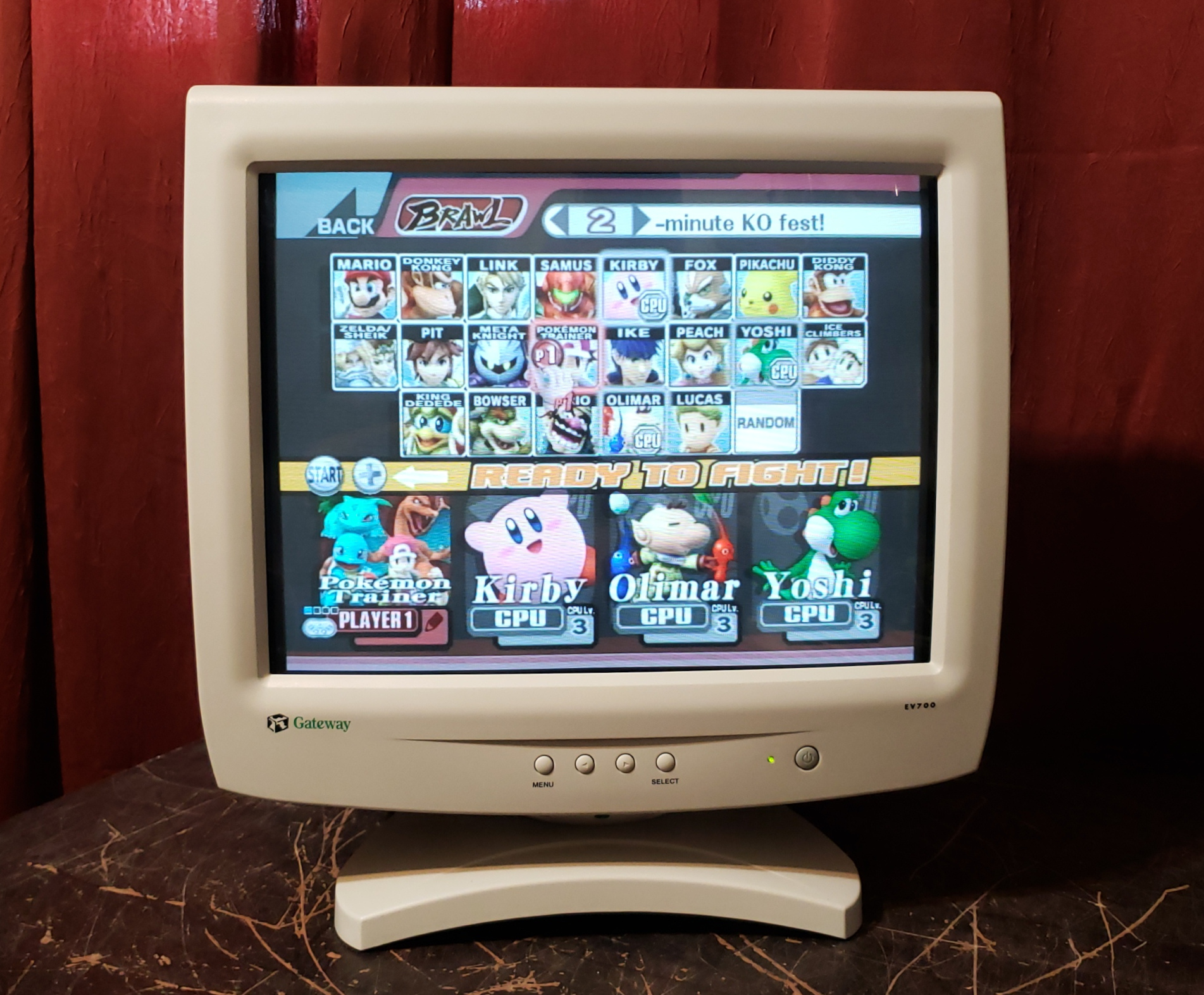

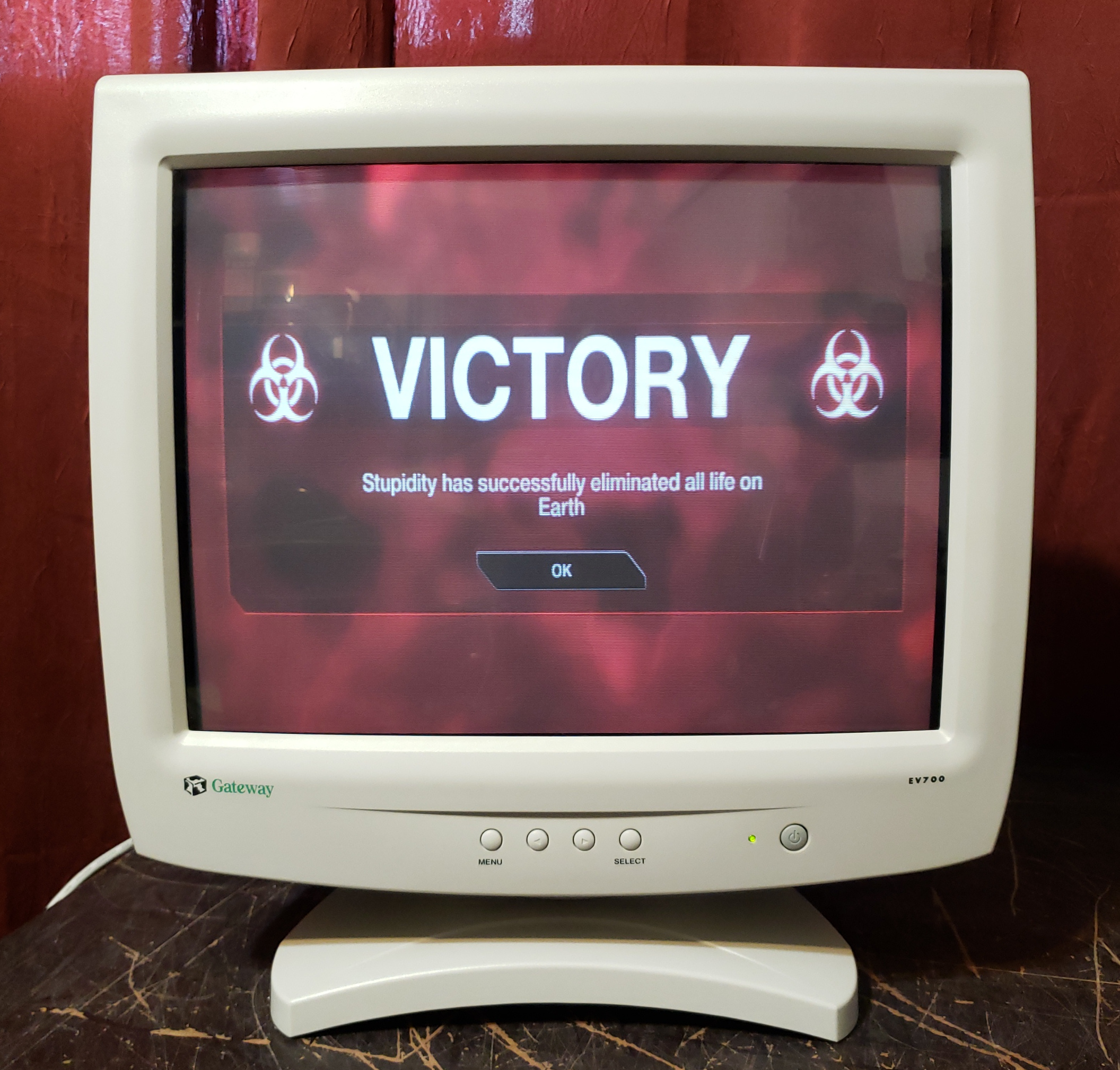

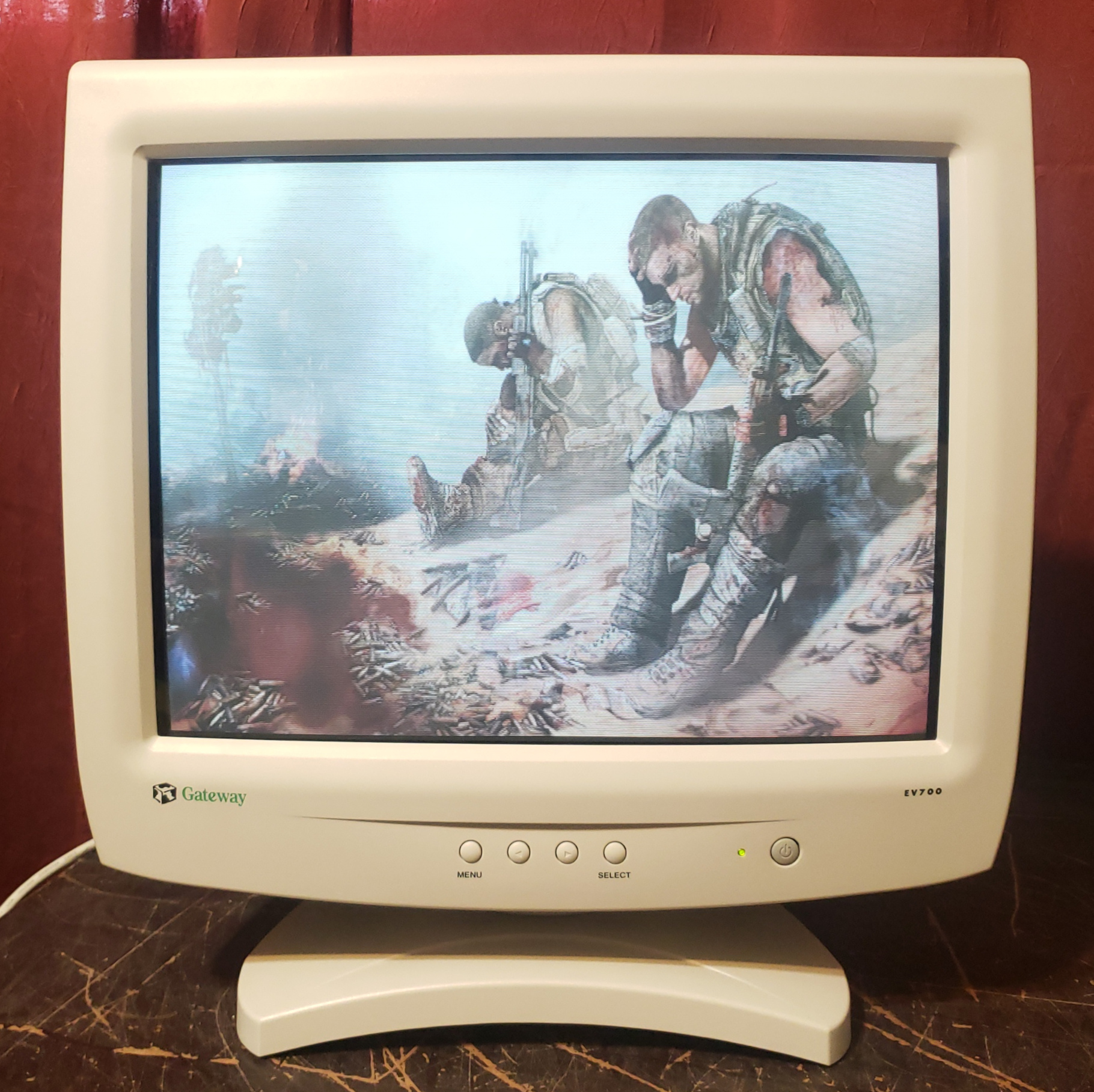

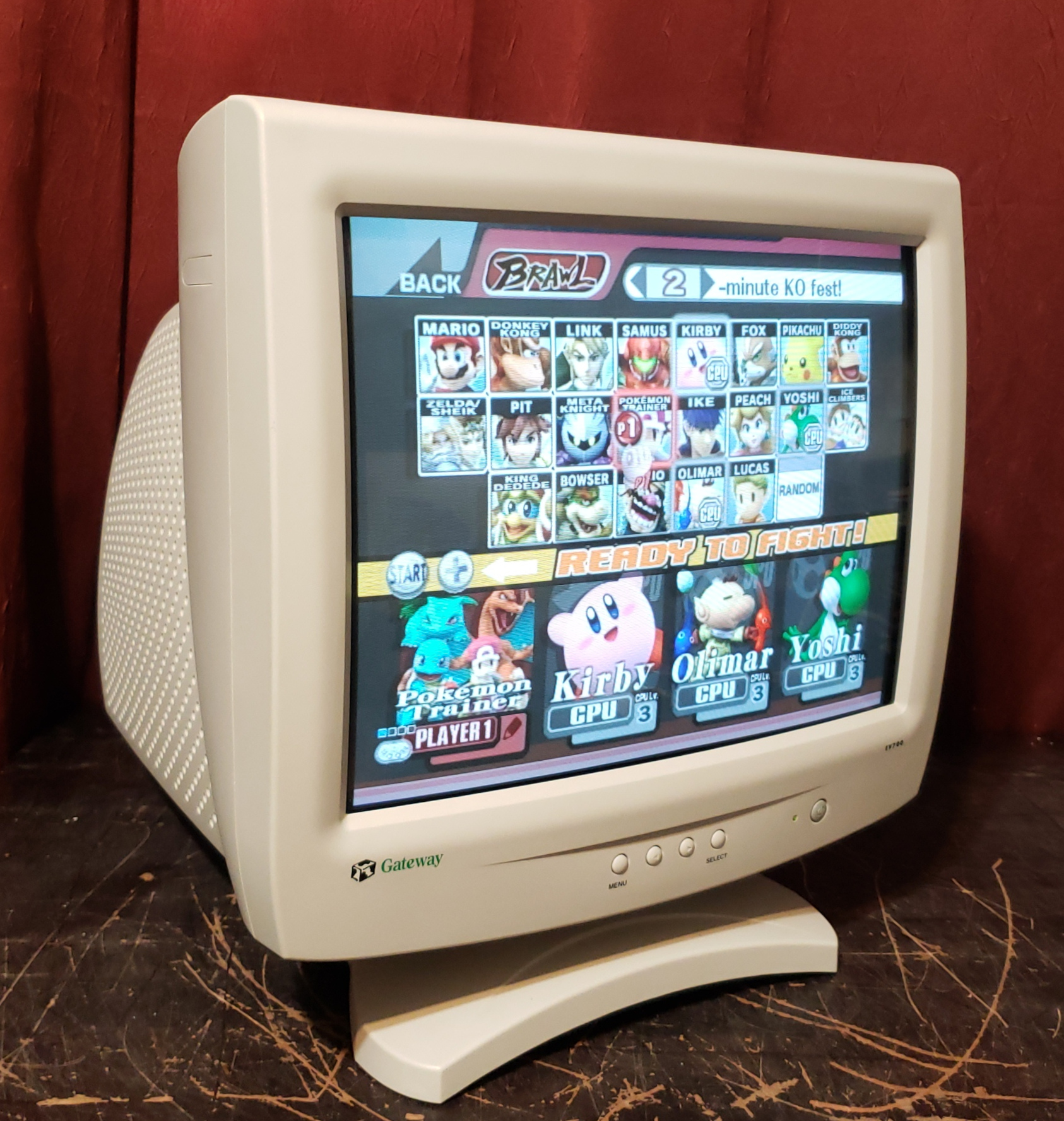

Entry level 17" PC monitor, designed for resolutions from 640x480 to 1024x768. The EV700AA also came with a silver front bezel & black rear cover.
Manuals
None freely available at this time.
Media & Promo Materials
- Gateway product page for this EV700AA revision
- Description of OSD options
- Gateway general EV700 product page
Notes

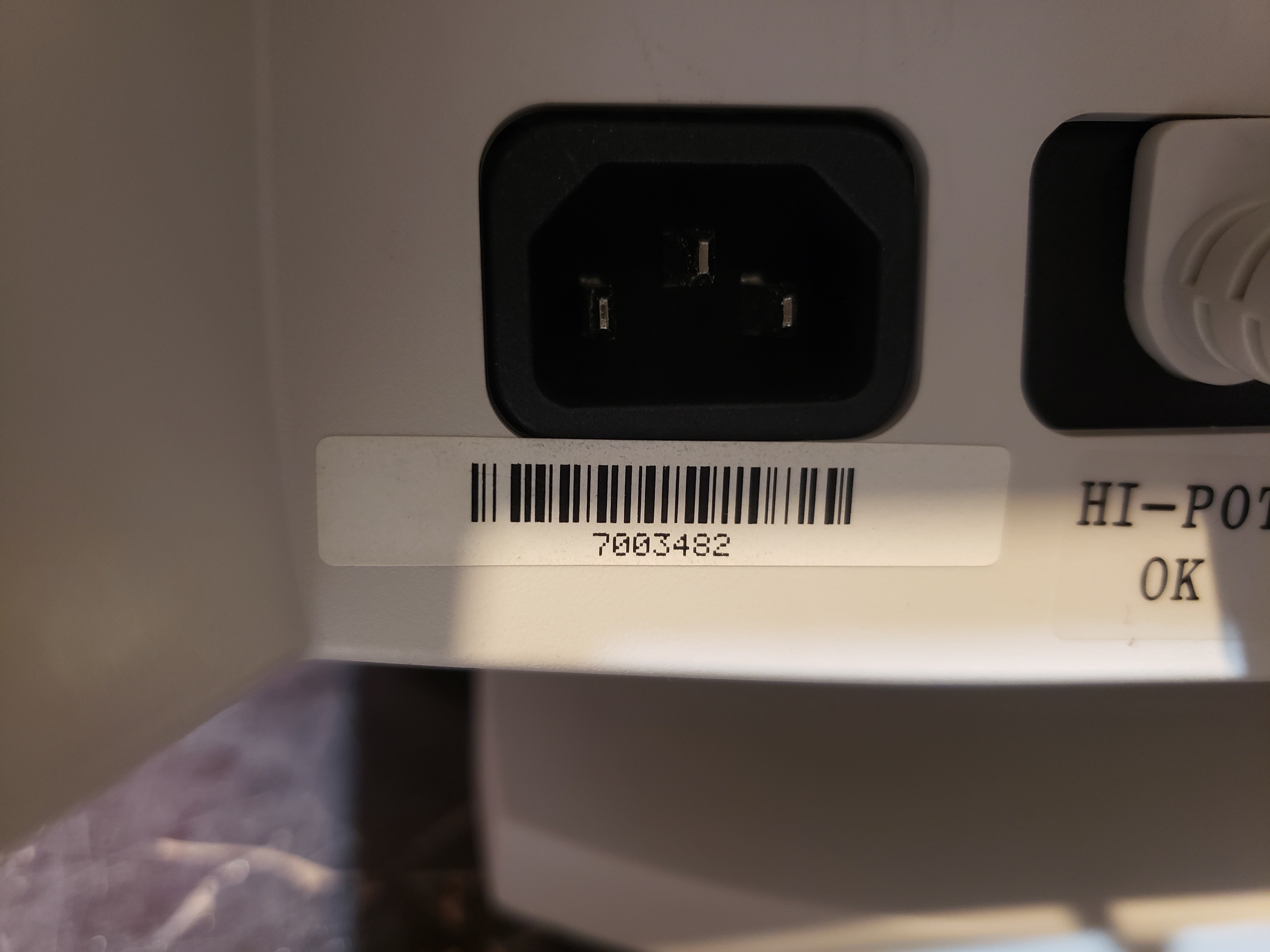

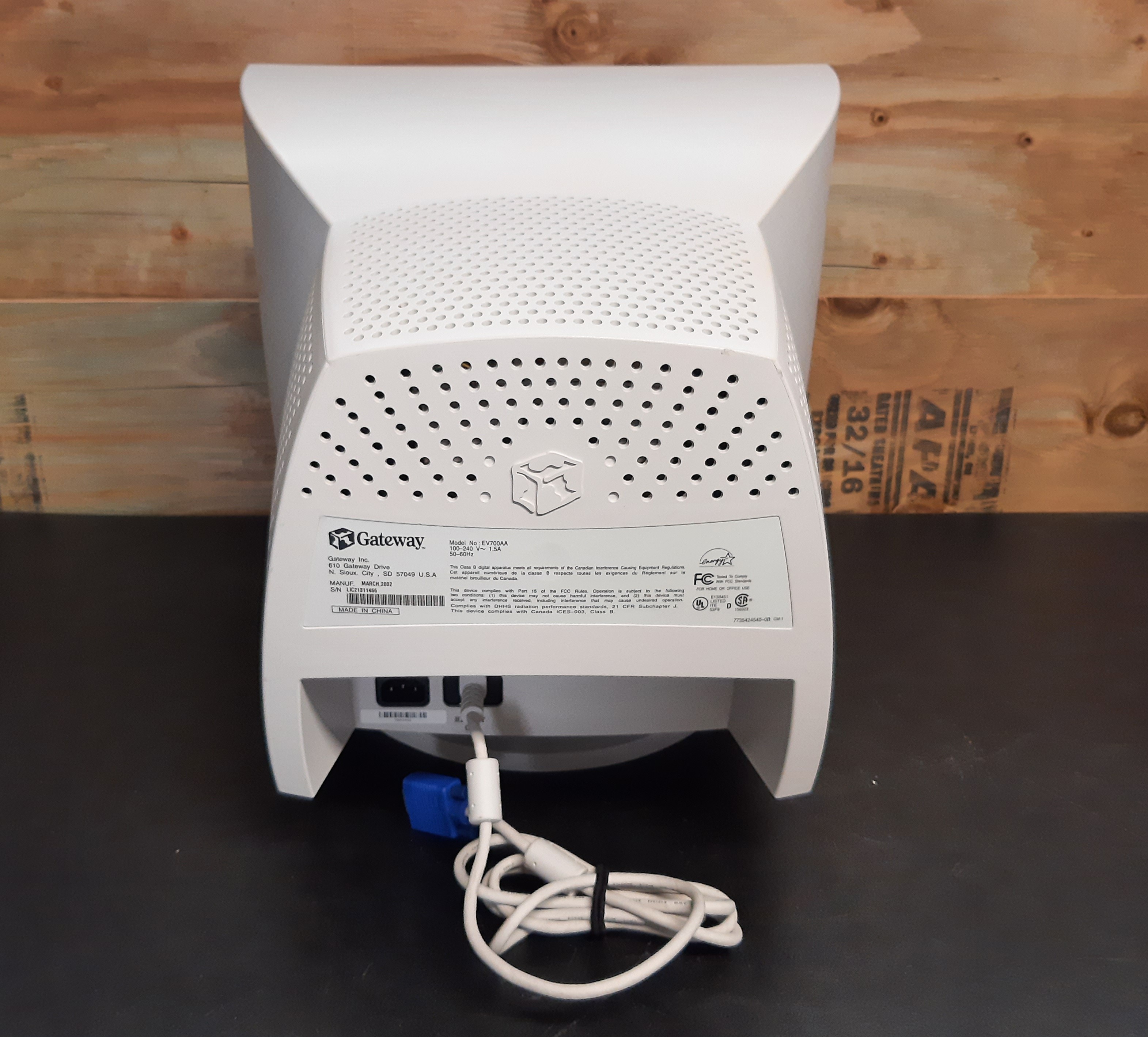

One way that Gateway would sort different revisions was by the monitor's part number, which is on the sticker by the power jack here, '7003482'.
Gallery
| Specifications | |
|---|---|
| Brand: | Gateway |
| Manufacturer: | Lite-On |
| Model: | EV700AA |
| Series: | EV |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 69 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |

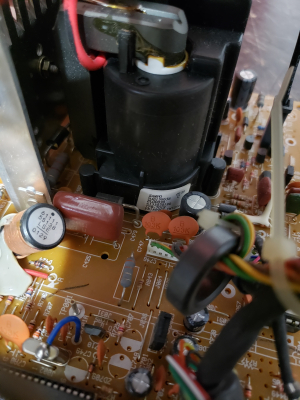

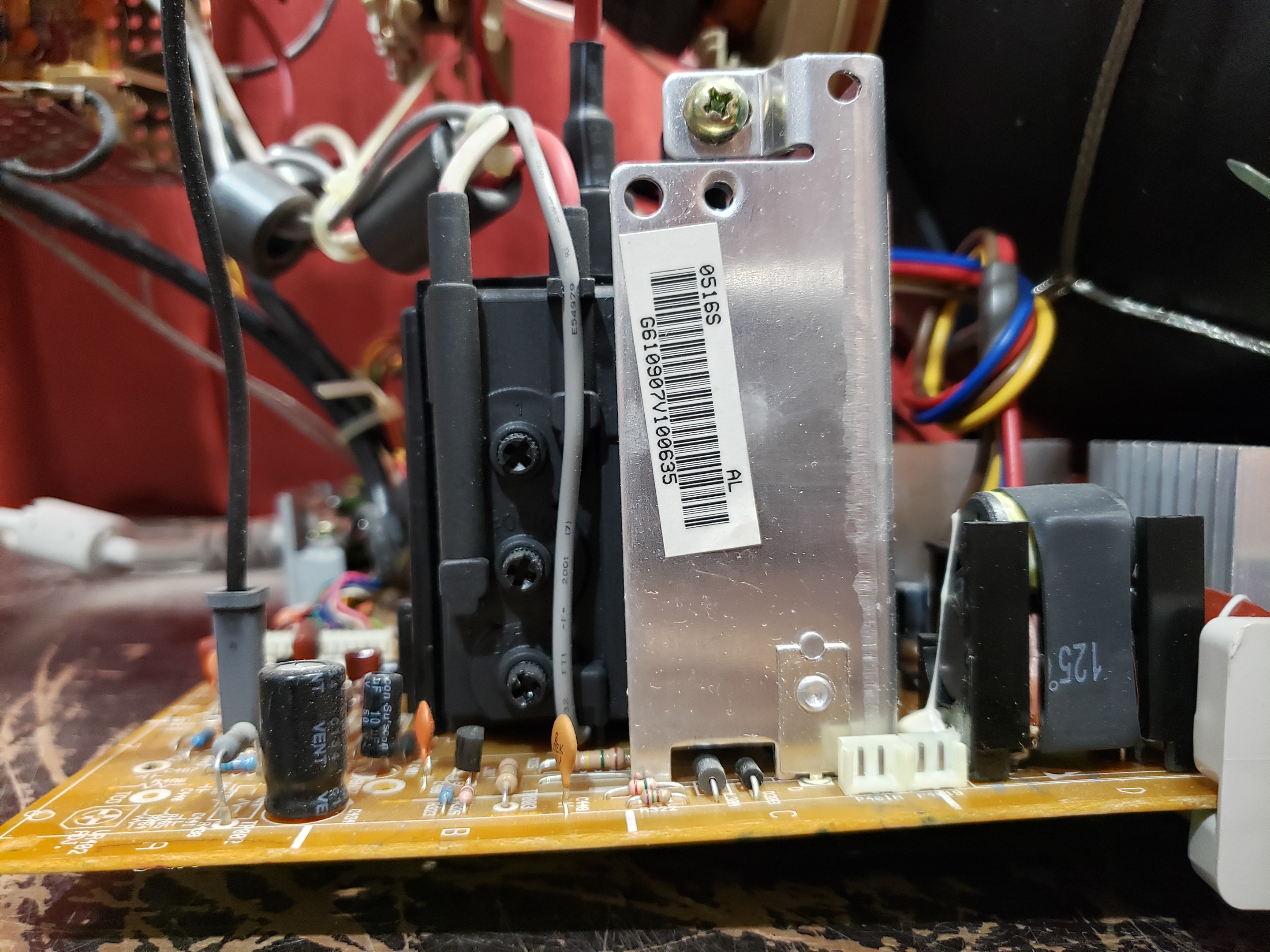

| Flyback: | E159656 |

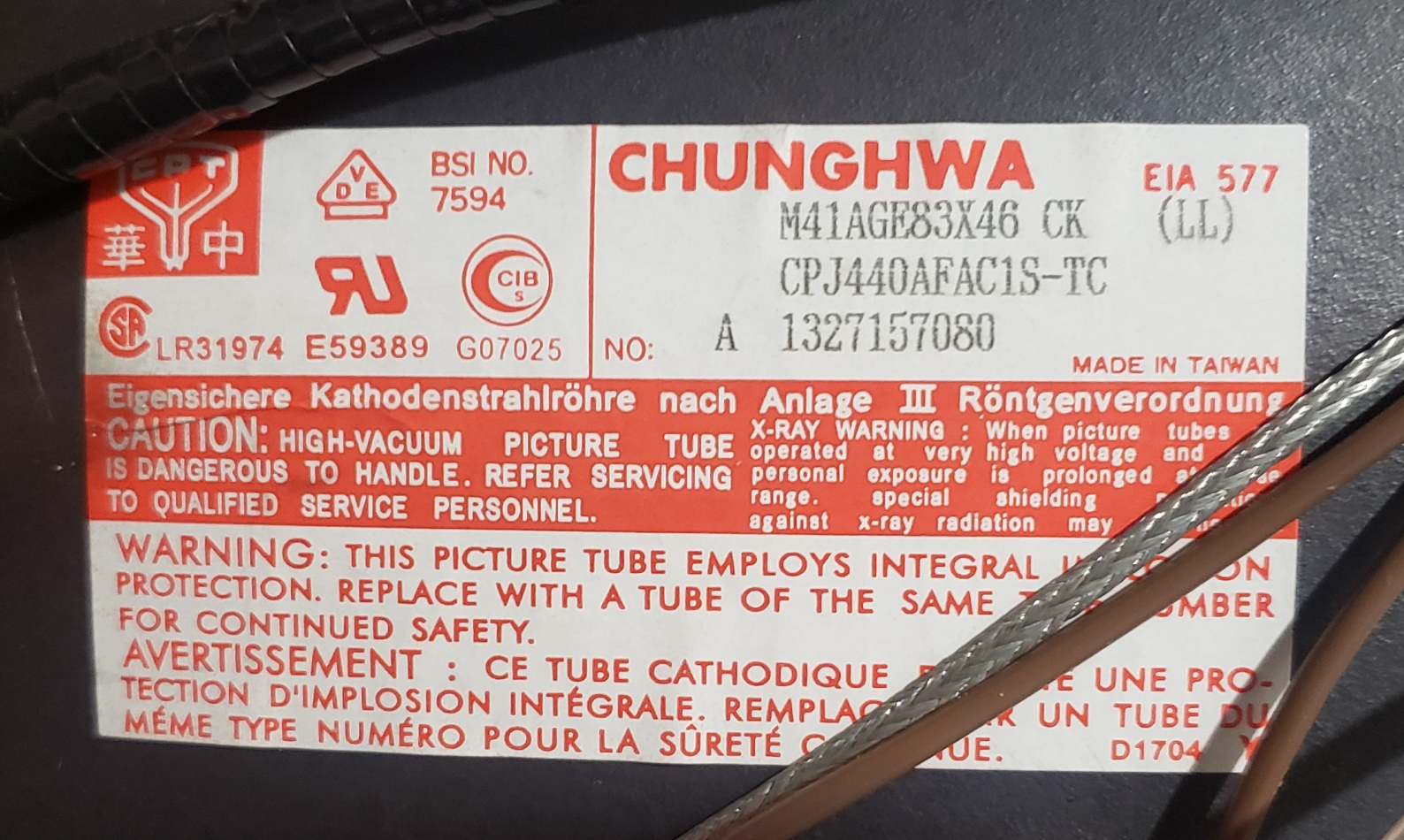

| Tube: | Chunghwa , LG , M41AGE83X46 , M41AGE83X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow, Invar
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark |

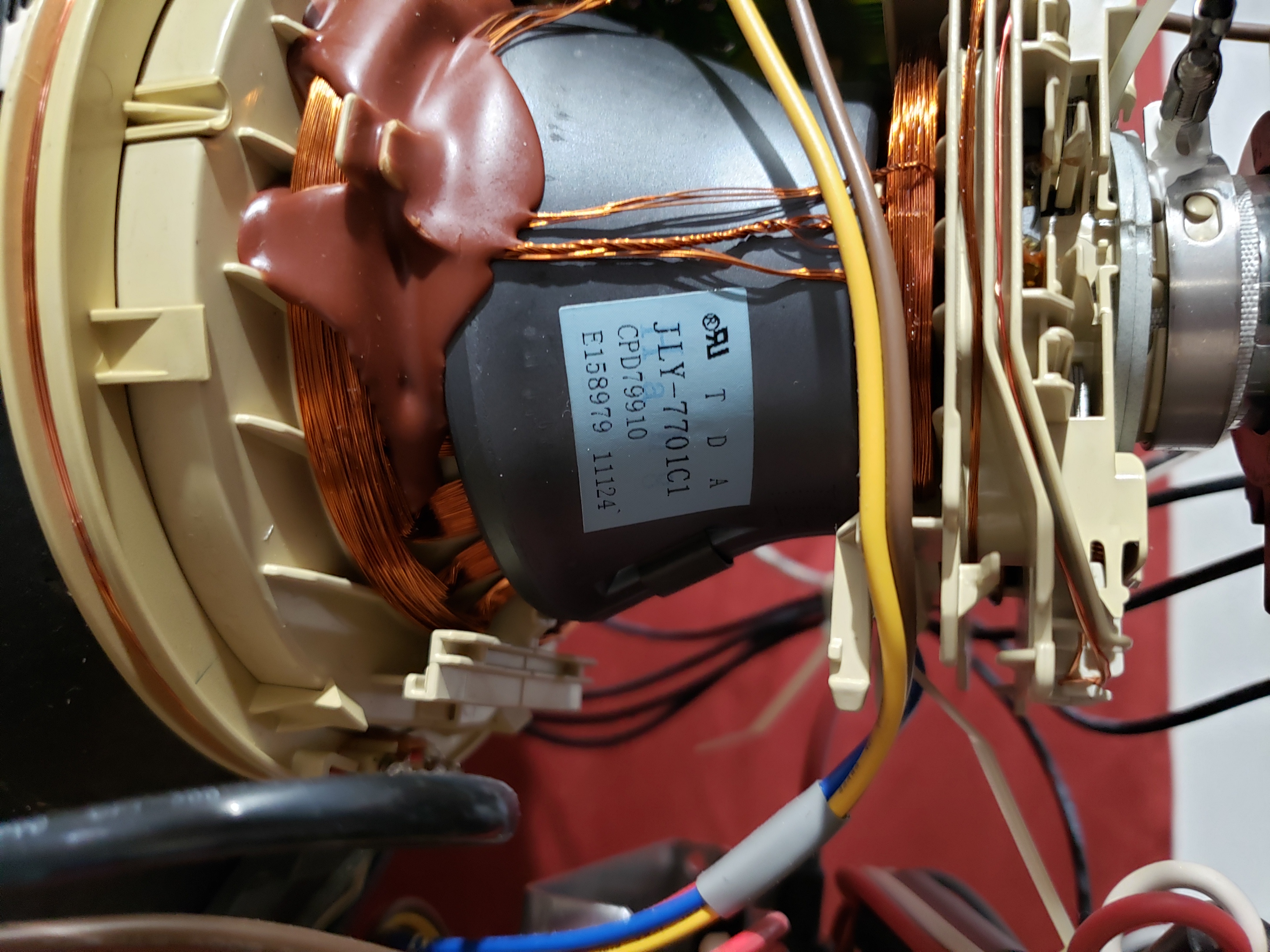

| Yoke: | JLY-7701C1 |
| Yoke Horz. Resistance: | 0.6 ohm |
| Yoke Vert. Resistance: | 9.7 ohm |
| Speakers: | None |
| Weight: | 45.7 lbs (20.7 kg) |
| Dimensions (W/H/D): |
424 x 424 x 460 mm
(16.7 x 16.7 x 18.1") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual |
