Summary

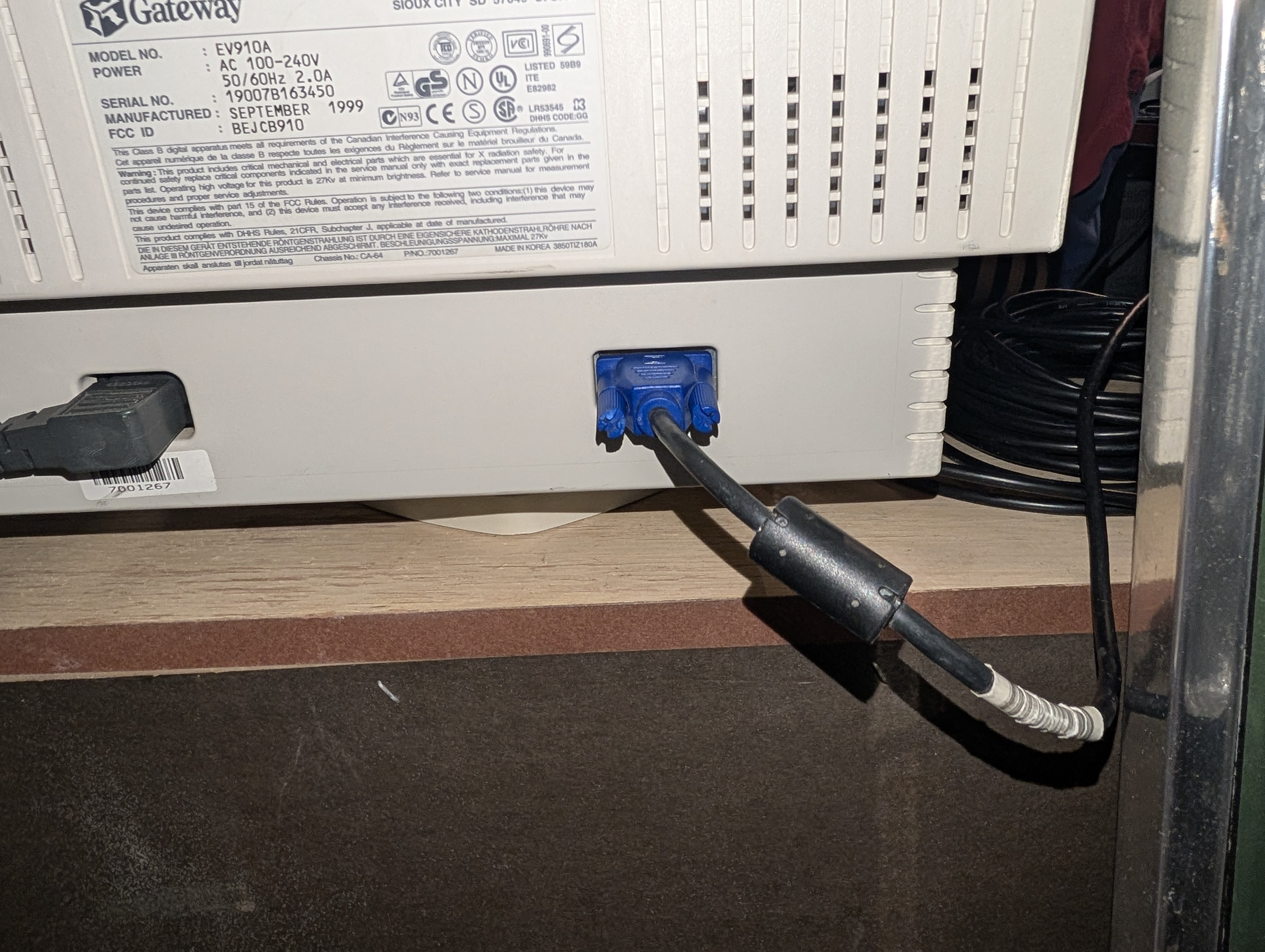

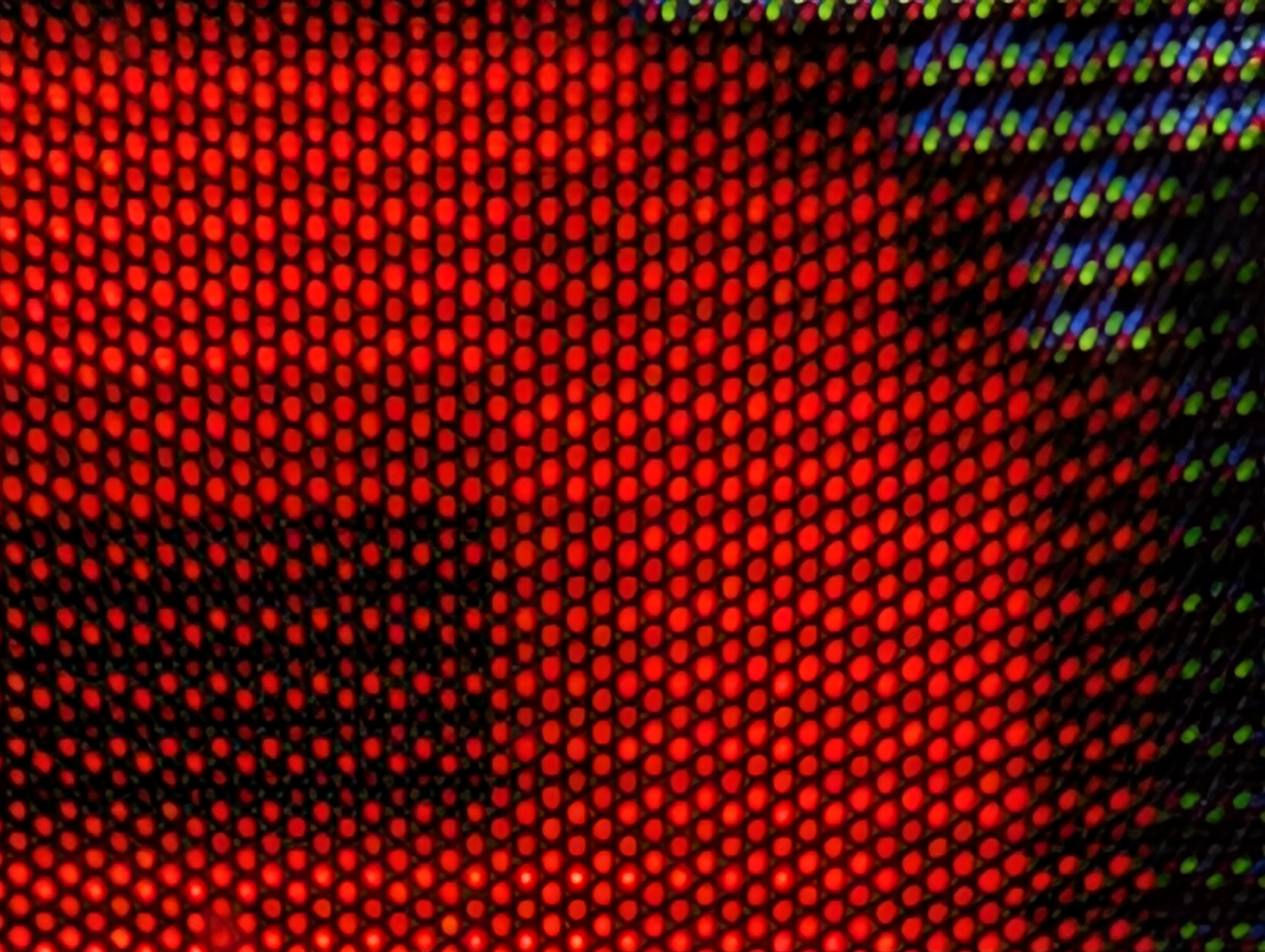

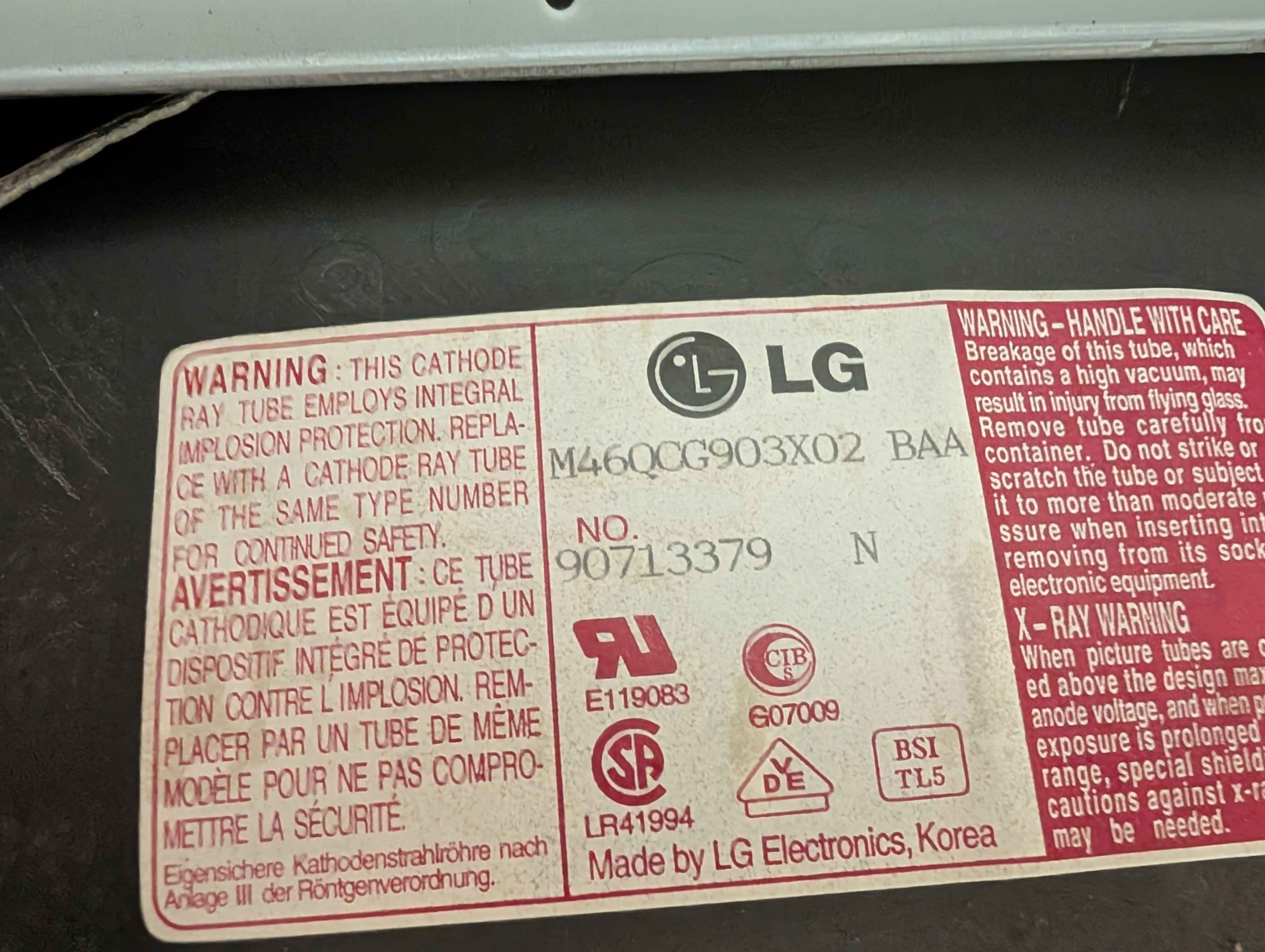

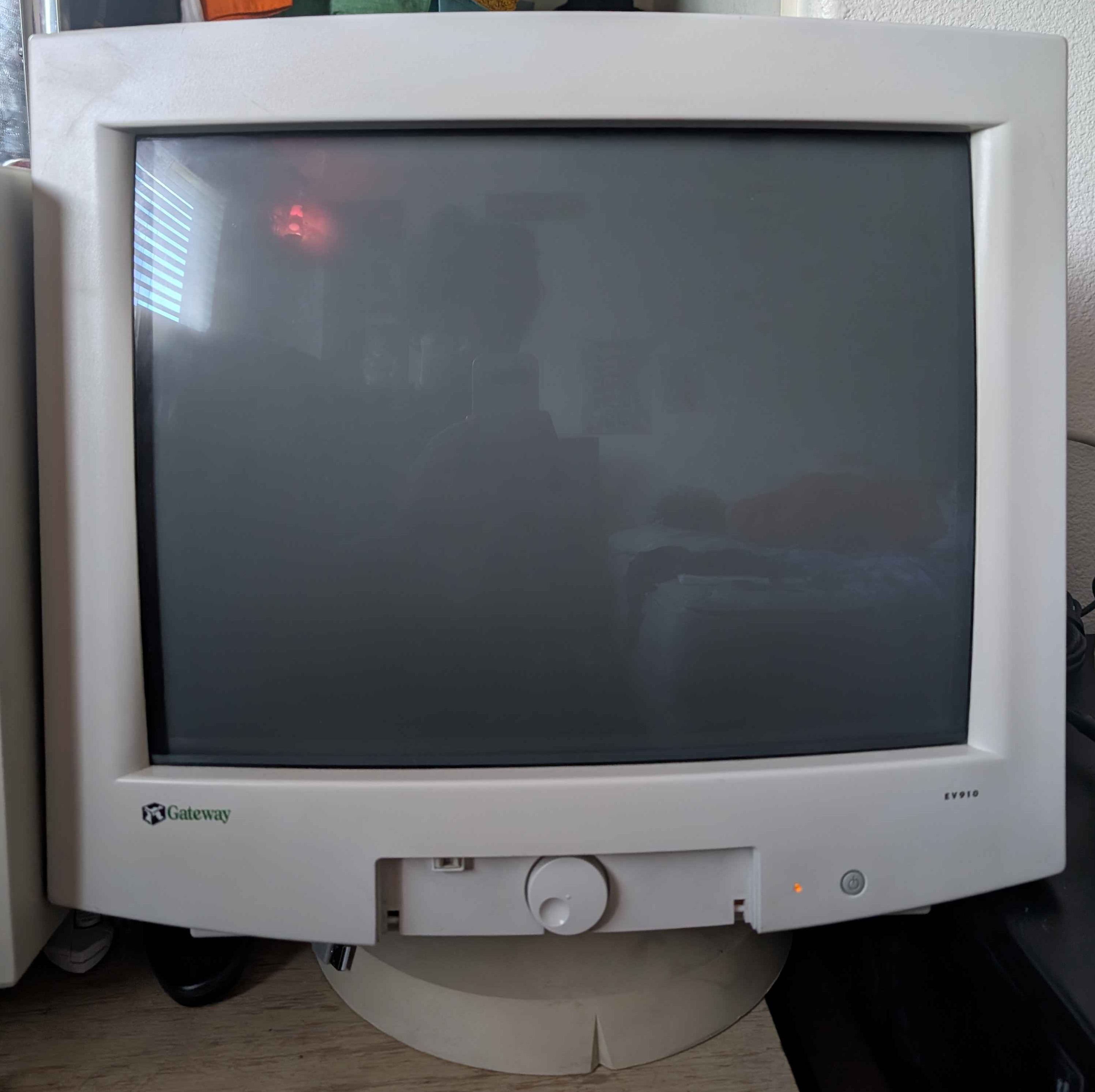

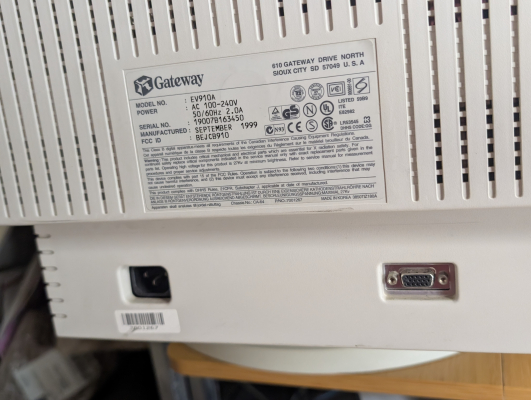

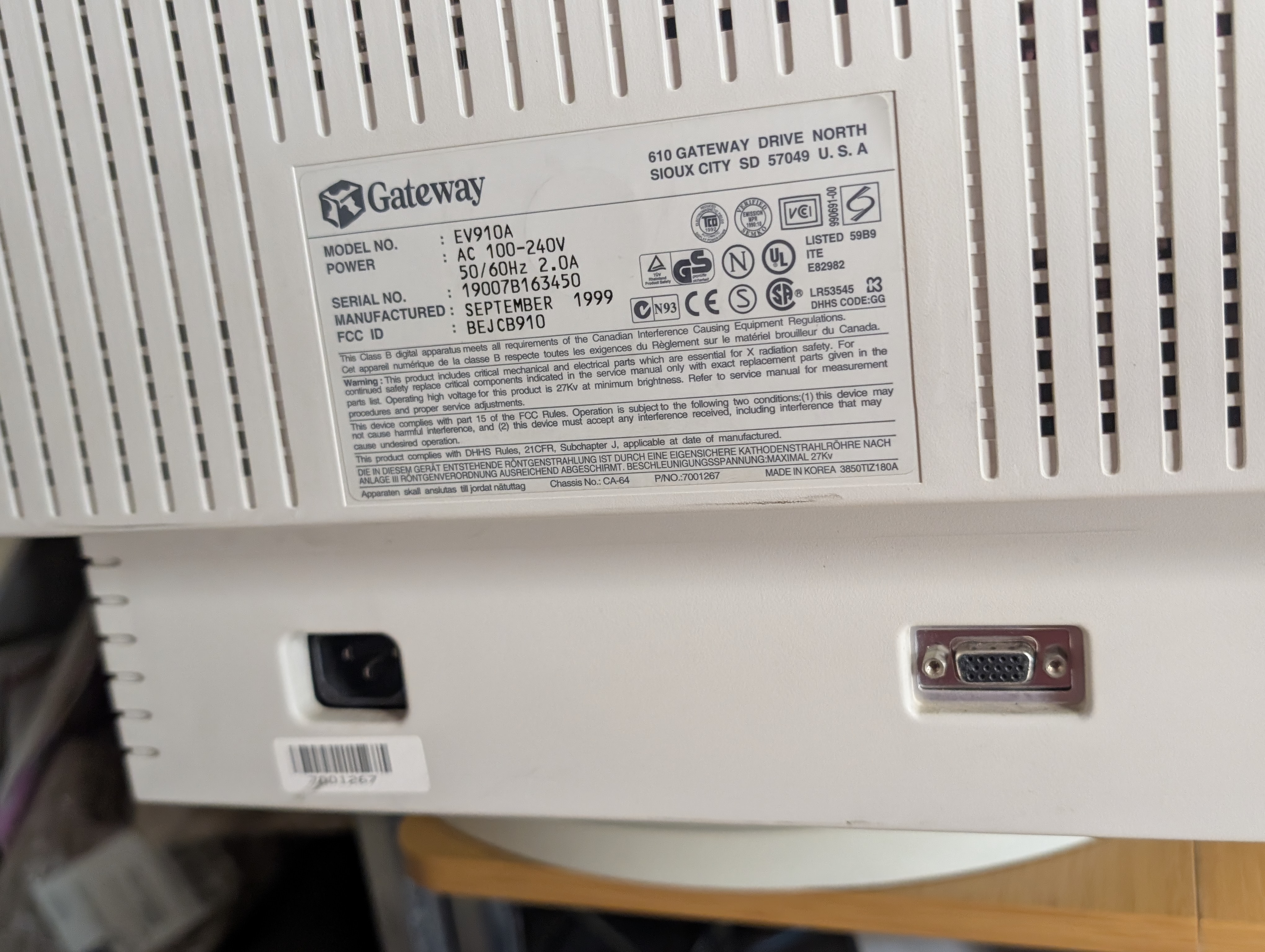

19" (18" Viewable) PC monitor, uses LG Shadow mask tube. Capable of 95kHz horizontal scan range and 200Hz vertical, slightly better than the EV910 which is rated at 160Hz. Has standalone VGA port as the input. Also has a very unique tactile dial to control the OSD along with a plethora of options for adjustments.

Manuals

• Schematic

Notes

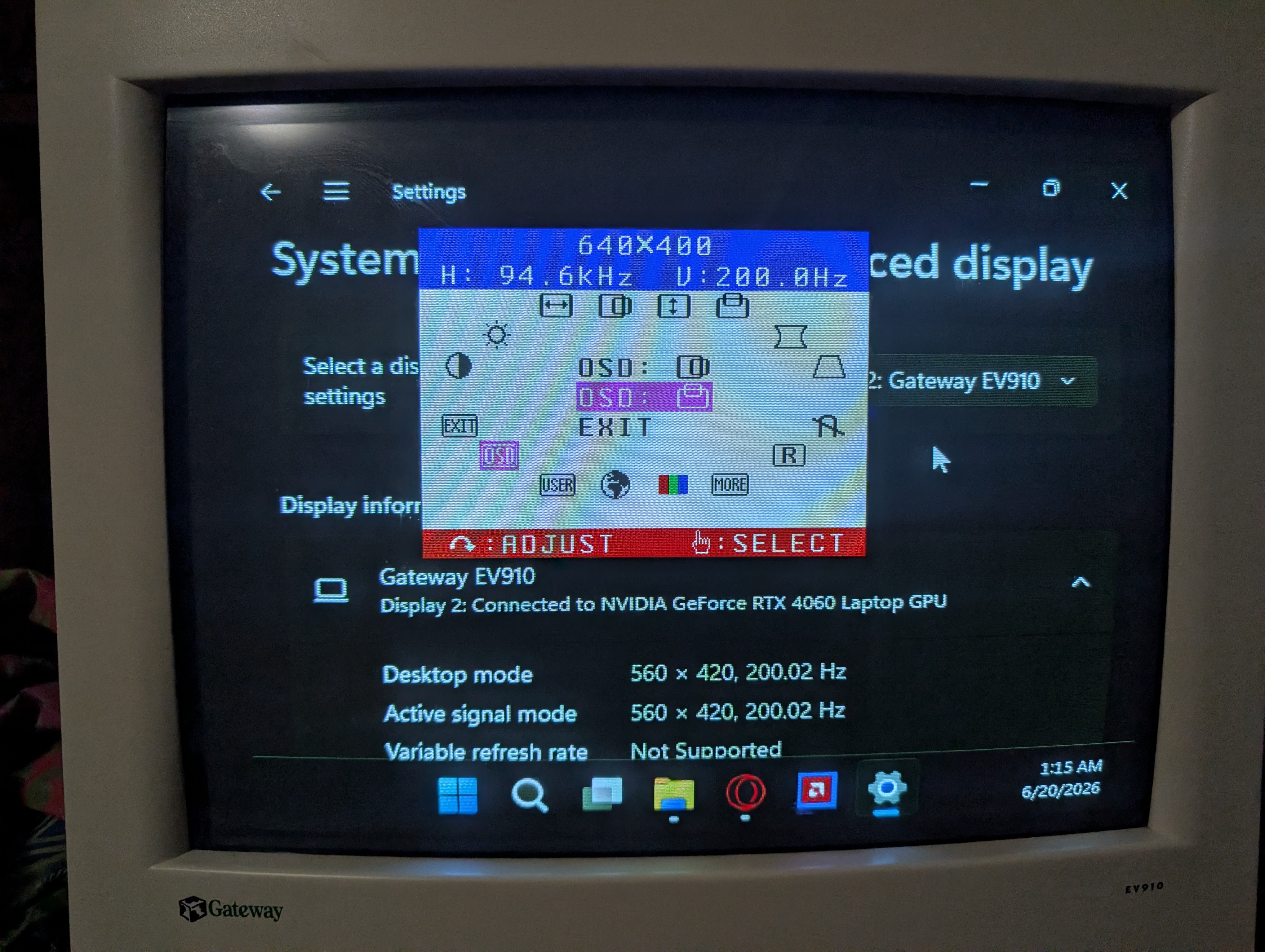

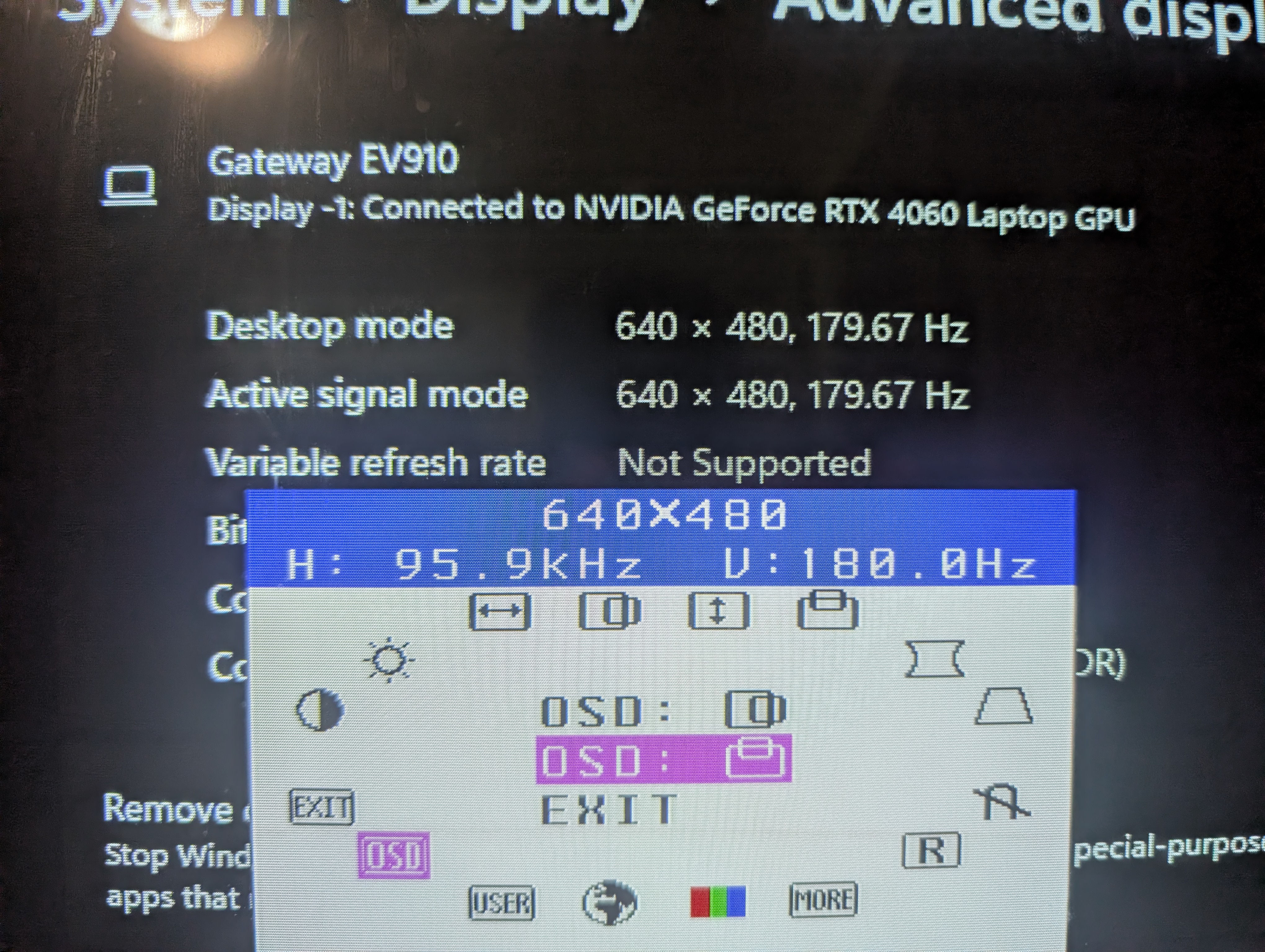

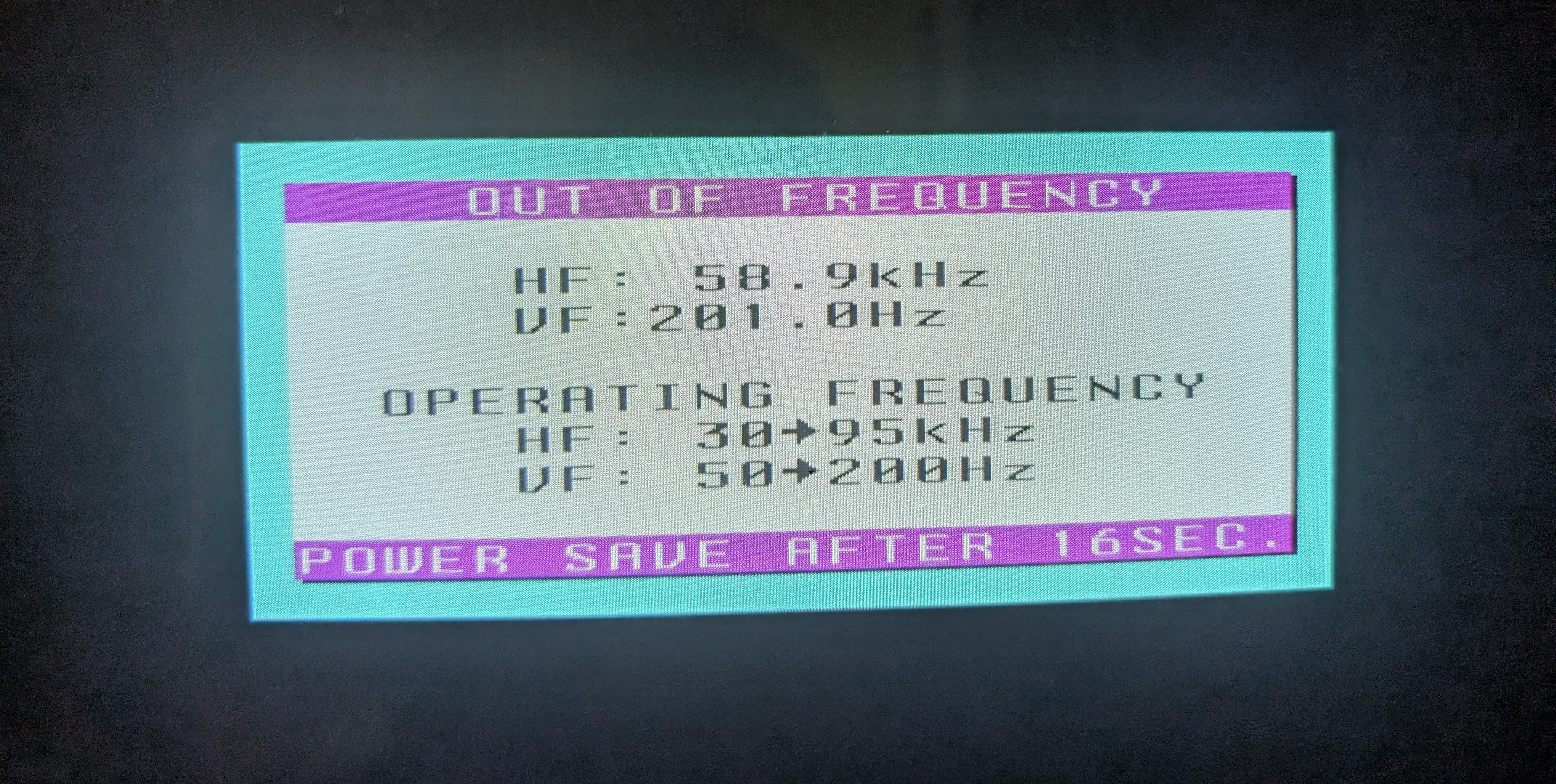

Confirmed tweaked max refresh rates and resolutions: 560x420 or 640x400 @200Hz (GTF) | 640x480 @179Hz (GTF) | 640x480 @184Hz (CRU/AMD Radeon Software Manual Timings Preset) 800x600 @144Hz (GTF) | 832x624 @144Hz (Windows 98 SE or (CRU/AMD Radeon Software Manual Timings Preset) | 832x624 @140Hz (GTF) | 1008x756 @120Hz (CRU/AMD Radeon Software Manual Timings Preset) | 996x744 @120Hz (GTF) | 1152x864 @106Hz (CRU/AMD Radeon Software Manual Timings Preset) | 1152x864 @104Hz (GTF) | 1280x960 @95Hz (CRU/AMD Radeon Software Manual Timings Preset) | 1280x960 @94Hz (GTF) | 1424x1068@85Hz (GTF) | 1600x1200 @76Hz (GTF) It can do higher resolutions using the Manual preset of CRU or AMD Software such as 1792x1344 @69Hz, 1920x1440 @64Hz or 2048x1536 @60Hz. However for practical use these are not recommended due to having noticeable flicker (under 75Hz). Though it can work as a proof of concept. Cannot go beyond 200Hz even if the kHz is below the 95.9kHz hard cap. Shares the same tube as the HP D2842A
