Summary

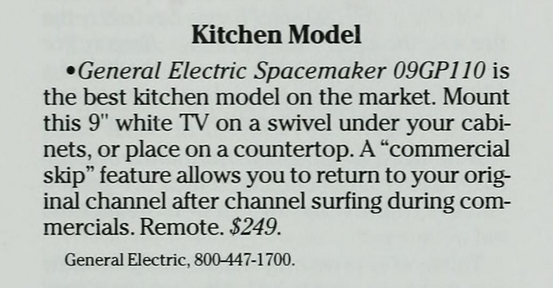

General Electric Spacemaker 09GP110 is the best kitchen model on the market. Mount this 9" white TV on a swivel under your cabinet, or place on a countertop.
Manuals
Repair Notes

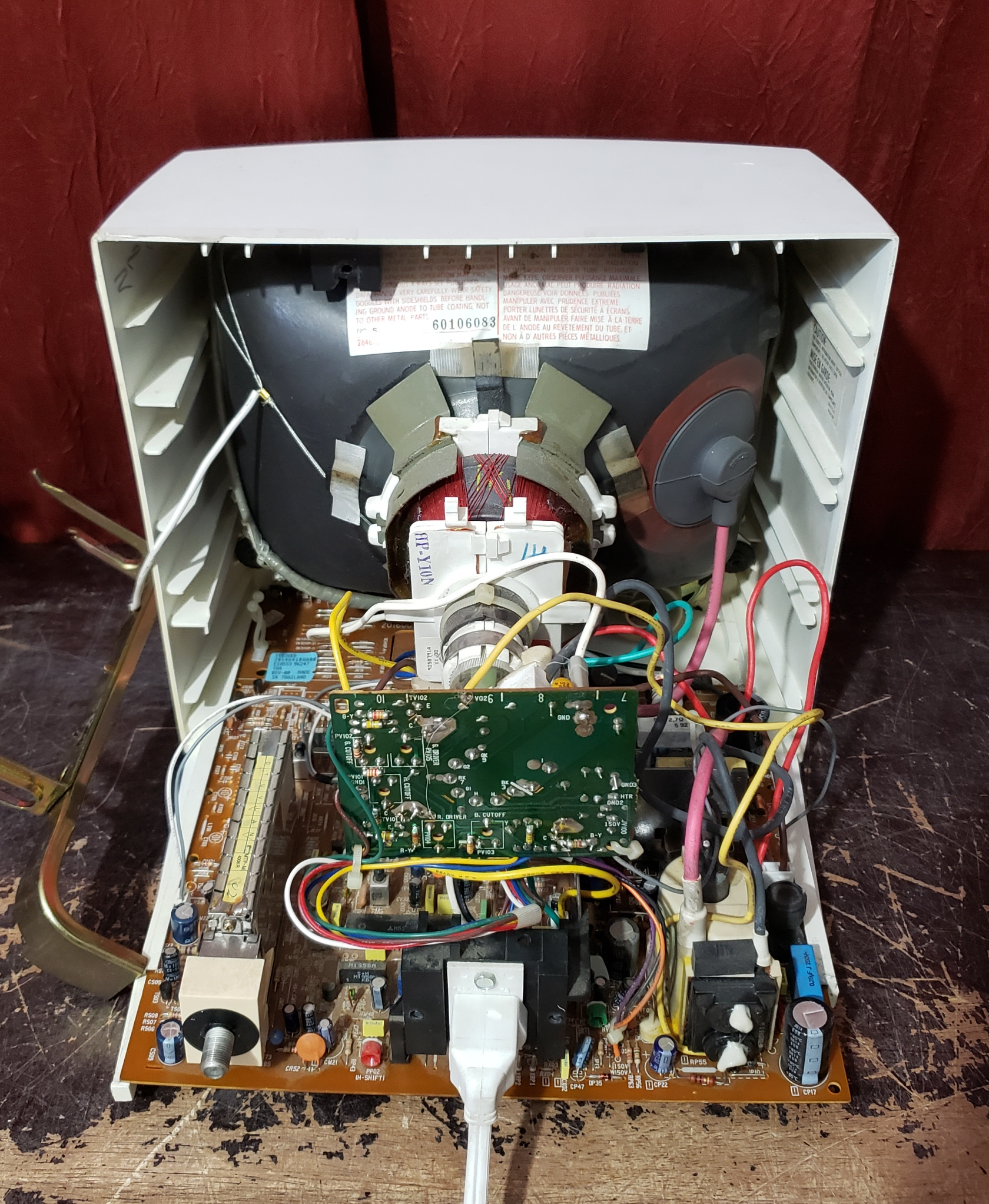

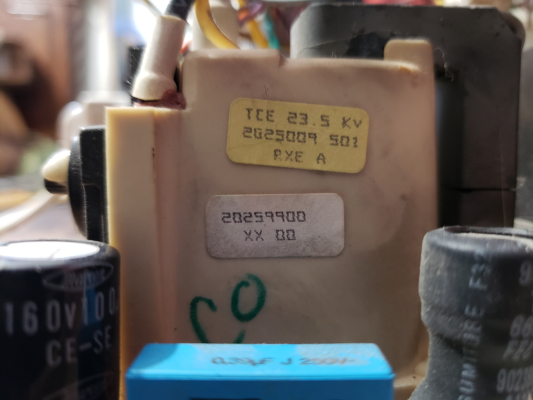

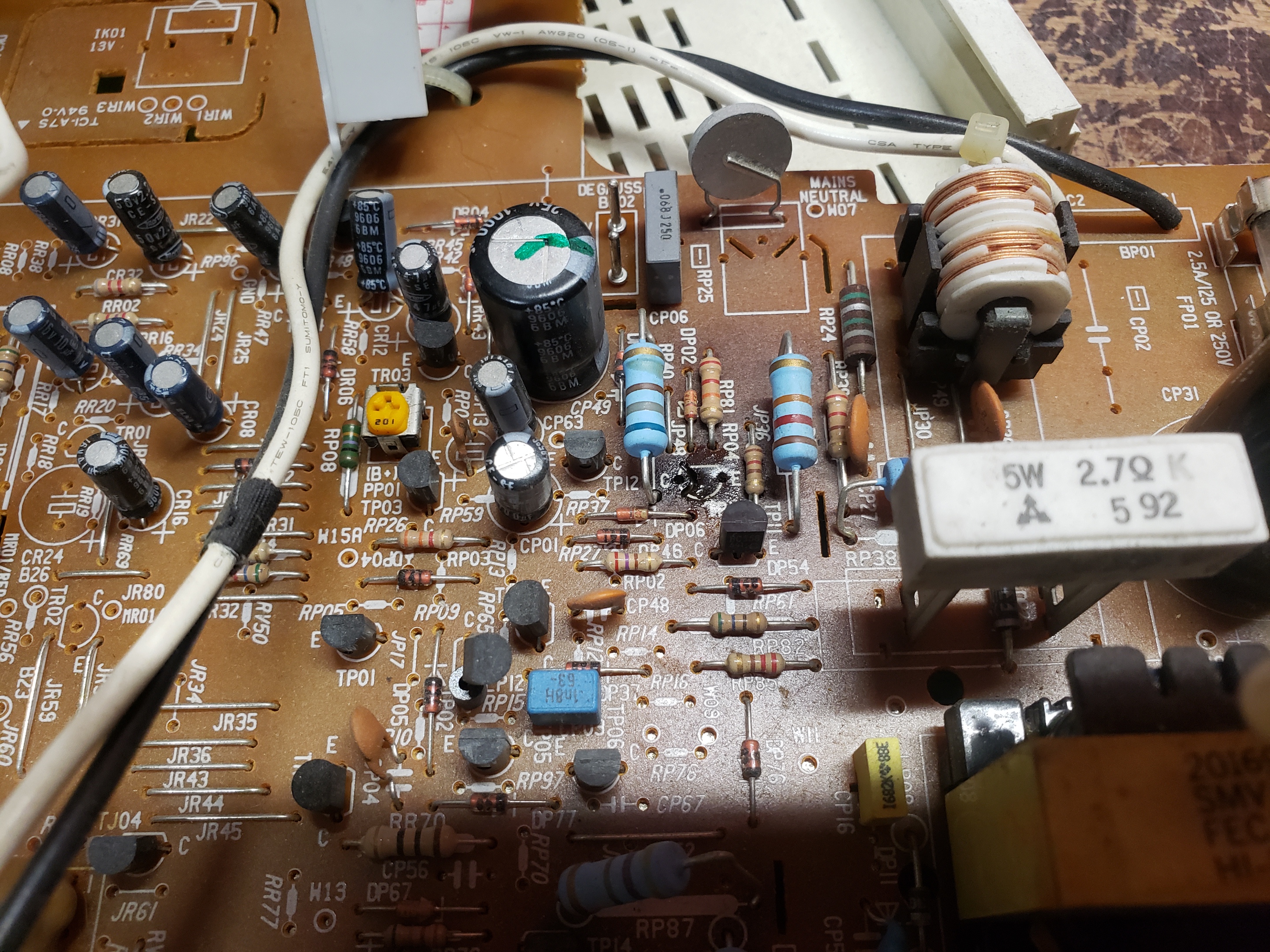

Unit pictured would not turn on due to failed standby regulator TP15 (RCA 198752). Replacing it fixed the TV not turning on, though the replacement standby regulator would get very hot when the unit was plugged in while the set was off. The PCB below the standby regulator had darkened significantly due to the excess heat. There was also surface corrosion eating traces in the vicinity of pin 1 of the flyback.
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 09GP110 |
| Series: | Spacemaker |
| Viewable Size: | 9" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, Internal Potentiometers |
| Jungle IC: | M52303ASP |
| Comb Filtering: | None |

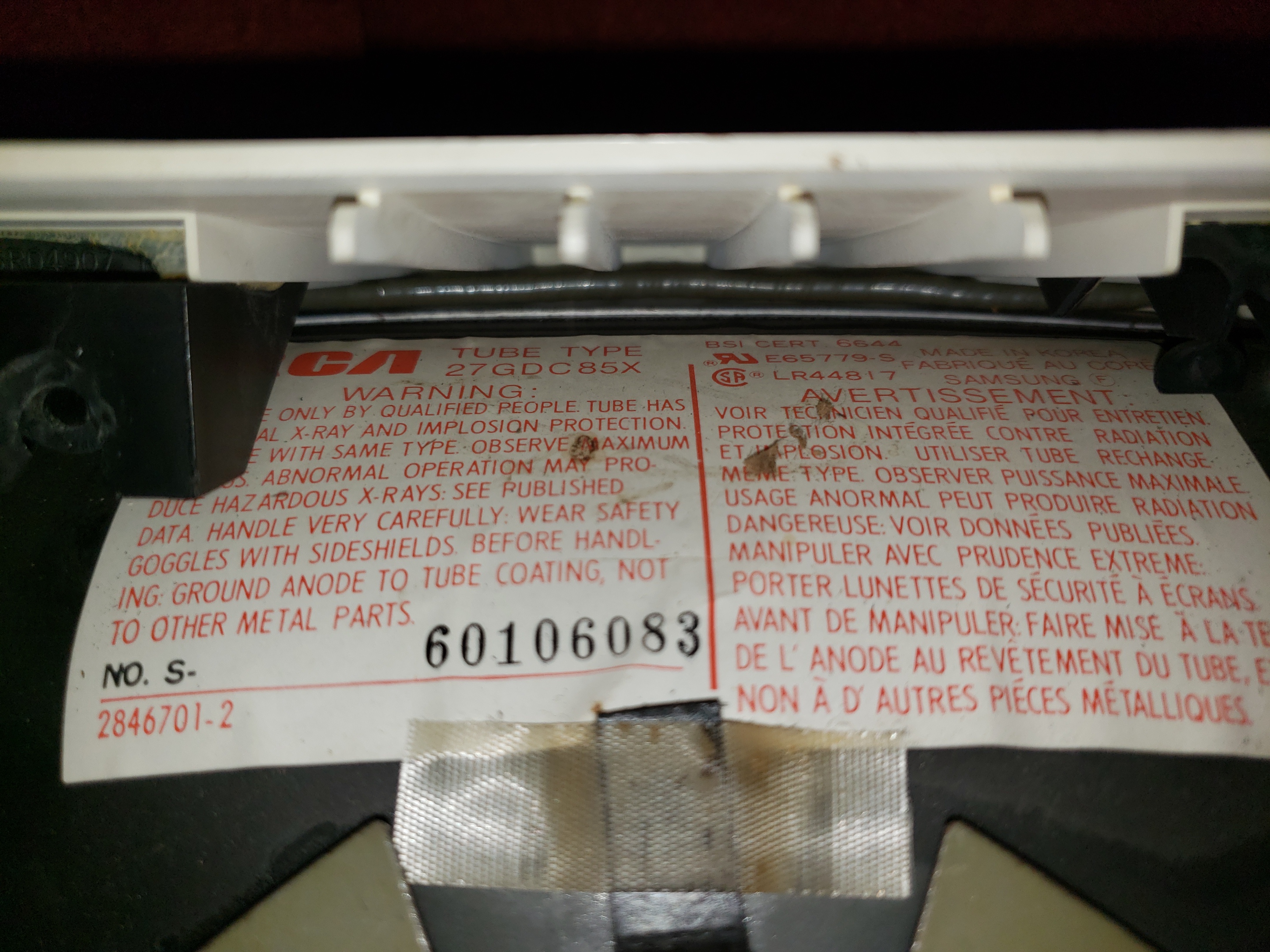

| Tube: | 27GDC85X |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

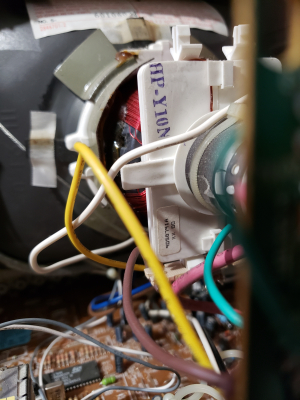

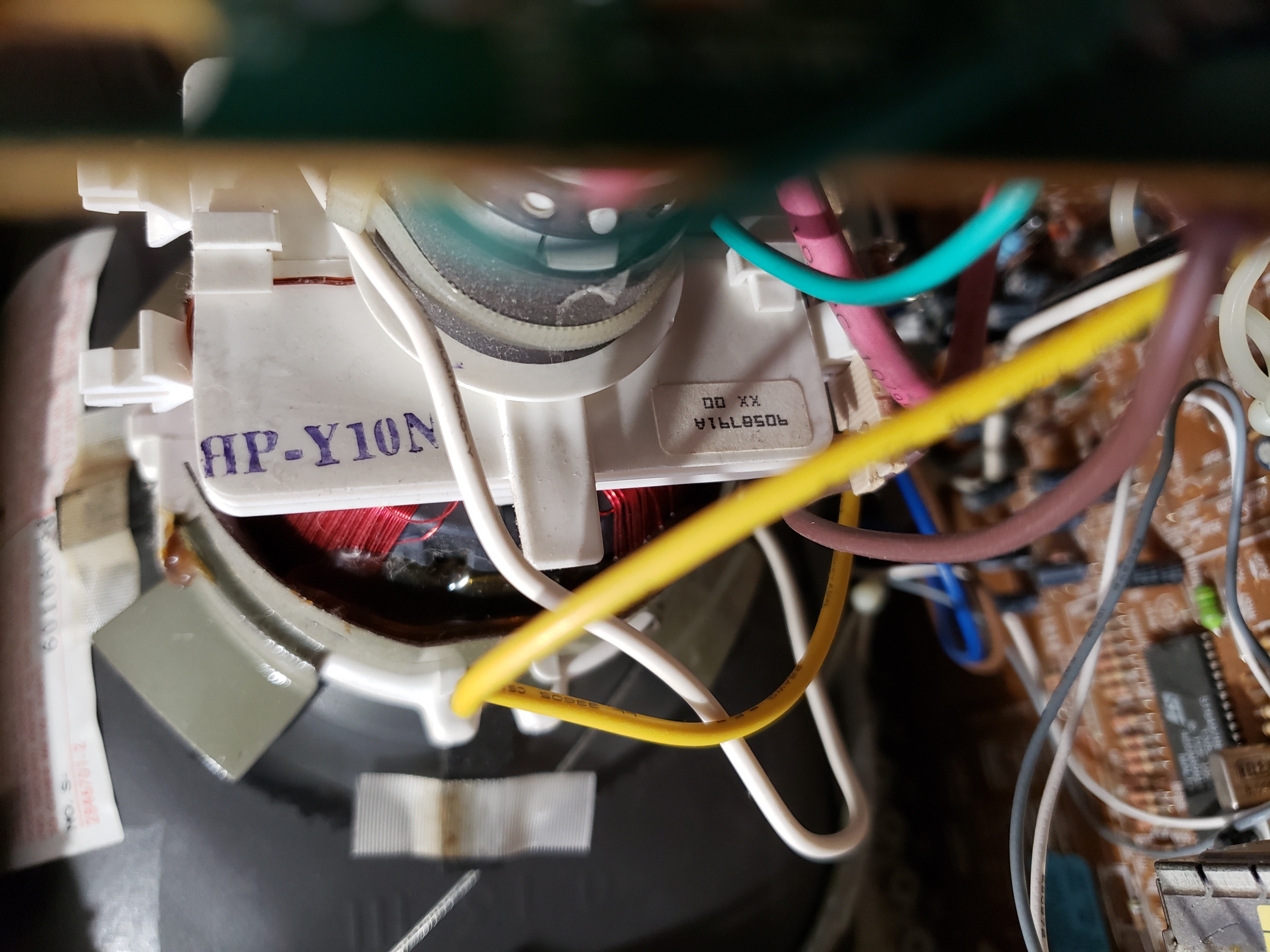

| Yoke: | 9058791A |
| Speakers: | Mono |

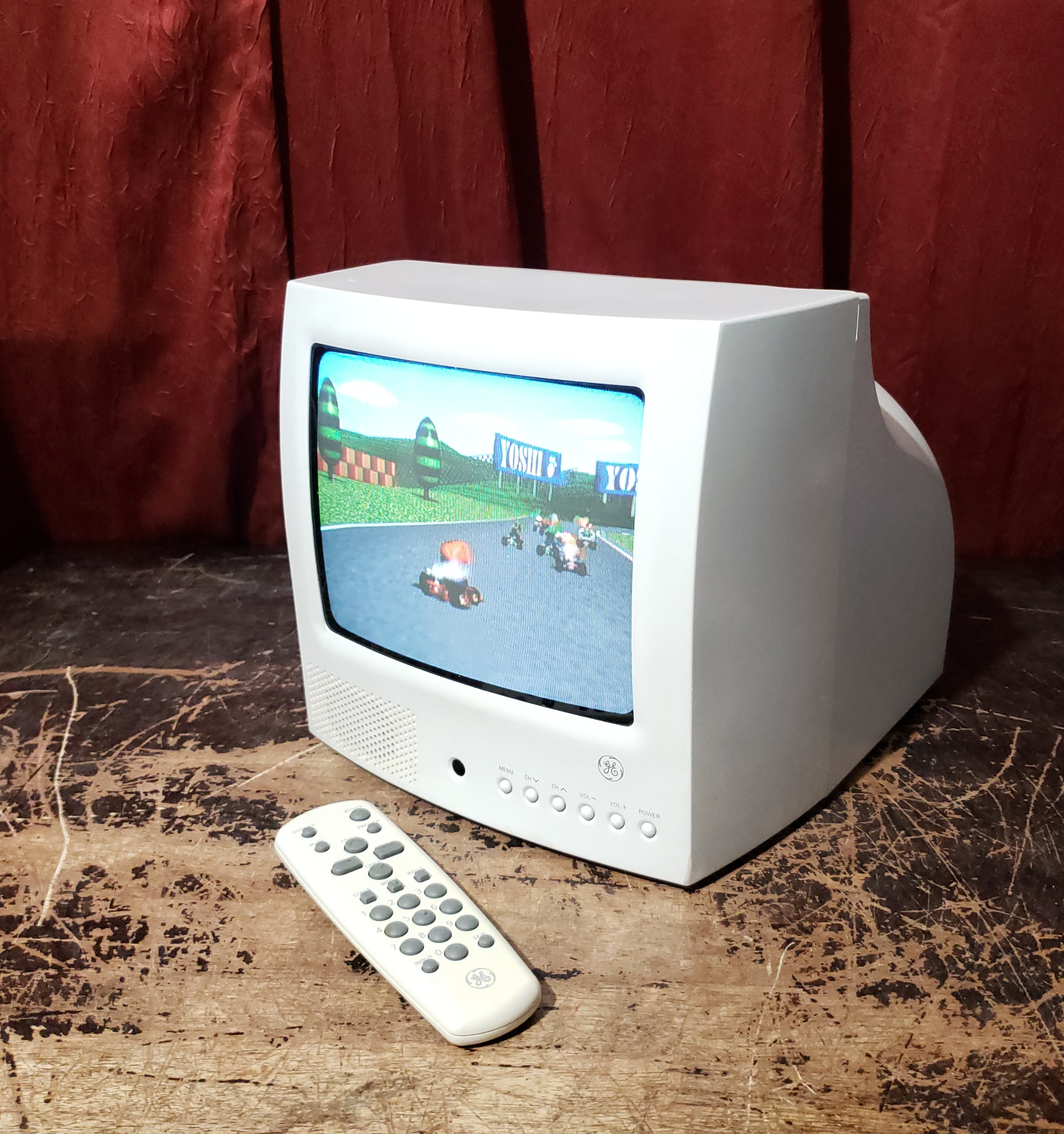

| Remote: | 231032, RCU500 |
| Chassis: | TX826KB |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 249 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Carrying Handle, Under-Cabinet Mount |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Yoke Info, Repair Log |
