Summary

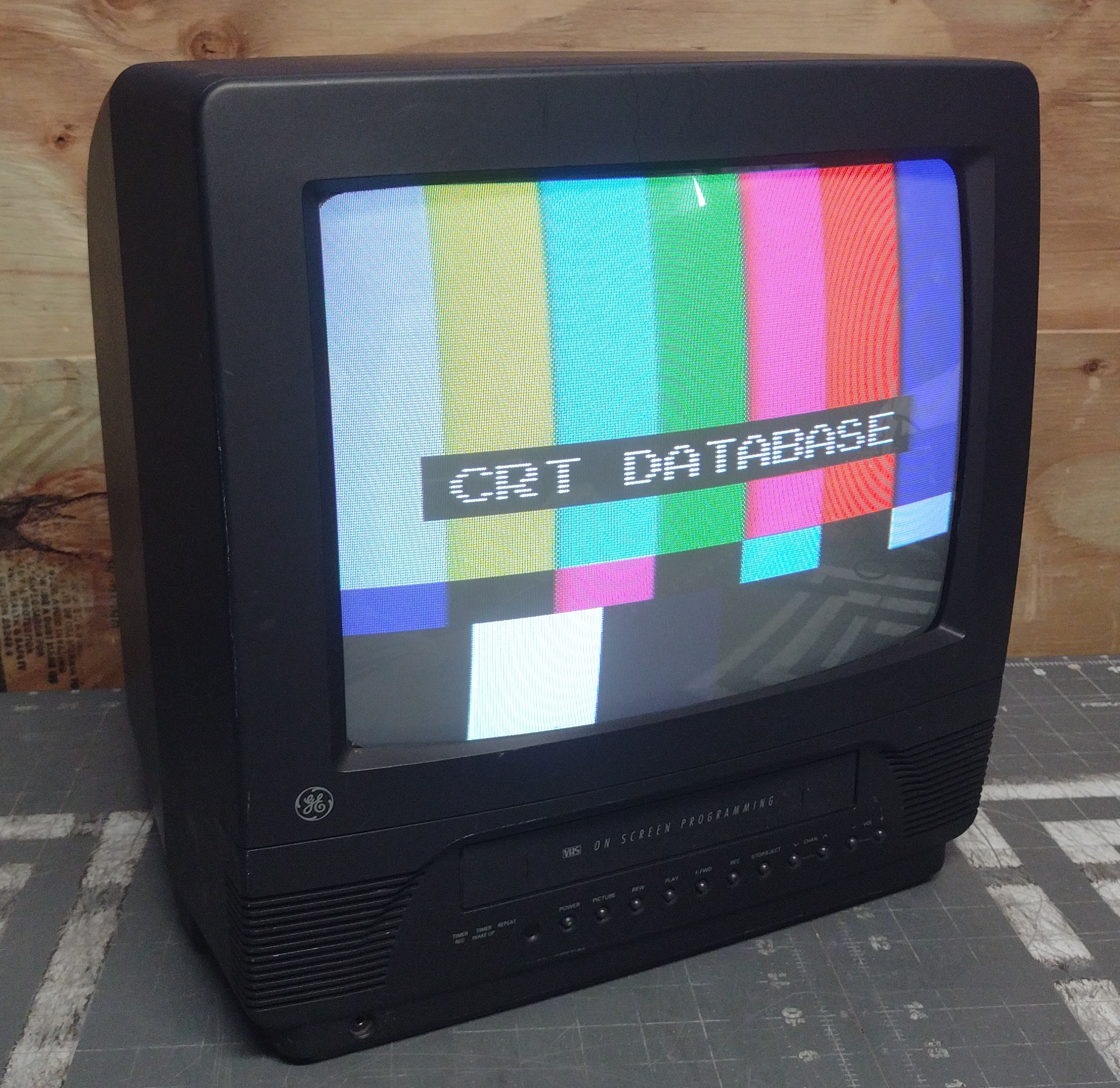

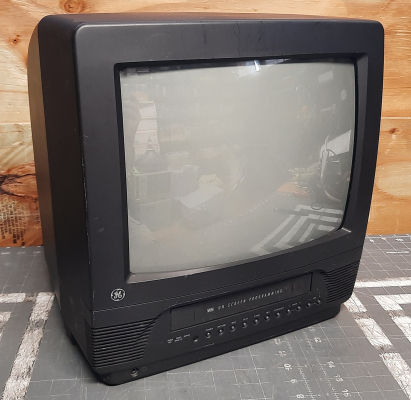

13" TV/VCR combo, manufactured by Thomson Electronics and sold under the GE brand.
Manuals
Notes
Most of the menu functions of this TV, including picture settings, can be accessed by the front buttons.
In the US, Thomson was best known as the owner of RCA. They produced an RCA-branded version of this TV, the T13060; it used a different front bezel but was internally the same.
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 13TVR60 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |

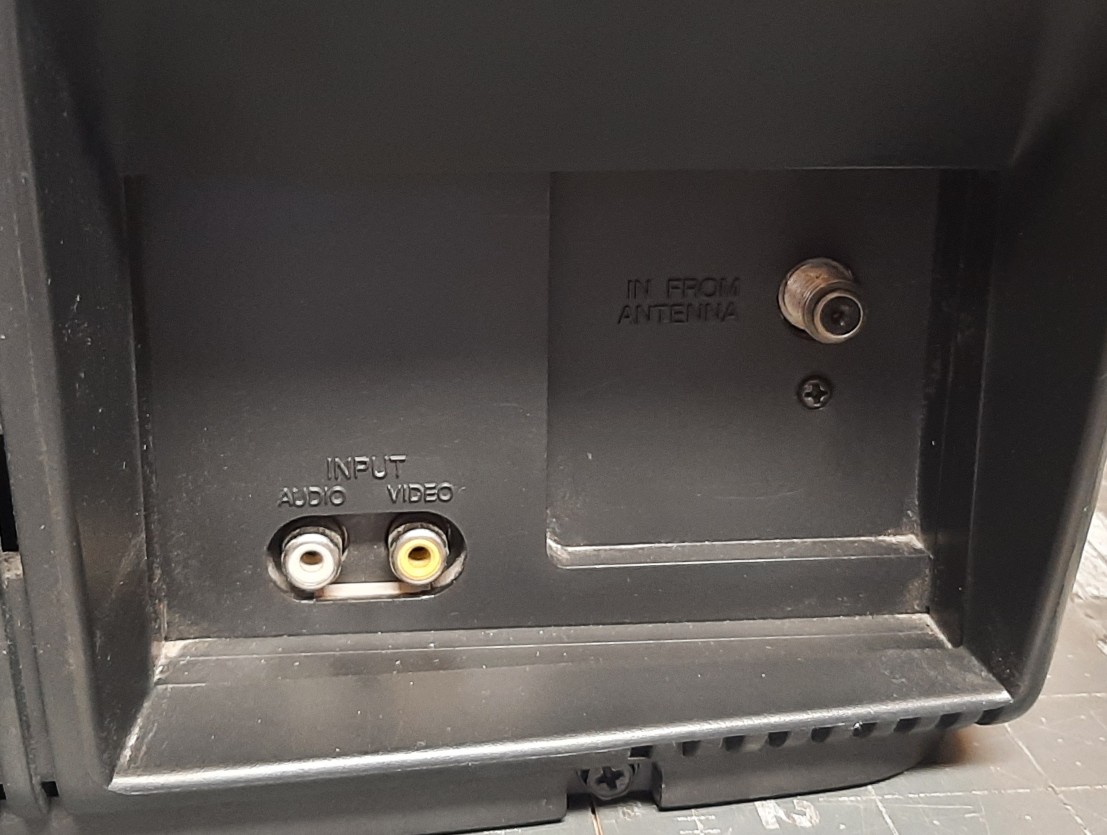

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | S2055AF |
| Vertical Output IC: | TDA1771 |
| Jungle: | STV2216-2B |
| Comb Filtering: | None |
| Flyback: | FCK-14A032 |
| Tube: | Toshiba , A34JFQ90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 2.504 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.65 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.271 ohm |
| Yoke Vert. Resistance: | 15.72 ohm |
| Speakers: | Mono |
| Chassis: | TVR1/2A |
| Weight: | 29.7 lbs (13.5 kg) |
| Dimensions (W/H/D): |
366 x 386 x 371 mm
(14.4 x 15.2 x 14.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
