Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 13TVR70 |
| Series: | Spacemaker |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | S2055AF |
| Vertical Output IC: | TDA1771 |
| Jungle IC: | STV2216-2B |
| Comb Filtering: | None |
| Flyback: | FCK-14A032 |

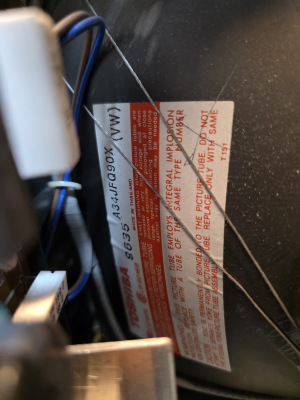

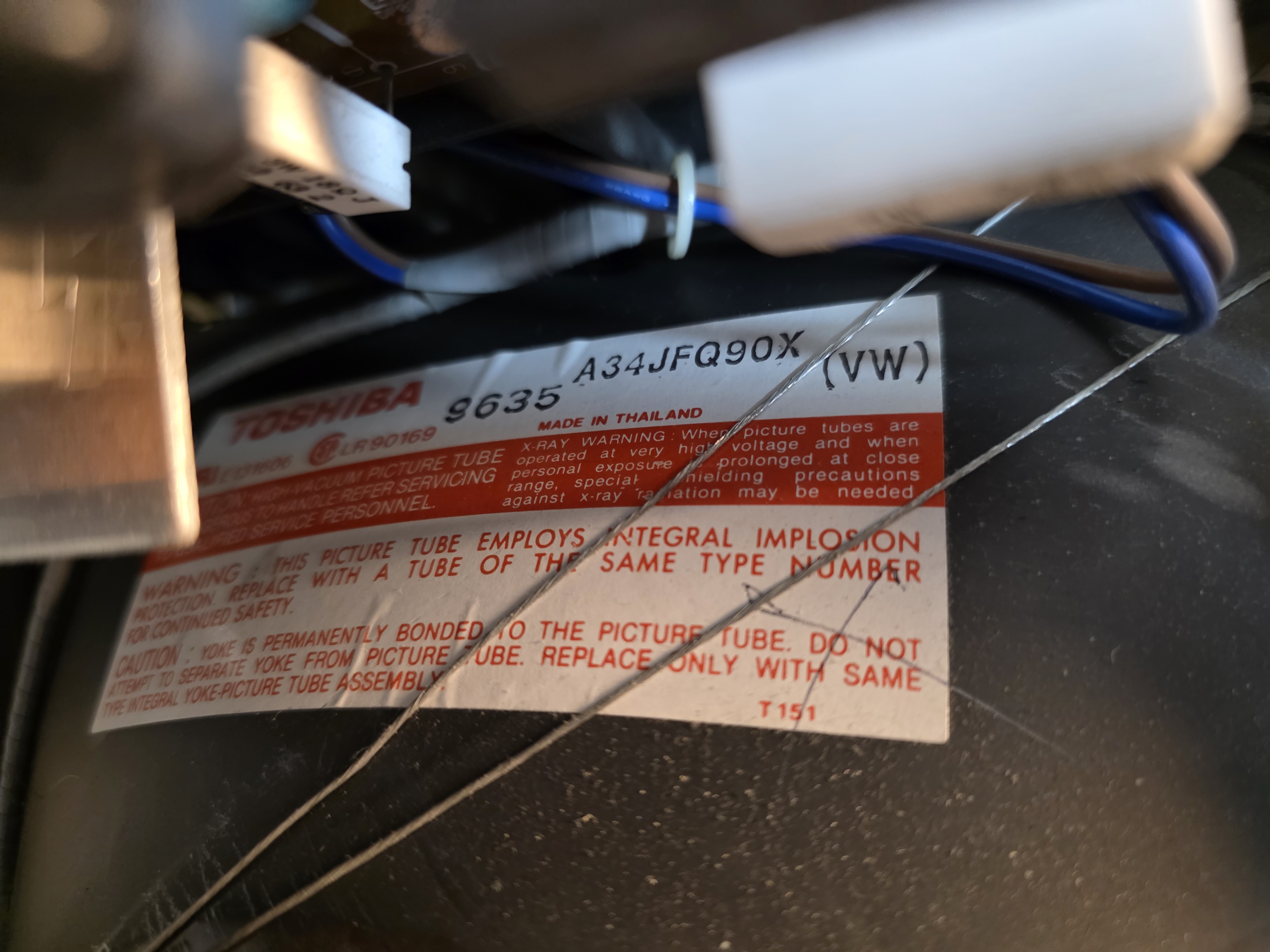

| Tube: | Toshiba , A34JFQ90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

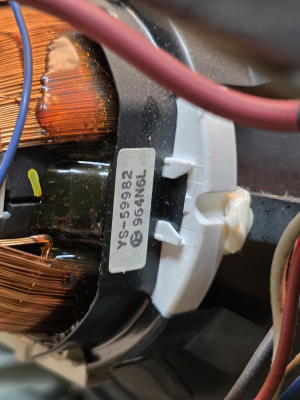

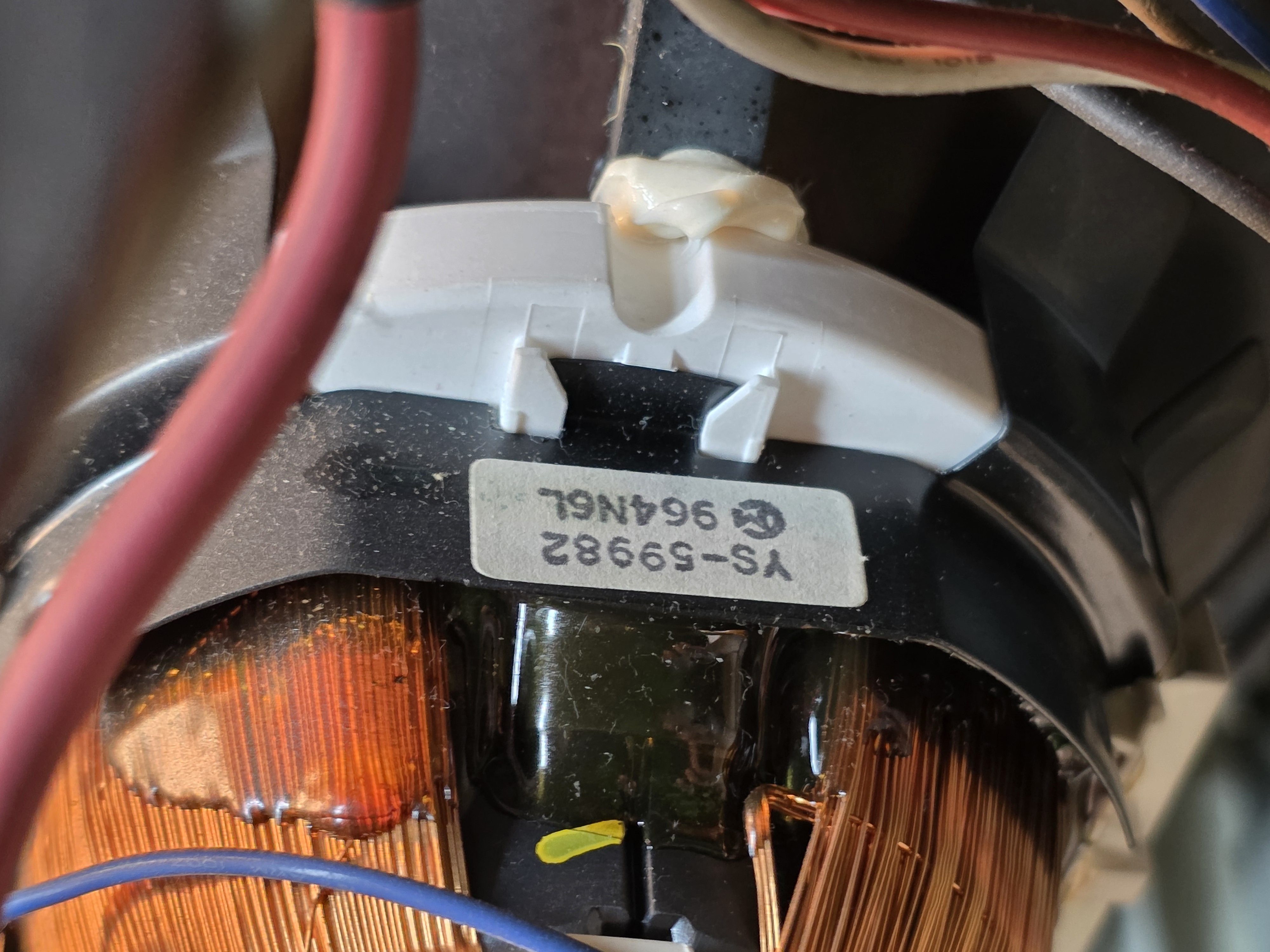

| Yoke: | YS-59982 |
| Yoke Horz. Inductance: | 2.504 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.65 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.271 ohm |
| Yoke Vert. Resistance: | 15.72 ohm |
| Speakers: | Mono |
| Chassis: | TVR1/2A |
| Weight: | 29.7 lbs (13.5 kg) |
| Dimensions (W/H/D): |
366 x 386 x 371 mm
(14.4 x 15.2 x 14.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Pictures |
