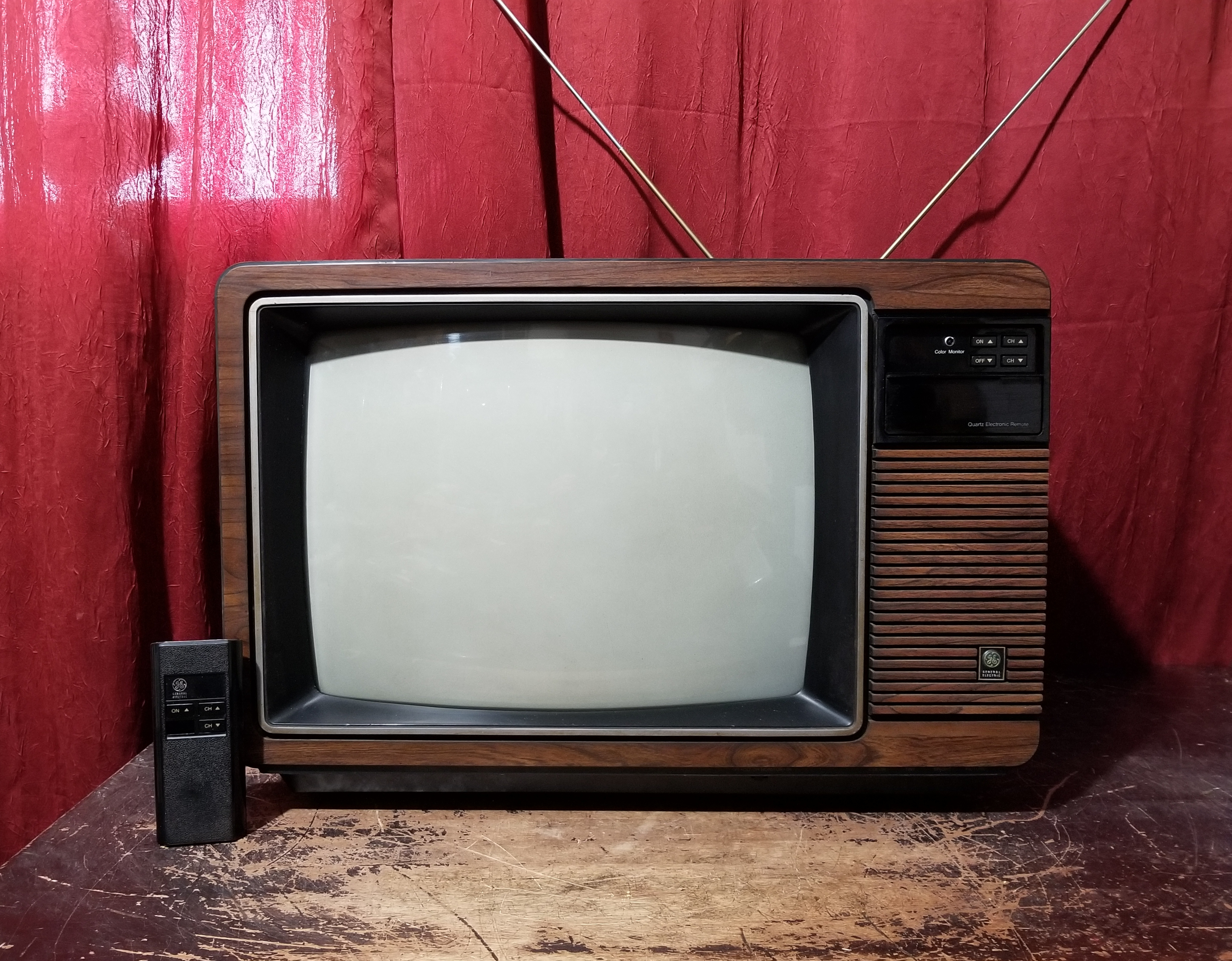

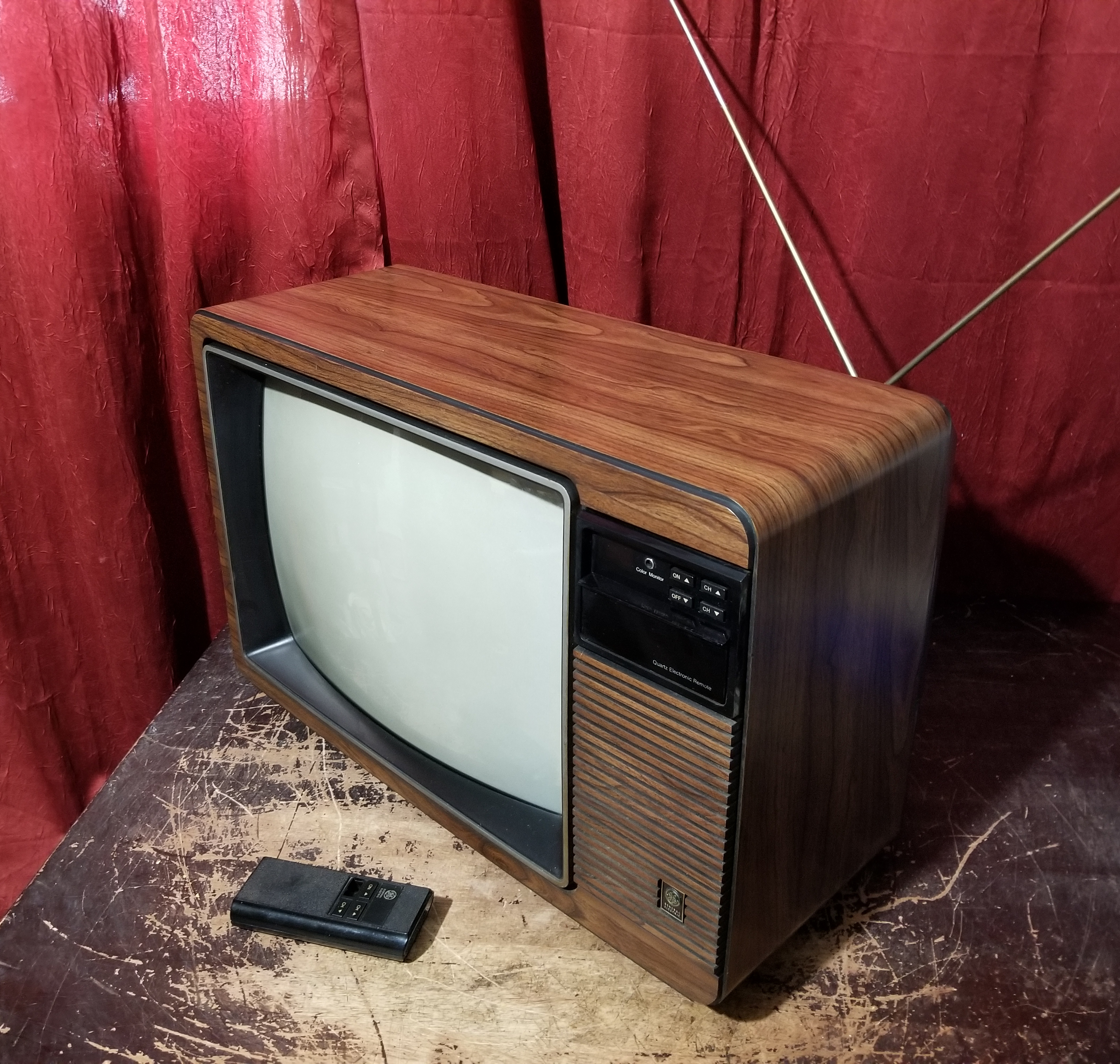

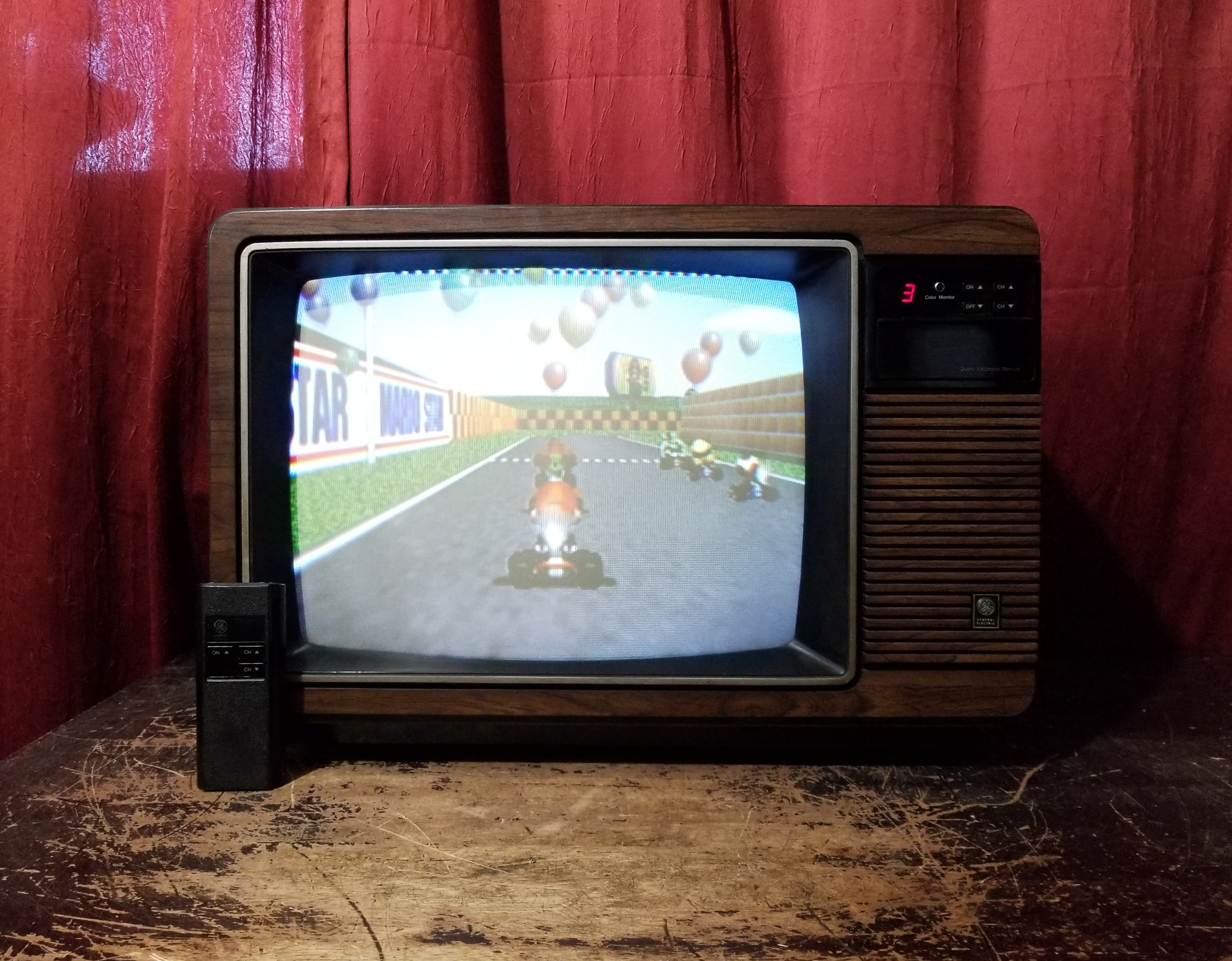

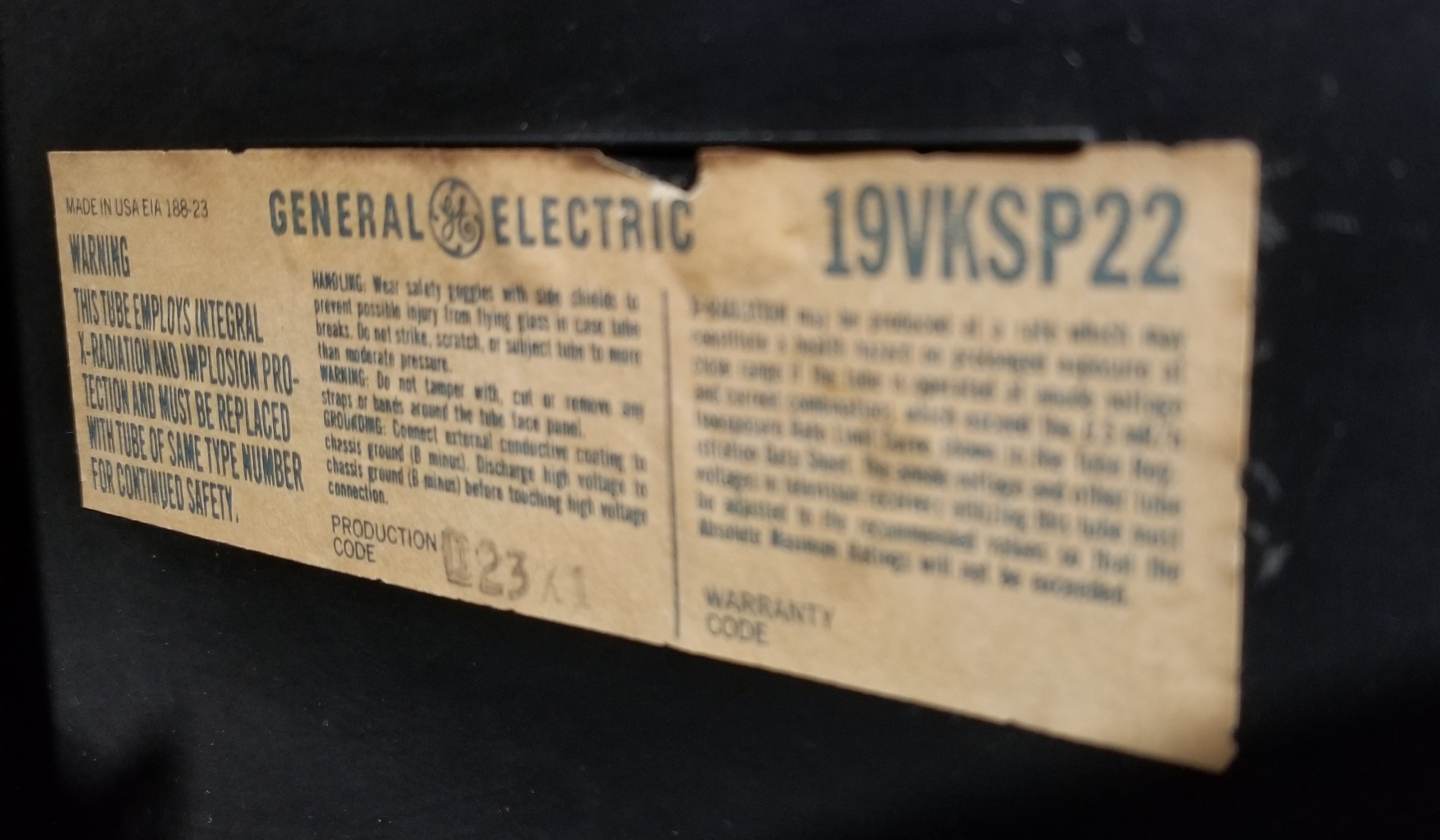

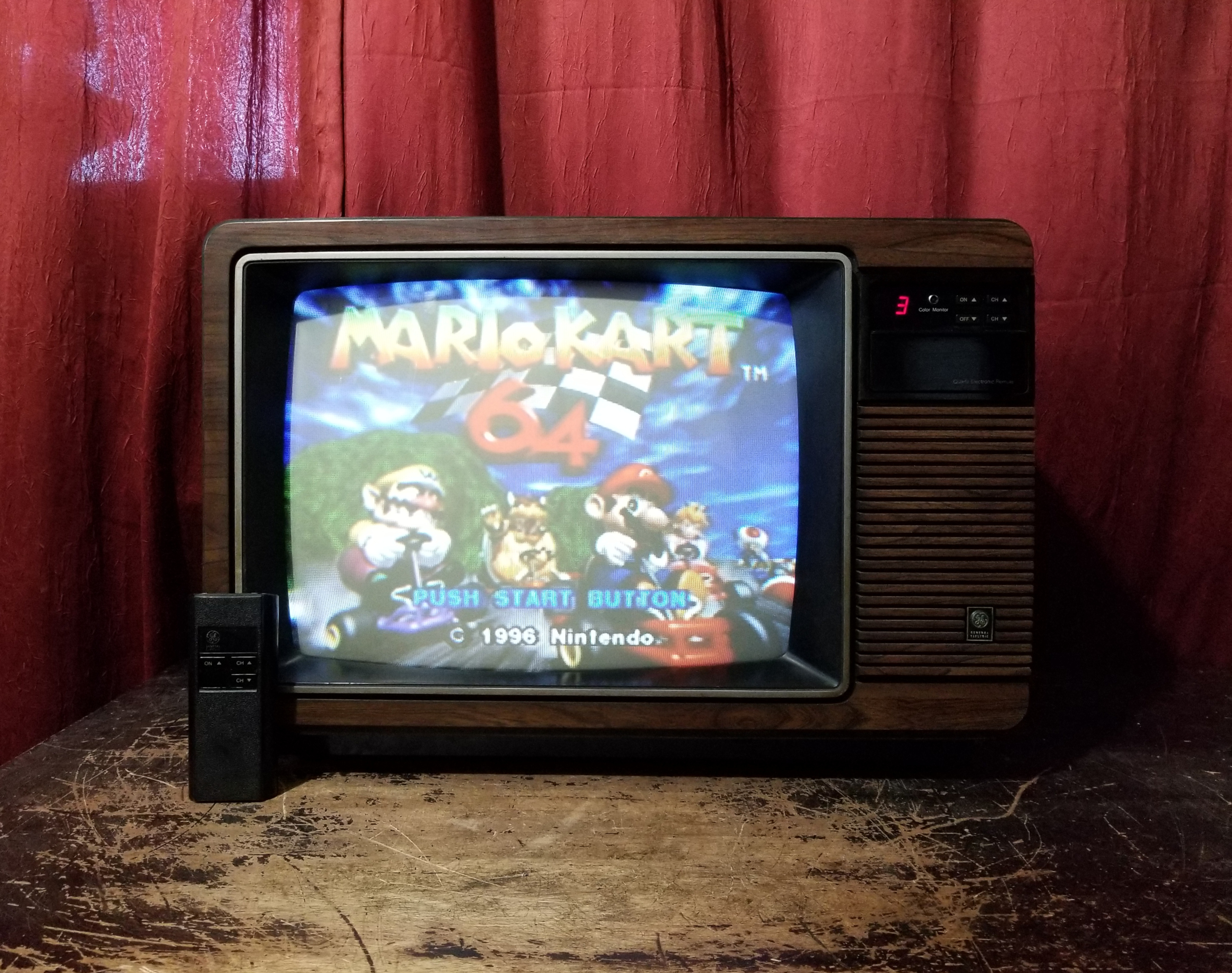

19" Remote Control Color Monitor System. Energy Conscious Solid State Chassis. In-Line Black Matrix Picture Tube. Walnut finish. The attractive cabinet of this television receiver is made of molded polymers to provide the ultimate in sculptured beauty.

Manuals

• EC-F Chassis Service Manual

Media & Promo Materials

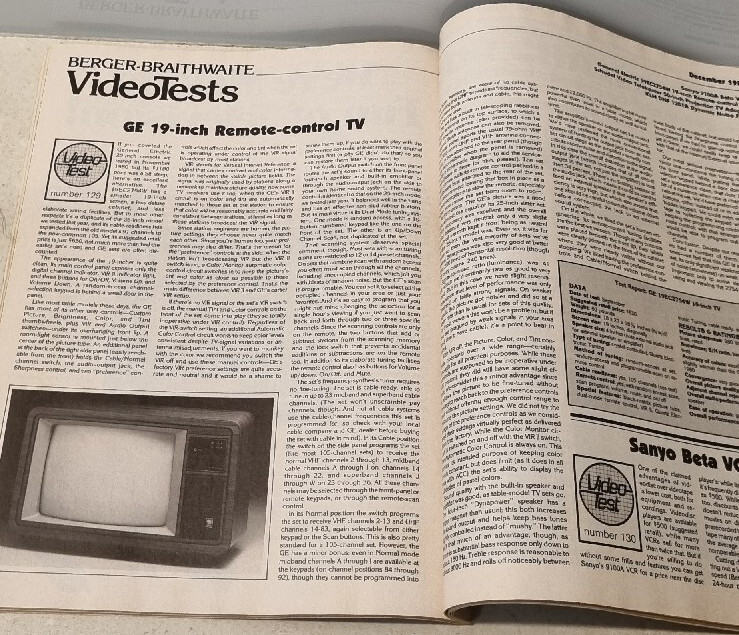

The December 1981 issue of Video Magazine has an in-depth review of the similar GE 19EC2754W. A digital copy of this article was not readily found online.

Notes

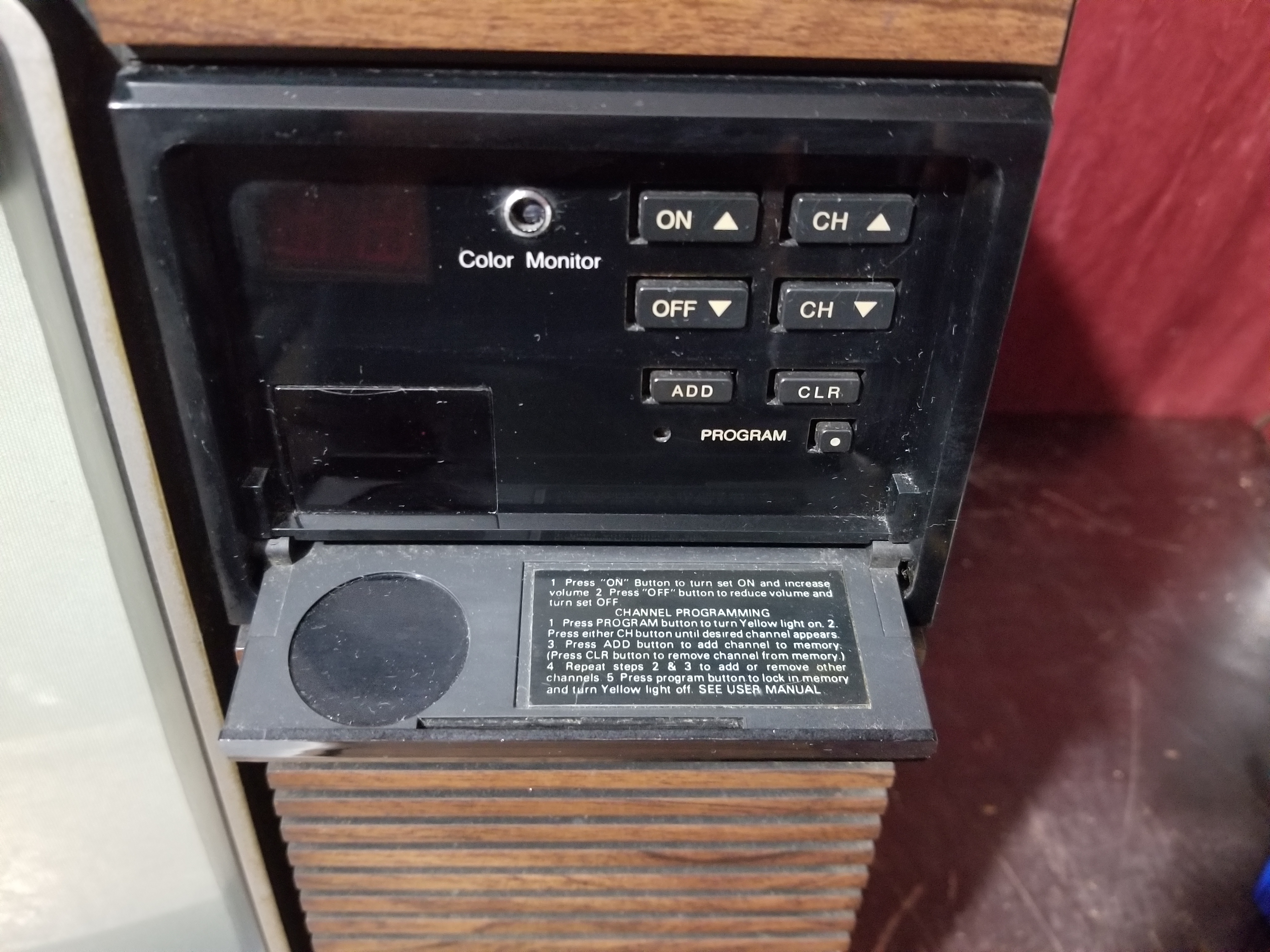

The off and on buttons double as the volume up and down buttons. The volume must be brought all the way down in order to turn off the set.

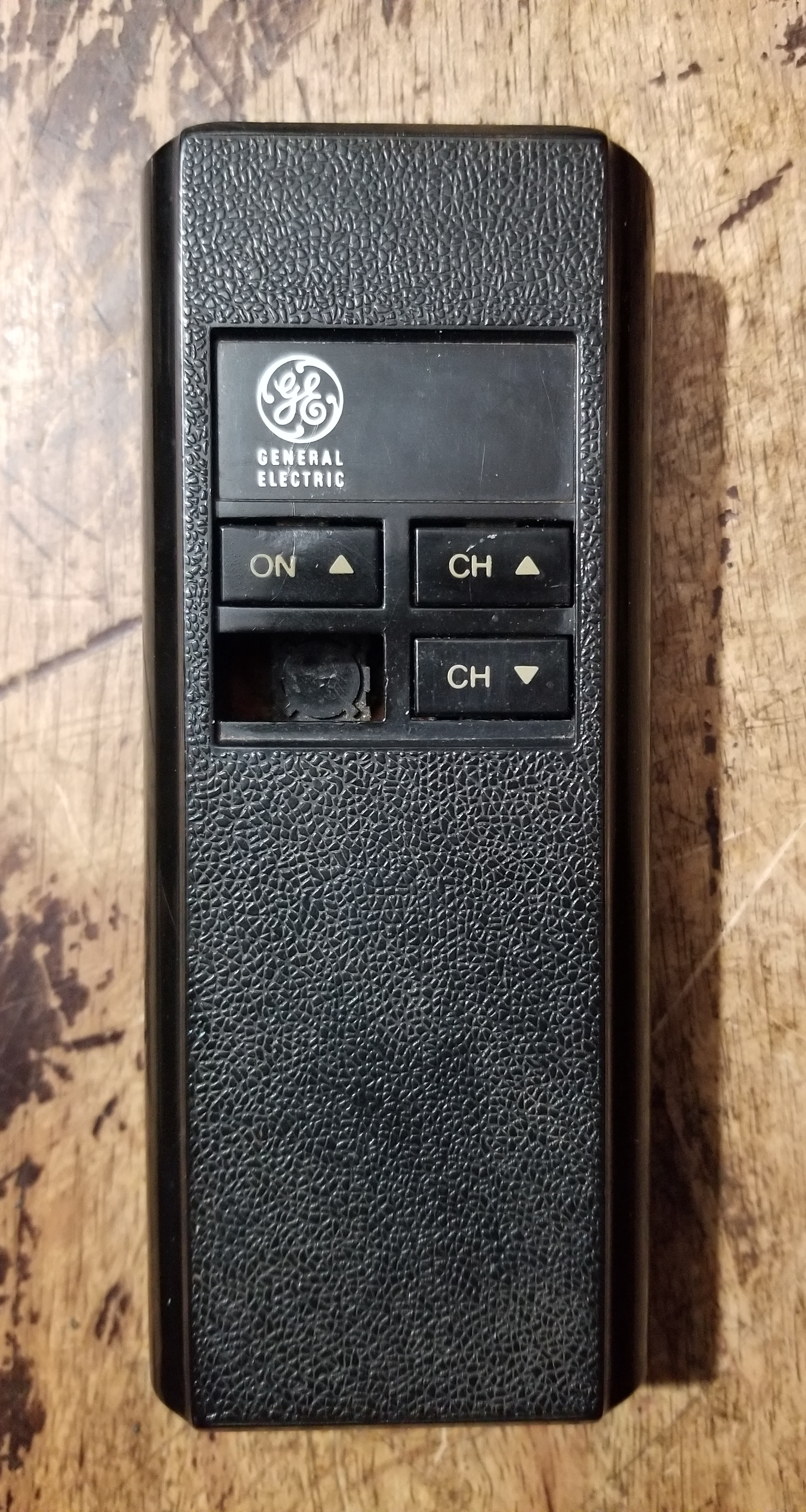

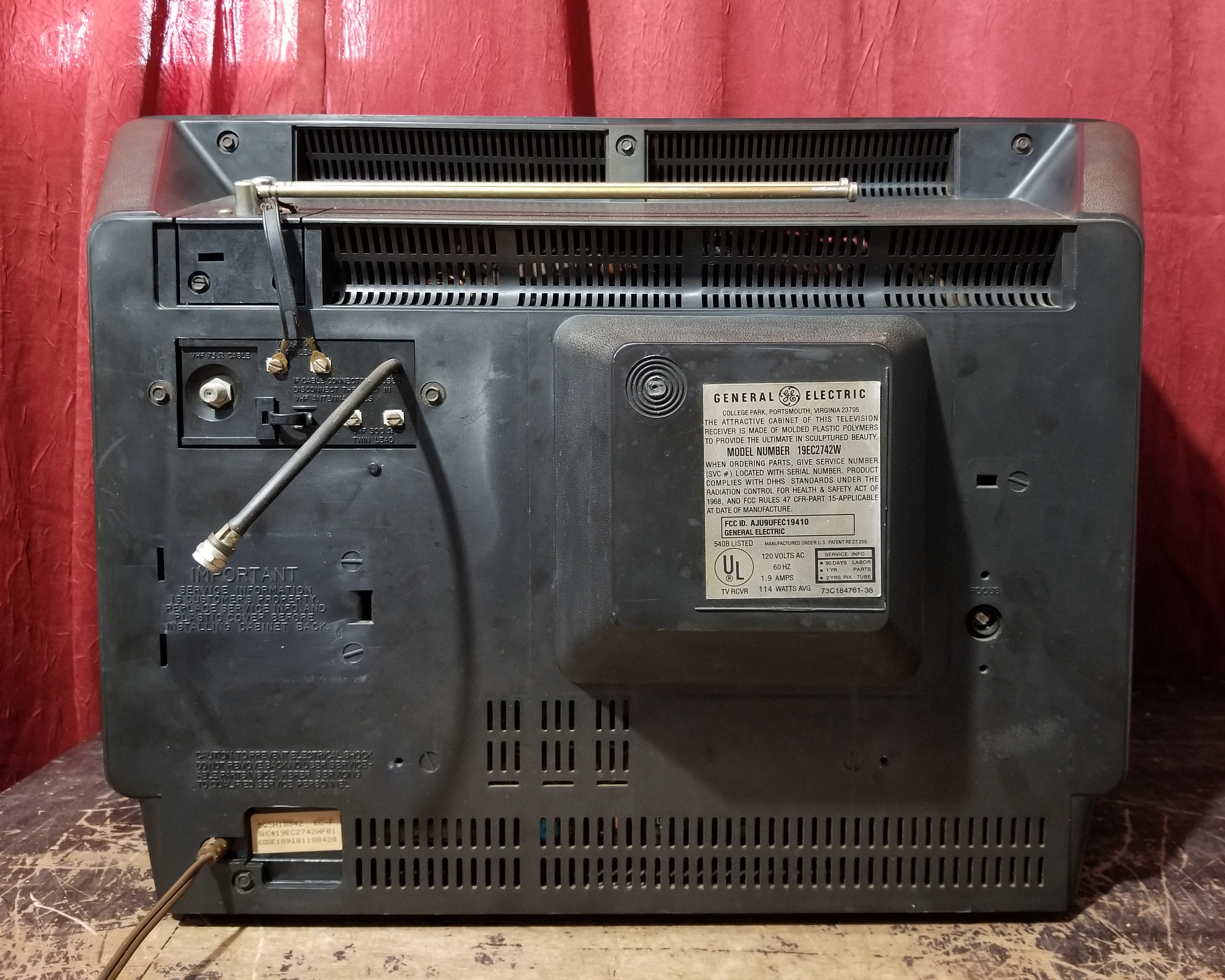

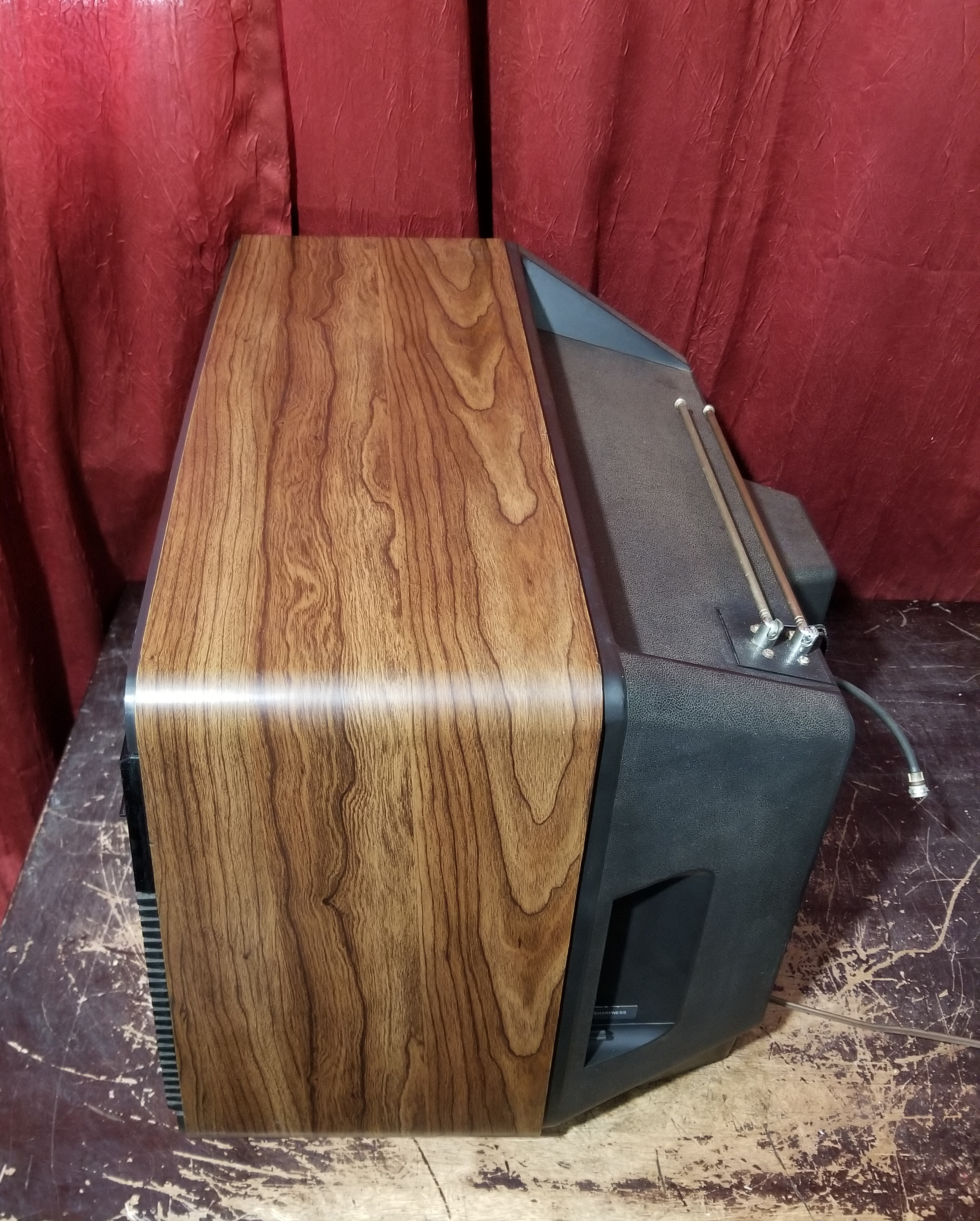

There are two service documents inside a plastic compartment on the outside rear of the cabinet. One is for the chassis, the other is for the tuner & remote.

Repair Notes

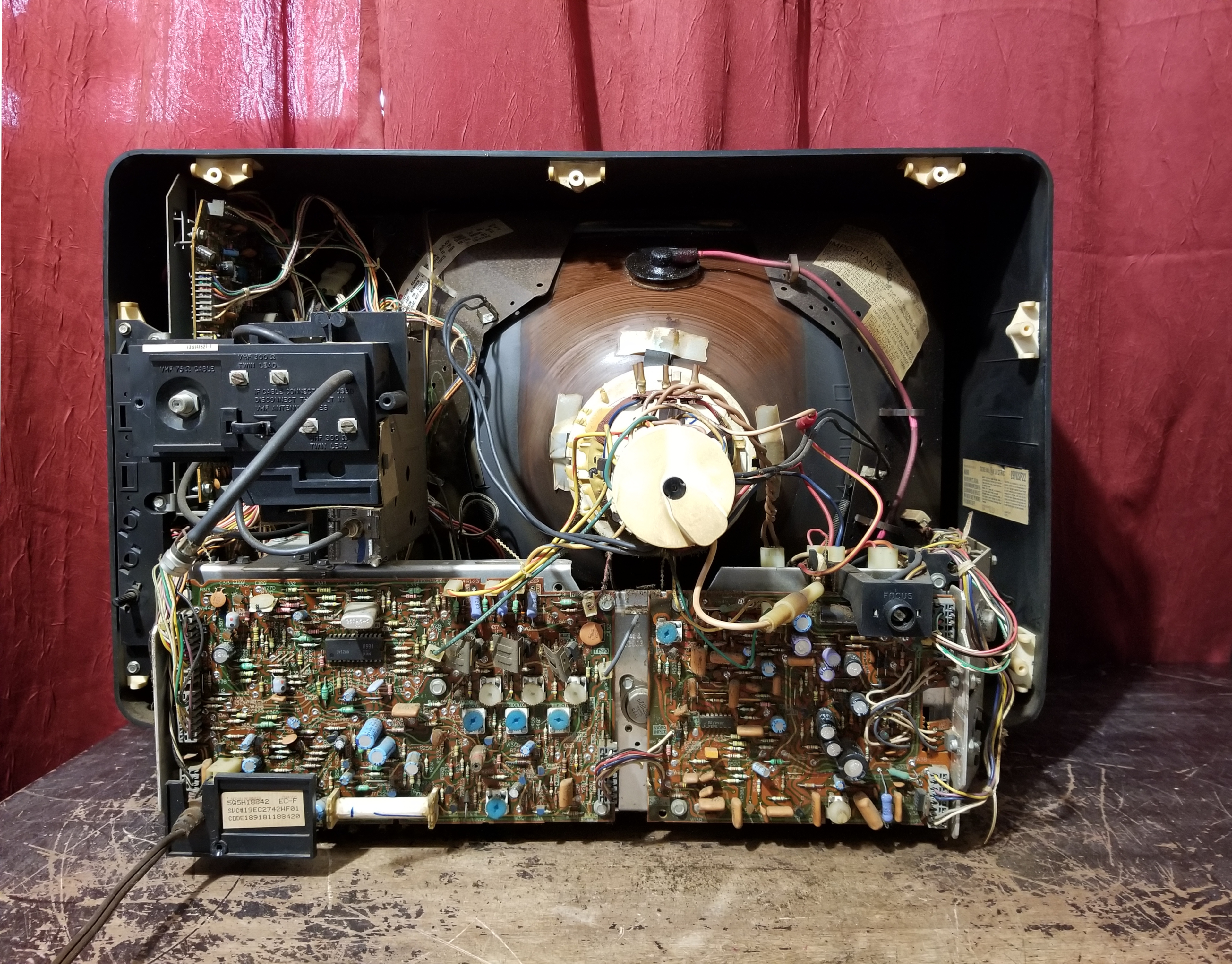

Having ESR-tested all electrolytics on the sweep board, power board, and floating, three were high ESR/open:

• Sweep Board: C629 100uF 100V (moderately sized)
• Power Board: C951 4.7uF 35V (small)
• C3925 10uF 180V, moderately sized axial floating next to a big polyester capacitor on the left side facing the tube behind the IF/Audio board.

On the unit pictured, even with the focus knob turned all the way counter-clockwise it wasn't enough. I opened the CRT socket connector and put a jumper across the 1MΩ focus resistor to bypass it which improved the focus.
