Summary

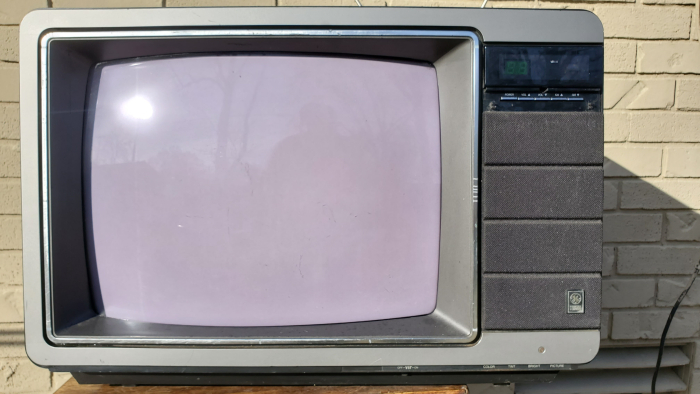

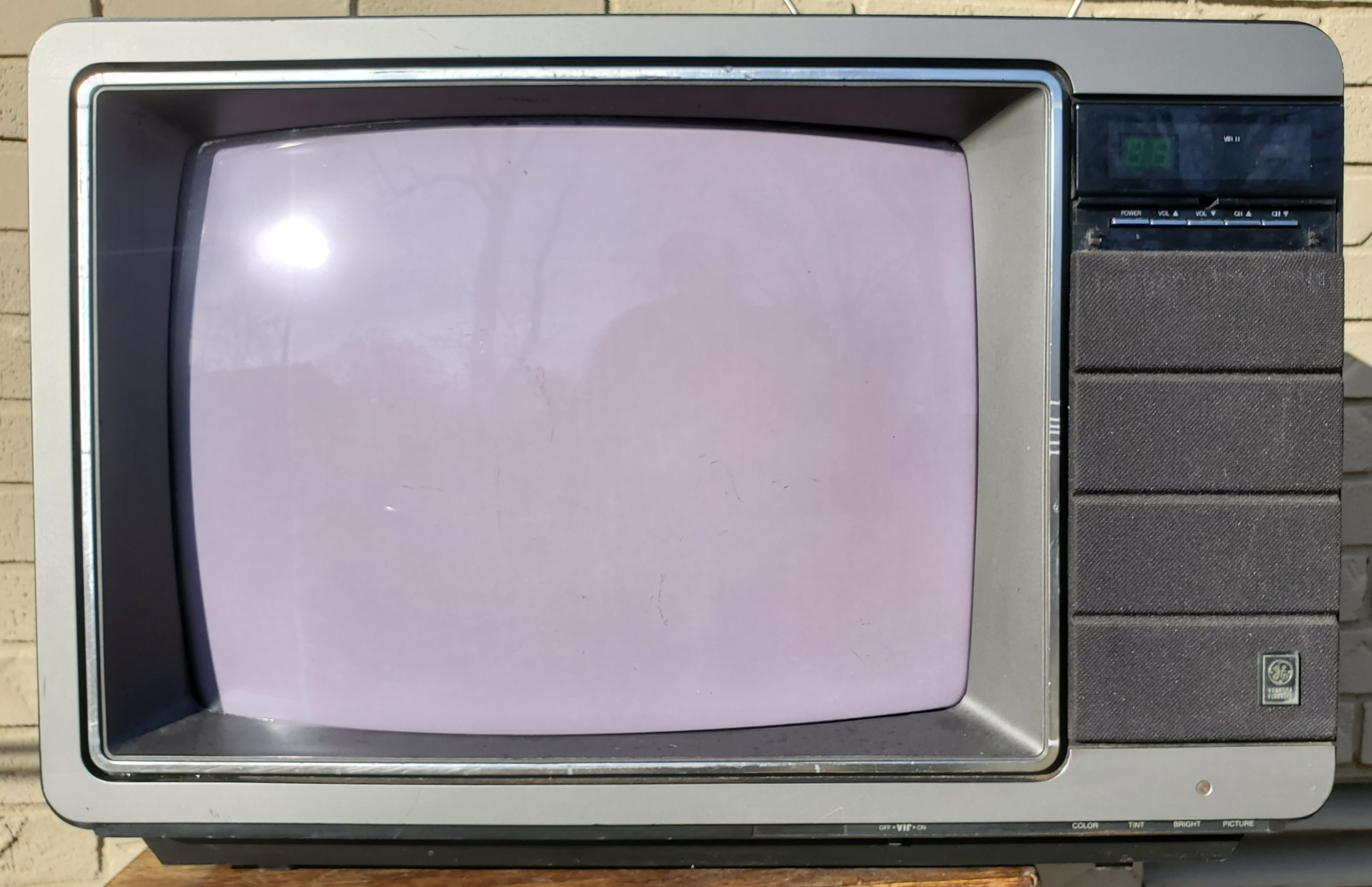

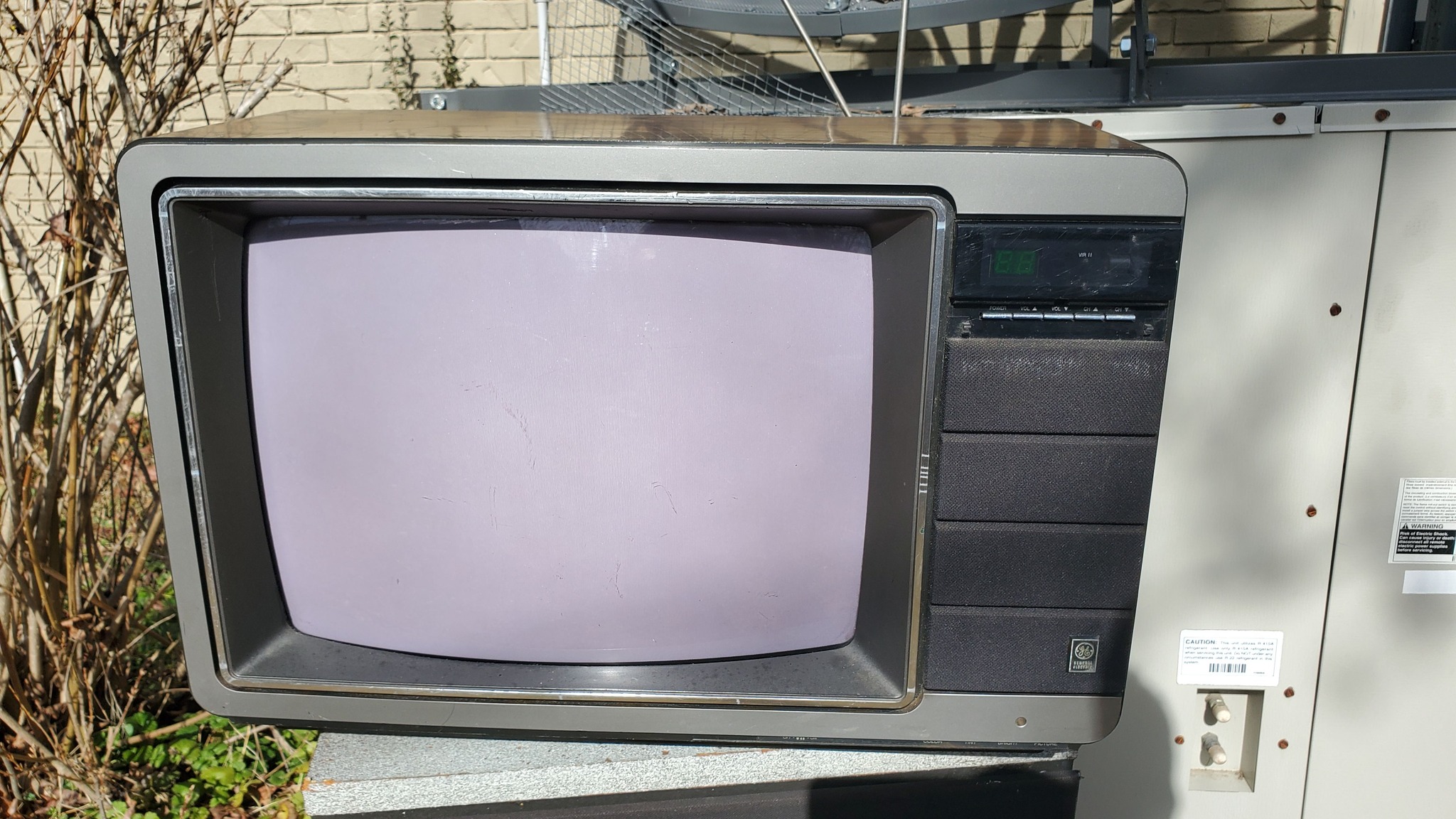

19" CRT by GE made in 1984. One of the very last true GE-made sets, as the following year their chassis would be made by Matsushita Electric America (aka Panasonic) briefly.
(Special thanks to Jared Betnar for the pics!)
Manuals
Notes
Picture tube is a special model called Neo Vision. Made by GE, it uses light-absorbing chemicals mixed into the glass to reduce glare.
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | General Electric |
| Model: | 19PP5762W |
| Series: | PP |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle: | Hitachi, 1973 169 8426 |
| Comb Filtering: | None |
| Flyback: | EP77x64 |
| Focus Type: | Single |

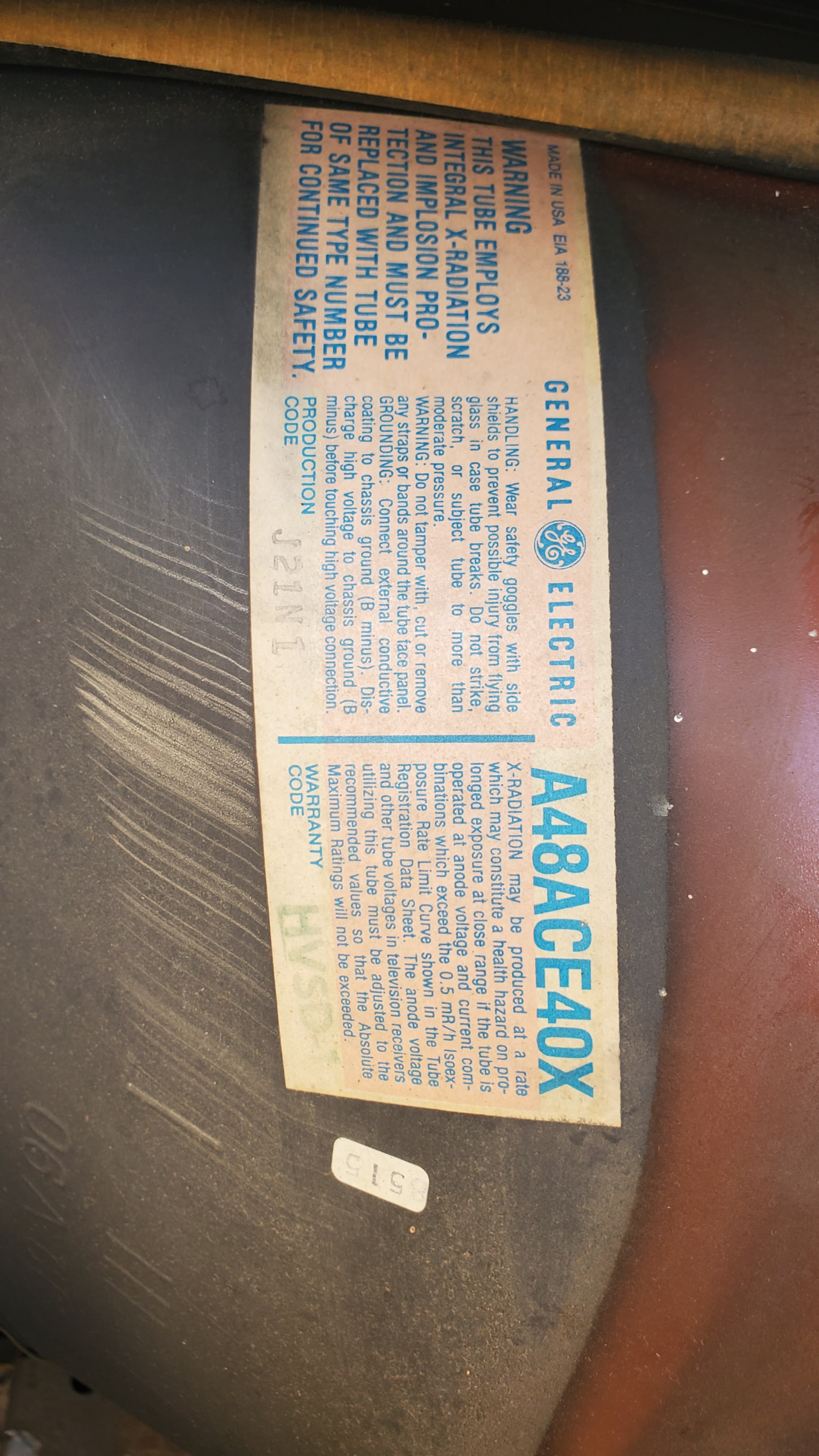

| Tube: | GE , A48ACE40X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Neo Vision |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Chassis: | PC |
| Application: | Consumer |

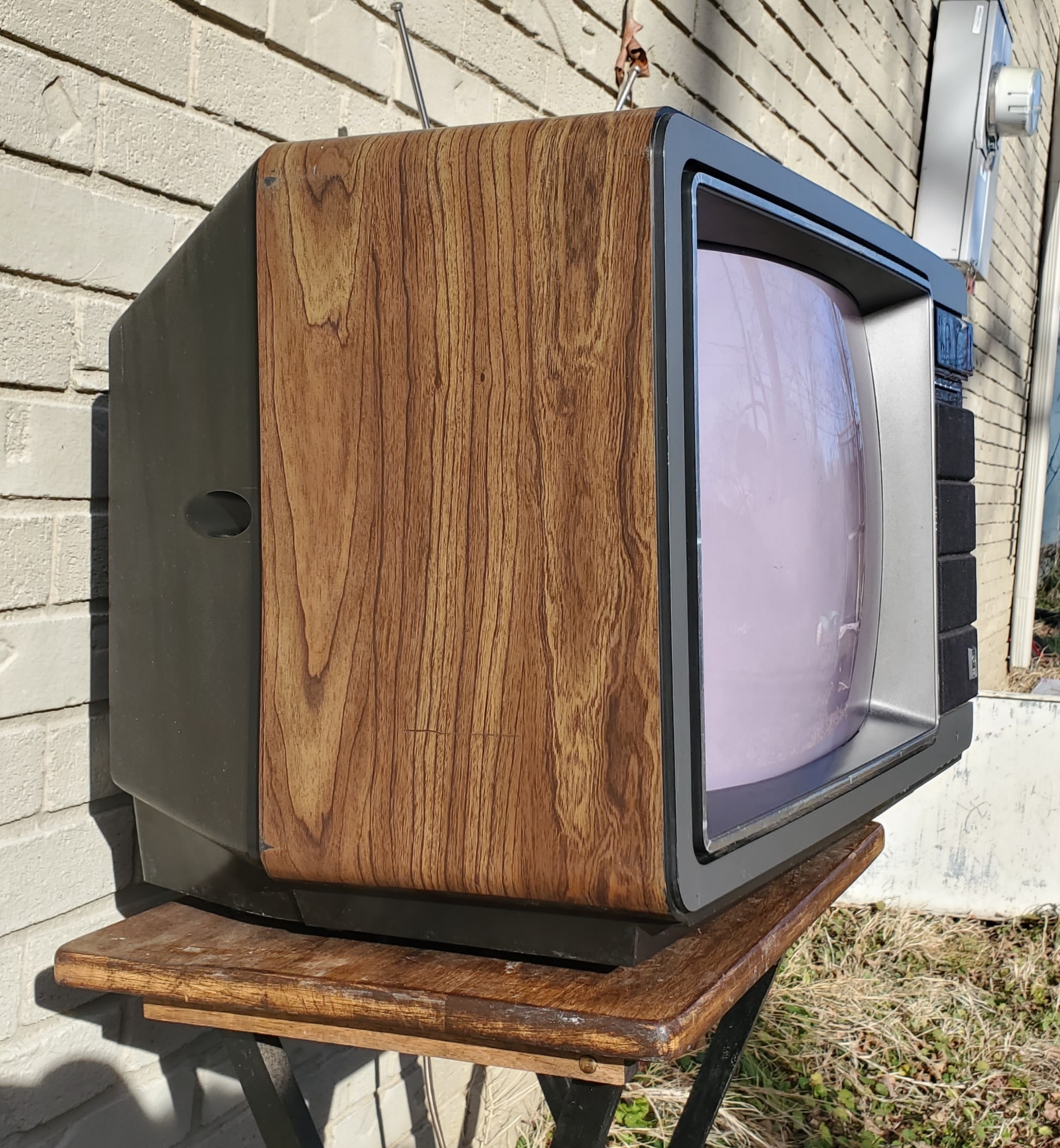

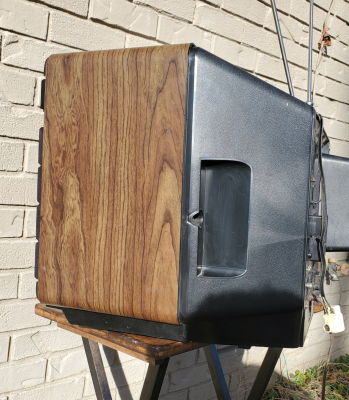

| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1984 |
| MSRP: | 399 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
