Summary
Basic 25" set by Thomson introduced in 1996.
Manuals
- User Manual
- CTC185 Training Manual
- CTC185 Service Data CD-ROM
- Sam's Tips & "Trade Secrets" From CTC130 to CTC197
Media & Promo Materials
Notes

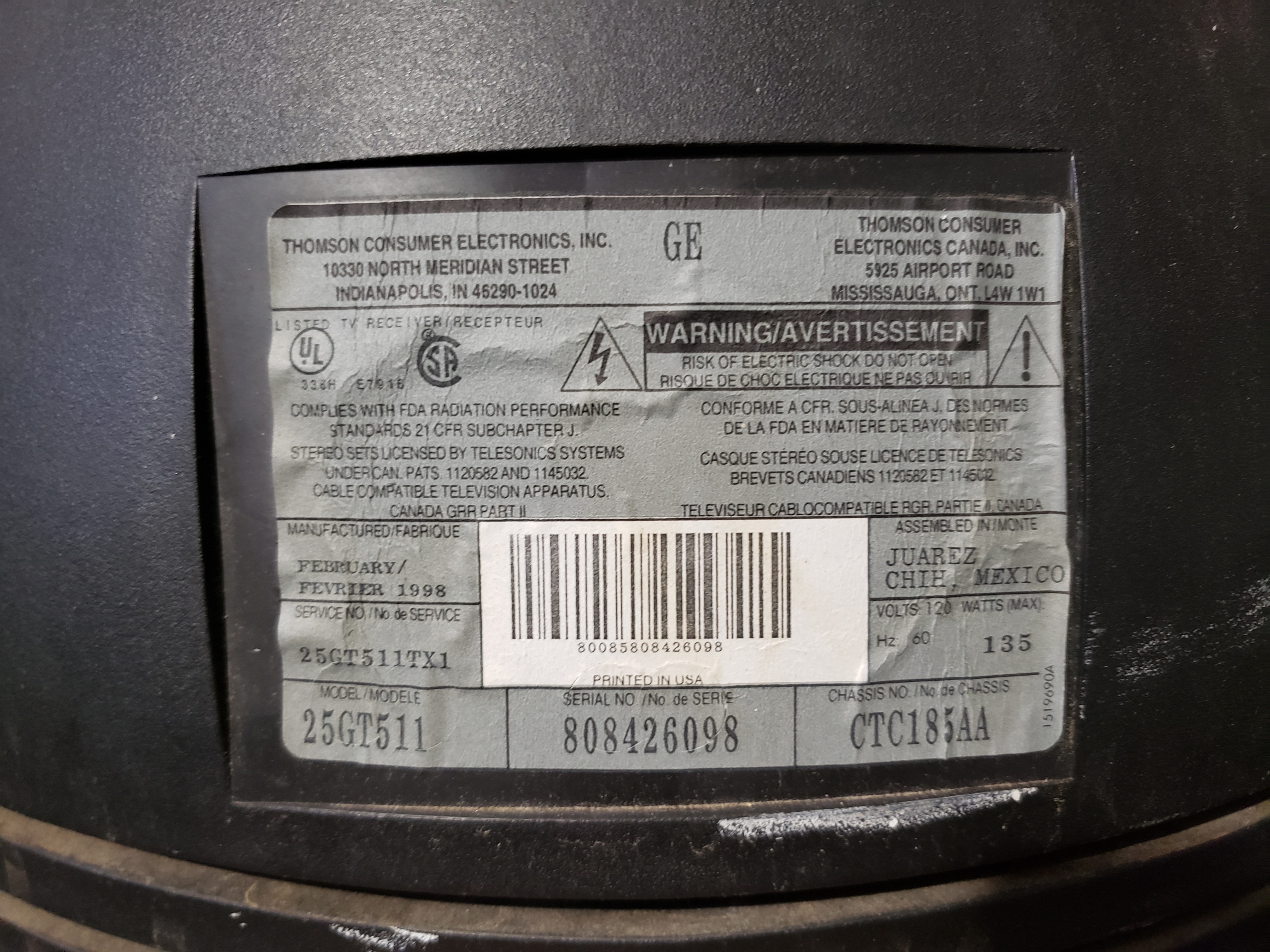

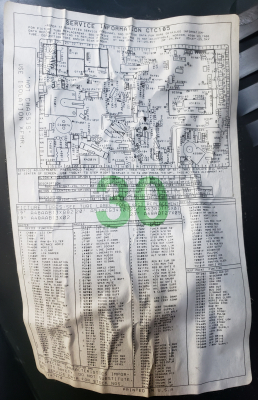

Details on entering the service menu and its values are listed on an internal service sticker. To enter the service menu, while the set is on, press and continue to hold Menu, press and release Power, press and release Volume+, release Menu. Press Volume+ until you reach 76, press Channel+. Channel buttons cycle through the options, Volume buttons adjust the values.
Hot chassis set, cannot be readily video modded without isolation.

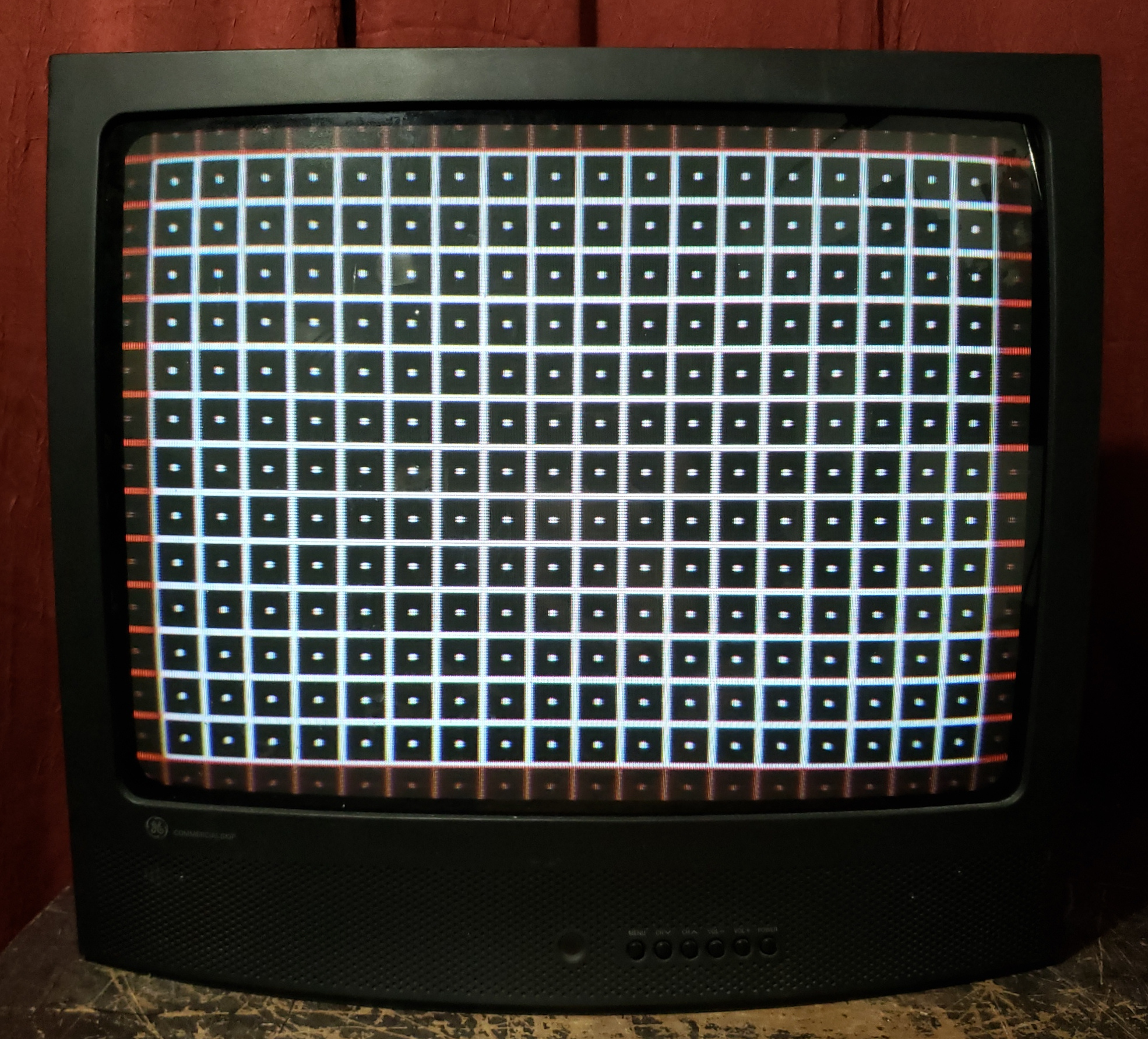

Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Thomson |
| Model: | 25GT511 |
| Series: | GT |
| Viewable Size: | 25" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | TDA8172 |
| Jungle IC: | LA7612N |
| Comb Filtering: | None |

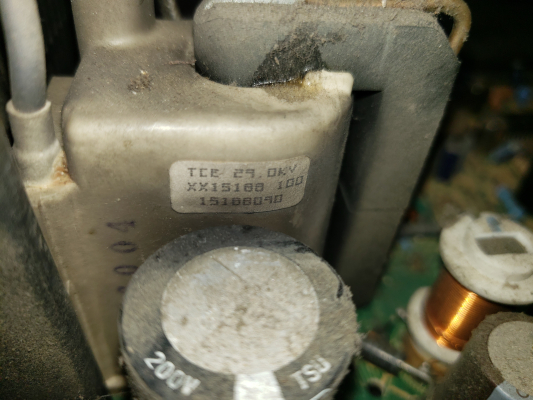

| Flyback: | 15188090 |
| Focus Type: | Single |

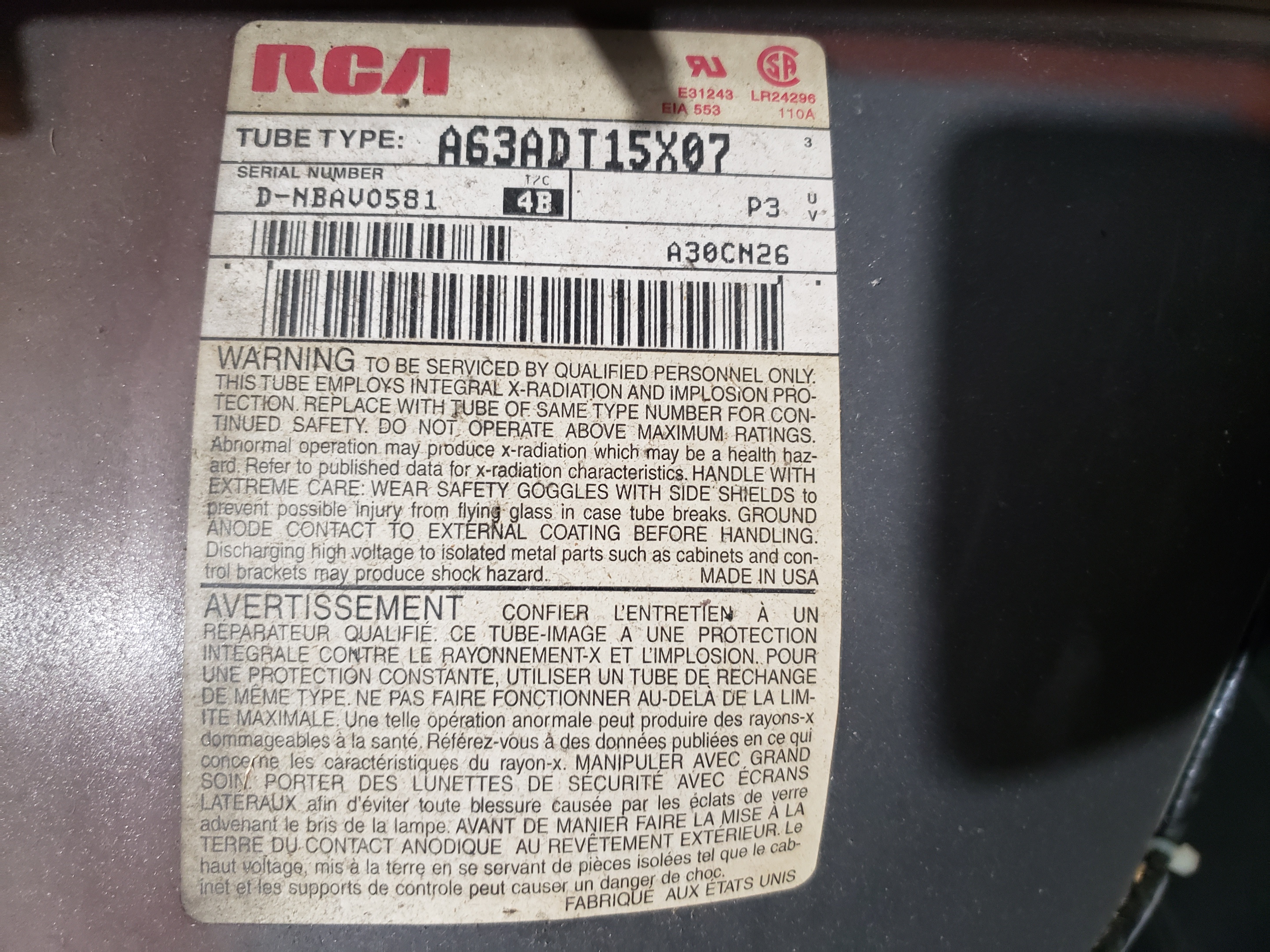

| Tube: | A63ADT15X07 , A63ADT15X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot, Super Arch
|
| Pitch: | .84 mm |
| Tint: | Dark |

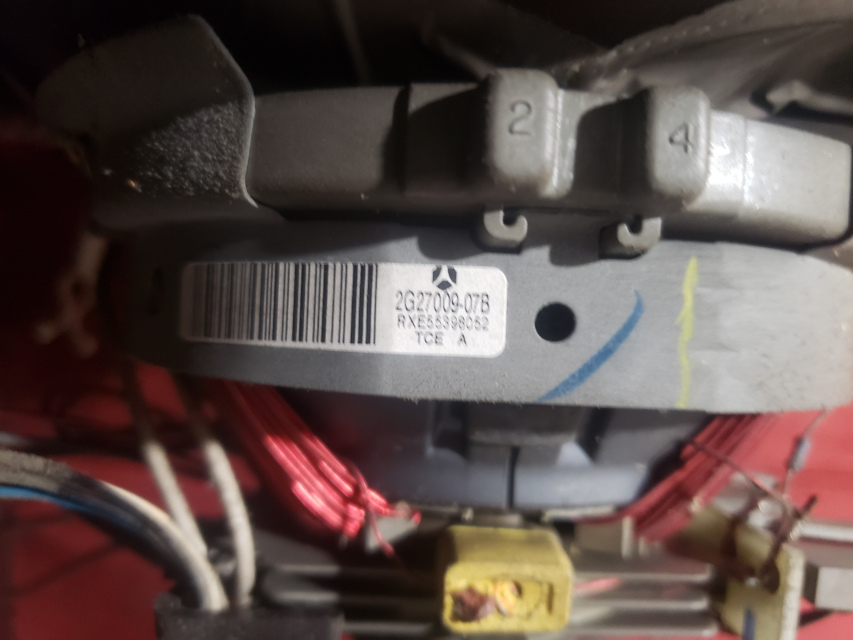

| Yoke: | 2G27009-07B |
| Yoke Horz. Resistance: | 1.6 ohm |
| Yoke Vert. Resistance: | 3.4 ohm |
| Speakers: | Mono |
| Remote: | CRK20A1 |
| Chassis: | CTC185AA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
