Summary

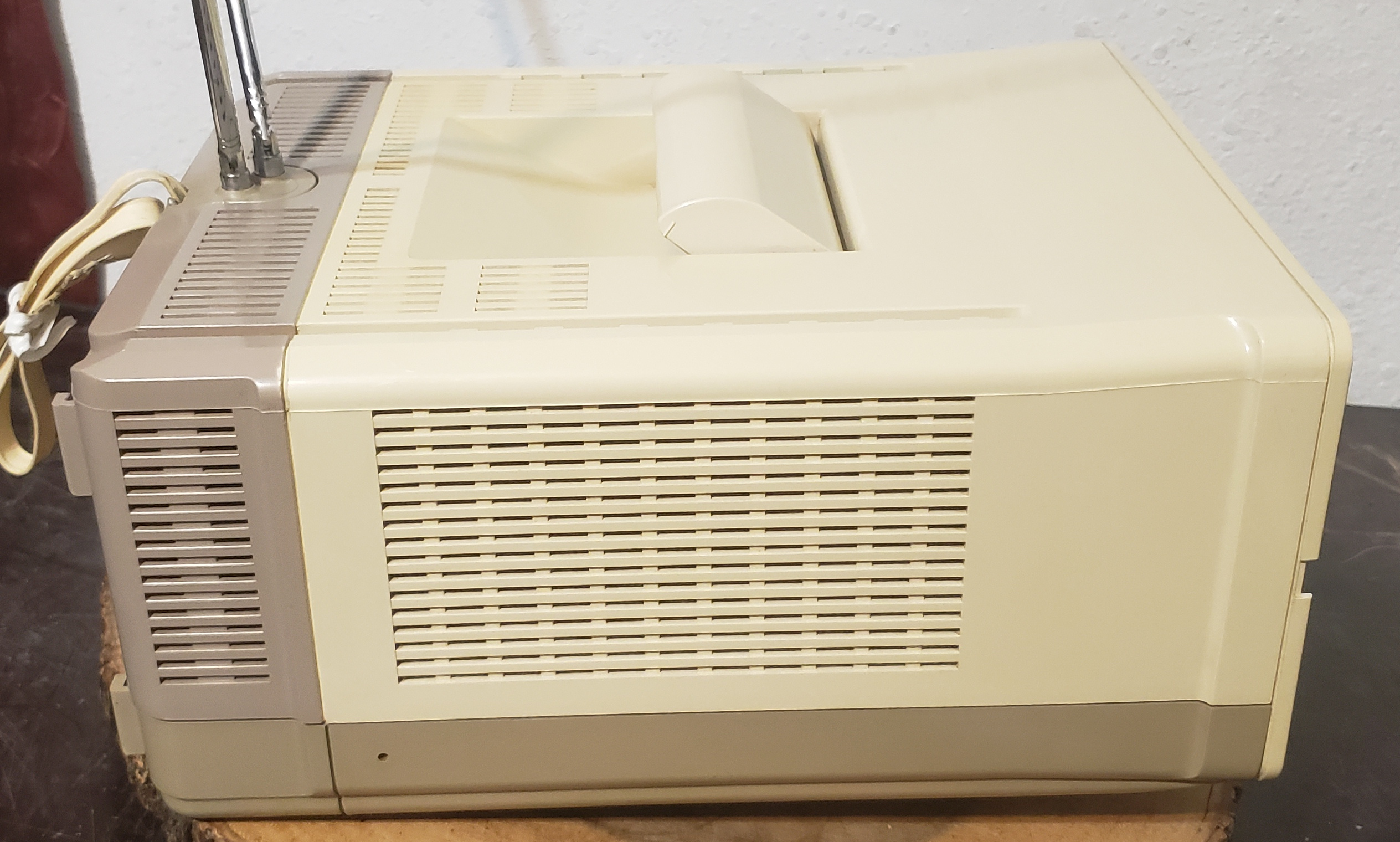

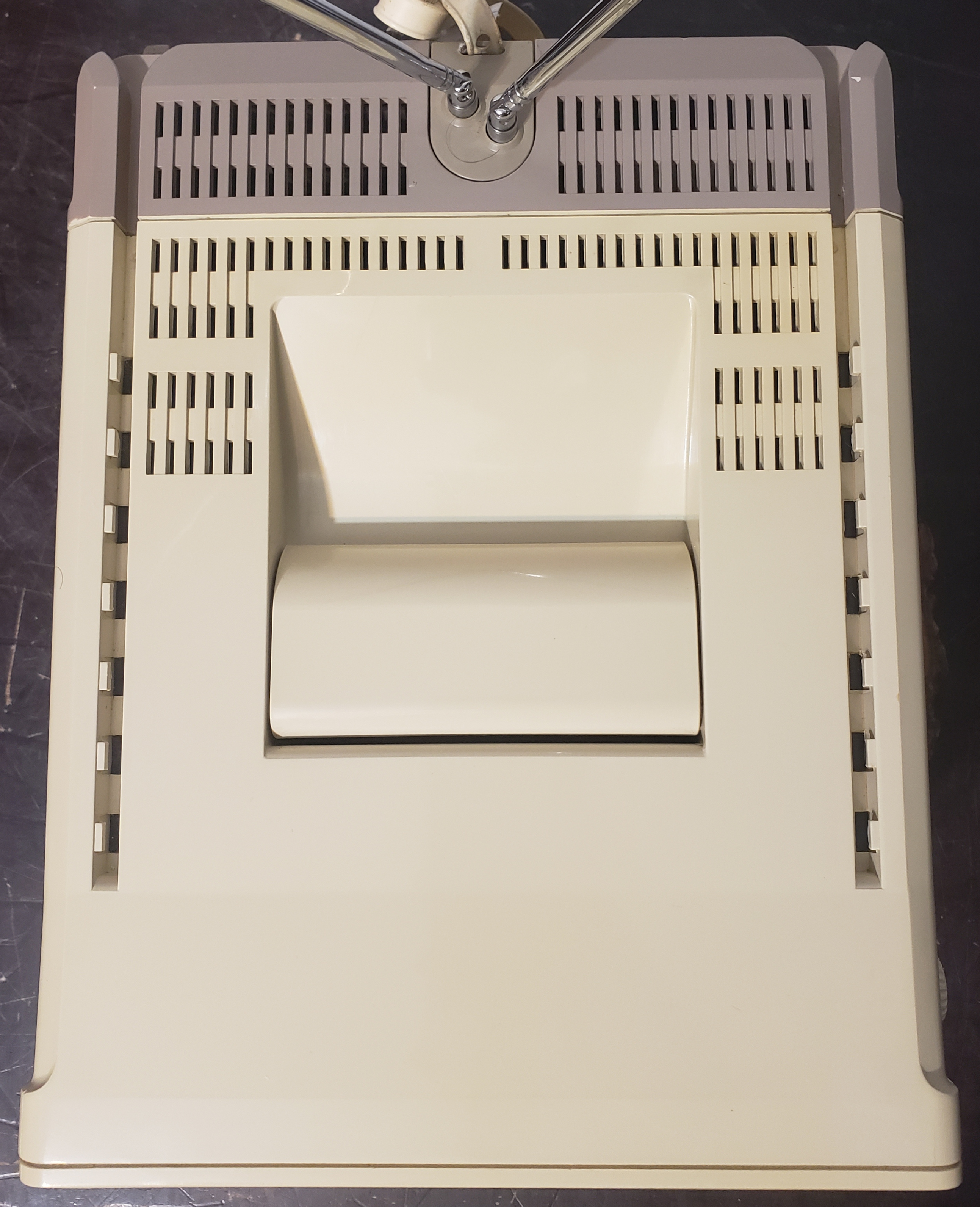

5" kitchen TV/radio with rails for under-cabinet mounting, integrated kickstand, and pop-out handle.
Manuals
Media & Promo Material

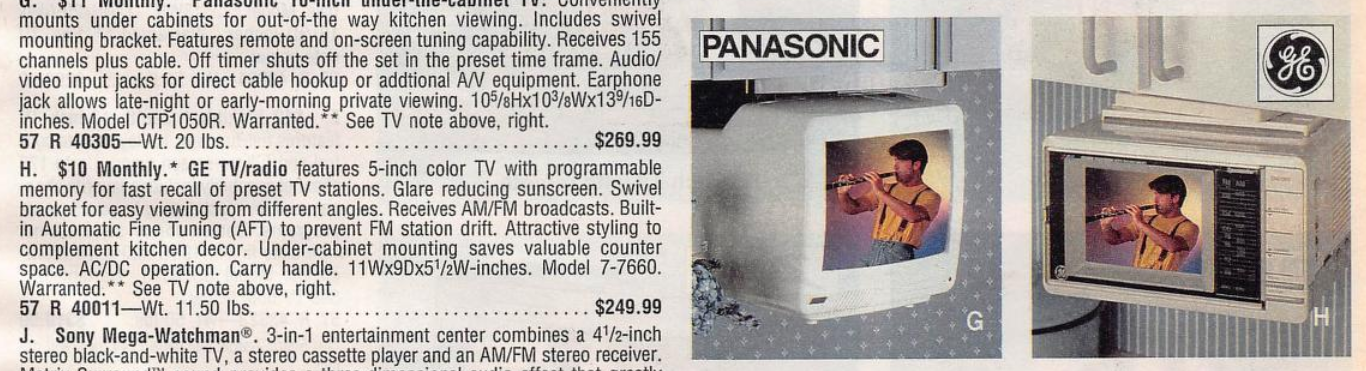

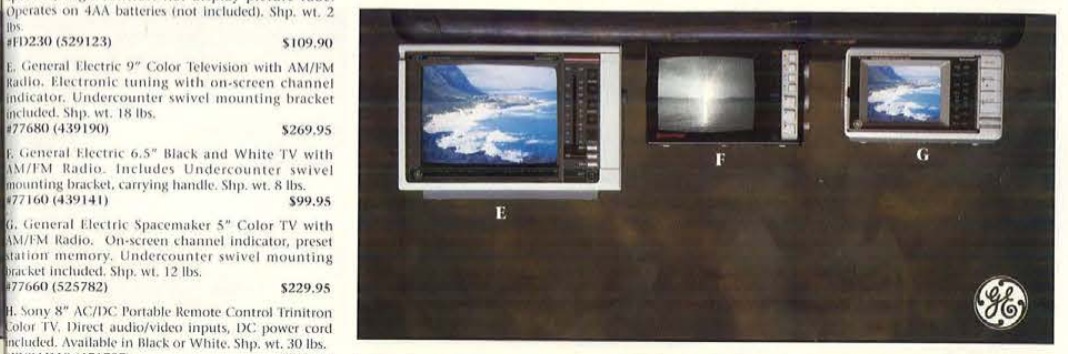

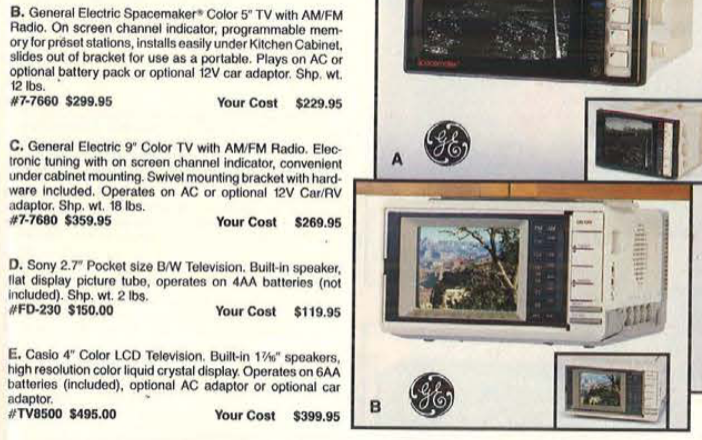

- Houston Jewelry Catalog 1989-1990 p.207, $229
- Houston Jewelry Catalog 1990-1991 p.237, $229
- KMart Ad May 1990, $209
- Sears Annual Home Catalog 1993, $249
Notes

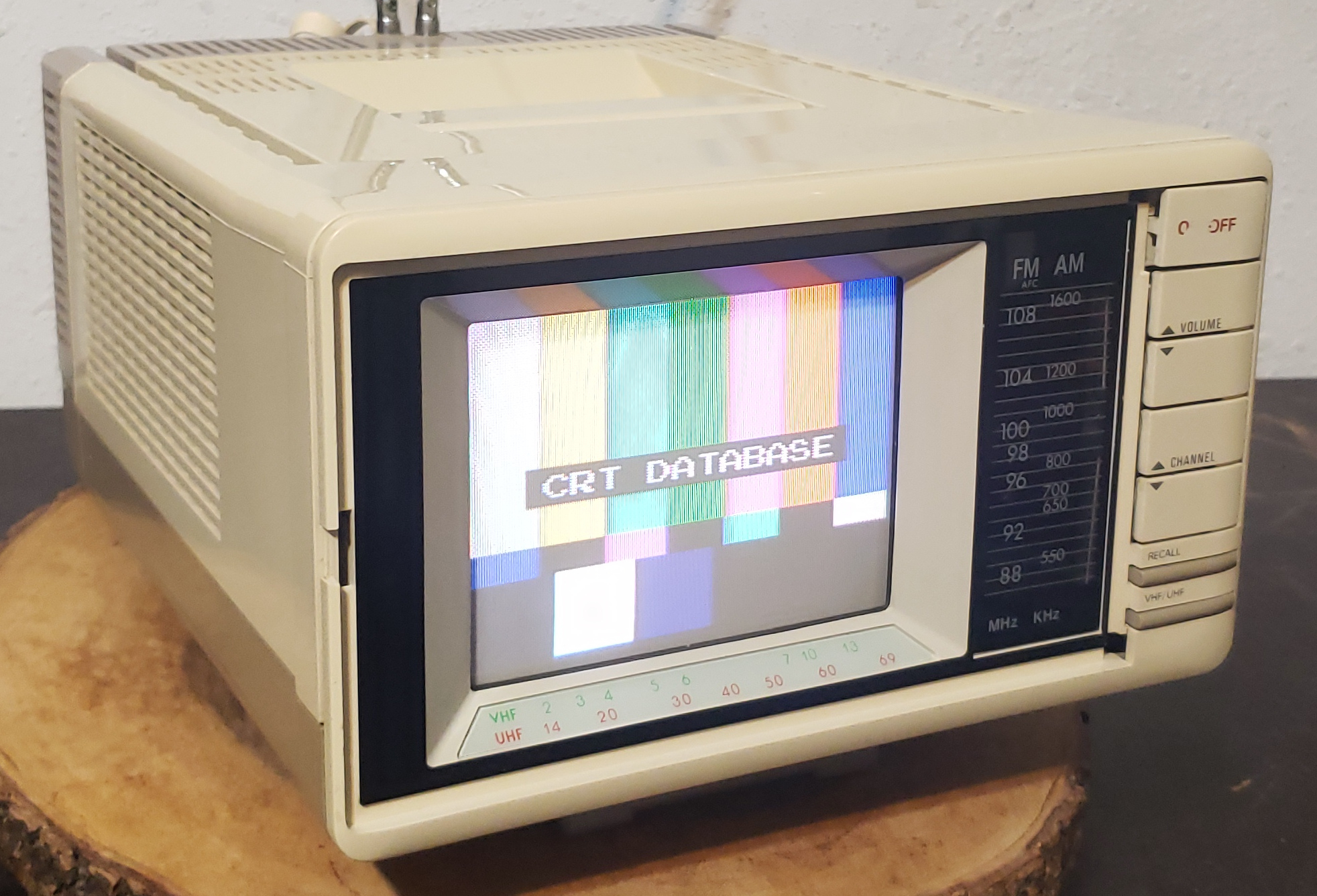

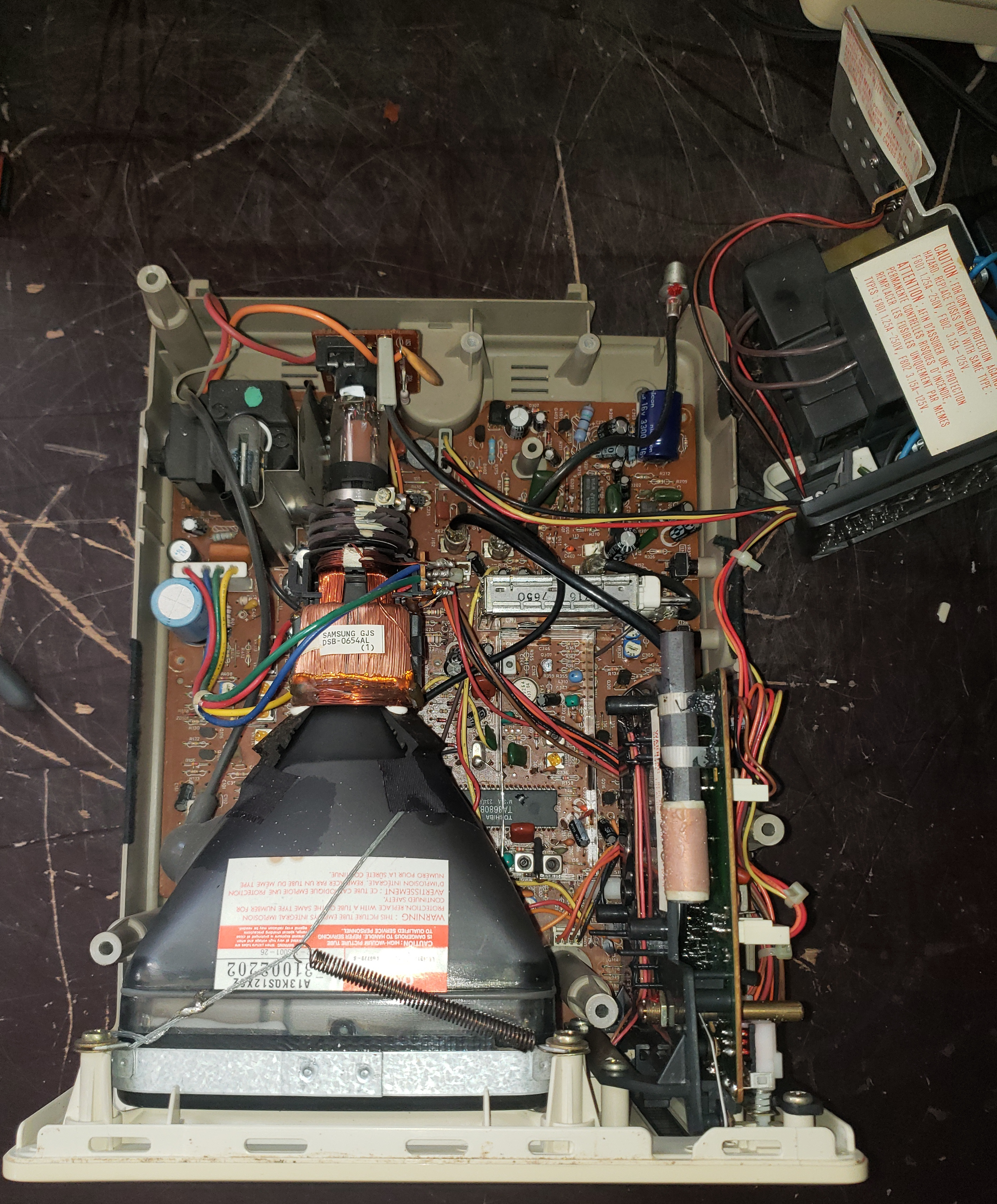

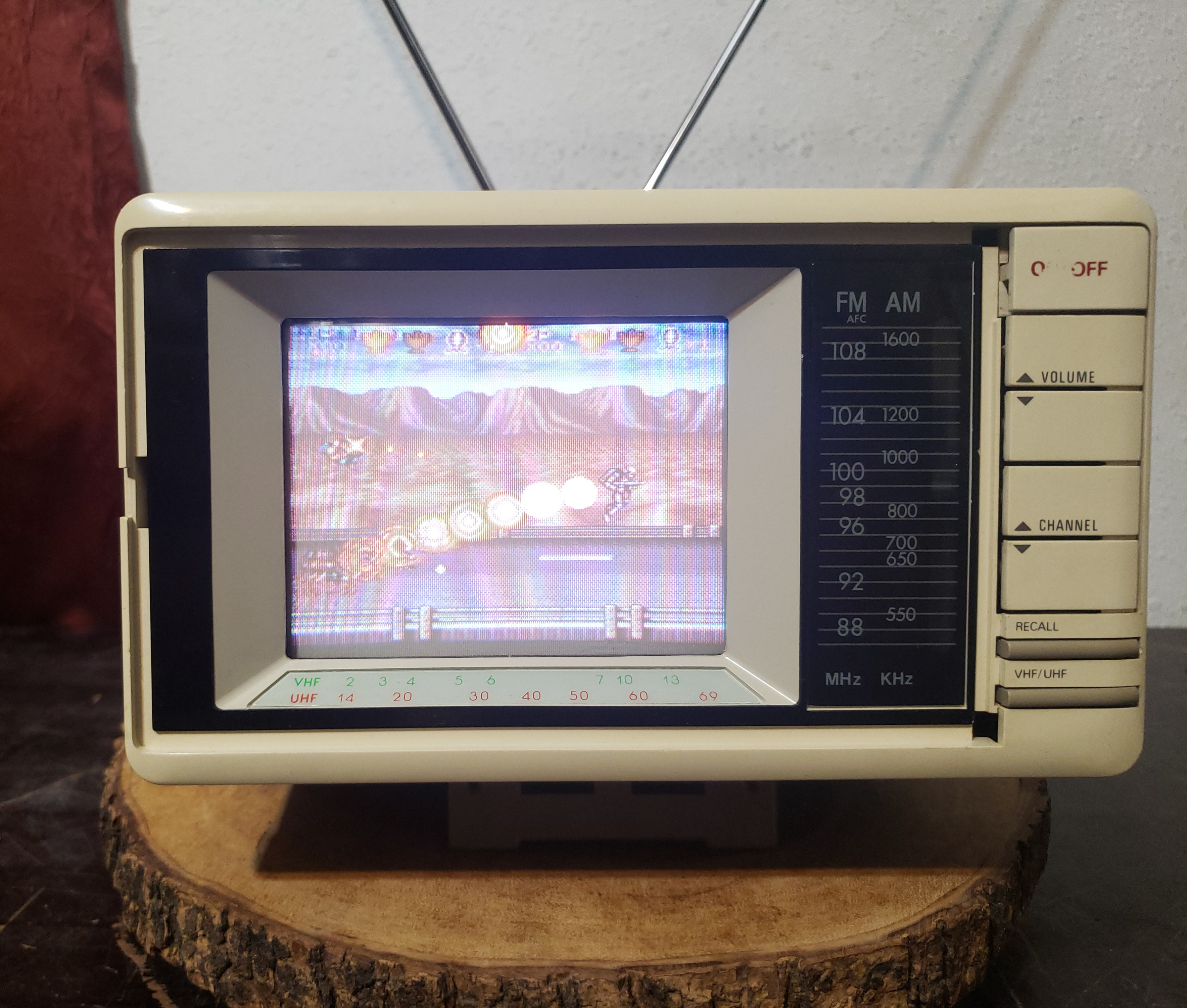

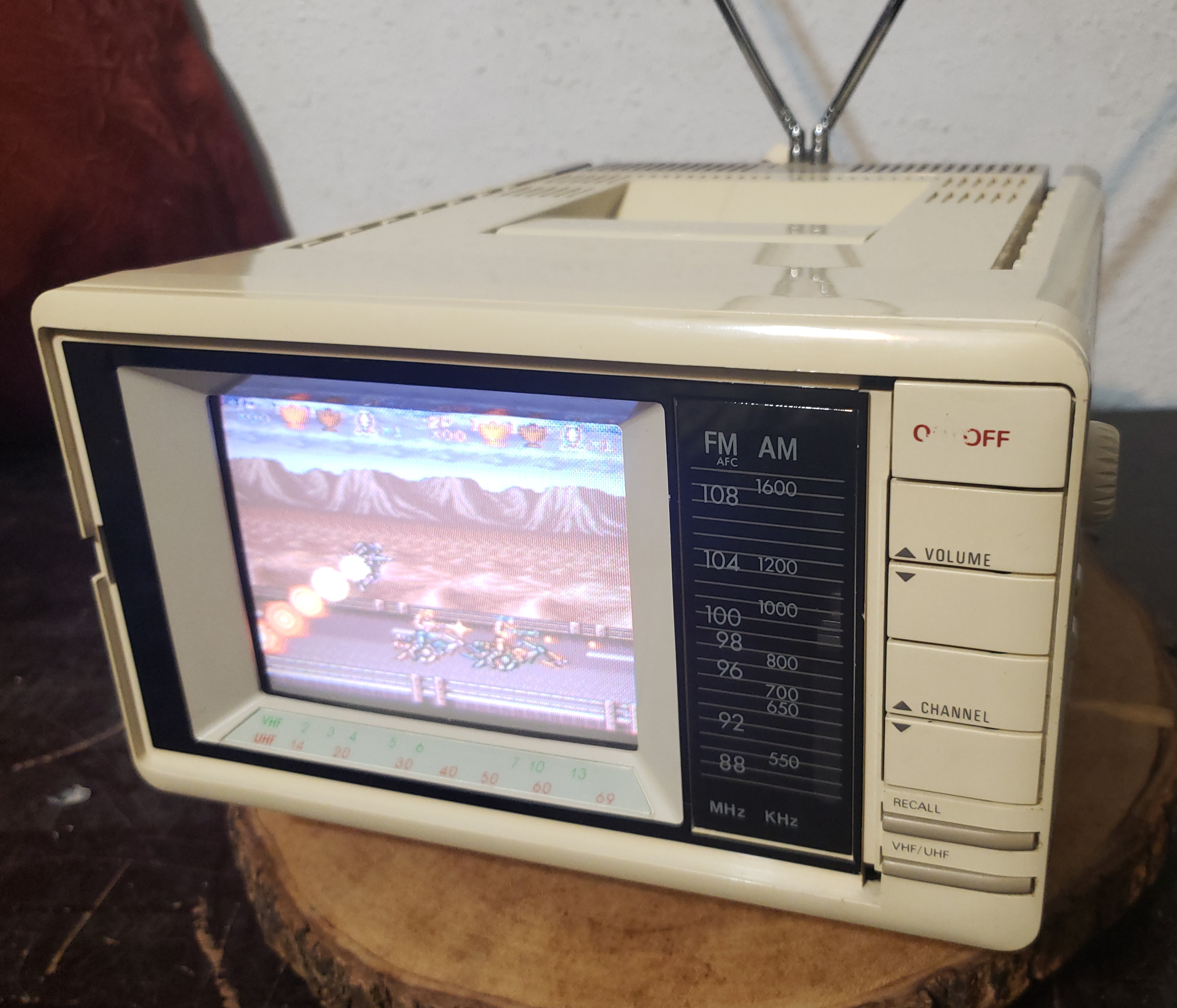

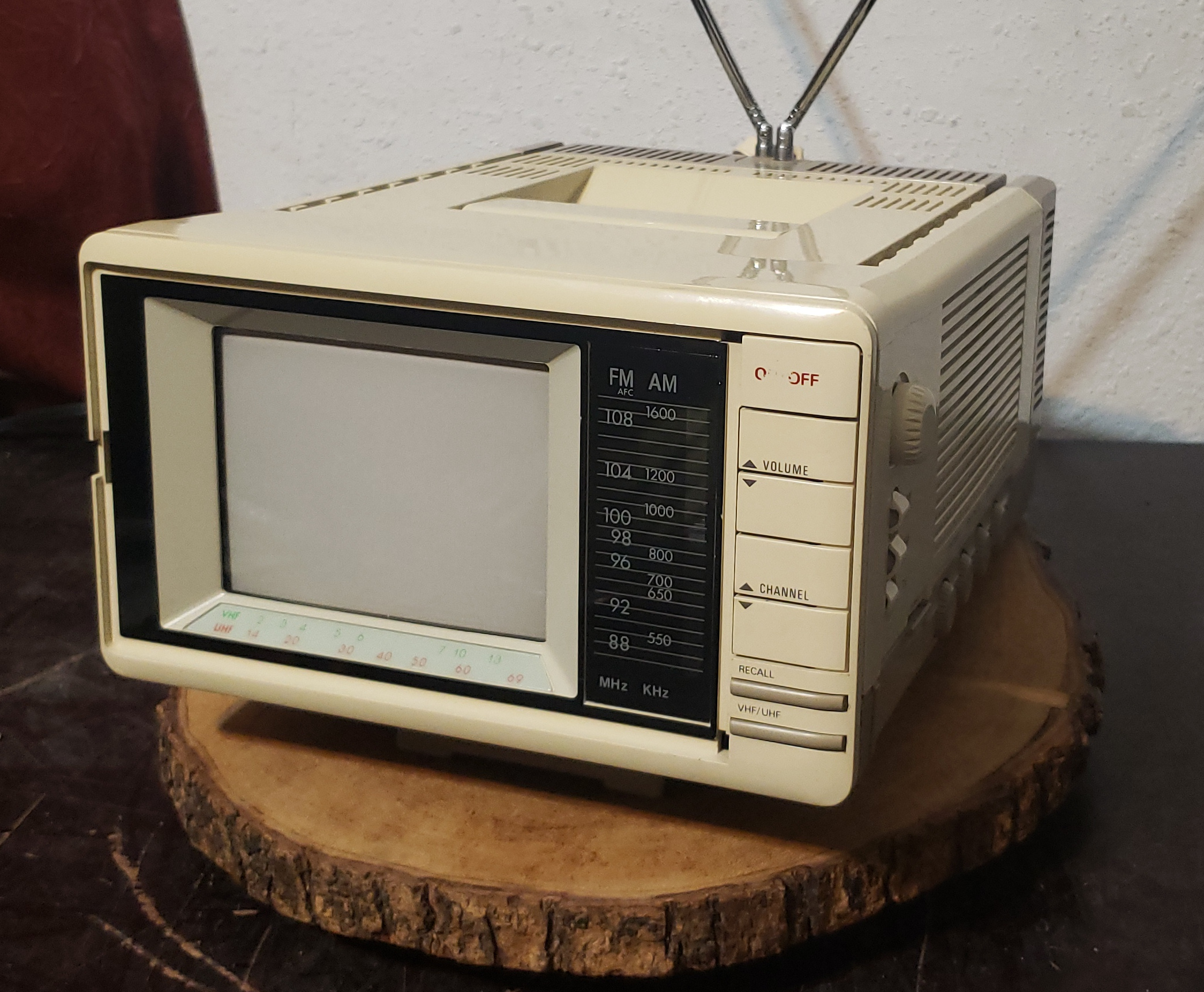

Input mods are possible with this jungle chip, but getting to the bottom of the main PCB requires a lot of disassembly. The TV tuner uses a green vertical line on the screen to indicate what channel it is on by how it is lined up with the label on the bezel.
Gallery
| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | General Electric |
| Model: | 7-7660B |
| Series: | Spacemaker |
| Viewable Size: | 5" |
| Inputs: | RF |
| Sync: | Sync over Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

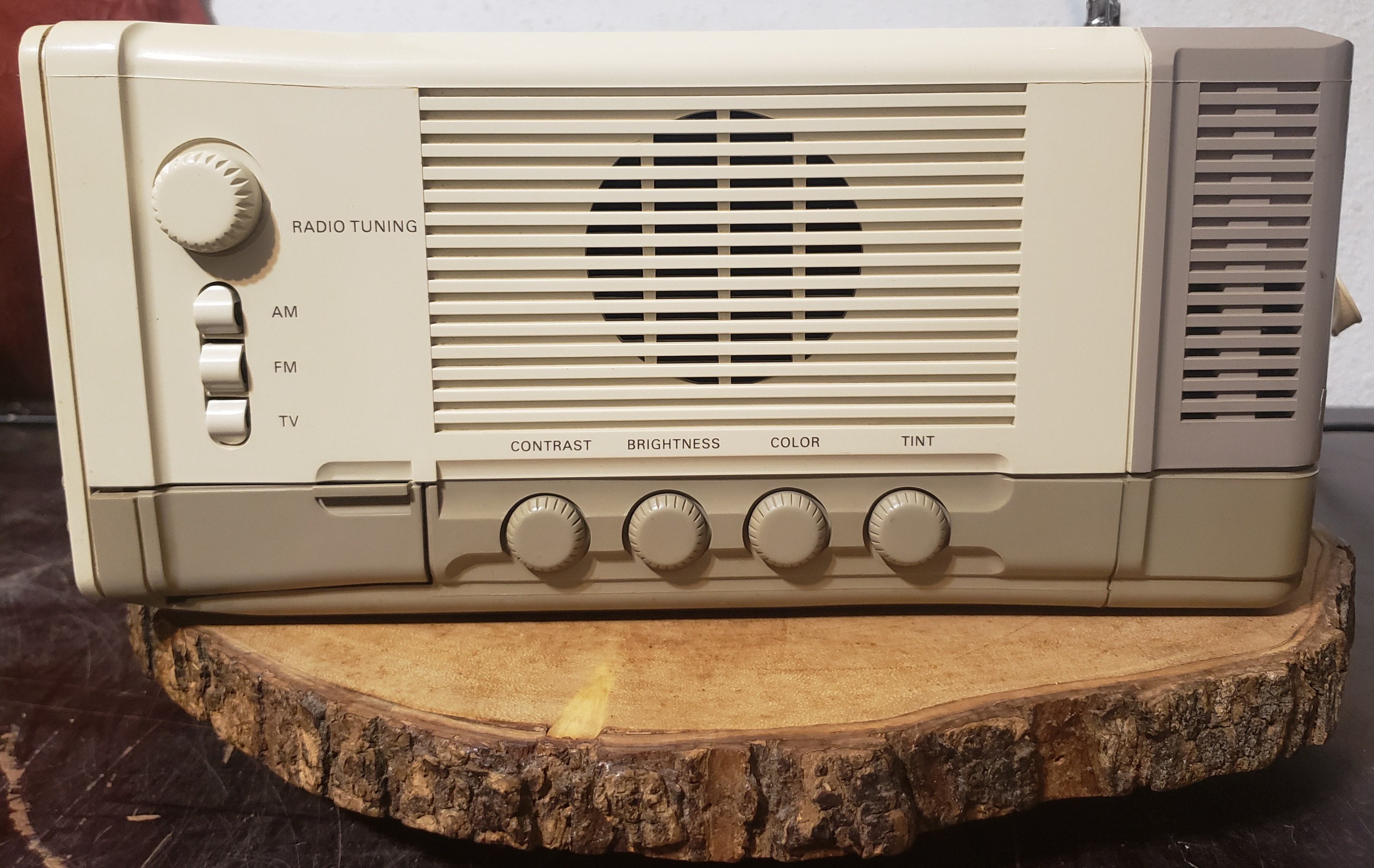

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Toshiba, NTE7010, TA8680BN |
| Comb Filtering: | None |

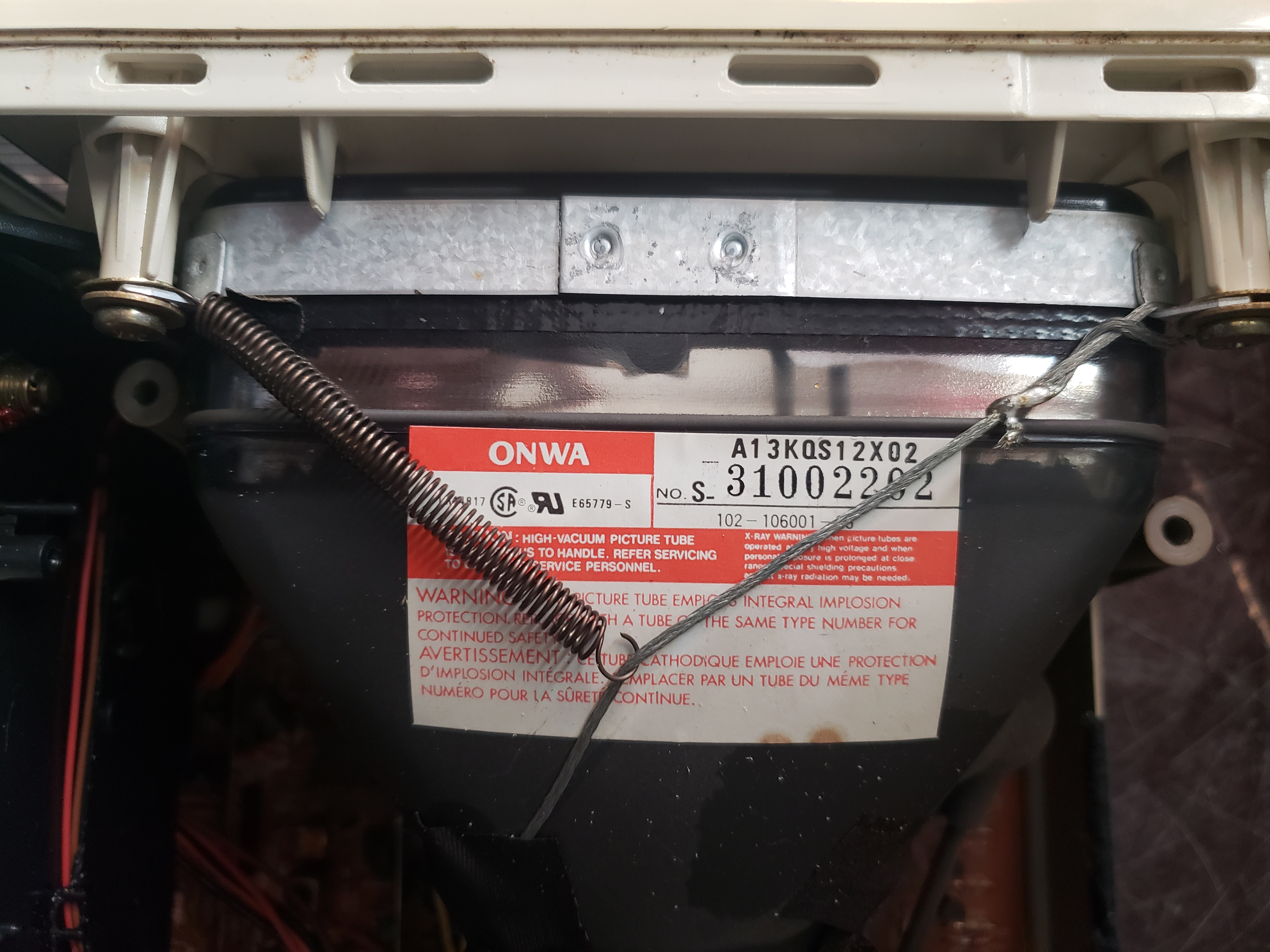

| Tube: | A13KQS12X02 , A13KQS12X |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |
| Yoke Horz. Resistance: | 0.6 ohm |
| Yoke Vert. Resistance: | 5.6 ohm |
| Speakers: | Mono |
| Weight: | 11.5 lbs (5.2 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 299 USD |
| Country of Manufacture: | China |
| Mounting: | Carrying Handle, Kickstand, Under-Cabinet Mount |
| Mods: | S-Video, Composite |
| Degaussing: | None |
| Tag: | Needs Owners Manual, Needs Service Manual |
