| Specifications | |
|---|---|
| Brand: | General Electric |
| Manufacturer: | Samsung |
| Model: | 8-0906 |
| Series: | 8 |
| Viewable Size: | 9" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | 2SD1398 |

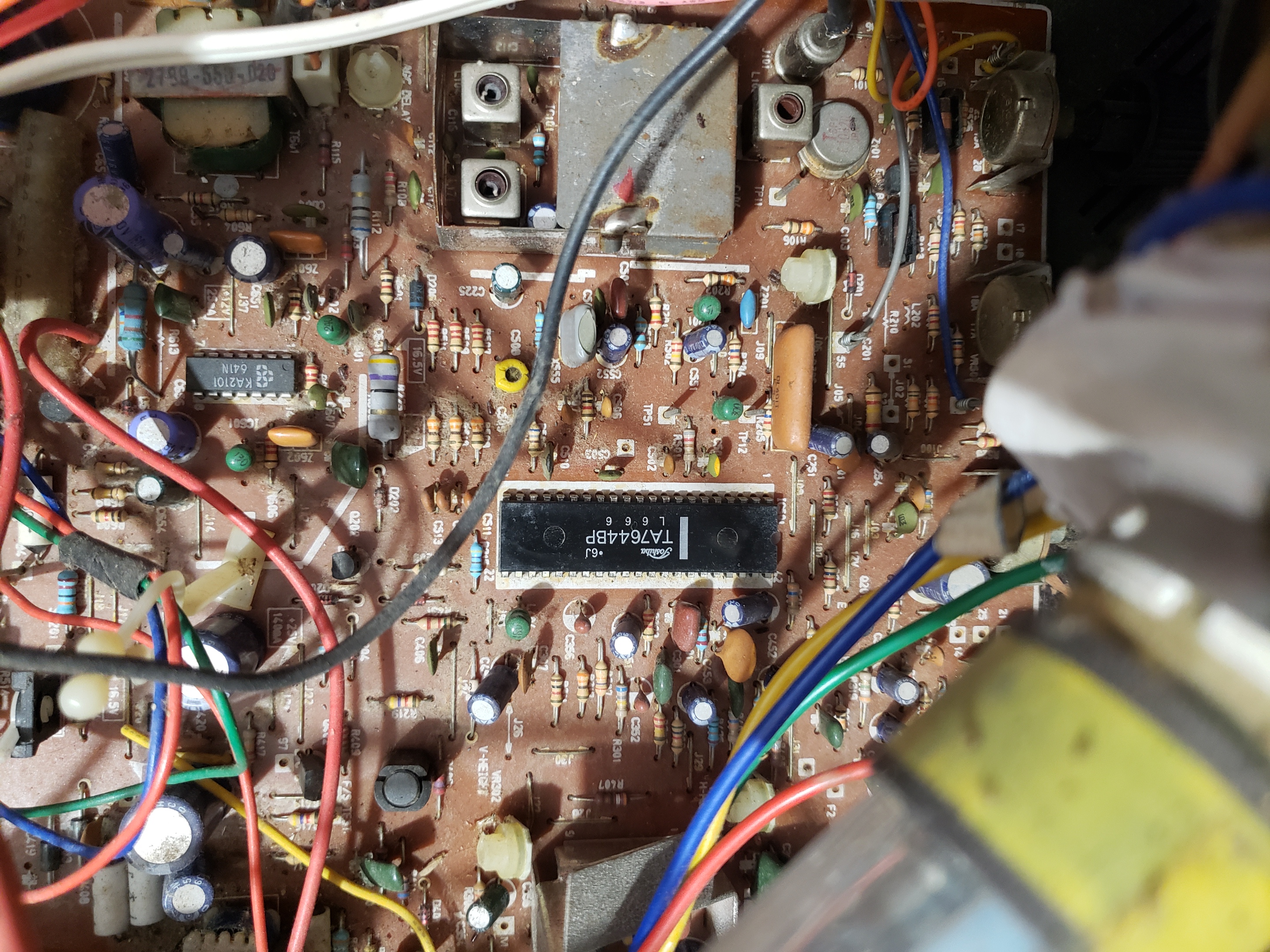

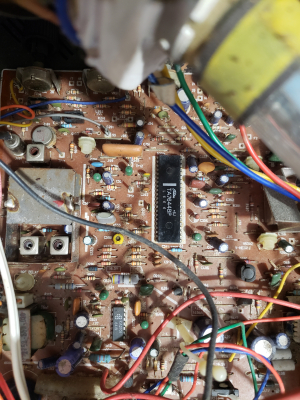

| Jungle IC: | Toshiba, TA7644BP |
| Comb Filtering: | None |
| Focus Type: | Single |

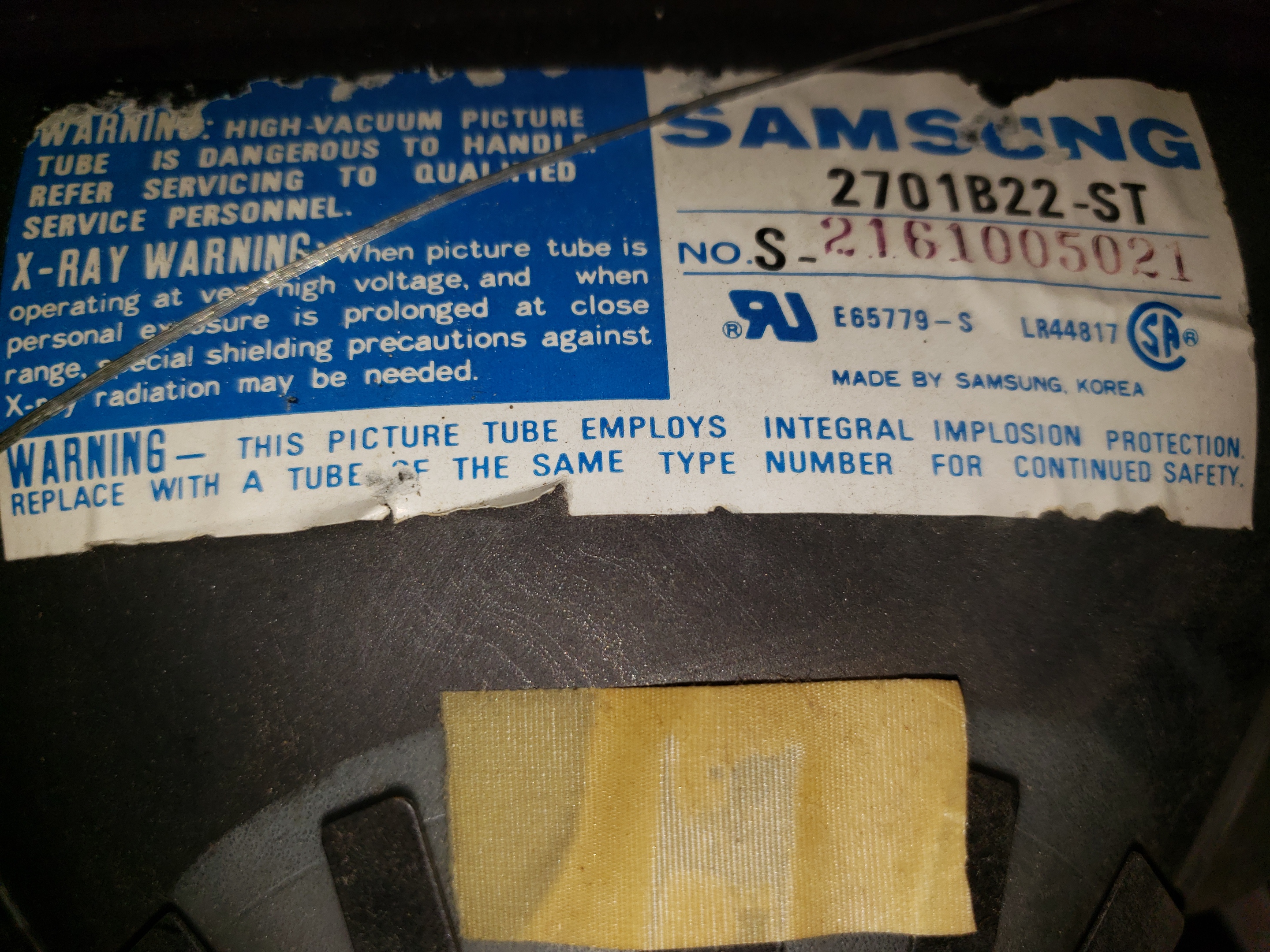

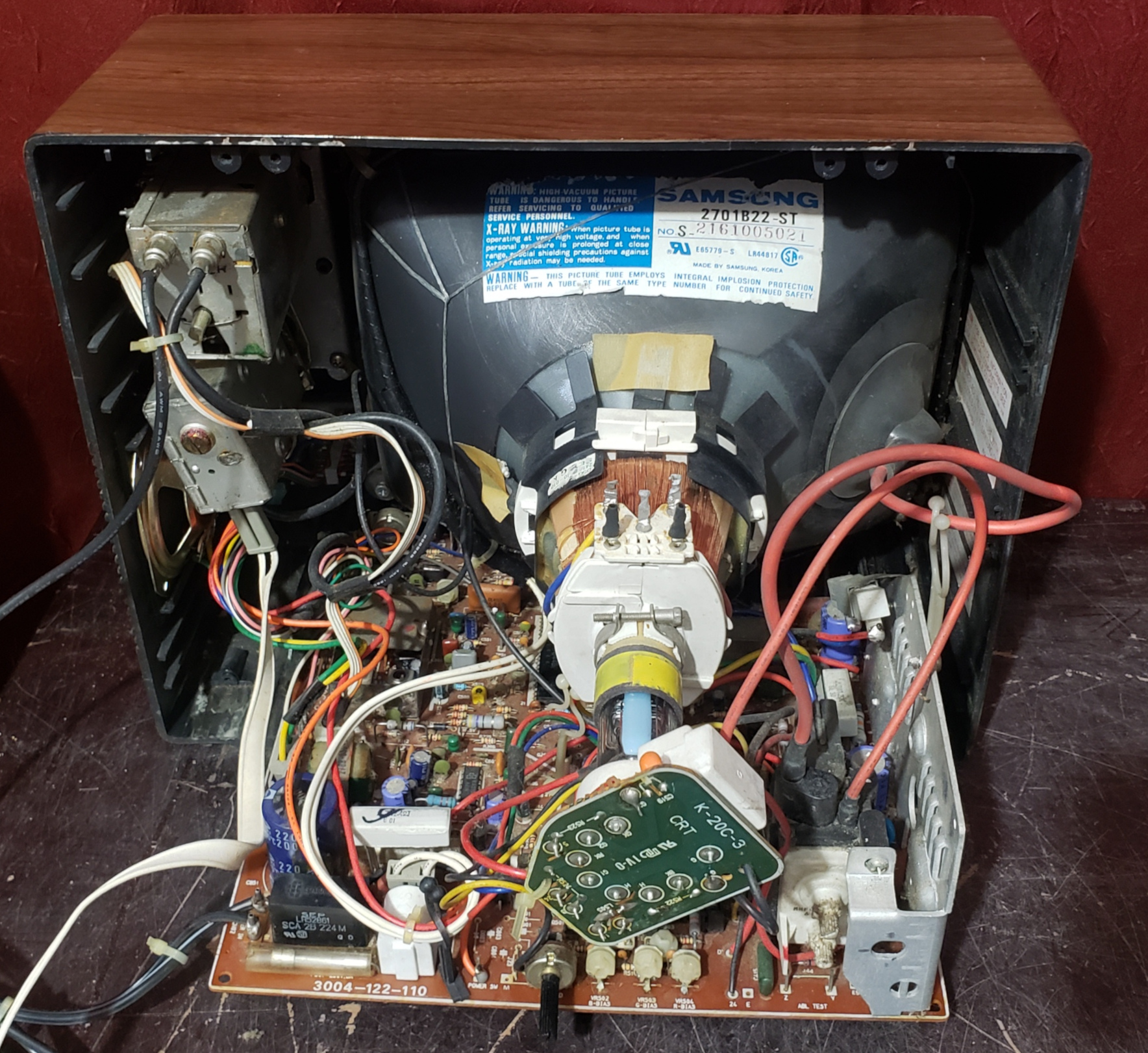

| Tube: | Samsung , 2701B22-ST |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

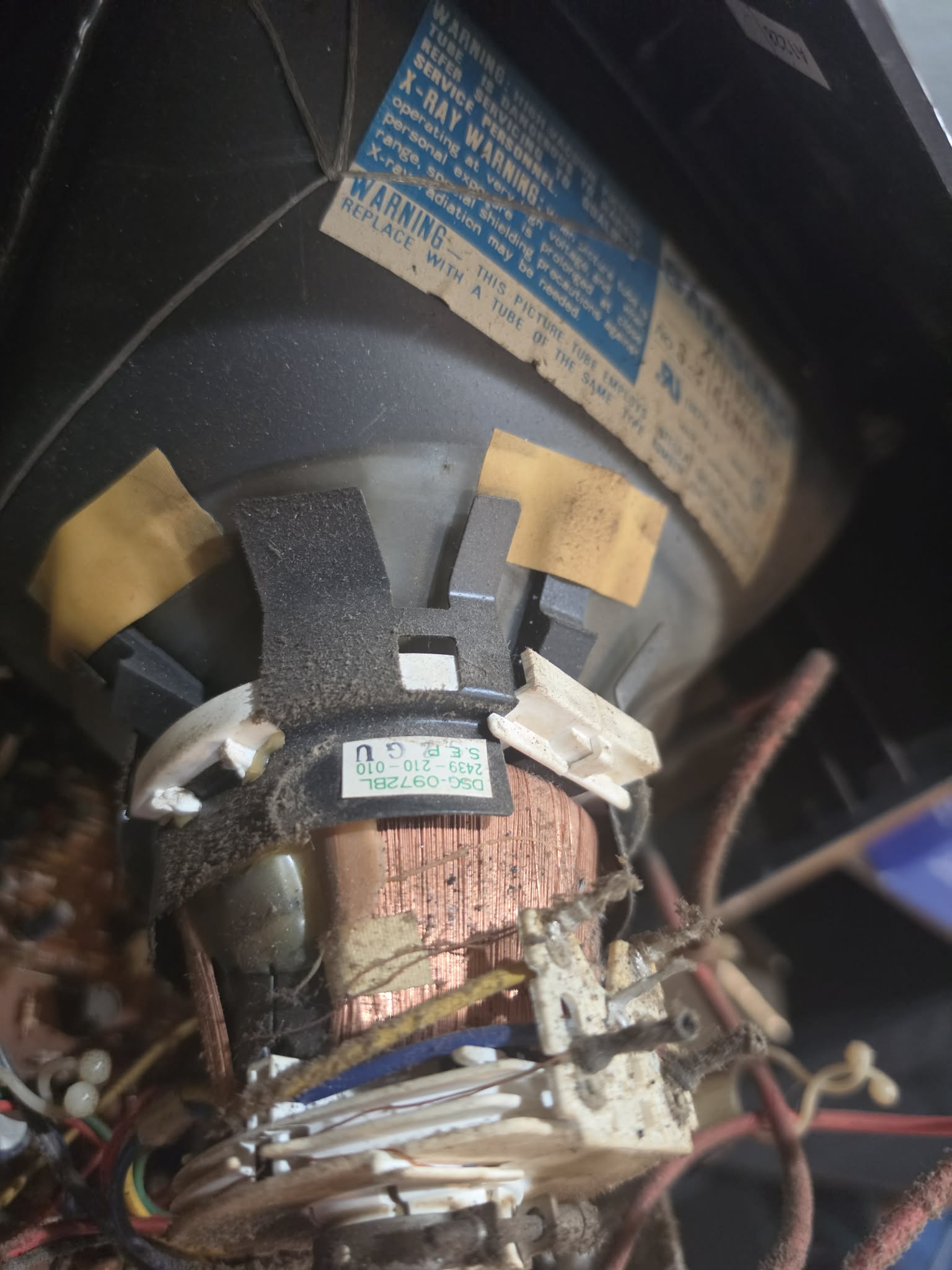

| Yoke Horz. Resistance: | 11.6 ohm |
| Yoke Vert. Resistance: | 12.0 ohm, 12 ohm, 12.00 ohm |
| Speakers: | Mono |
| Chassis: | K-20, 1005 |
| Weight: | 17 lbs (7.7 kg) |
| Application: | Consumer |

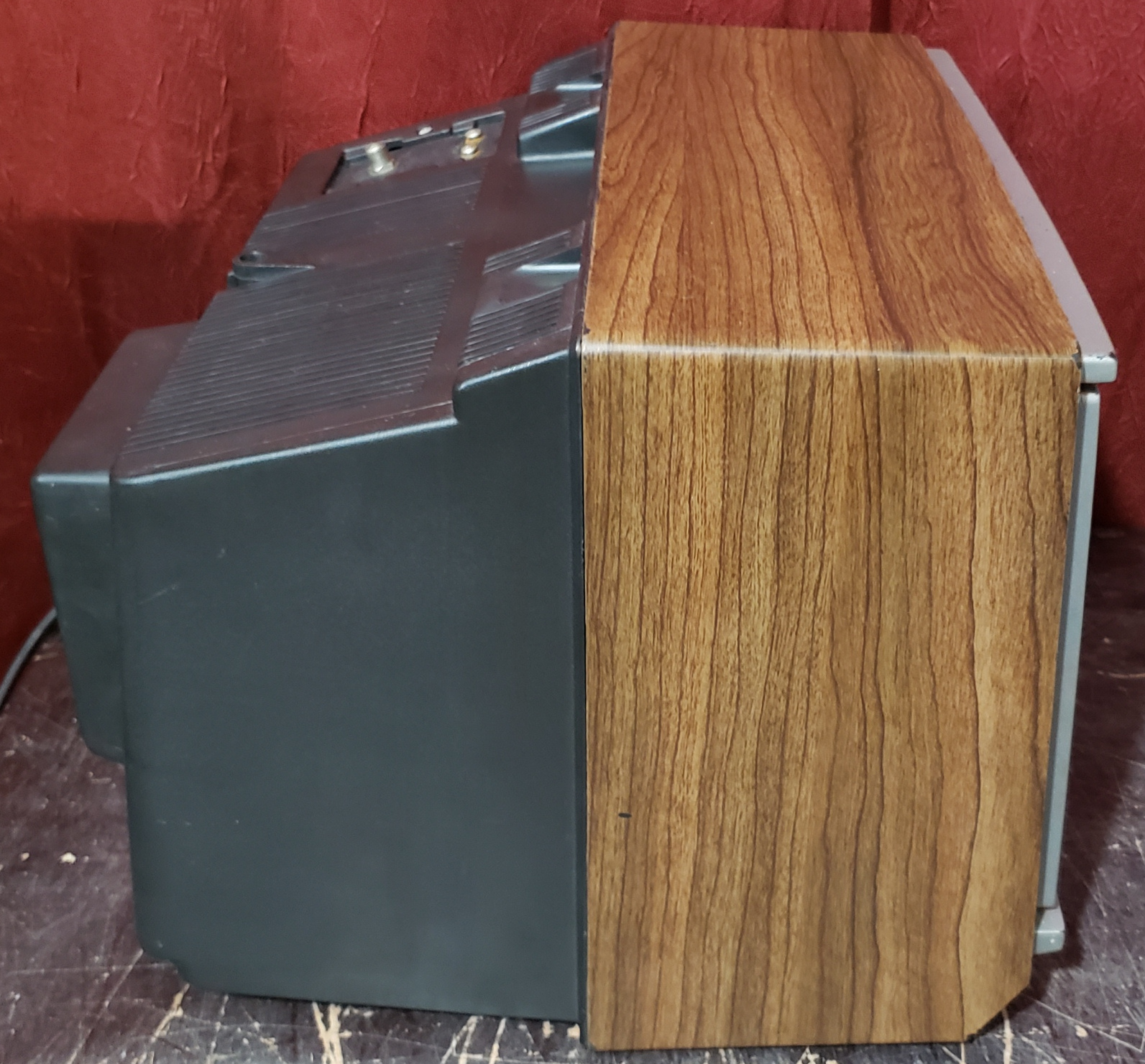

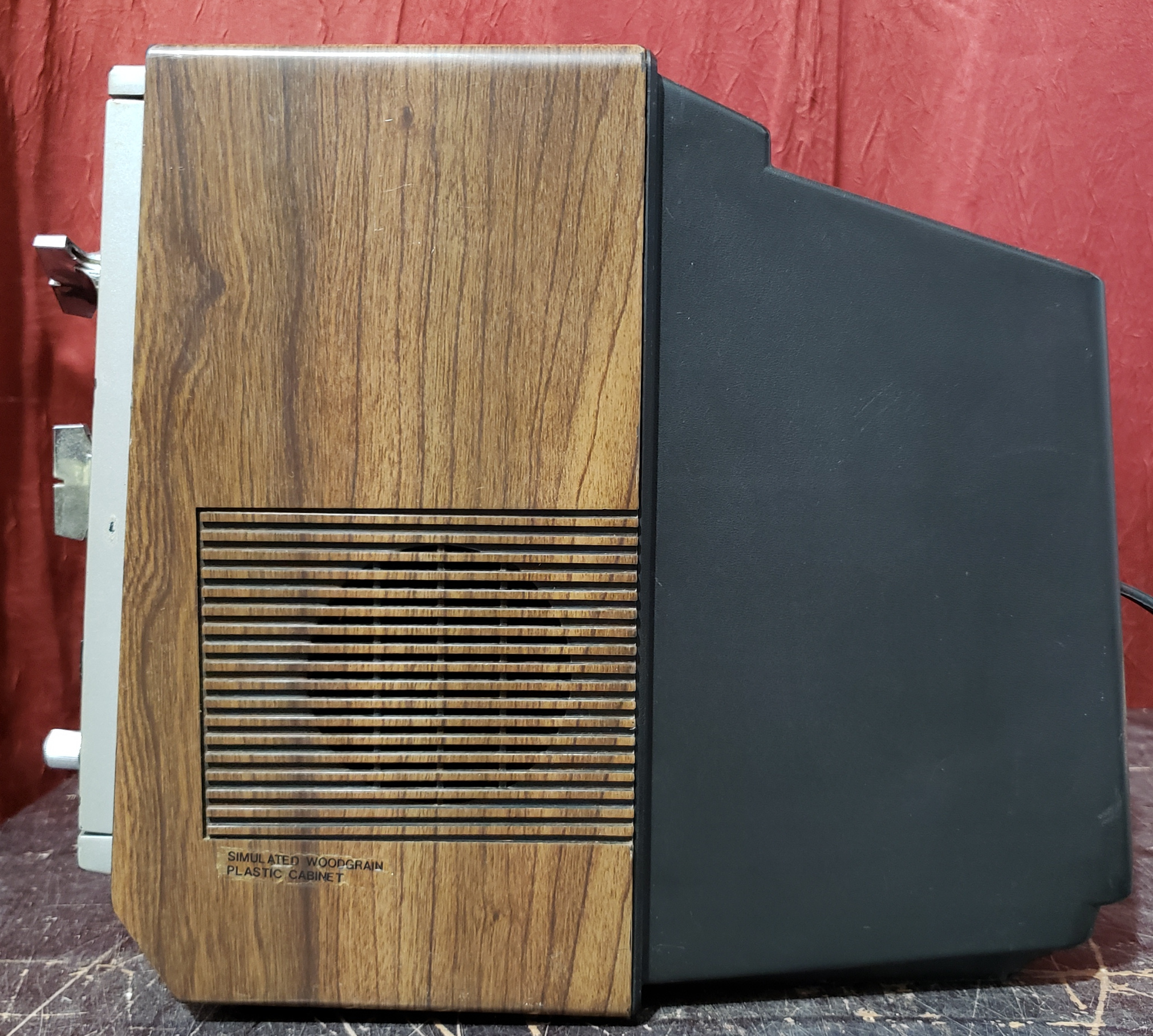

| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1986 |
| MSRP: | 225 USD |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements, Needs Yoke Info, Portable |
