Summary

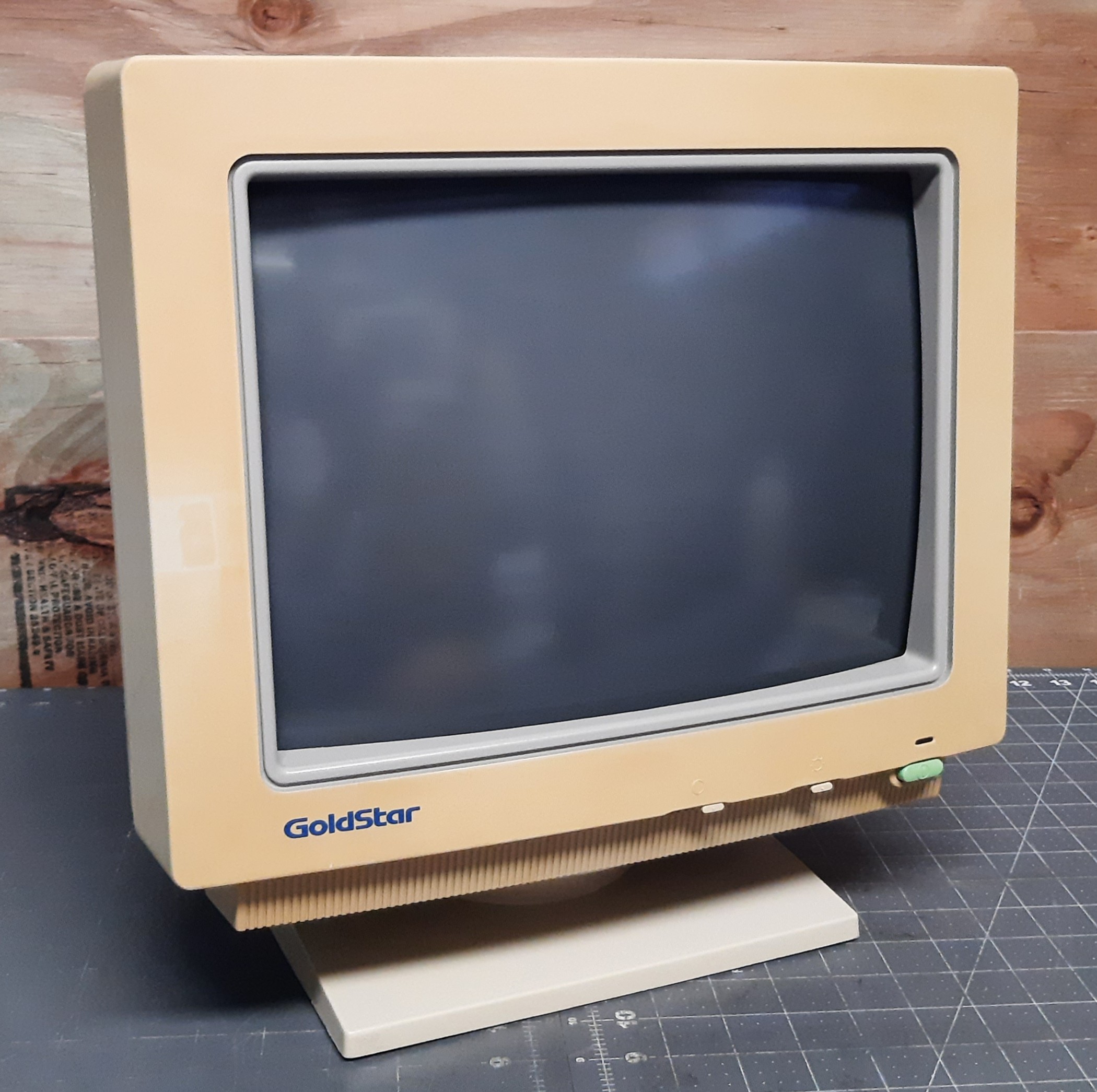

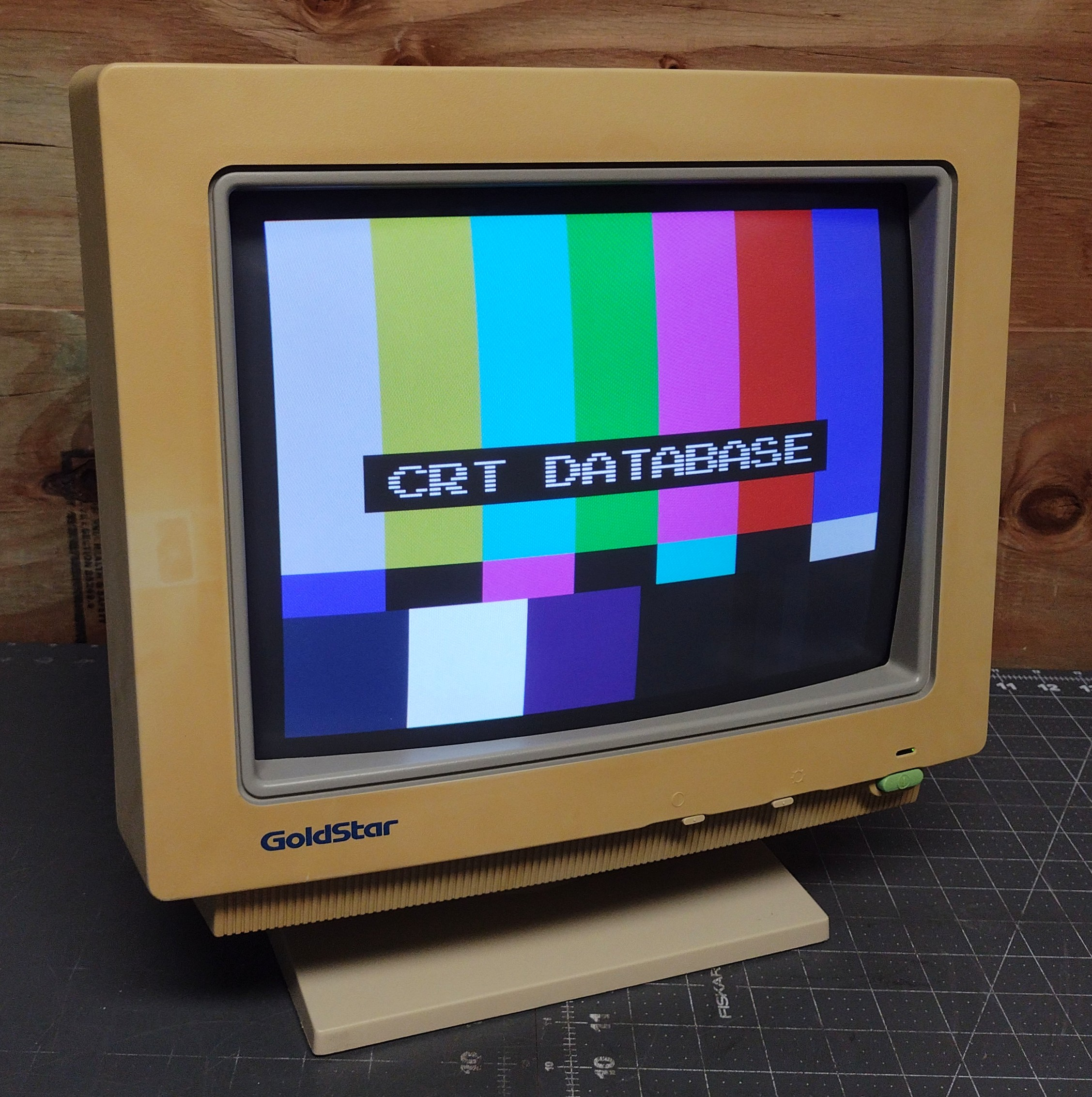

Early 14" SVGA monitor from 1990. While it is a multisync display, its range is limited to 31-36 kHz.
Manuals
Notes

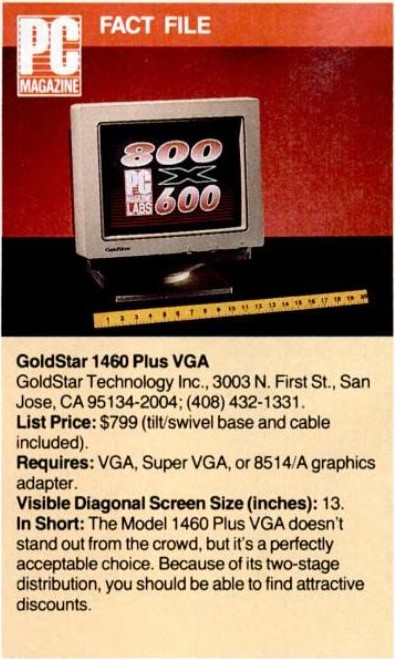

The MSRP of this monitor was $799 in 1990. Adjusted for inflation, that equals $1,924 in 2024. Reviews of the time described it as an "acceptable choice".
The yoke on this model has relatively high impedance for a VGA monitor. It should be compatible with JVC broadcast monitors such as the TM-H1375SU and BM-H1310SU.
Gallery
| Specifications | |
|---|---|
| Brand: | Goldstar |
| Manufacturer: | Goldstar |
| Model: | 1460 Plus |
| Series: | SVGA Monitor |
| Viewable Size: | 13" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA (Interlaced) |
| Horizontal Scan Range: | 31 kHz, 36 kHz |
| Vertical Scan Range: | 50 Hz, 87 Hz |
| Aspect: | 4:3 |

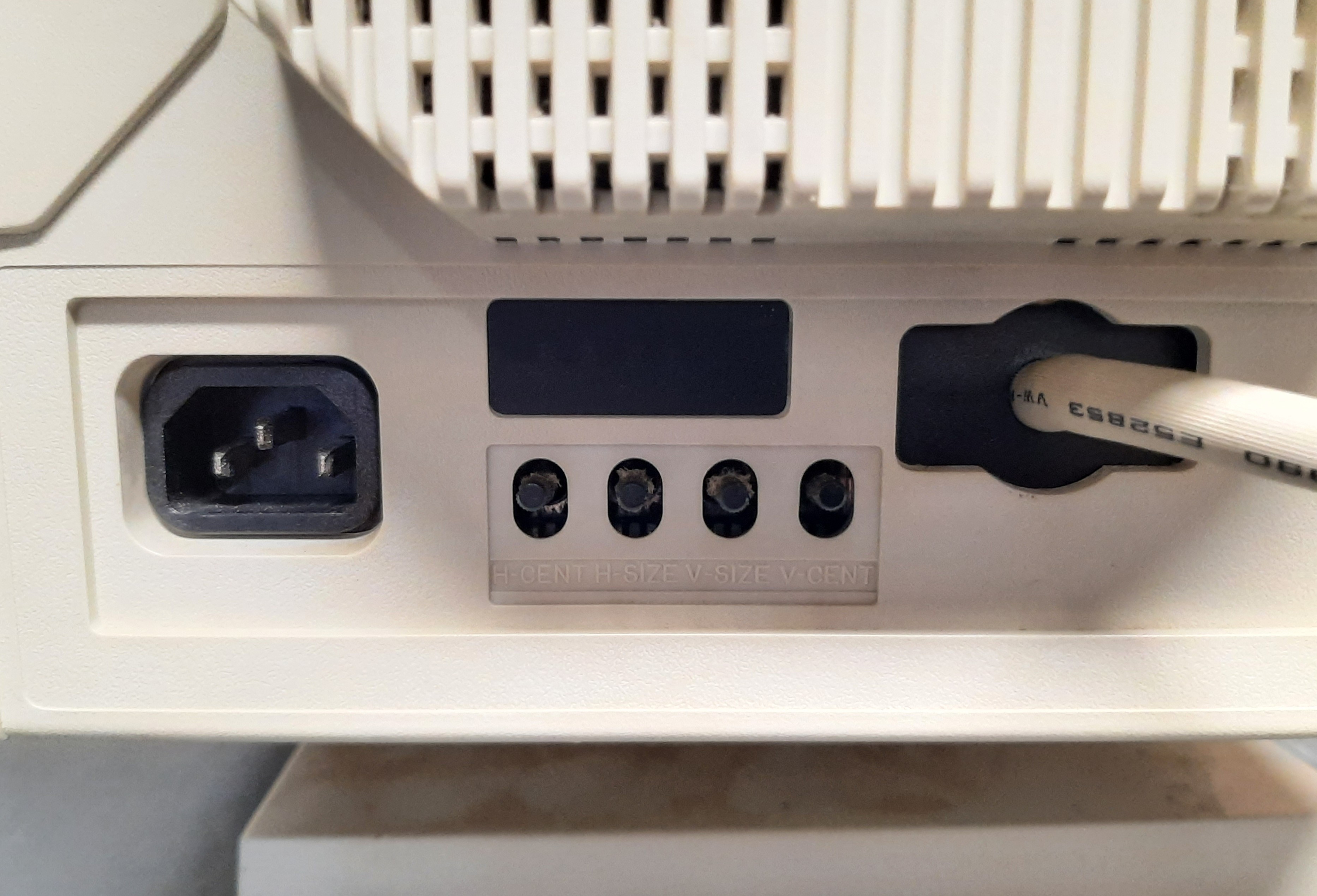

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Vertical Output IC: | TDA1675 |
| Flyback: | MSU1FGV19 |
| Tube: | Hitachi , M34KDD50X , M34KDD50XE02 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |

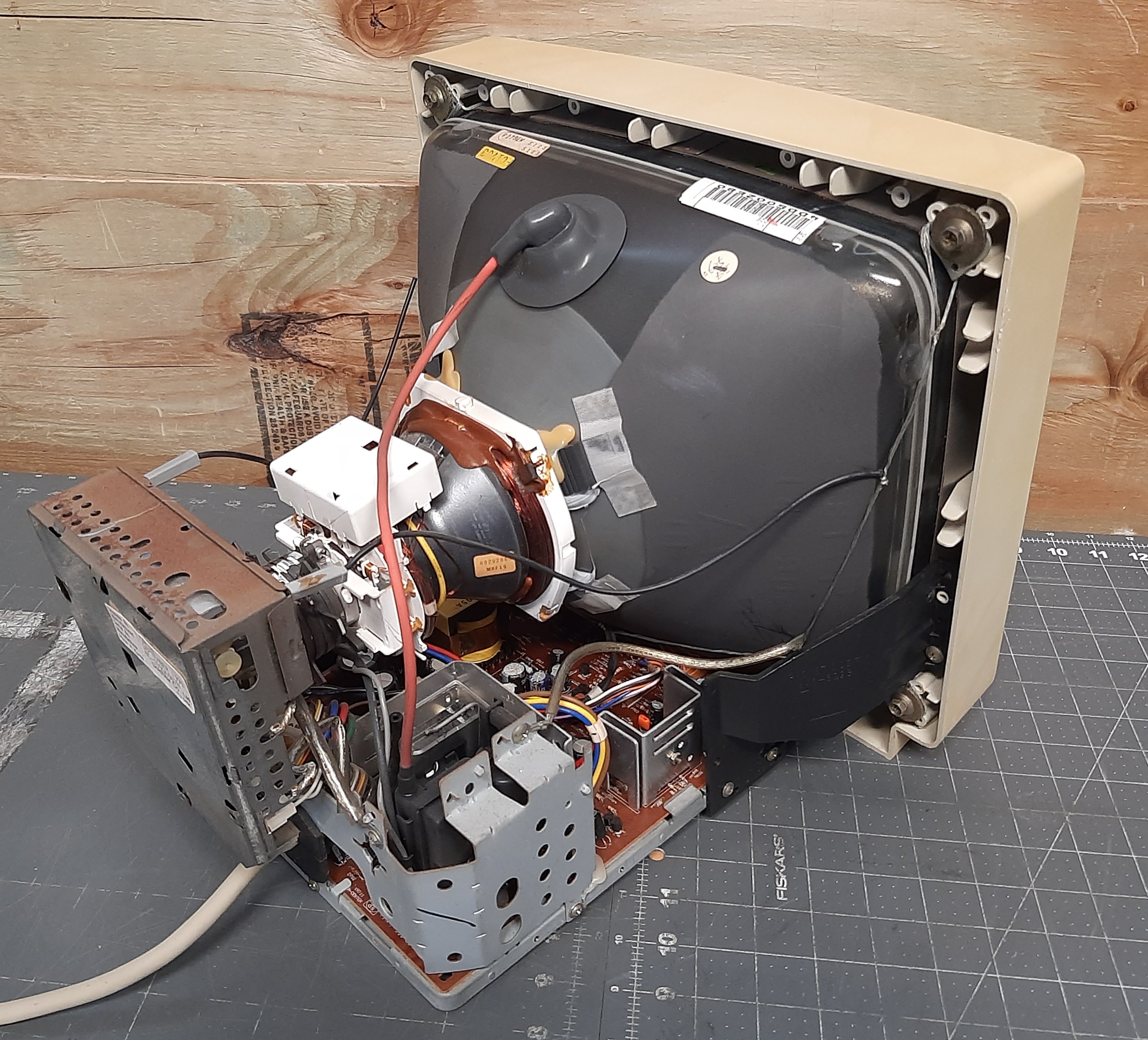

| Yoke: | 89292860 |
| Yoke Horz. Inductance: | 0.3964 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 7.819 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.66 ohm |
| Yoke Vert. Resistance: | 7.51 ohm |
| Speakers: | None |

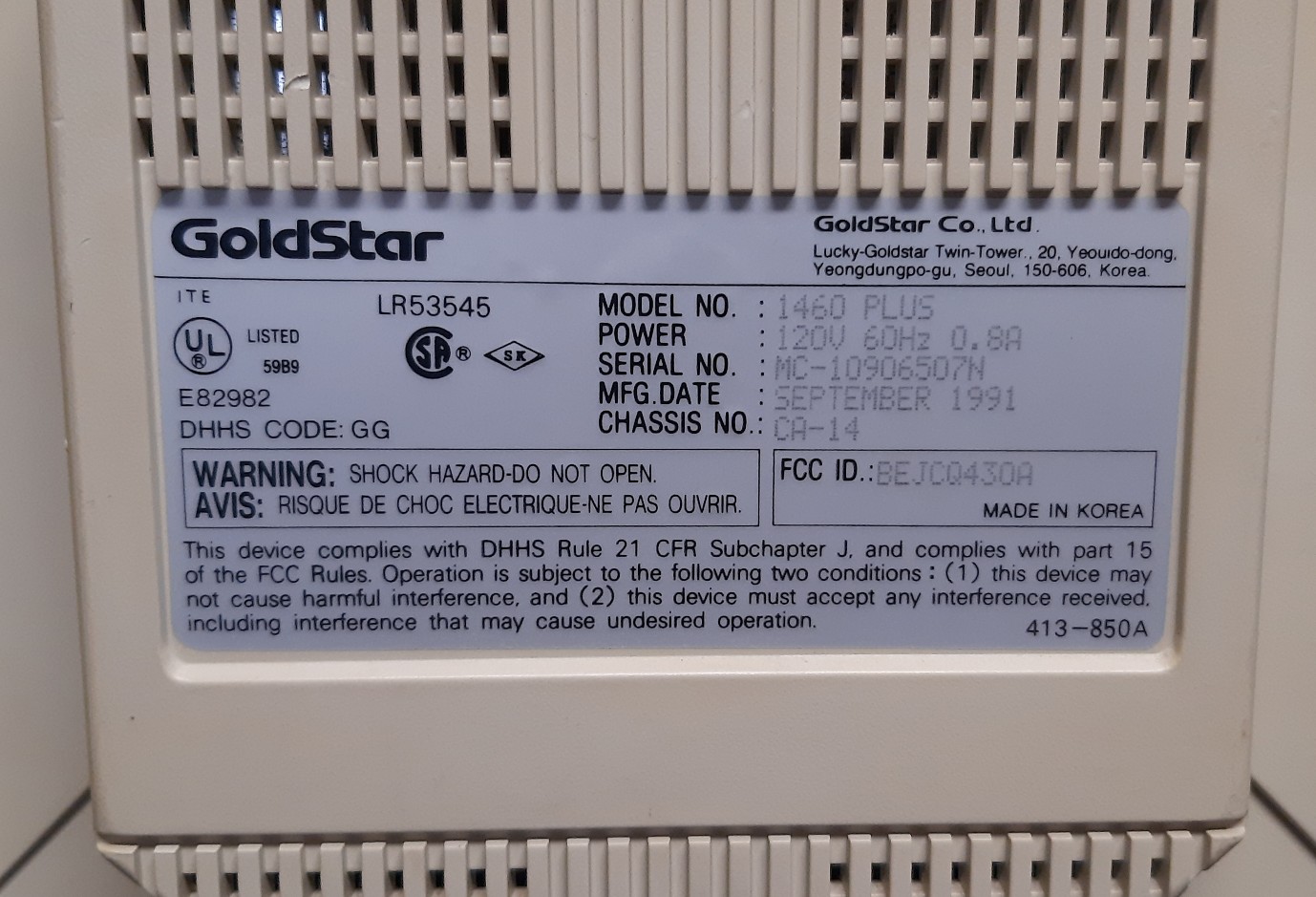

| Chassis: | CA-14 |
| Weight: | 21.8 lbs (9.9 kg) |
| Dimensions (W/H/D): |
350 x 352 x 370 mm
(13.8 x 13.8 x 14.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1990 |
| MSRP: | 799 USD |
| Country of Manufacture: | Korea |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
