Summary

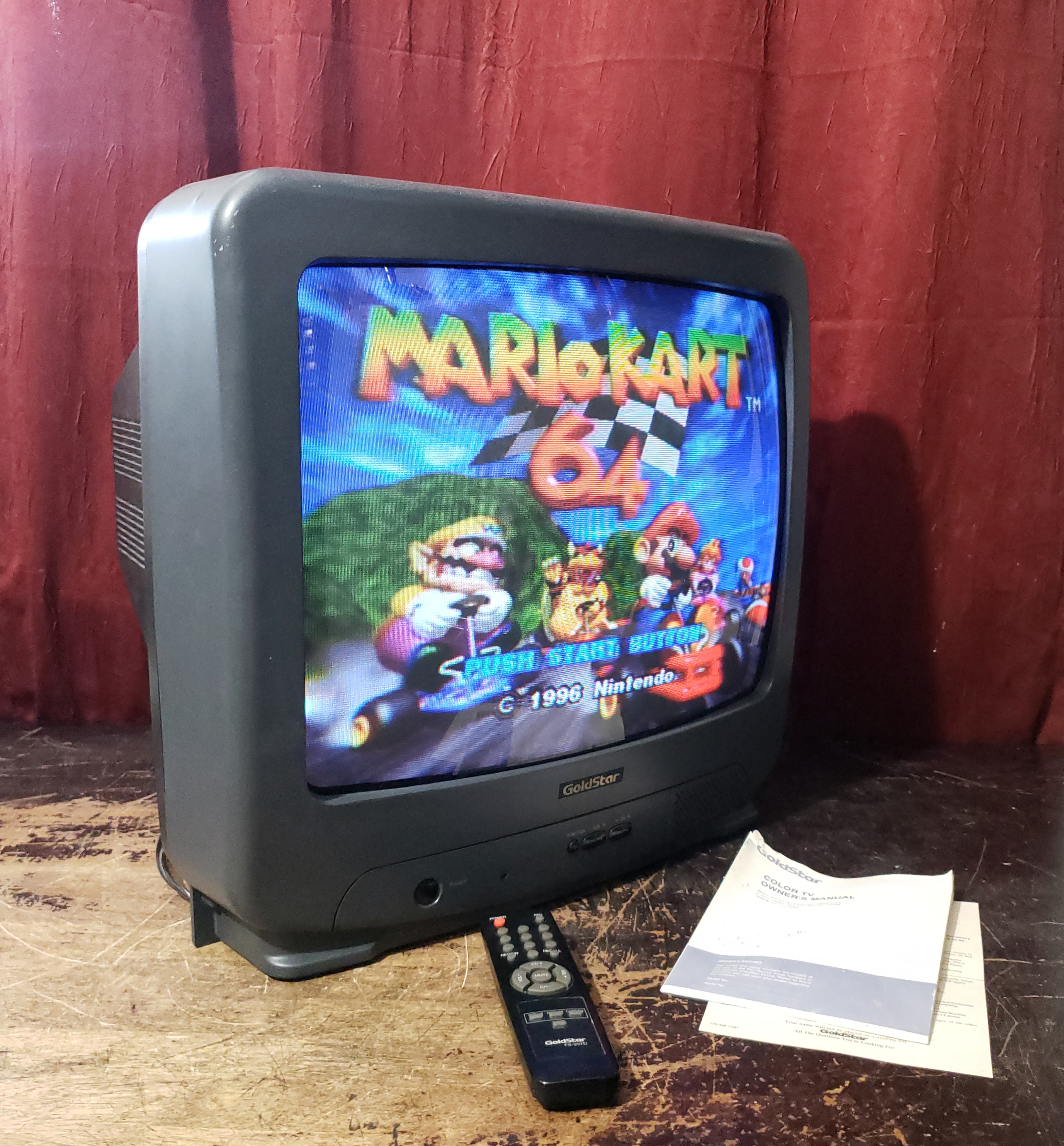

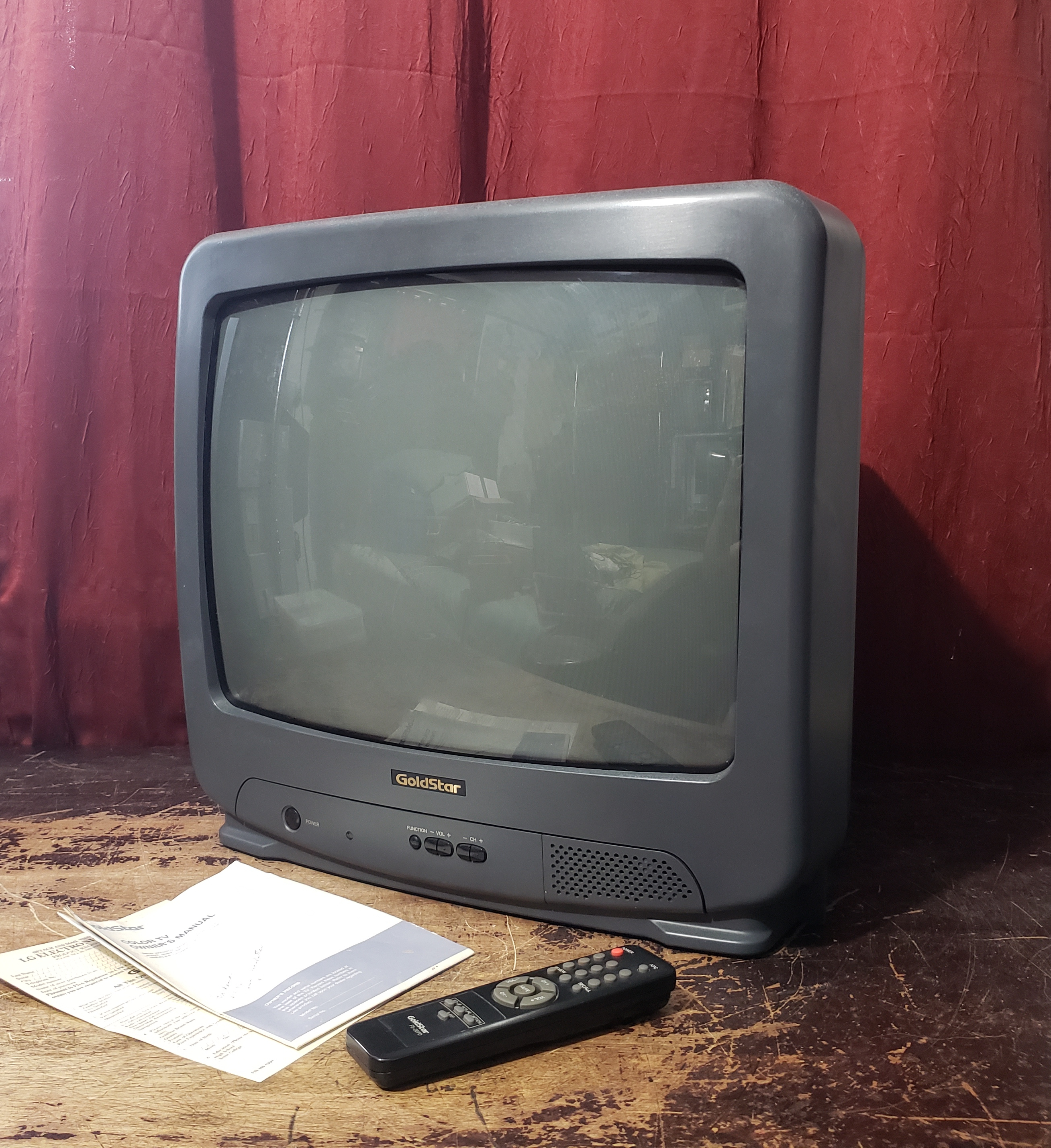

GoldStar 19" color television. Remote control, high-contrast dark-glass picture tube. Built-in Closed Caption decoder.
Manuals
- Owner's Manual
- Link to purchase Sam's for the similar GCT-1904M
Media & Promo Materials
- 1995 Newspaper Ad
Notes
The owner's manual could come in either booklet form or a single large fold-out sheet.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
| Specifications | |
|---|---|
| Brand: | GoldStar |
| Manufacturer: | LG |

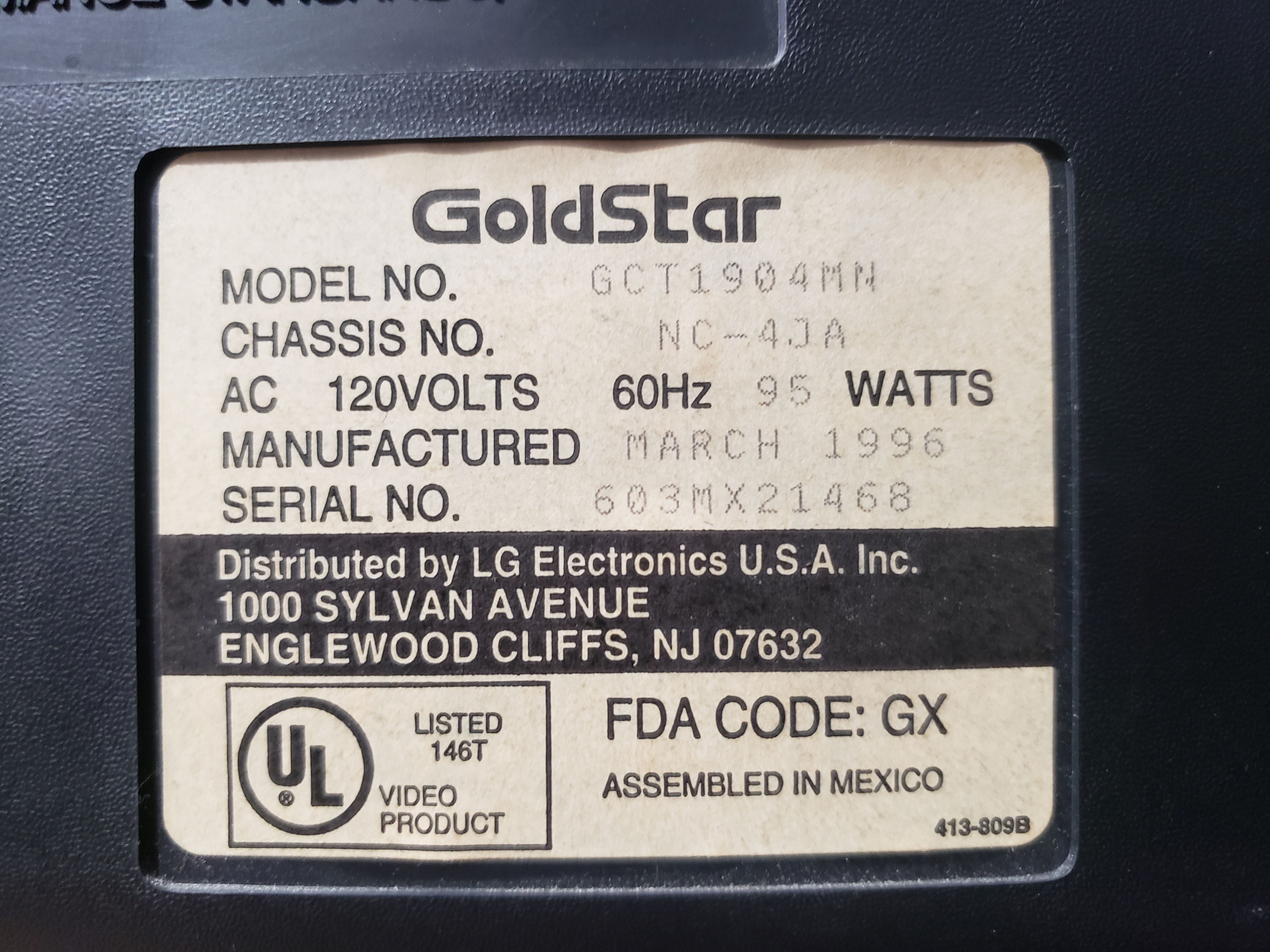

| Model: | GCT-1904MN |
| Series: | GCT |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

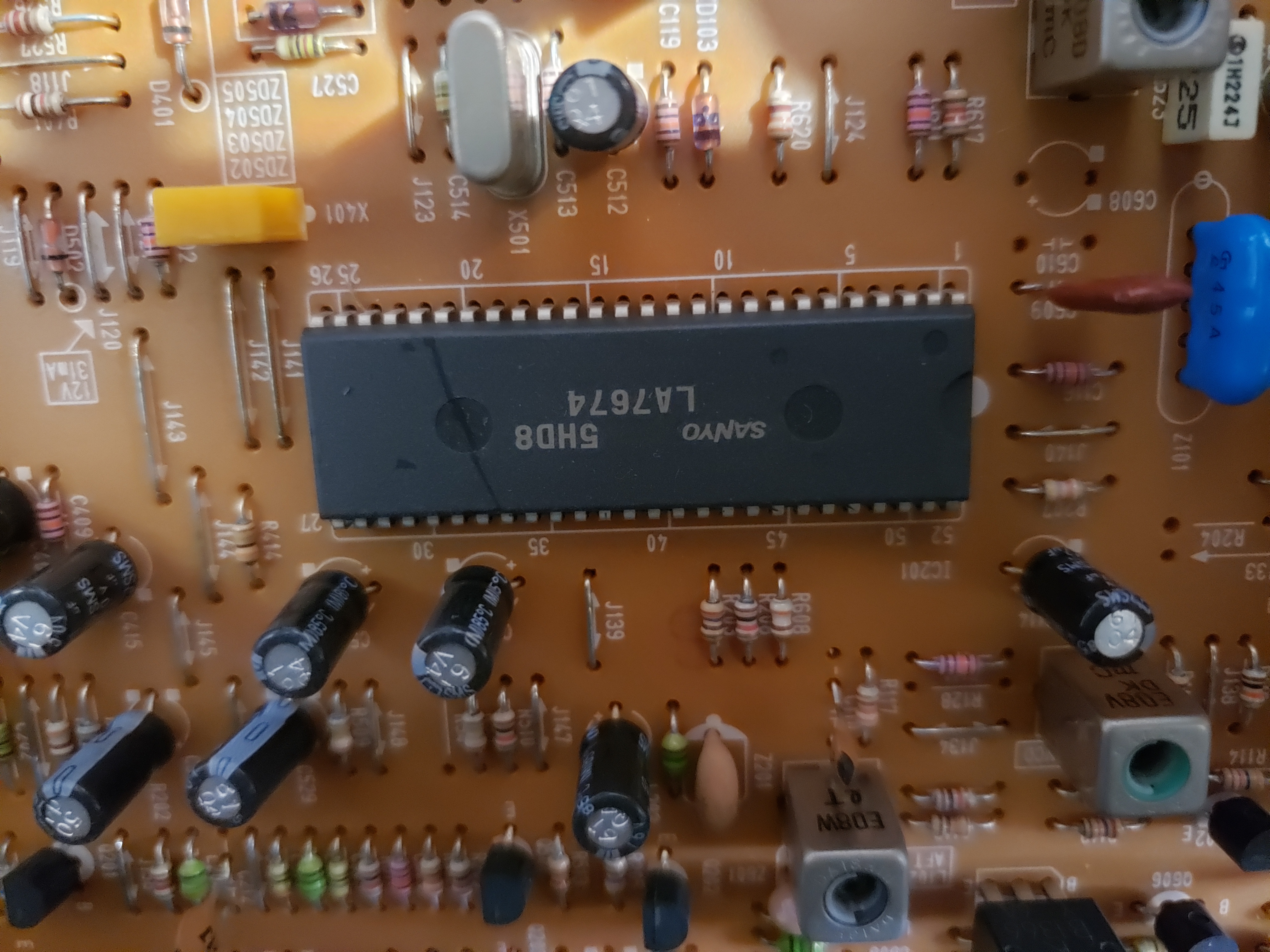

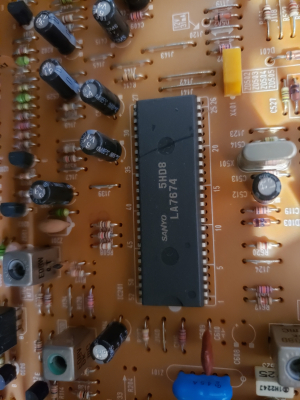

| Jungle IC: | Sanyo, LA7674 |

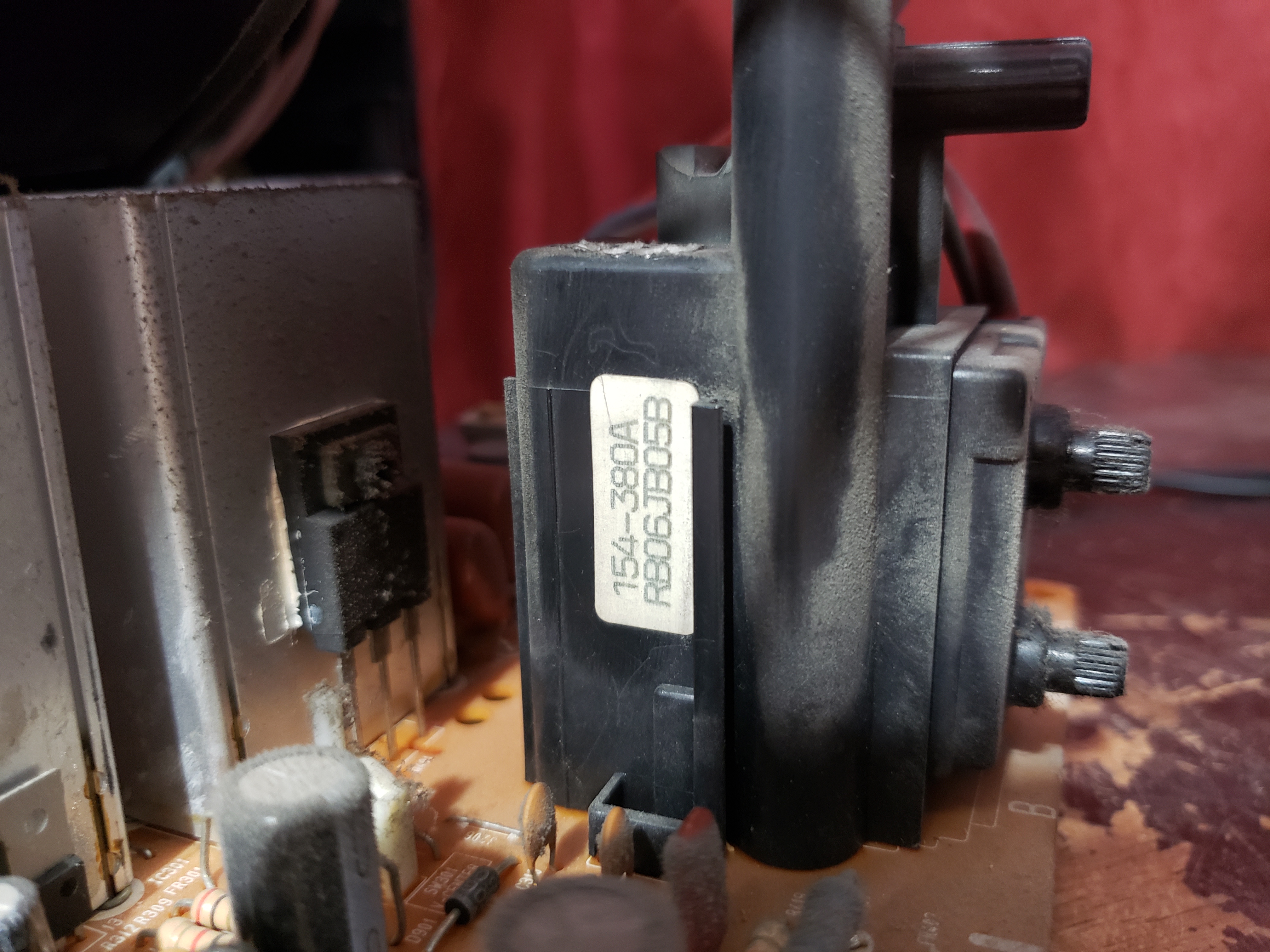

| Flyback: | 154-380A |
| Focus Type: | Single |

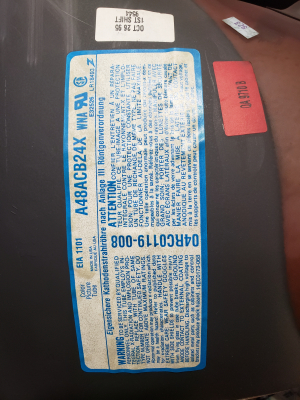

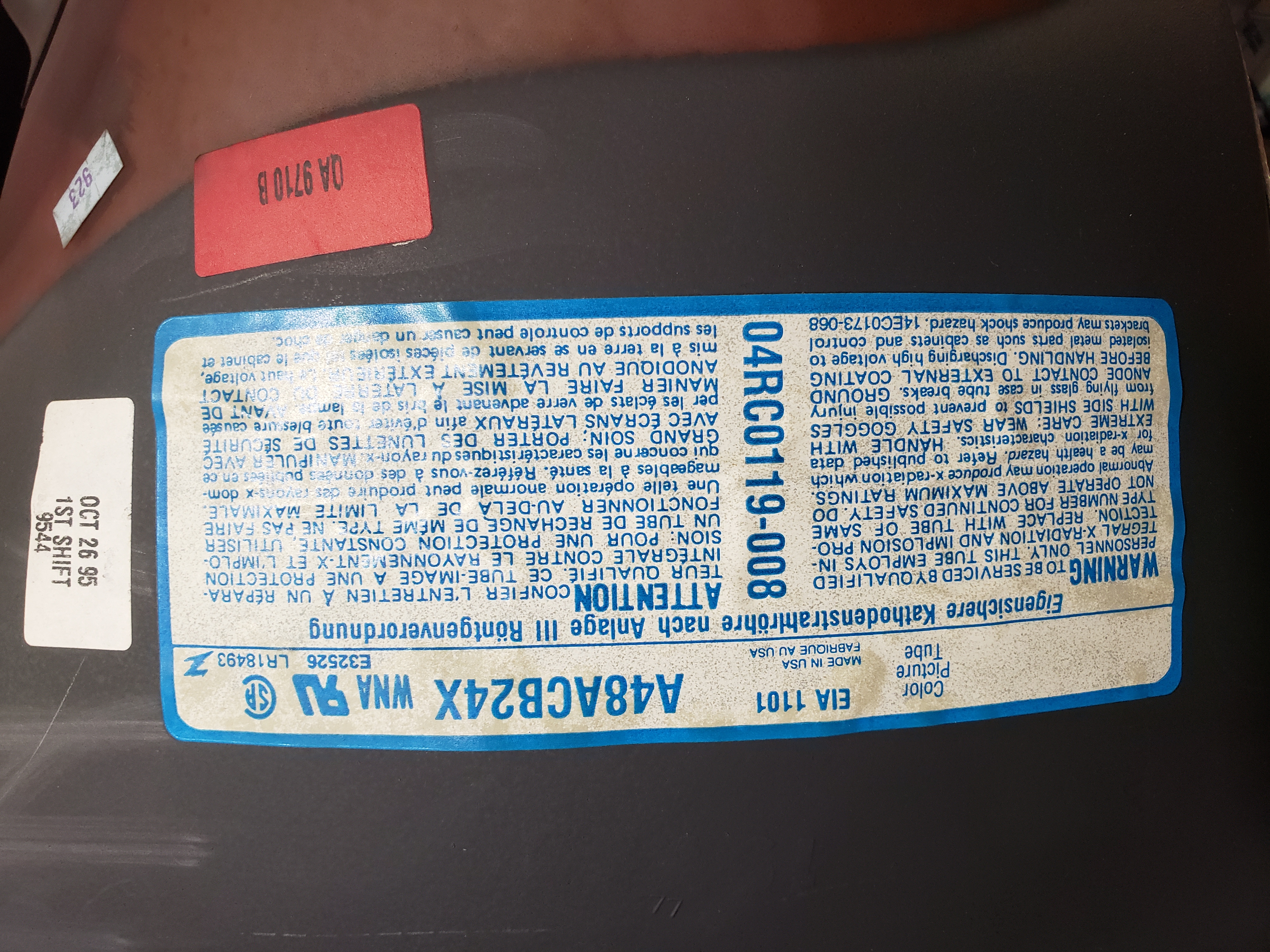

| Tube: | Zenith , A48ACB24X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

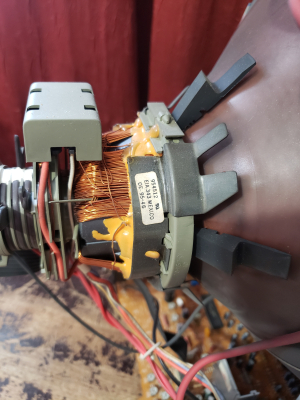

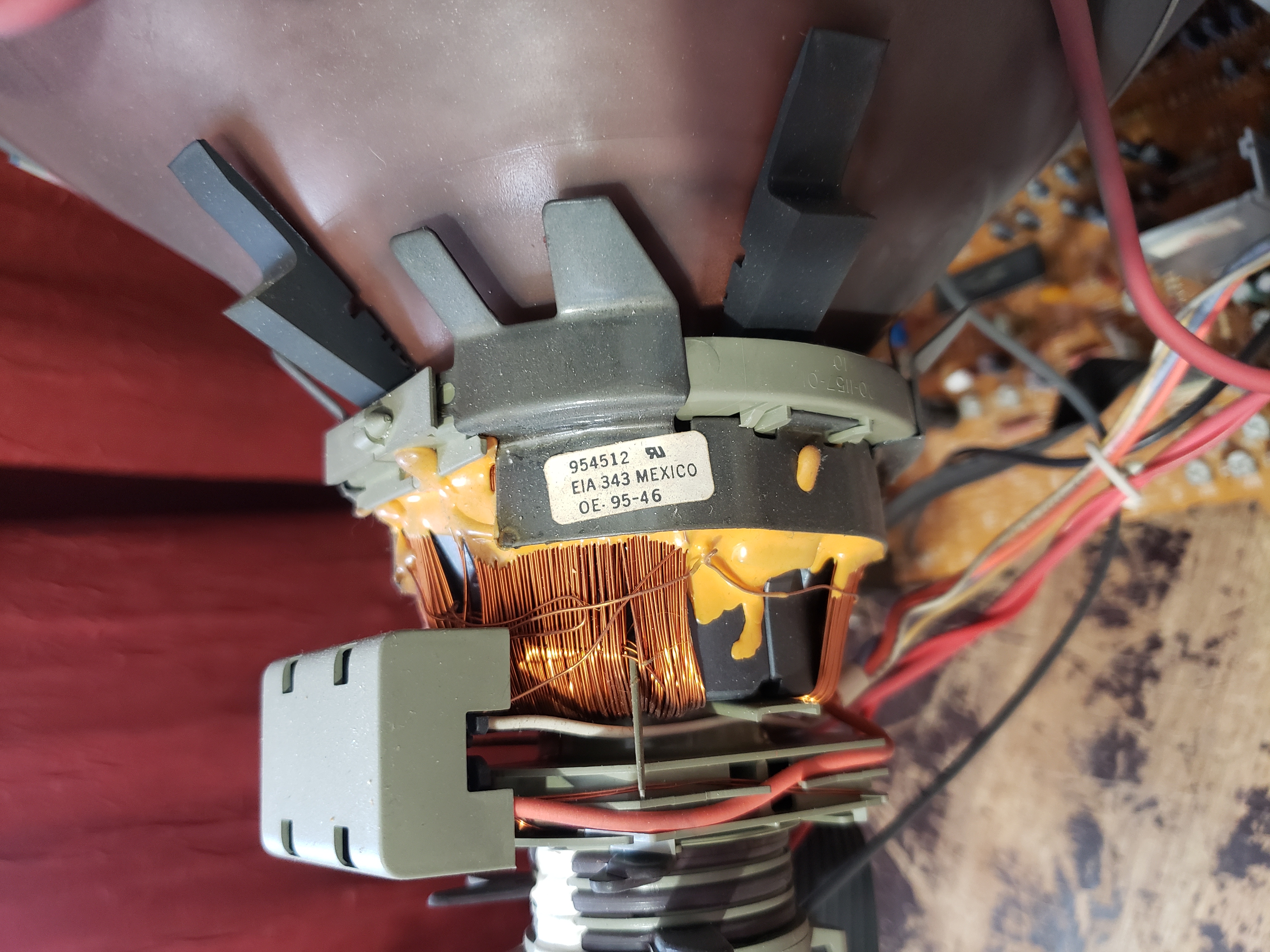

| Yoke: | OE-95-46 |
| Yoke Horz. Inductance: | 2.928 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 21.34 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.72 ohm |
| Yoke Vert. Resistance: | 9.30 ohm, 9.3 ohm |
| Speakers: | Mono |

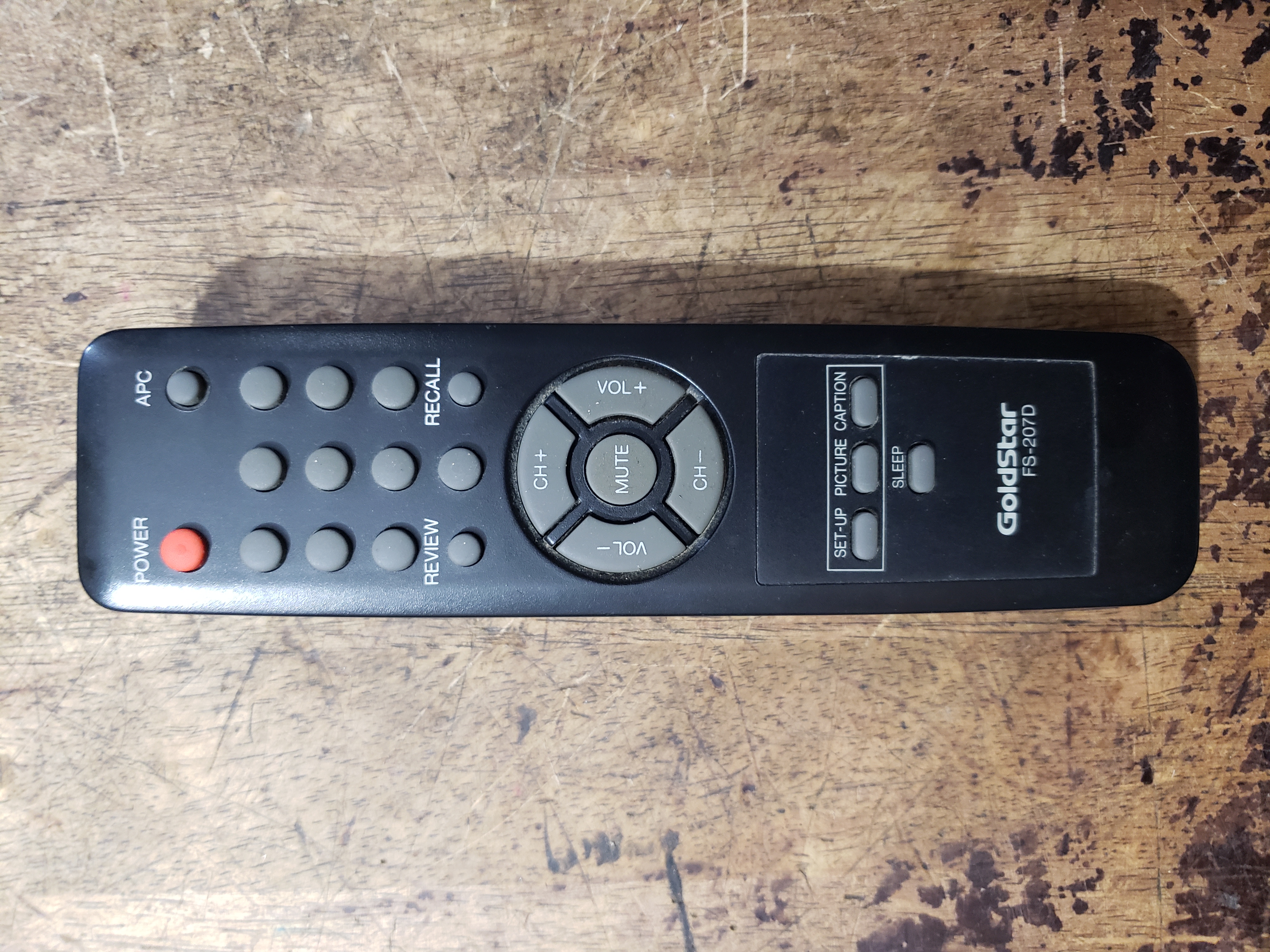

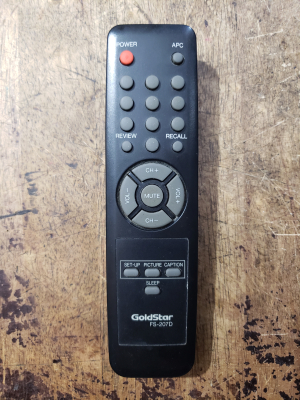

| Remote: | FS-207D |
| Chassis: | NC-4JA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| MSRP: | 229 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
