Summary
S-Video set made by Sharp with a flatter (1.7R) tube.
Manuals
Media & Promo Materials
Notes
Default sharpness level causes noticeable ringing; reduce to mitigate. Contrast is at max level by default, and picture quality would benefit from being lowered.
Unlike most TVs, the service menu can be accessed and navigated without the use of a remote.
The jungle chip used in this TV is a clone of the Toshiba TA1268AN, and can be modified for RGB input. The process should be the same as the 13K-M100B.

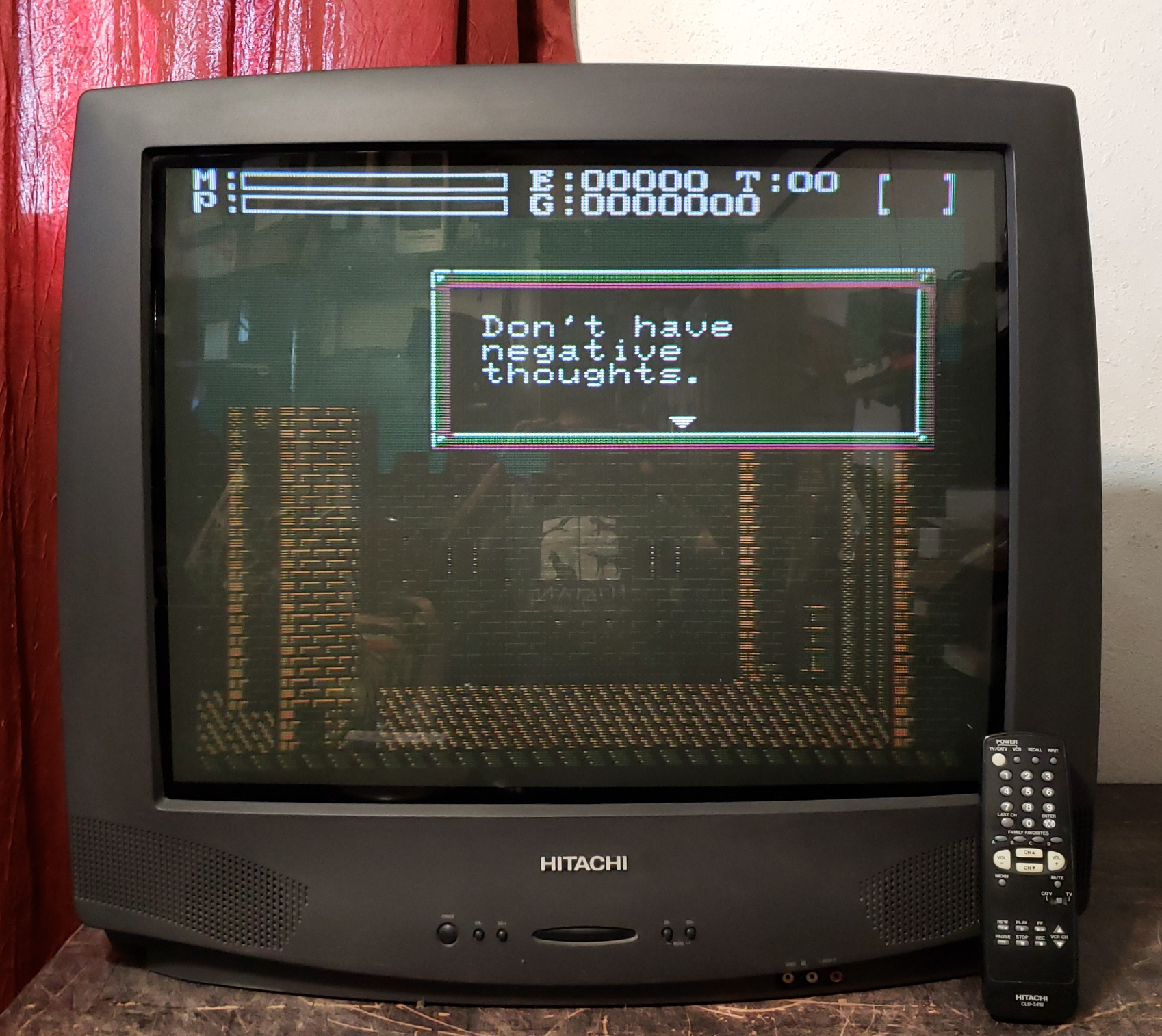

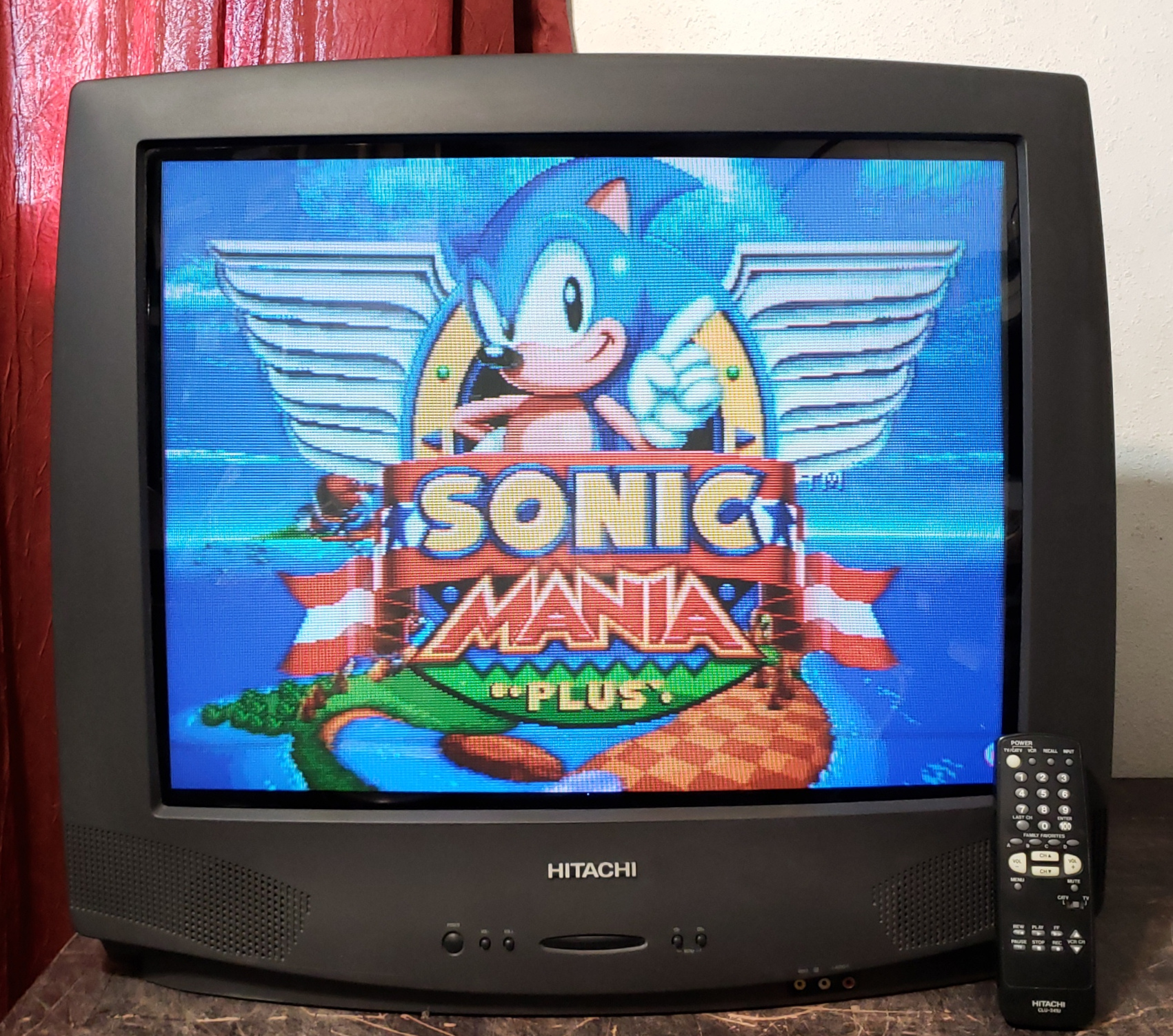

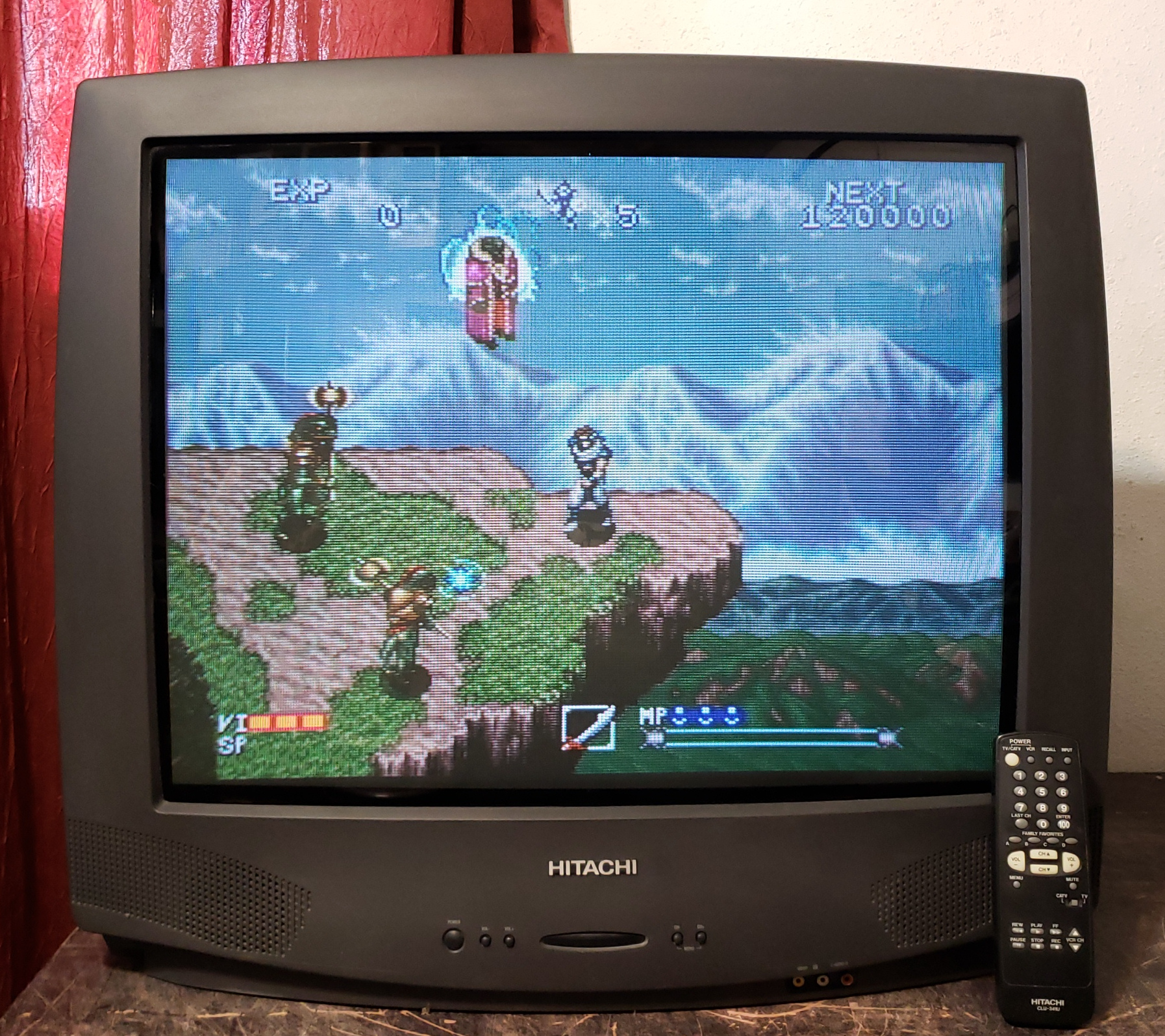

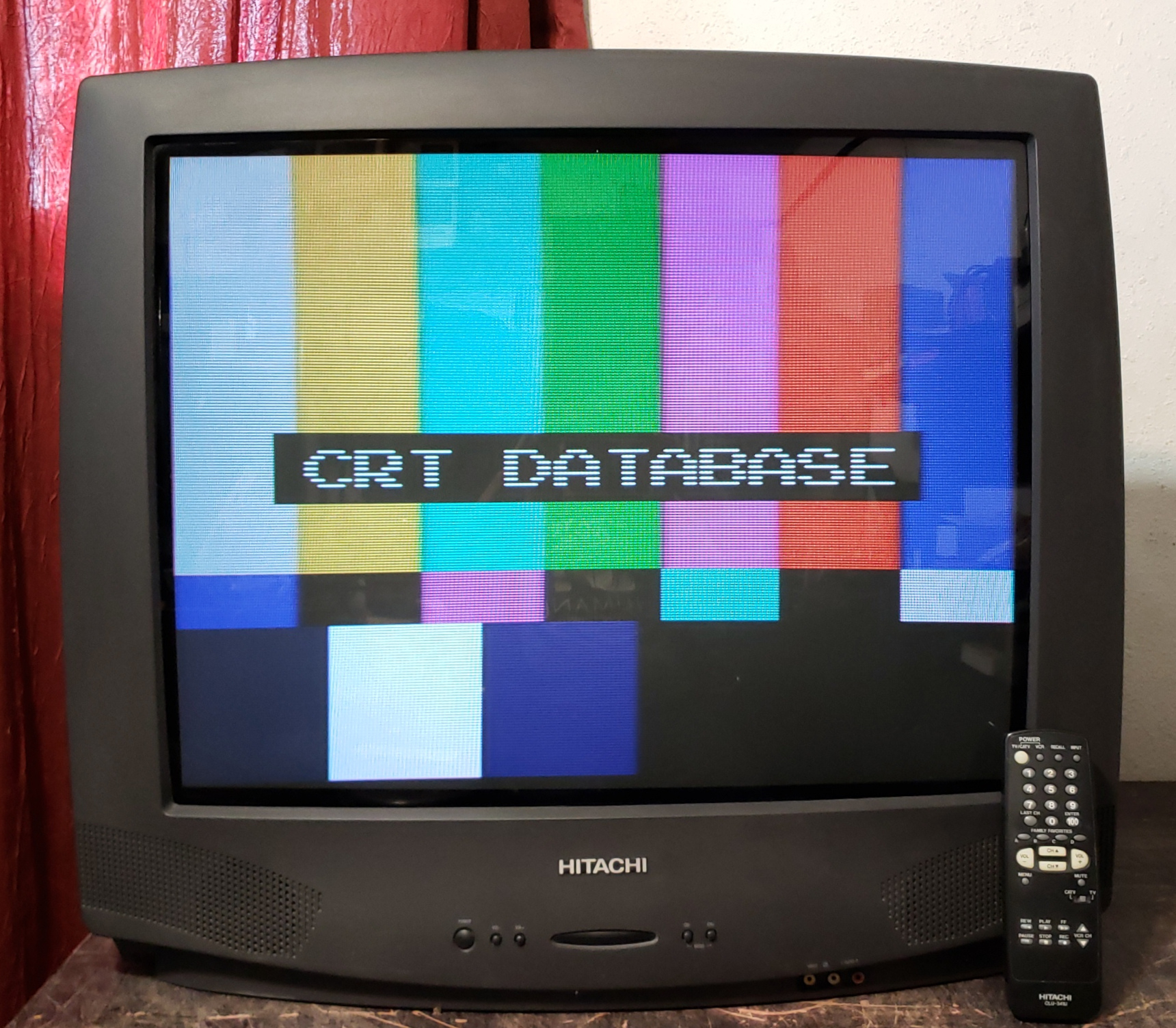

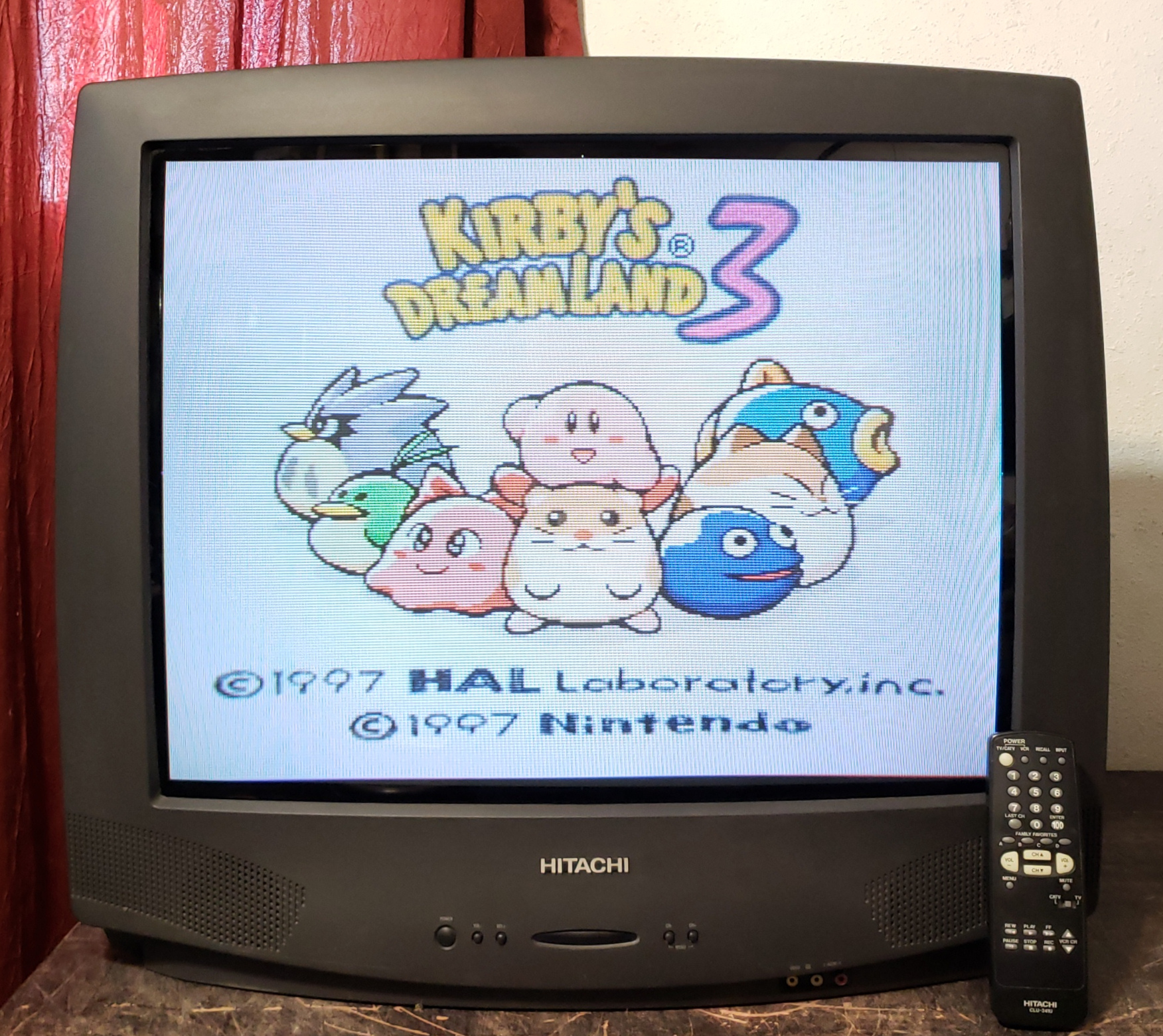

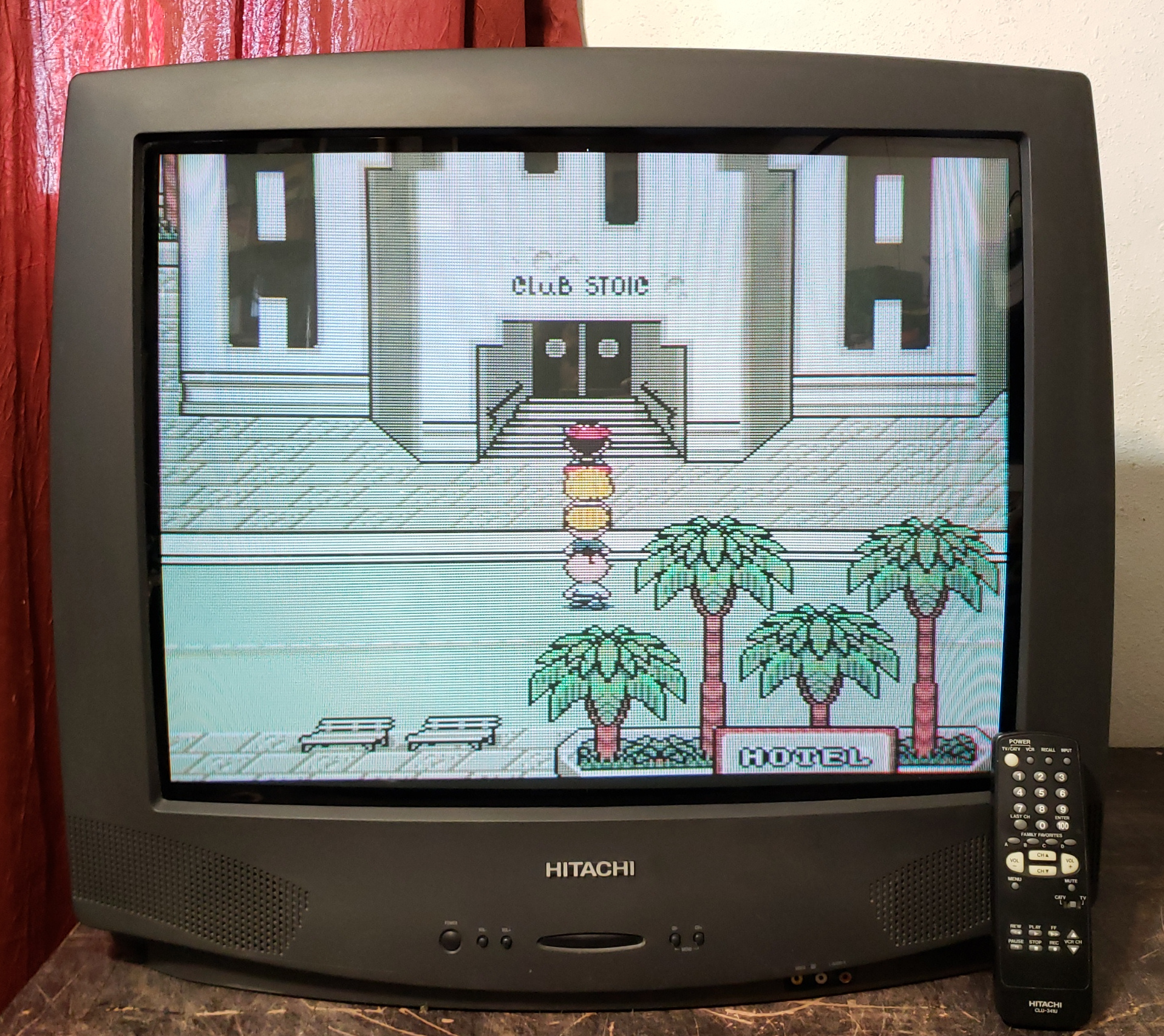

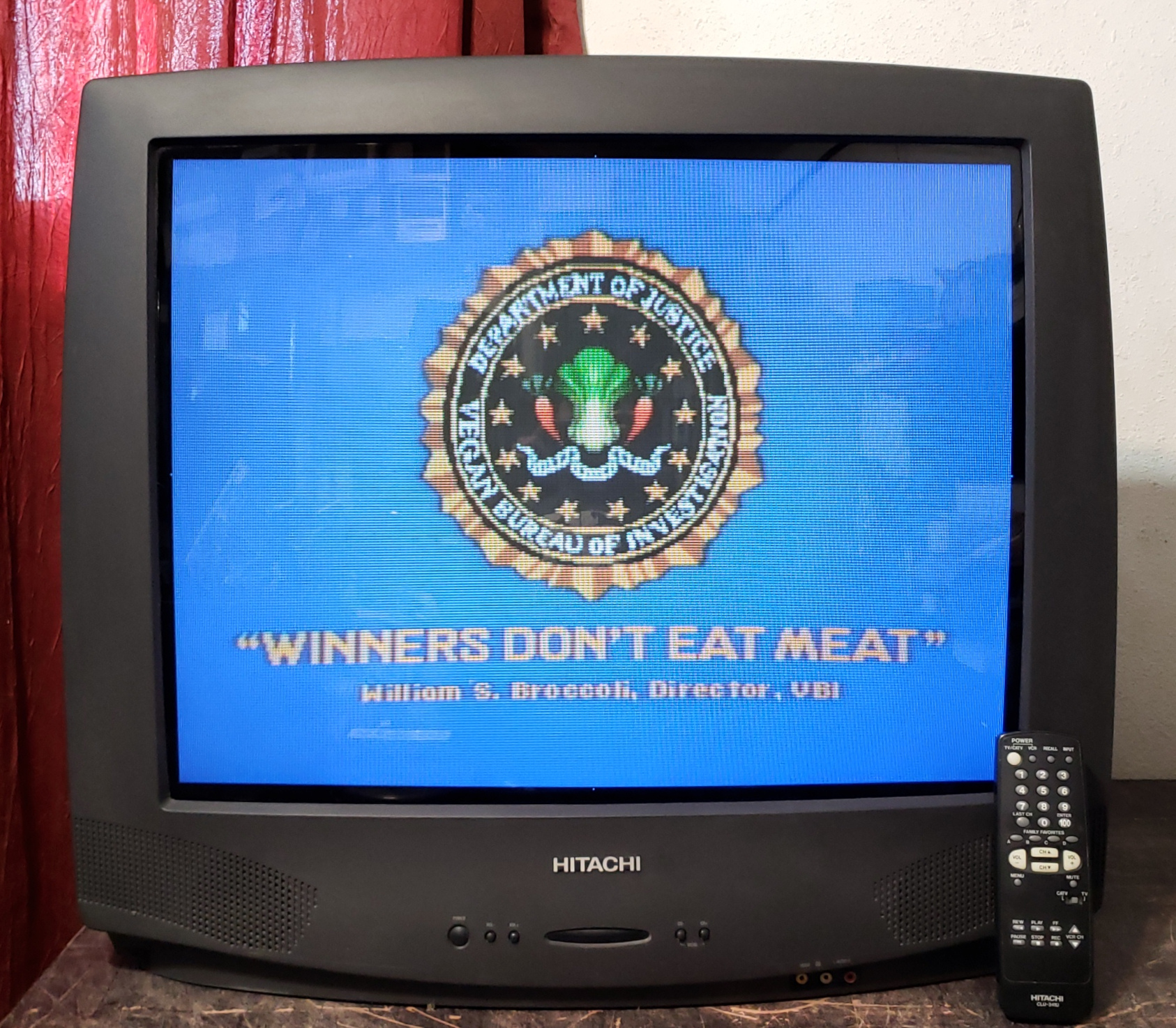

Gallery
| Specifications | |
|---|---|
| Brand: | Hitachi |
| Manufacturer: | Sharp |
| Model: | 27CX01B |
| Series: | CX |
| Viewable Size: | 27" |

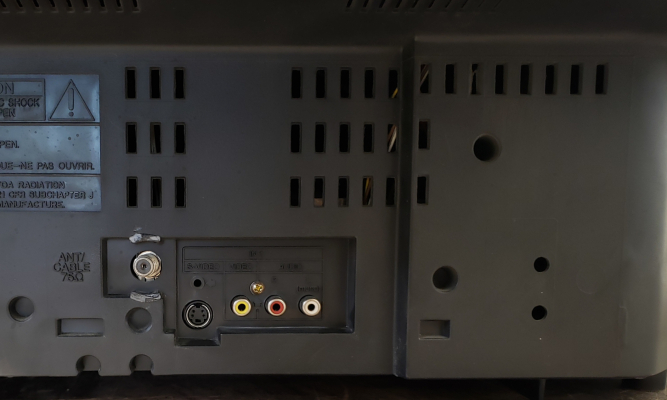

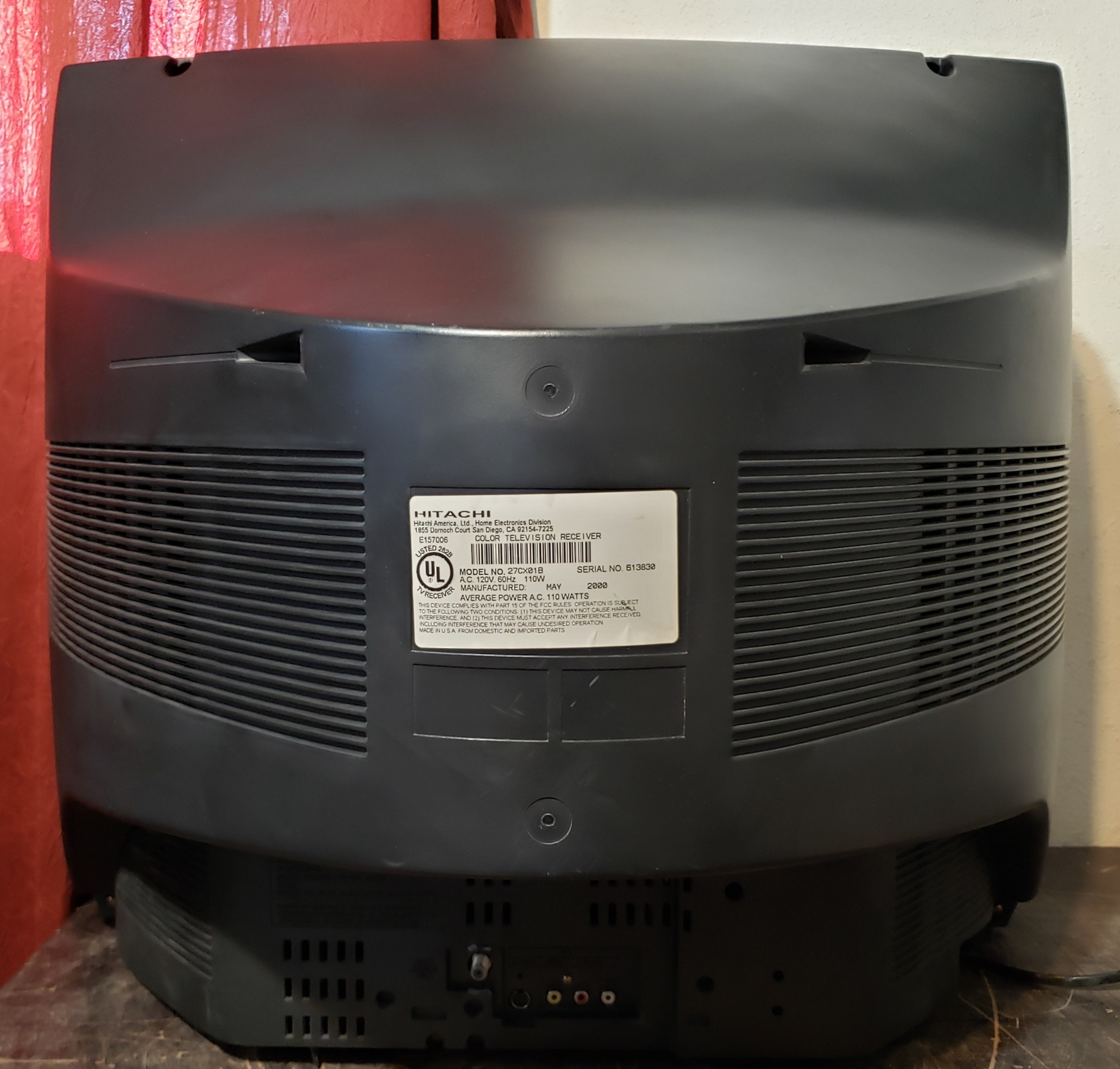

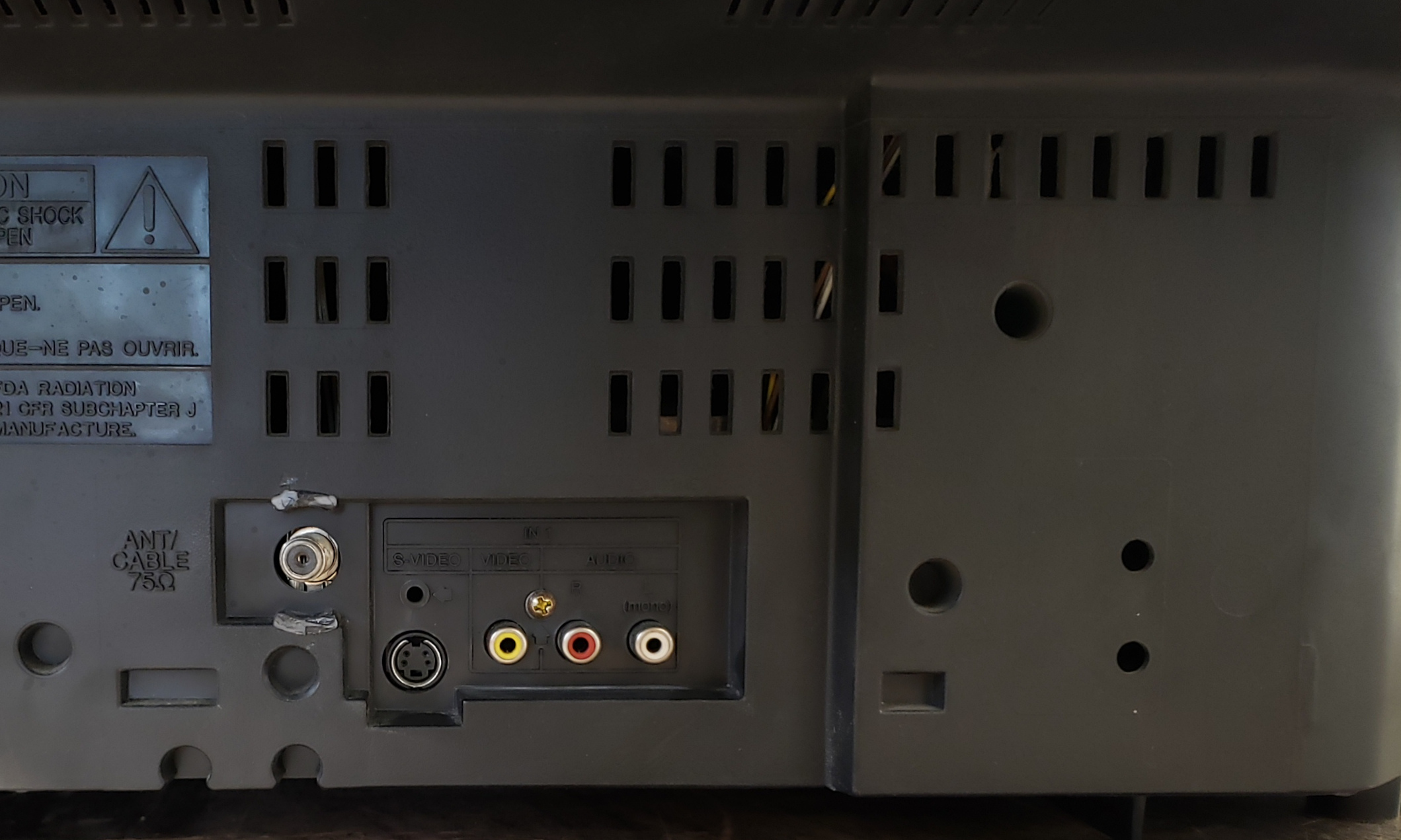

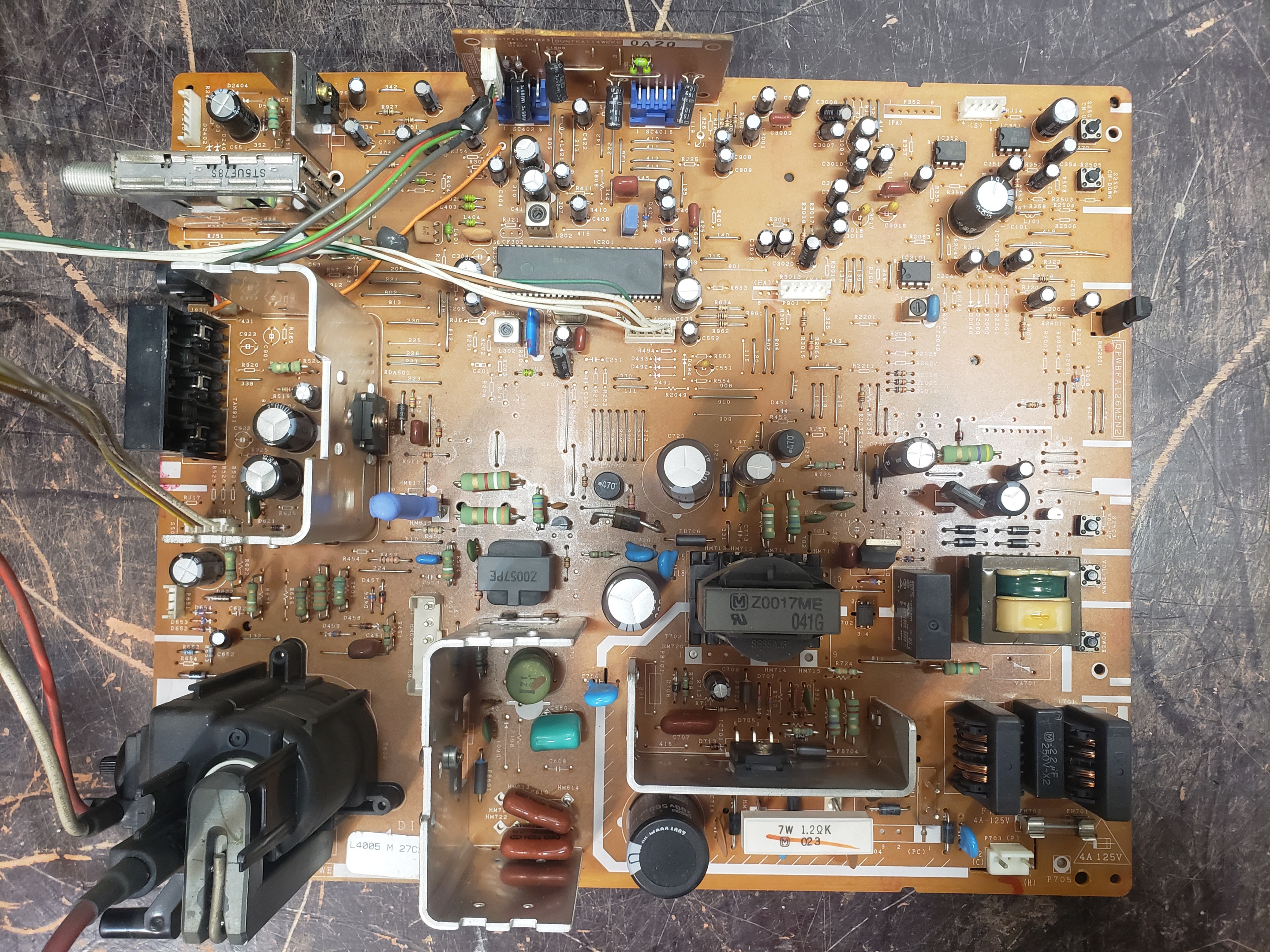

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2539 |
| Vertical Output IC: | TA8427K |

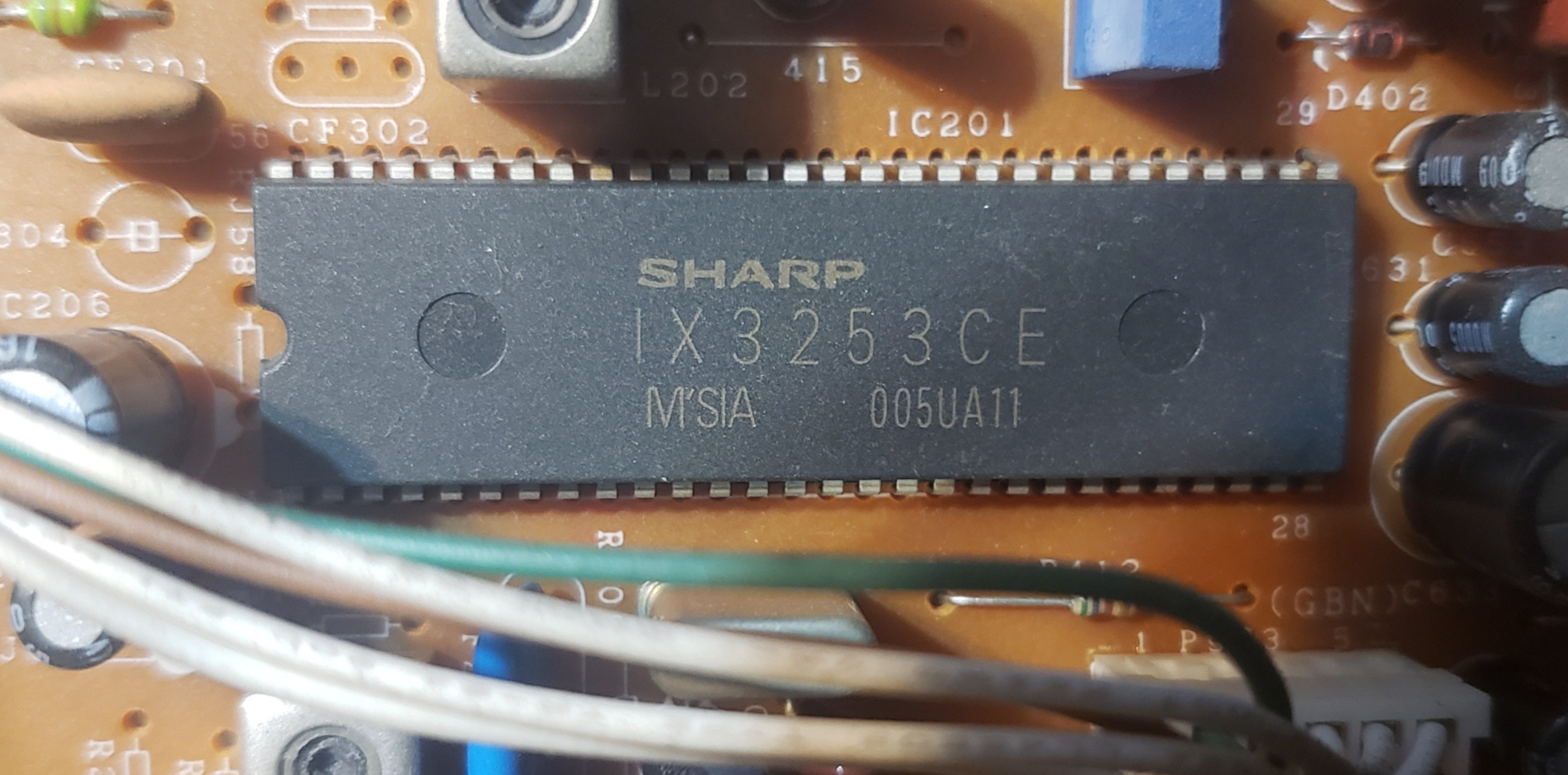

| Jungle: | Toshiba, TA1268N, IX3253CE, Sharp |
| Comb Filtering: | None |

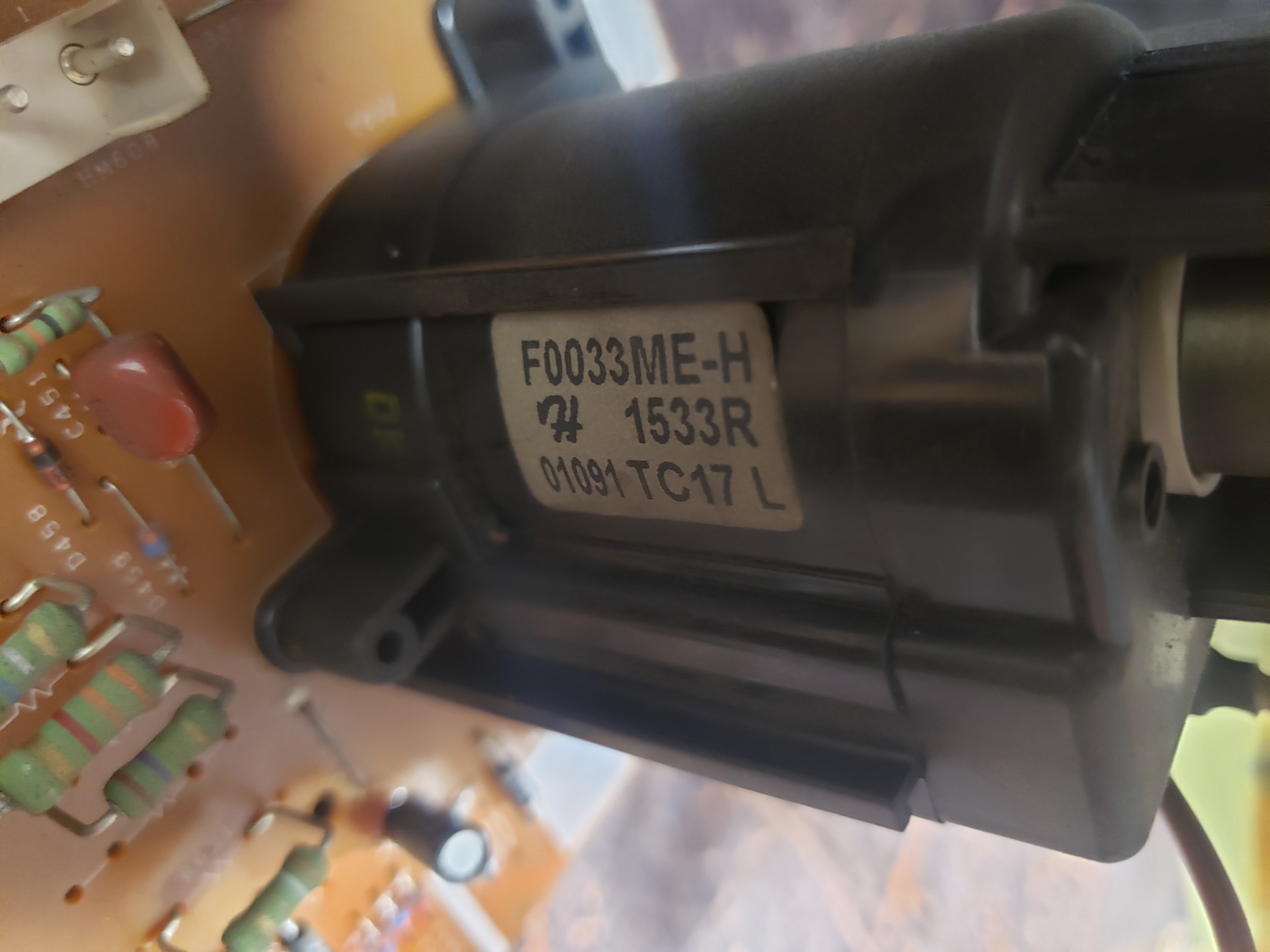

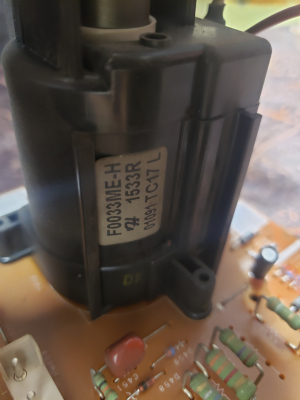

| Flyback: | F0033ME-H |
| Focus Type: | Single |

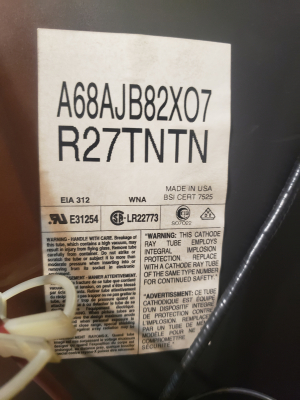

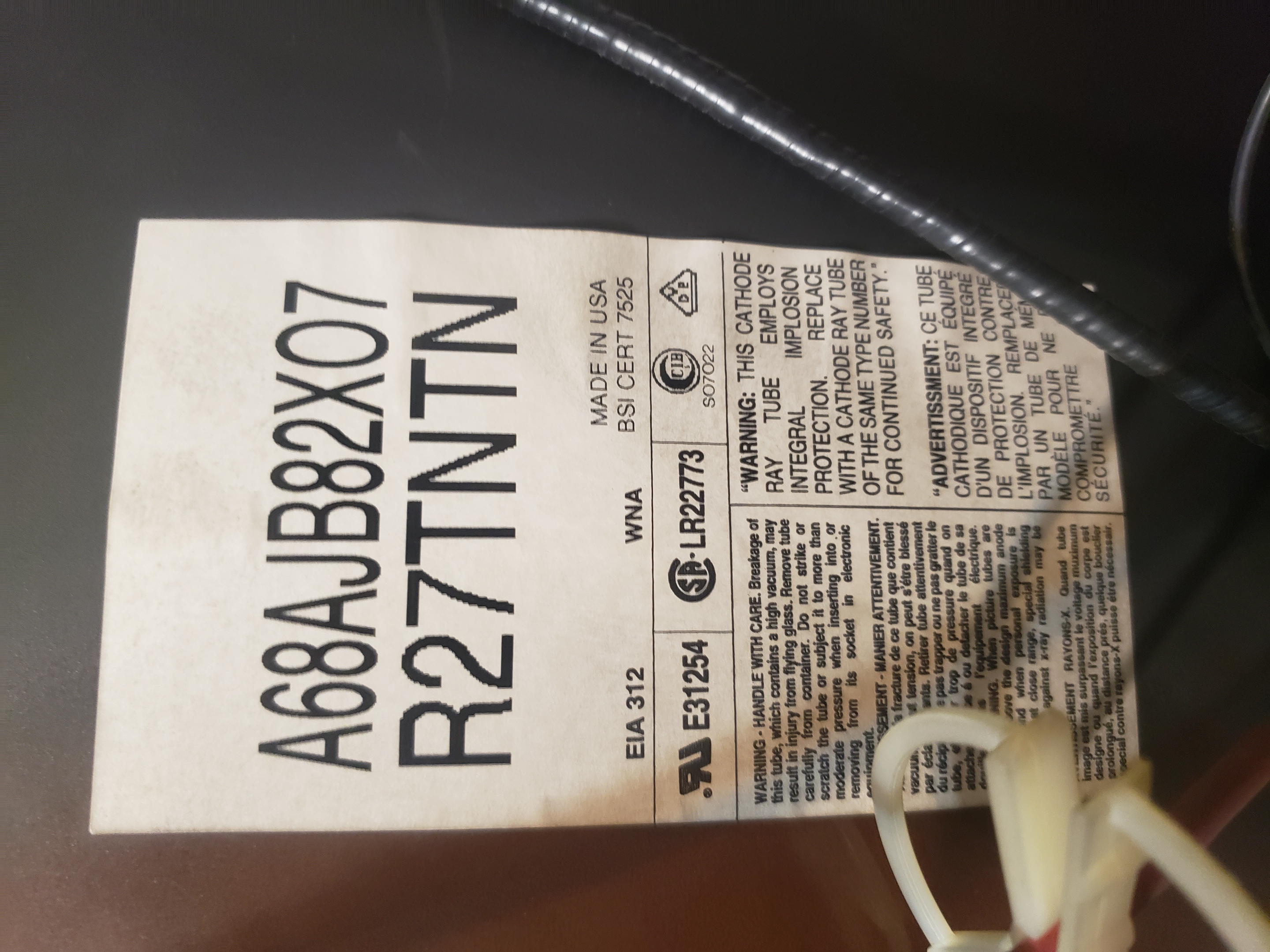

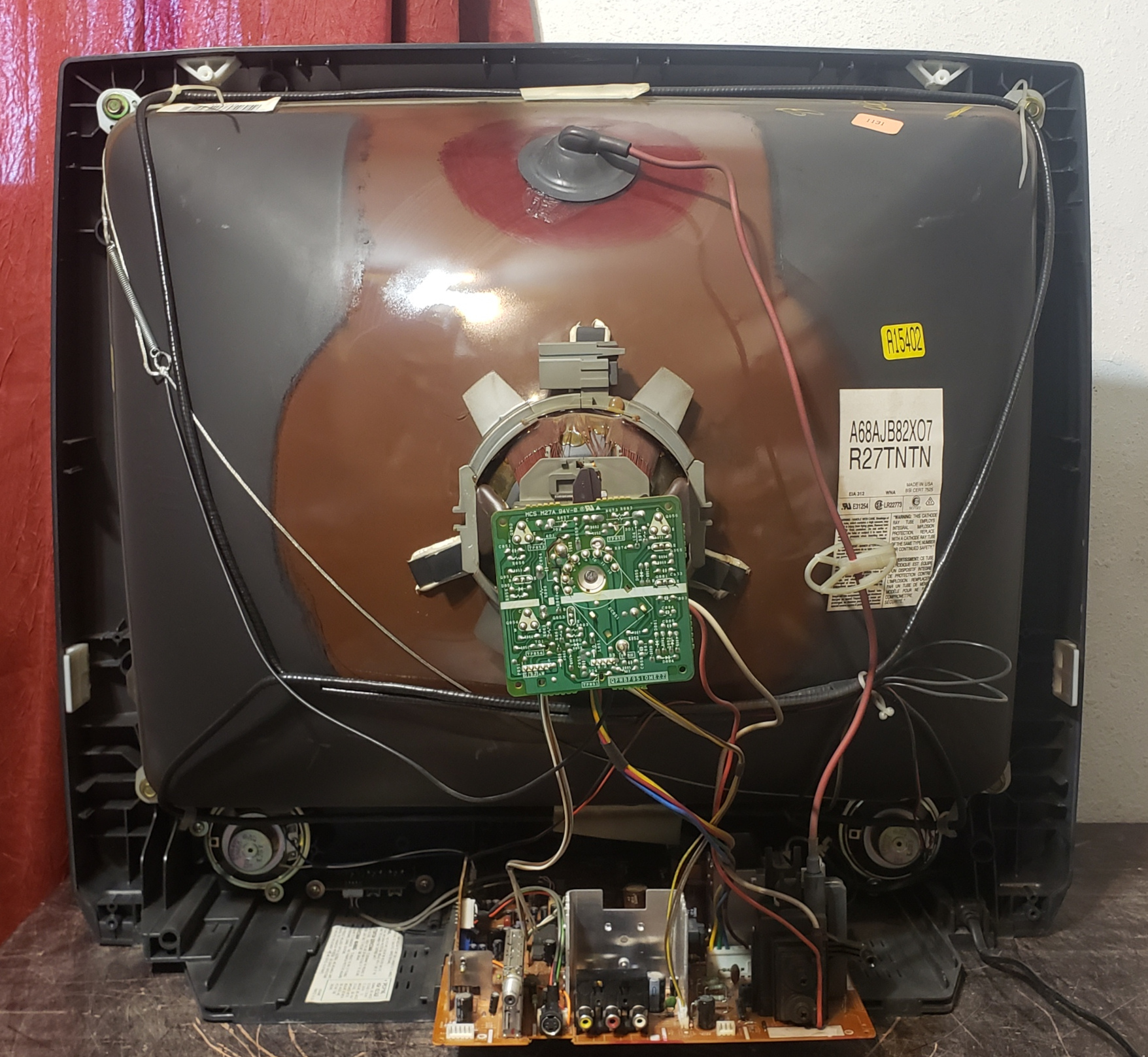

| Tube: | Philips , A68AJB82X , A68AJB82X07 |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Slot
|
| Pitch: | .80 mm, .8 mm, 0.8 mm |
| Tint: | Dark |

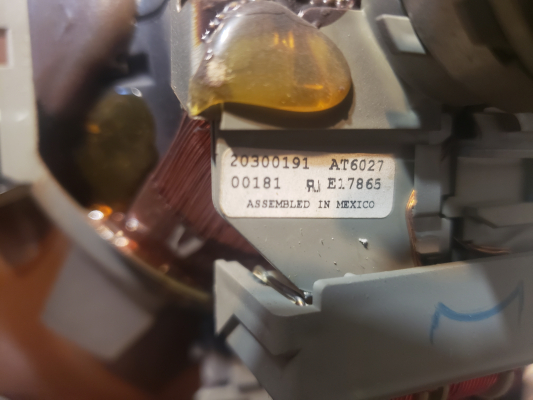

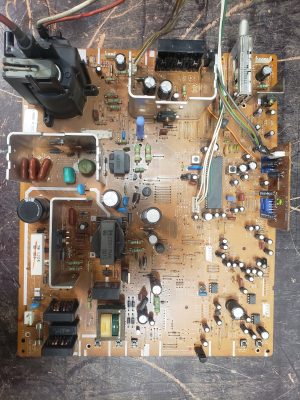

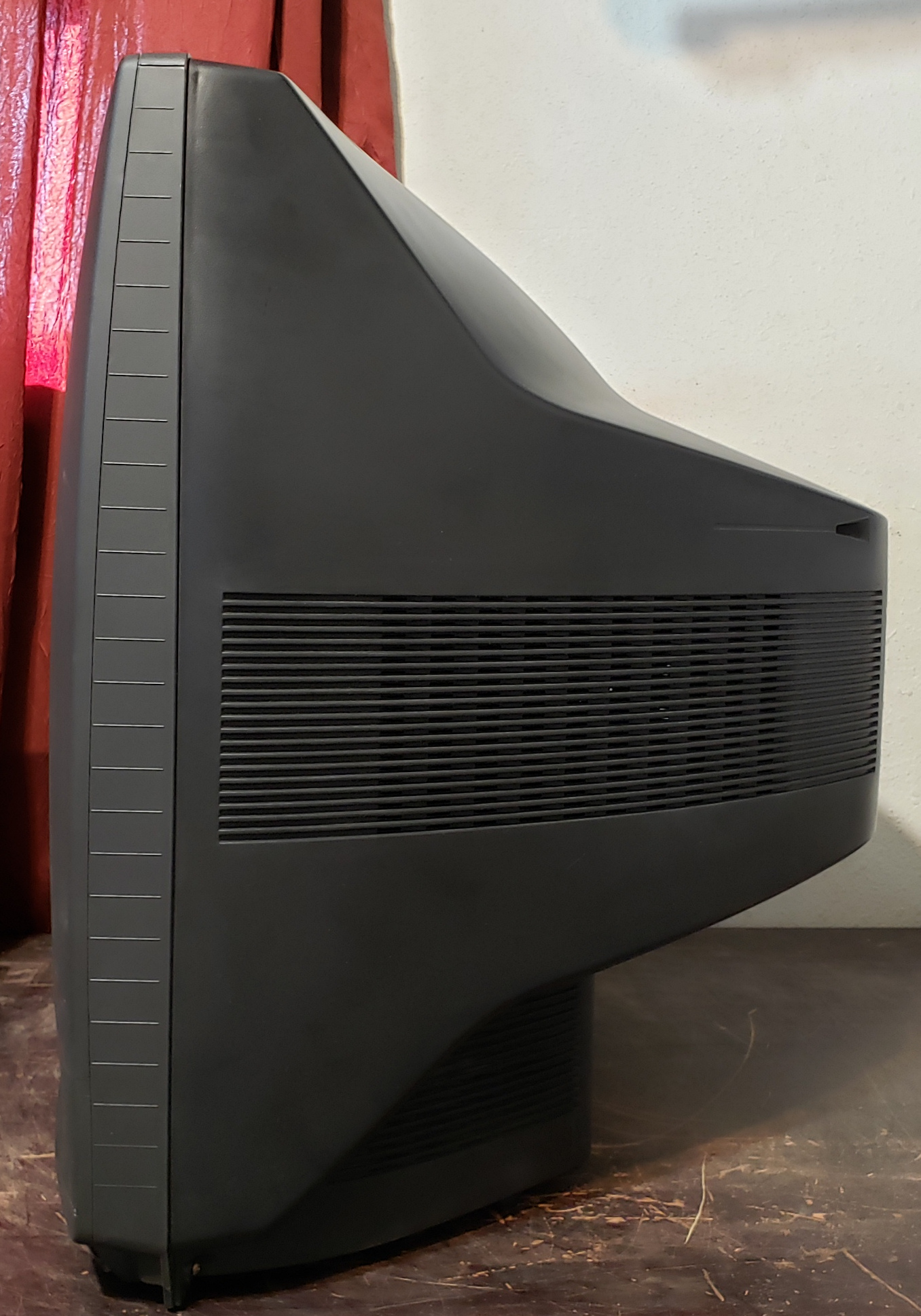

| Yoke: | E17865 |
| Yoke Horz. Resistance: | 1.7 ohm |
| Yoke Vert. Resistance: | 7.7 ohm |
| Speakers: | Stereo |
| Remote: | CLU-341U |
| Chassis: | SN-91 |
| Weight: | 75 lbs (34 kg) |
| Dimensions (W/H/D): |
702 x 610 x 445 mm
(27.6 x 24 x 17.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 349 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SP274B |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
