Hitachi 27DX5B

SegaSaturn94
April 24, 2026, 8:42 am
April 24, 2026, 1:53 pm
Edit Page

Summary

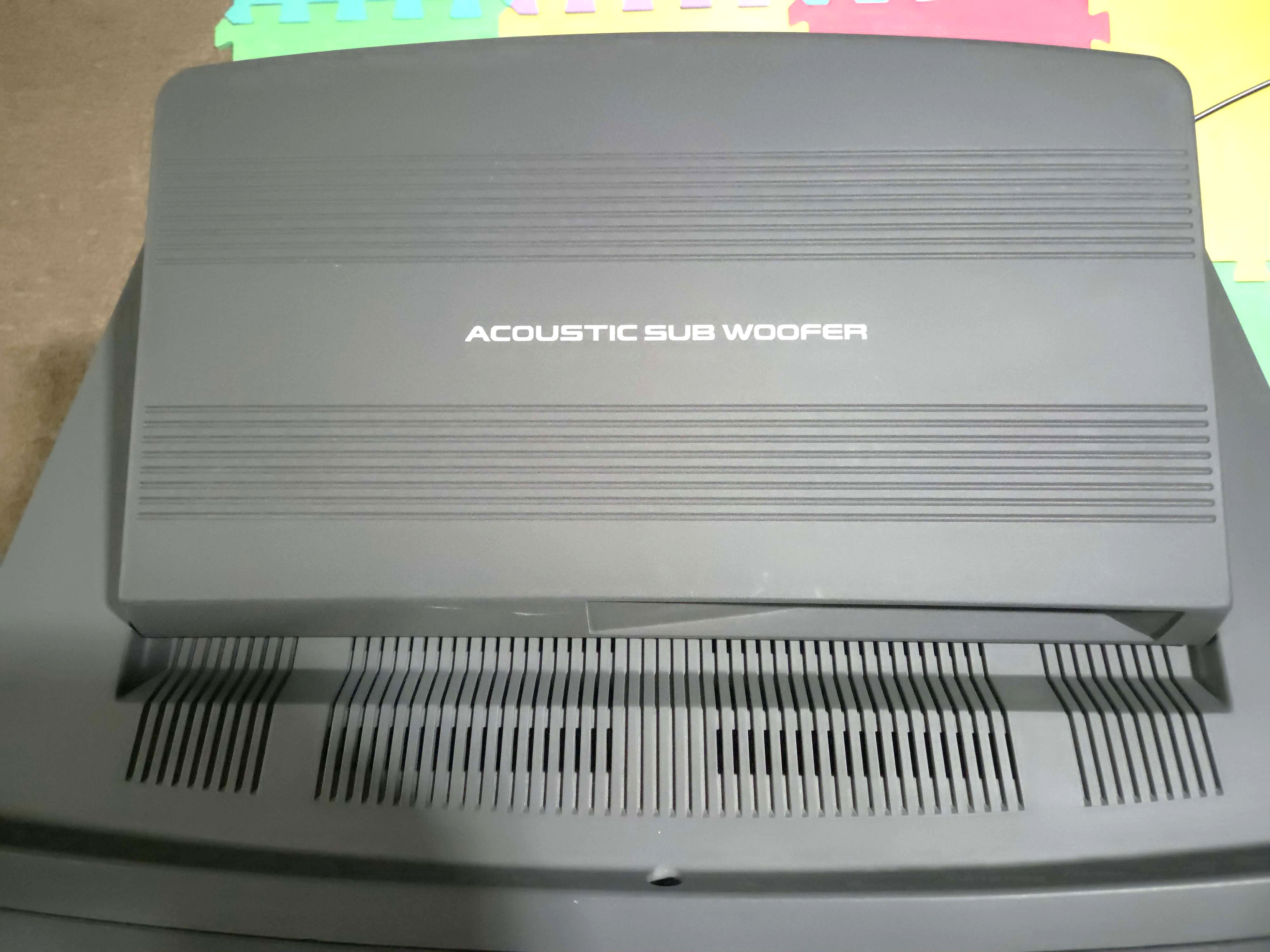

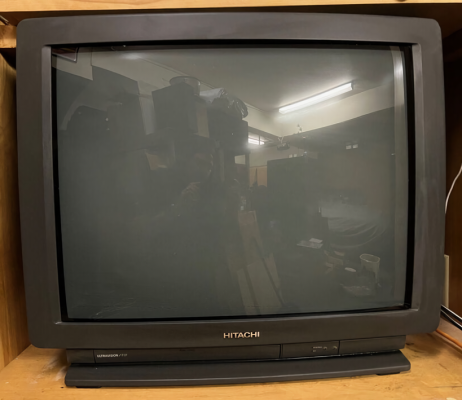

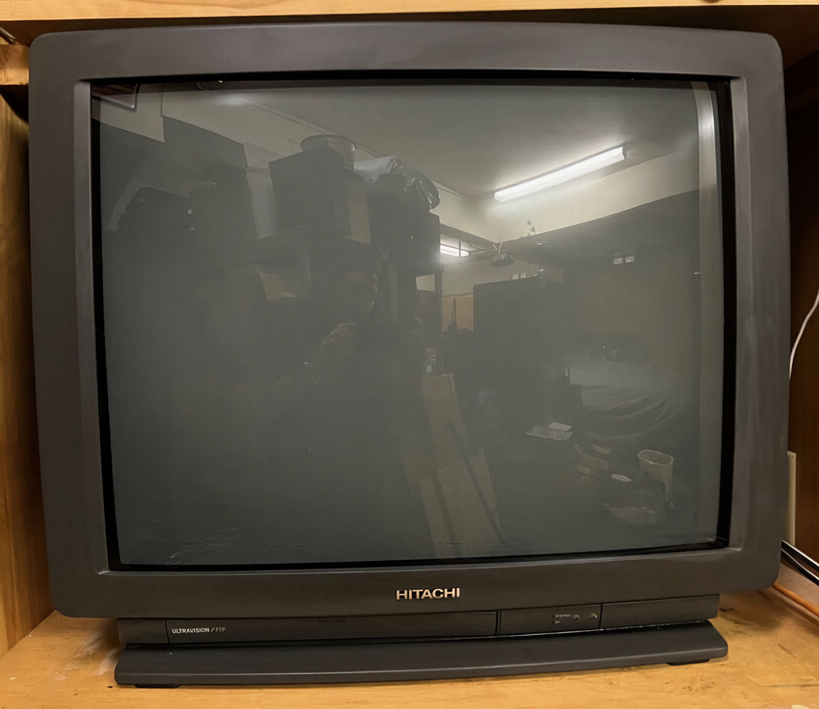

Higher-end 27" CRT by Hitachi, made in Mexico in 1992. has RF, composite, and s-video inputs with stereo sound and a subwoofer.

(Special thanks to Matt K. for the pics!)

Manuals

Notes

This set shares the same chassis as the CT-7897B, and has only a few different components.

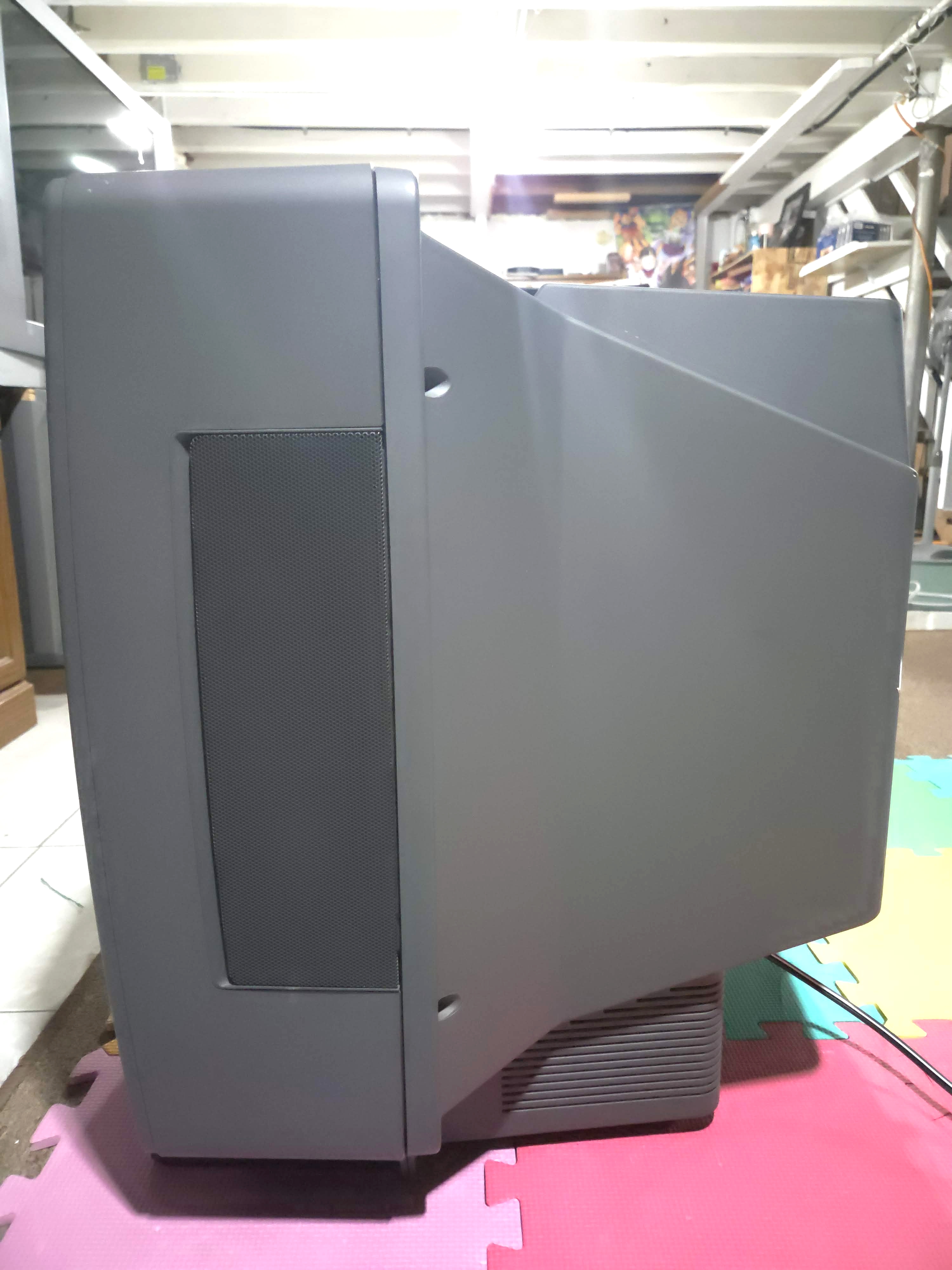

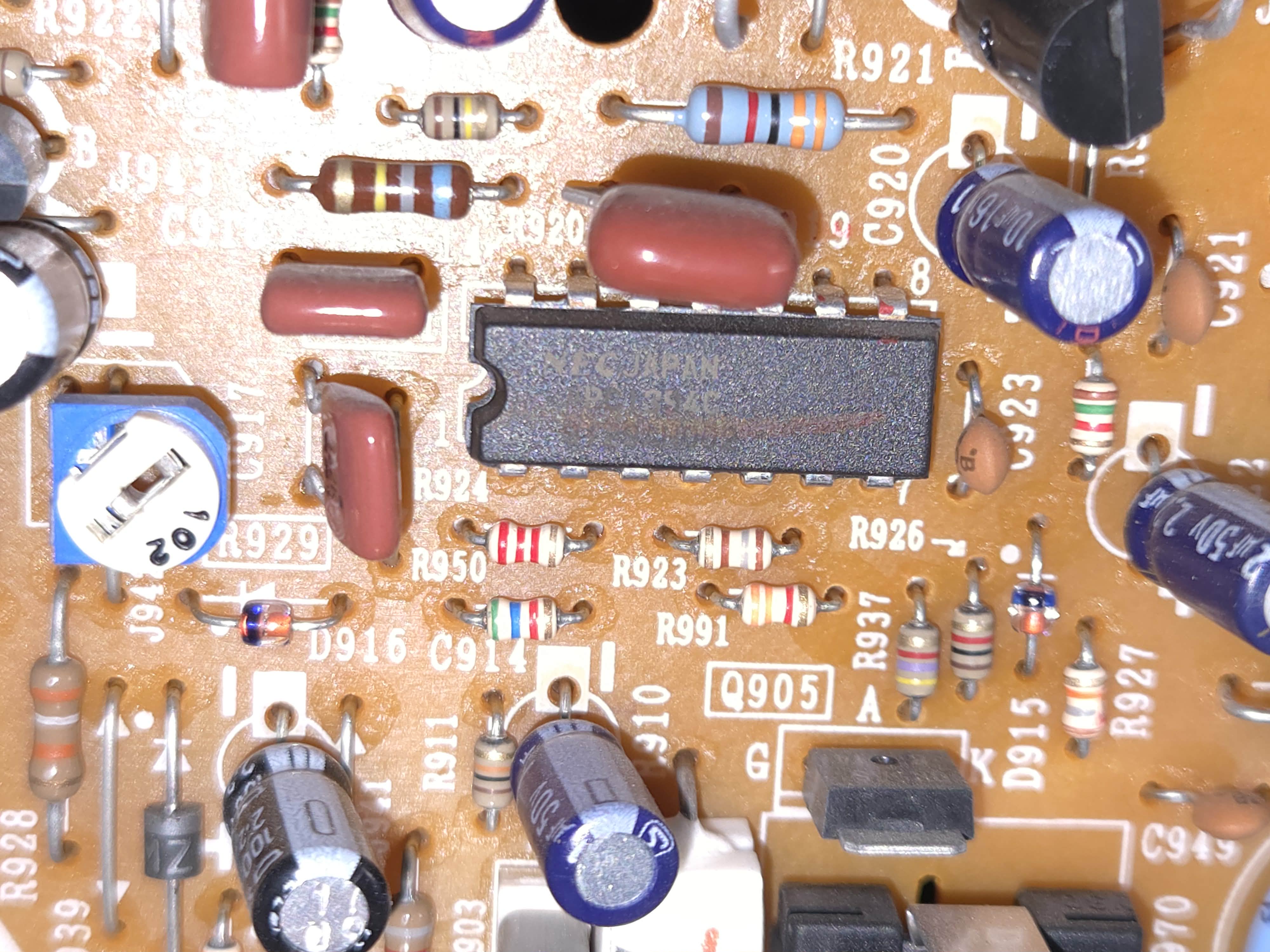

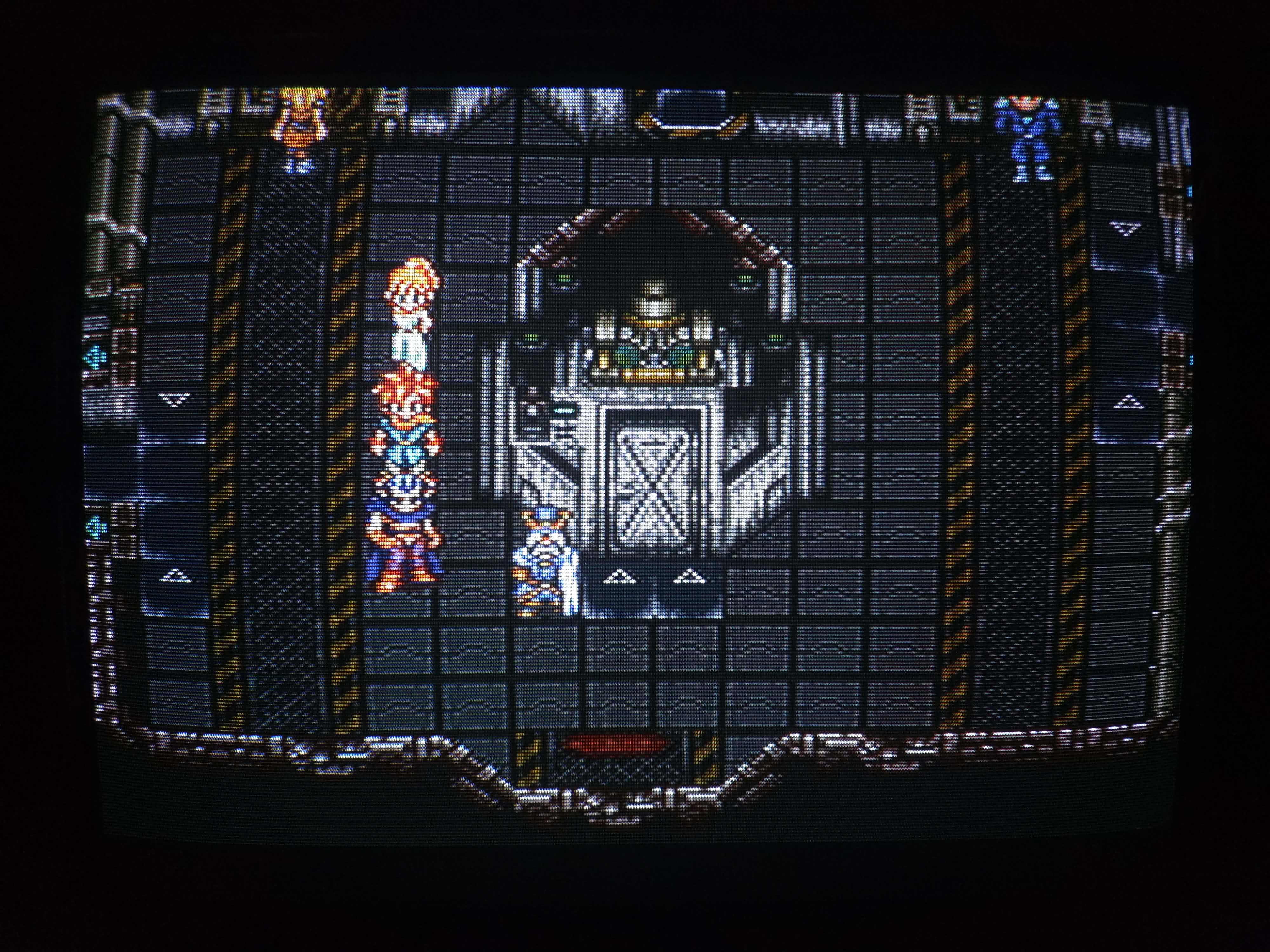

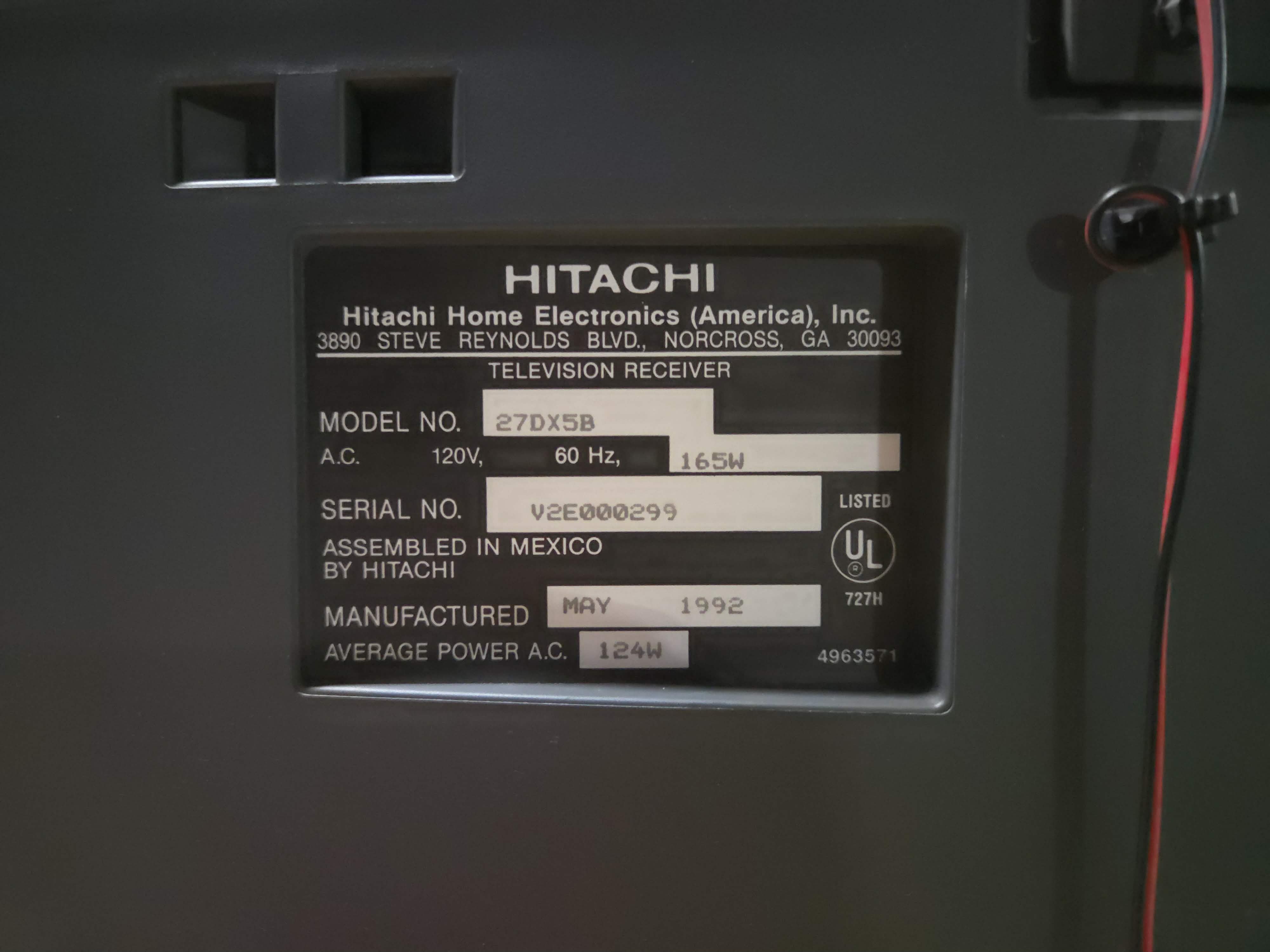

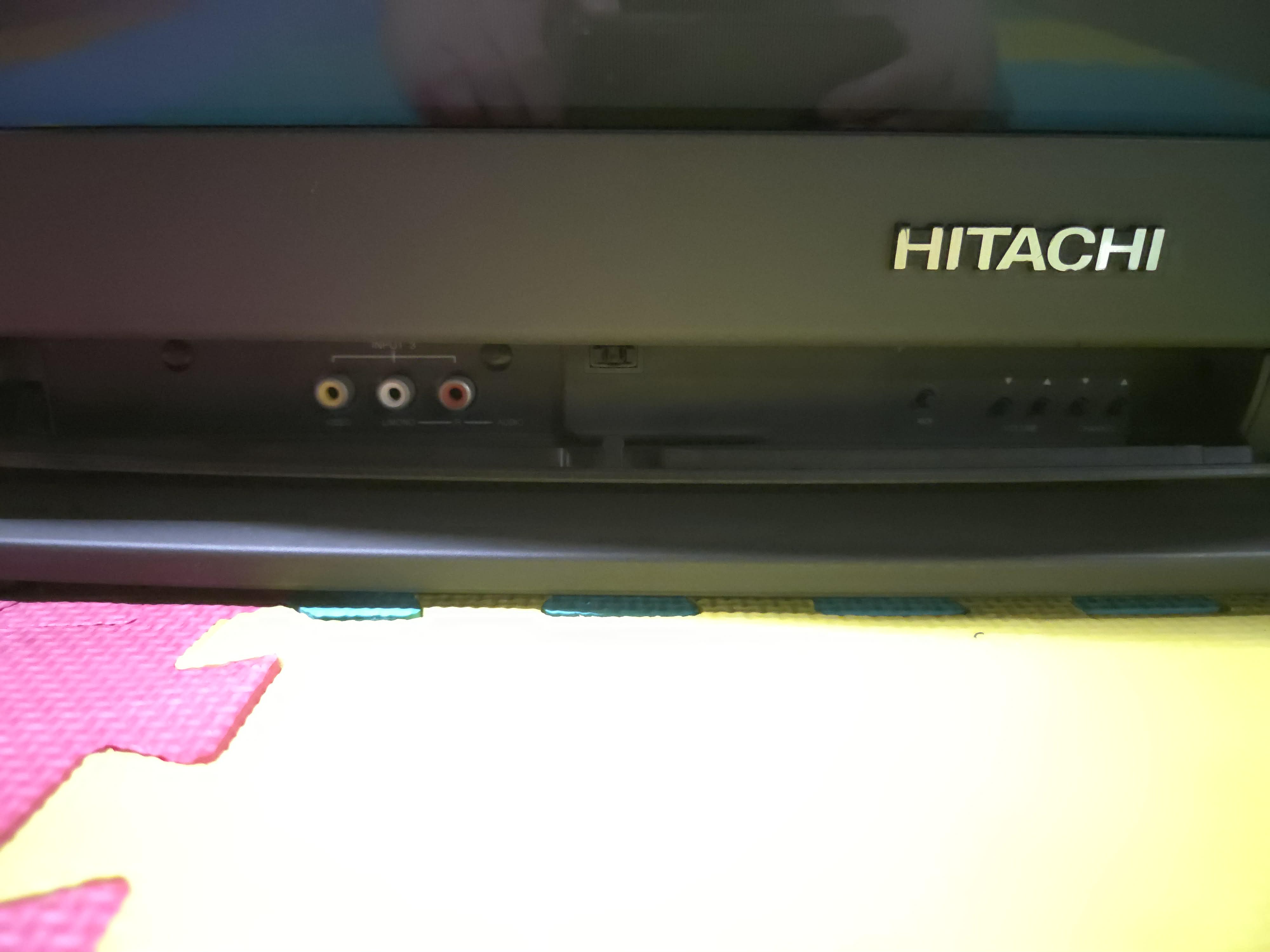

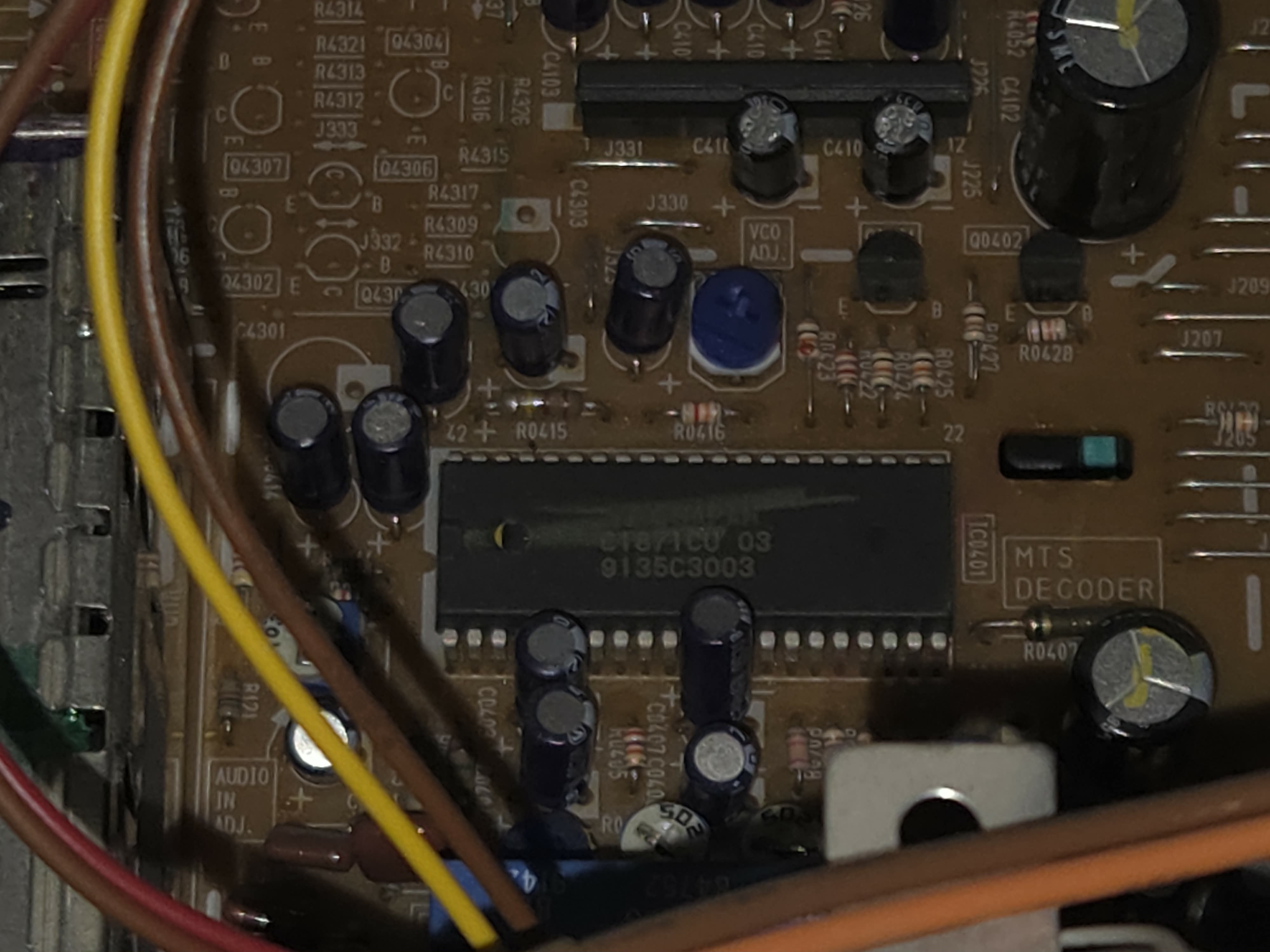

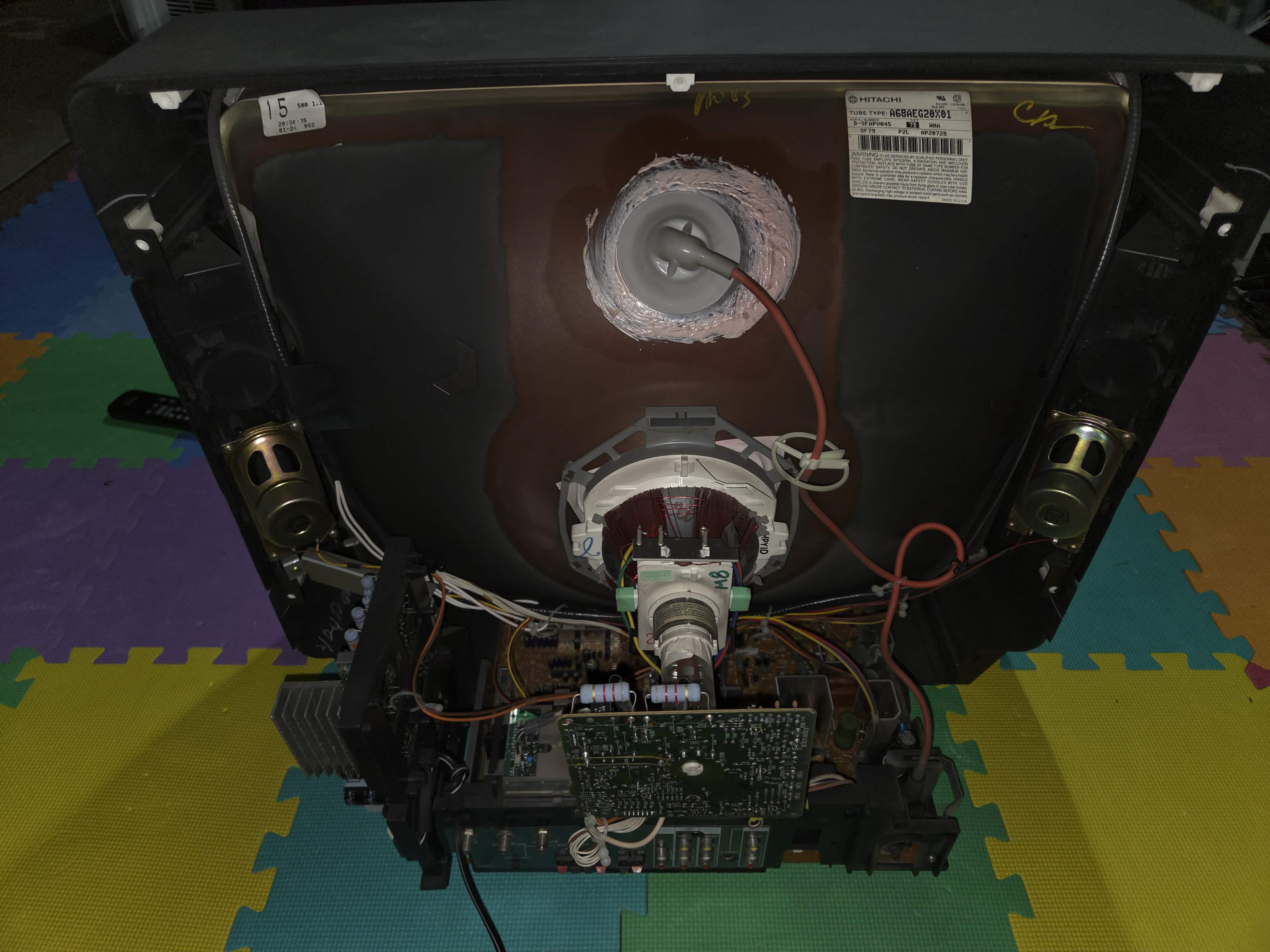

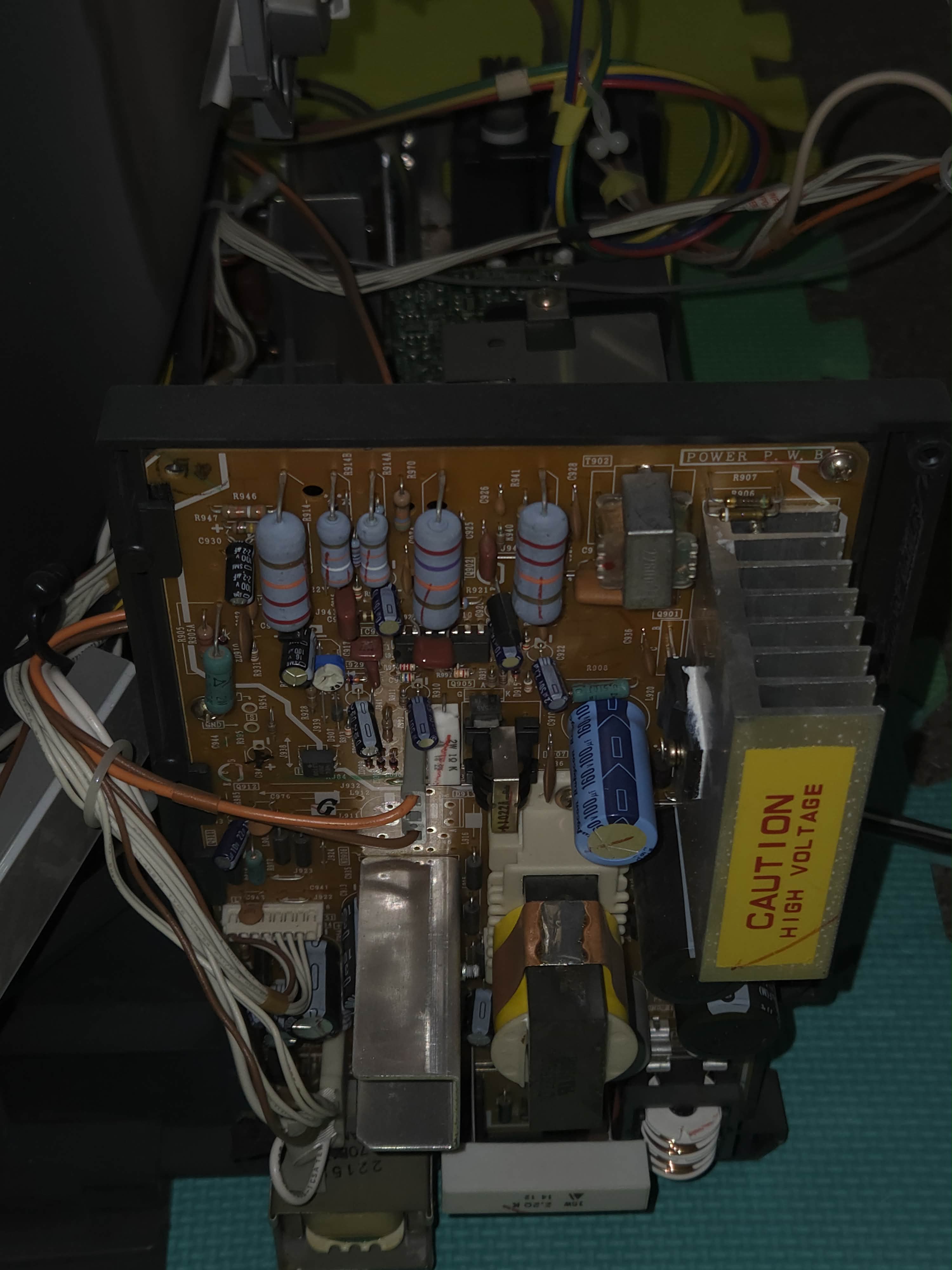

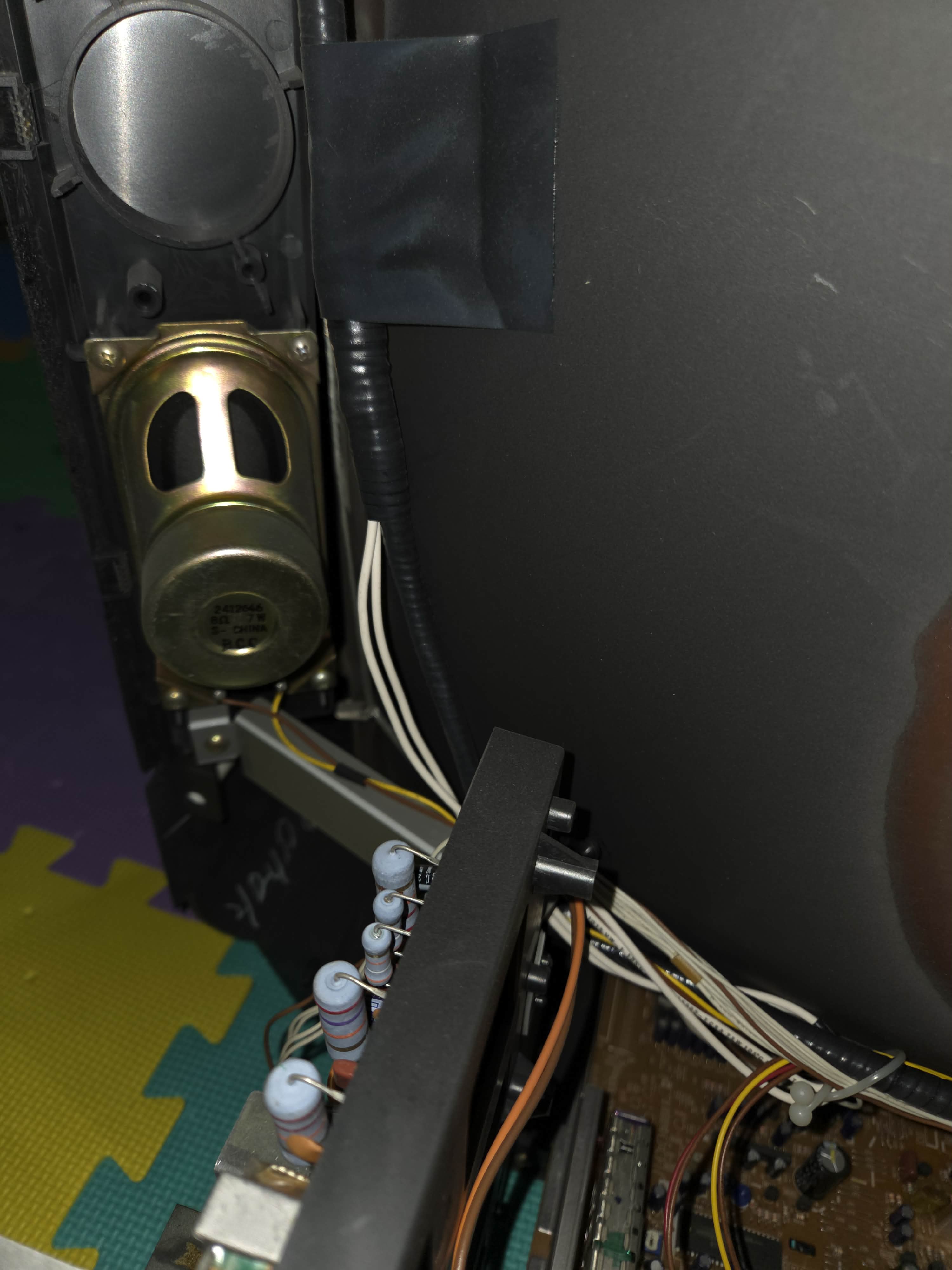

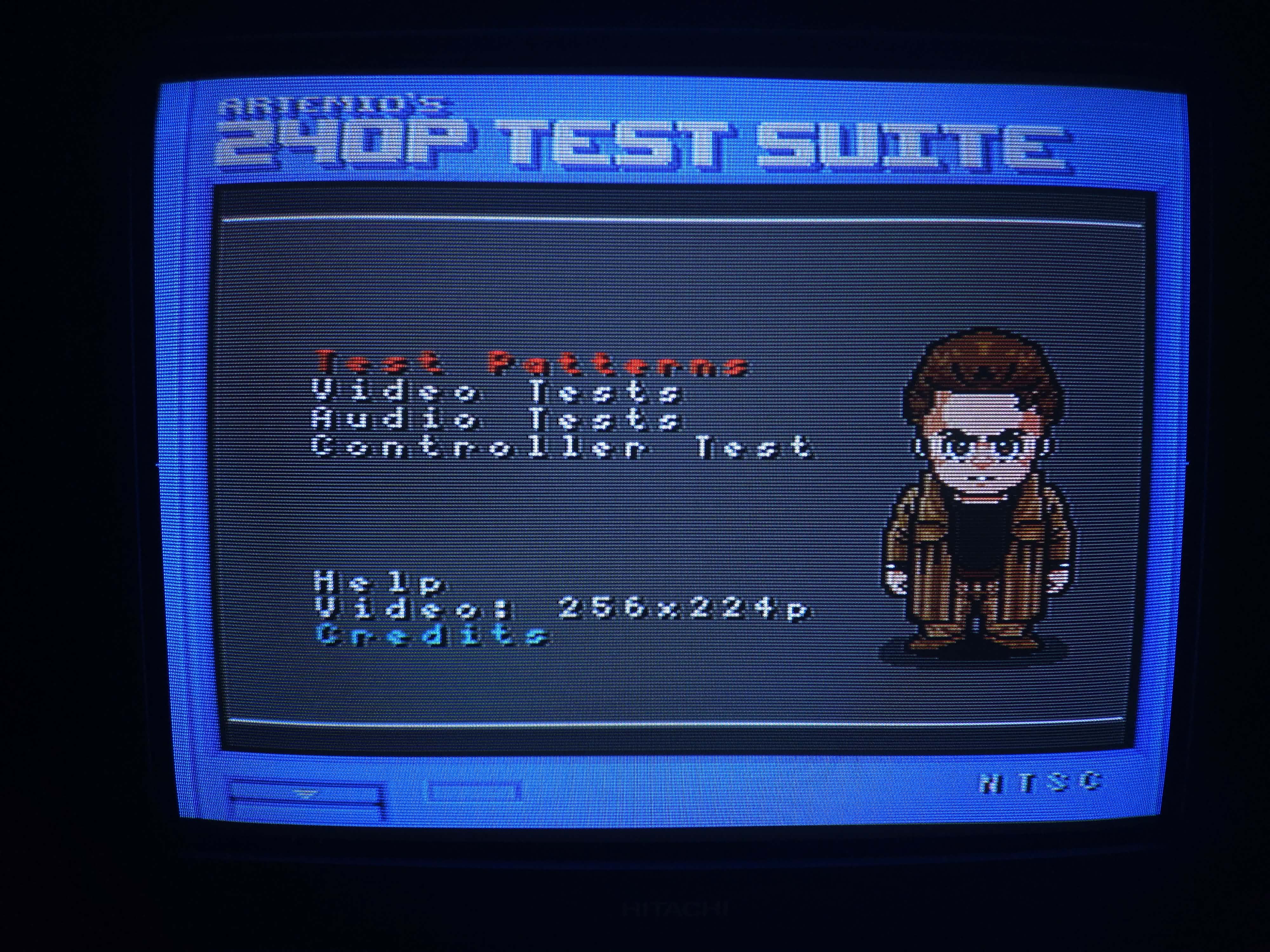

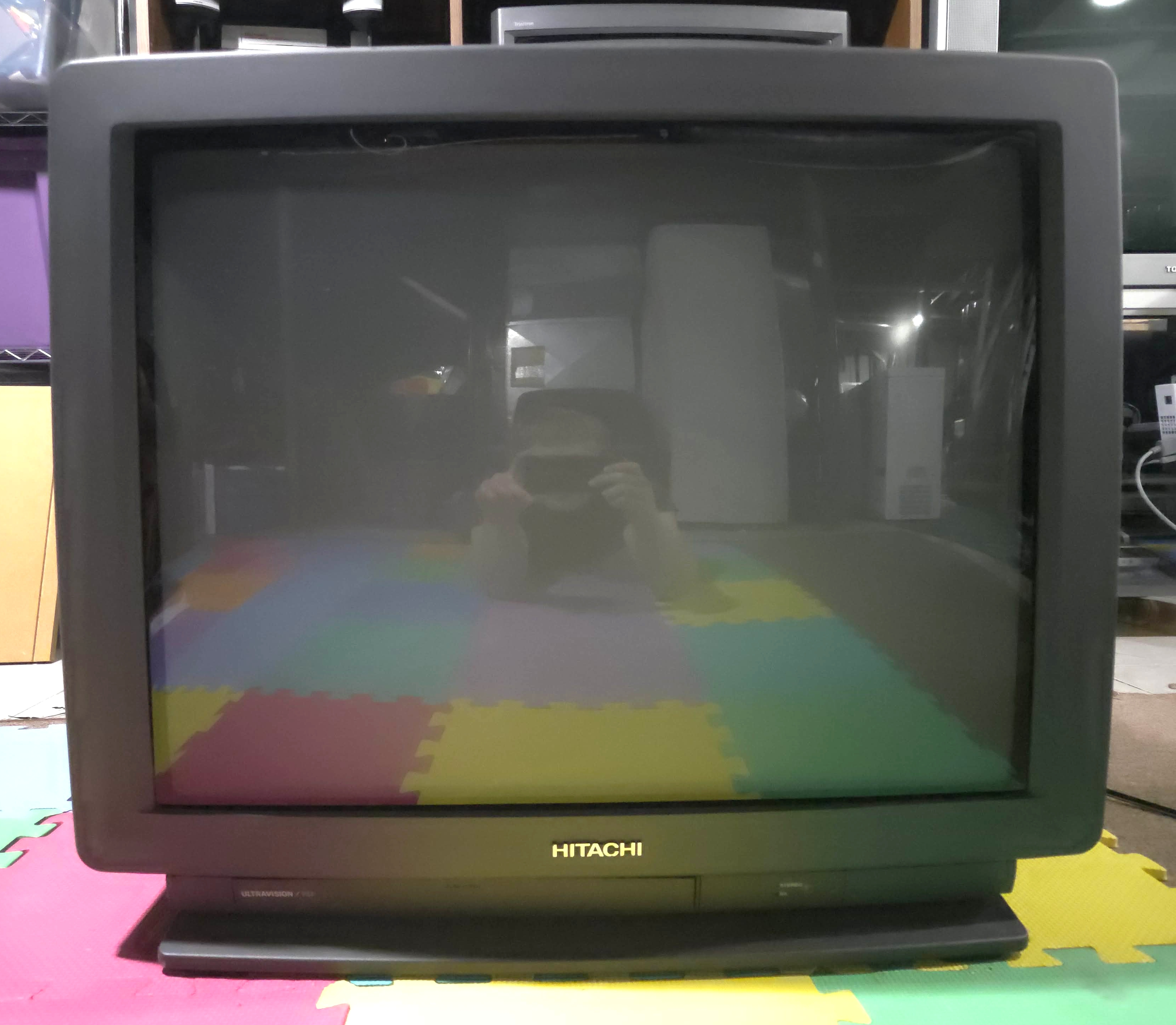

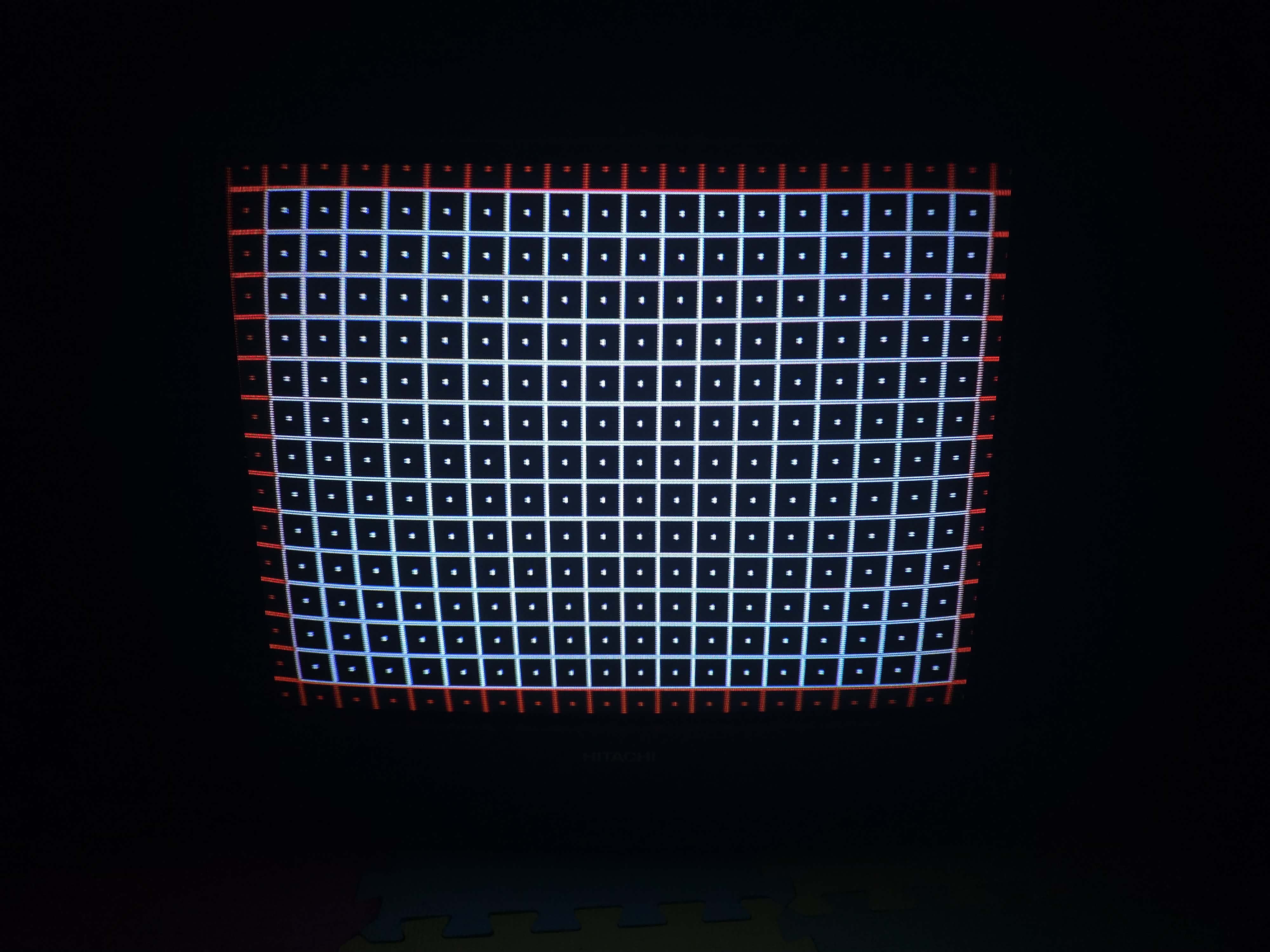

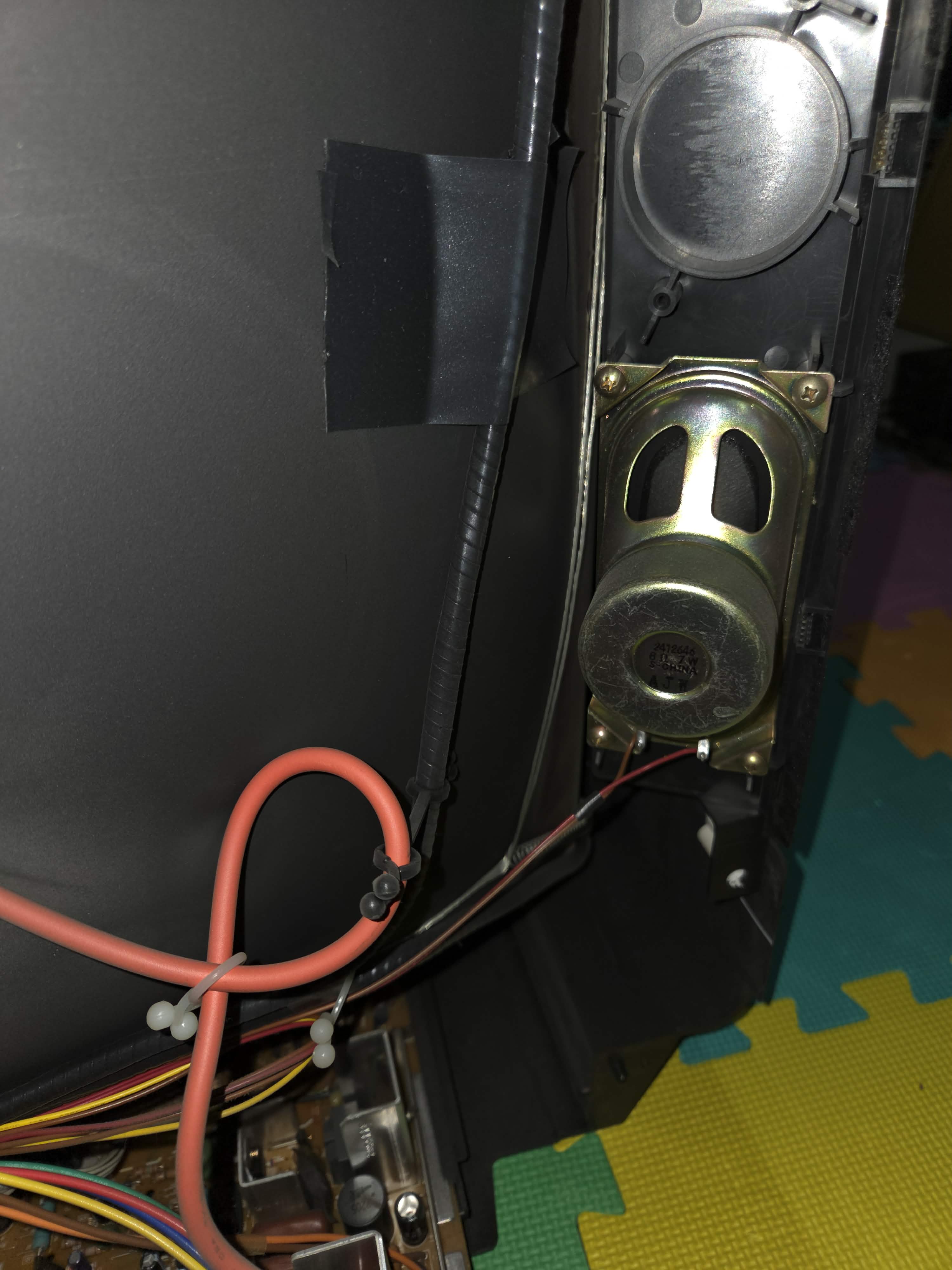

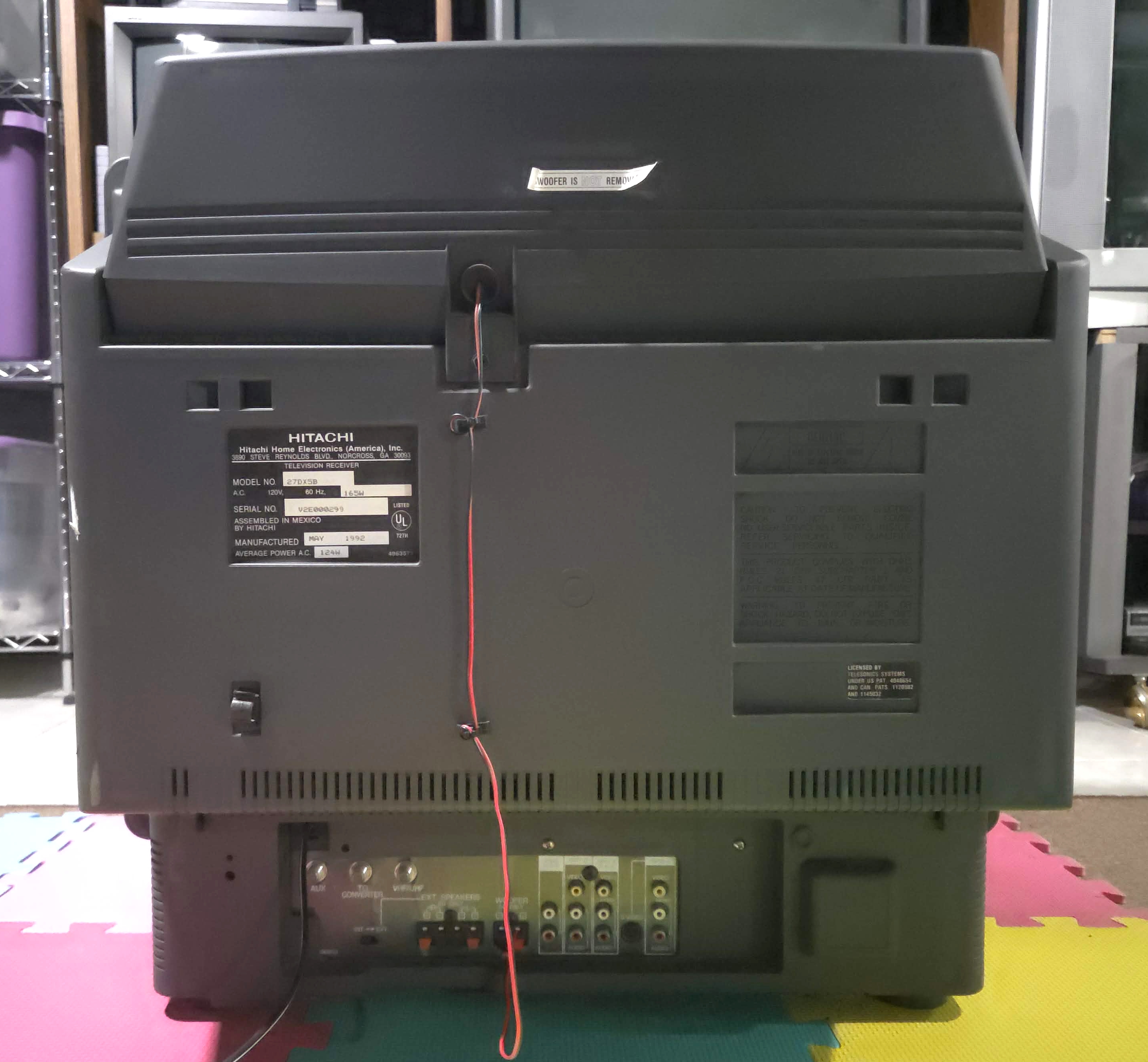

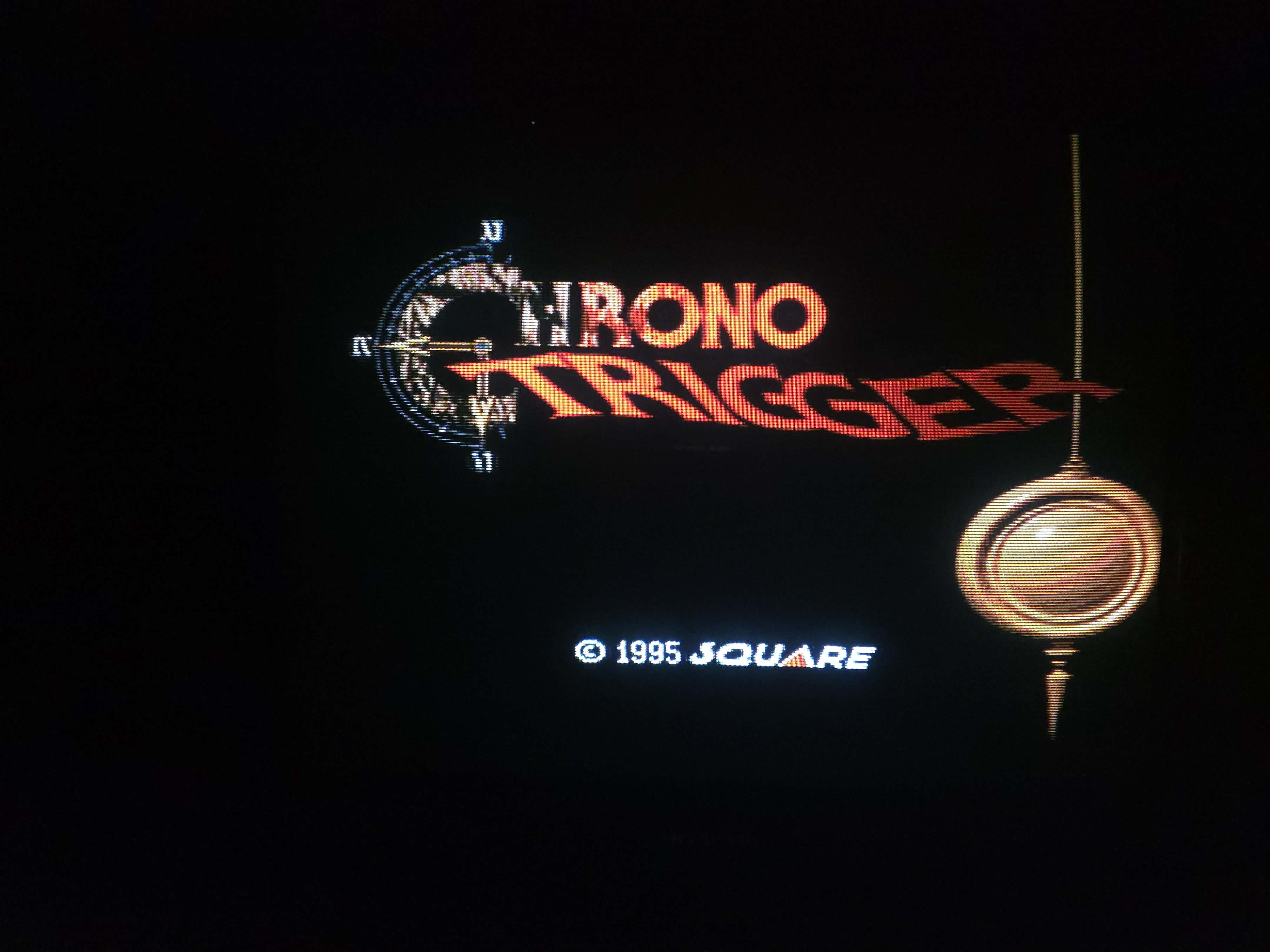

Gallery

Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B Hitachi 27DX5B
Specifications
Brand: Hitachi
Manufacturer: Hitachi
Model: 27DX5B
Series: UltraVision
Viewable Size: 27"

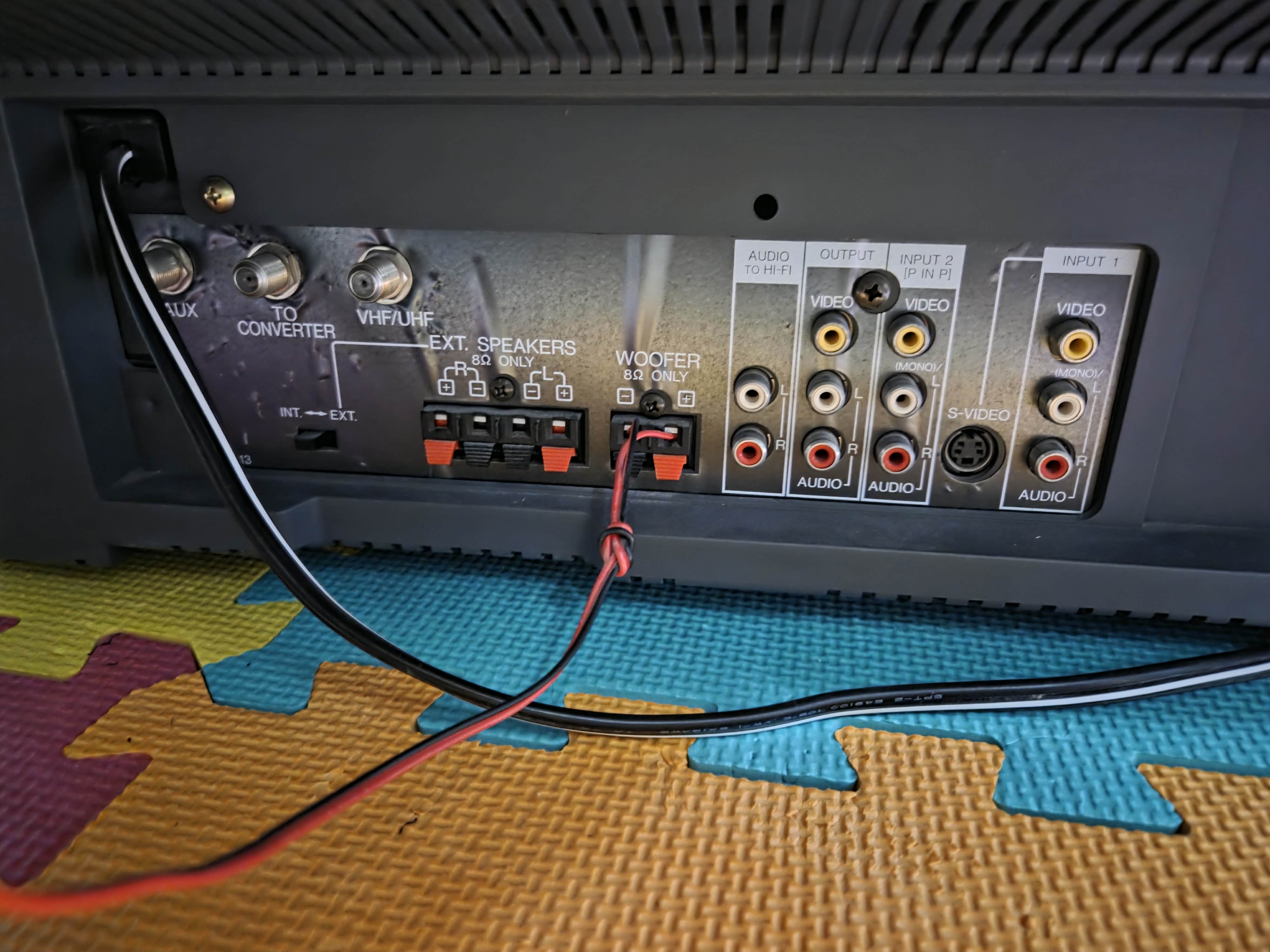

Input Signals: Composite, S-Video, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: Internal Potentiometers, OSD Customer Controls
Jungle IC: Hitachi, HA11511CNT
Comb Filtering: Notch
Flyback: FBT-C87LLI, 2436772
Focus Type: Single

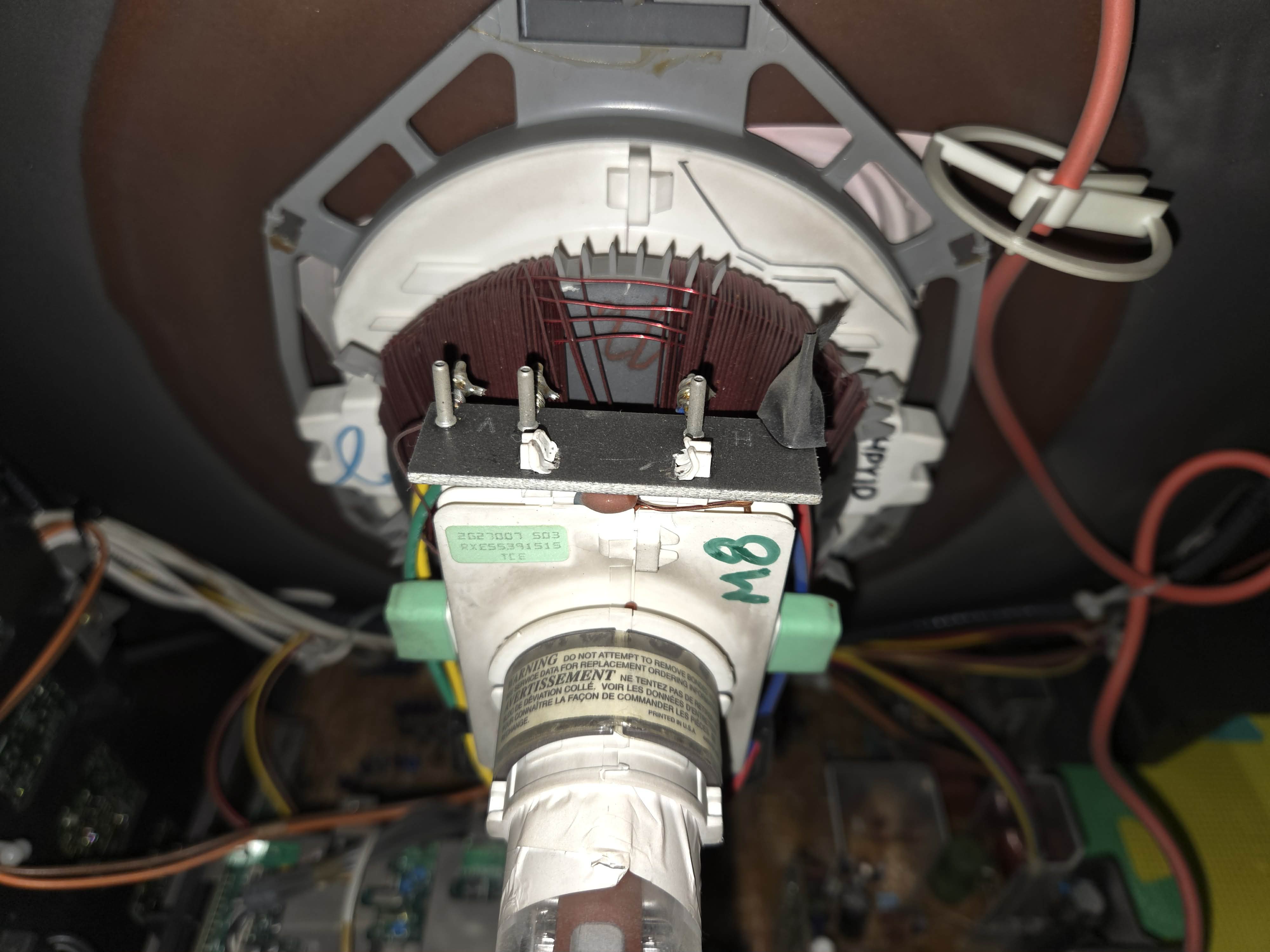

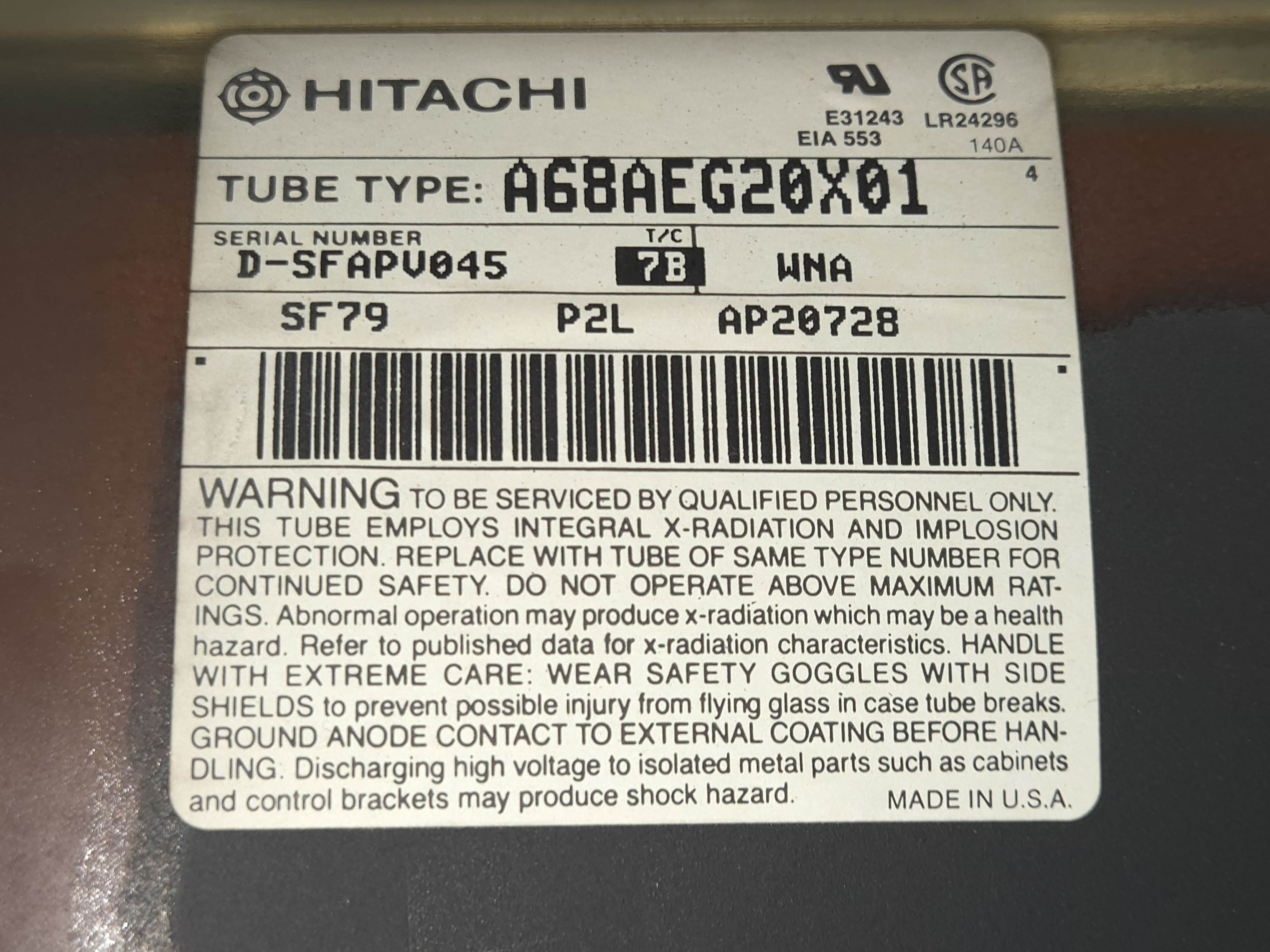

Tube: Panasonic , Thomson , RCA , M68JUA98X , A68AEG20X , A68AEG20X01 , M68JUA98X01
Heater Voltage: 6.3v
Mask: Slot
Tint: Dark
Removable Glare Film: No

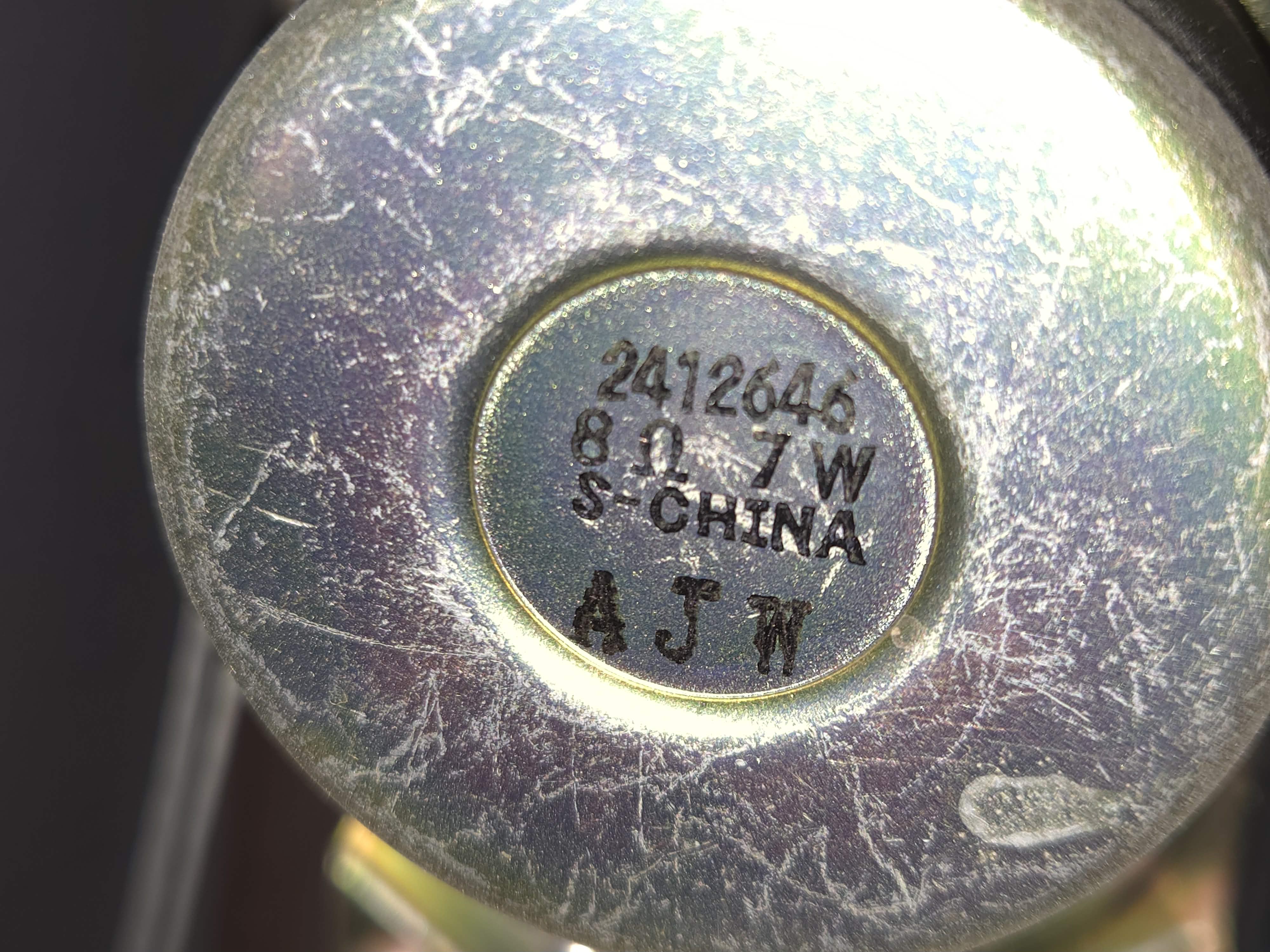

Speakers: Stereo, 7W x 2, 7W Center

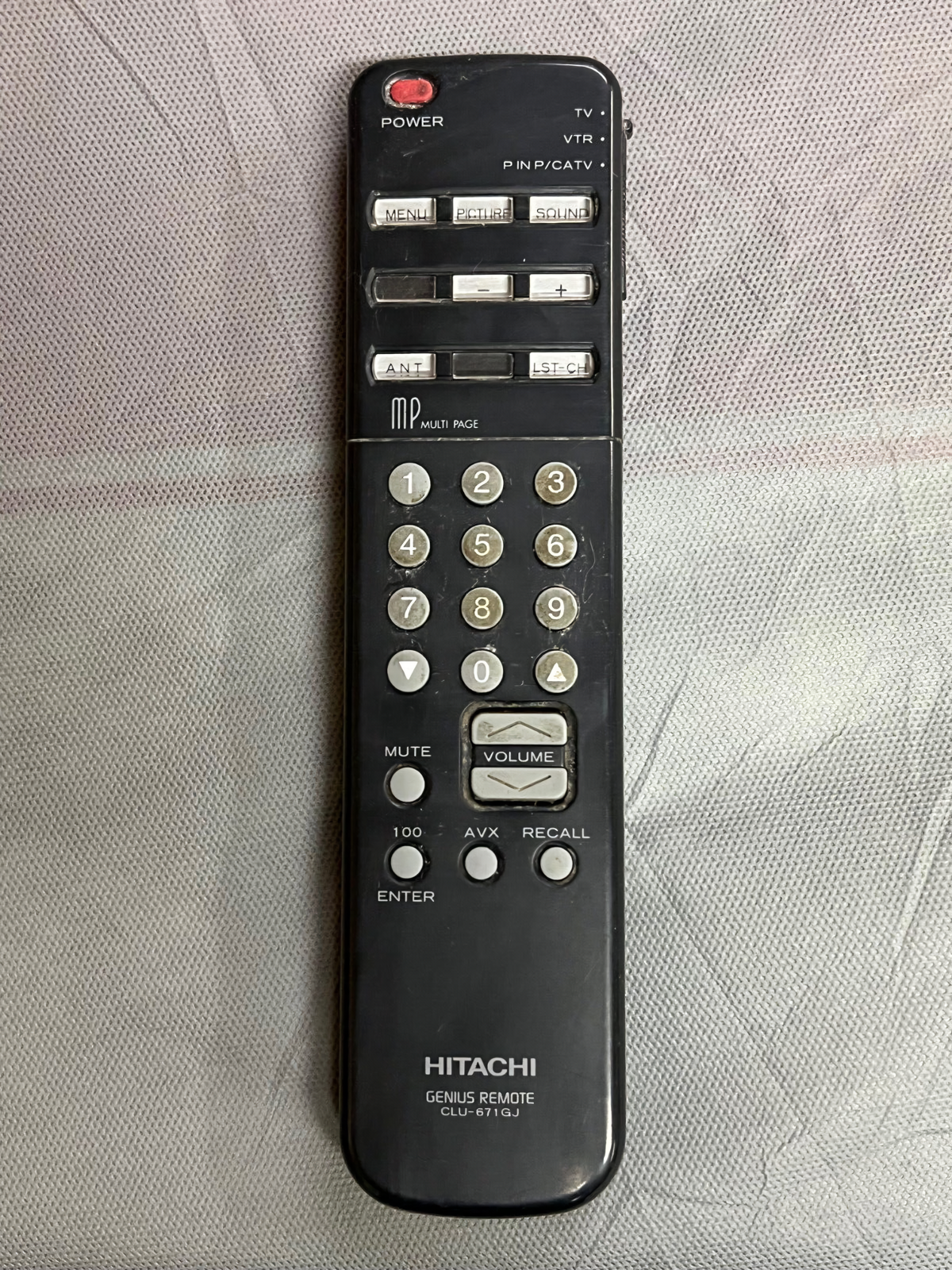

Remote: CLU-671GJ
Chassis: A1LXU-M/R
Weight: 92.6 lbs (42 kg)
Dimensions (W/H/D): 687 x 582 x 513 mm
(27 x 22.9 x 20.2")
Application: Consumer
Cabinet Material: Plastic
Launched: 1992
MSRP: 1199 USD
Country of Manufacture: Mexico
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual
