Summary

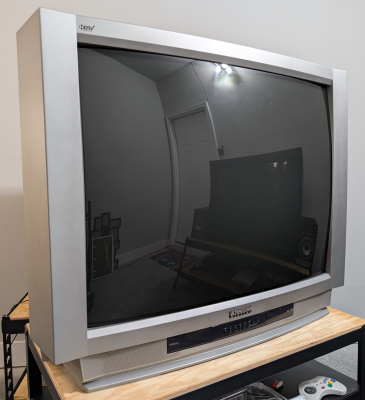

36" HD CRT by Hitachi. Made in Mexico in 2001. This set was among Hitachi's very last CRTs released in North America until the end of production in early 2002.
Manuals
Notes
This set has an upgraded scaler and signal processing system compared to the previous year's models. It now accepts 720p and scales it 1080i, and the linedoubler for 240p/480i is slightly improved as well. These signals also incur some lag, but not much. 480p and 1080i appear to be lag-free.
Gallery
| Specifications | |
|---|---|
| Brand: | Hitachi |
| Manufacturer: | Hitachi |
| Model: | 36UDX10S |
| Series: | UltraVision Digital |
| Viewable Size: | 36" |

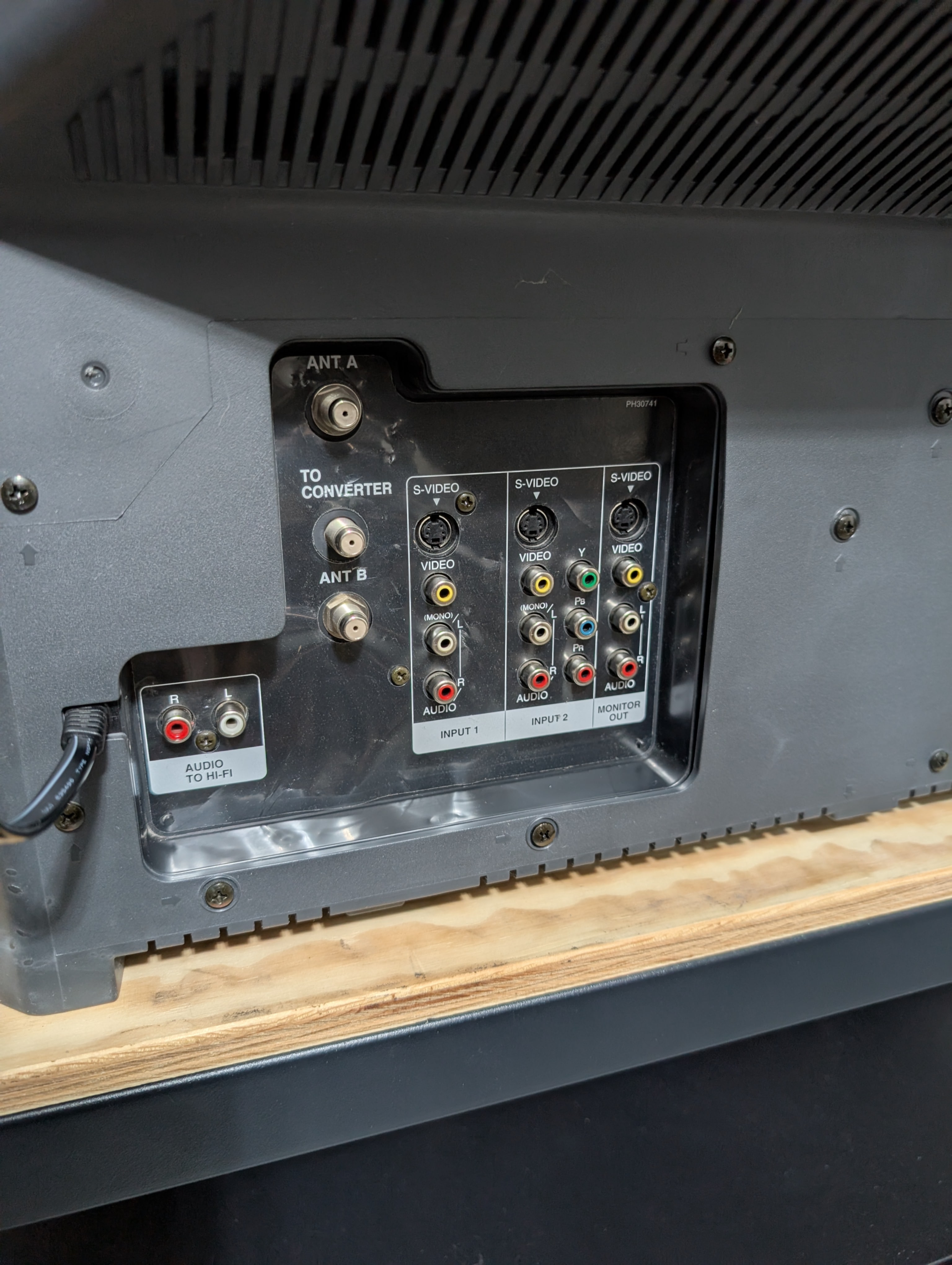

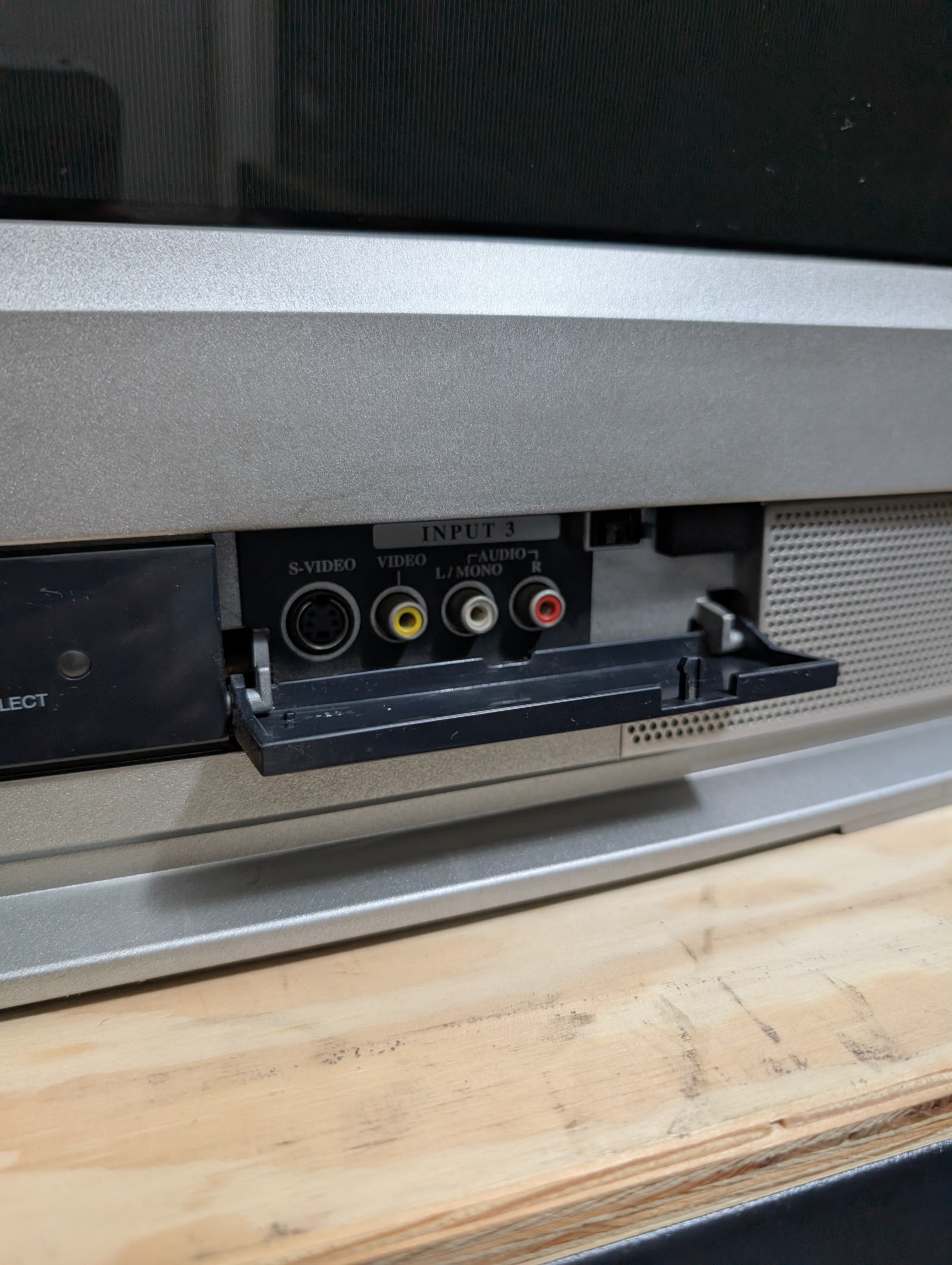

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i, 720p |
| Horizontal Scan Range: | 33.75 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | SDA9380-B21, Toshiba, TA1270BF |
| Comb Filtering: | 3D Digital |
| Comb Filter IC: | 337KNT |
| Flyback: | 1735YD-RC |

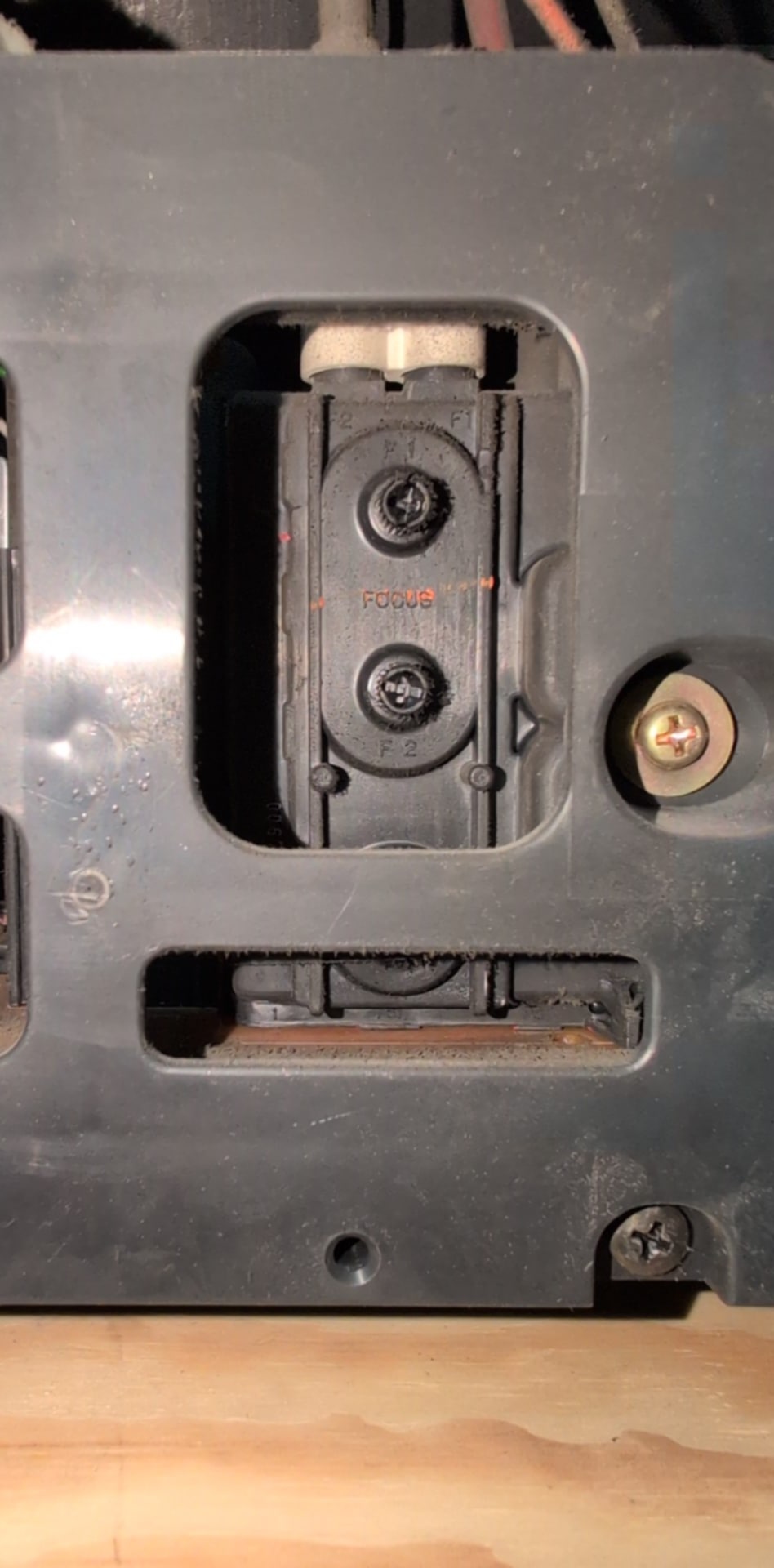

| Focus Type: | Dual |

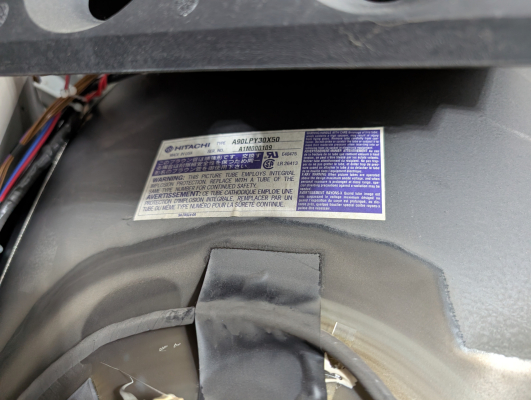

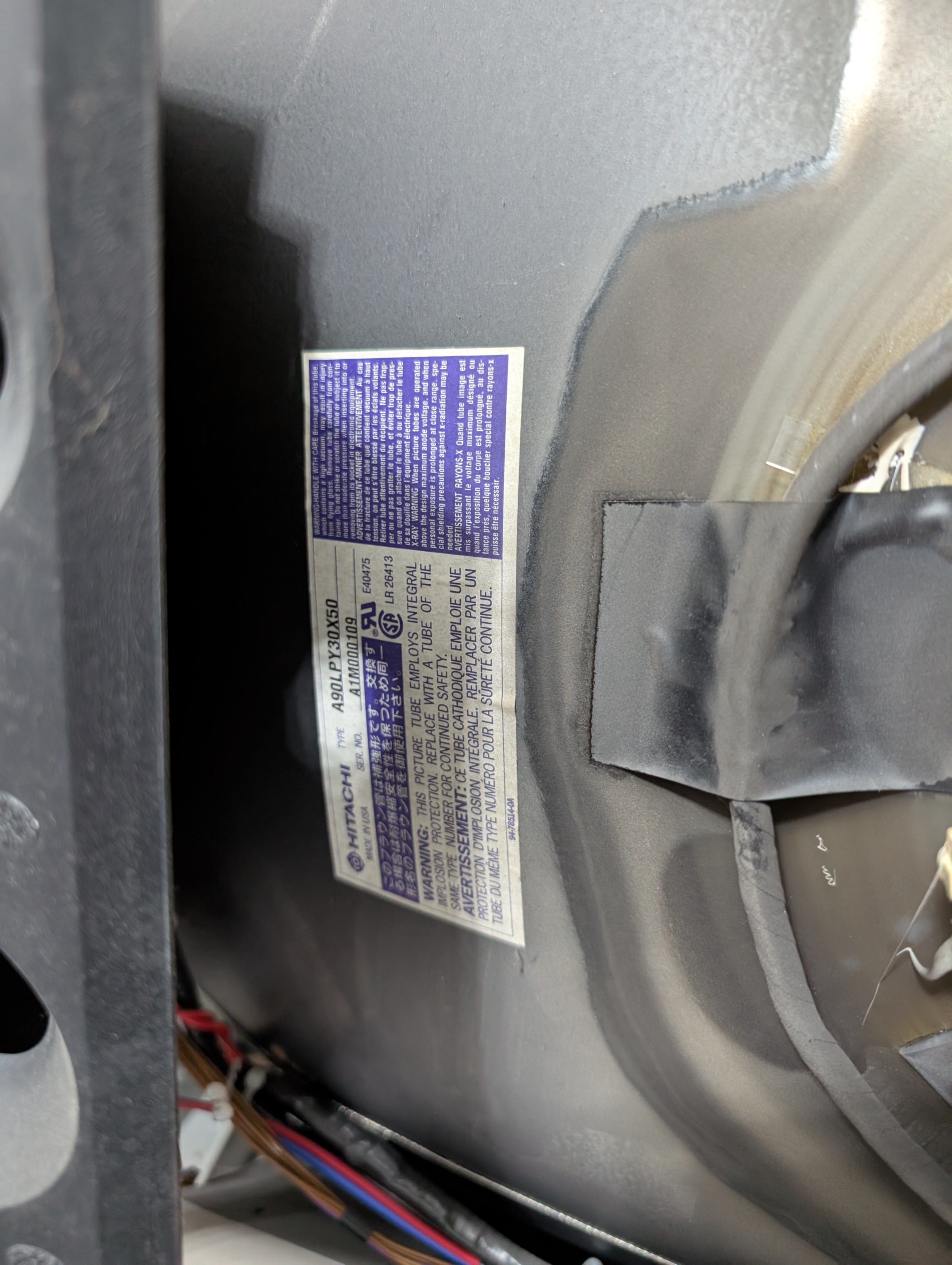

| Tube: | Hitachi , A90LPY30X50 , A90LPY30X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Remote: | CLU-577TSI |

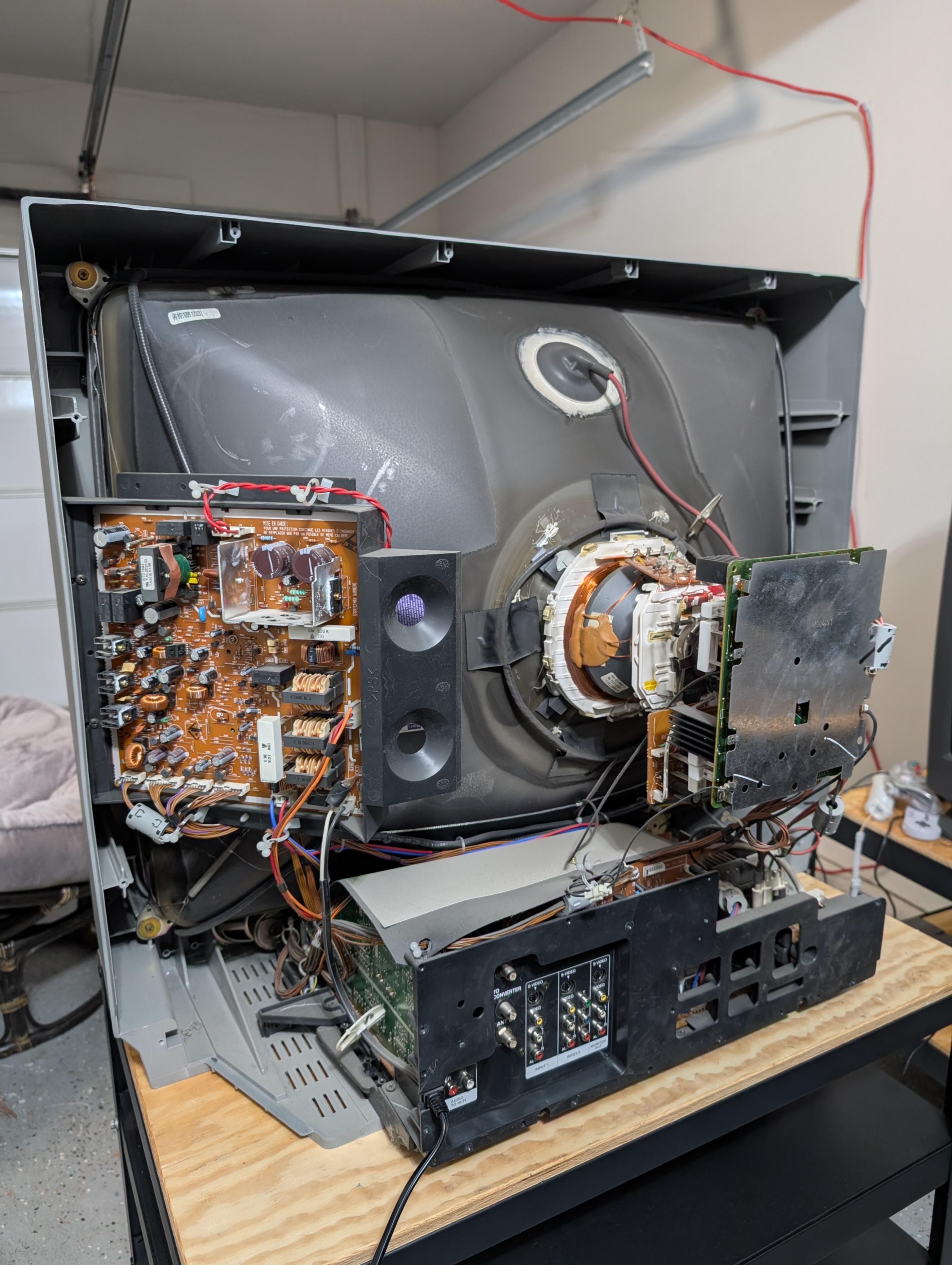

| Chassis: | MF-1Z |
| Weight: | 153 lbs (69.4 kg) |
| Dimensions (W/H/D): |
874 x 744 x 620 mm
(34.3 x 29.2 x 24.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 1599 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SP368S |
| Degaussing: | Automatic on Power-on |
