Summary

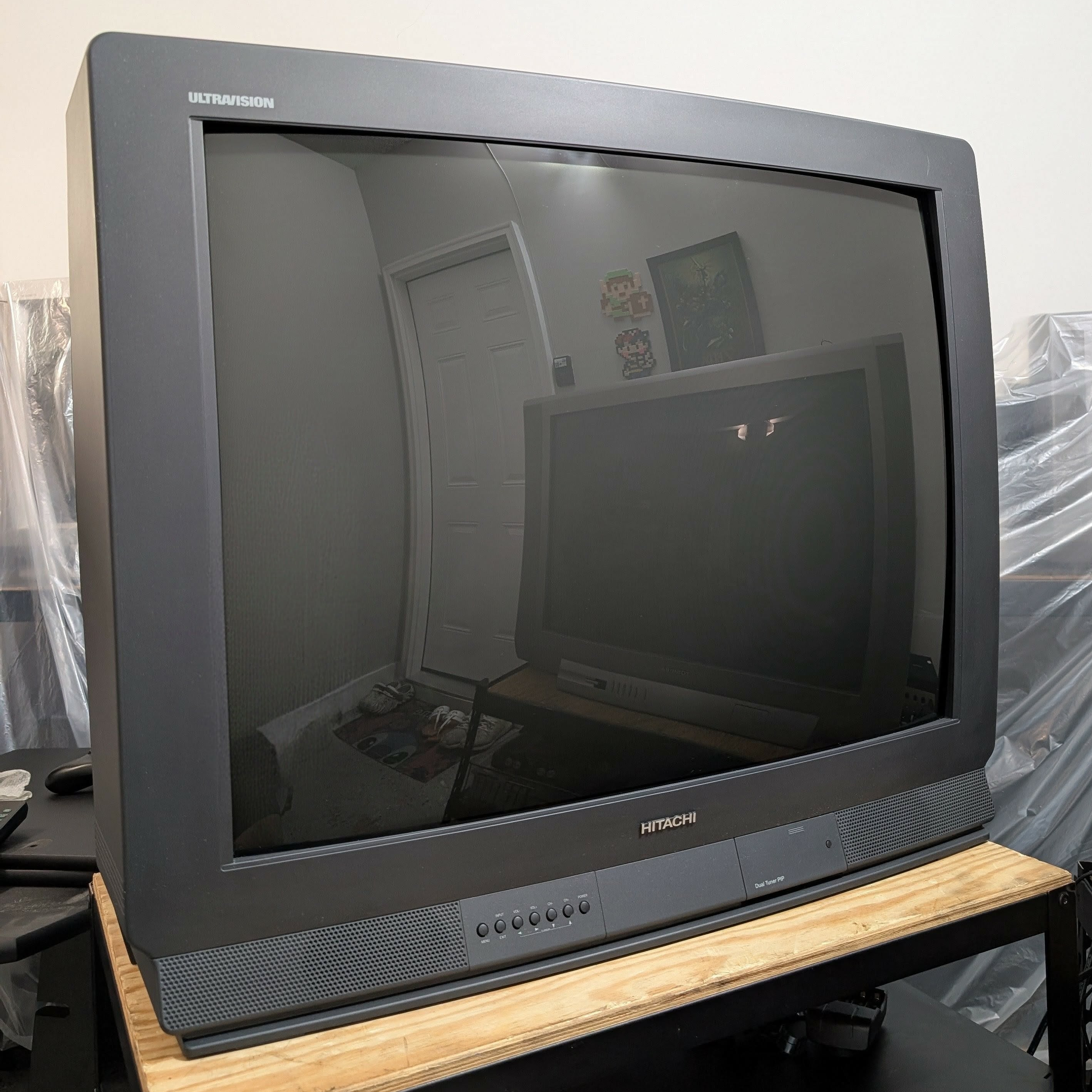

High-end 36" curved-screen CRT by Hitachi, made in Mexico in 1999. Has RF, composite, s-video, and component inputs with stereo sound.
(Special thanks to Chris Quick and Michael Lopez for the pics!)
Manuals
Notes

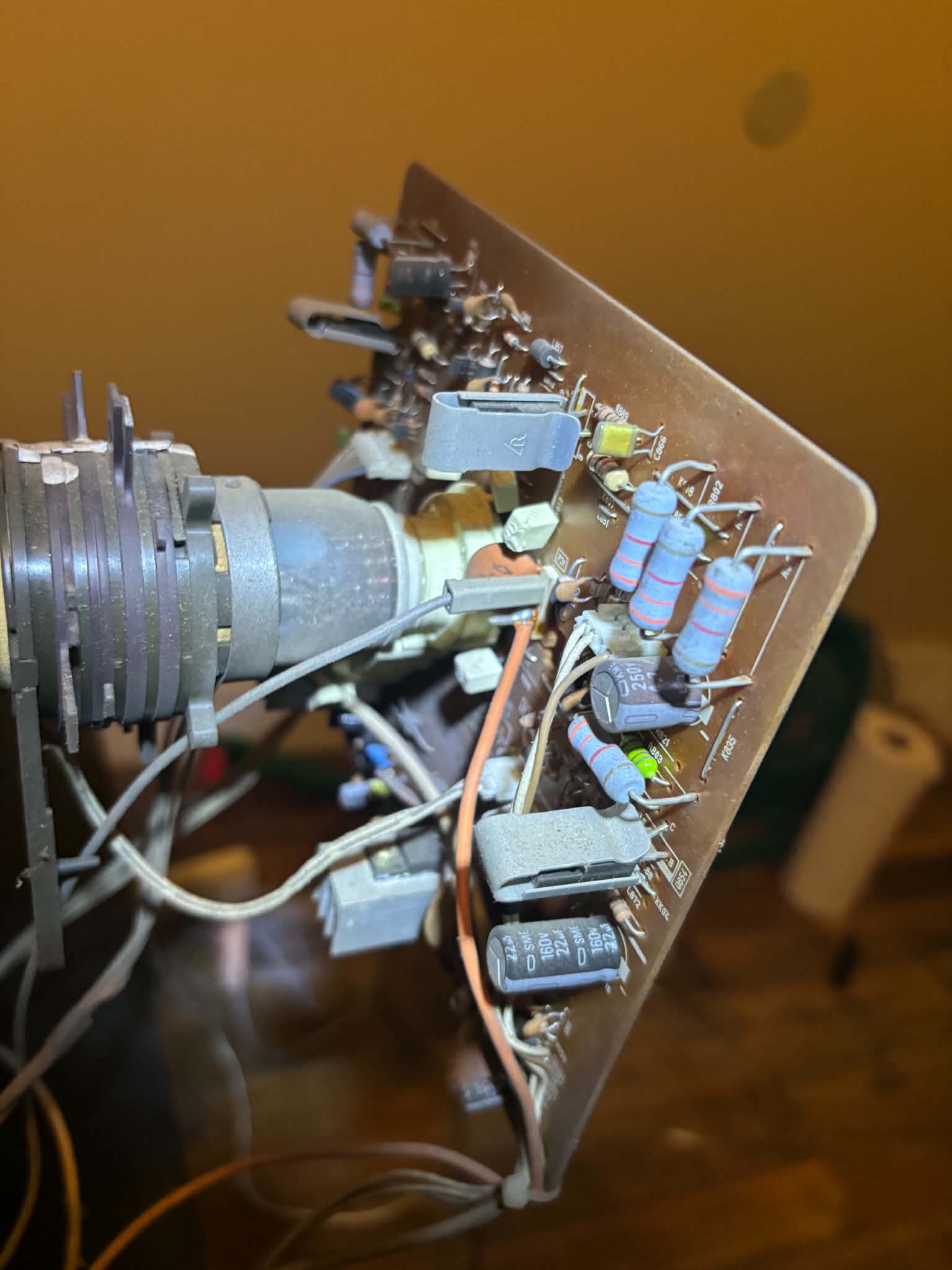

This set has Velocity Modulation. To disable it, unplug the jumper connecting the yoke to the neckboard.

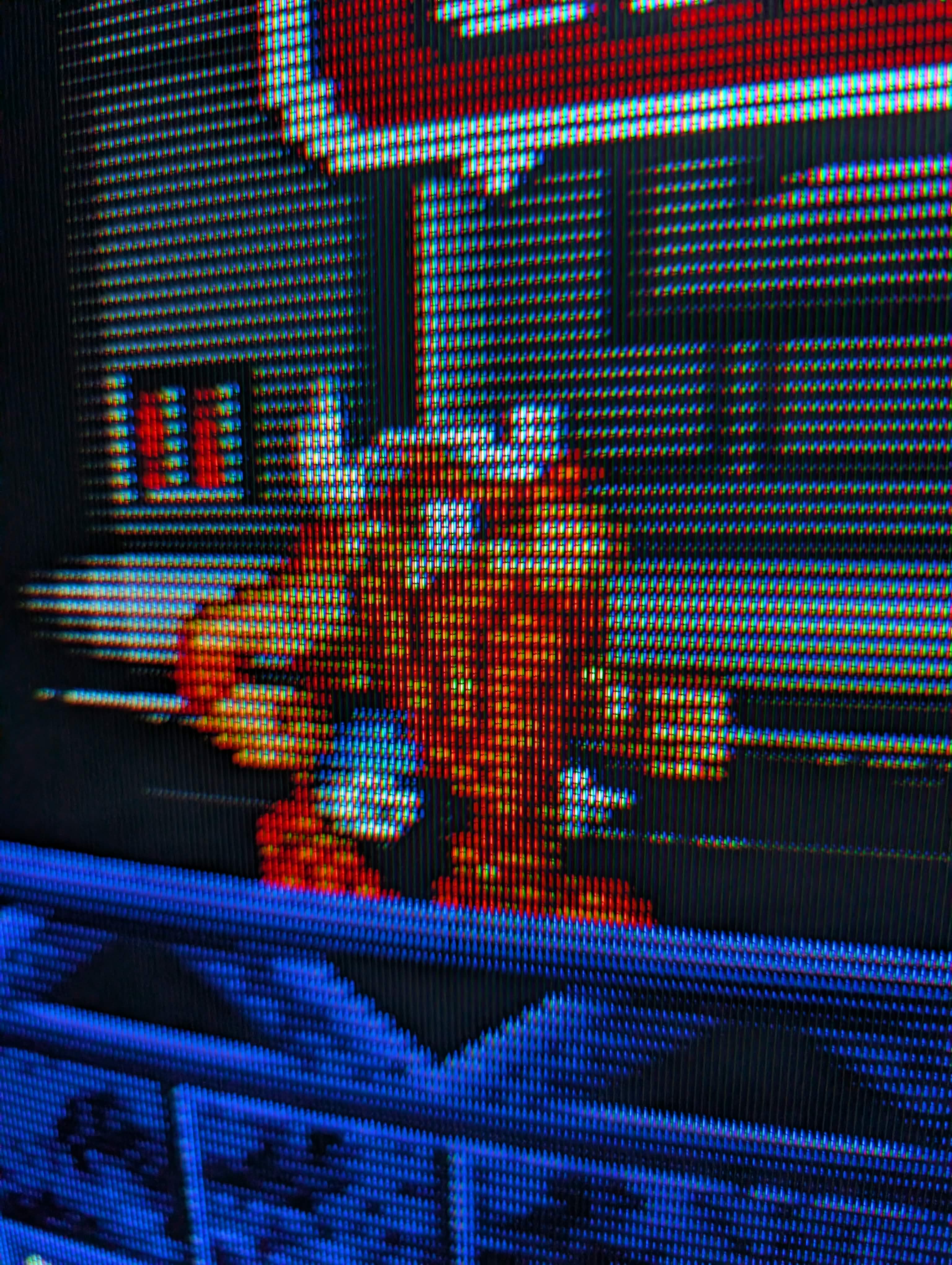

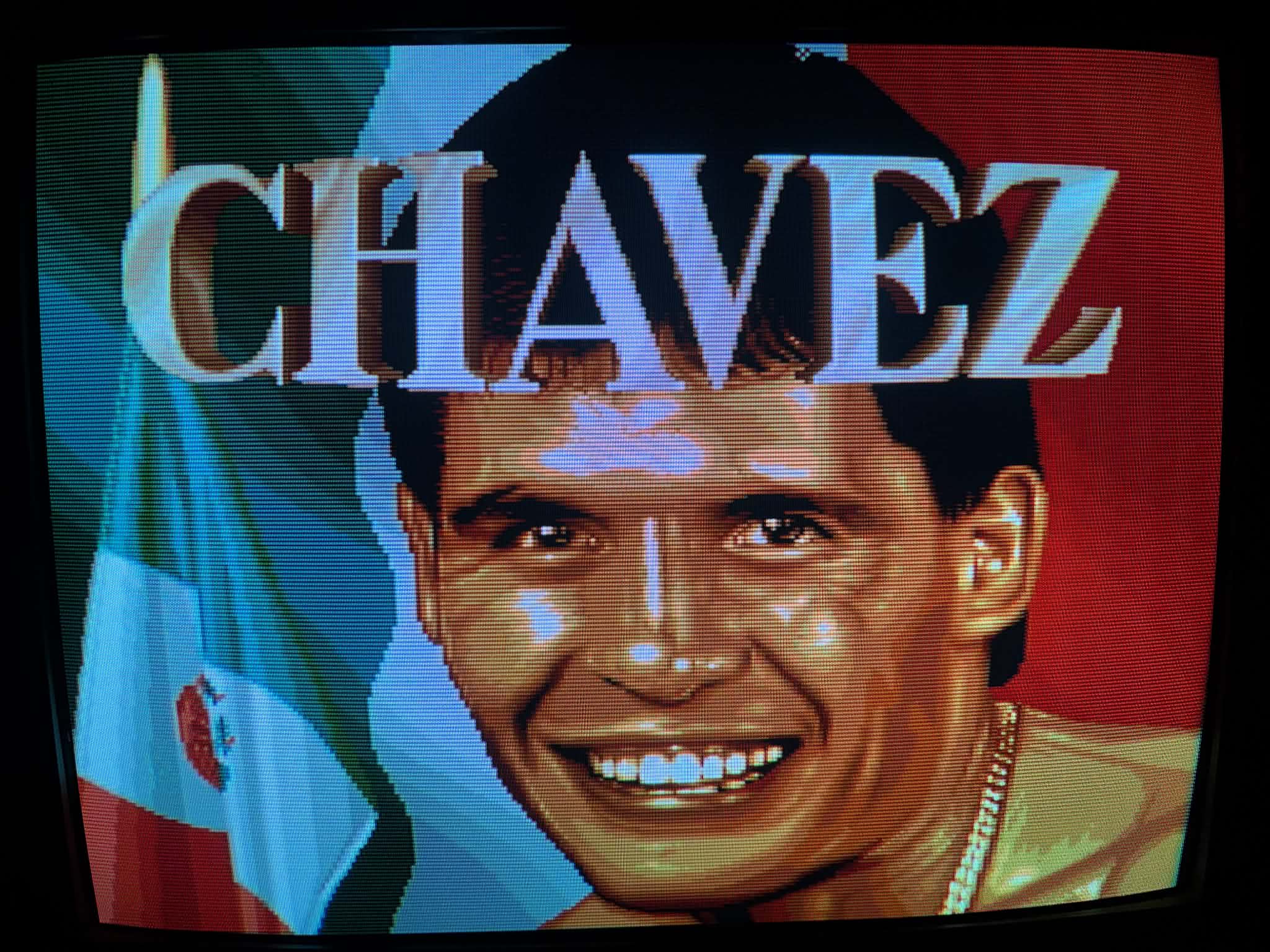

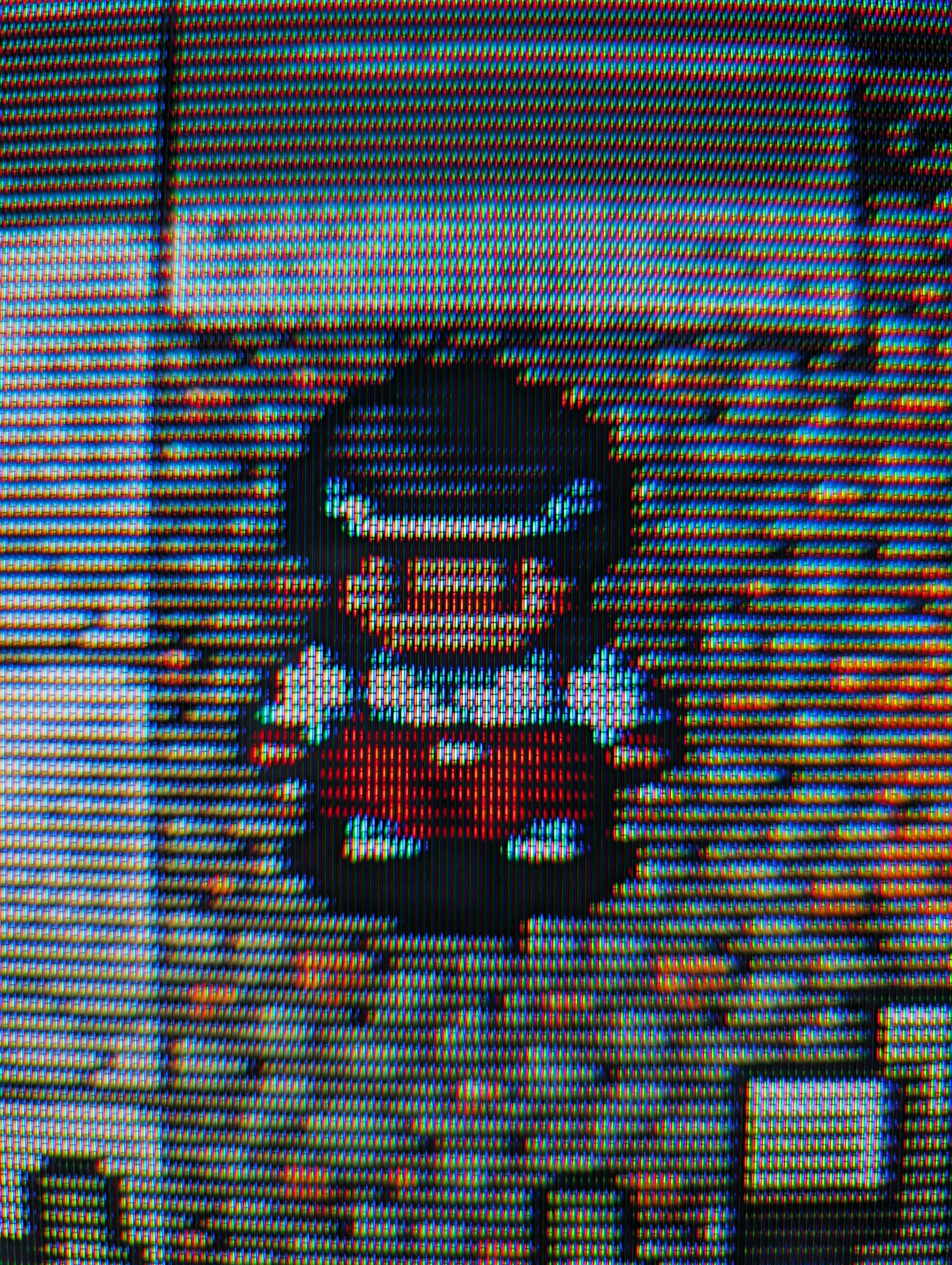

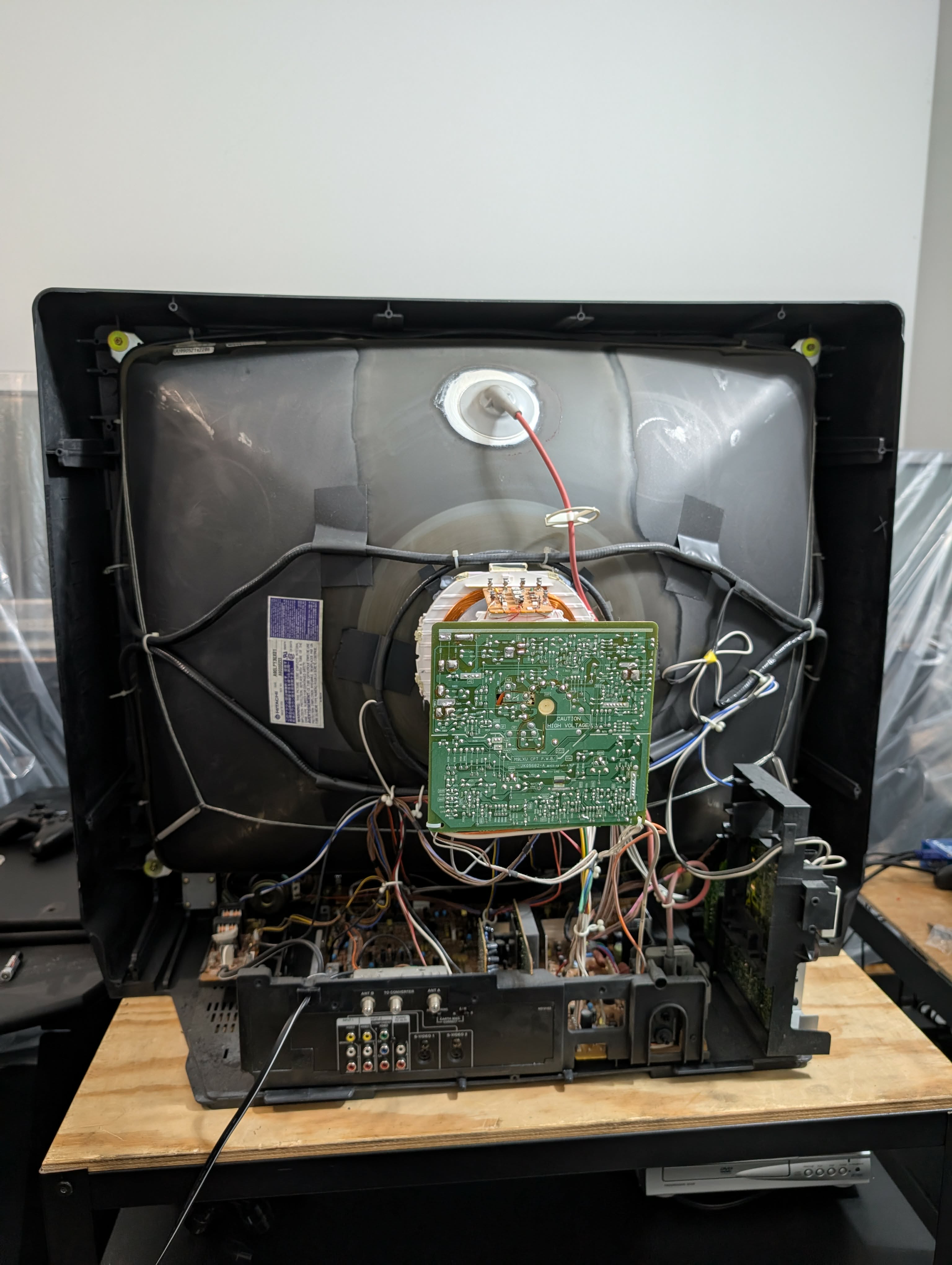

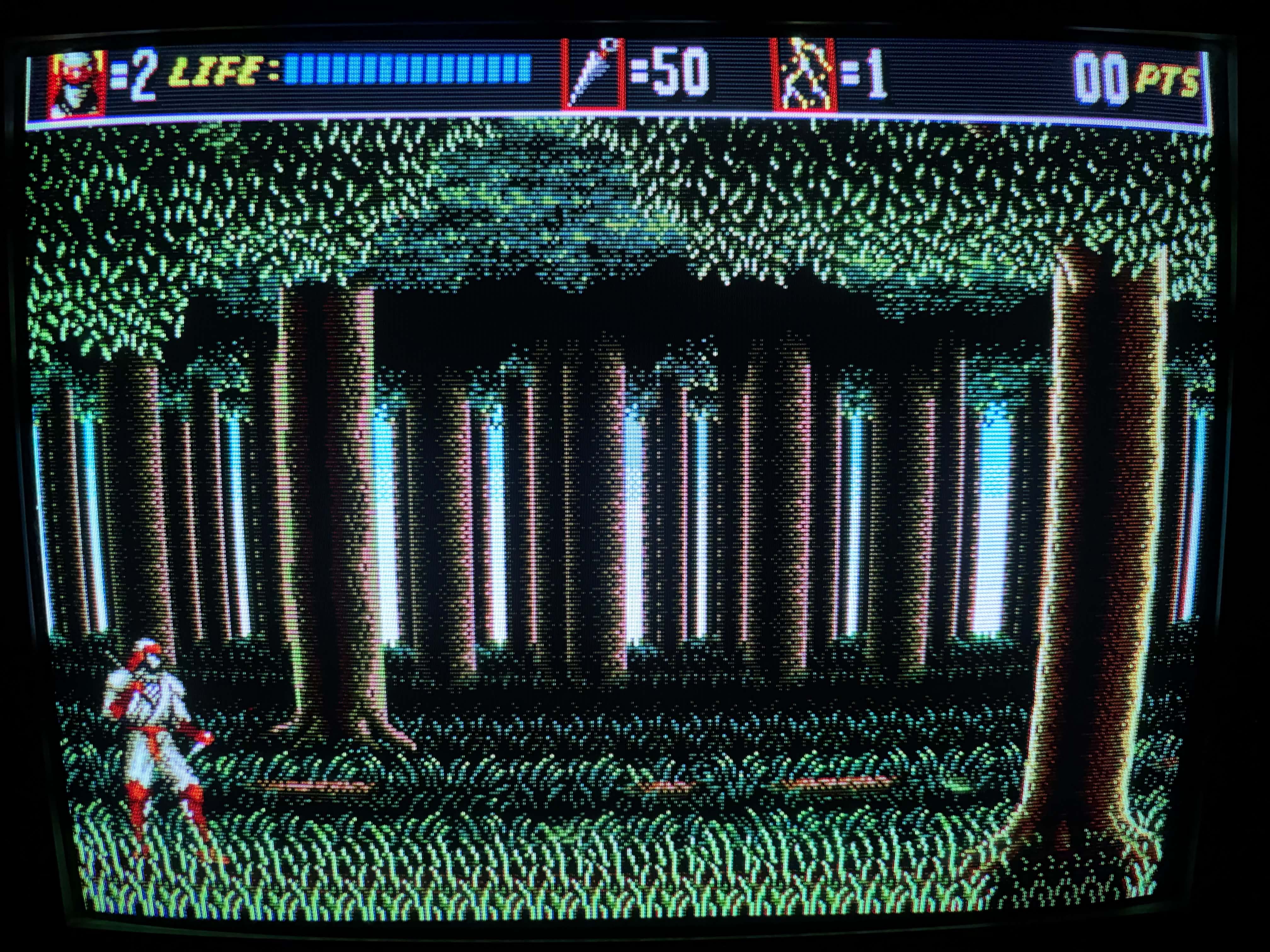

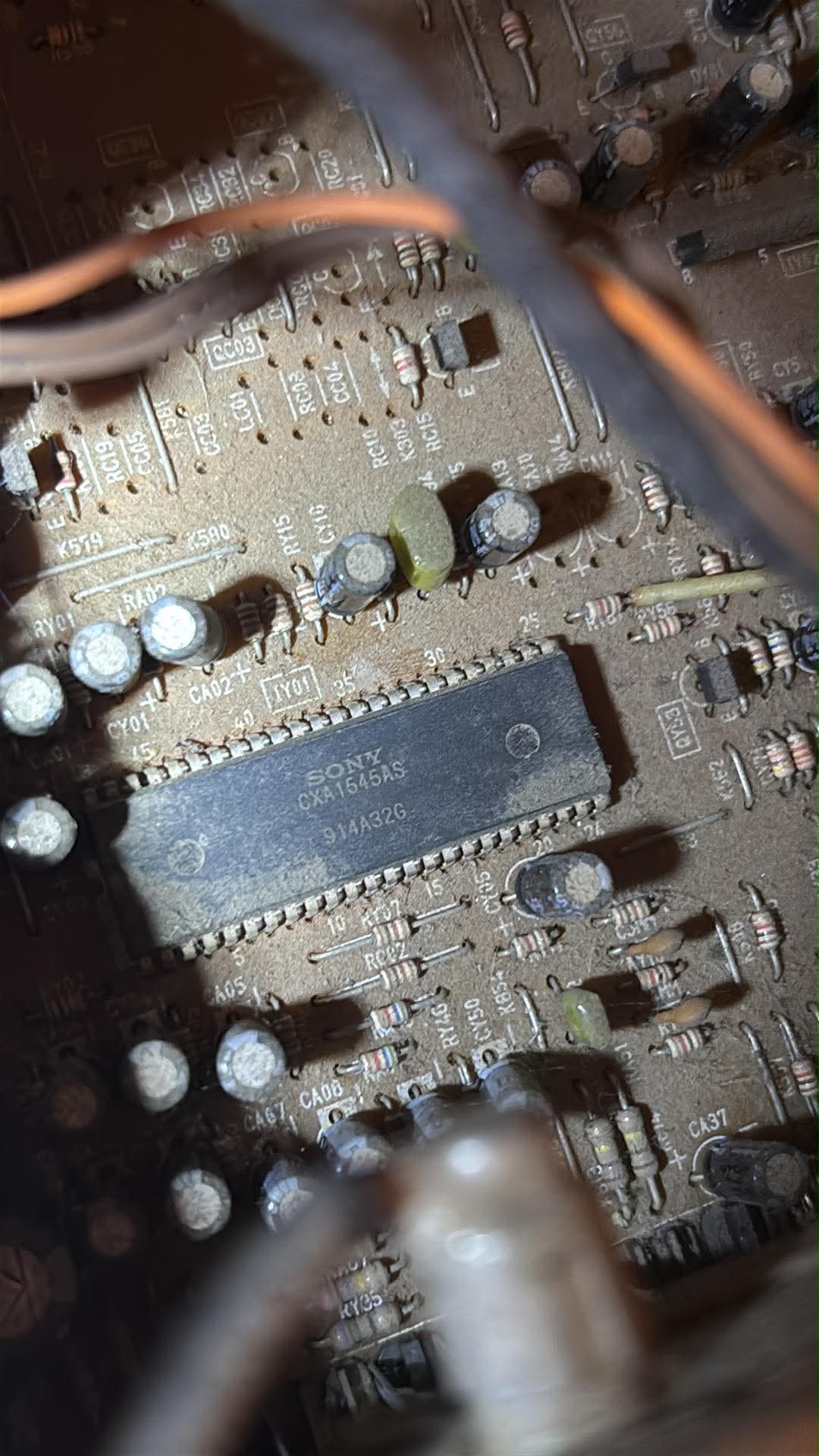

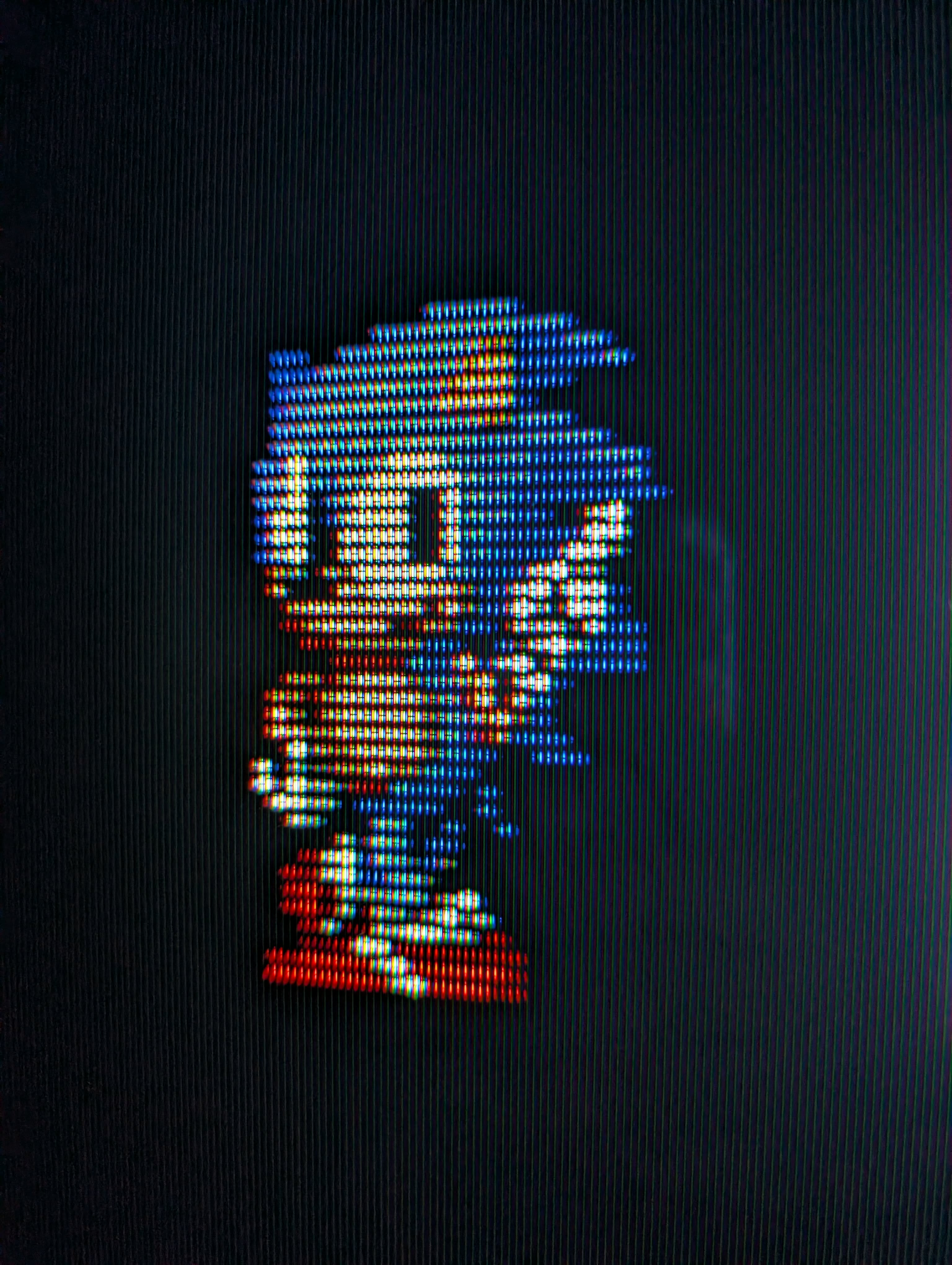

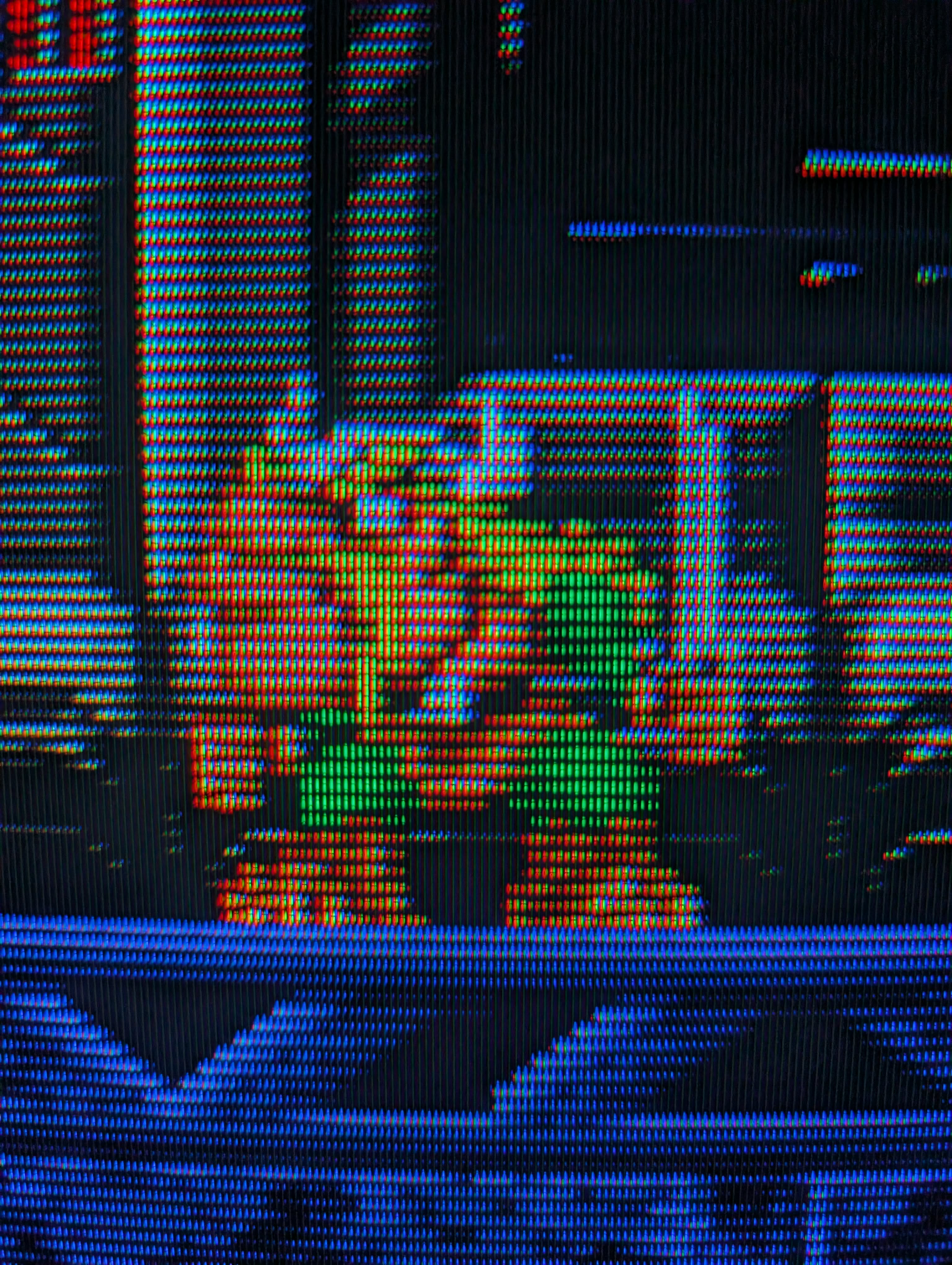

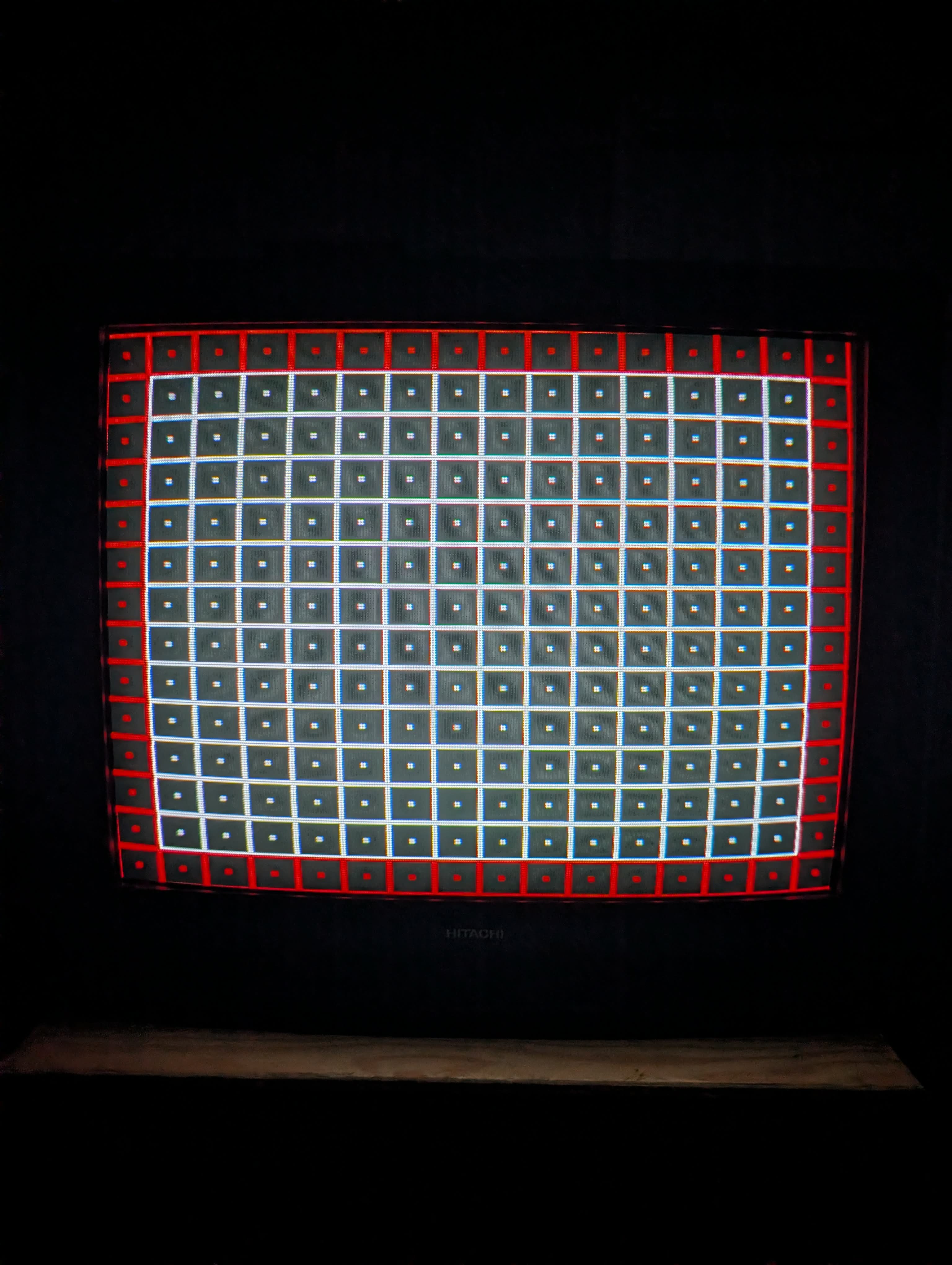

Gallery
| Specifications | |
|---|---|
| Brand: | Hitachi |
| Manufacturer: | Hitachi |
| Model: | 36UX59B |
| Series: | UltraVision |
| Viewable Size: | 36" |

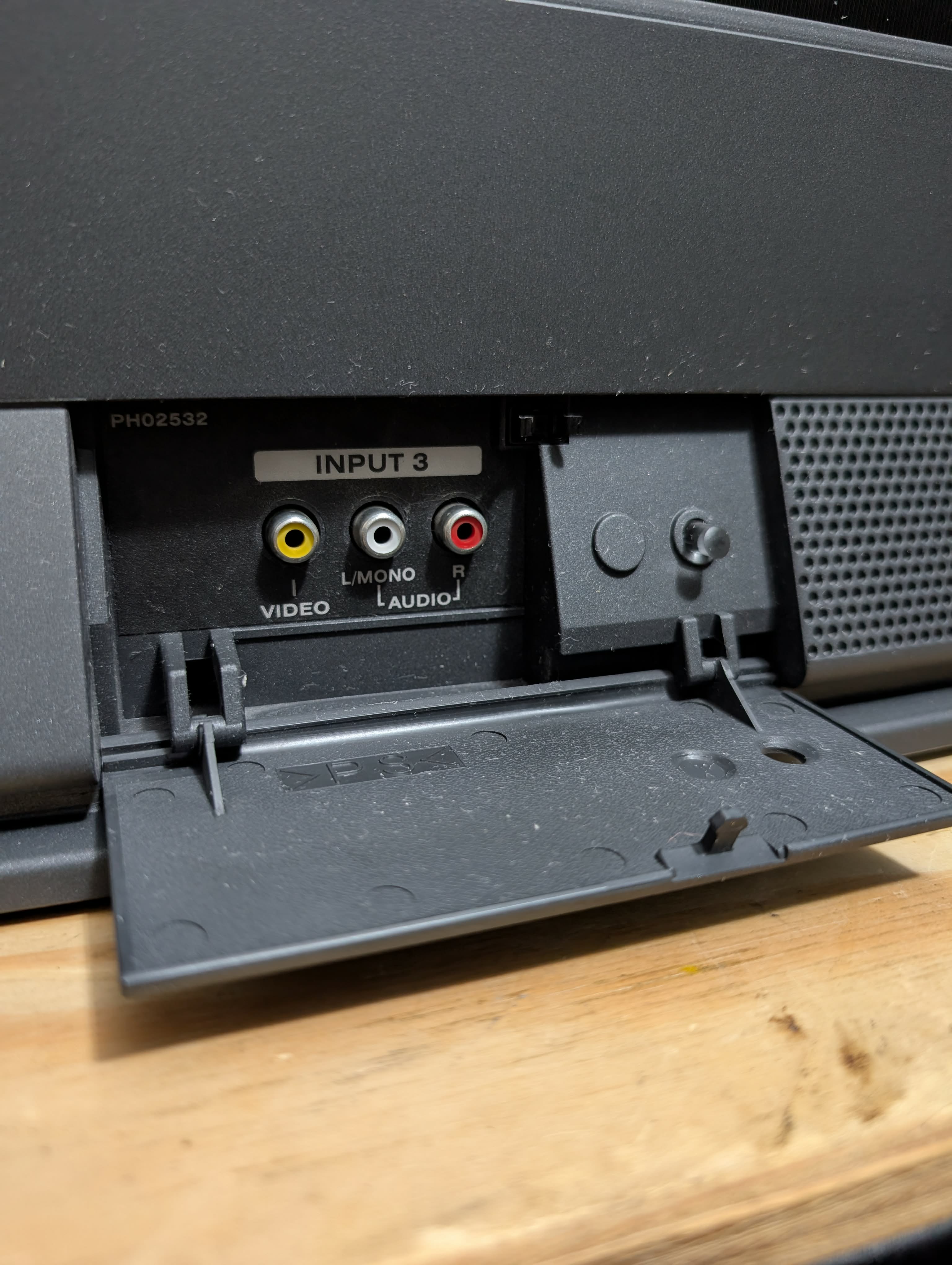

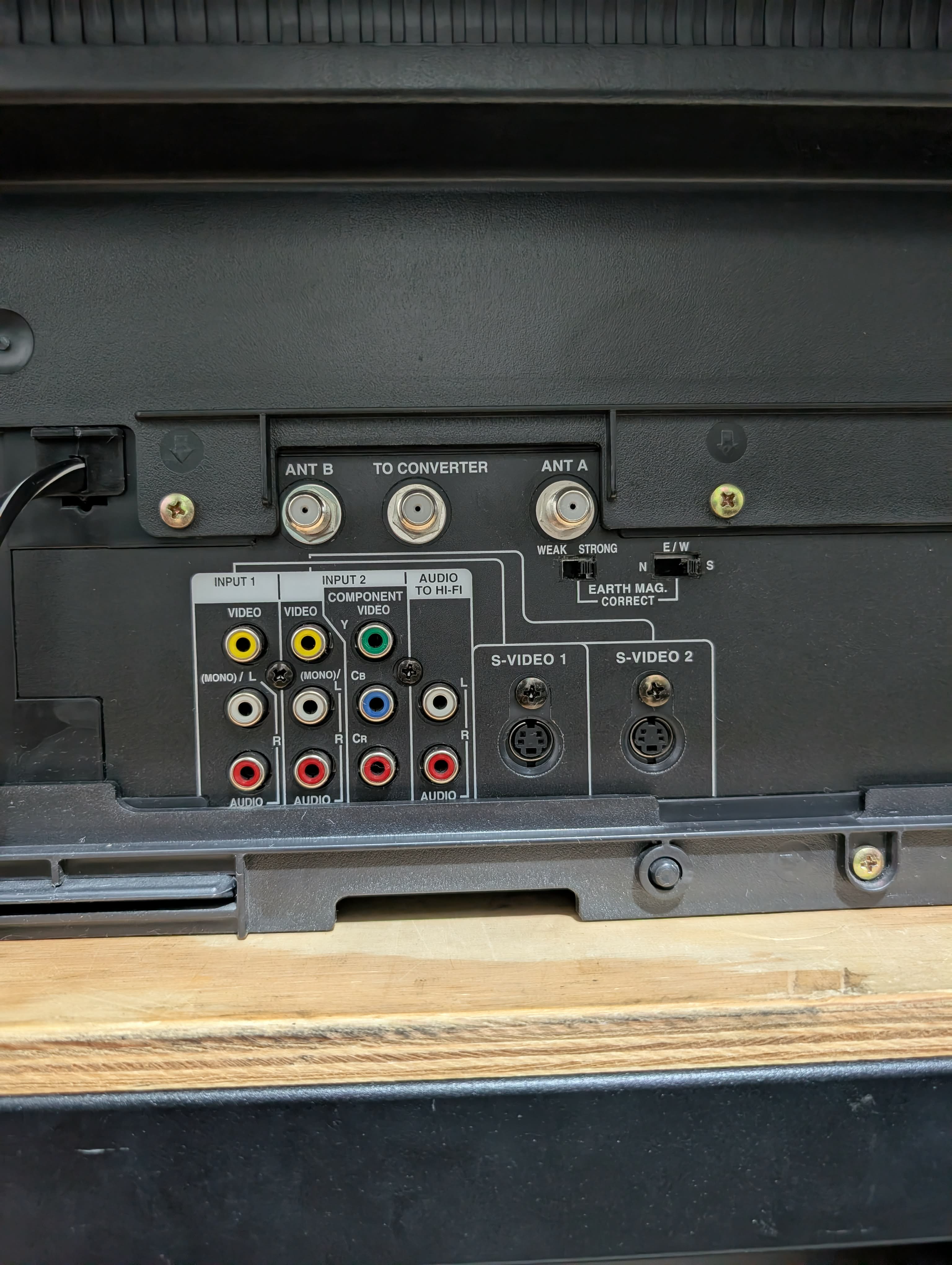

| Input Signals: | RF, Composite, S-Video, Component YPbPr |

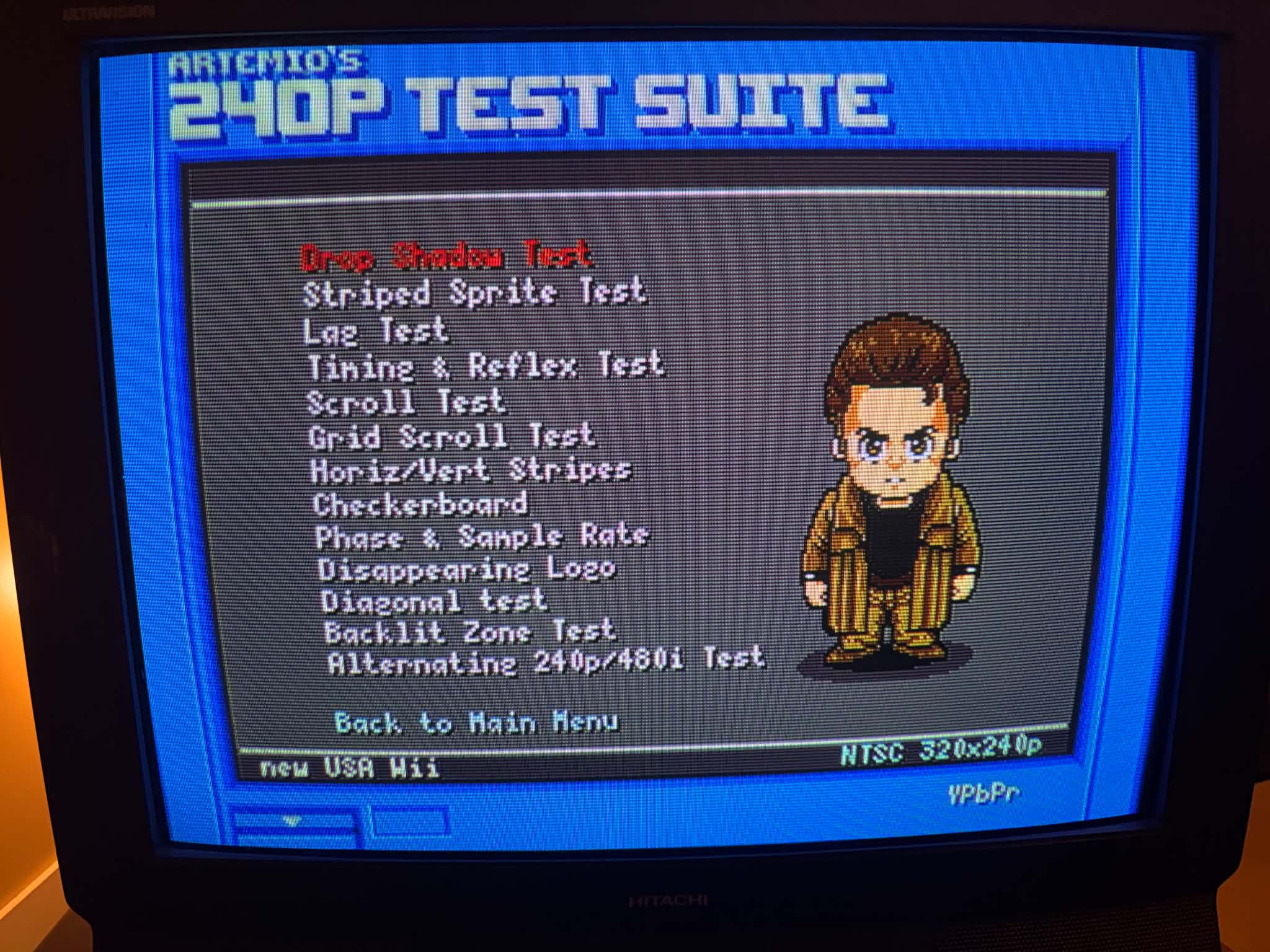

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

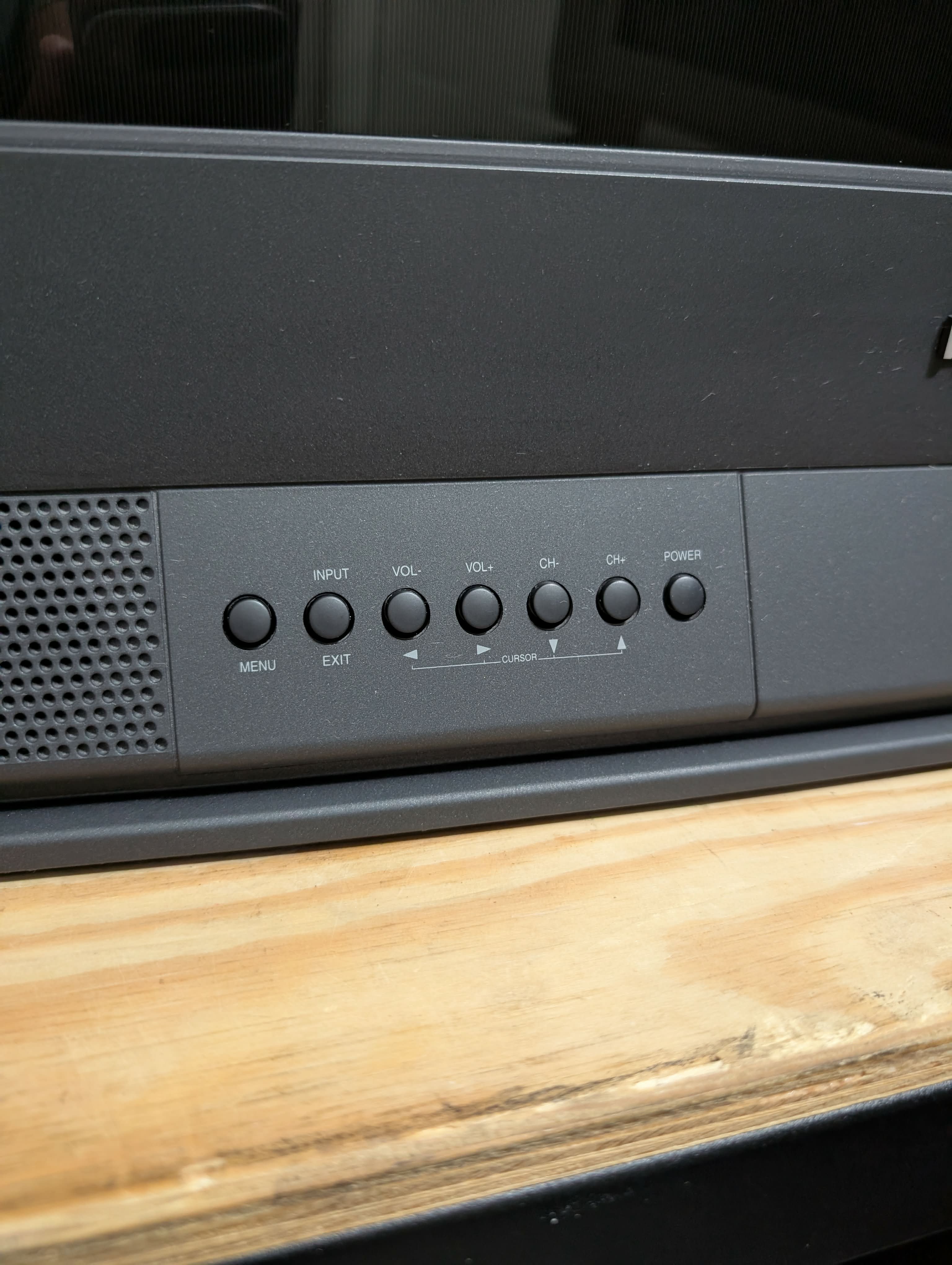

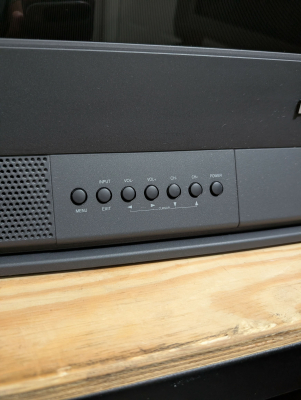

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7838 |

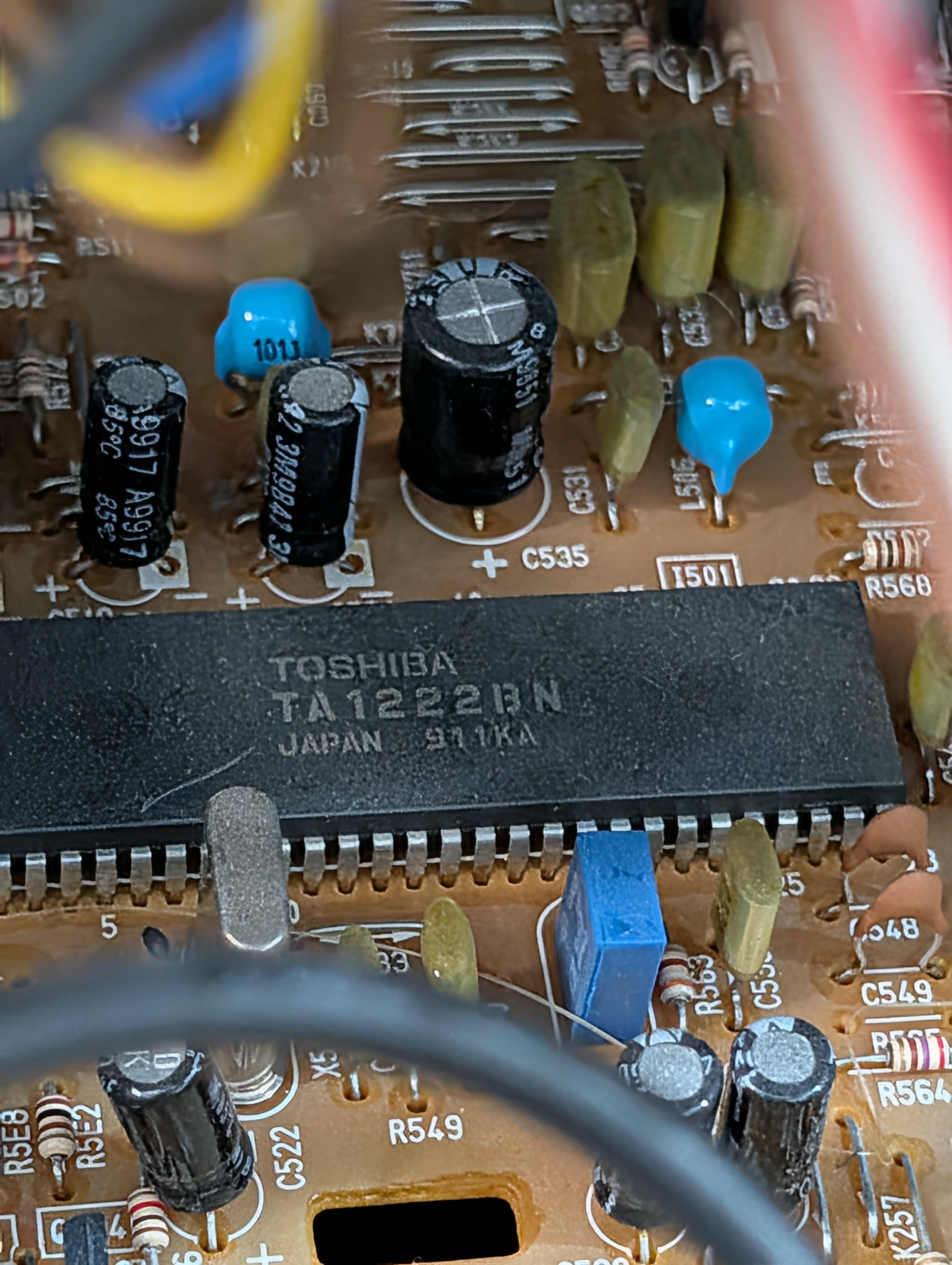

| Jungle IC: | Toshiba, TA1222, TA1222BN |

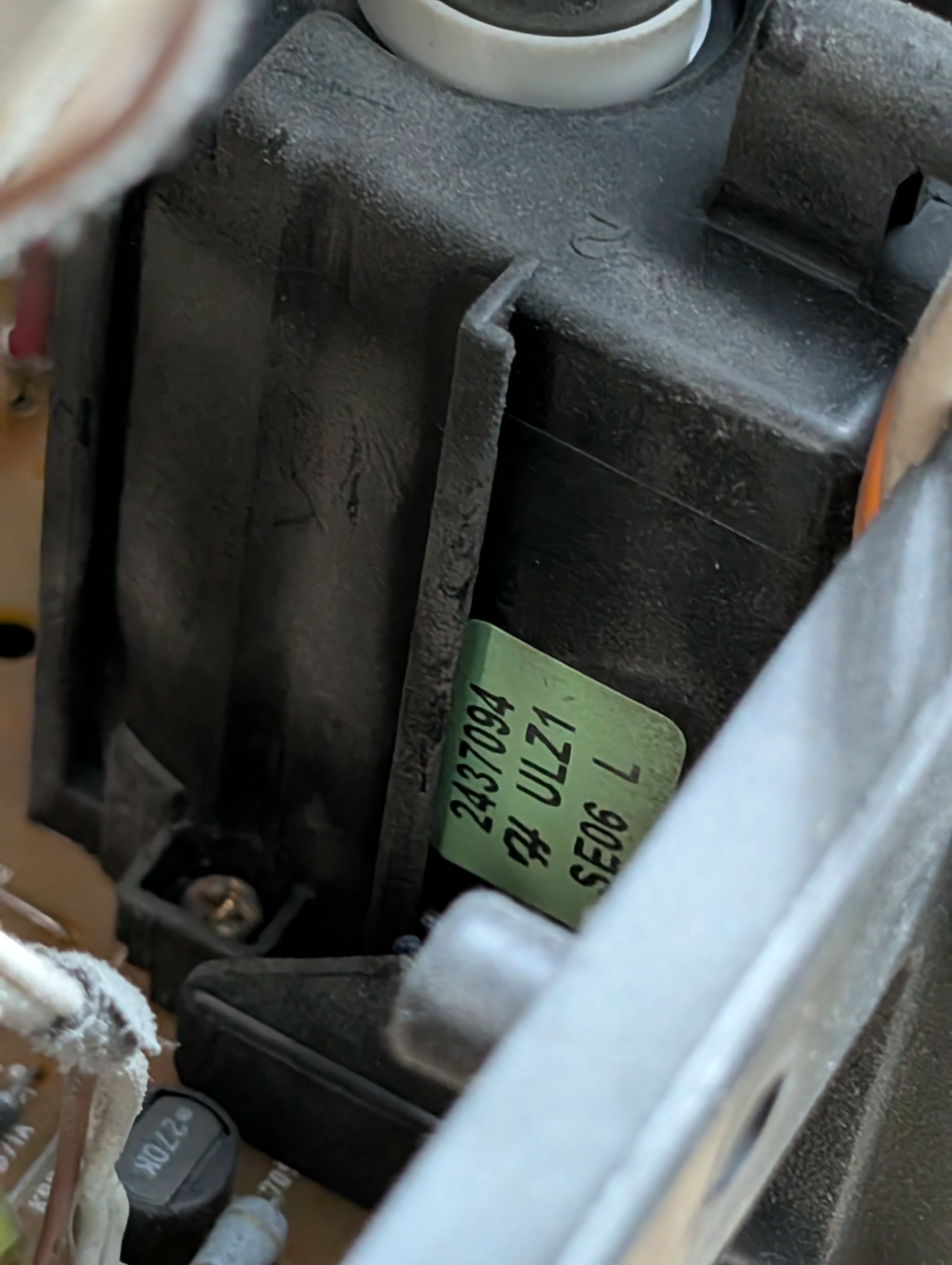

| Flyback: | 2437094 |
| Focus Type: | Single |

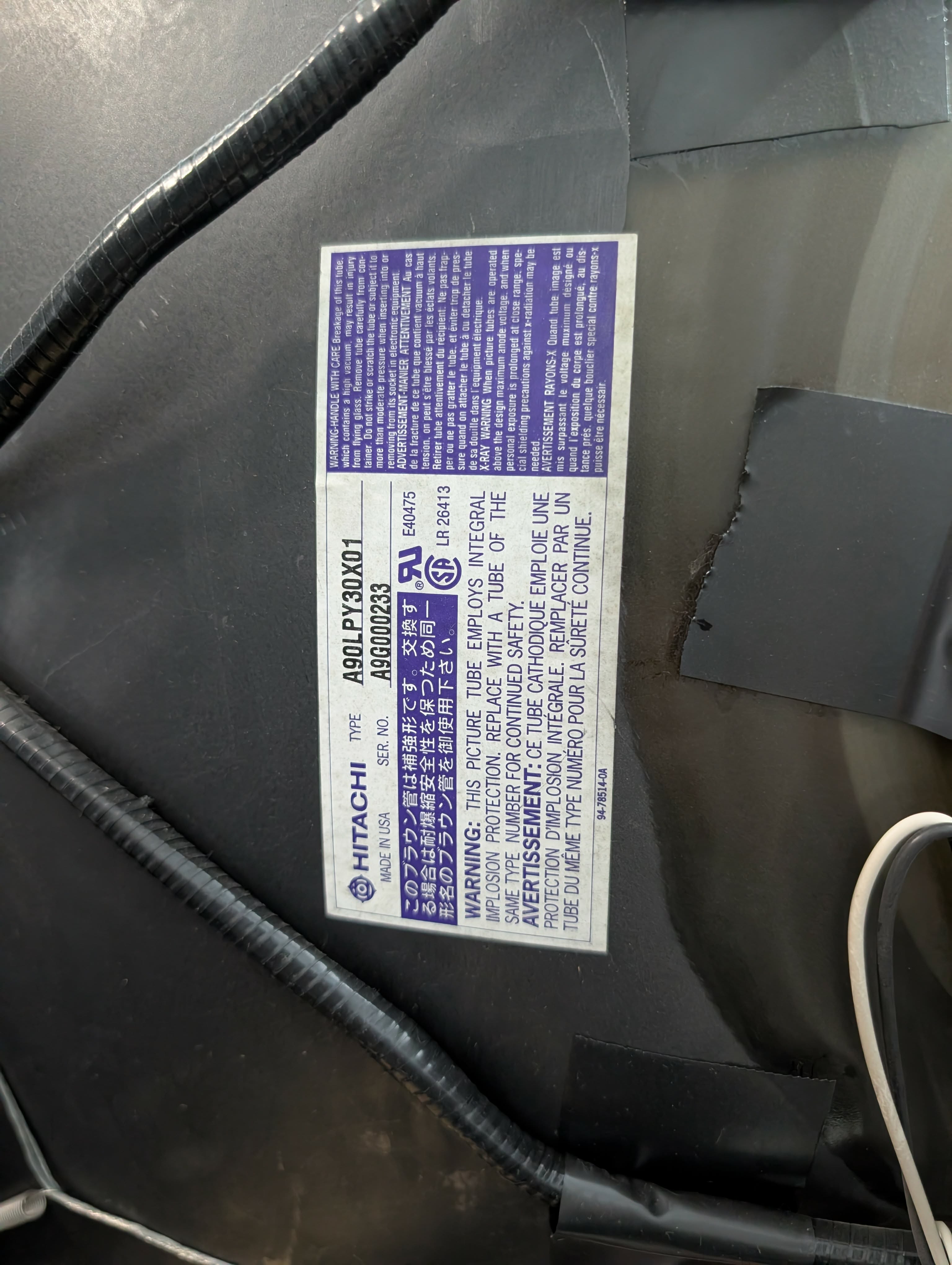

| Tube: | Hitachi , A90LPY30X , A90LPY30X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

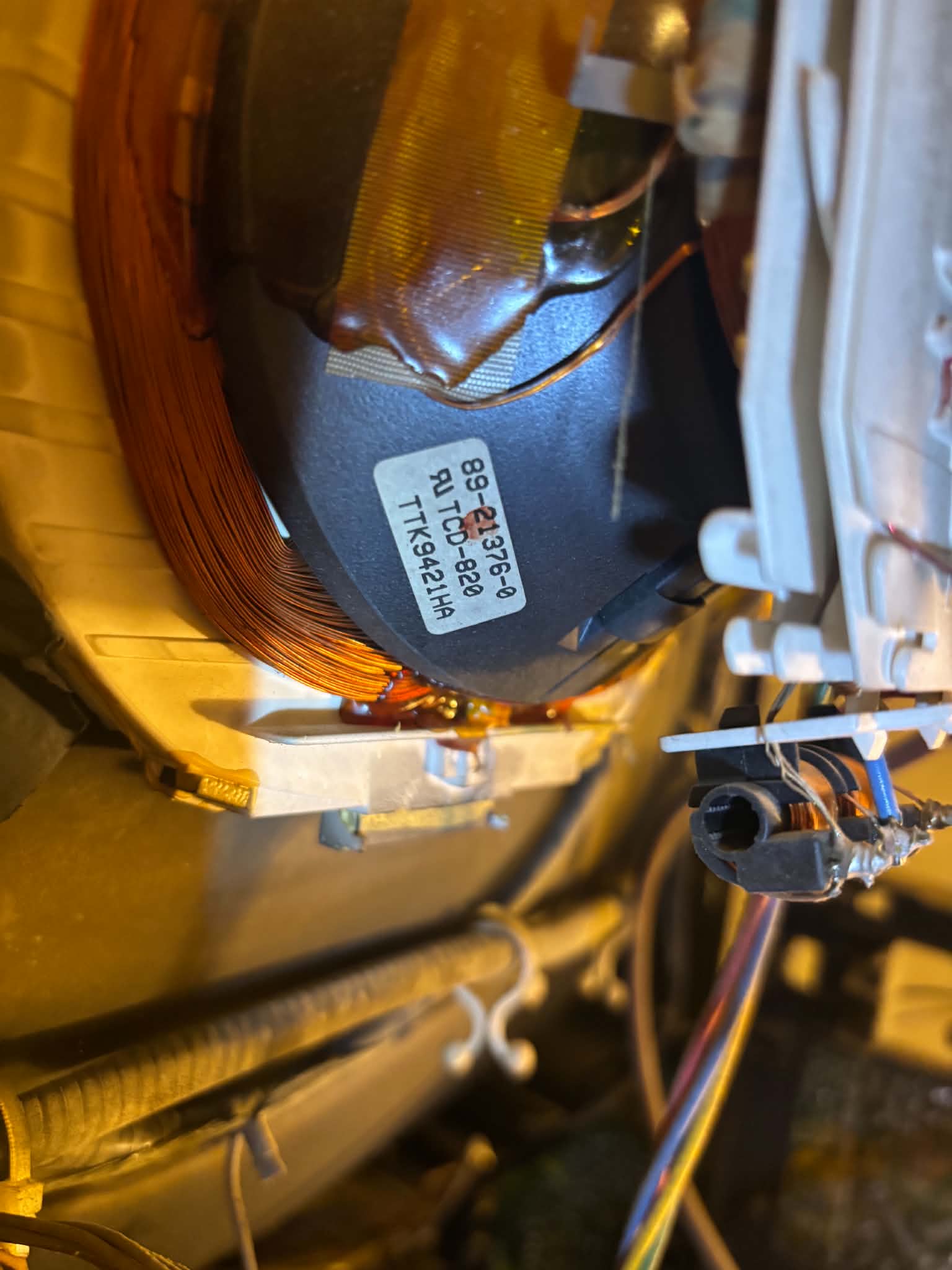

| Yoke: | 89-21376-0, TTK9421HA |
| Speakers: | Stereo |
| Remote: | CLU-4111U |
| Chassis: | M9LXU |
| Dimensions (W/H/D): |
889 x 750 x 620 mm
(34.9 x 29.5 x 24.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 1299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SP351B |
| Degaussing: | Automatic on Power-on |
