Hitachi cm611

Feline
April 23, 2026, 12:40 am
June 17, 2026, 12:06 am

Summary

There is little to no information regarding Hitachi CM611et. Most of information is known from the Hitachi`s "Discontinued Monitor Specifications" PDF. Maximum signal bandwidth appears to be 155MHz as per specificaton.

Manuals & Promo Materials

Notes

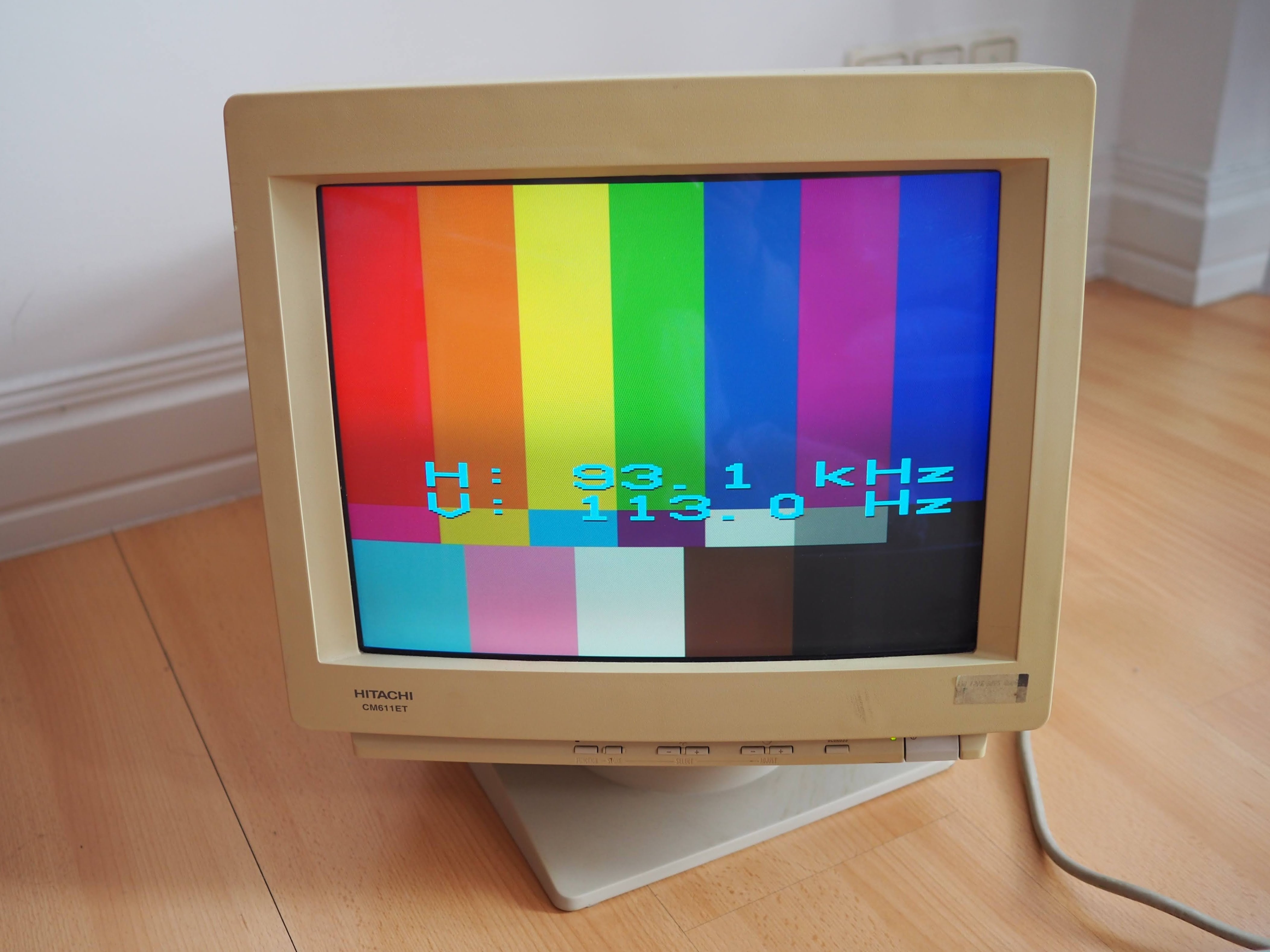

While it is listed to have max Vsync of 120Hz and Hsync of 92KHz, maximum results achieved by user were 113Hz and 93.1KHz respectively. It may vary by unit and/or variant.

Attributions

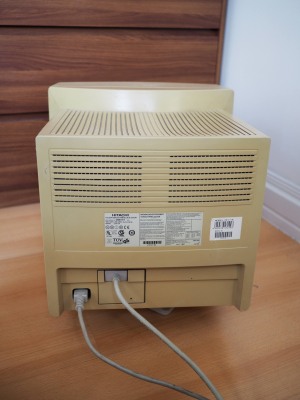

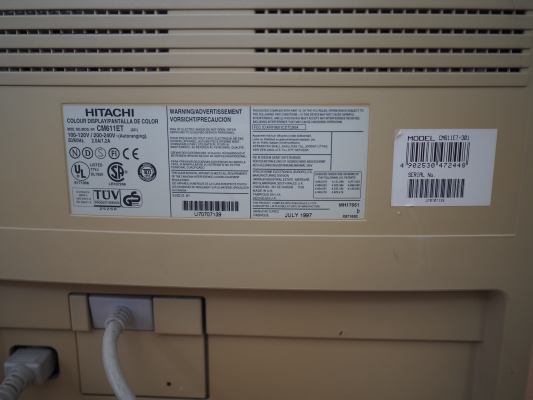

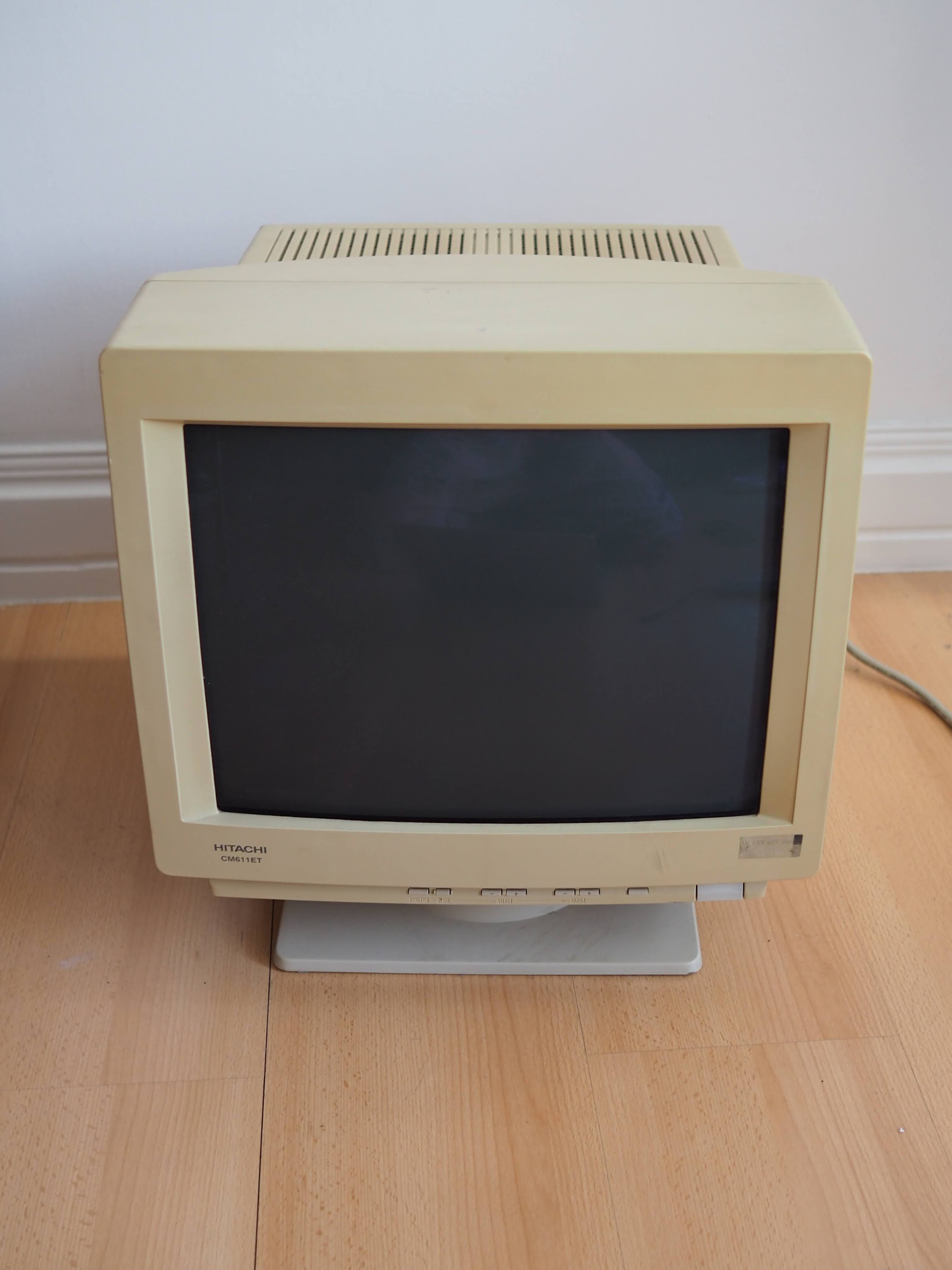

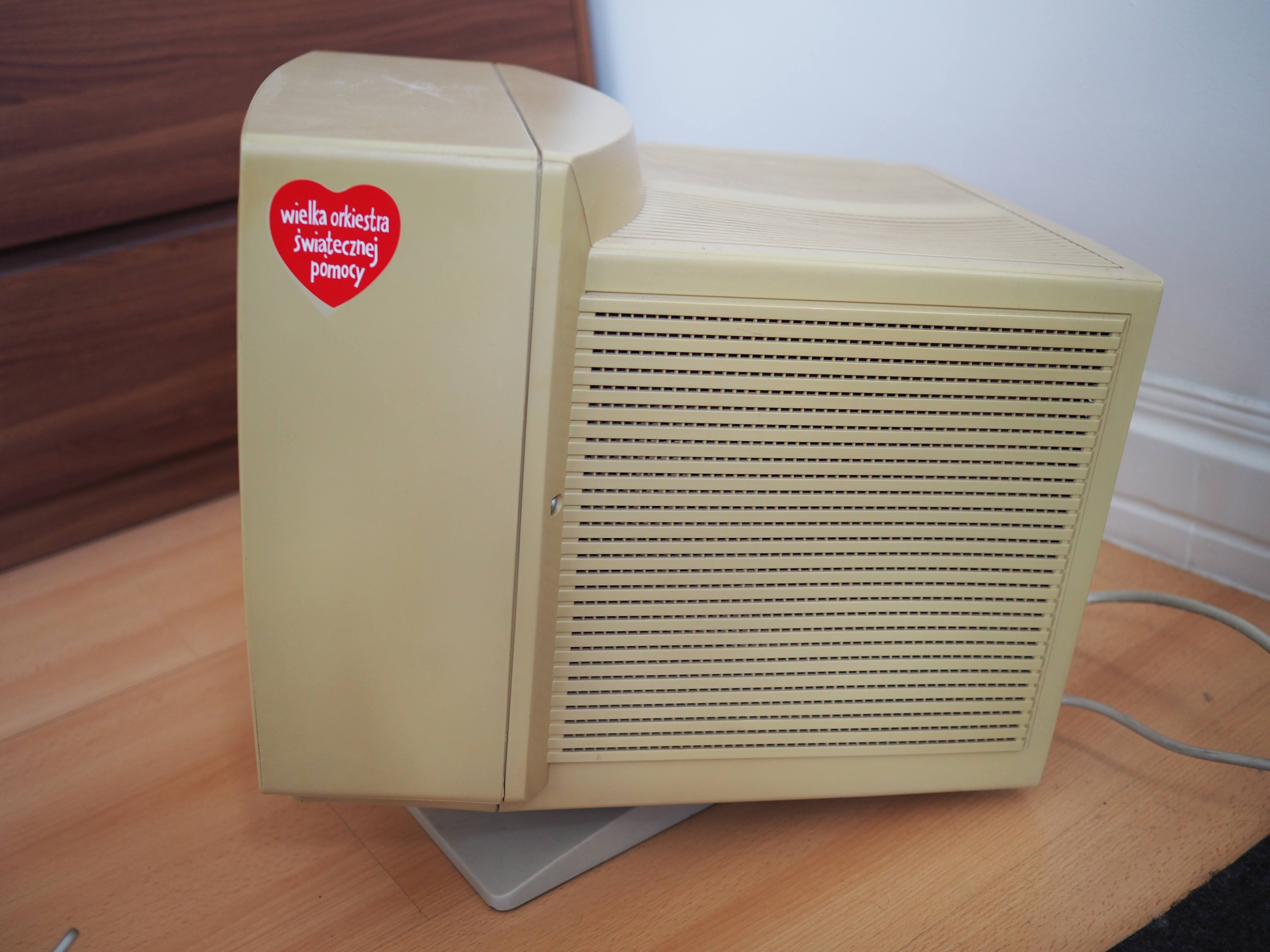

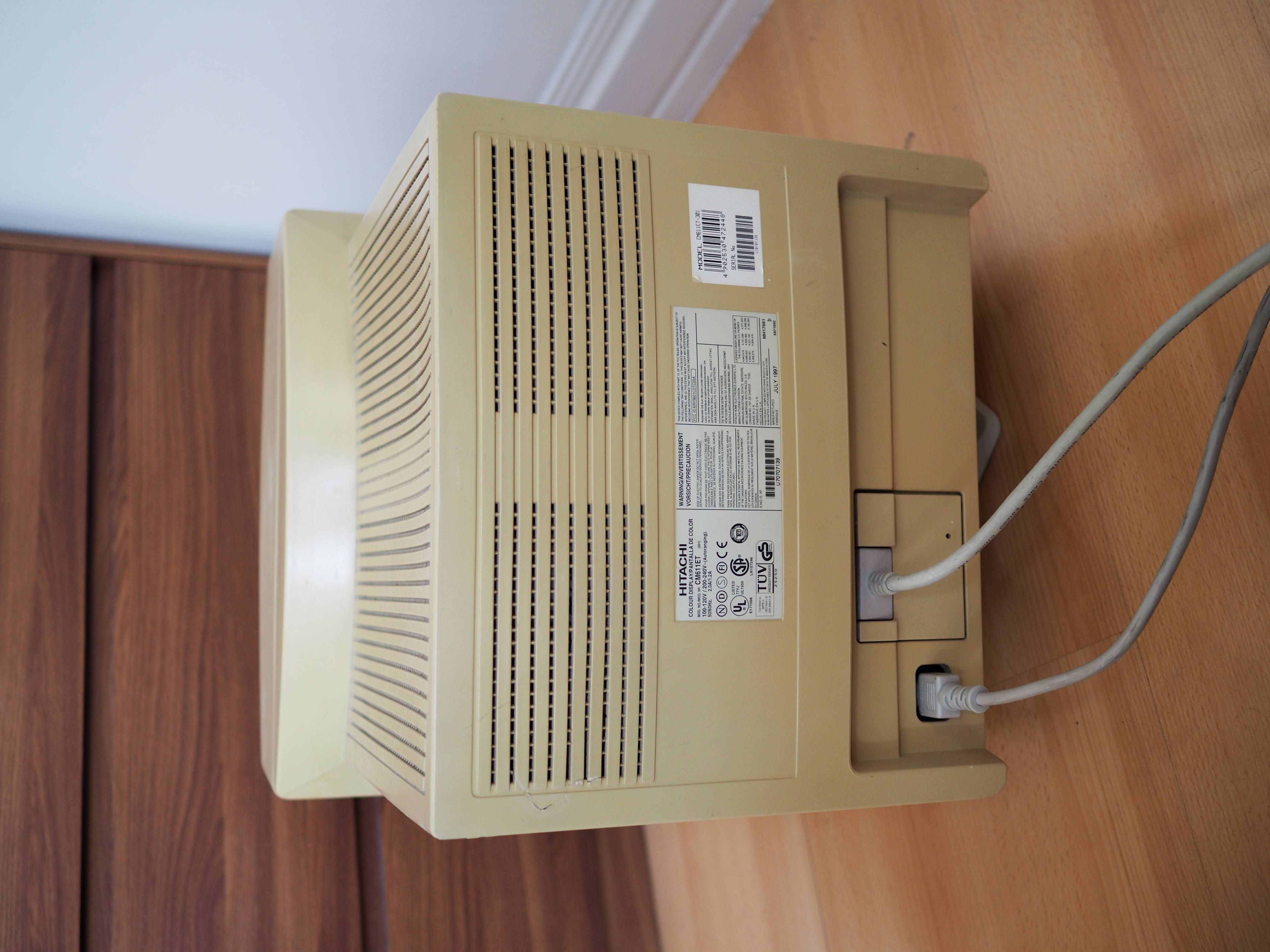

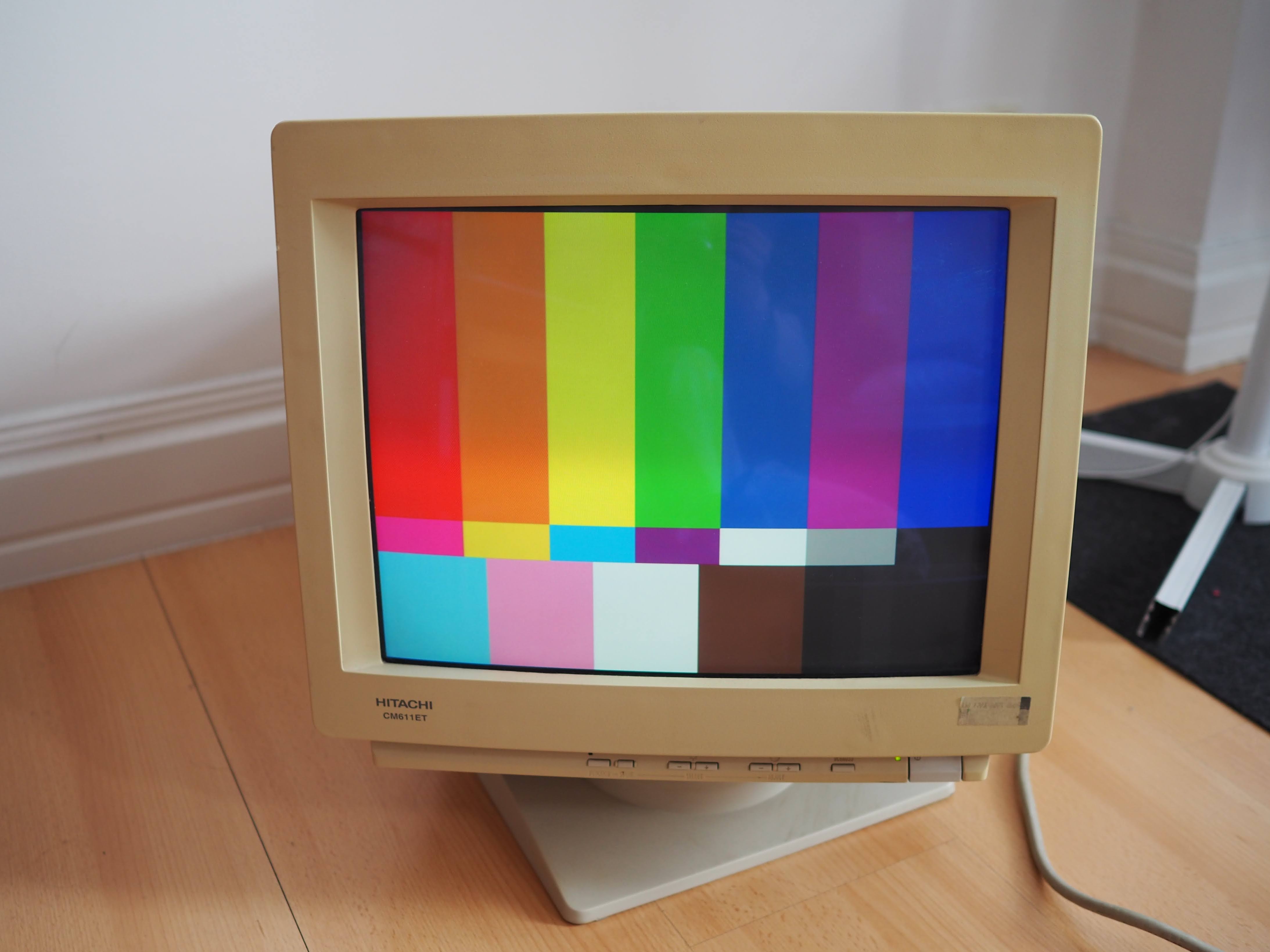

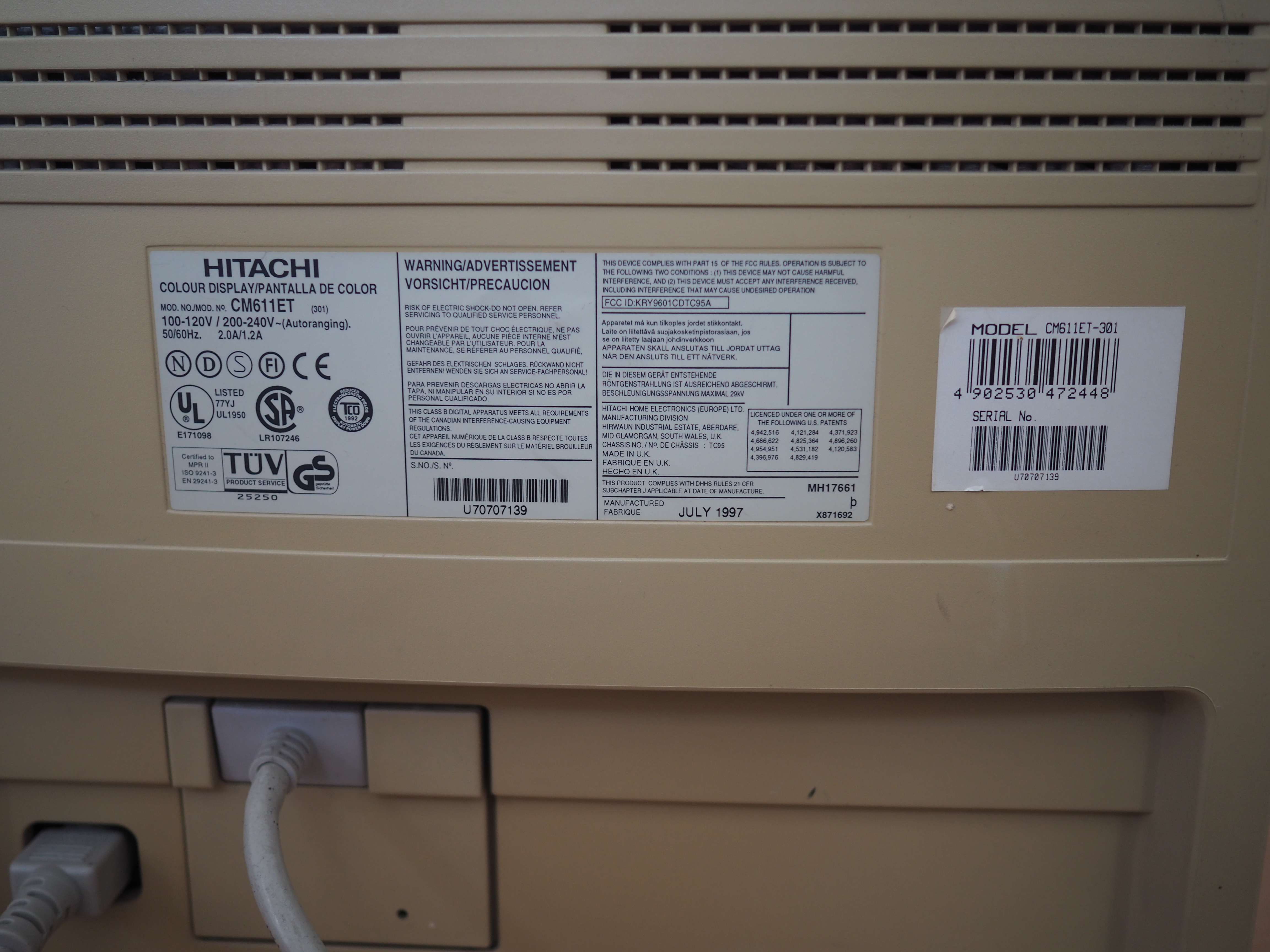

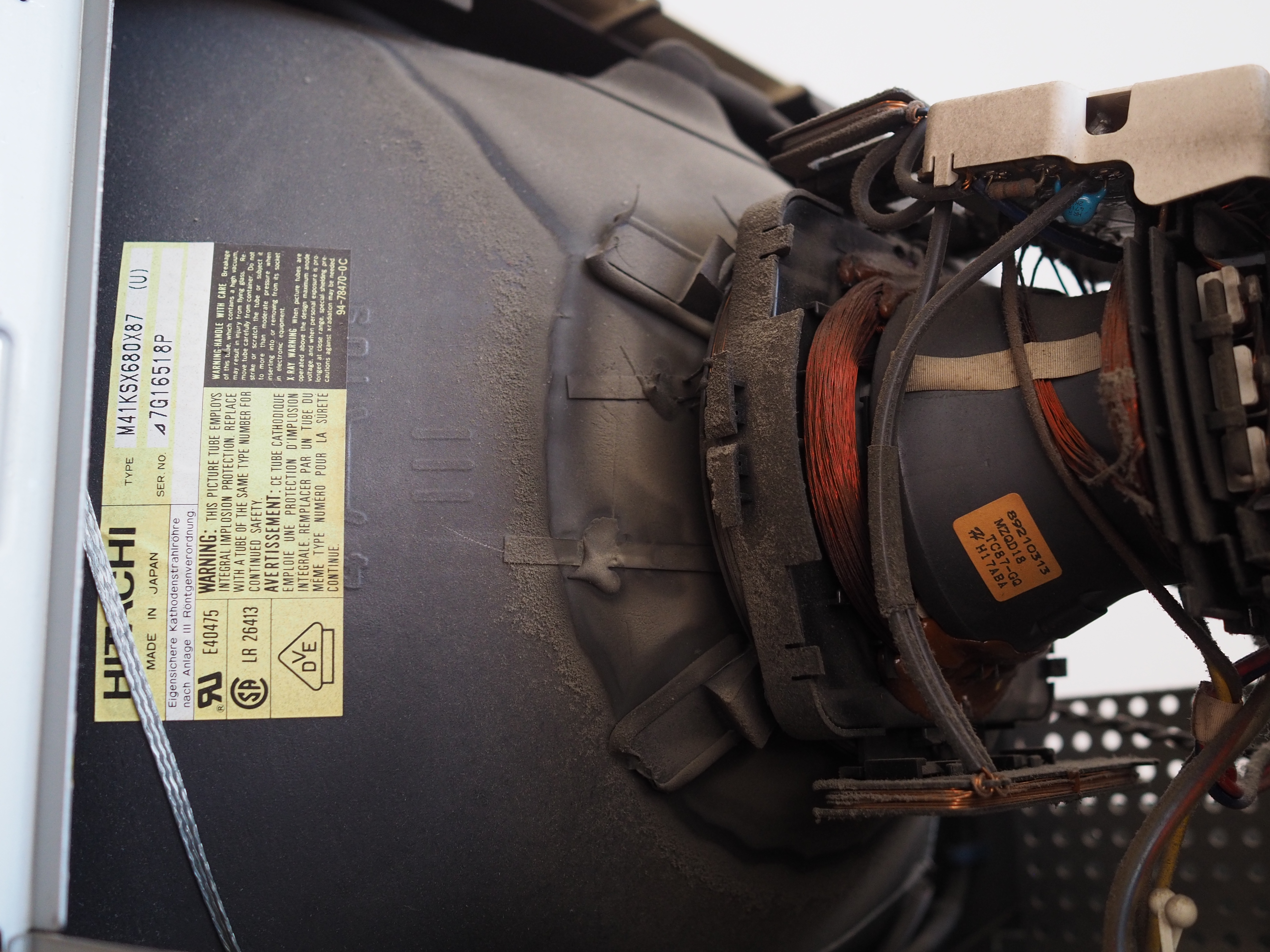

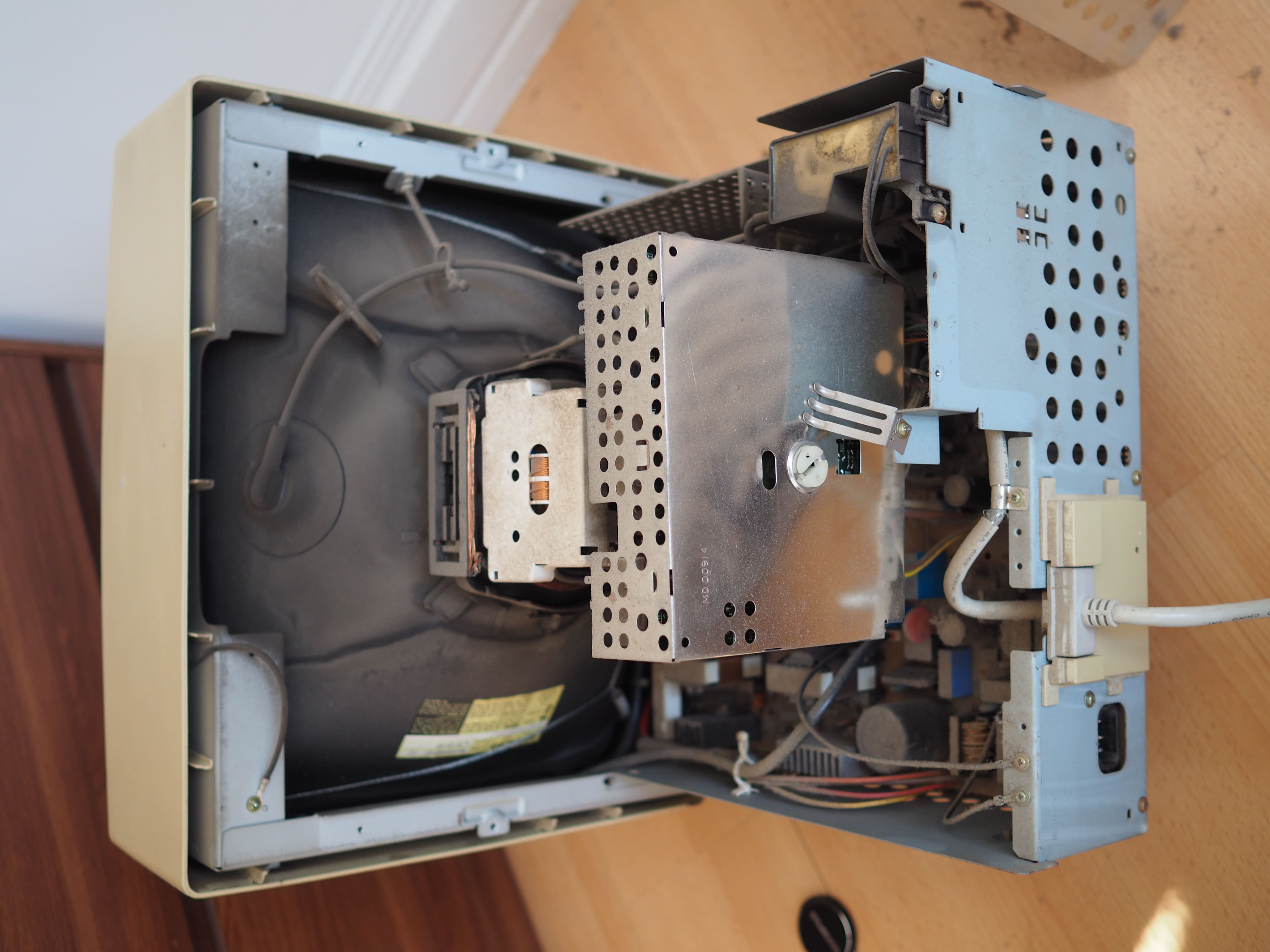

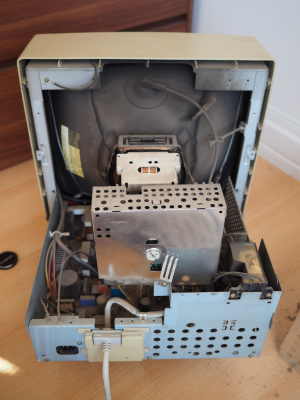

Credit to vetesworks for pictures

Gallery

Hitachi cm611 Hitachi cm611 Hitachi cm611 Hitachi cm611 Hitachi cm611
Specifications
Brand: Hitachi
Manufacturer: Hitachi
Model: CM611
Viewable Size: 16"
Input Signals: VGA
Sync: HV Sync
Horizontal Scan Range: 31 kHz, 92 kHz
Vertical Scan Range: 50 Hz, 120 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Pitch: 0.26 mm, .26 mm
Application: Computer Monitor
Cabinet Material: Plastic
Power Standard: 100-120 VAC, 200-240 VAC
Degaussing: Automatic on Power-on, Manual
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info, Needs Tube Info, Community Submission, Needs IC Info
