Hitachi CT-2085RA
Matt Ross
September 18, 2024, 11:33 pm
October 14, 2024, 7:11 pm
September 18, 2024, 11:33 pm
October 14, 2024, 7:11 pm
Summary

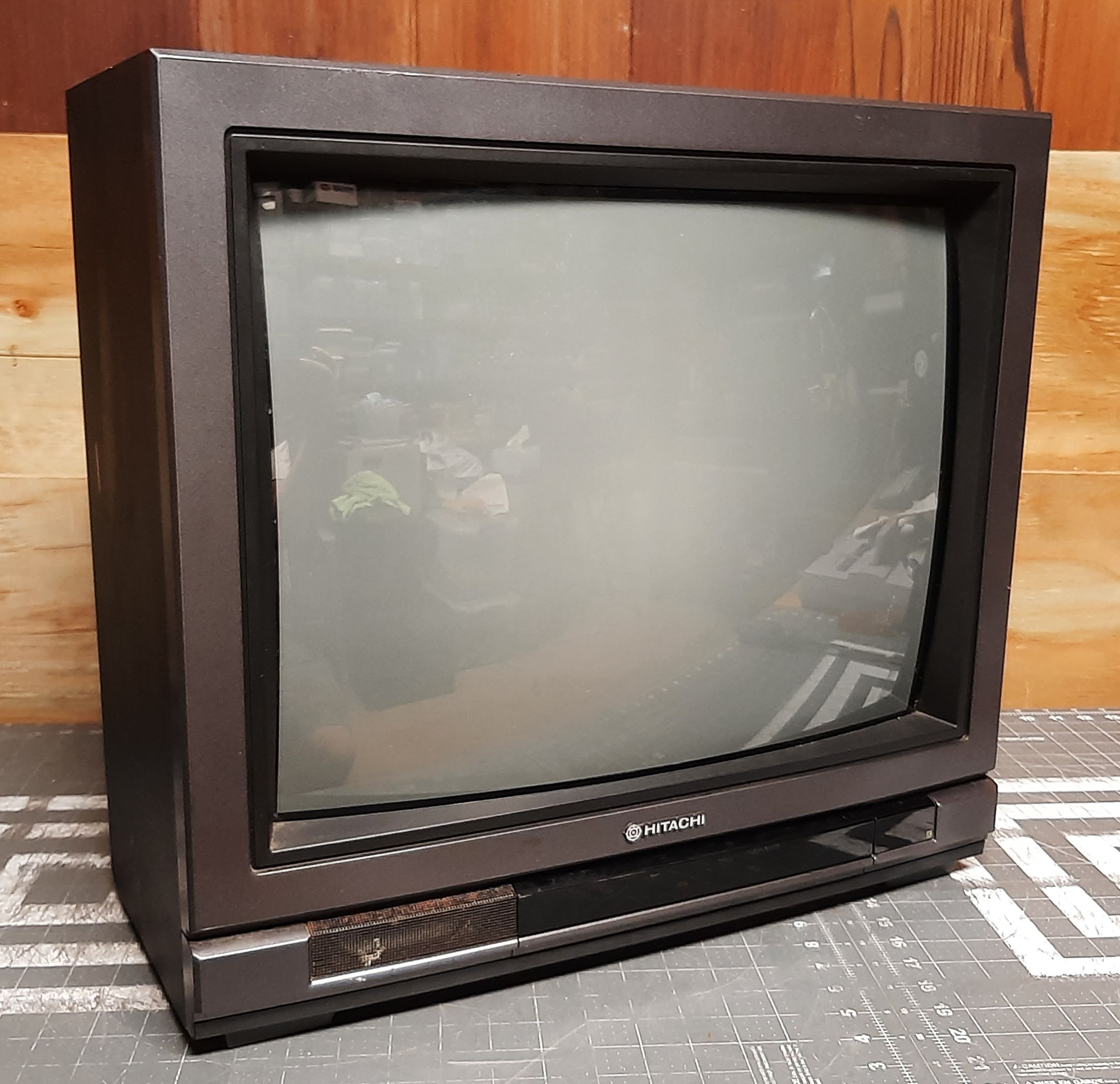

Classic '80s style RF-only TV, with a heavy wood frame and dark tinted bubble tube.
Literature
No documentation is available online at this time.
Notes
Like most TVs without A/V inputs, this TV has a hot chassis and should not be modified for additional inputs.
This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

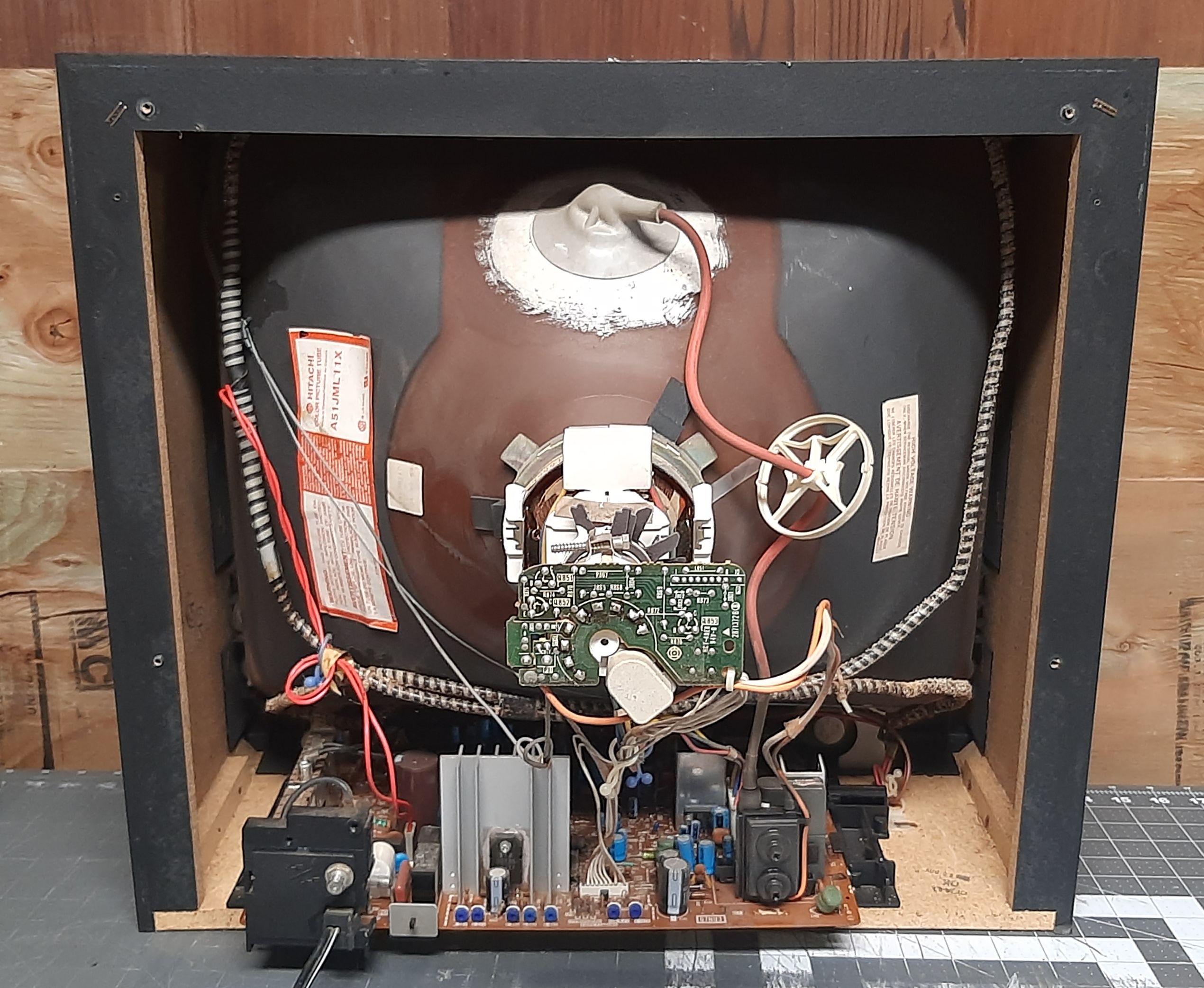

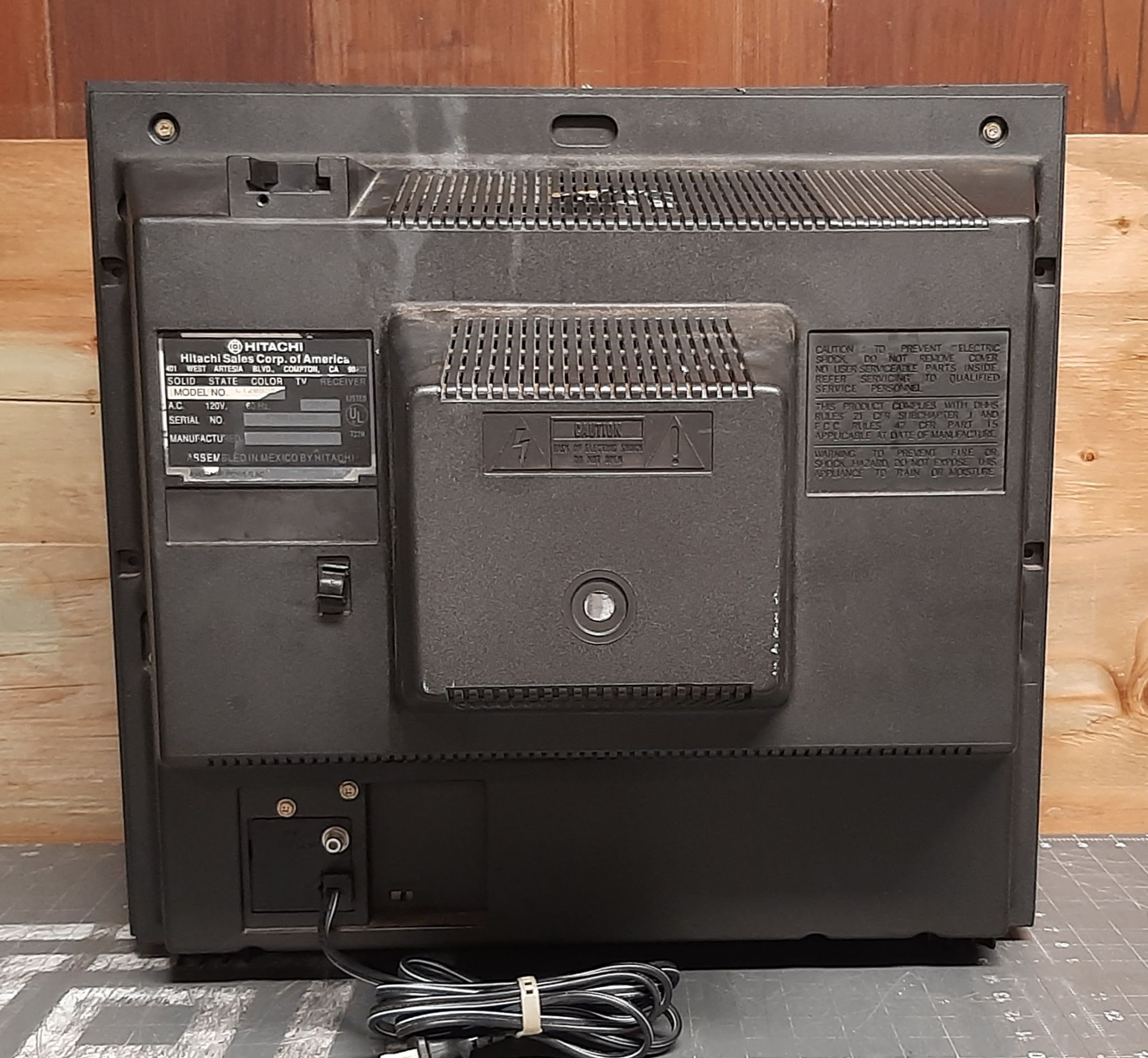

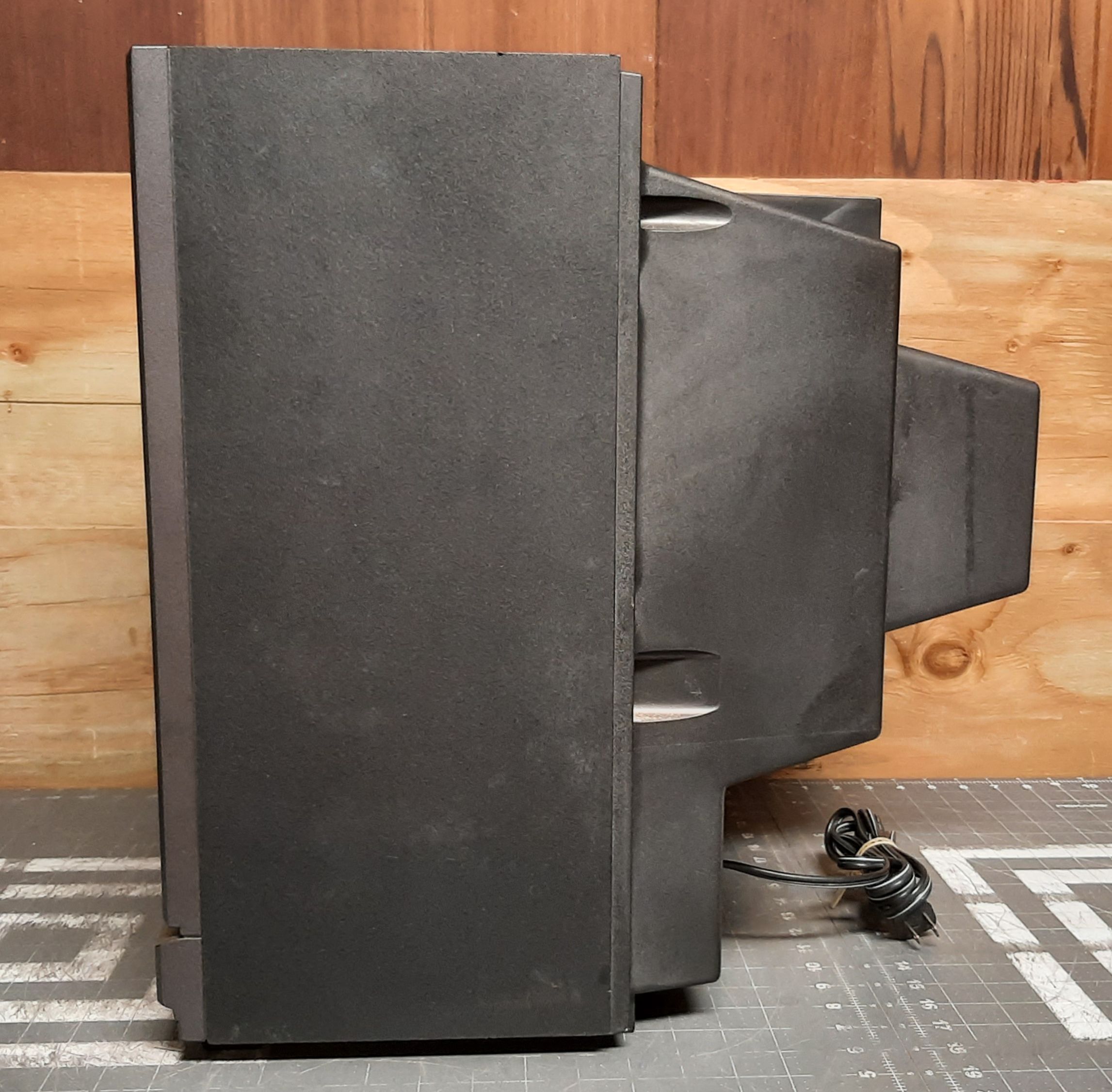

Gallery
Specifications | |
---|---|
Brand: | Hitachi |
Manufacturer: | Hitachi |
Model: | CT-2085RA |
Series: | CT |
Viewable Size: | 20" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, Front Mounted Buttons |
Horz. Output Transistor: | D1877 |
Vertical Output IC: | uPC1378H |
Flyback: | 2435001 |
Tube: | Mitsubishi , A51JML11X |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Yoke: | 2442434 |
Yoke Horz. Inductance: | 2.960 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 29.55 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 5.218 ohm |
Yoke Vert. Resistance: | 14.61 ohm |
Speakers: | Mono |
Chassis: | G7NU3 |
Application: | Consumer |
Cabinet Material: | Wood |

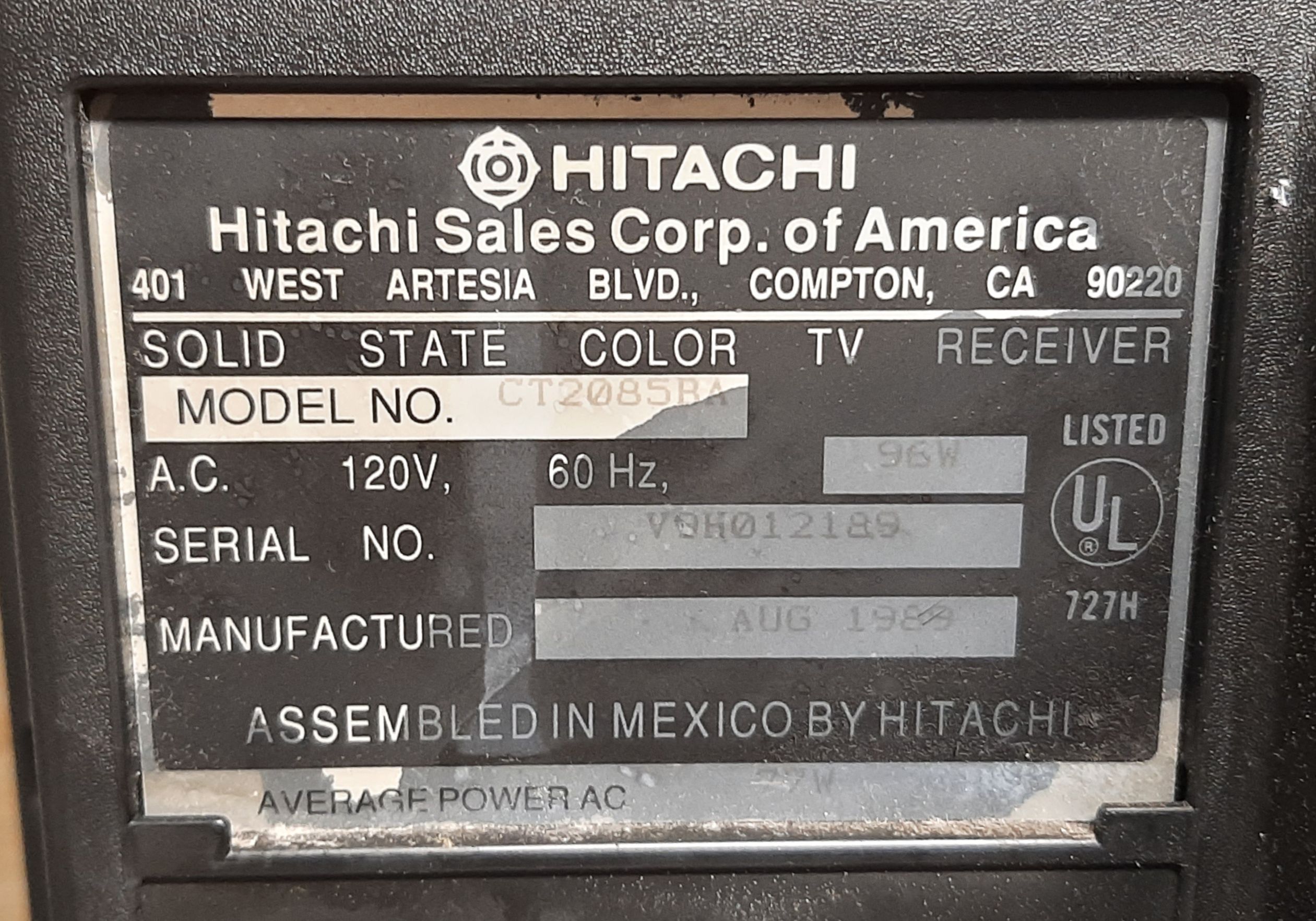

Launched: | 1989 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
