Summary

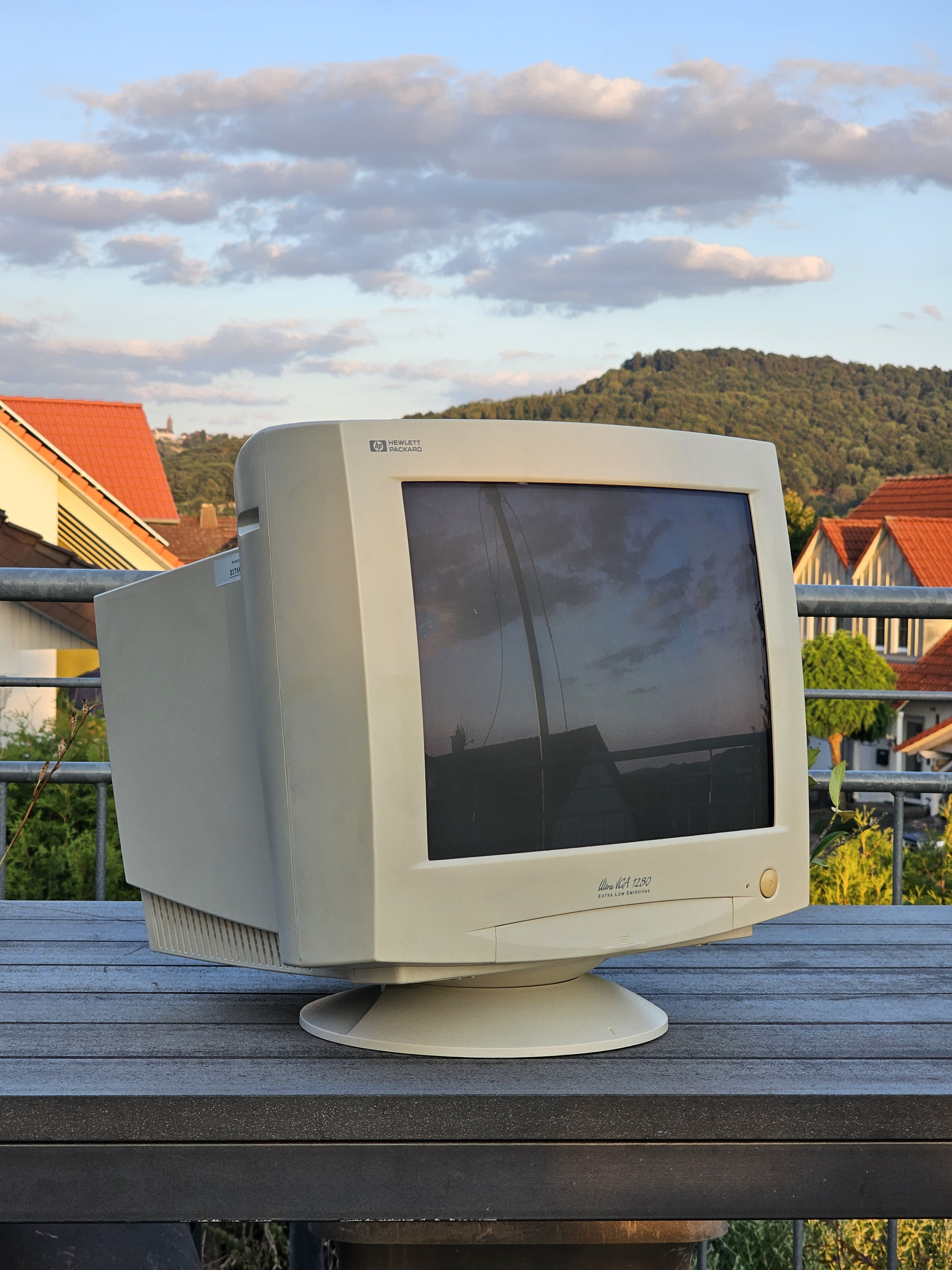

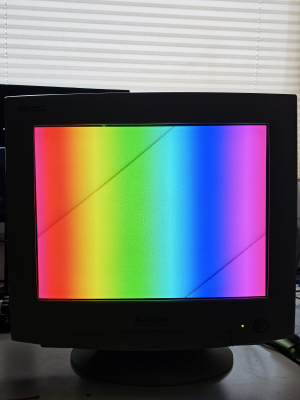

Standard 17" (15.7" viewable) monitor manufactured by Samsung for HP from the mid- to late 90s. Has a 69kHz horizontal frequency, 160Hz veritcal and .28mm dot pitch
Supports up to 1280x1024 @ 60Hz or 1024x768 @ 85Hz
Manuals
- Owner's Manual (Closest match)

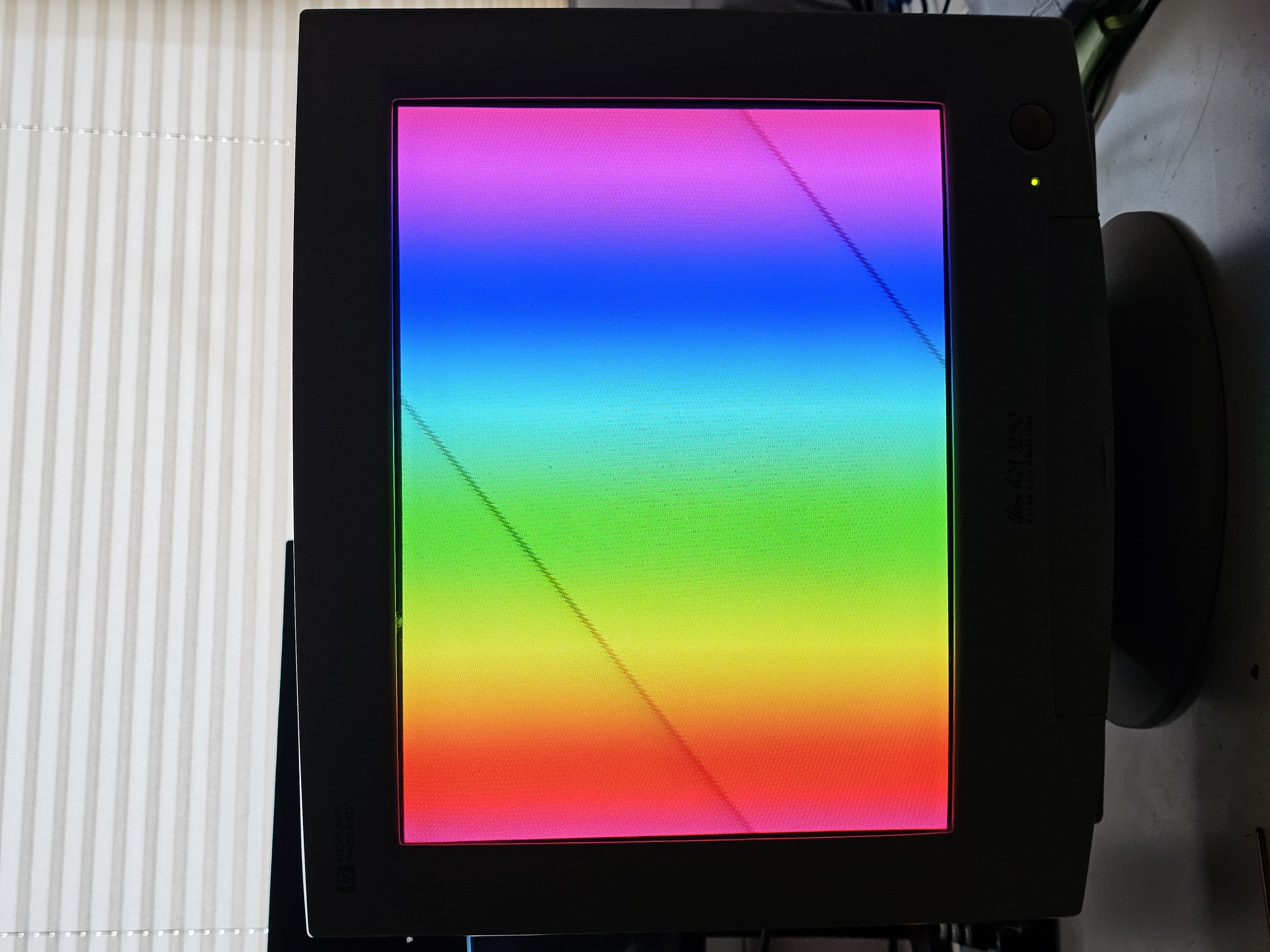

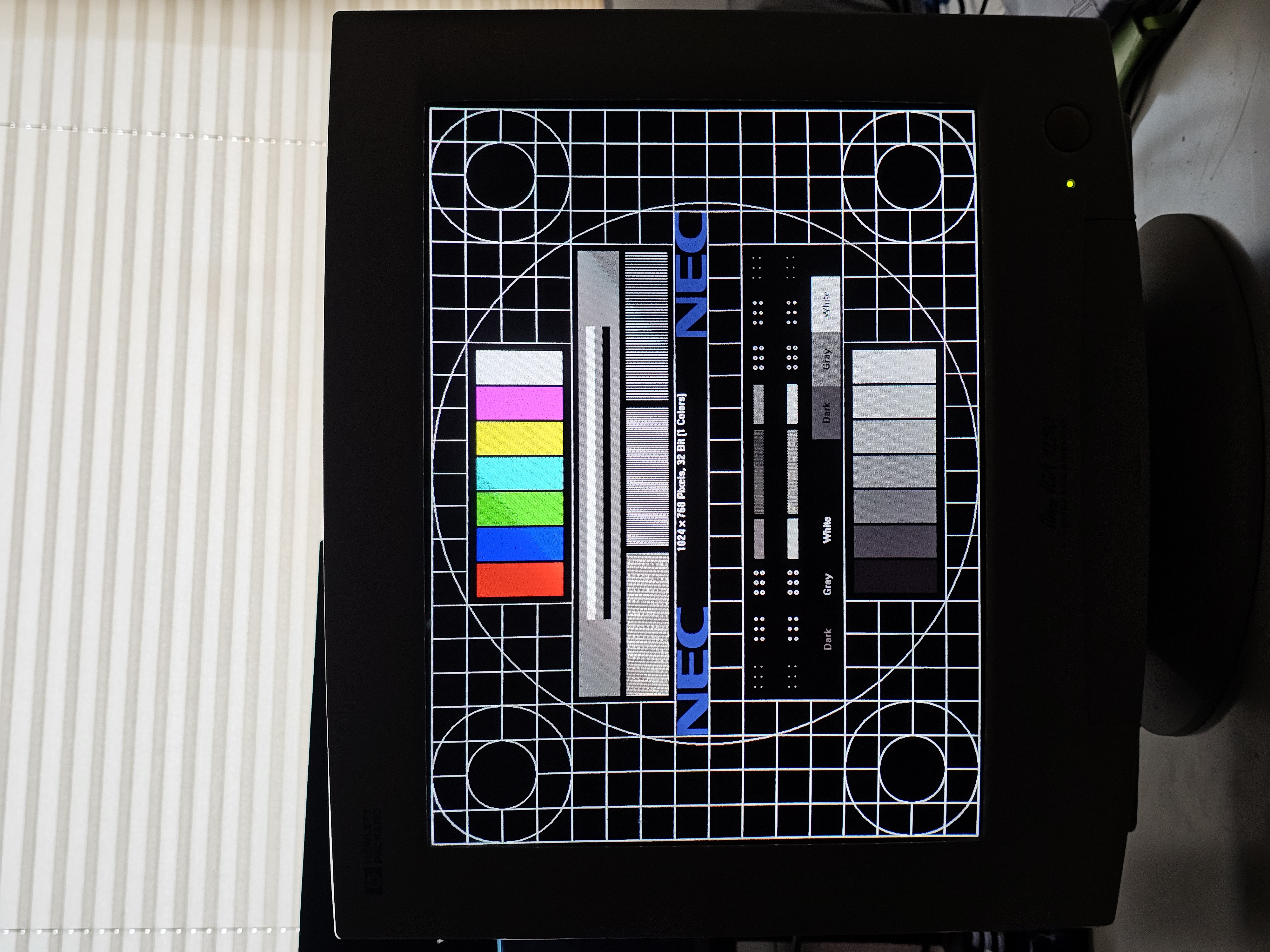

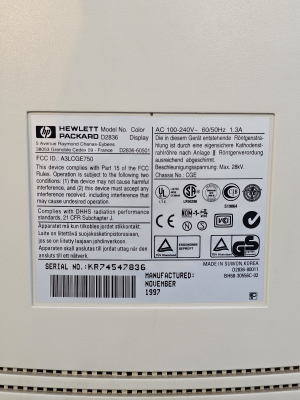

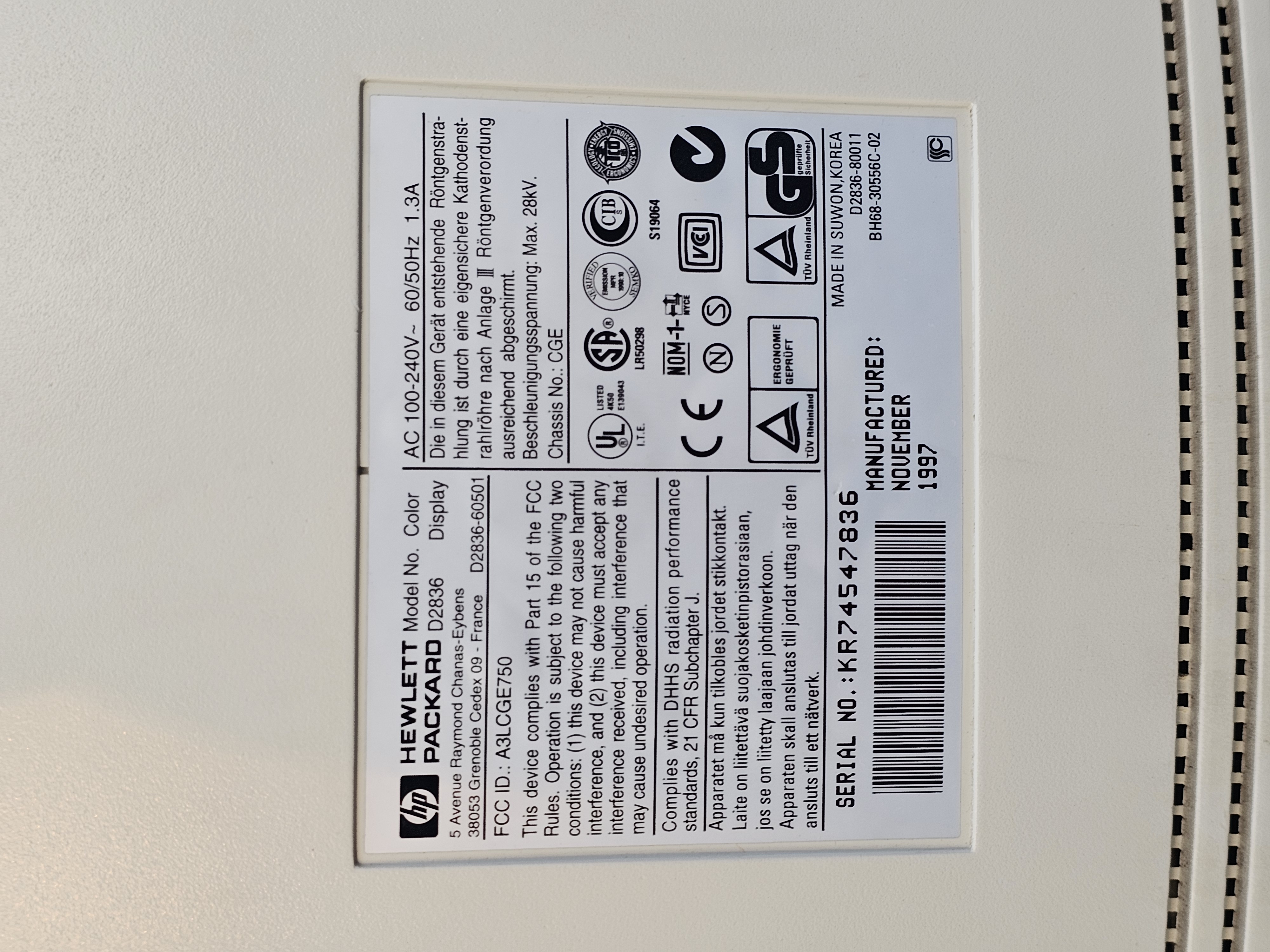

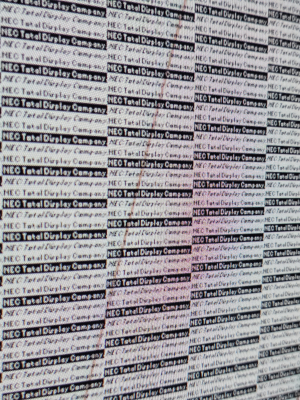

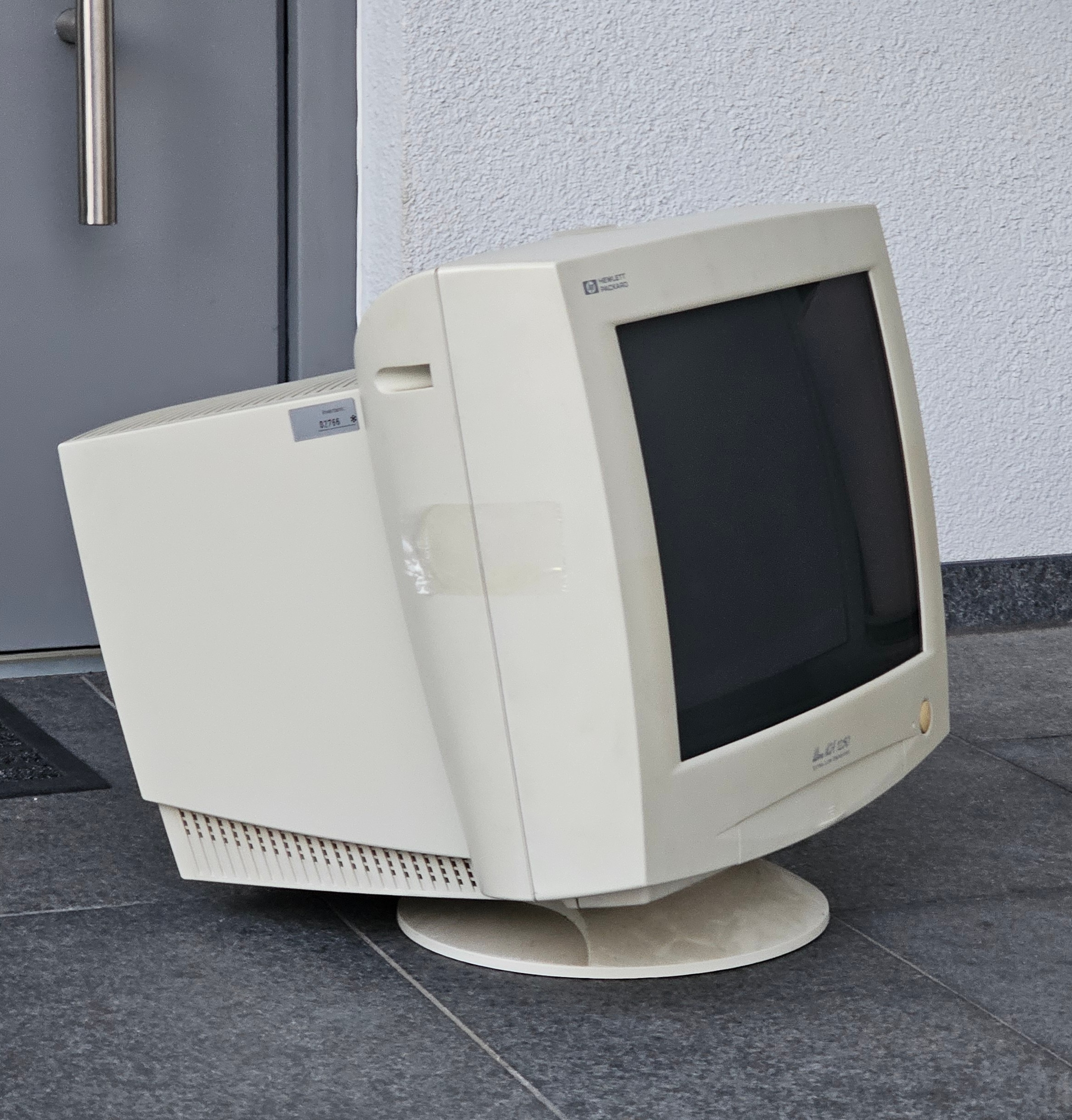

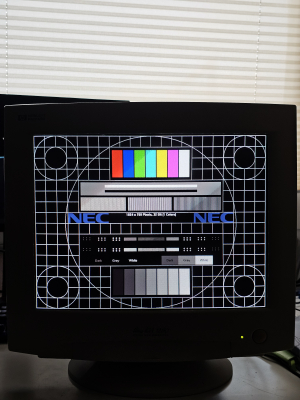

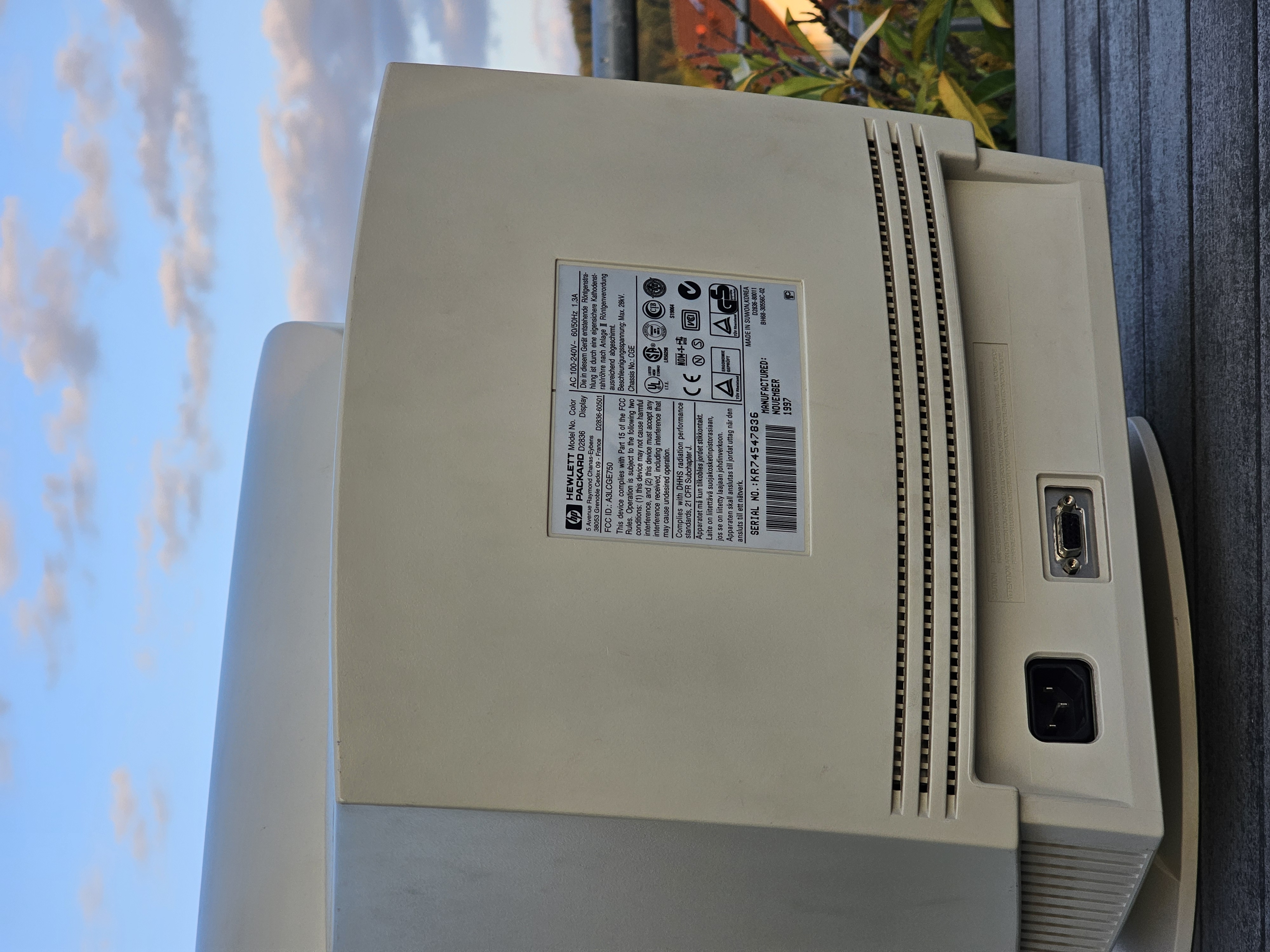

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | Samsung |
| Model: | D2836 |
| Series: | D |
| Viewable Size: | 15.7" |
| Input Signals: | Analog RGB |
| Native Resolutions: | SVGA, SXGA, VGA, XGA |
| Horizontal Scan Range: | 30 kHz, 69 kHz |
| Vertical Scan Range: | 160 Hz, 50 Hz |
| Aspect: | 4:3 |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | None |
| Chassis: | CGE |
| Weight: | 42.1 lbs (19.1 kg) |
| Dimensions (W/H/D): |
424 x 425 x 444 mm
(16.7 x 16.7 x 17.4") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| Country of Manufacture: | Korea |
| Power Standard: | Universal |
| Mounting: | Swivel Base |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission, Needs Service Manual, Needs Yoke Info, Needs Tube Info |
