Summary

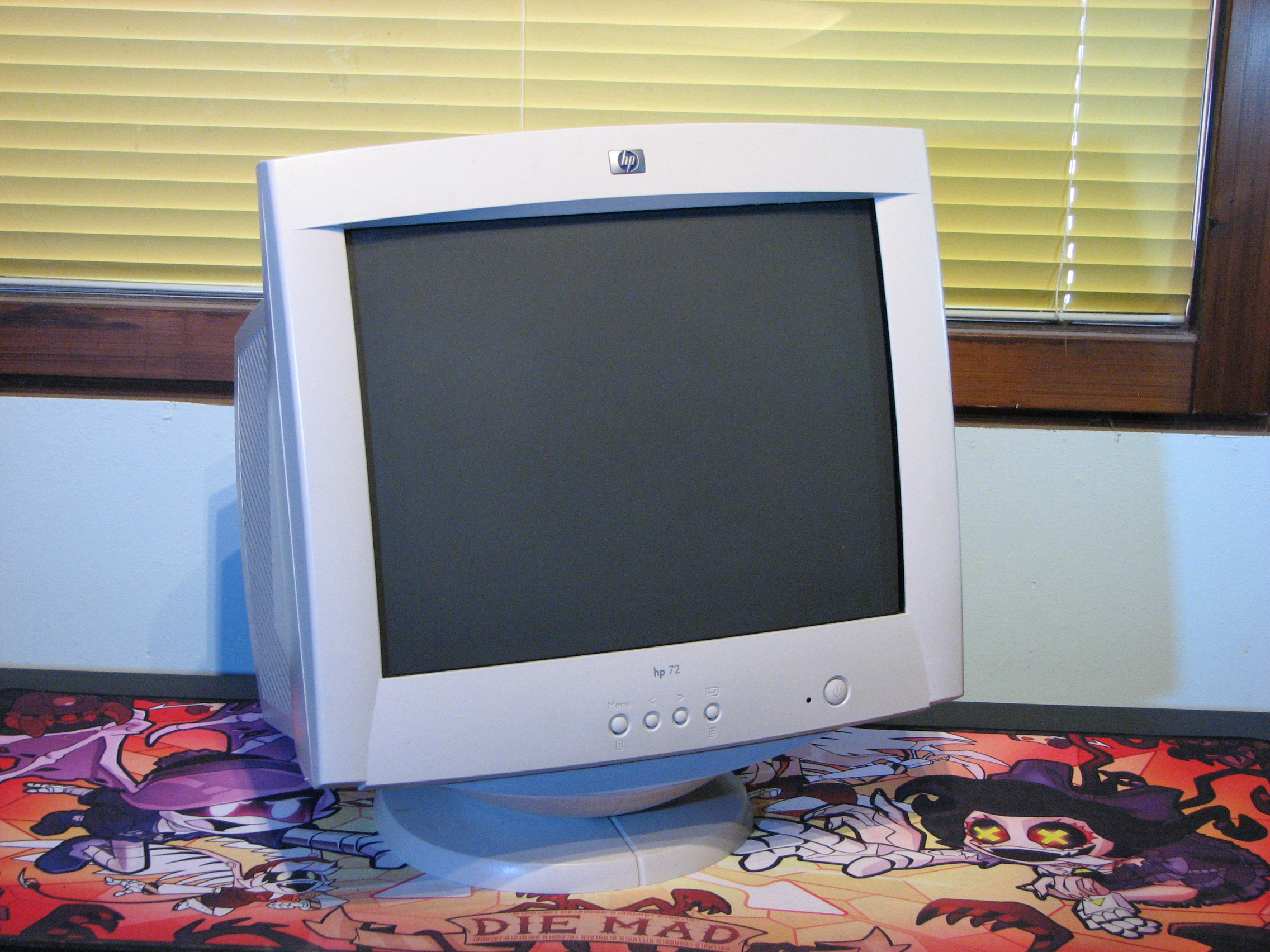

A 17" color monitor that has a 15.9" viewable image released in 2001.
Manuals
Notes
For some reason the official user manual lists the horizontal scan range incorrectly at 95kHz and vertical at 160Hz, however it can only reach 70kHz horizontal and 130Hz vertical (The Service manual has this listed correctly). Maximum resolution of 1280x1024 @65Hz
1152x864 @75Hz is recommended for a flicker-free experience.
The service manual lists the Horizontal scan range at 30-70kHz and Vertical at 50-130Hz (In practice this is the correct specification for the monitors)

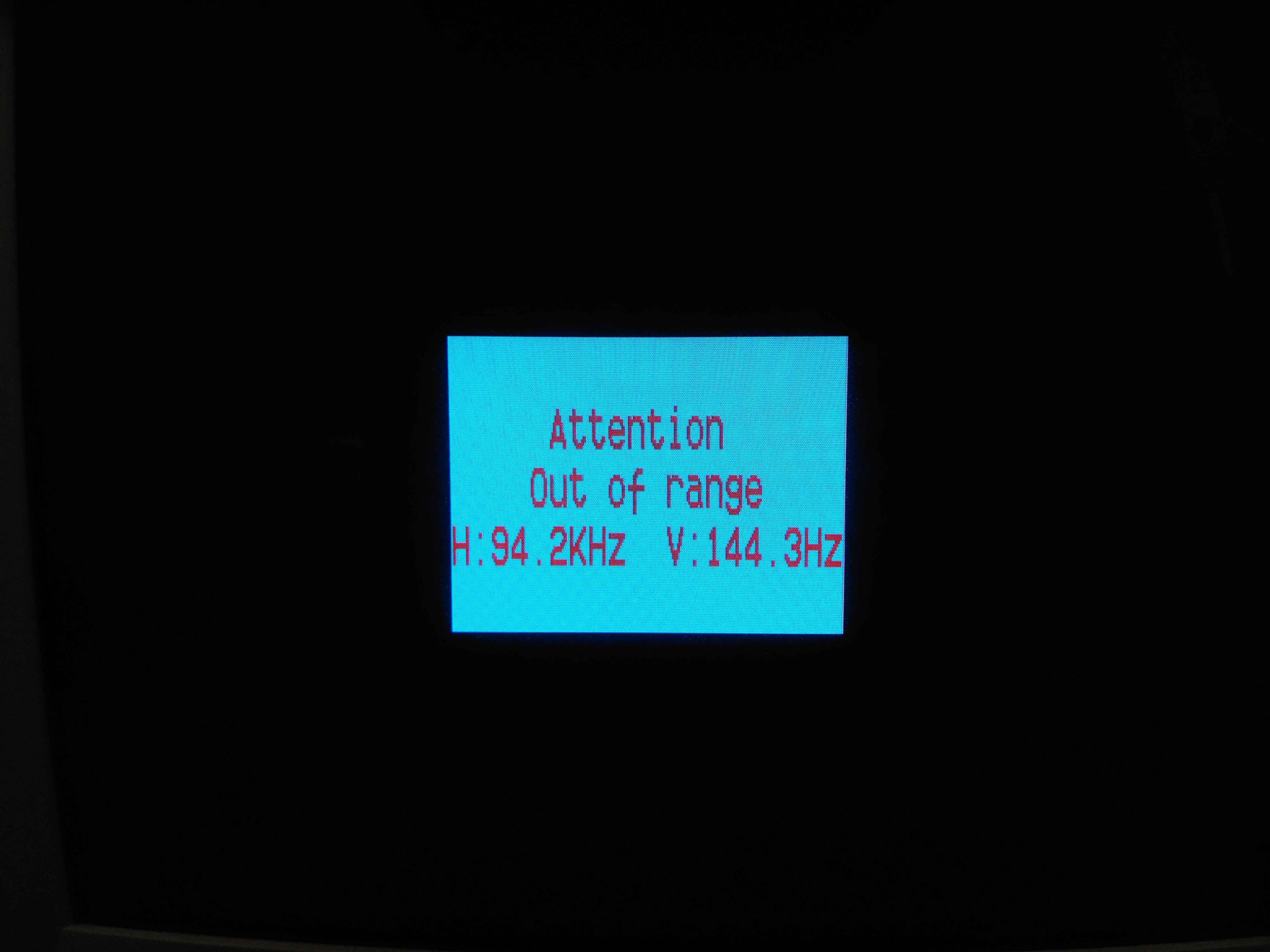

This monitor cannot reach a horizontal frequency of 95kHz, it will throw an "Out of range" error

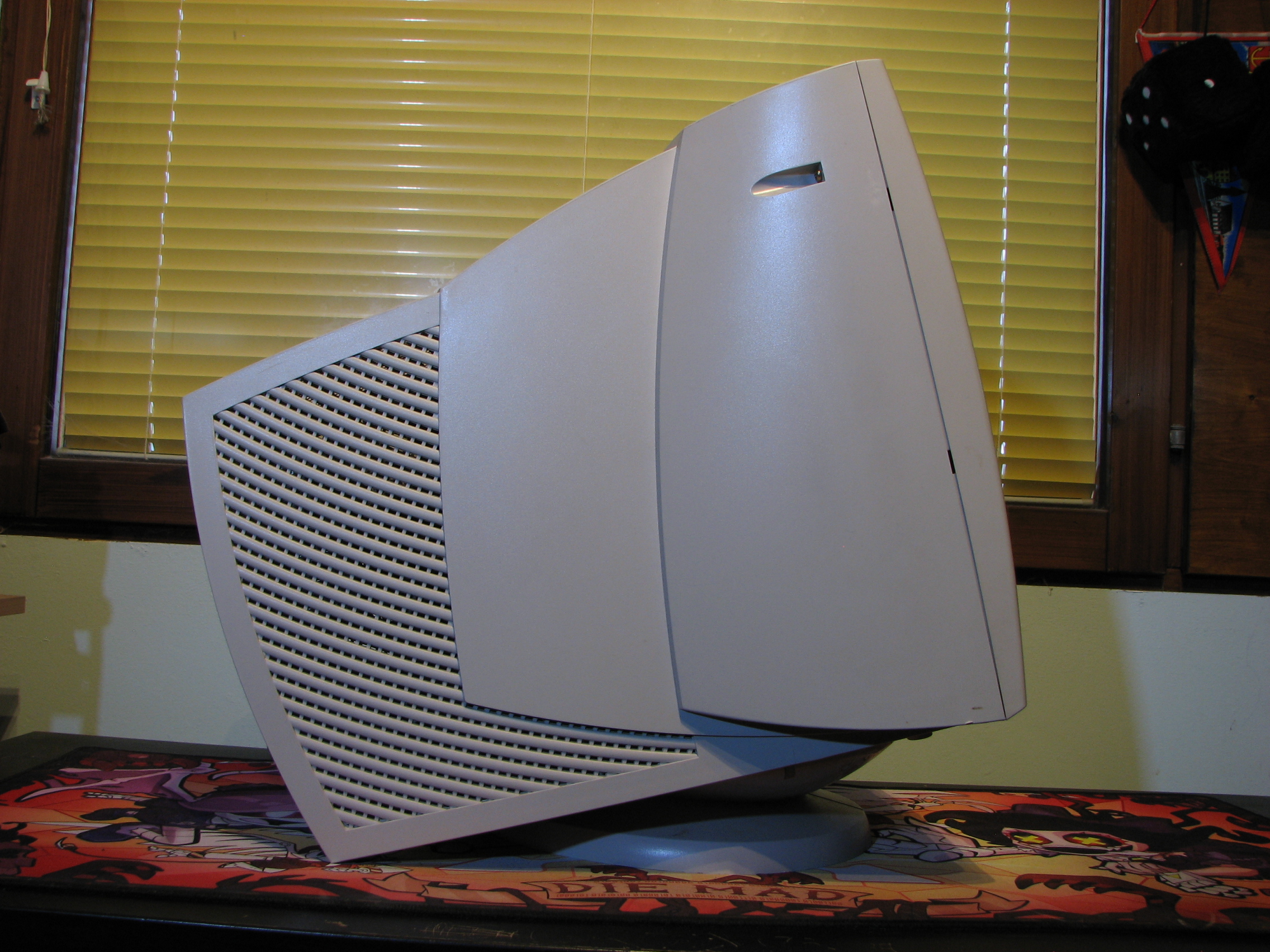

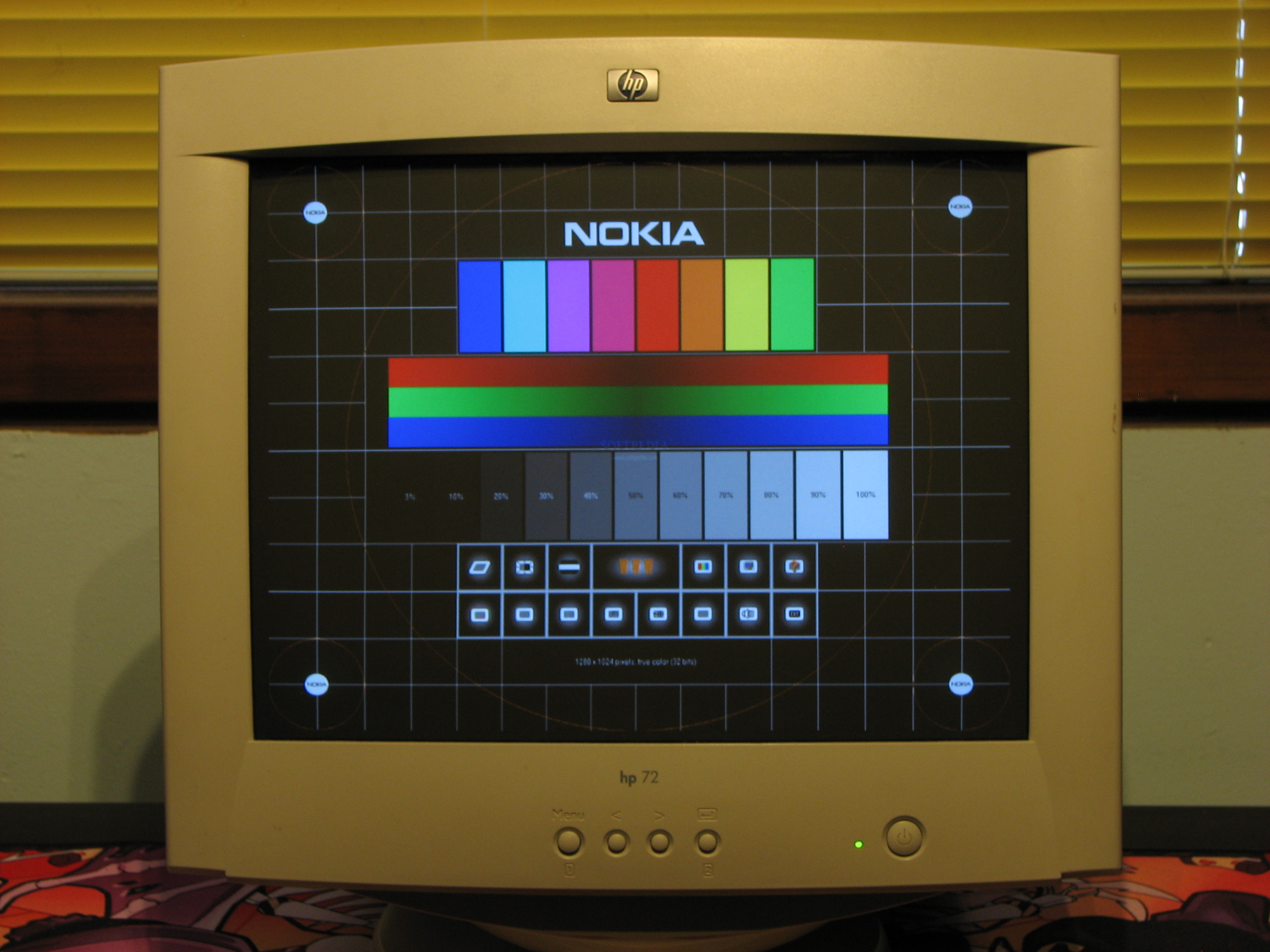

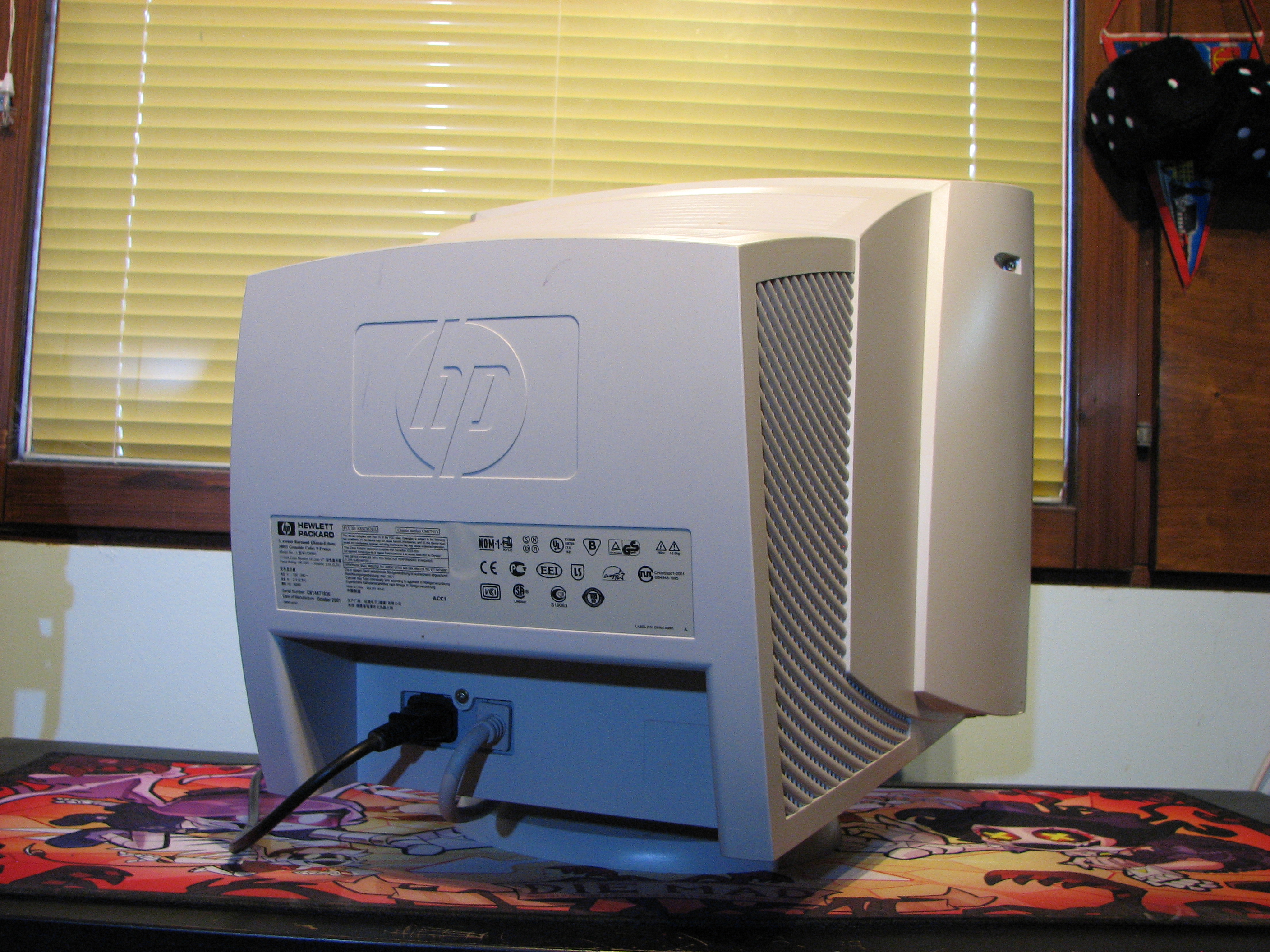

Gallery
| Specifications | |
|---|---|

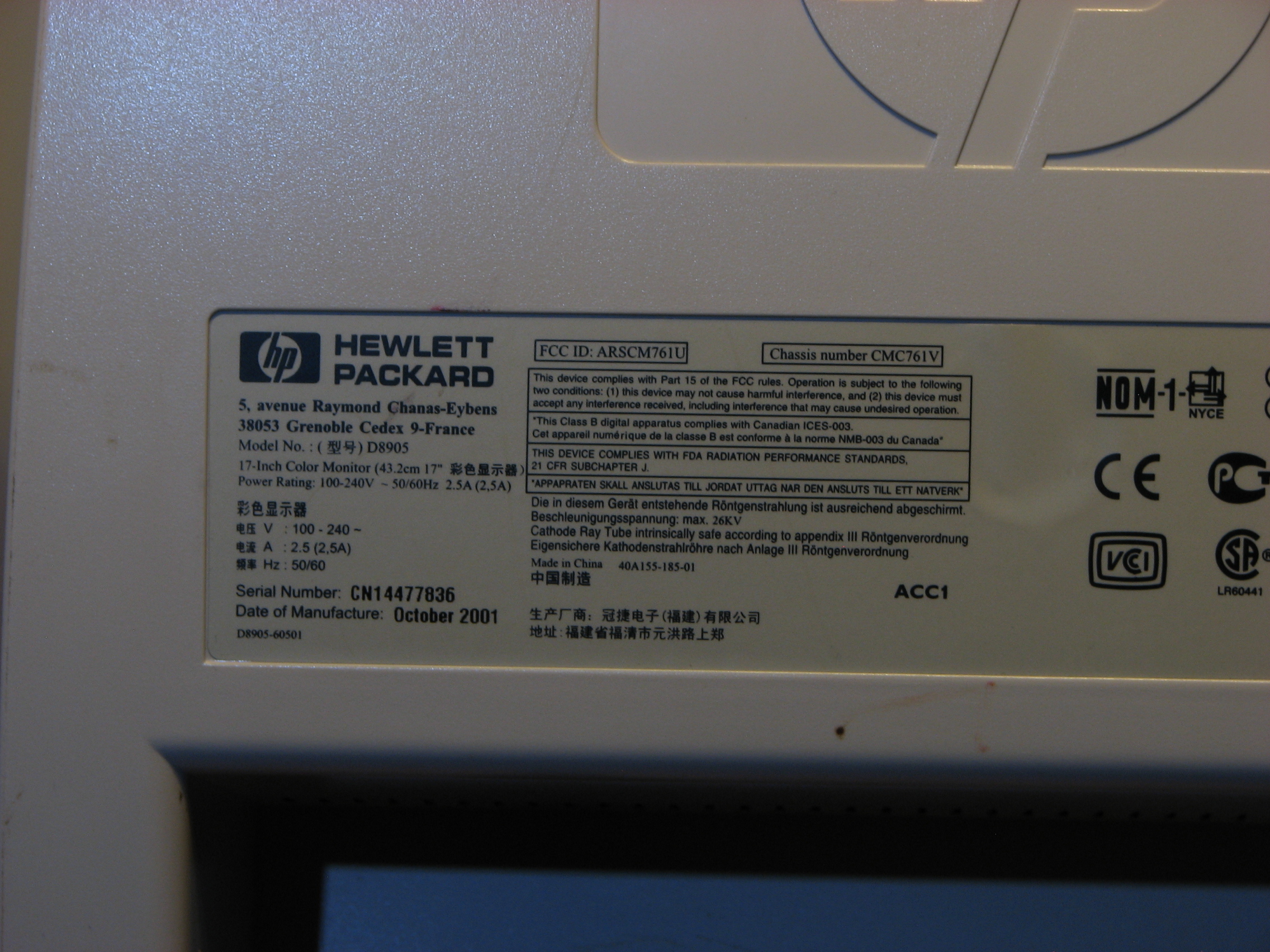

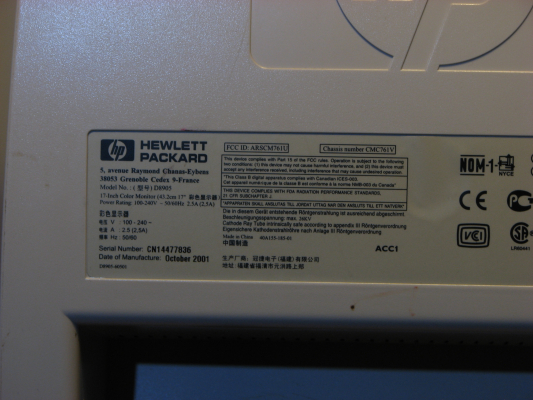

| Brand: | HP |
| Manufacturer: | LG |
| Model: | D8905 |
| Series: | D |
| Viewable Size: | 15.9" |
| Input Signals: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA, QXGA |
| Horizontal Scan Range: | 30 kHz, 70 kHz |
| Vertical Scan Range: | 50 Hz, 130 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Dual |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm, .27 mm |
| Tint: | Matte Anti-Glare |
| Removable Glare Film: | No |
| Speakers: | None |
| Remote: | None |
| Chassis: | CMC761V |
| Weight: | 33 lbs (15 kg) |
| Dimensions (W/H/D): |
420 x 451 x 430 mm
(16.5 x 17.7 x 16.9") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | China |
| Market: | Europe |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info, Needs Tube Info, Community Submission |
