Summary
Entry level 14" PC monitor, designed for 640x480 and 800x600 resolutions. Capable of only 49kHz horizontal
Manuals
Notes

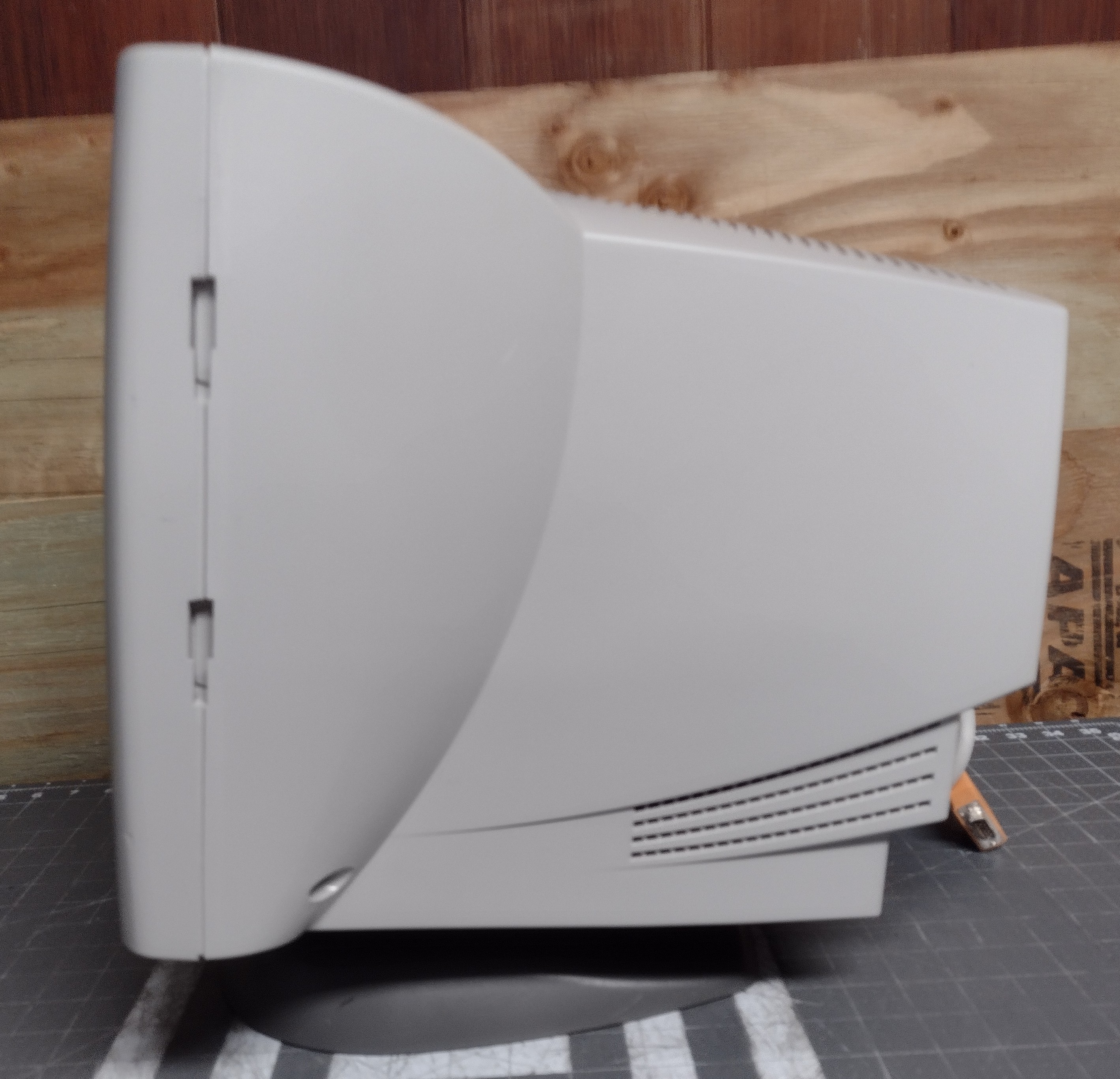

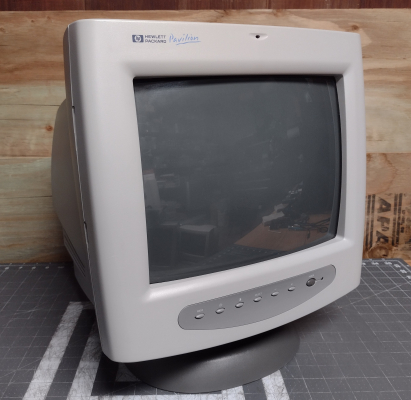

Sold as a "multimedia monitor", the HP M40 has a built-in microphone at the top of the tube and attachment points for side-mounted speakers.
A similar monitor, the M50, was also produced. It used the same case design, but with a slightly larger 15" tube.

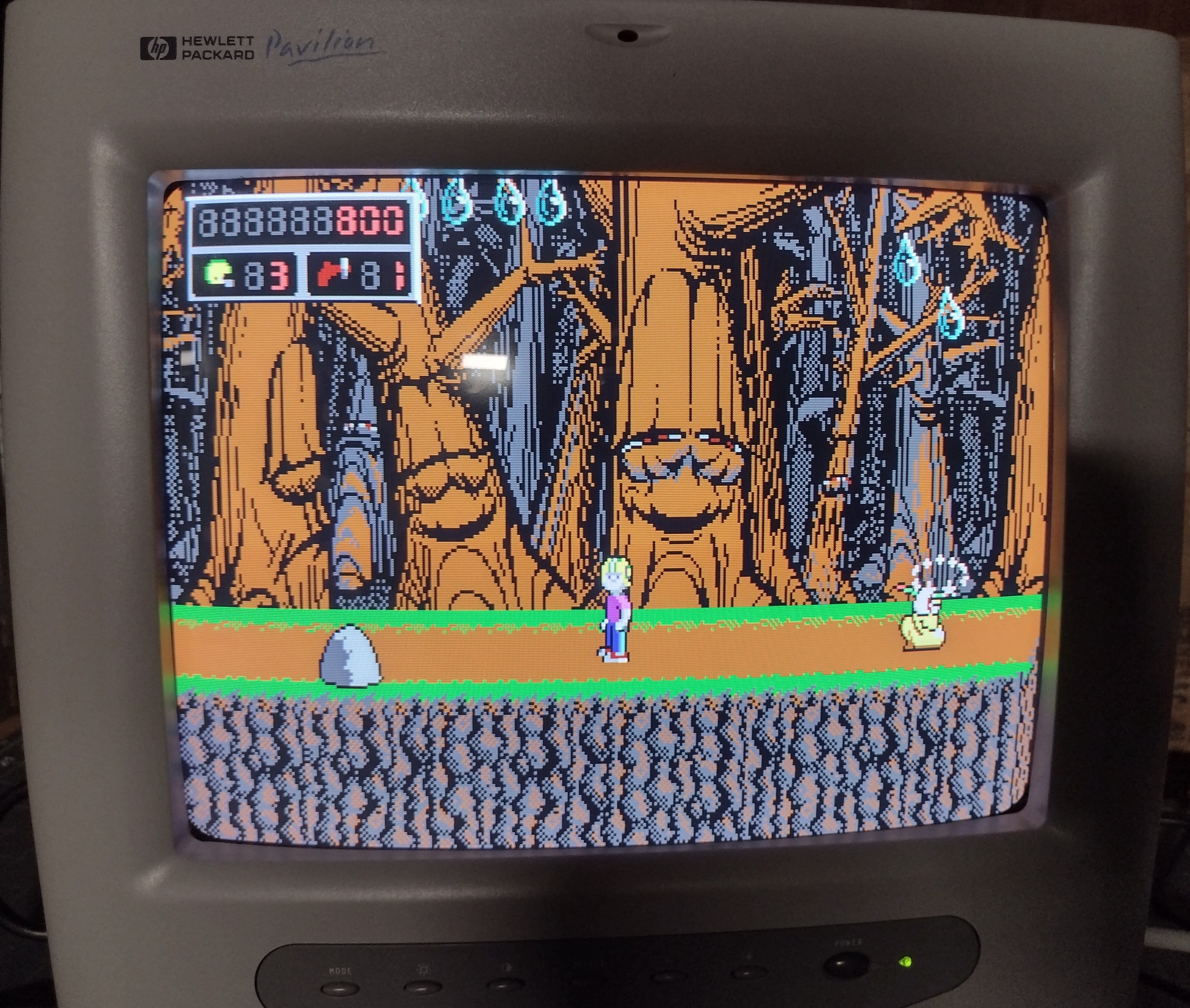

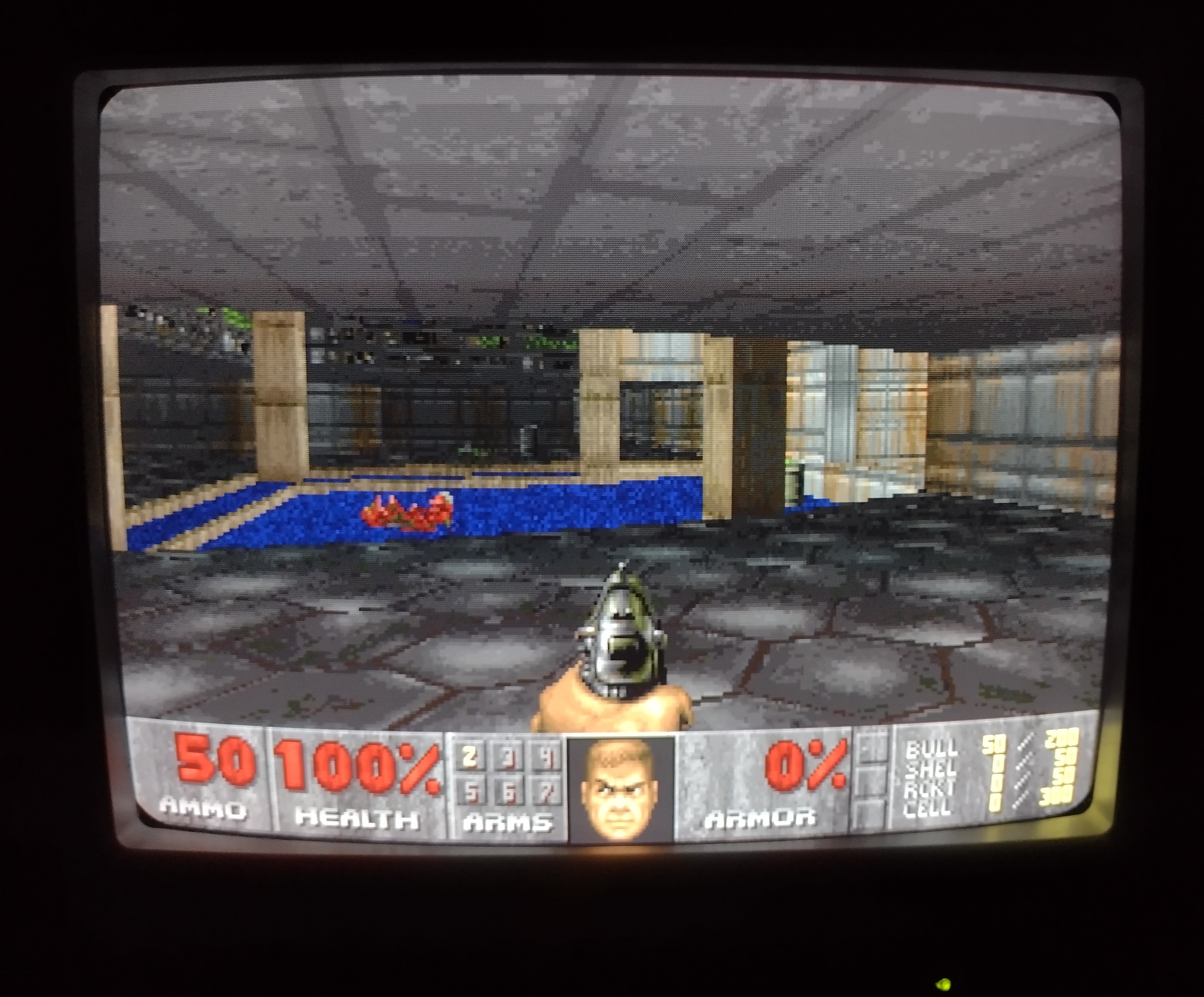

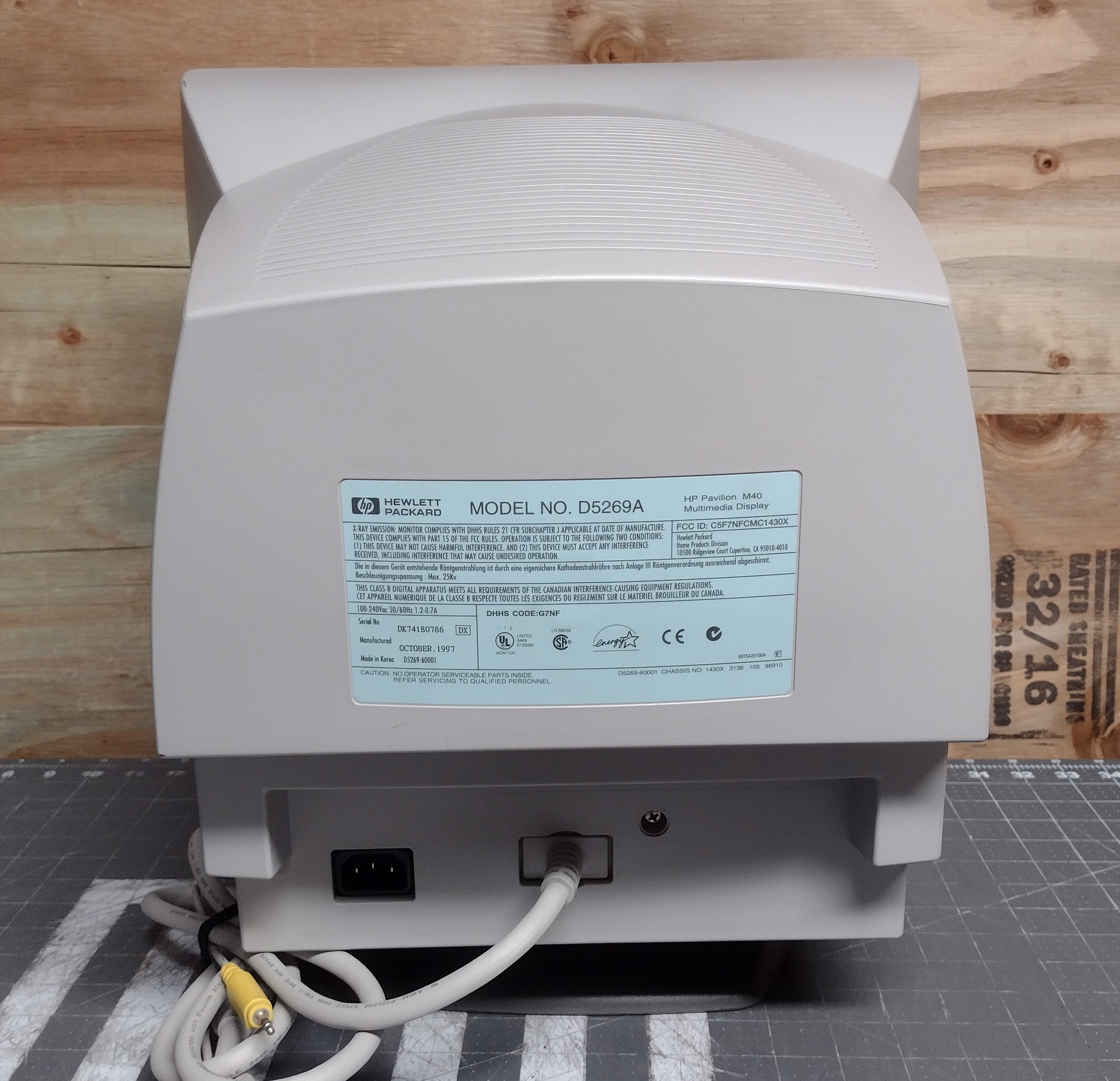

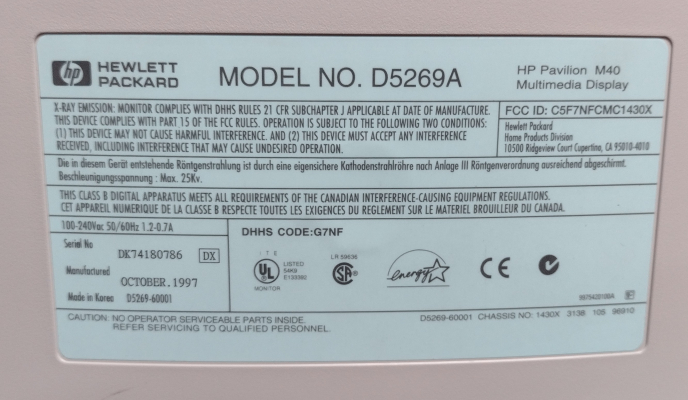

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | Daewoo |
| Model: | M40 |
| Series: | Pavilion |
| Viewable Size: | 13" |
| Input Signals: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 49 kHz |
| Vertical Scan Range: | 100 Hz, 51 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | LCE CF 0883 |
| Tube: | Orion , M34KZM20XX61 , M34KZM20XX |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Speakers: | Optional Side Mount |
| Weight: | 24 lbs (10.9 kg) |
| Dimensions (W/H/D): |
372 x 401 x 395 mm
(14.6 x 15.8 x 15.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| Country of Manufacture: | Korea |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual, Needs Pictures |
