Summary
Entry level 15" PC monitor, designed for 640x480 and 800x600 resolutions. Manufactured by Philips.
Manuals
Notes
Sold as a "multimedia monitor", the HP M50 has a built-in microphone at the top of the tube and attachment points for side-mounted speakers.
A similar monitor, the M40, was also produced. It used the same case design, but with a slightly smaller 14" tube.

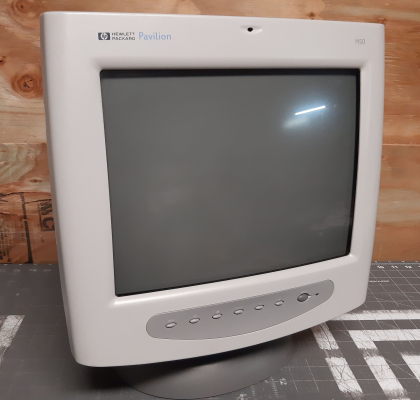

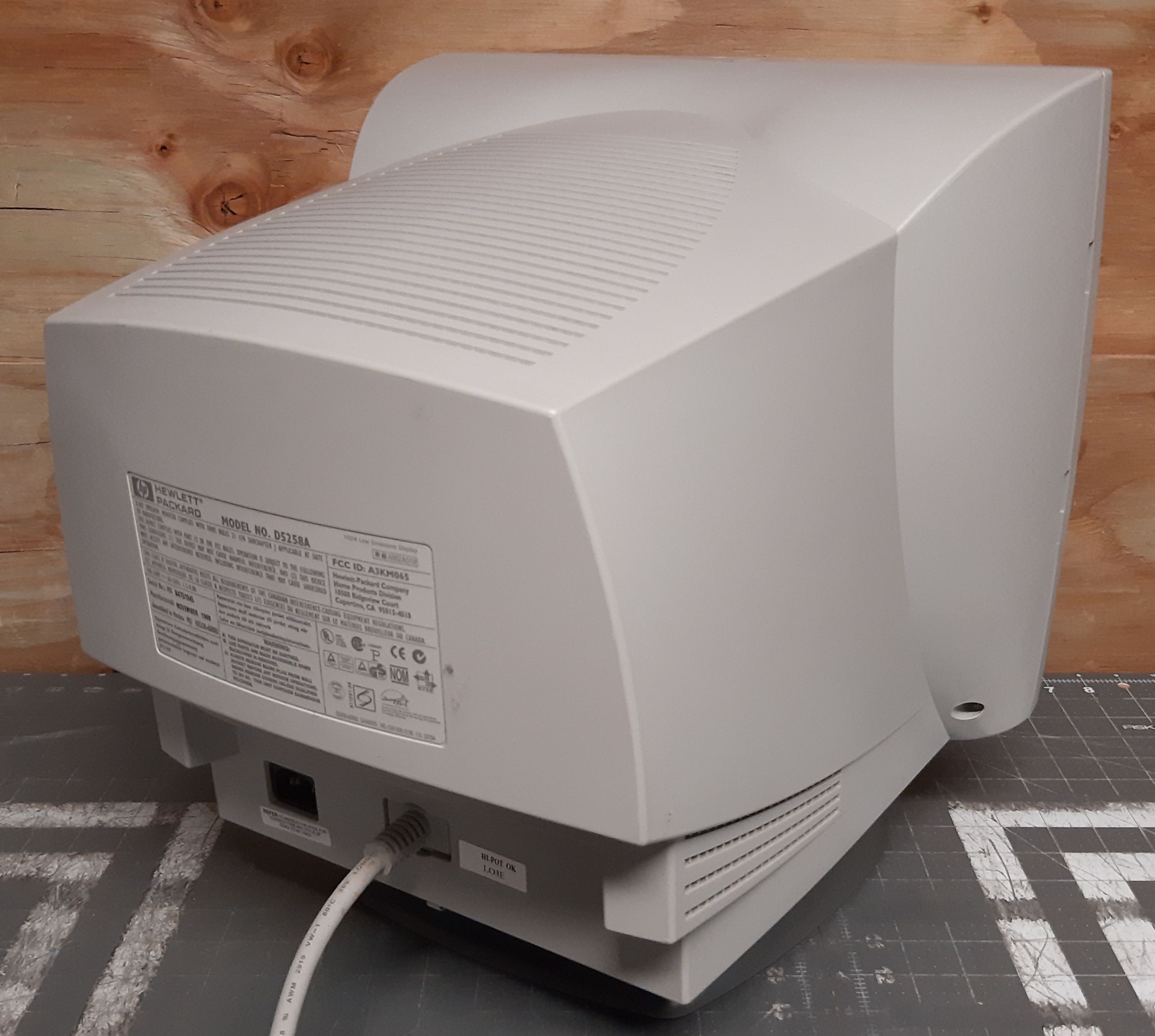

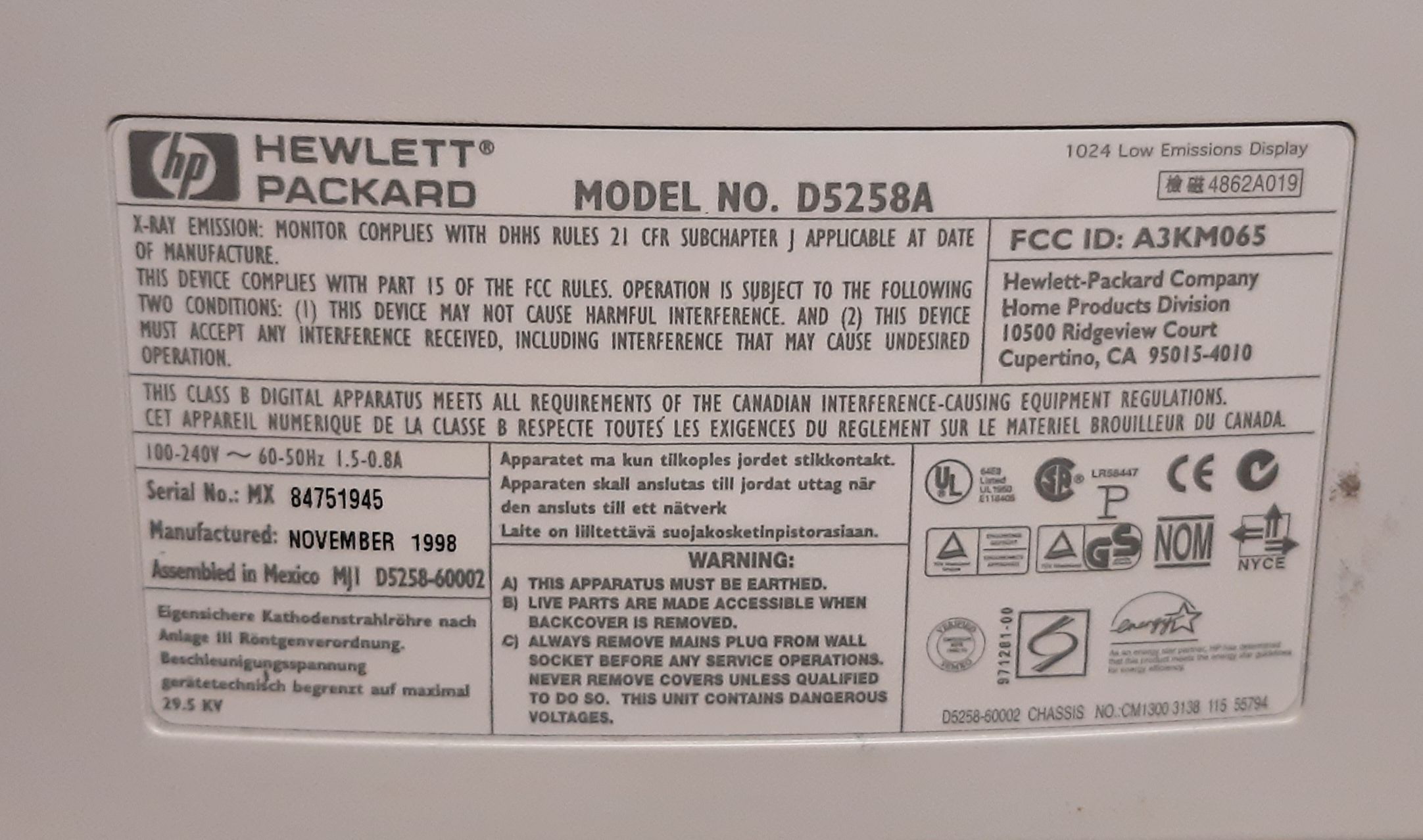

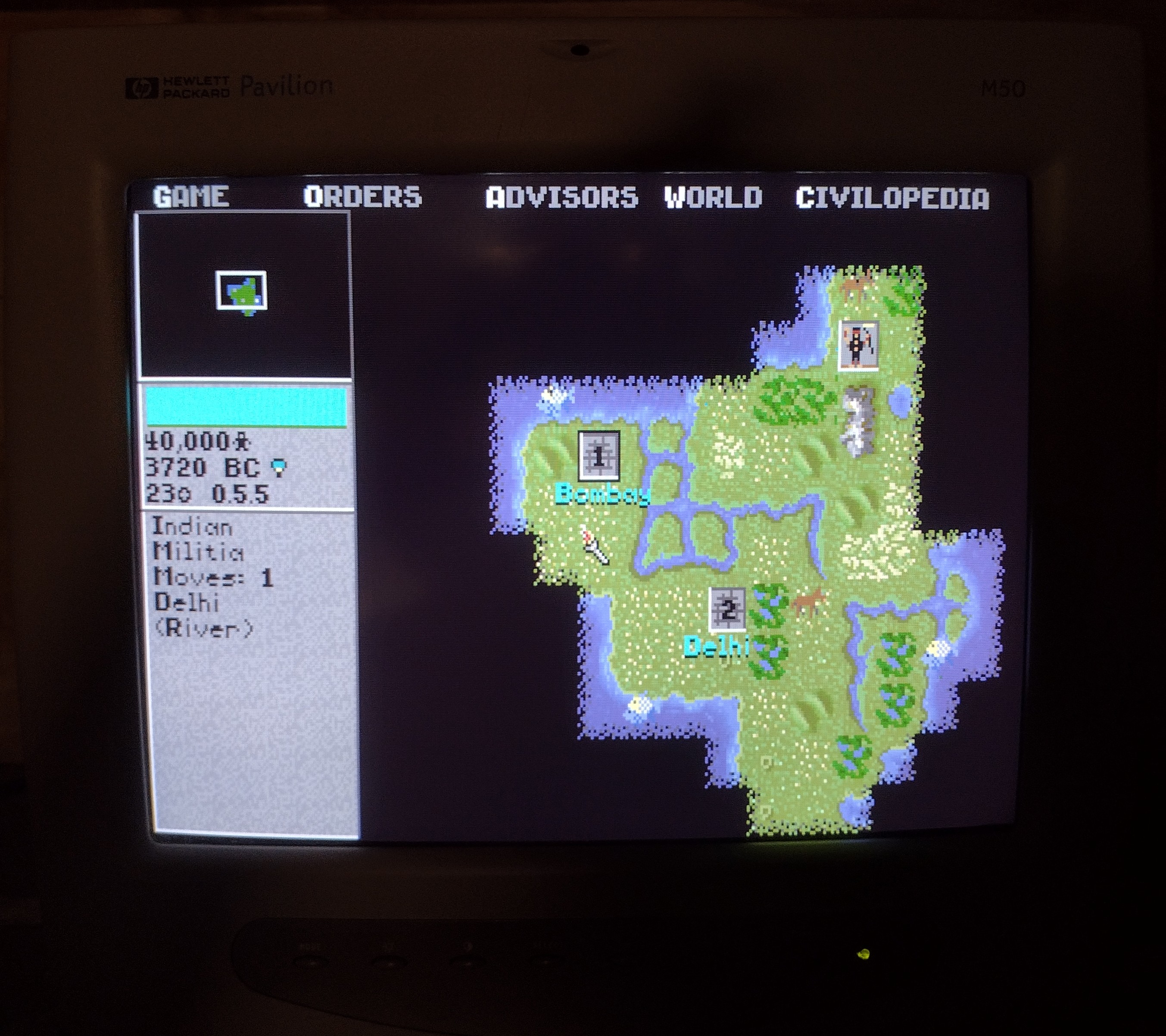

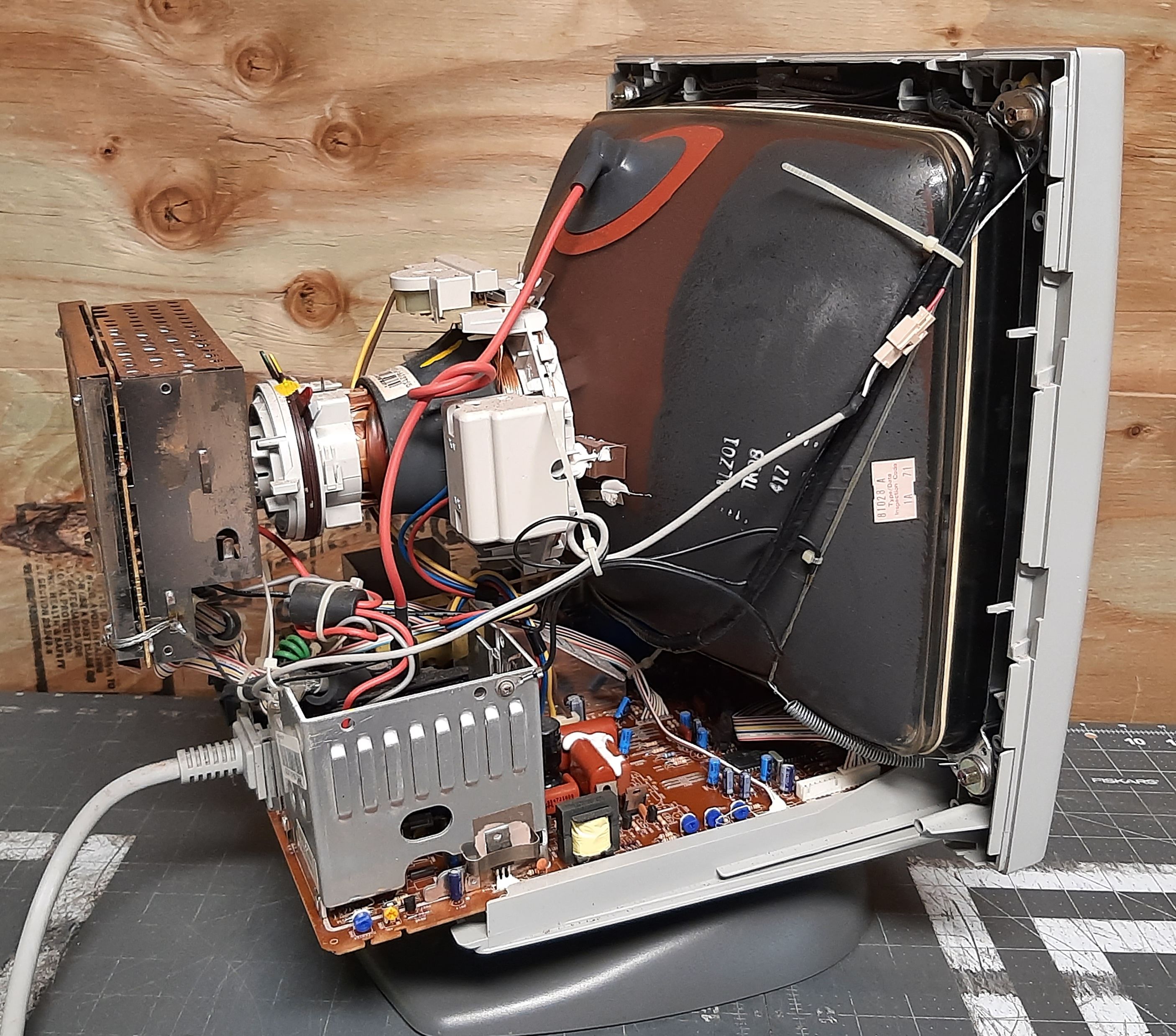

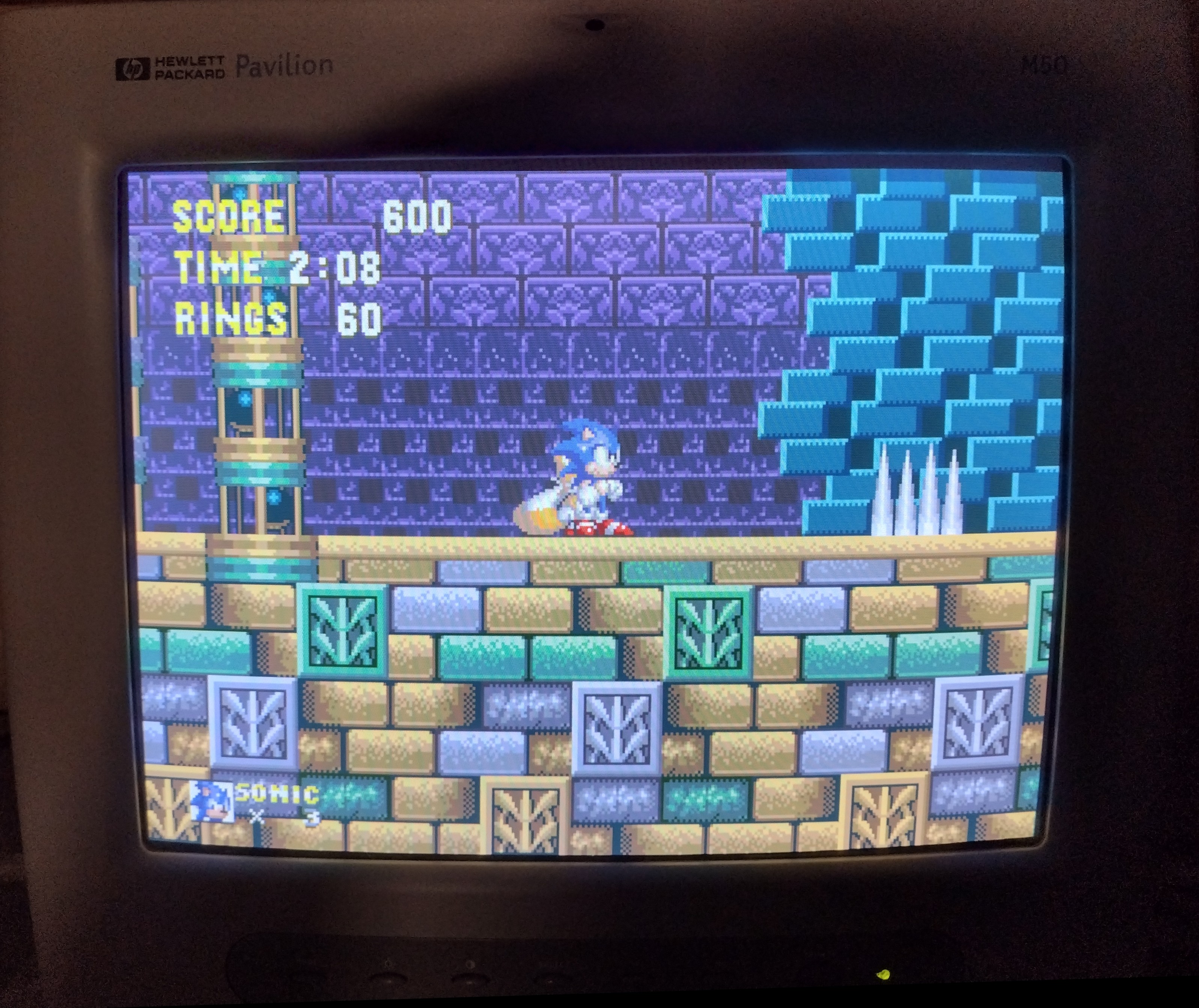

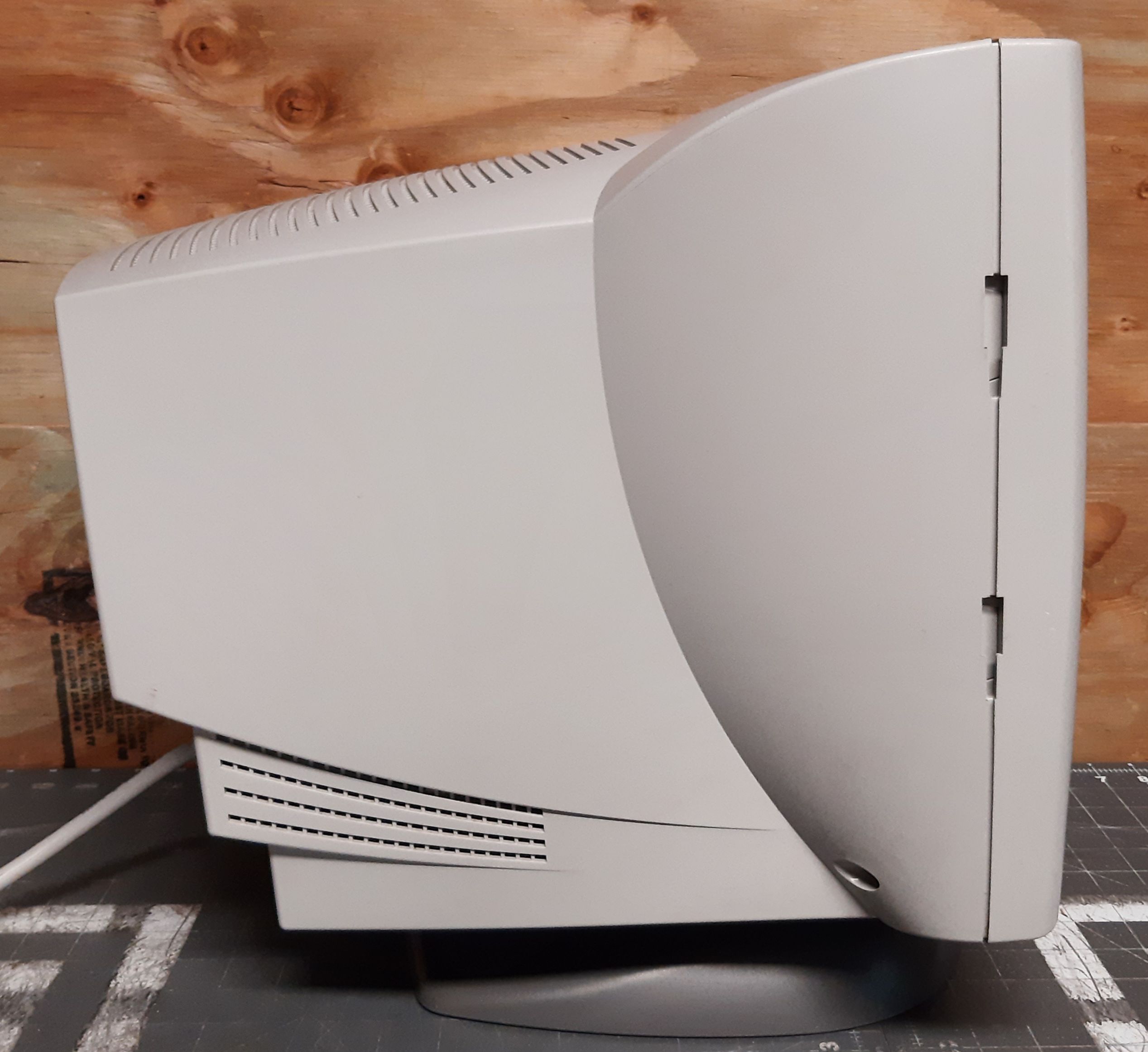

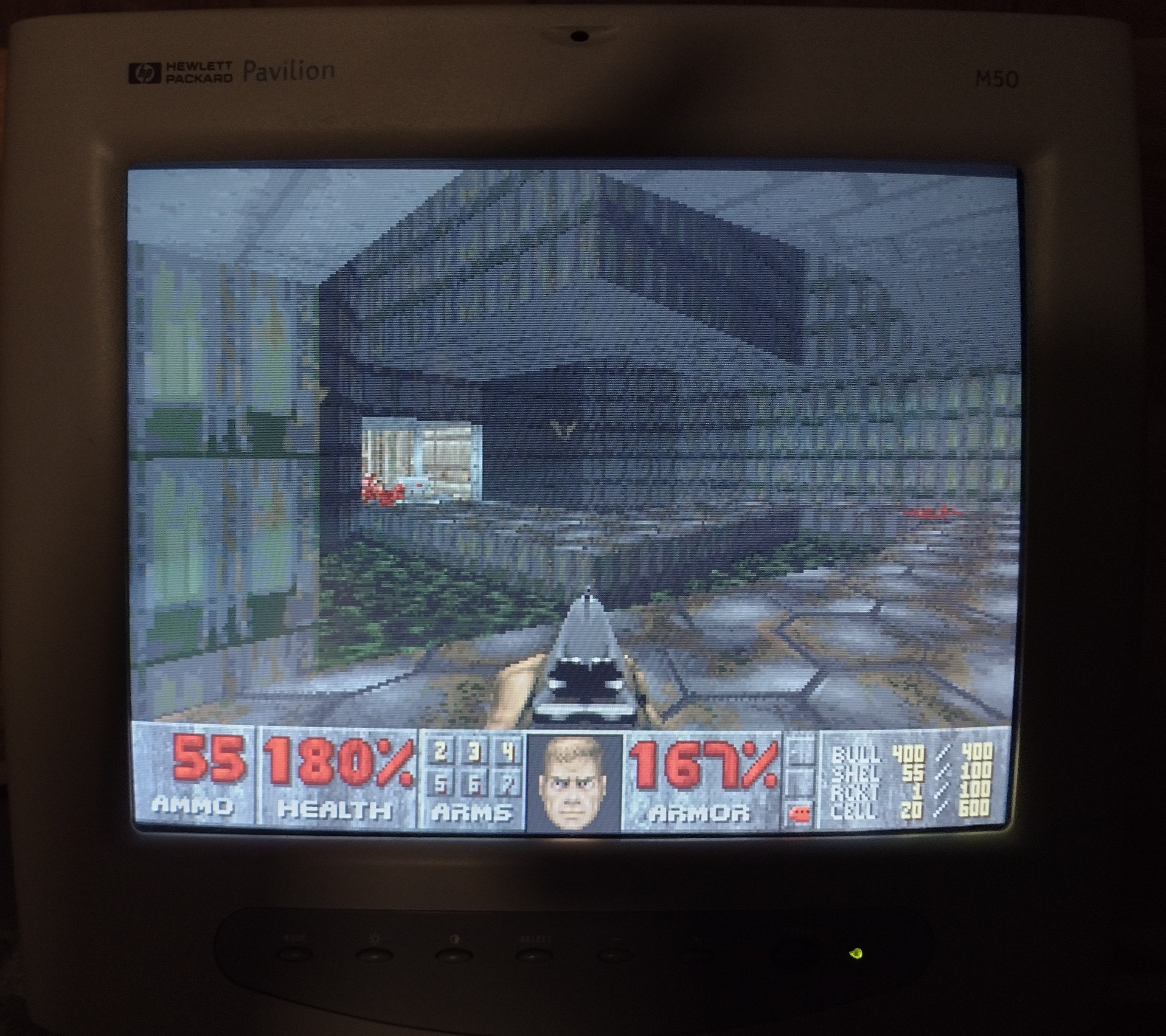

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | Philips |
| Model: | M50 |
| Series: | Pavilion |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 28 kHz, 55 kHz |
| Vertical Scan Range: | 100 Hz, 45 Hz |
| Aspect: | 4:3 |

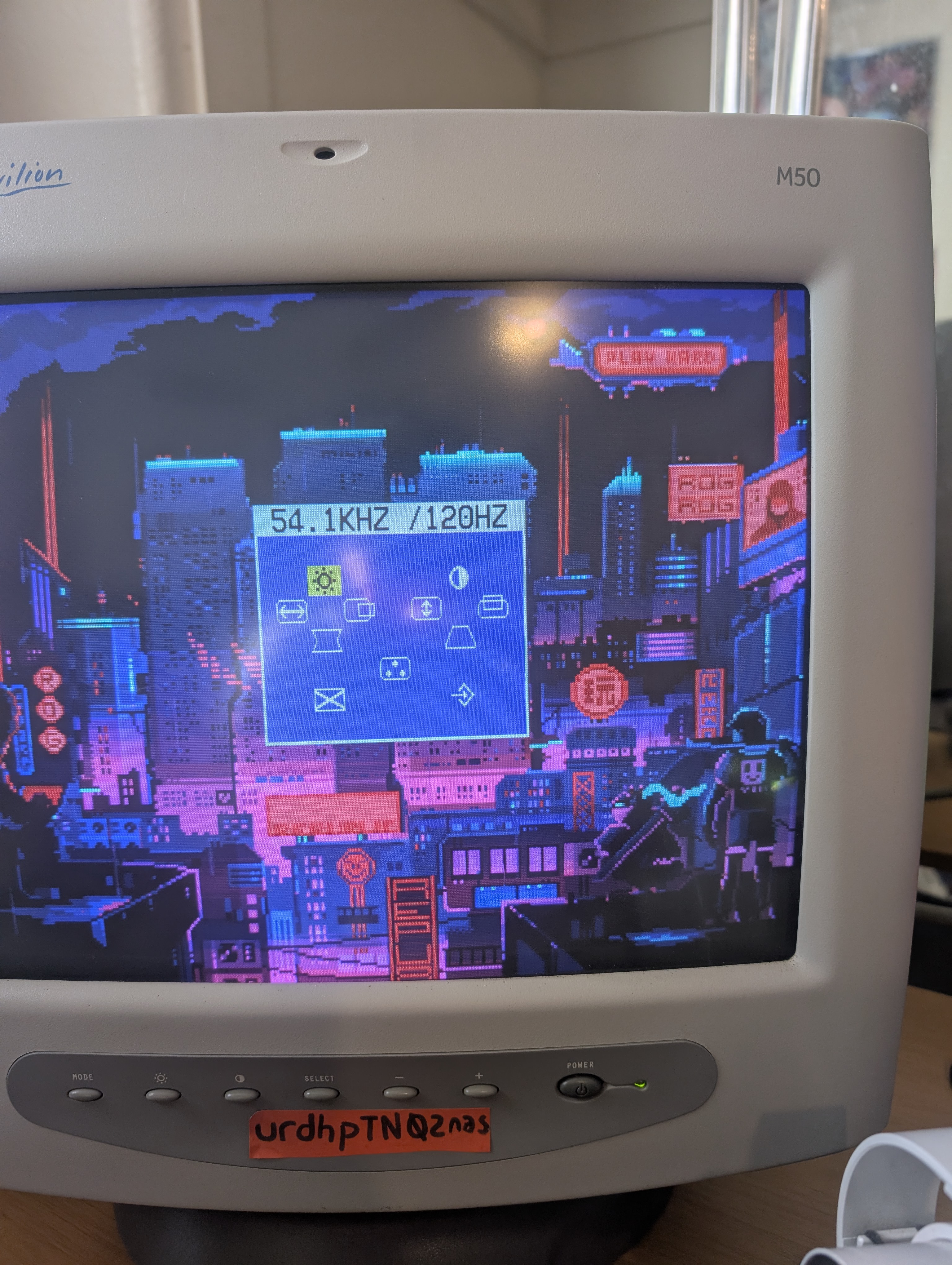

| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Flyback: | LCE CF 1009 |
| Tube: | M36EDR320X151 , M36KXU110XX61 , M36EDR320X , M36KXU110XX |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | AT1730/2151F01 |
| Yoke Horz. Inductance: | 0.1777 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.321 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.390 ohm |
| Yoke Vert. Resistance: | 5.82 ohm |
| Speakers: | Optional Side Mount |
| Chassis: | CM1300 |
| Weight: | 28.6 lbs (13 kg) |
| Dimensions (W/H/D): |
372 x 401 x 395 mm
(14.6 x 15.8 x 15.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual, Needs Pictures |
