Summary
Another entry in HP's M series of Pavilion-branded monitors, the M70 performs better than its smaller siblings and is a typical 70 kHz 17" monitor. It was designed for 1024x768 at 85 Hz. Also referred to as model # D5259A.
Manuals
Notes

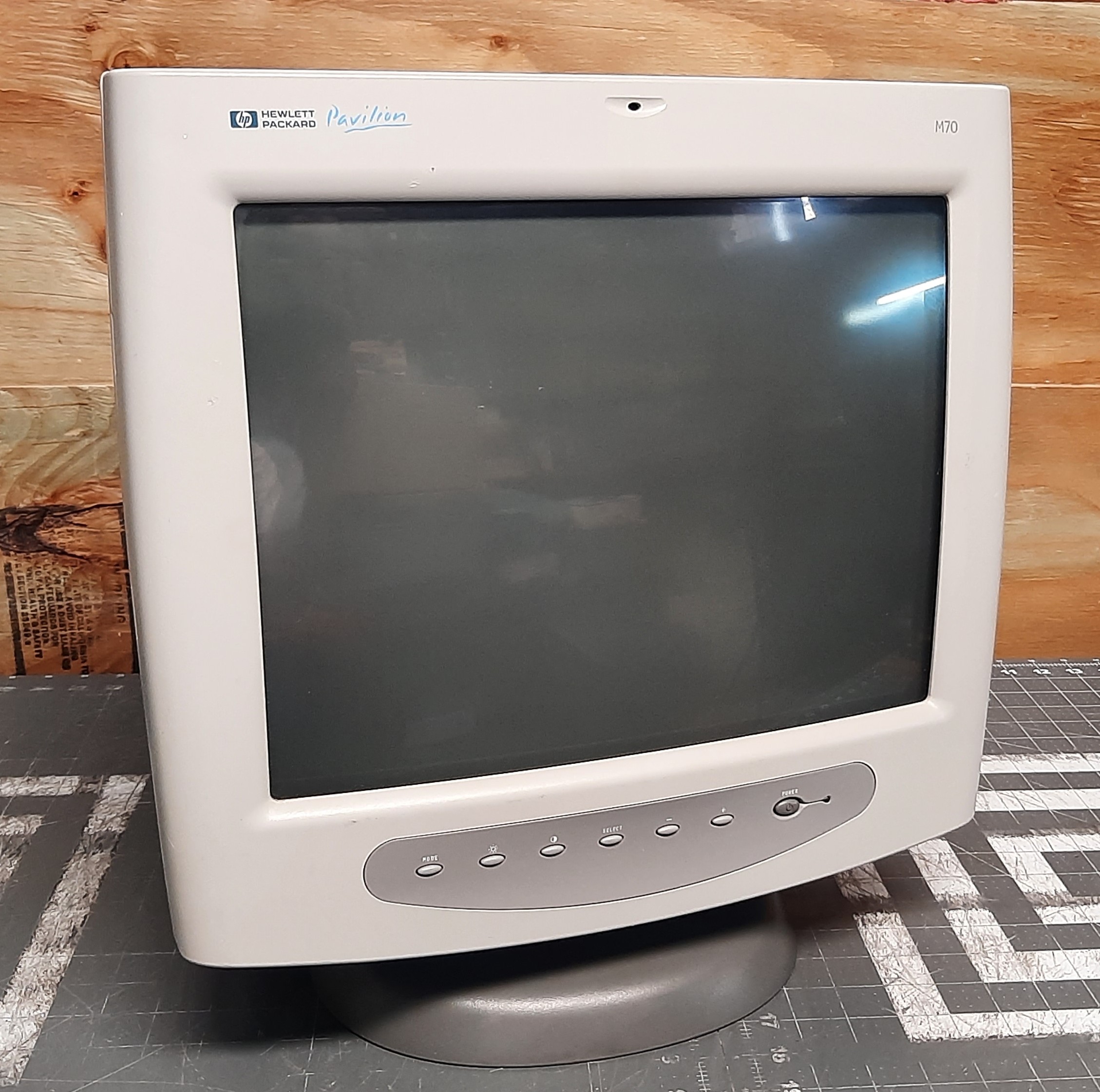

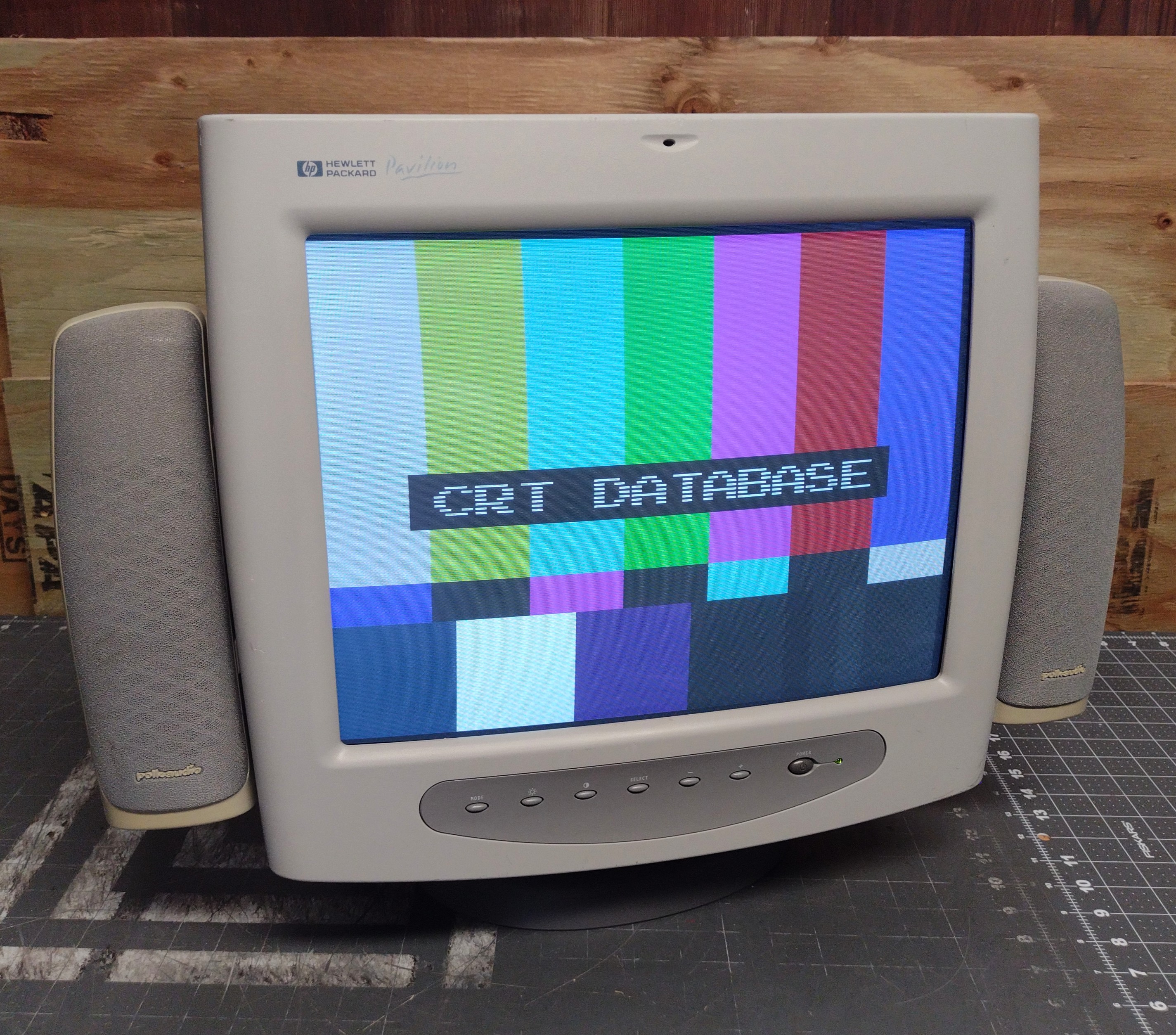

Sold as a "multimedia monitor", the HP M70 has a built-in microphone at the top of the tube and attachment points for side-mounted speakers from Polk Audio.
There appear to be multiple variations of this monitor, potentially from different manufacturers. Replacement parts may not be consistent.

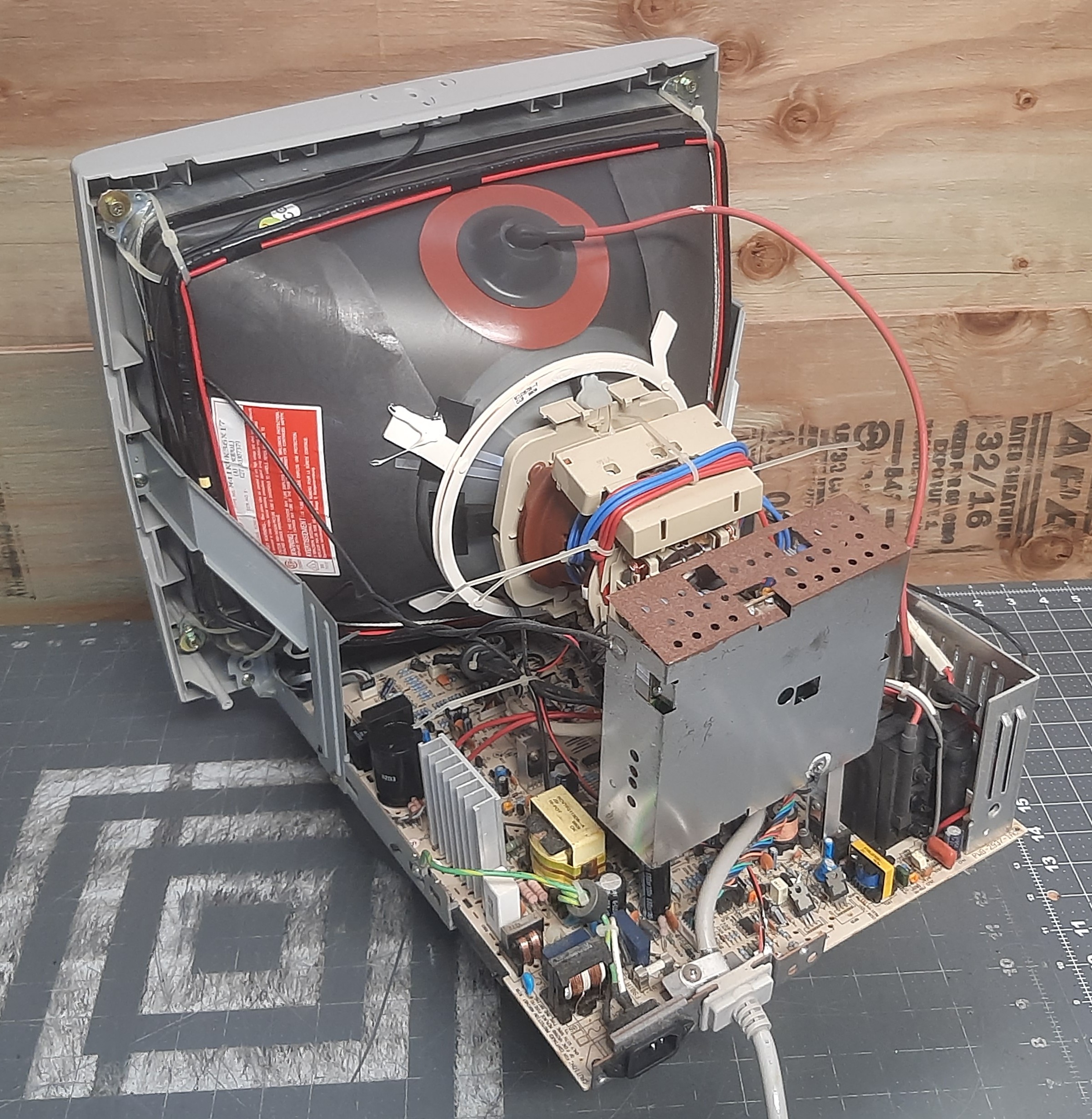

Gallery








Specifications | |
---|---|
Brand: | HP |
Manufacturer: | Tatung |
Model: | M70 |
Series: | Pavilion |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync |
Native Resolutions: | VGA, SVGA, XGA, SXGA |
Horizontal Scan Range: | 30 kHz, 70 kHz |
Vertical Scan Range: | 50 Hz, 120 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls |
Vertical Output IC: | TDA8172 |
Flyback: | LCE CF 1448, FEC055 |
Tube: | Chunghwa , Samsung , M41AGE83X46 , M41AGE83X , M41KUK36X , M41KUK36X17 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Shadow
![]() |
Pitch: | 0.28 mm |
Tint: | Dark, Matte Anti-Glare |
Removable Glare Film: | No |
Yoke: | SRY-7701C1, SCD-17105 |
Yoke Horz. Inductance: | 0.17736 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 6.232 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.574 ohm |
Yoke Vert. Resistance: | 9.56 ohm |
Speakers: | Optional Side Mount |

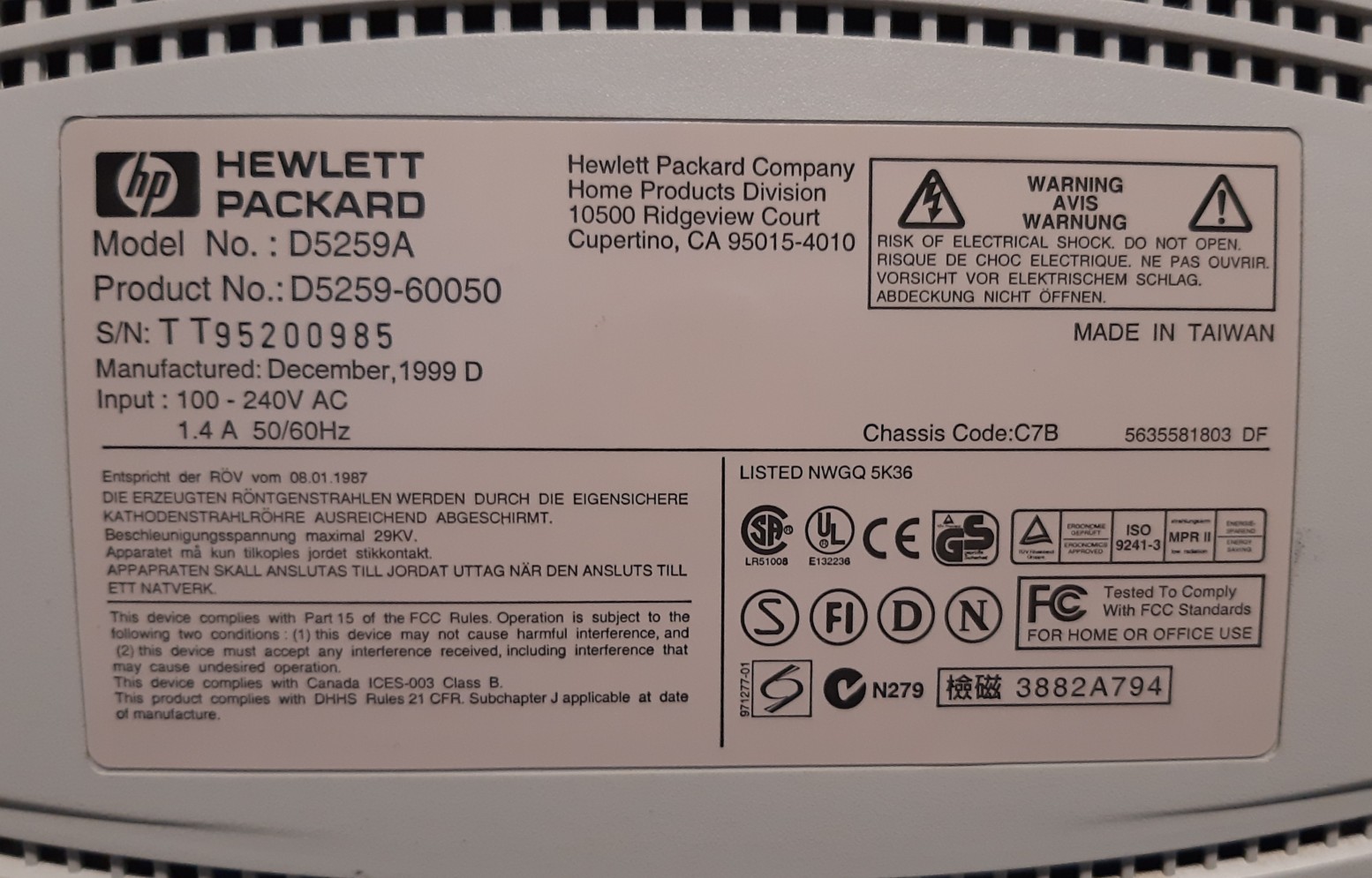

Chassis: | C7B, C-711 |
Weight: | 42 lbs (19.1 kg) |
Dimensions (W/H/D): |
408 x 416 x 450 mm
(16 x 16.3 x 17.7") |
Application: | Computer Monitor |
Cabinet Material: | Plastic |
Launched: | 1998 |
Country of Manufacture: | Taiwan |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Service Manual |
