Summary
Higher-end version of the HP Pavilion M70 (D5259A). 19" (18" viewable curved screen) Capable of 1600x1200 @75Hz.
Manuals
No manuals or documentation is currently available except for this specification sheet
Notes
Only a very vague but official specification sheet is available for this monitor. Based on the max resolution of 1600x1200 @75Hz it is safe to assume this monitor can reach at least 94kHz horizontal. It should also be able to do at least 120Hz vertical since the HP Pavilion M70 (D5259A) can do 120Hz vertical.

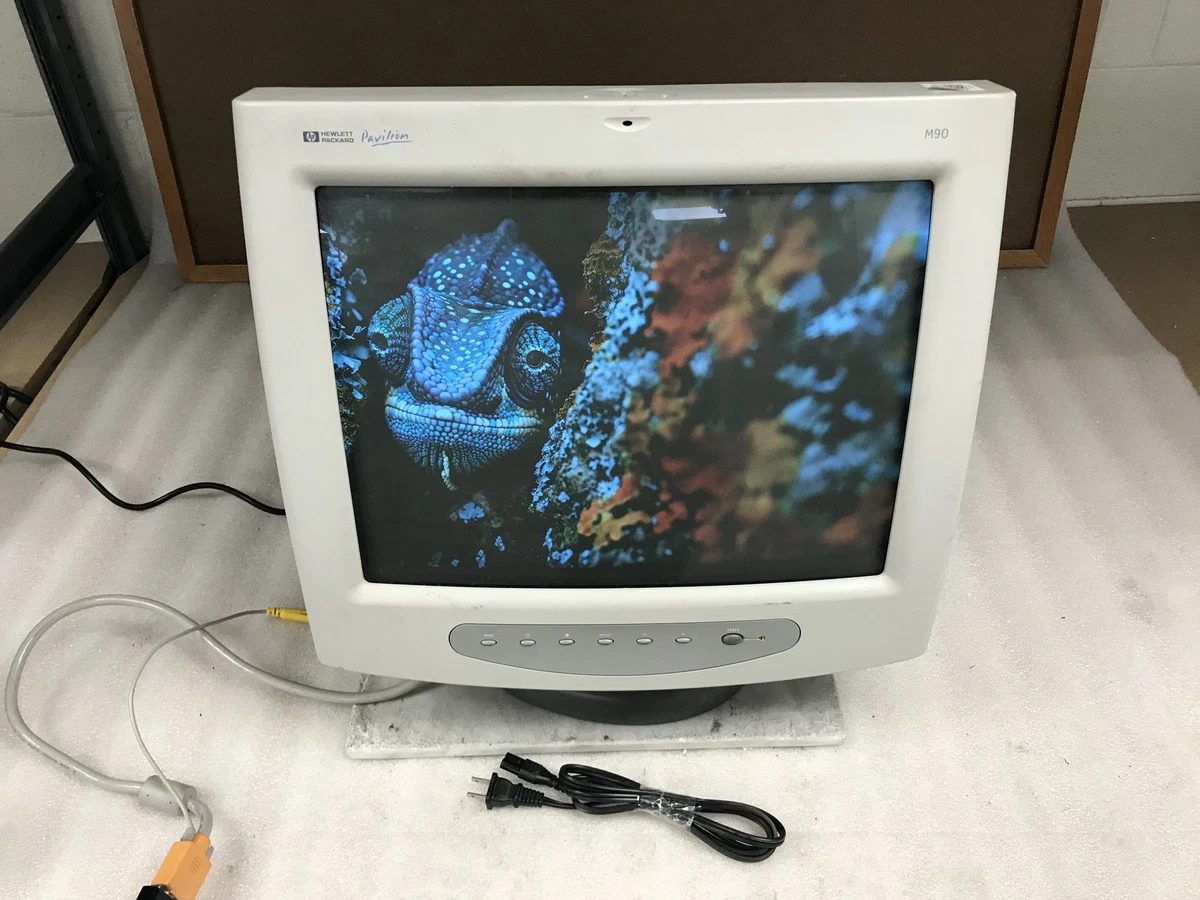

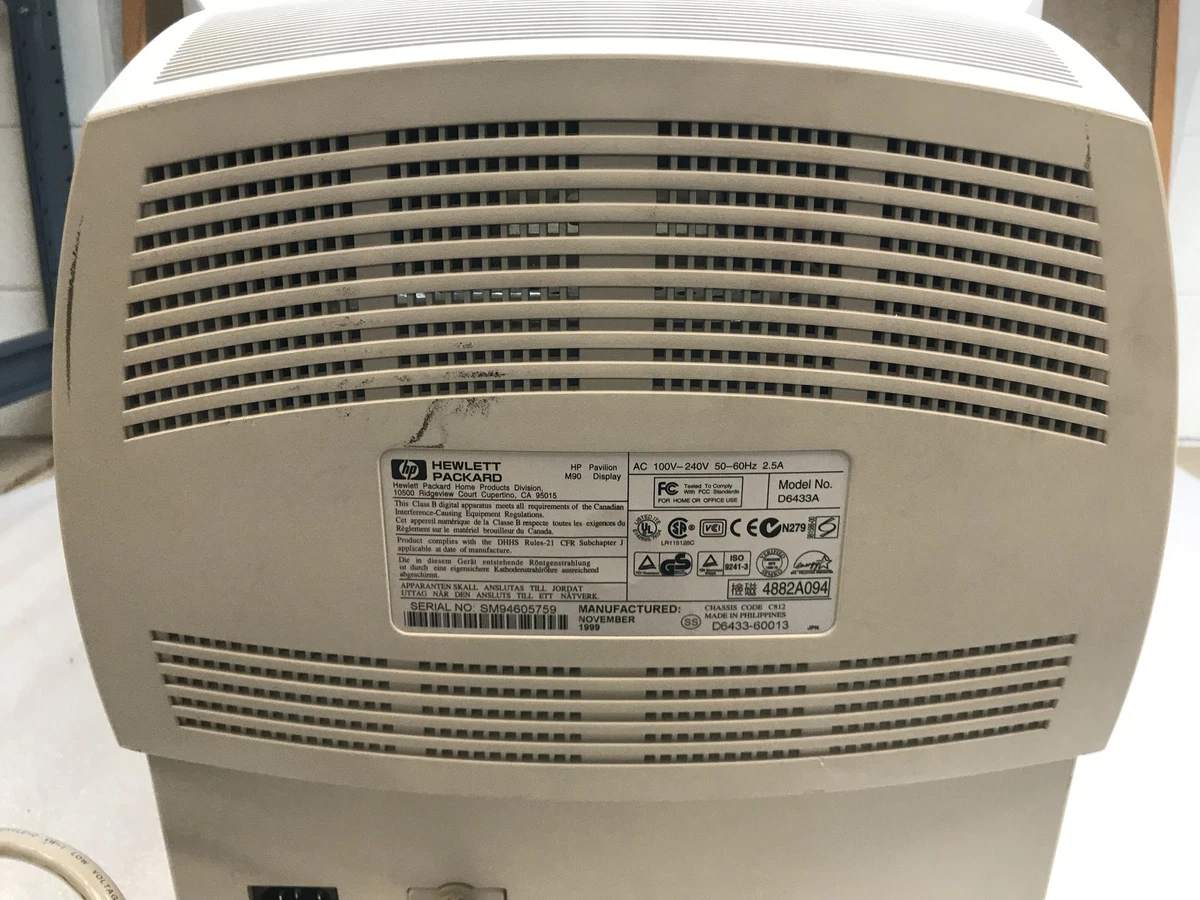

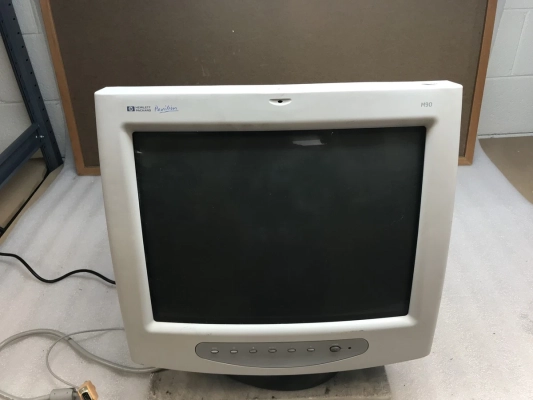

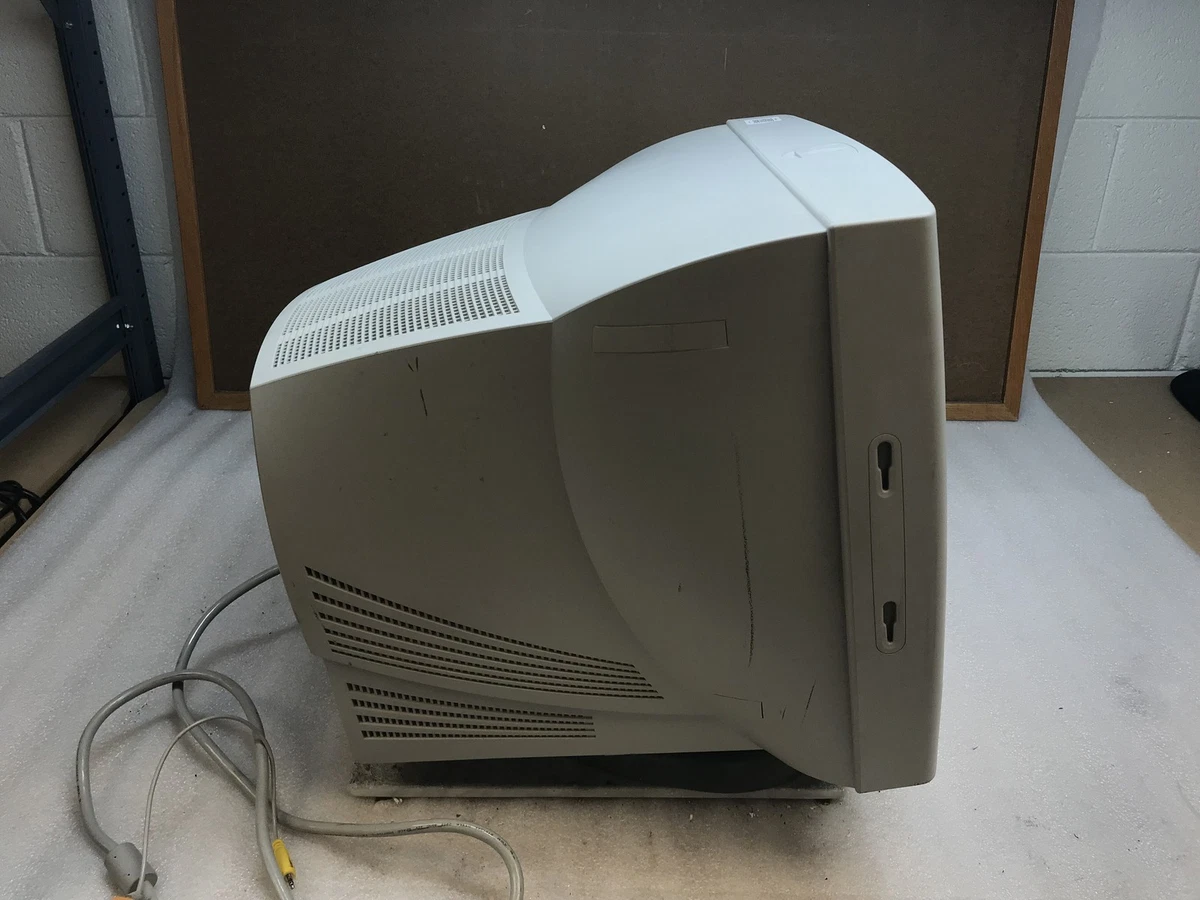

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | Tatung |
| Model: | Pavilion M90 (D6433A) |
| Series: | Pavilion |
| Viewable Size: | 18" |
| Input Signals: | VGA |
| Horizontal Scan Range: | 30 kHz, 94 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.26 mm, .26 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Optional Side Mount |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Philippines |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Needs Tube Info, Needs Pictures, Needs Manufacturer Info |
