HP Pavilion MX75 (P1499-60001)
Matt Ross
January 18, 2022, 10:51 pm
April 12, 2025, 3:58 am
January 18, 2022, 10:51 pm
April 12, 2025, 3:58 am
Summary
Flat screen 17" PC monitor, designed for resolutions from 640x480 to 1024x768. Similar in style to the MX70 and MX50.
Manuals
Notes
Sold as a "multimedia monitor", the HP MX75 has a built-in microphone at the top of the tube and attachment points for side-mounted speakers.
The face of the front bezel is originally a translucent steel gray. However, it's susceptible to yellowing with age and can turn to a coffee brown color.
This monitor likely has more than one variant, potentially from different manufacturers. This version, P1499-60001, was manufactured by Delta Electronics.

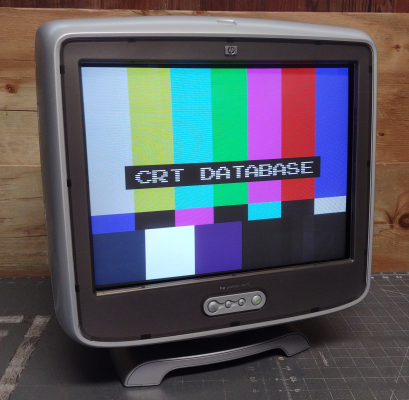

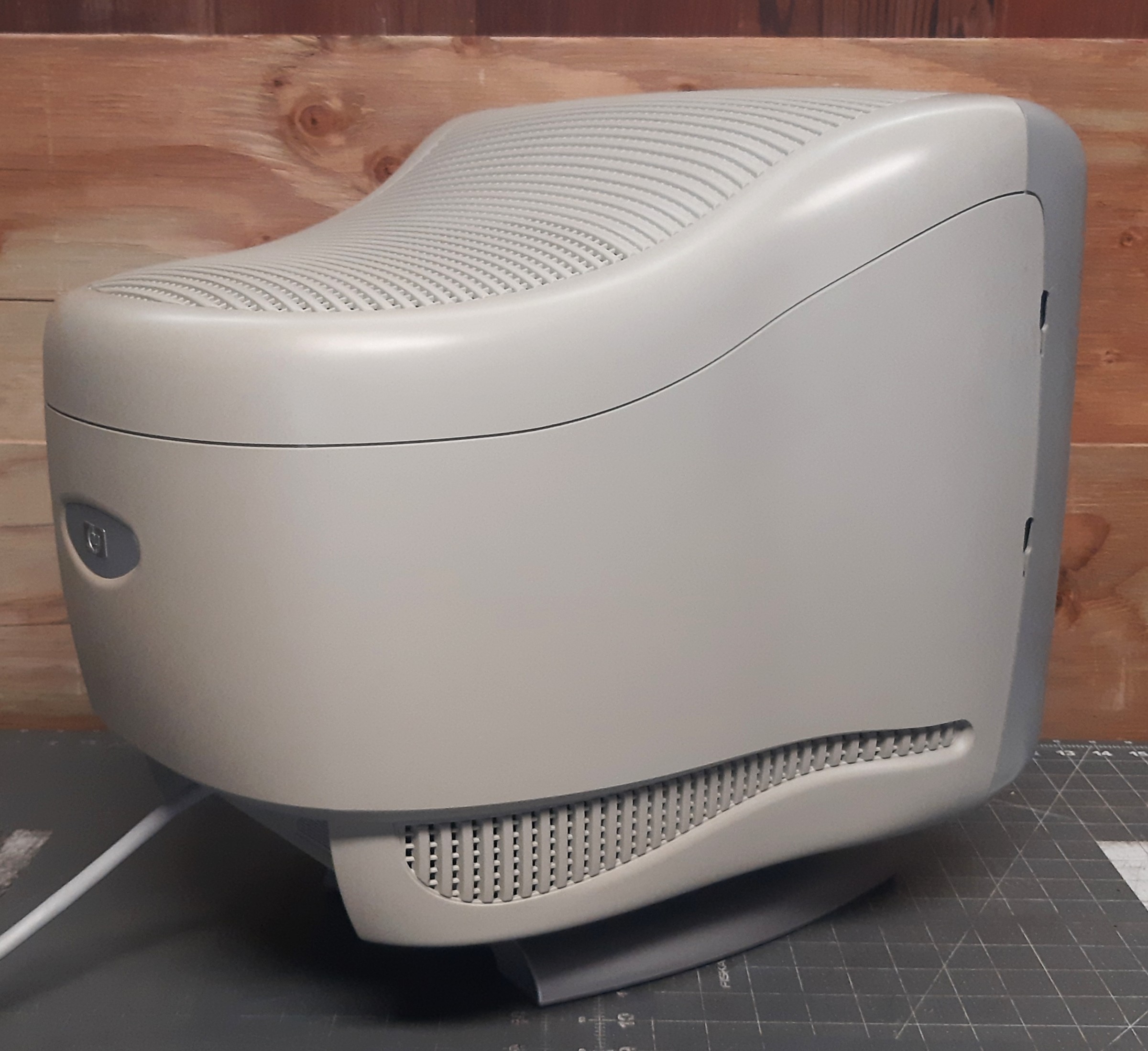

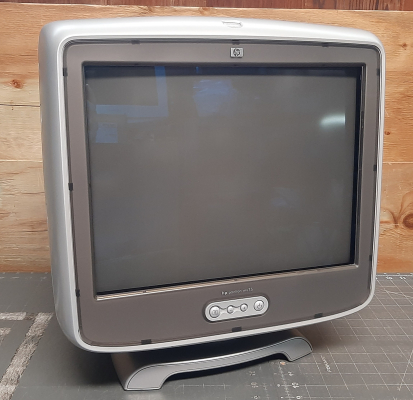

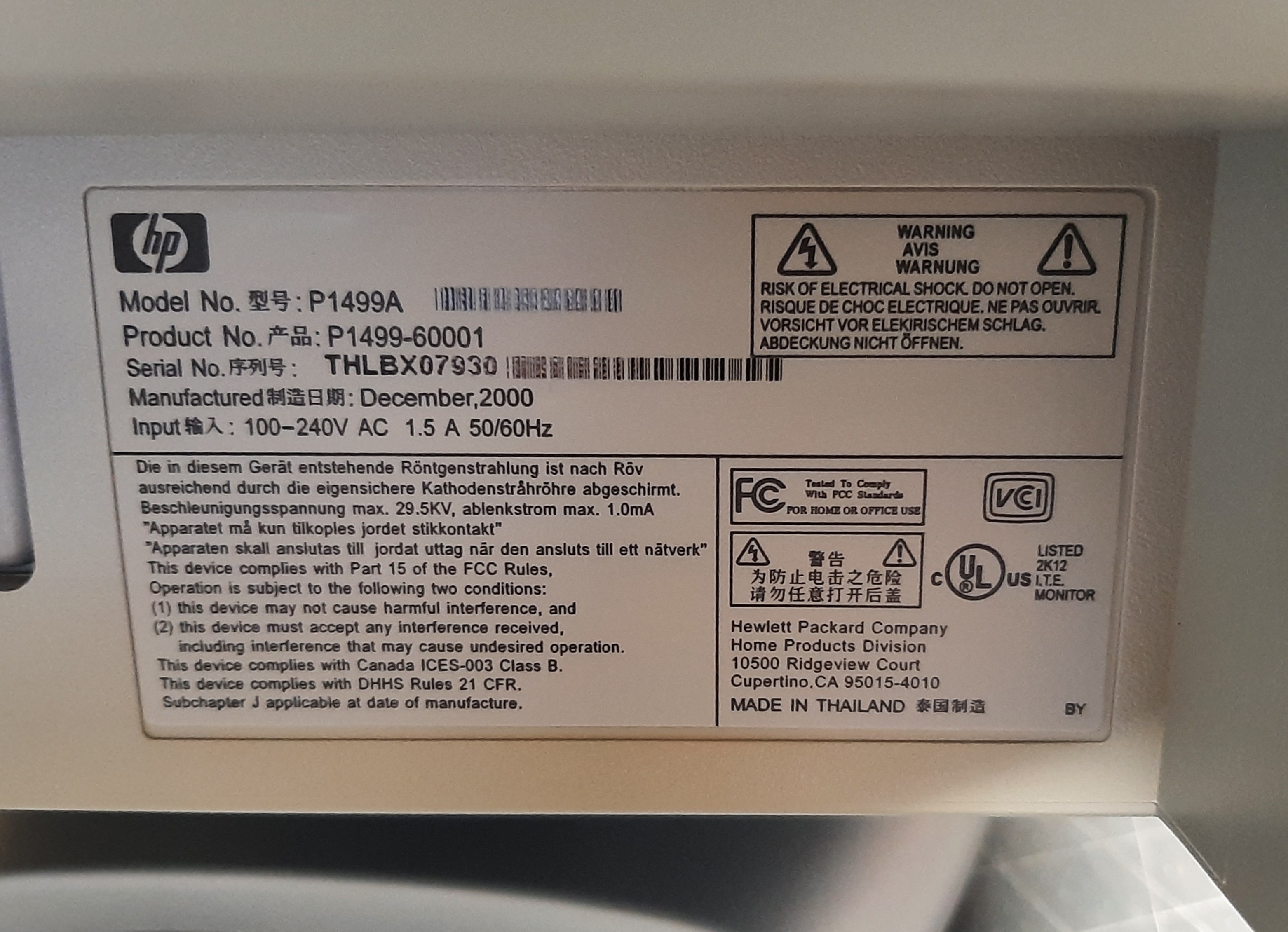

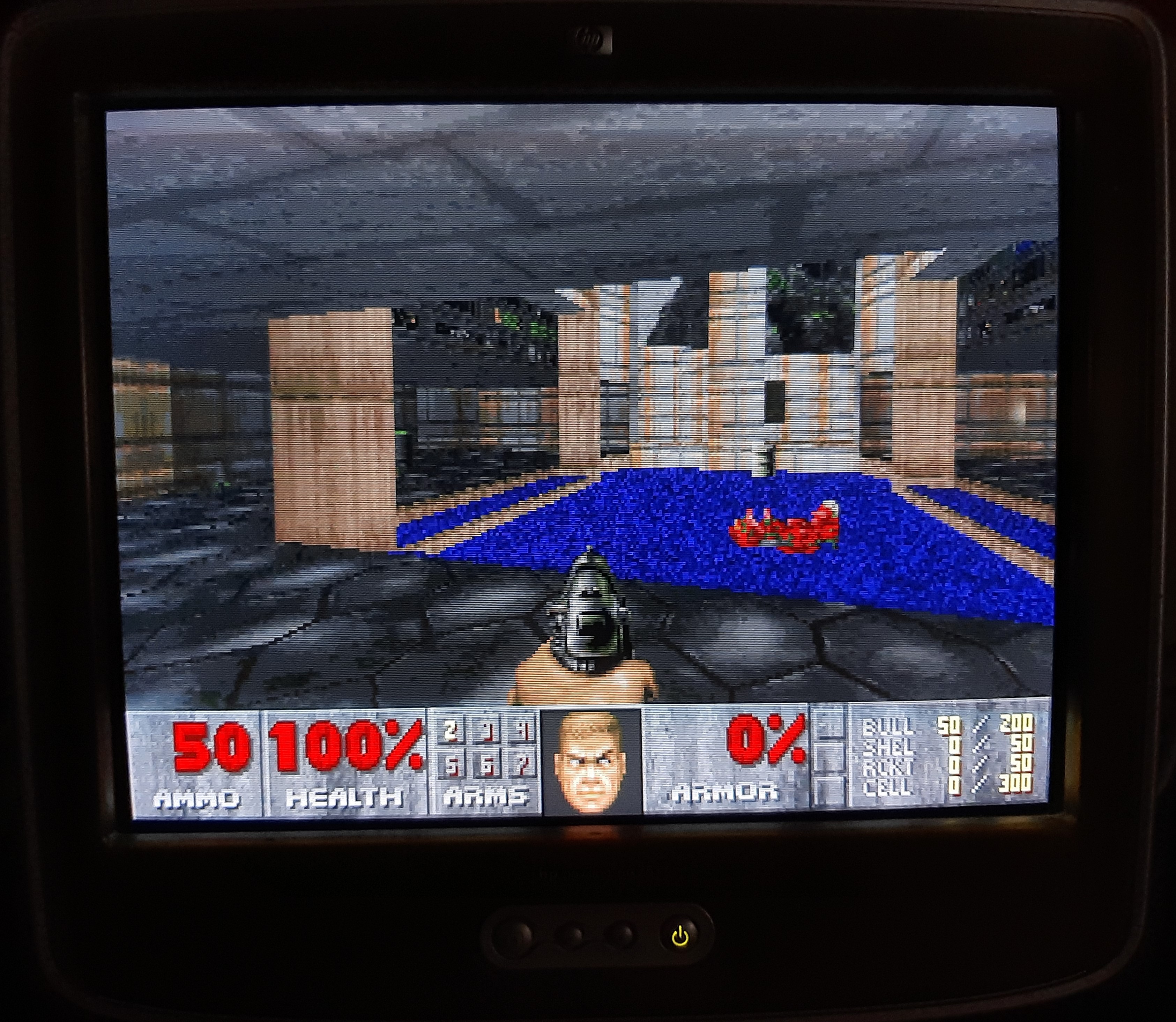

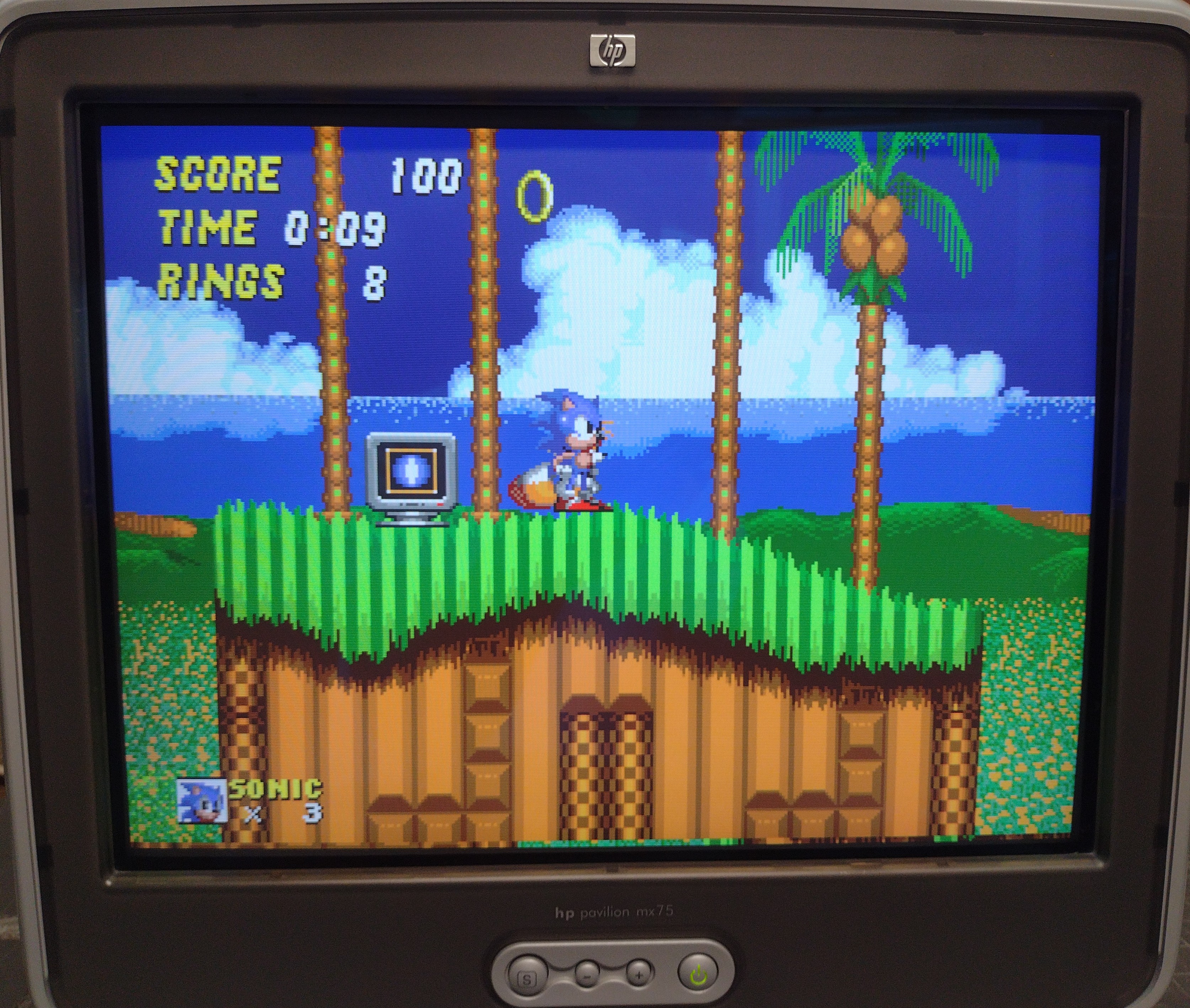

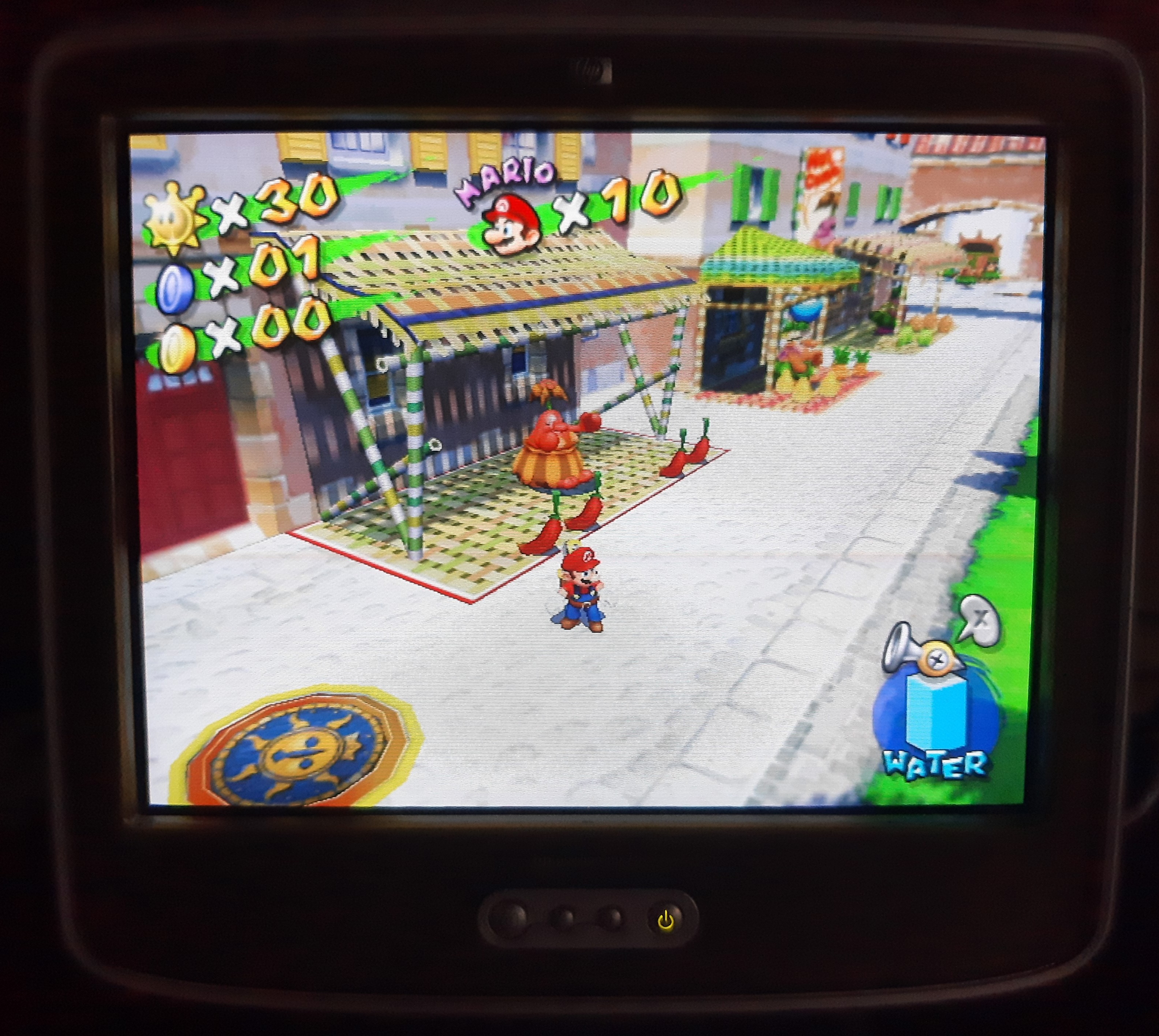

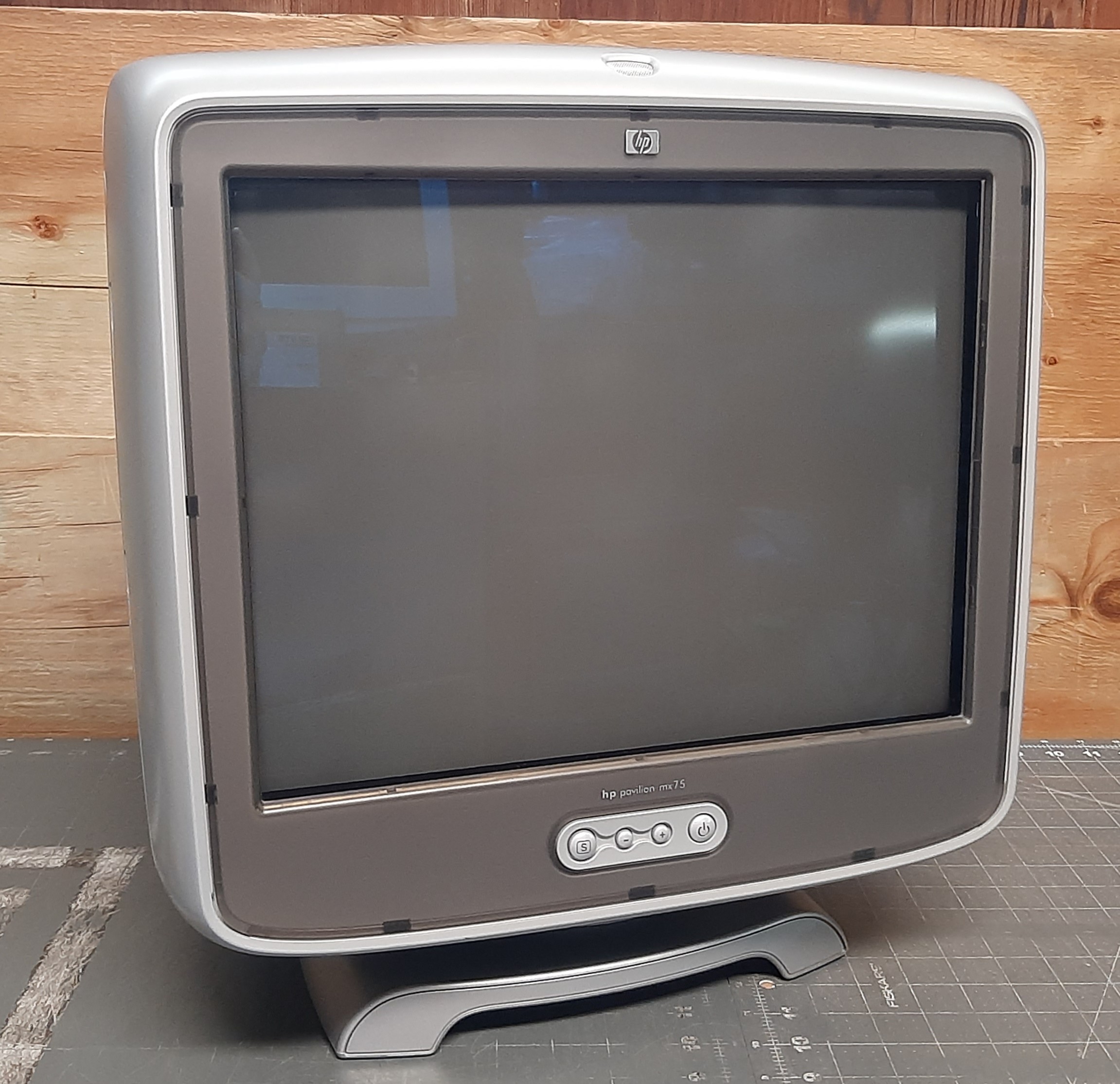

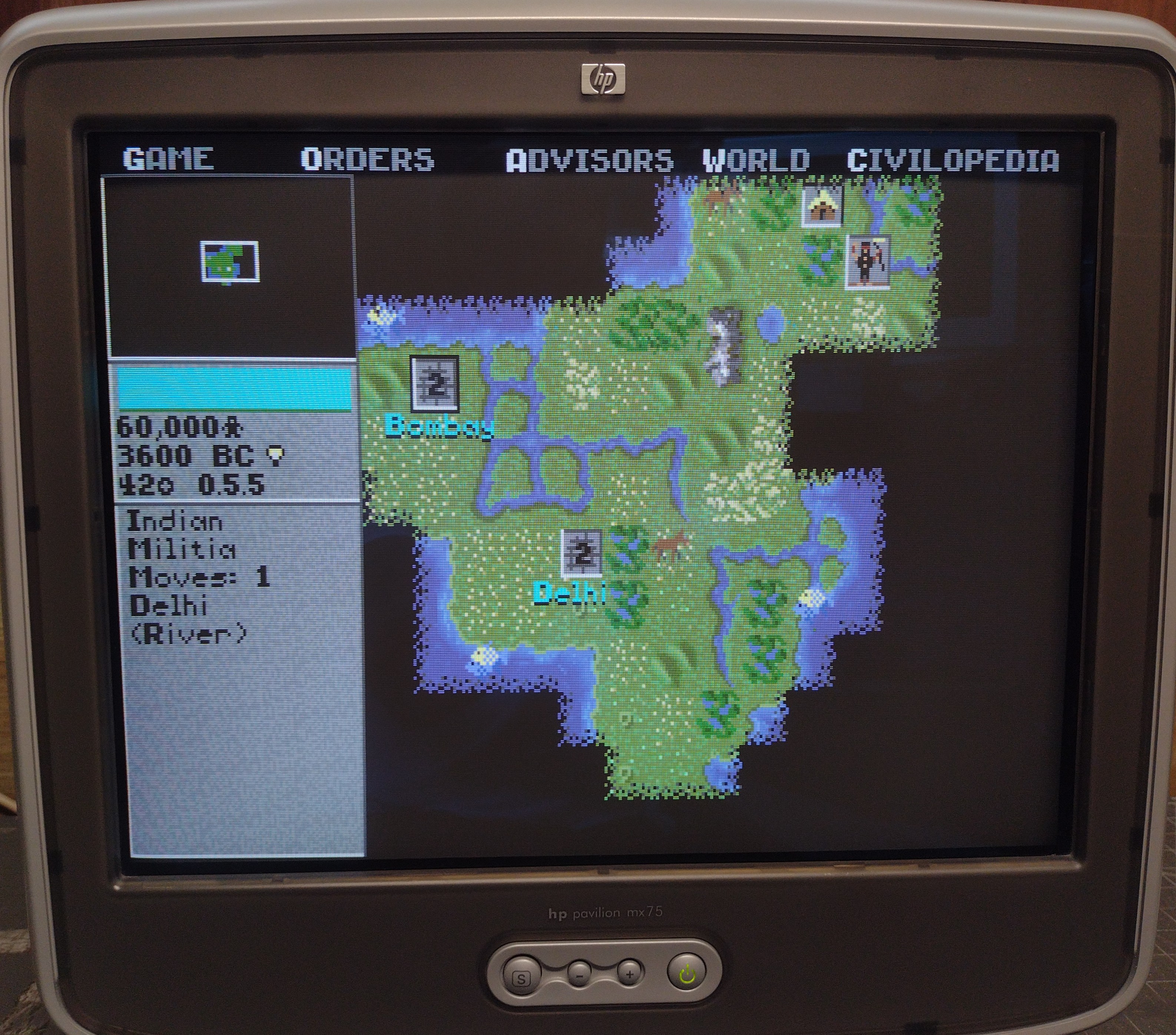

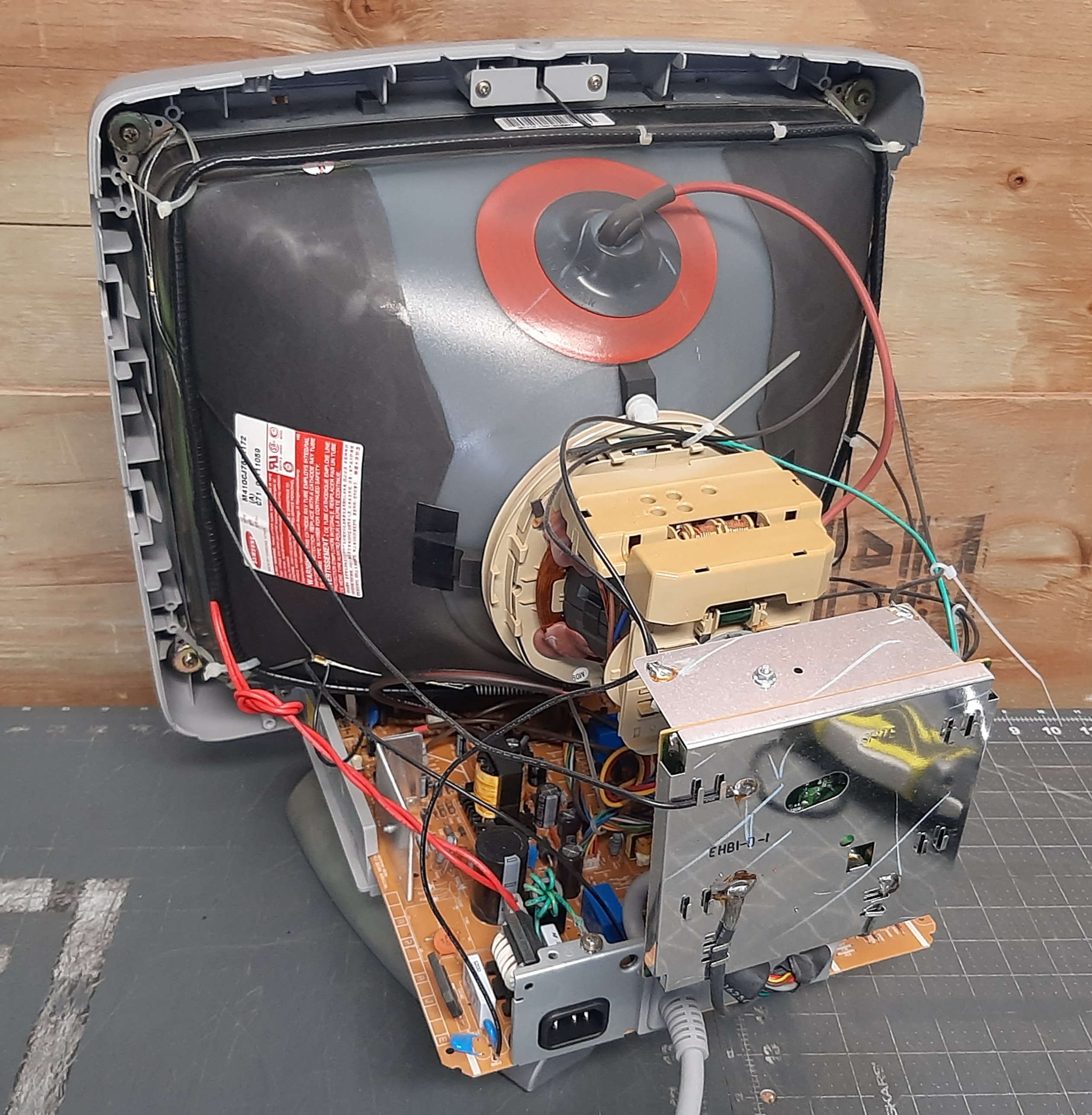

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | Delta Electronics |
| Model: | MX75 |
| Series: | Pavilion |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 70 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | LCE CF1388 |
| Focus Type: | Dual |
| Tube: | Samsung , M41QCJ761X , M41QCJ761X172 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm, .25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | DMX-1791ATS |
| Yoke Horz. Inductance: | 0.13277 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.354 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.36 ohm |
| Yoke Vert. Resistance: | 7.95 ohm |
| Speakers: | Optional Side Mount |
| Weight: | 37.5 lbs (17 kg) |
| Dimensions (W/H/D): |
415 x 442 x 438 mm
(16.3 x 17.4 x 17.2") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual |
