Summary

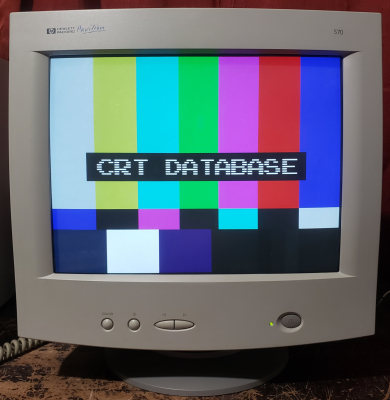

One of the most versatile monitors available today, the S70 automatically adjusts its vertical and horizontal scanning frequencies to those of your computer's graphics adapter. The S70 provides crisp text and vivid color graphic displays when used with Multi-Frequency and compatible graphics adapters.
Manuals
Notes

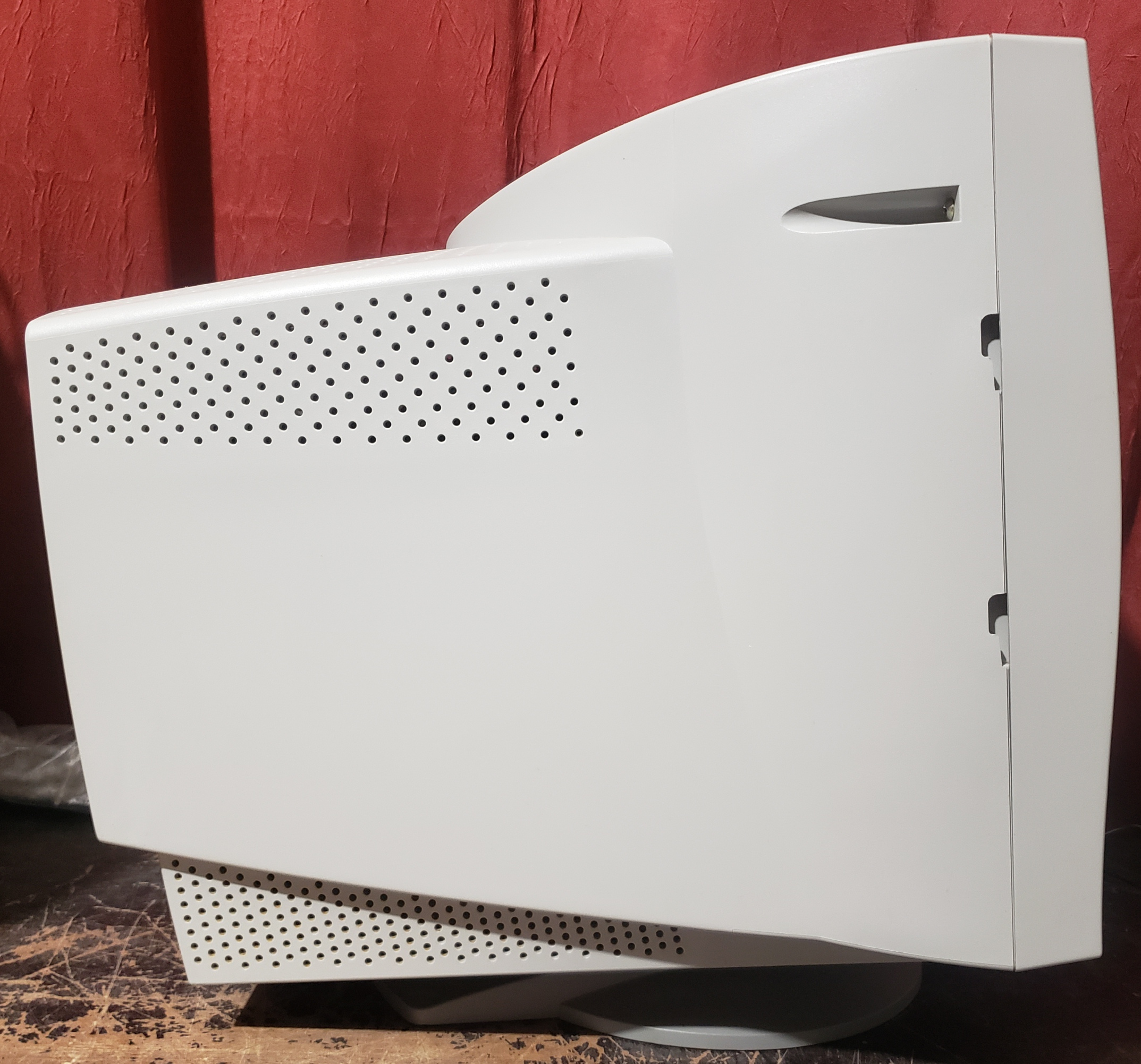

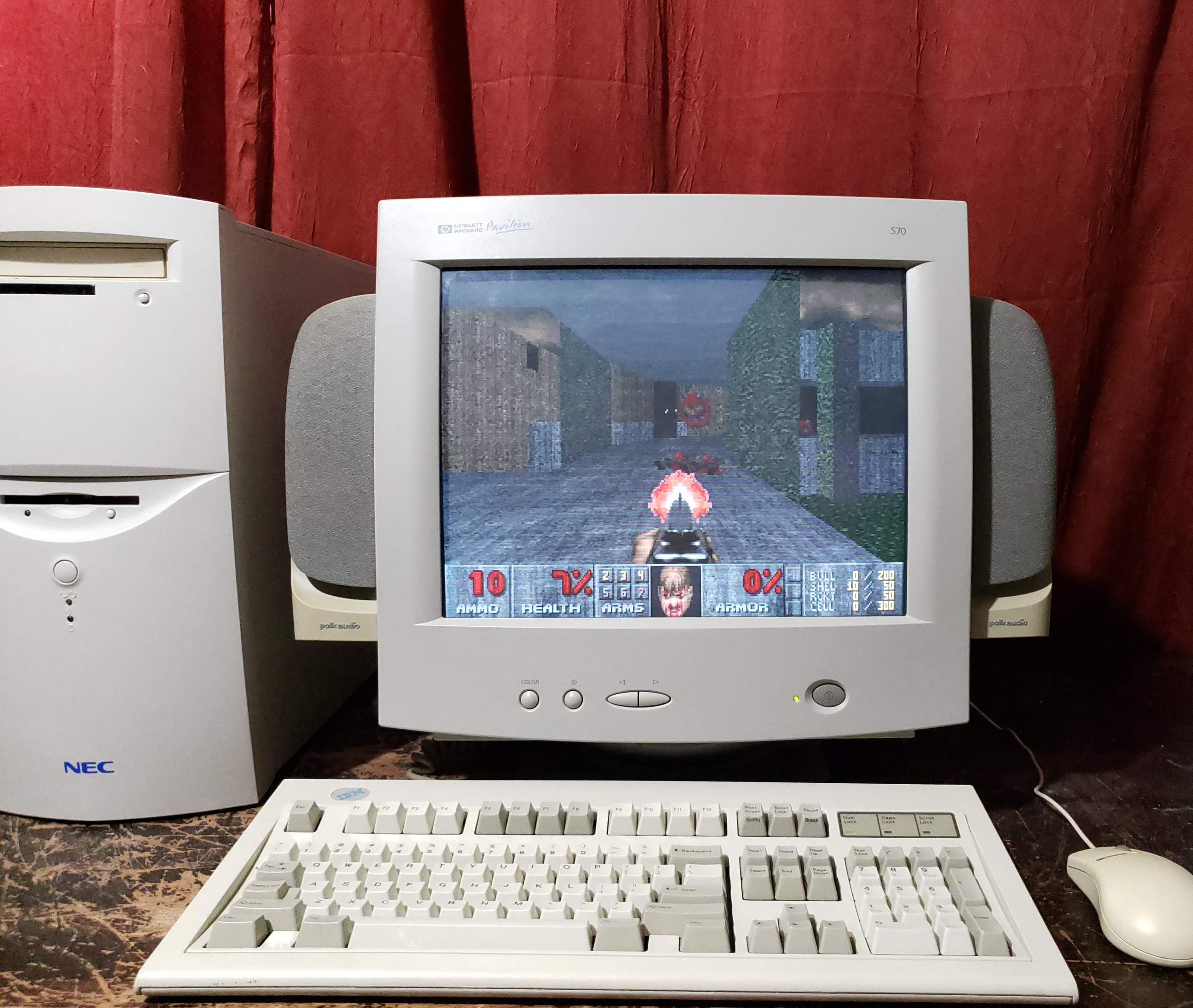

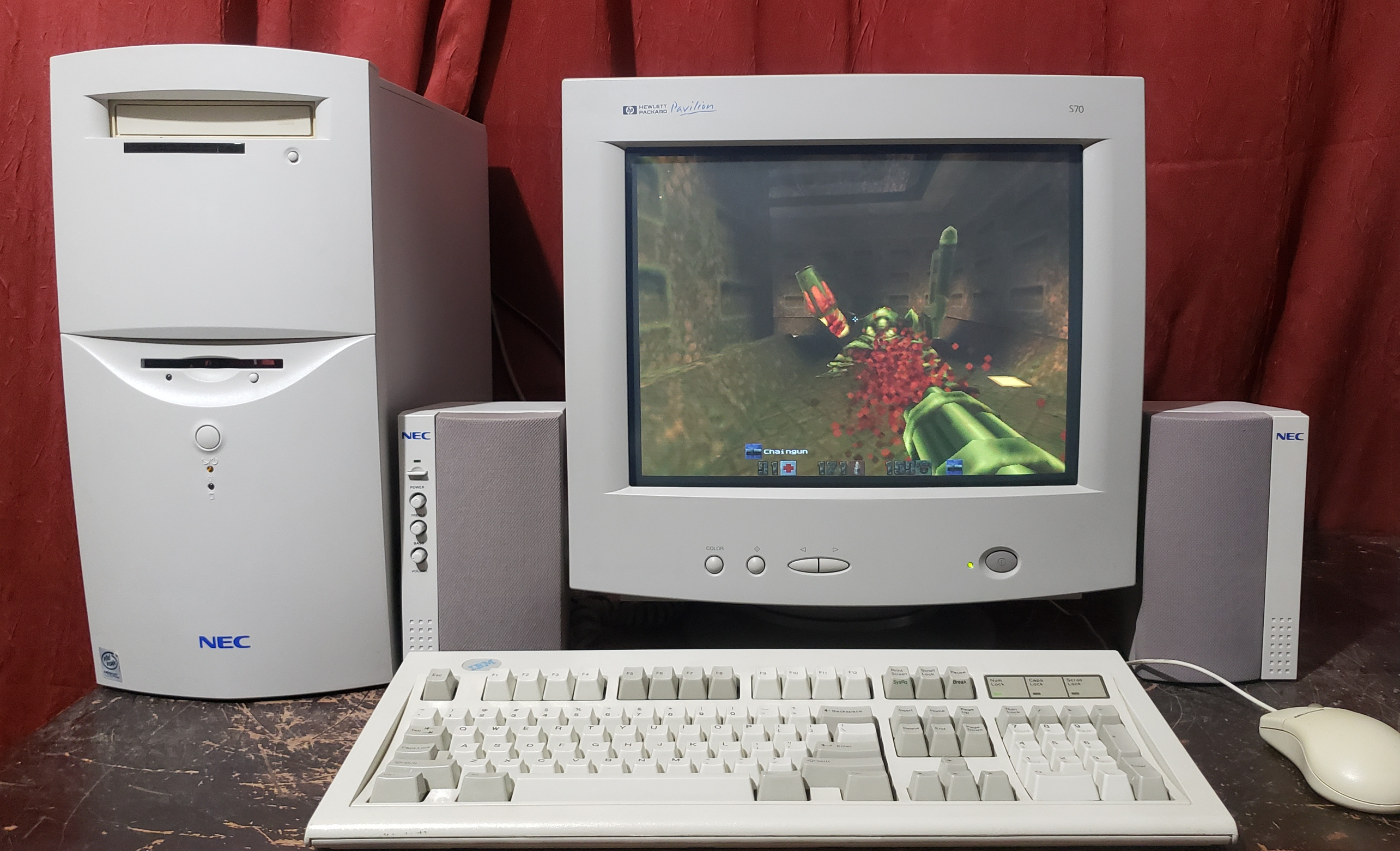

Has slots for side-mounted speakers by Polk Audio.
Maximum resolution is 1280 x 1024 at 60Hz refresh.

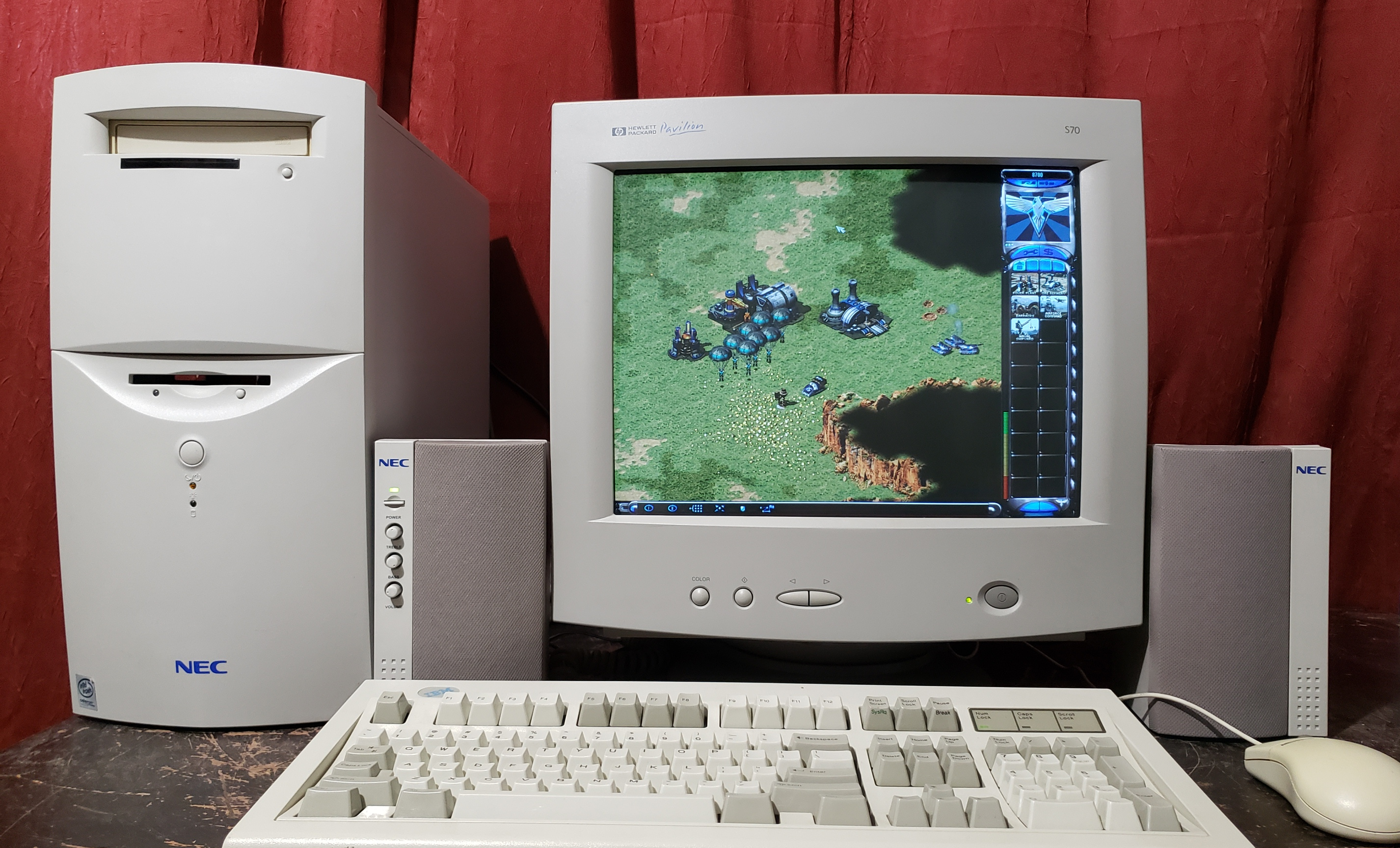

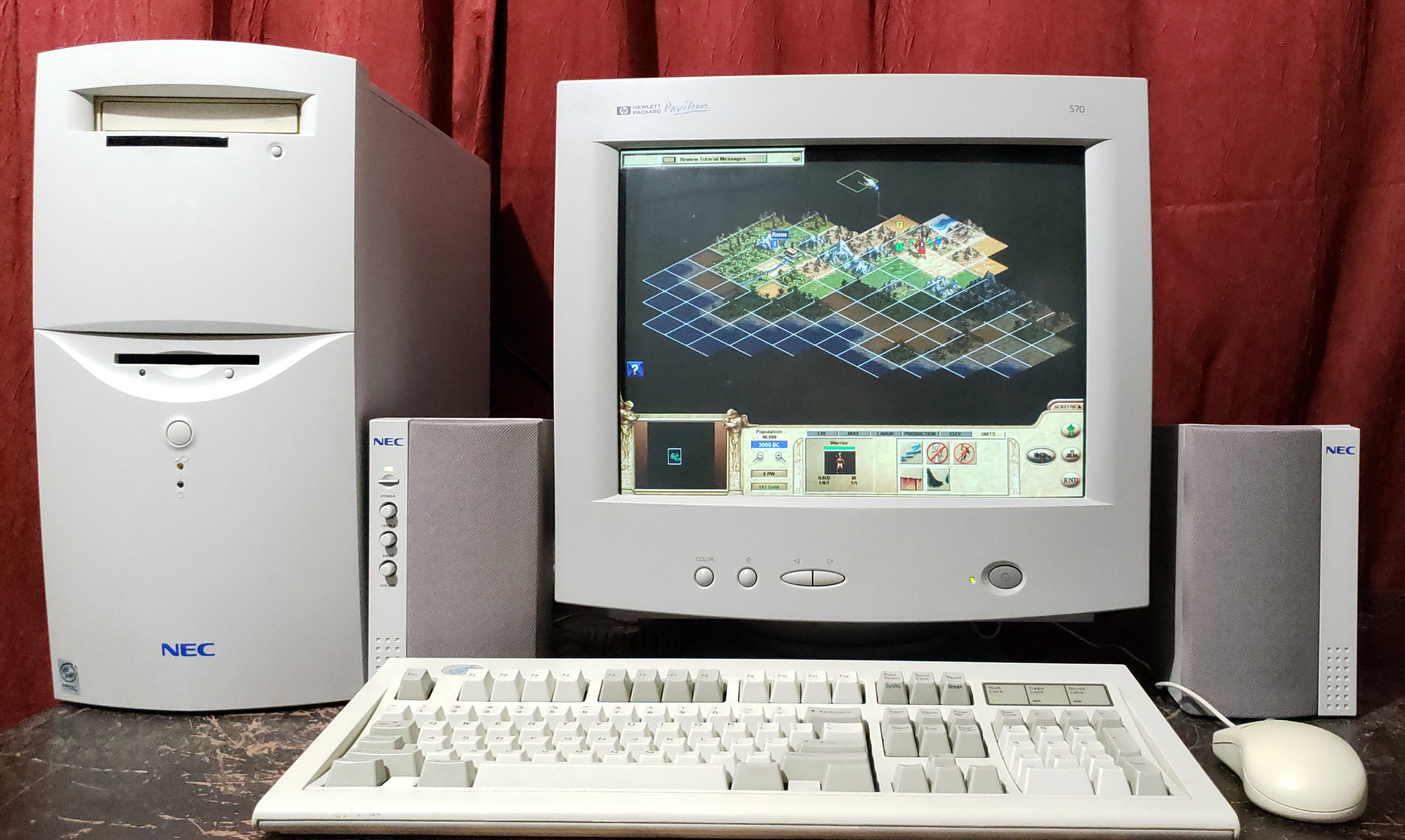

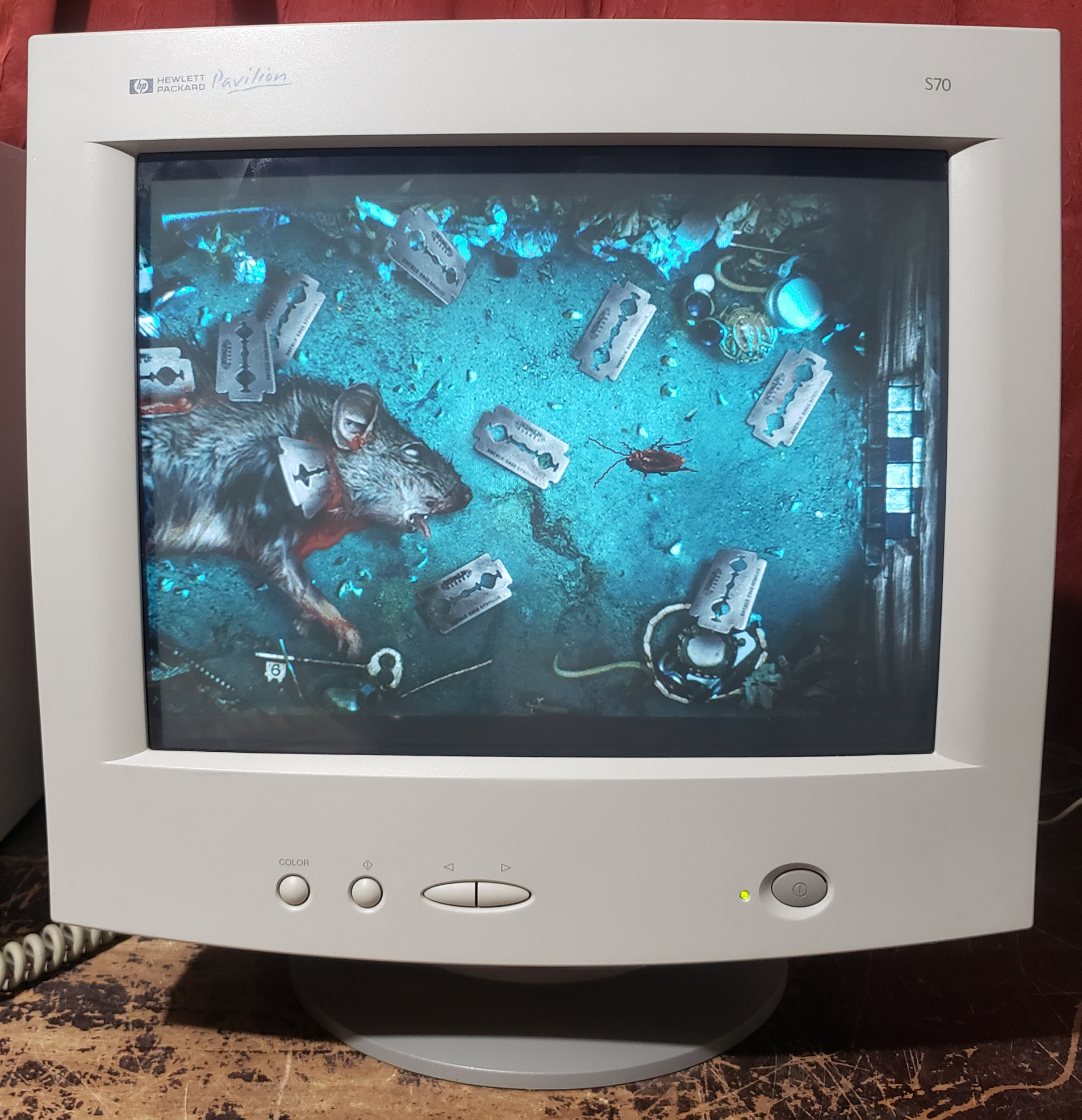

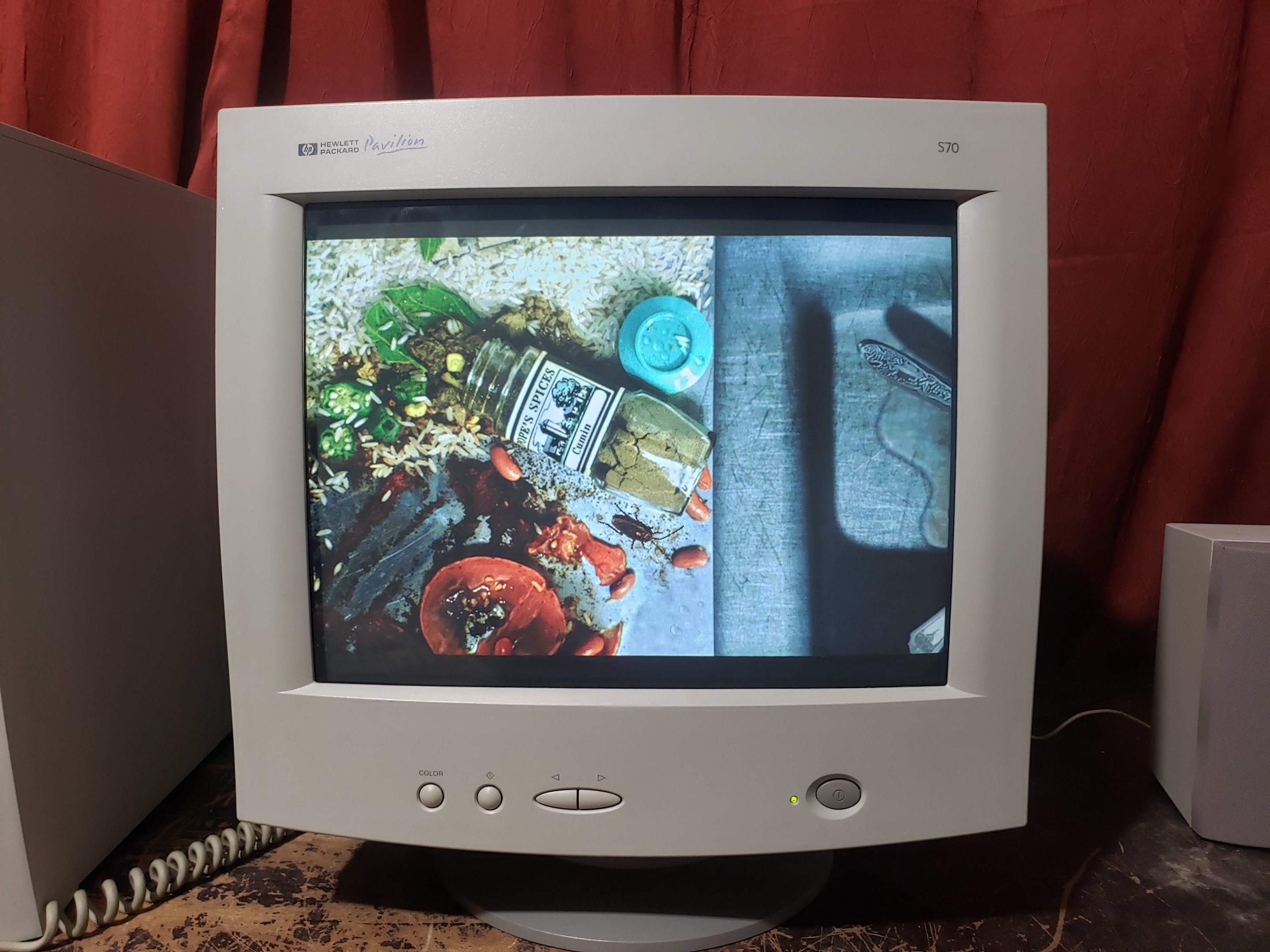

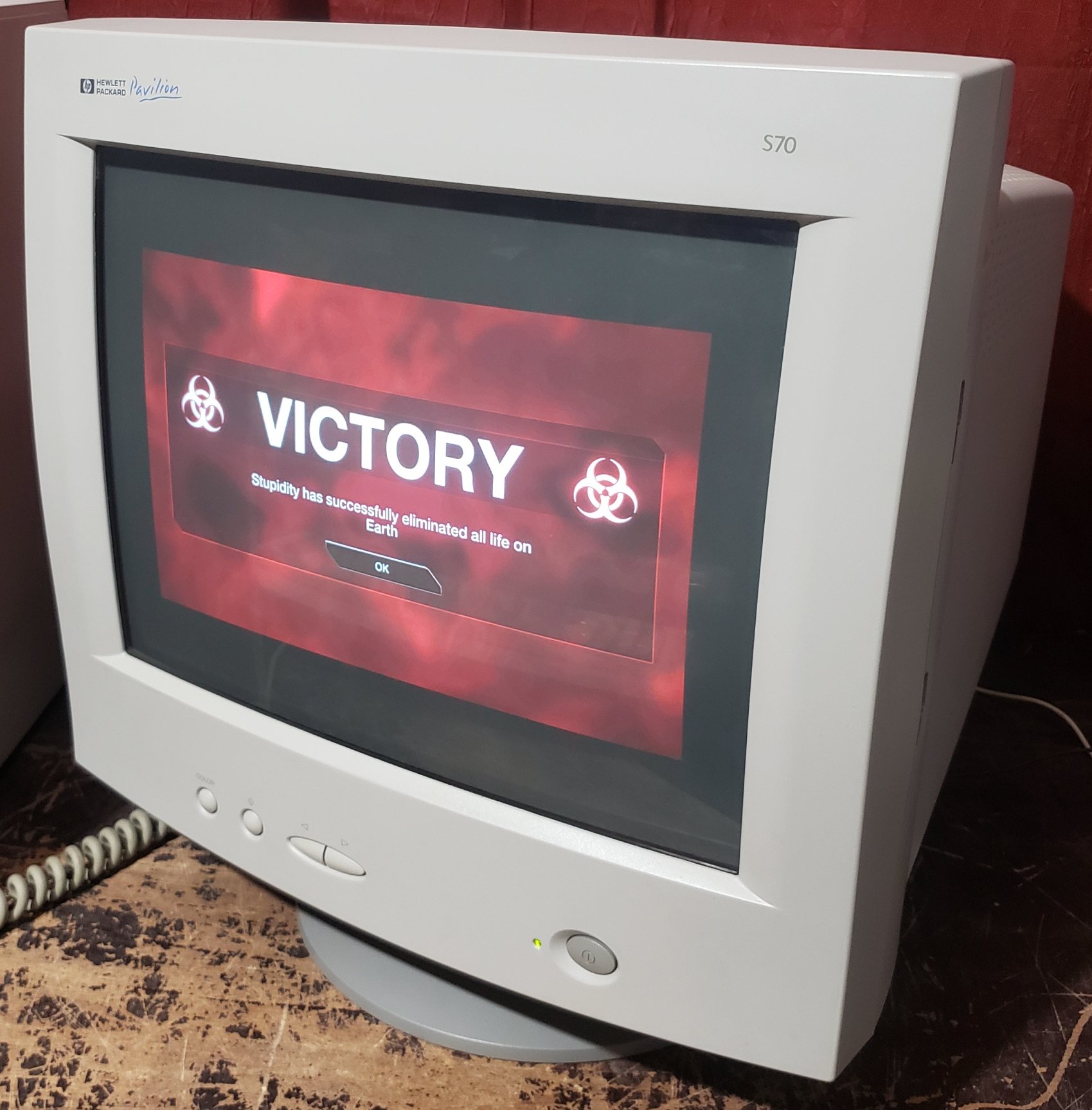

Gallery
| Specifications | |
|---|---|
| Brand: | HP |
| Manufacturer: | HP |

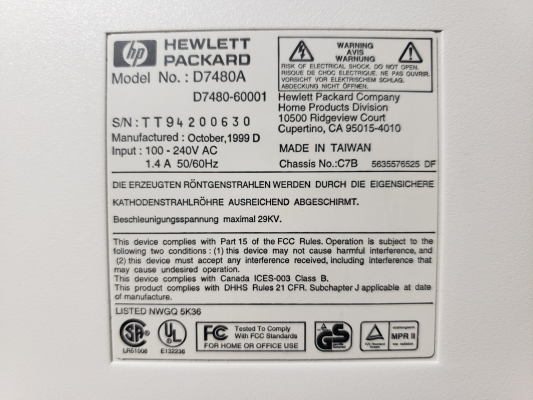

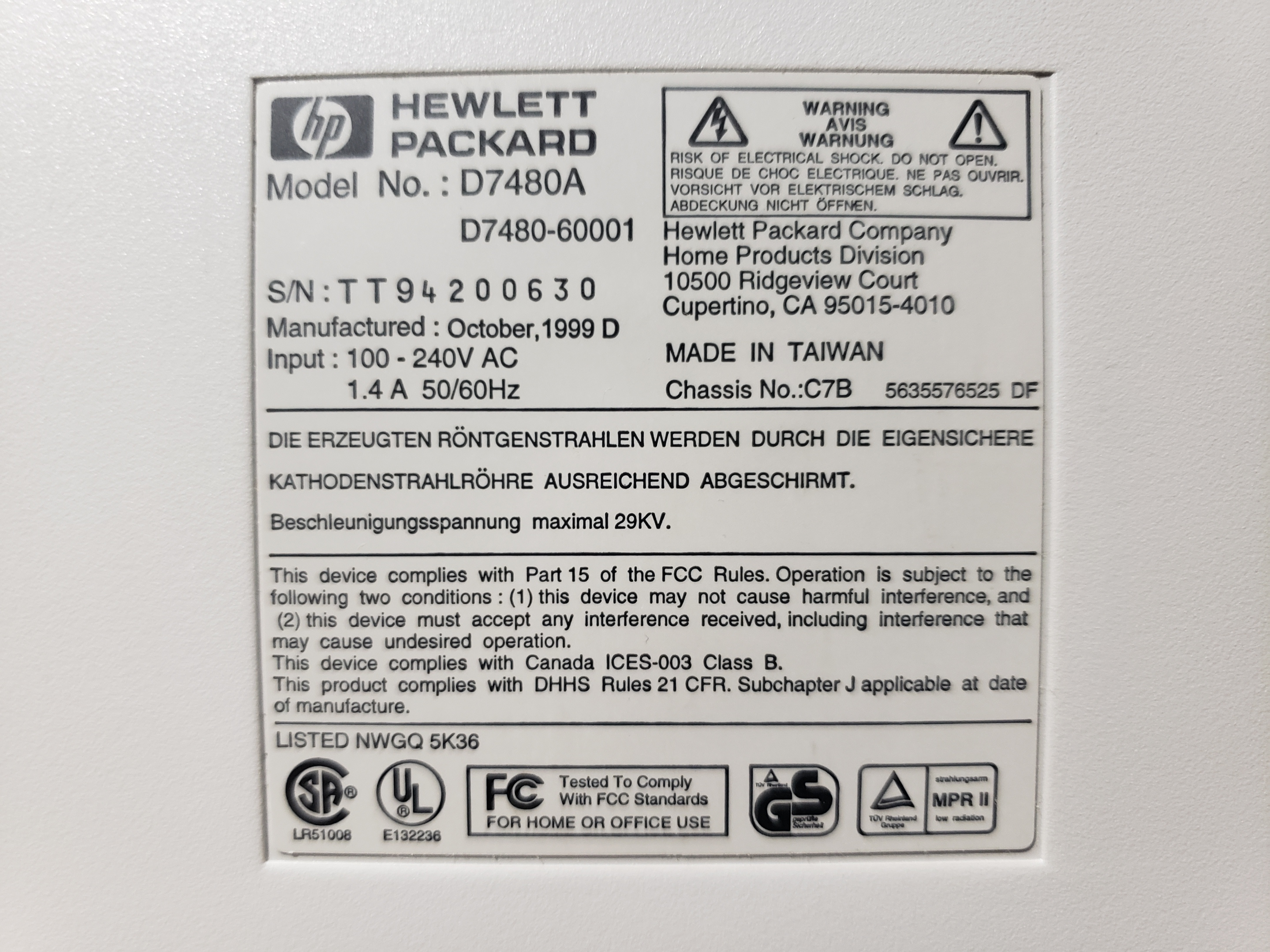

| Model: | S70, D7480A |
| Series: | Pavilion |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 70 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm, .27 mm |
| Tint: | Dark, Matte Anti-Glare |
| Speakers: | Optional Side Mount |
| Chassis: | C7B |
| Weight: | 37.7 lbs (17.1 kg) |
| Dimensions (W/H/D): |
416 x 443 x 455 mm
(16.3 x 17.4 x 17.9") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Power Standard: | Universal |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual, Needs Yoke Info, Needs Tube Info |
