Summary

Basic mid-'90s 17" VGA monitor, made by Samsung and sold under the HP brand. Its official model number is D2818A.

Literature

Notes

While most 17" PC monitors have a 70 kHz max scan rate, this model tops out around 67 kHz.

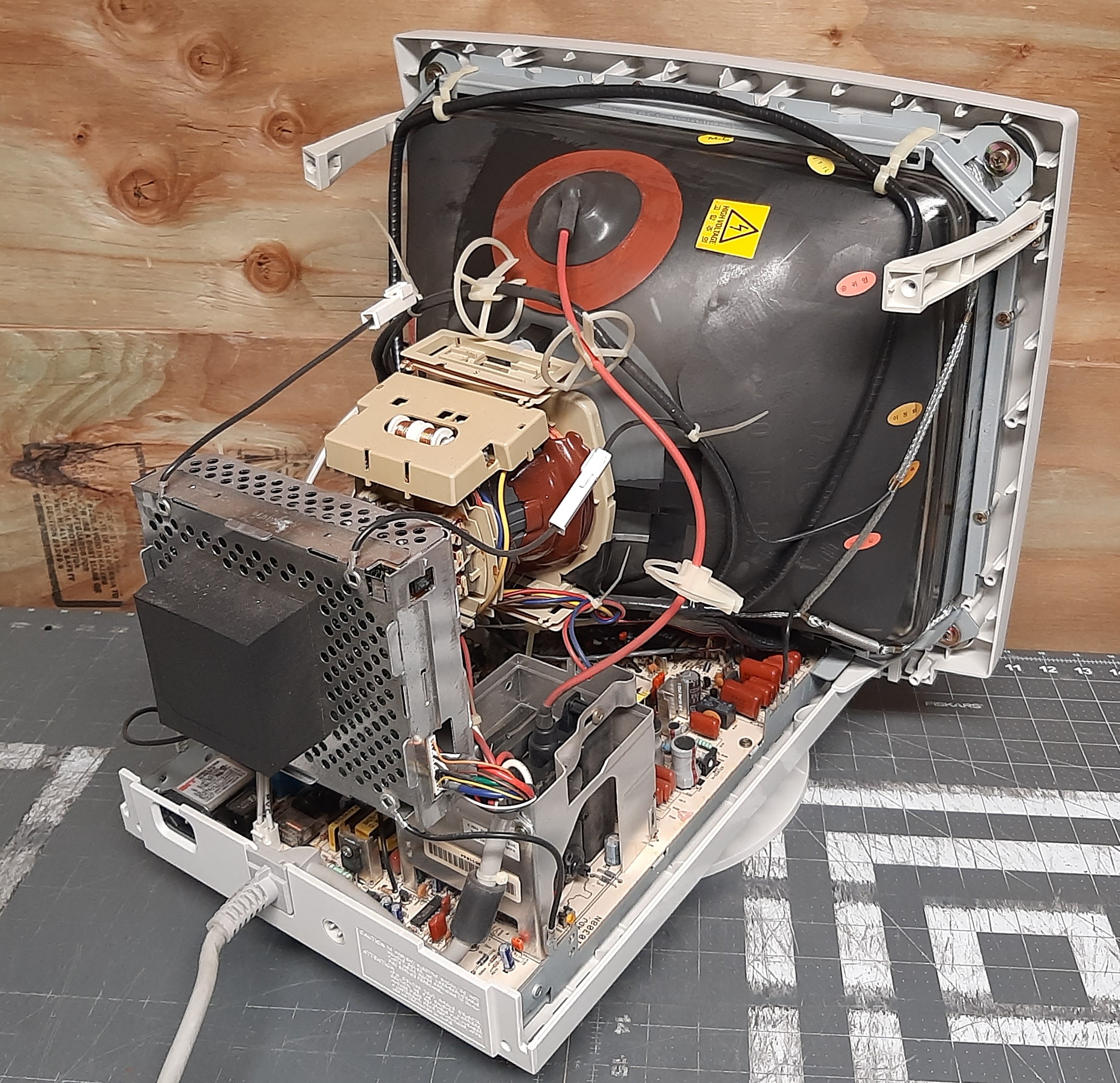

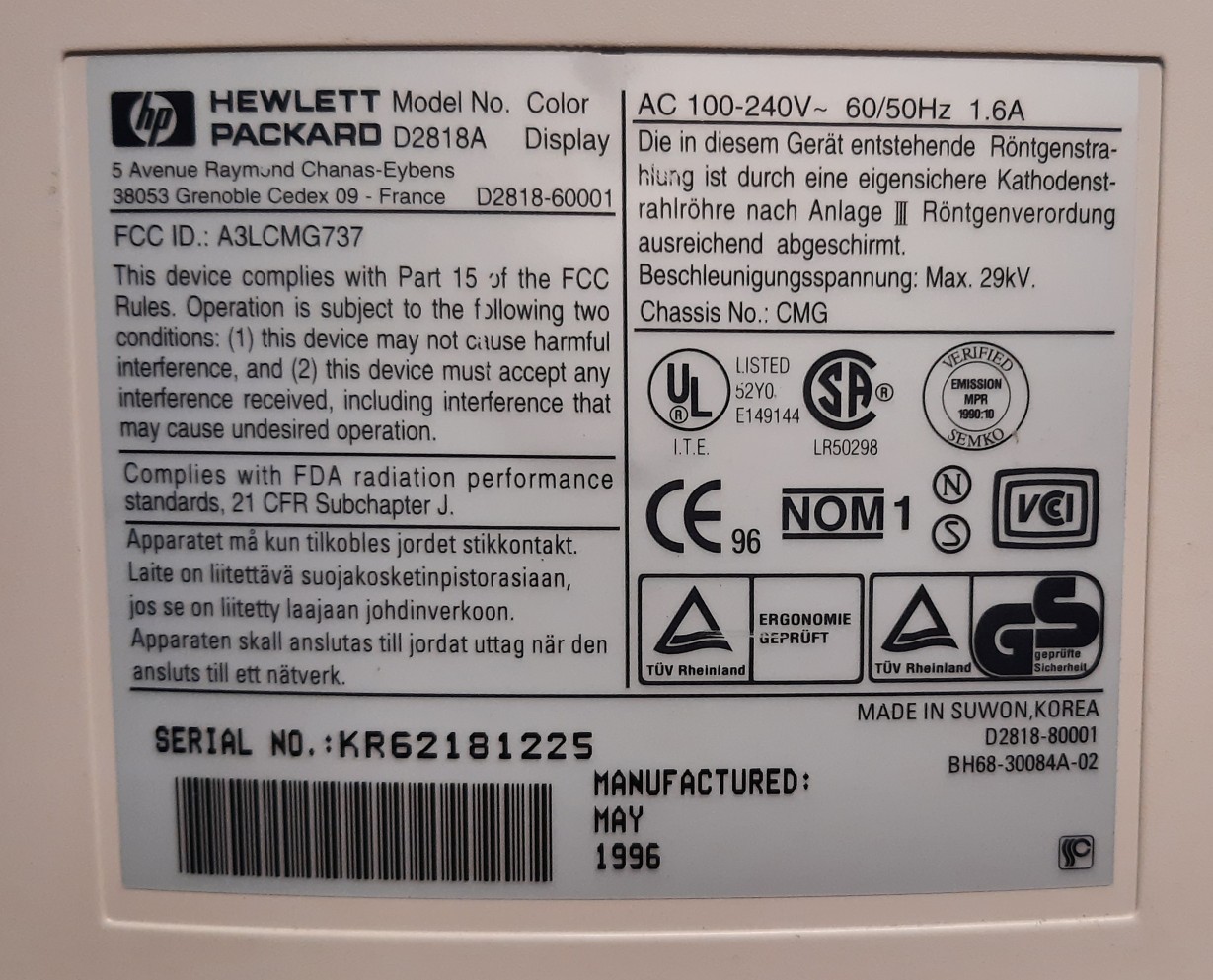

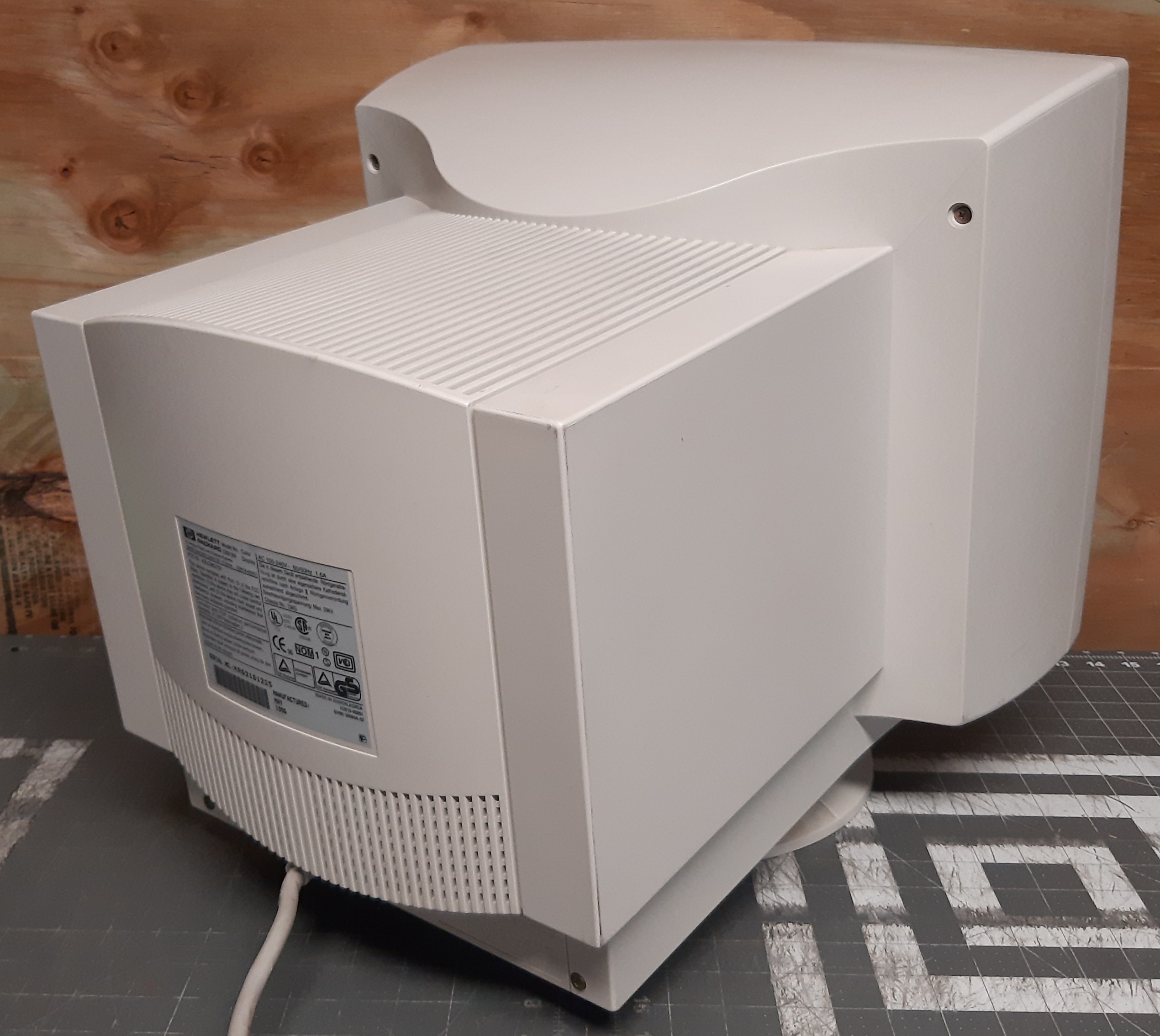

Gallery

HP Ultra VGA 1280 HP Ultra VGA 1280 HP Ultra VGA 1280
Specifications
Brand: HP
Manufacturer: Samsung
Model: Ultra VGA 1280
Series: Ultra VGA
Viewable Size: 16"
Inputs: VGA
Sync: HV Sync, Sync over Composite
Native Resolutions: VGA, SVGA, XGA, SXGA
Horizontal Scan Range: 27 kHz, 67 kHz
Vertical Scan Range: 170 Hz, 41 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Vertical Output IC: TDA8172
Flyback: FSW-17A002
Tube: M41KUK36X , M41KUK36X01
Heater Voltage: 6.3v
Deflection: 90°
Mask: Shadow
Pitch: 0.28 mm
Tint: Dark
Removable Glare Film: No
Yoke: SCD-17102
Yoke Horz. Inductance: 0.13812 mH (@ 10 kHz)
Yoke Vert. Inductance: 4.732 mH (@ 100 Hz)
Yoke Horz. Resistance: 0.420 ohm
Yoke Vert. Resistance: 7.81 ohm
Speakers: None
Weight: 42 lbs (19 kg)
Application: Computer Monitor
Launched: 1996
Country of Manufacture: Korea
Mounting: Desk Stand
Degaussing: Automatic on Power-on
