Summary
Basic, entry level 14" monitor, sold with IBM's budget model ValuePoint computer systems. Retailing for $450 in 1992, it was meant to be used in SVGA (800x600 resolution) and has a max scan rate of 50 kHz.
Manuals
Notes
This monitor's 17" equivalent, the 6317, sold for a whopping $924 MSRP and featured a 64 kHz scan rate.

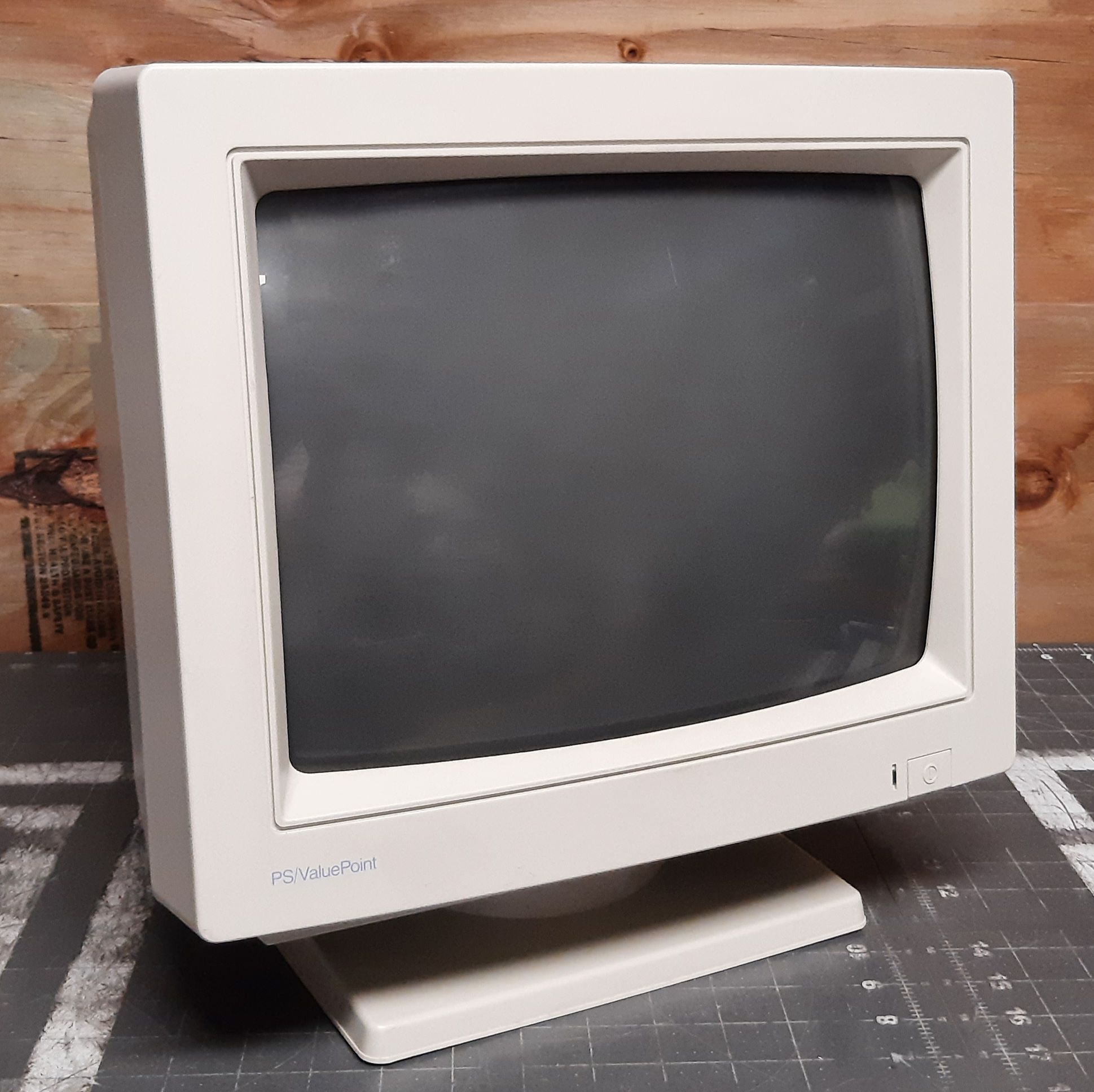

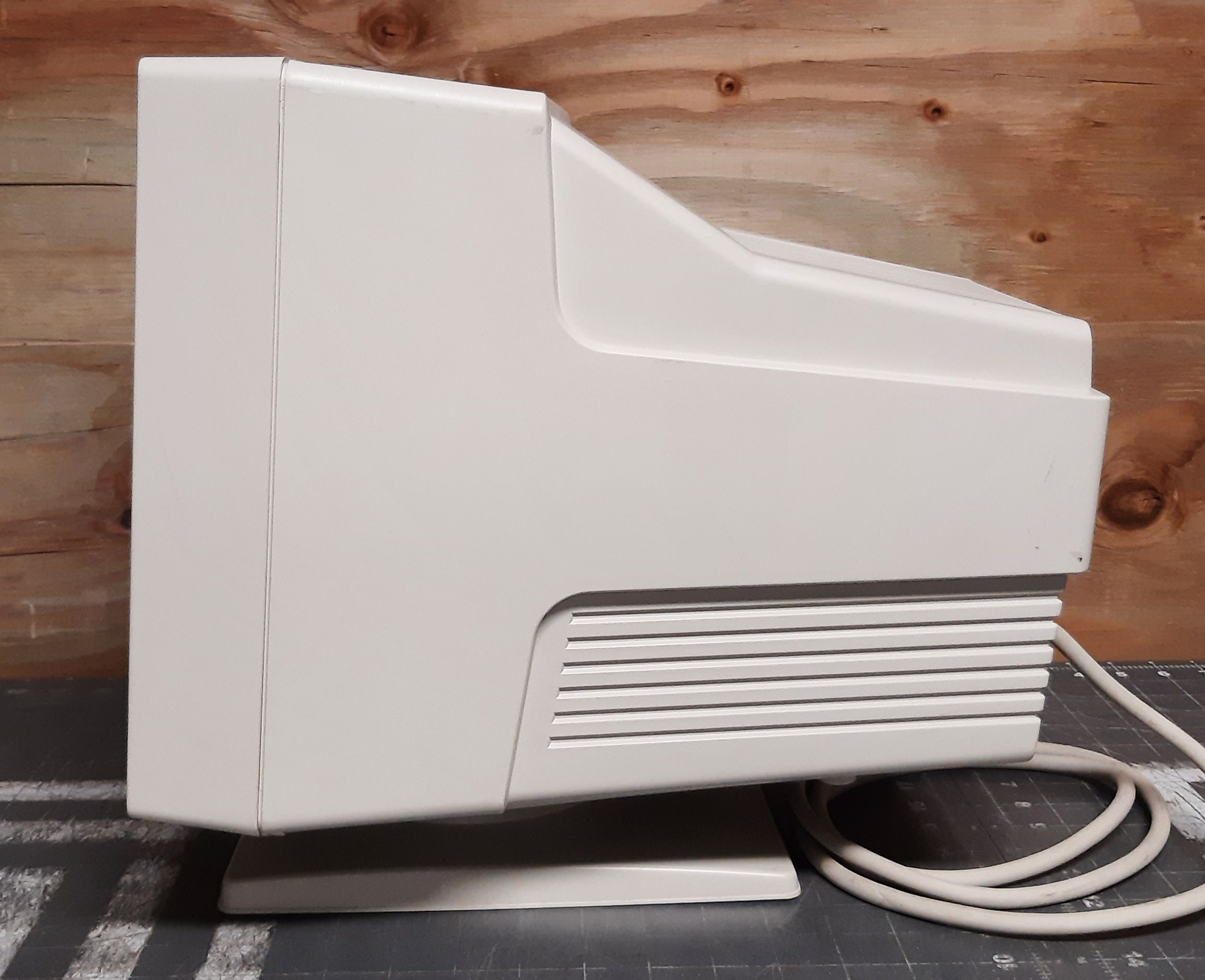

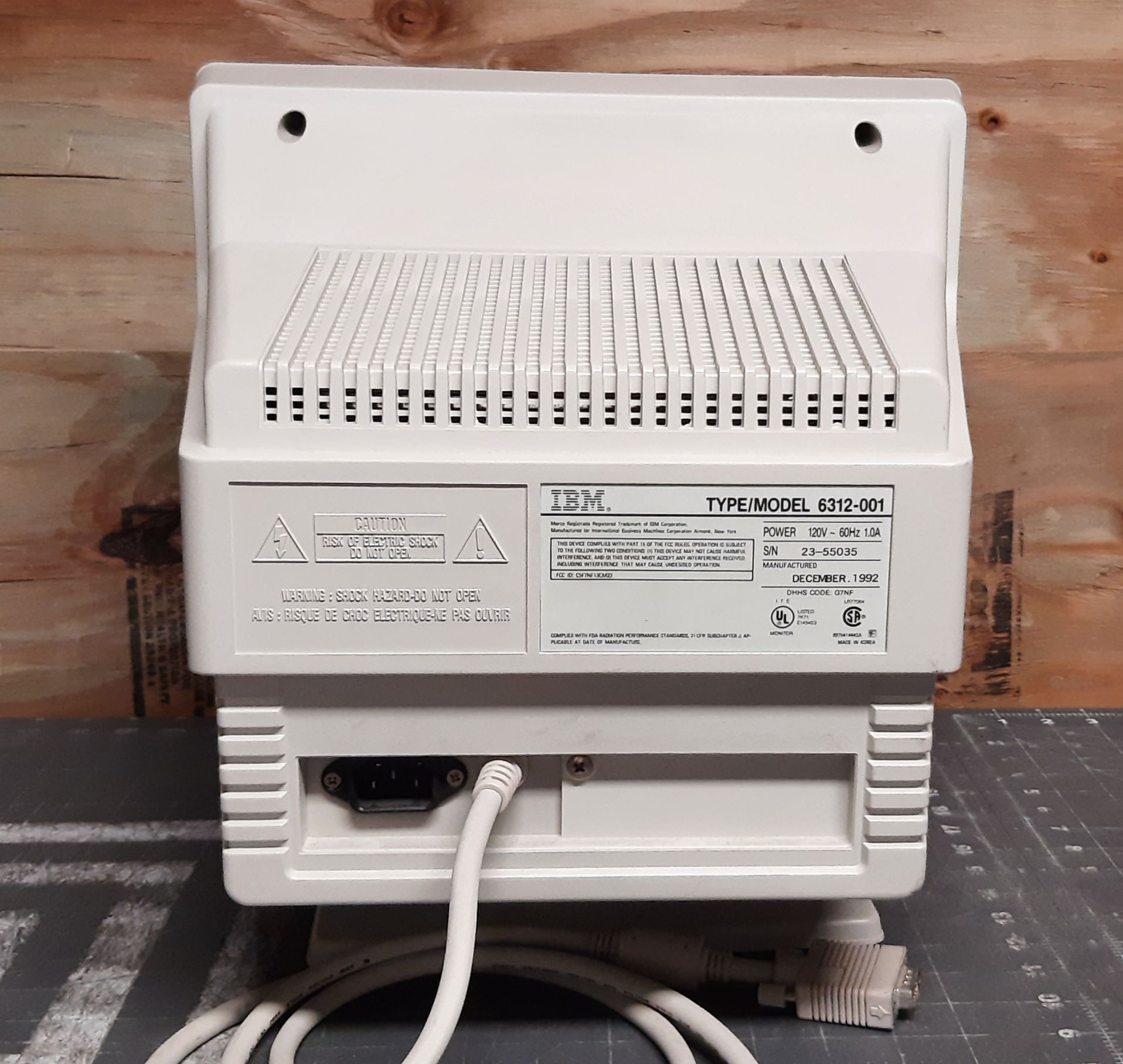

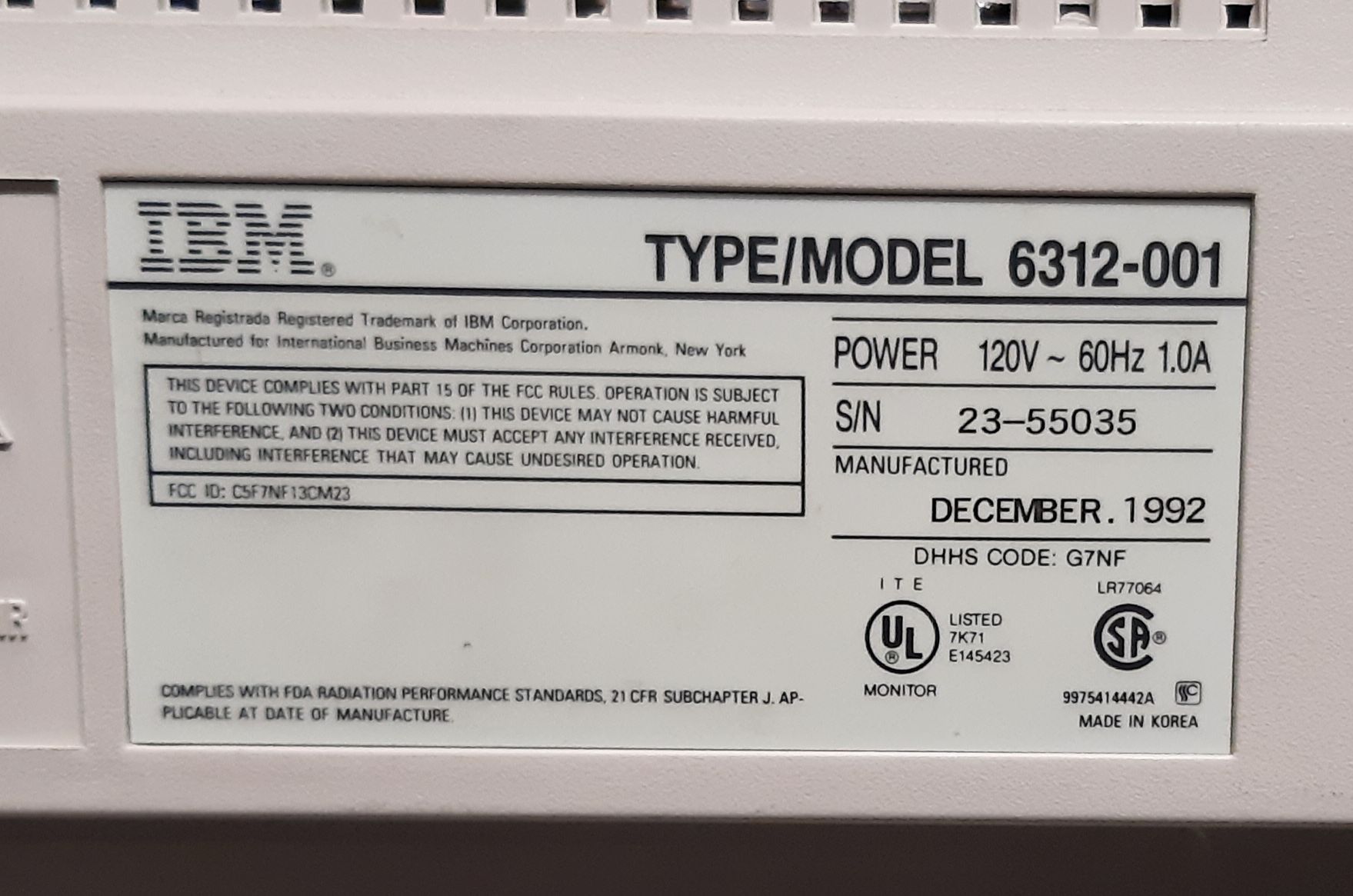

Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | Daewoo |
| Model: | 6312 |
| Series: | ValuePoint |
| Viewable Size: | 13" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 50 kHz |
| Vertical Scan Range: | 50 Hz, 100 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Flyback: | MSU1FGV99 |
| Tube: | Toshiba , M34KSP22XX01 , M34KSP22XX |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | CJ27739-0MA |
| Yoke Horz. Inductance: | 0.1801 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.463 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.6 ohm |
| Yoke Vert. Resistance: | 8.6 ohm |
| Speakers: | None |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| MSRP: | 450 USD |
| Country of Manufacture: | Korea |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures |
