Summary

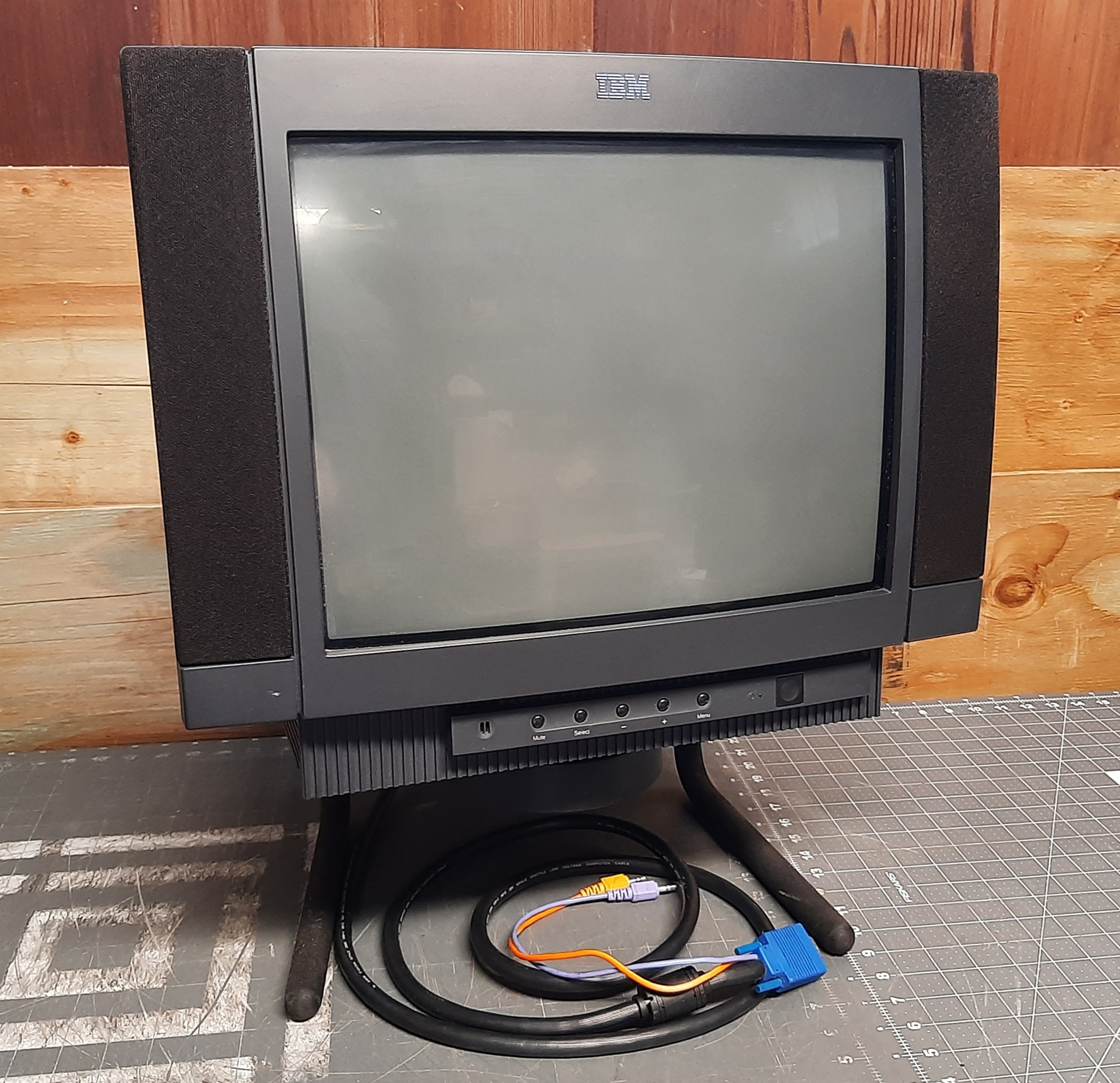

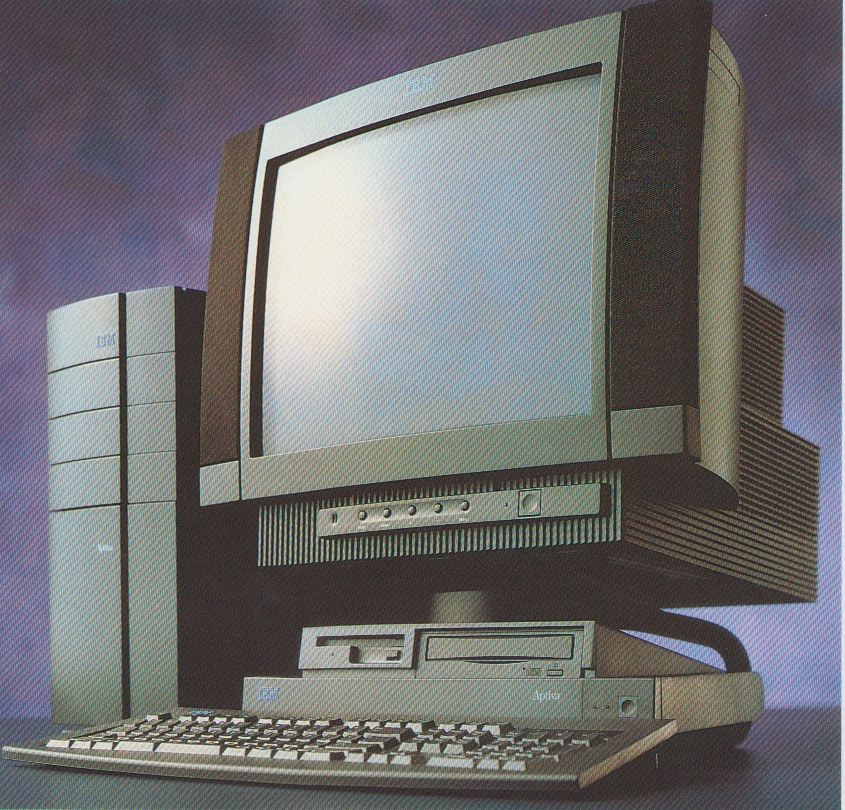

Multimedia monitor, styled to match the IBM Aptiva line of desktop PCs. Manufactured by Daewoo, it features a unique (and very tall) metal stand. This provided room for a "media console" containing floppy and CD drives. It has side-mounted speakers and a built in microphone. Aside from that, it's a typical 17" PC monitor with a 70 kHz scan rate.
Literature
No documentation has been found online at this time.
Notes

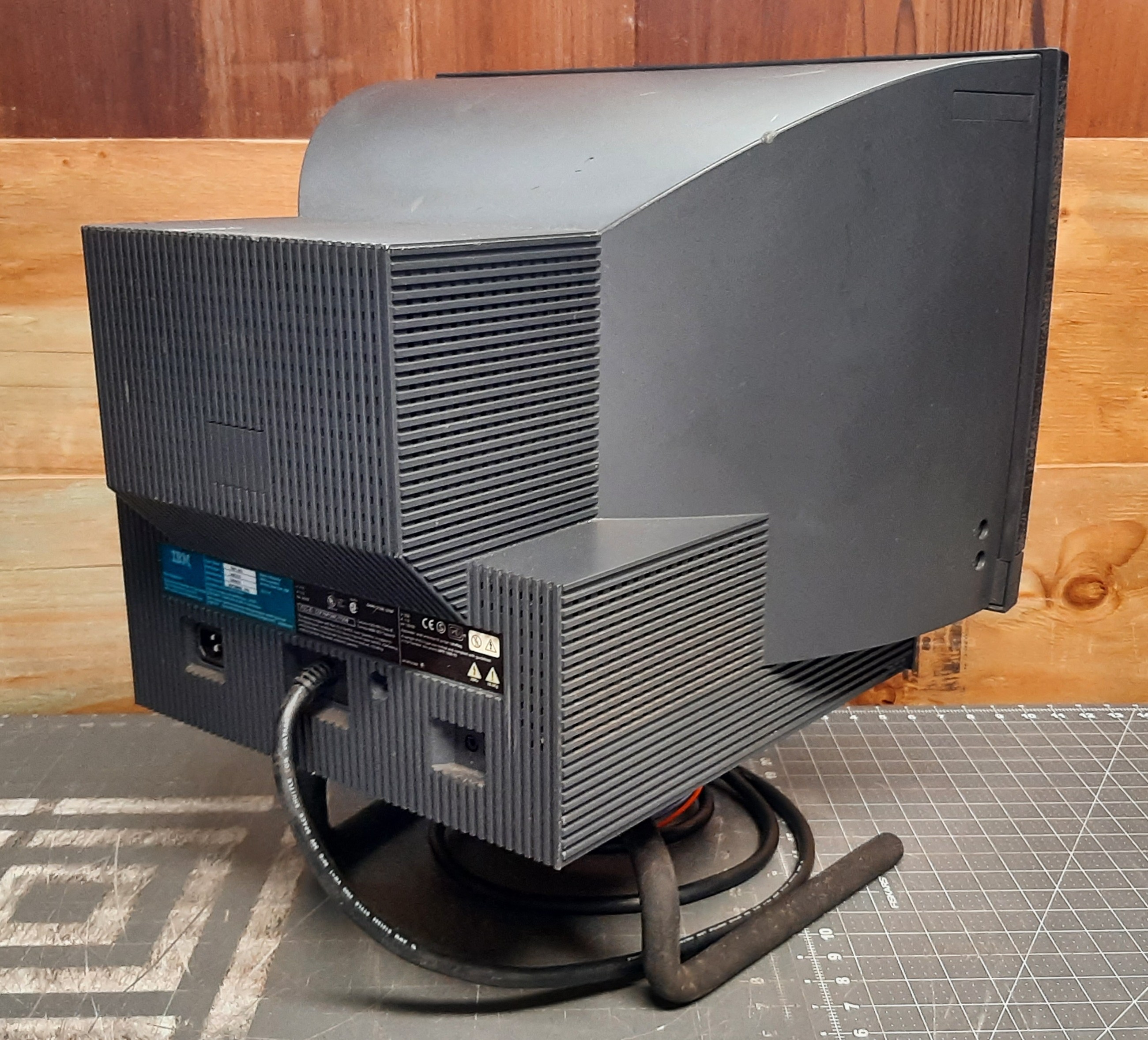

The VGA cable on this monitor is also used for the stereo audio and microphone plugs, and is therefore very thick.
Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | Daewoo |
| Model: | MM70 (7079) |
| Series: | Aptiva |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 69 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | ZTFJ54006A |
| Tube: | Hitachi , M41KWB680X , M41KWB680X74 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | 89210743 |
| Yoke Horz. Inductance: | 0.13905 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 4.773 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.390 ohm |
| Yoke Vert. Resistance: | 7.91 ohm |
| Speakers: | None |
| Weight: | 46.2 lbs (21 kg) |
| Application: | Computer Monitor |
| Launched: | 1996 |
| Country of Manufacture: | Korea |
| Degaussing: | Automatic on Power-on |
