IBM E54

Matt Ross
February 14, 2022, 9:56 pm
January 11, 2025, 1:38 pm

Summary

Entry level 15" monitor, manufactured by LiteOn and sold by IBM. It will sync up to 70 khz, which is unusual for a 15" monitor. It will display 1024x768 at 85 Hz, or 1440x1080 at 60 Hz.

Manuals

Notes

This monitor will display frame rates as low as 48 Hz.

Gallery

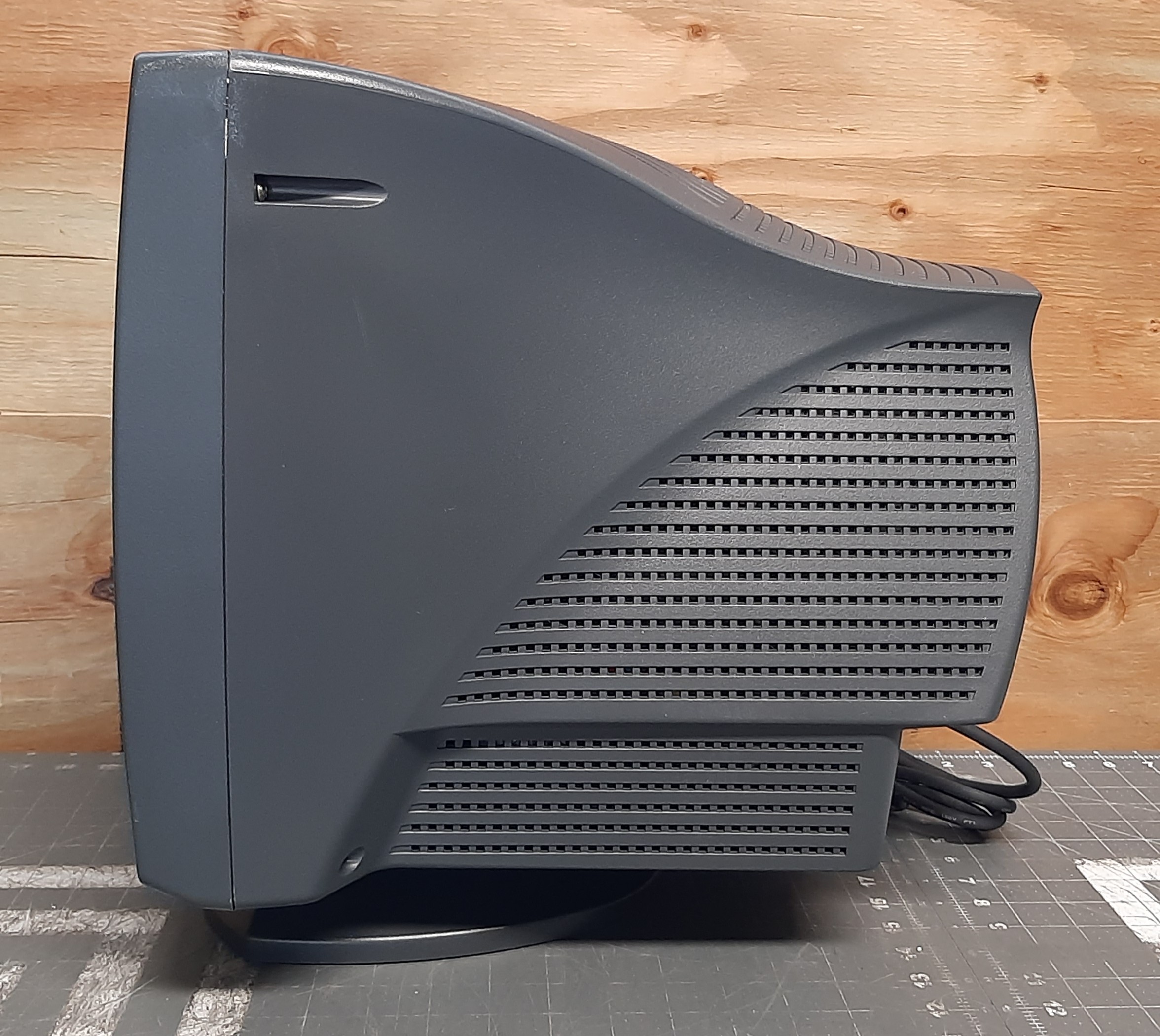

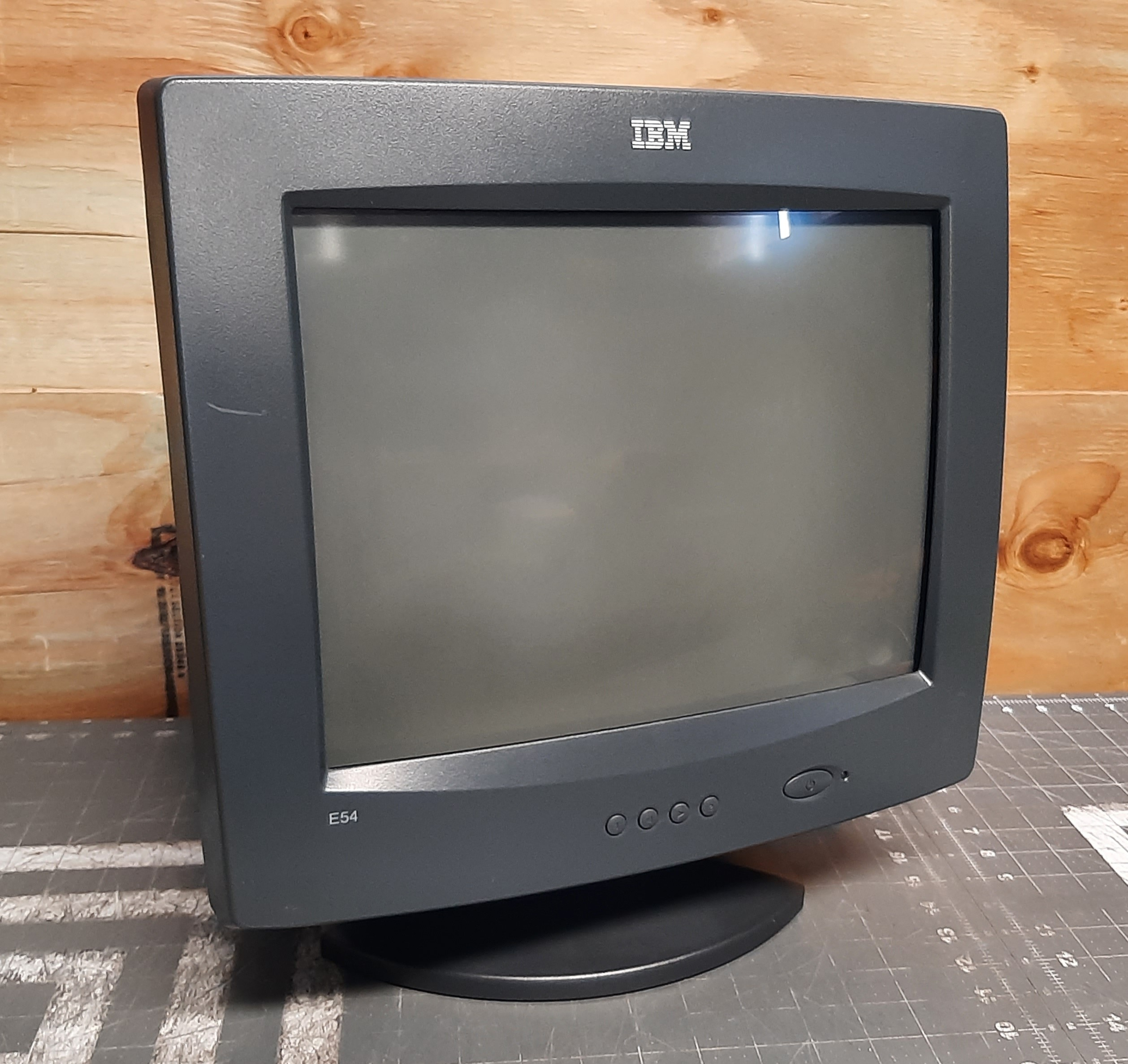

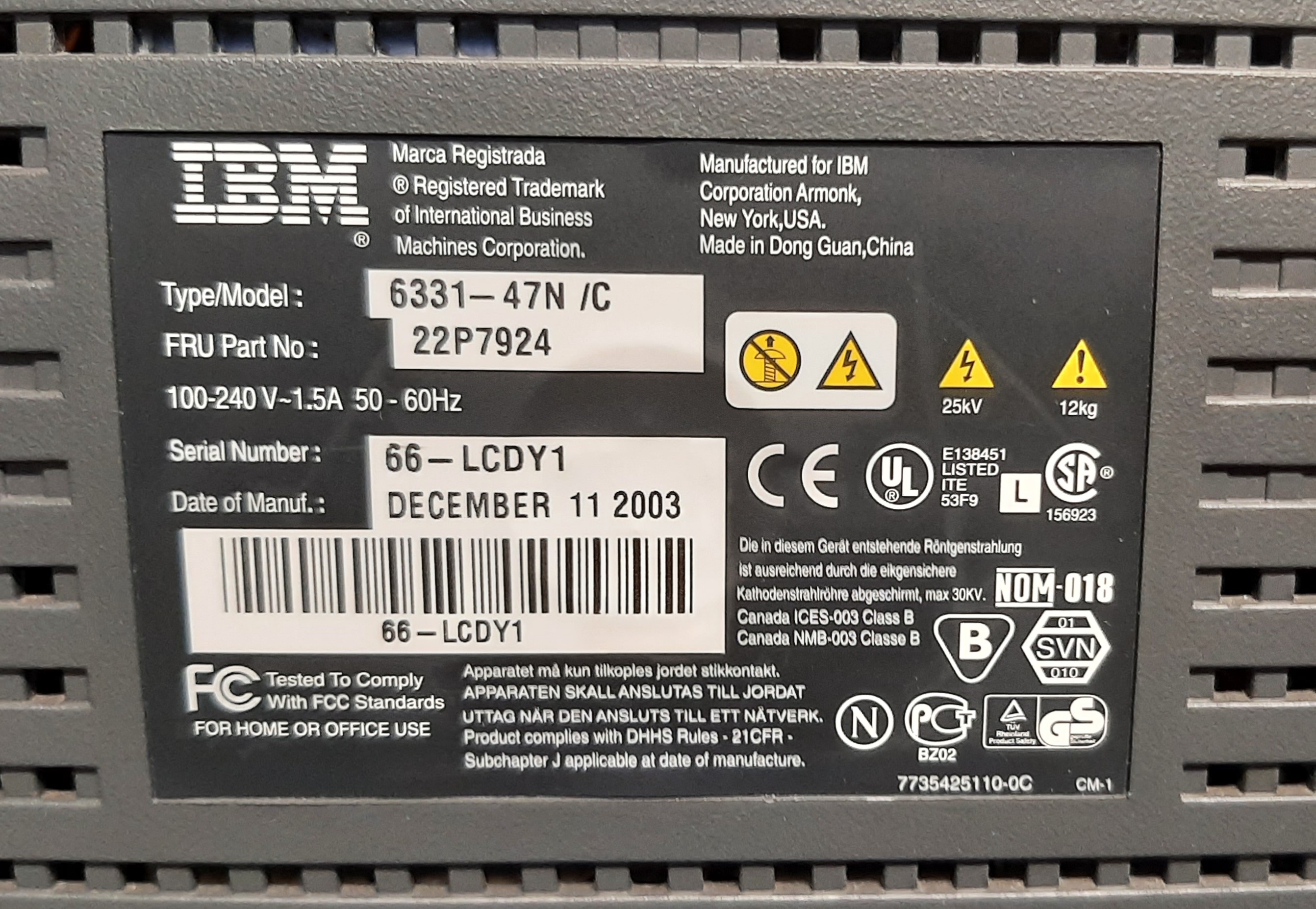

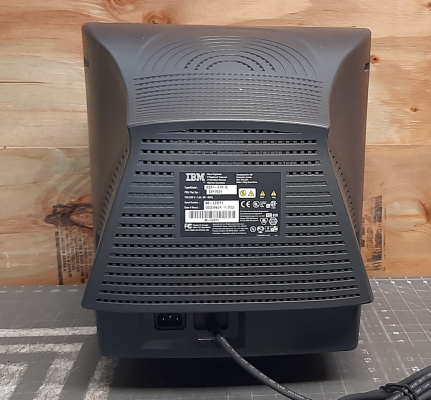

IBM E54 IBM E54 IBM E54 IBM E54 IBM E54
Specifications
Brand: IBM
Manufacturer: Lite-On
Model: E54
Series: E
Viewable Size: 13.75"
Inputs: VGA
Sync: HV Sync, CSYNC
Native Resolutions: VGA, SVGA, XGA, SXGA
Horizontal Scan Range: 70 kHz, 28 kHz
Vertical Scan Range: 160 Hz, 48 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Tube: Chunghwa , M36AJA83X46 , M36AJA83X
Heater Voltage: 6.3v
Deflection: 90°
Mask: Shadow
Pitch: 0.28 mm, .28 mm
Tint: Dark, Matte Anti-Glare
Removable Glare Film: No
Yoke: JAV-5301C1
Yoke Horz. Inductance: 0.2571 mH (@ 10 kHz)
Yoke Vert. Inductance: 5.253 mH (@ 100 Hz)
Yoke Horz. Resistance: 0.753 ohm
Yoke Vert. Resistance: 10.92 ohm
Speakers: None
Weight: 26.4 lbs (12 kg)
Dimensions (W/H/D): 370 x 387 x 390 mm
(14.5 x 15.2 x 15.3")
Application: Computer Monitor
Cabinet Material: Plastic
Launched: 2001
Country of Manufacture: China
Mounting: Desk Stand
Degaussing: Automatic on Power-on, Manual
Tag: Needs Service Manual, Needs Pictures
