IBM G54
Matt Ross
April 20, 2024, 6:35 pm
April 20, 2024, 6:35 pm
Summary
Similar to the IBM G74, this monitor is capable of syncing to 70 khz which is unusual for a 15" monitor. It will display 1024x768 at 85 Hz, or 1440x1080 at 60 Hz. Manufactured by Philips.
Literature
Notes
Per manual, max scan rates are 69khz horizontal, 120hz vertical. In practice, it will display up to a 160 Hz vertical refresh rate. This monitor will accept composite sync via the Hsync pin if necessary.

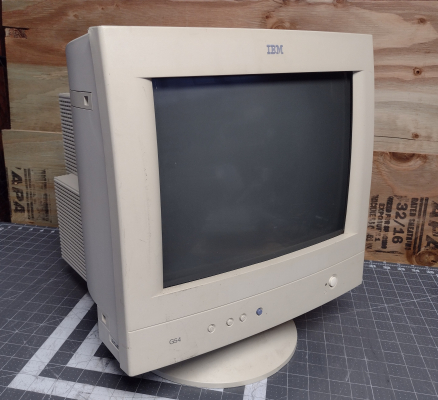

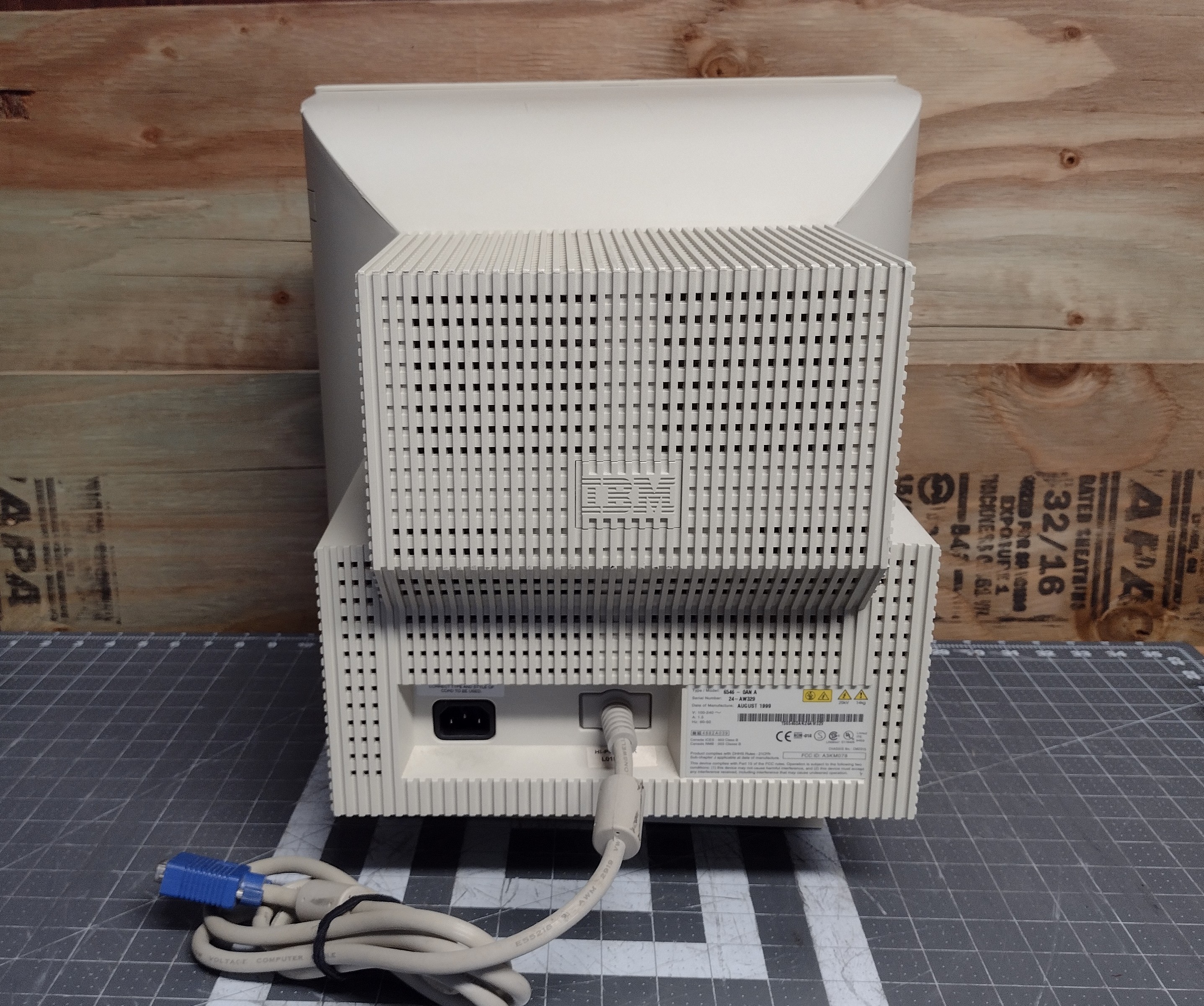

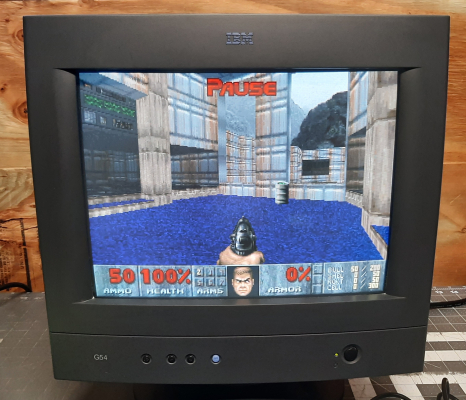

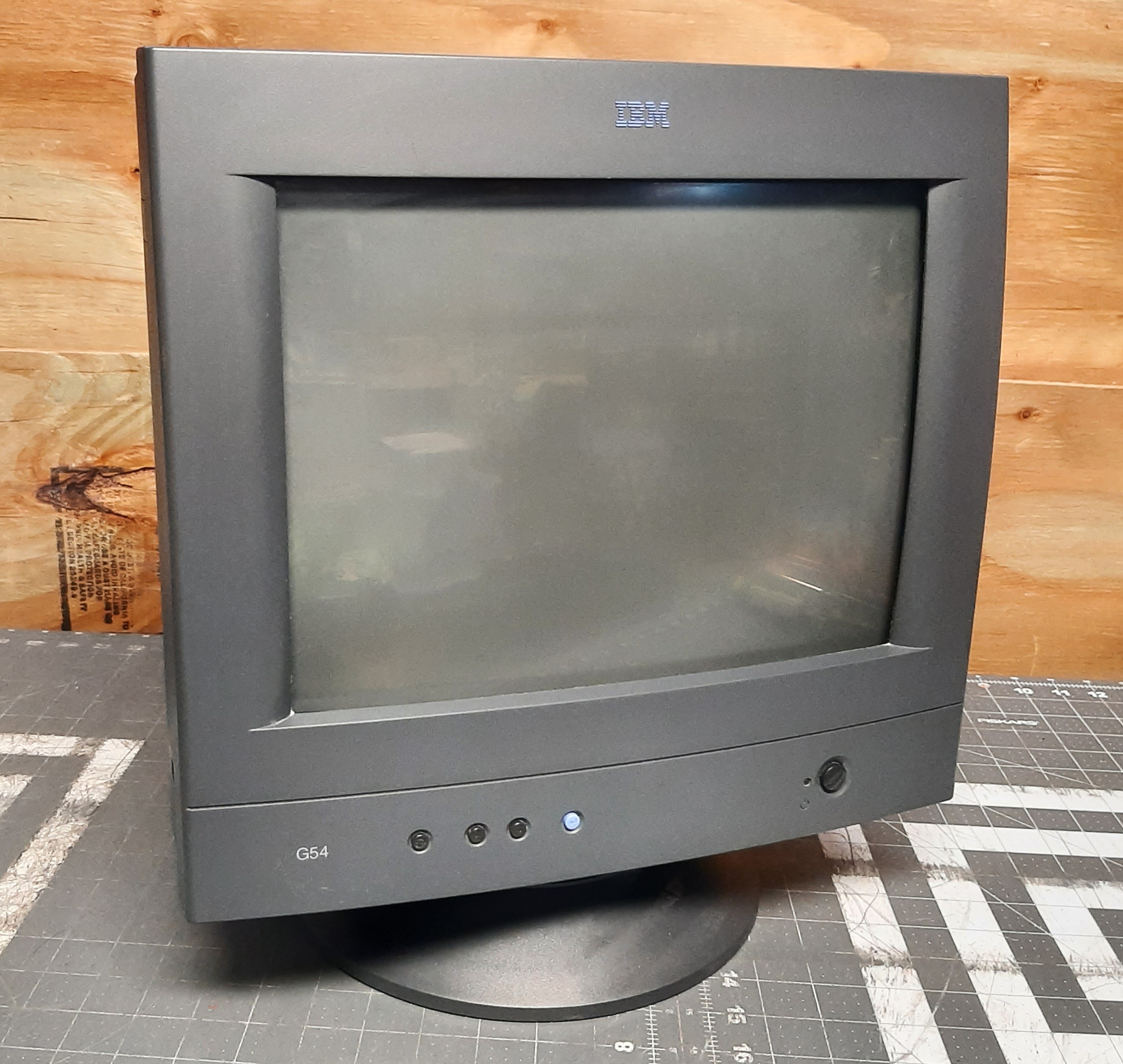

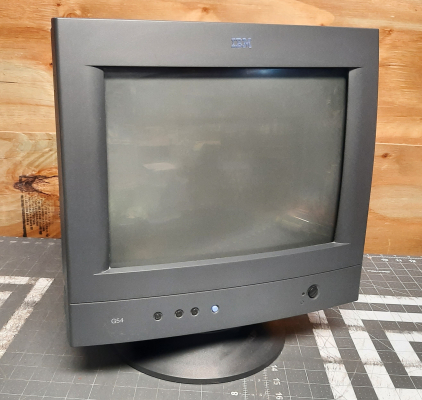

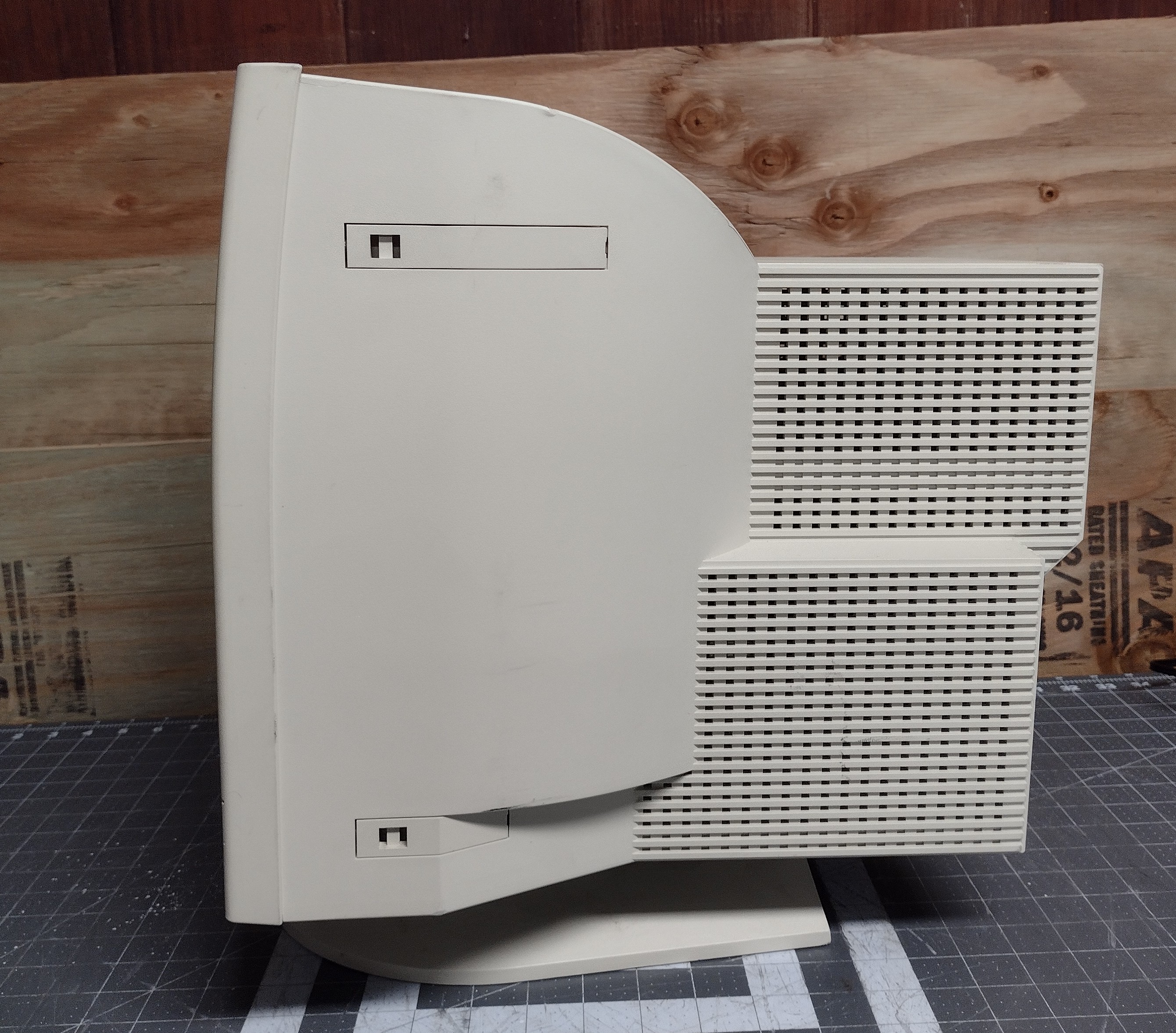

This monitor was produced in both beige and black versions.
Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | Philips |
| Model: | G54 |
| Series: | G |
| Viewable Size: | 13.6" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Max: | 30 kHz, 70 kHz |
| Vertical Max: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Flyback: | LCE CF 1119 |
| Tube: | Chunghwa , Philips , M36EDR320X130 , M36AES83X46 |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .28mm |
| Tint: | Dark |
| Speakers: | None |
| Weight: | 30 lbs (14 kg) |
| Application: | Computer Monitor |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
