Summary

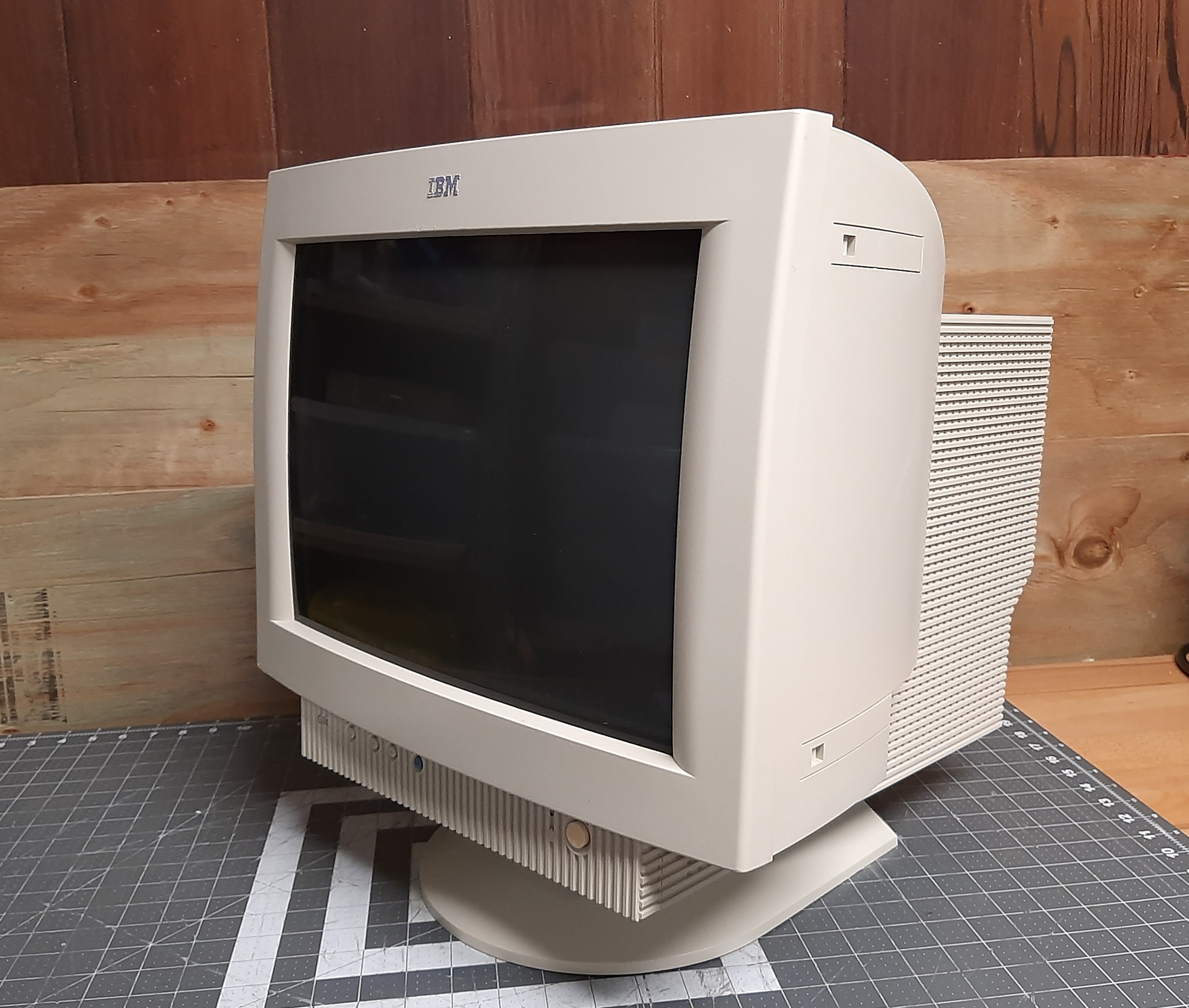

Mid-range 17" PC monitor, designed for resolutions from 640x480 to 1024x768.
Literature
Notes
Per manual, max scan rates are 69khz horizontal, 120hz vertical. In practice it will display up to 72 kHz horizontal and 168 Hz vertical. This monitor will accept composite sync via the Hsync pin if necessary.
Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | Philips |
| Model: | G74 |
| Series: | G |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 72 kHz |
| Vertical Scan Range: | 50 Hz, 168 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Flyback: | CF1383 |
| Tube: | Samsung |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm |
| Tint: | Dark |
| Speakers: | None |
| Application: | Computer Monitor |
| Launched: | 1998 |
| Degaussing: | Automatic on Power-on, Manual |
