Summary
A small monitor for the IBM PS/1 series of computers, with a standard VGA only (640x480) output.
Trying to output 800x600 causes bad discoloration and distortion on the screen.

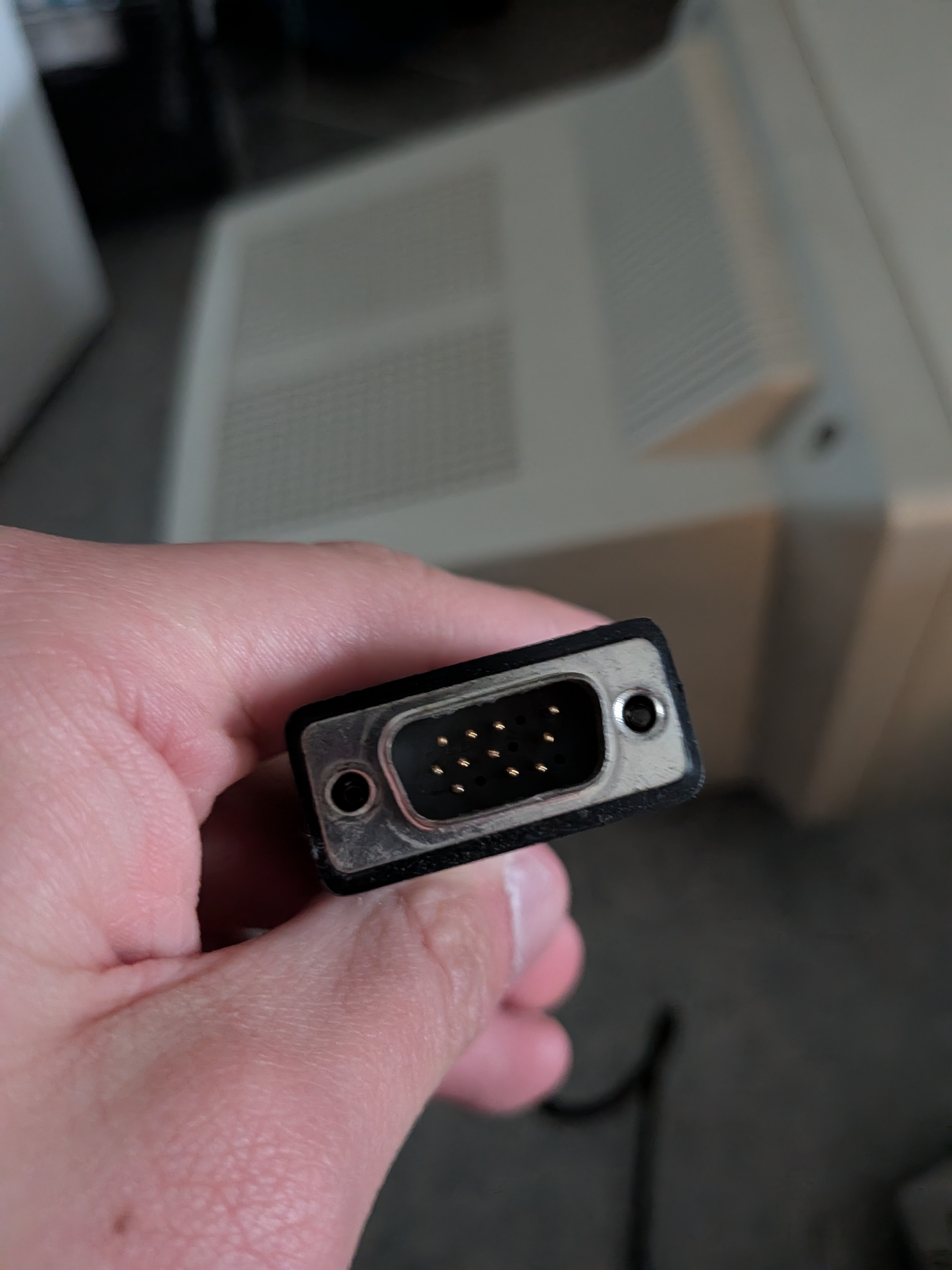

The VGA cable is missing pins 4, 9, 12, and 15.
Notes

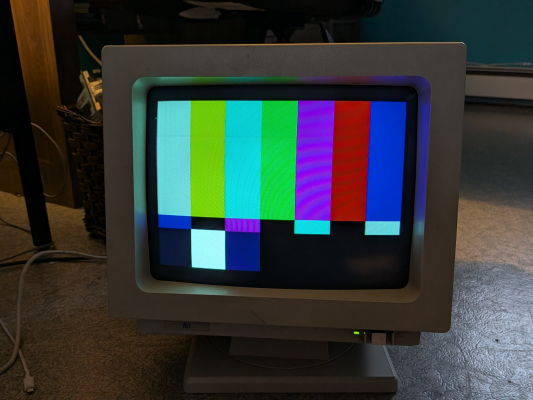

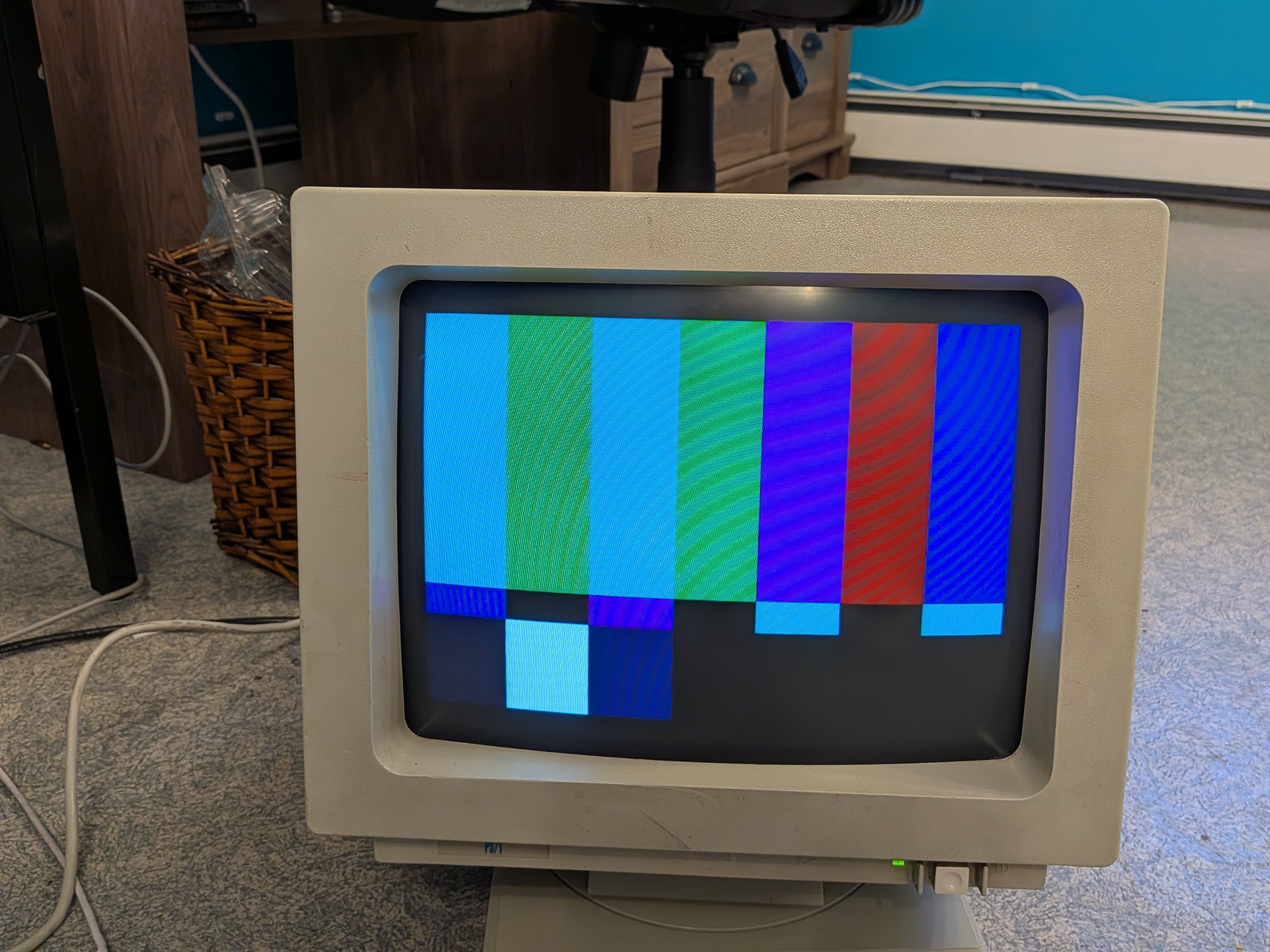

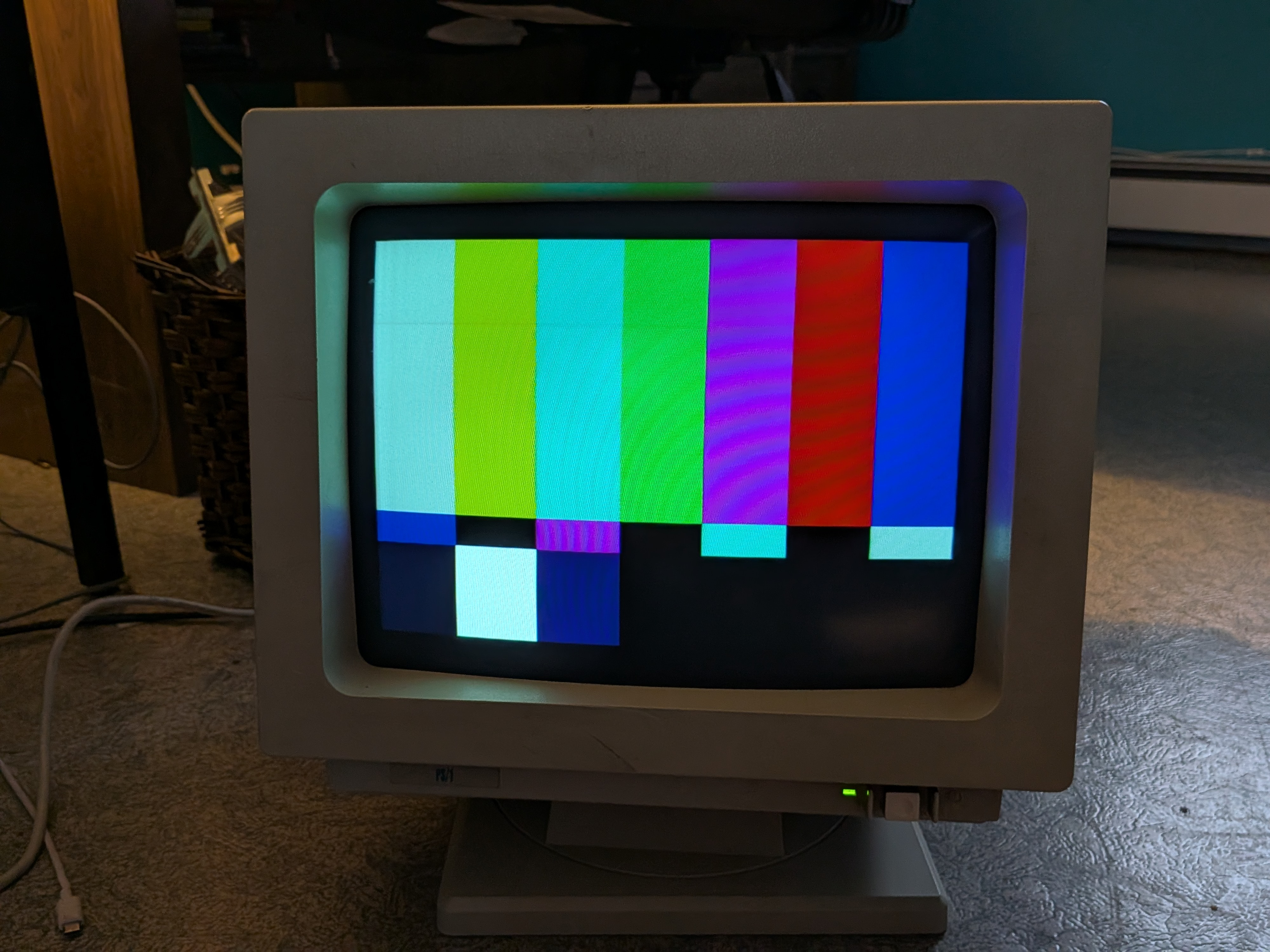

CRT tends to have a darker picture with a slight green hue, even when set to maximum brightness.

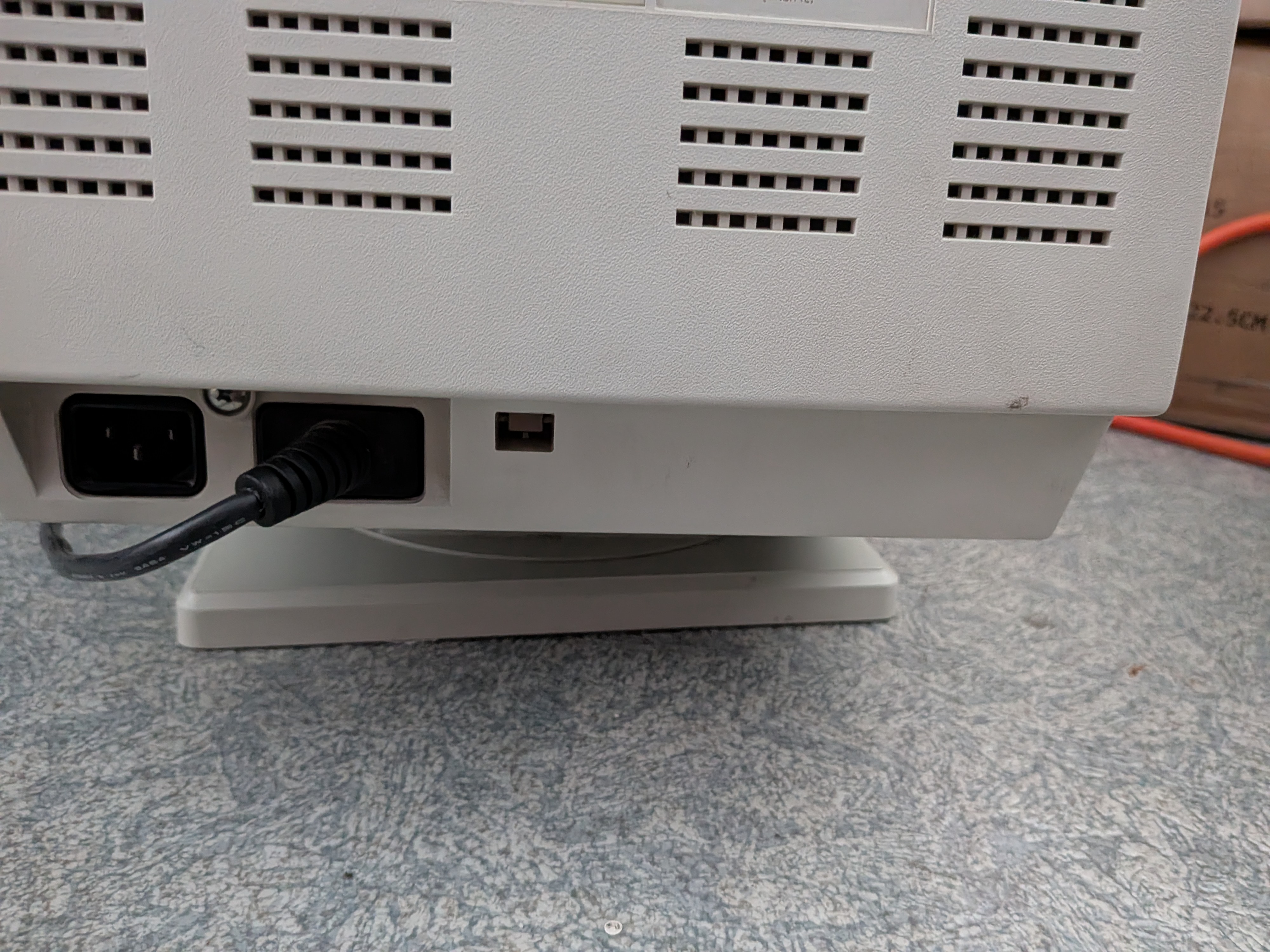

Gallery
| Specifications | |
|---|---|
| Brand: | IBM |
| Manufacturer: | IBM |
| Model: | PS/1 33G2834 039-001 |
| Series: | Personal Computer |
| Viewable Size: | 13" |
| Input Signals: | VGA |
| Sync: | HV Sync |
| Native Resolutions: | VGA |
| Horizontal Scan Range: | 30 kHz, 25 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Aspect: | 4:3 |
| Adjustments: | External Potentiometers |
| Mask: |
Shadow
|
| Tint: | Dark |
| Speakers: | None |
| Weight: | 25 lbs (11.3 kg) |
| Dimensions (W/H/D): |
349 x 387 x 383 mm
(13.7 x 15.2 x 15.1") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
