Summary
The iiyama Vision Master Pro 514 aka HM204DT is the absolute fastest CRT monitor ever built with a whopping 142kHz horizontal scan rate and a legendary unlocked vertical refresh rate despite the manual listing 200Hz we have proof of it reaching 400Hz, 500Hz and even 700Hz! Legendary for being the first ever monitor to reach 700Hz. Theoretically vertical refresh can go even higher only limited by the 142kHz horizontal scan rate.
Proof of this monitor reaching 700Hz vertical refresh

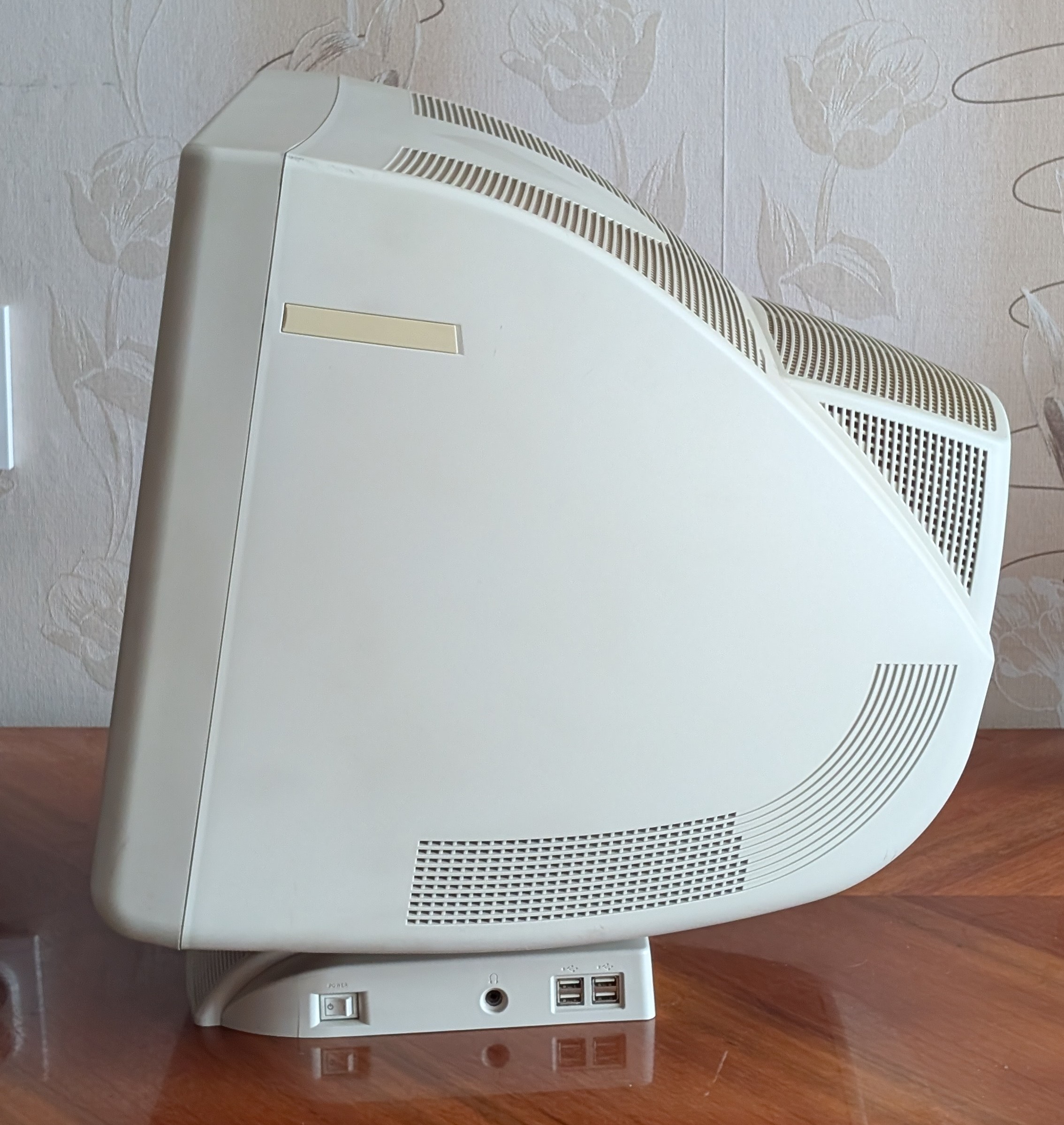

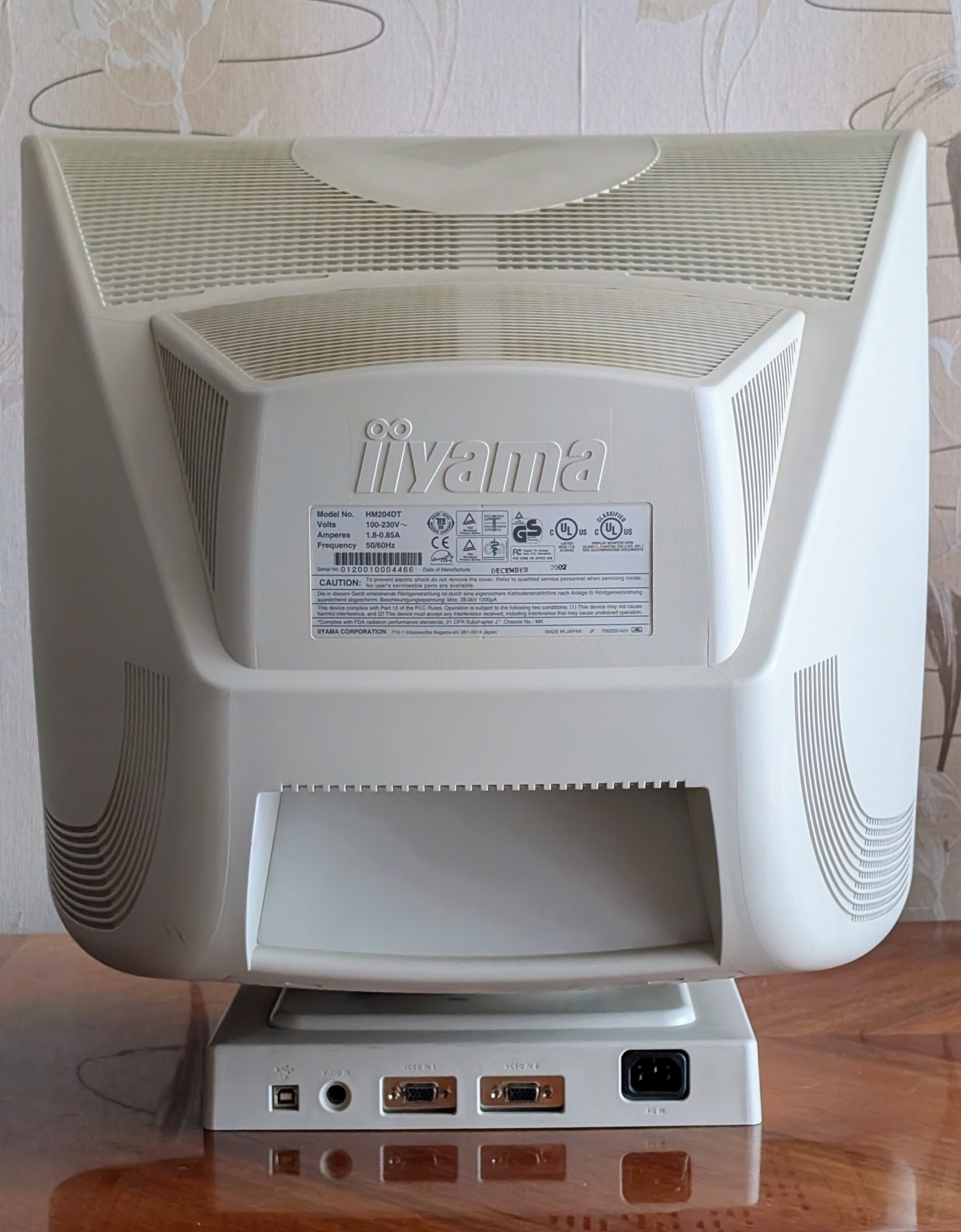

Has 2 VGA ports, a built-in USB hub, speakers and a headphone jack.
Manuals

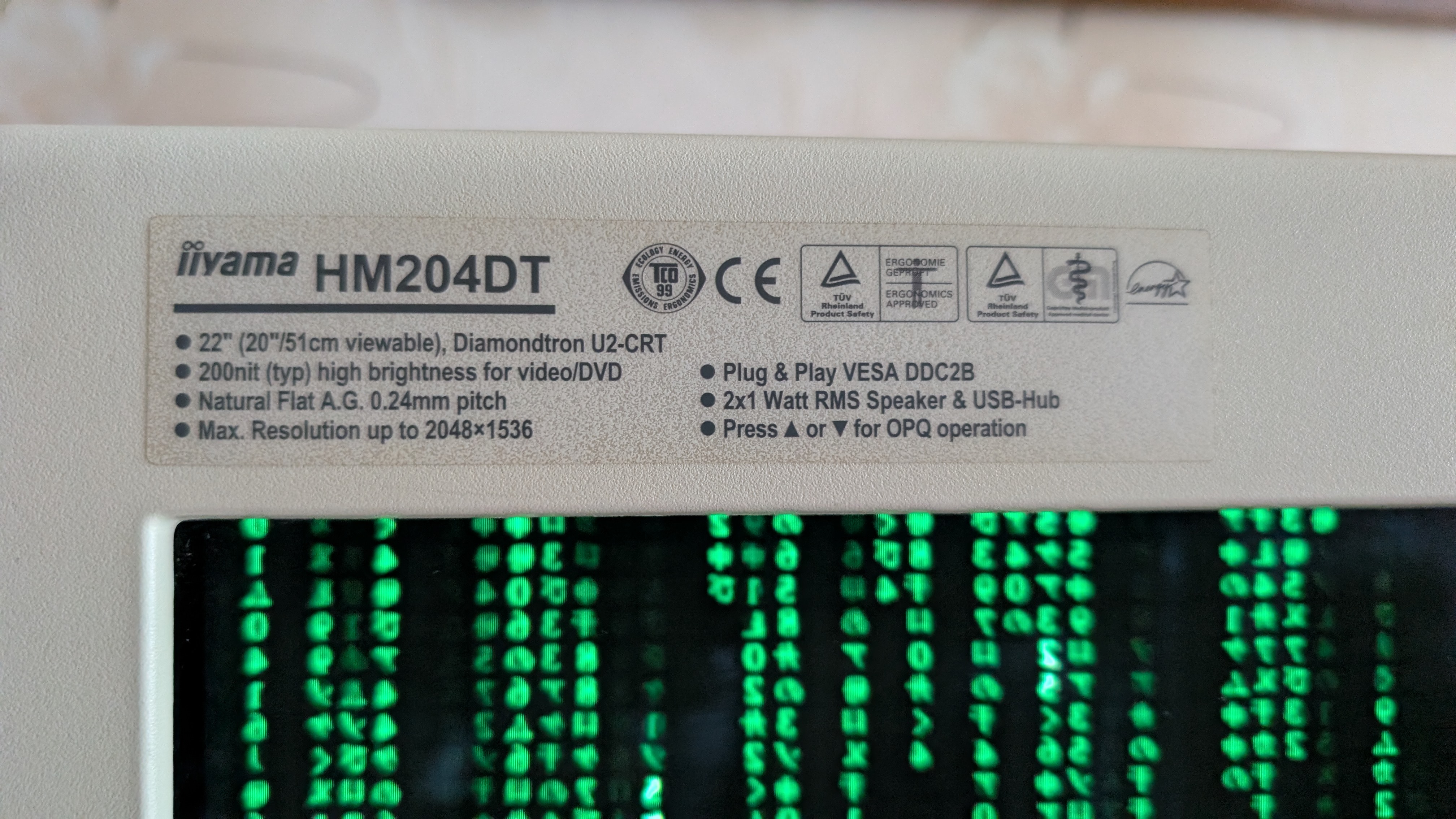

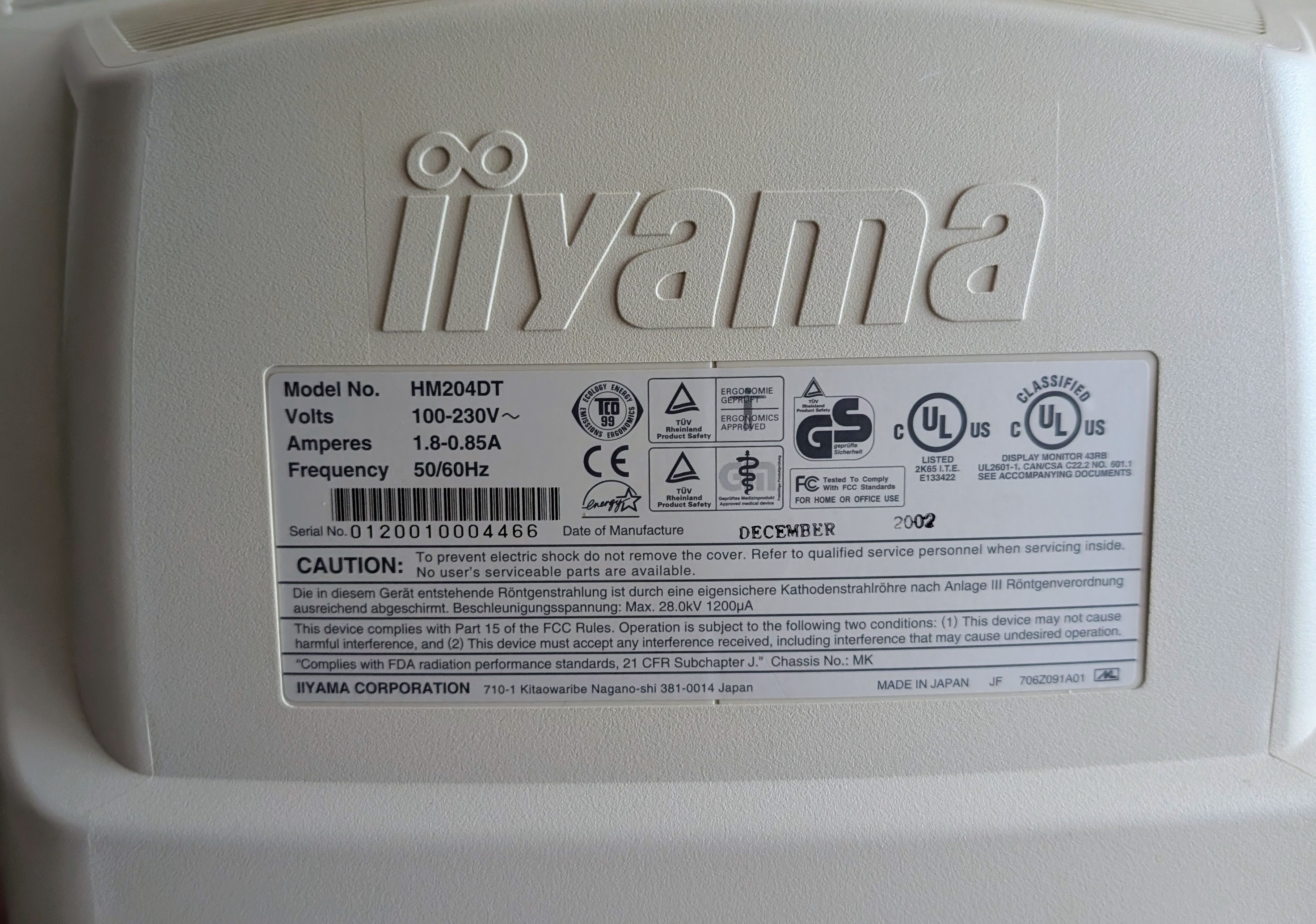

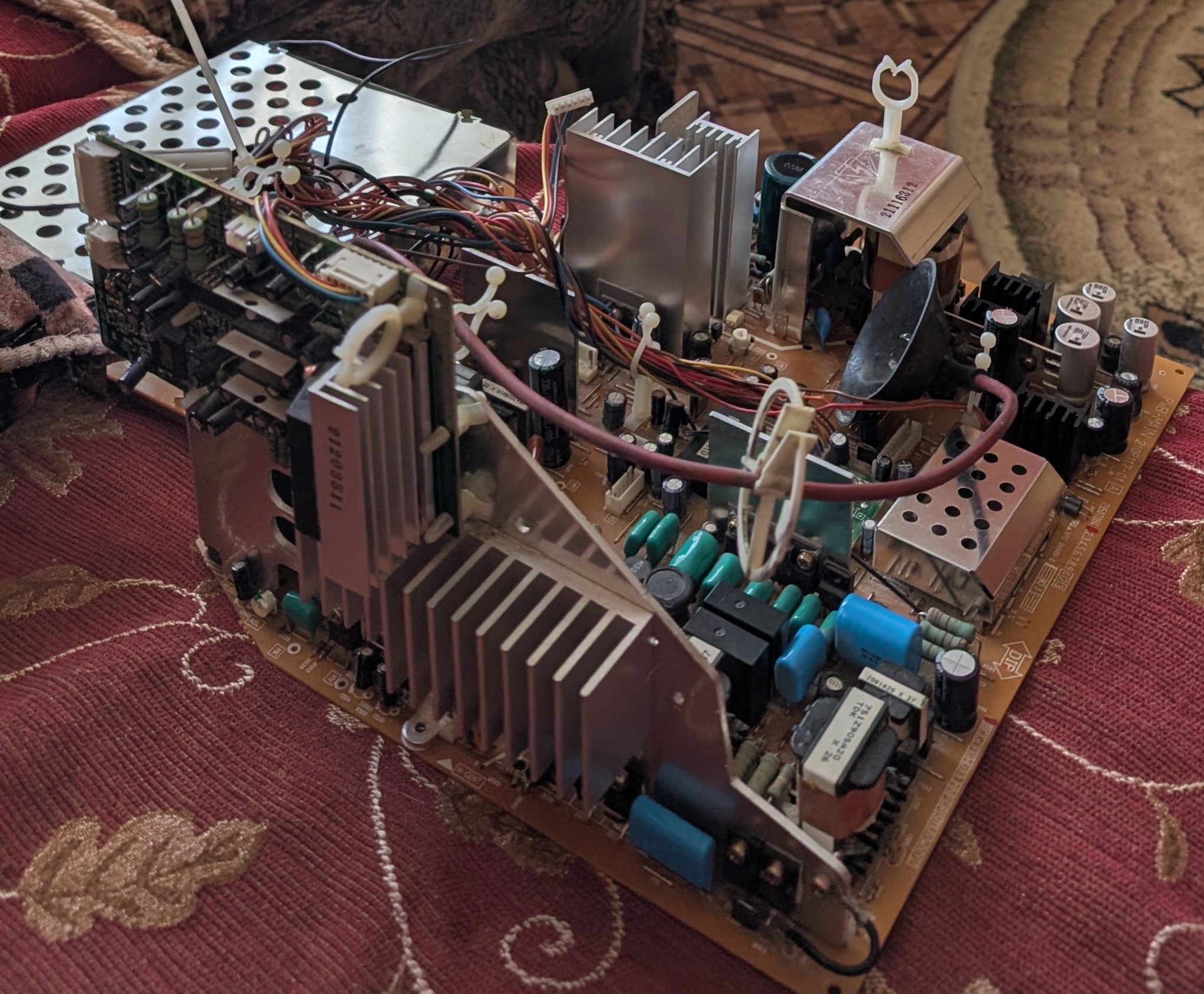

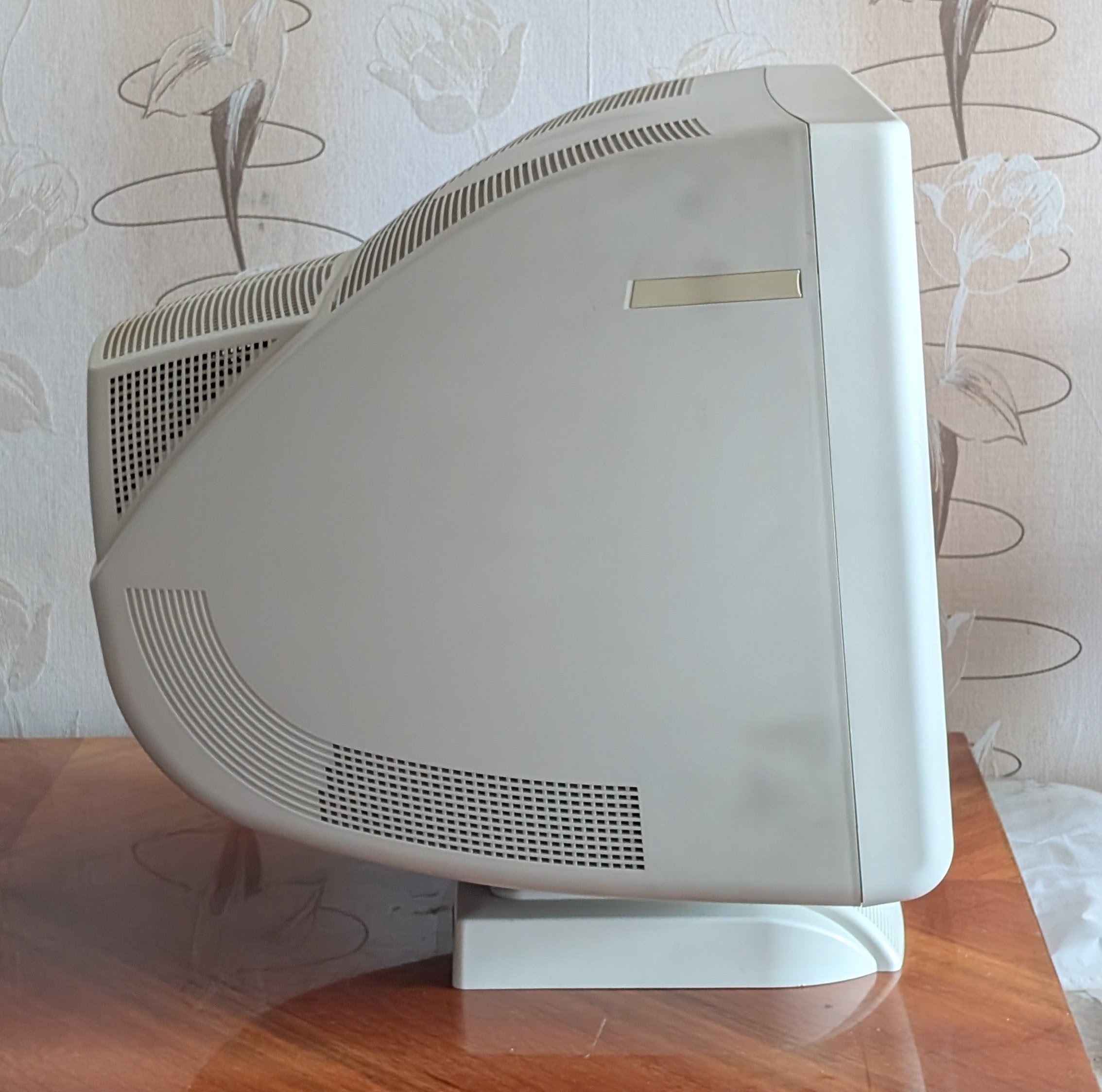

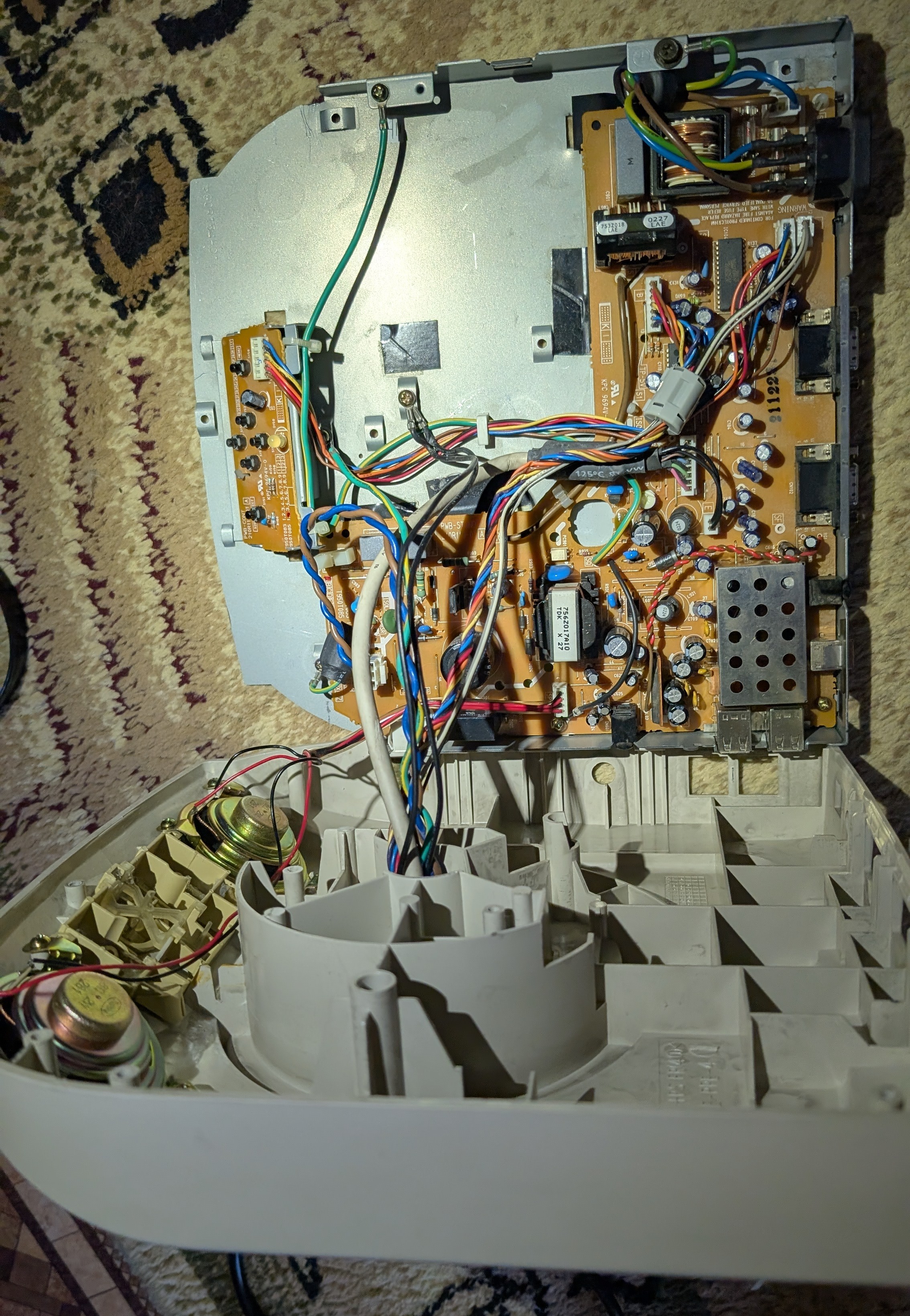

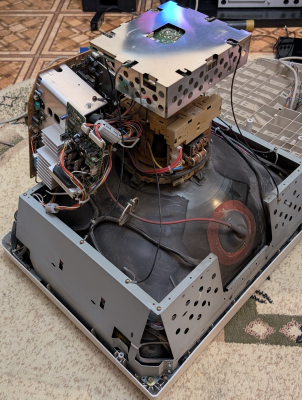

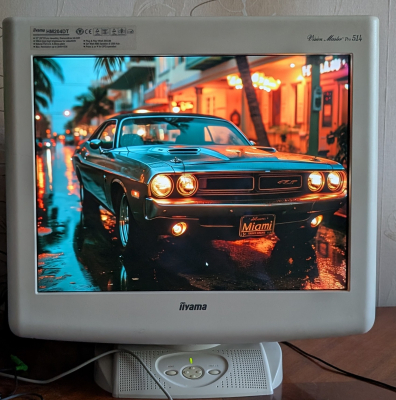

Gallery
| Specifications | |
|---|---|
| Brand: | Iiyama |
| Manufacturer: | Iiyama |
| Model: | HM204DT |
| Series: | Vision Master |
| Viewable Size: | 20" |
| Input Signals: | VGA |
| Sync: | HV Sync, Sync on Green, Sync over Composite |
| Native Resolutions: | QXGA |
| Horizontal Scan Range: | 30 kHz, 142 kHz |
| Vertical Scan Range: | 50 Hz, 700 Hz |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons, Internal Potentiometers, Software Calibration |
| Focus Type: | Dual |
| Tube: | Mitsubishi Diamondtron , M51LVT42X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | 0.24 mm |
| Speakers: | 2W x 2 |
| Weight: | 65 lbs (29.5 kg) |
| Dimensions (W/H/D): |
493 x 500 x 479 mm
(19.4 x 19.7 x 18.8") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 650 USD |
| Country of Manufacture: | Japan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Community Submission, Hall of Fame, Needs Yoke Info |
