Summary

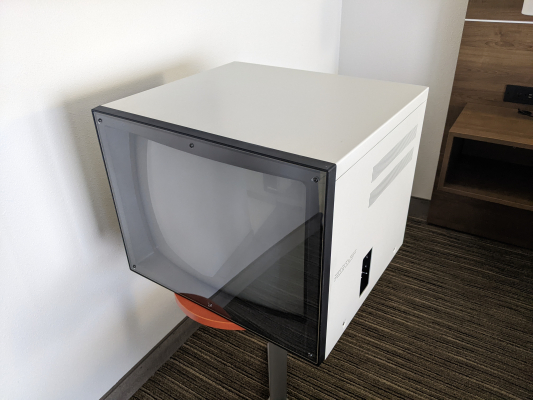

Monitor intended to be paired with a microscope or other medical camera for viewing. The chassis is manufactured by Ikegami and was also rebranded under Olympus.

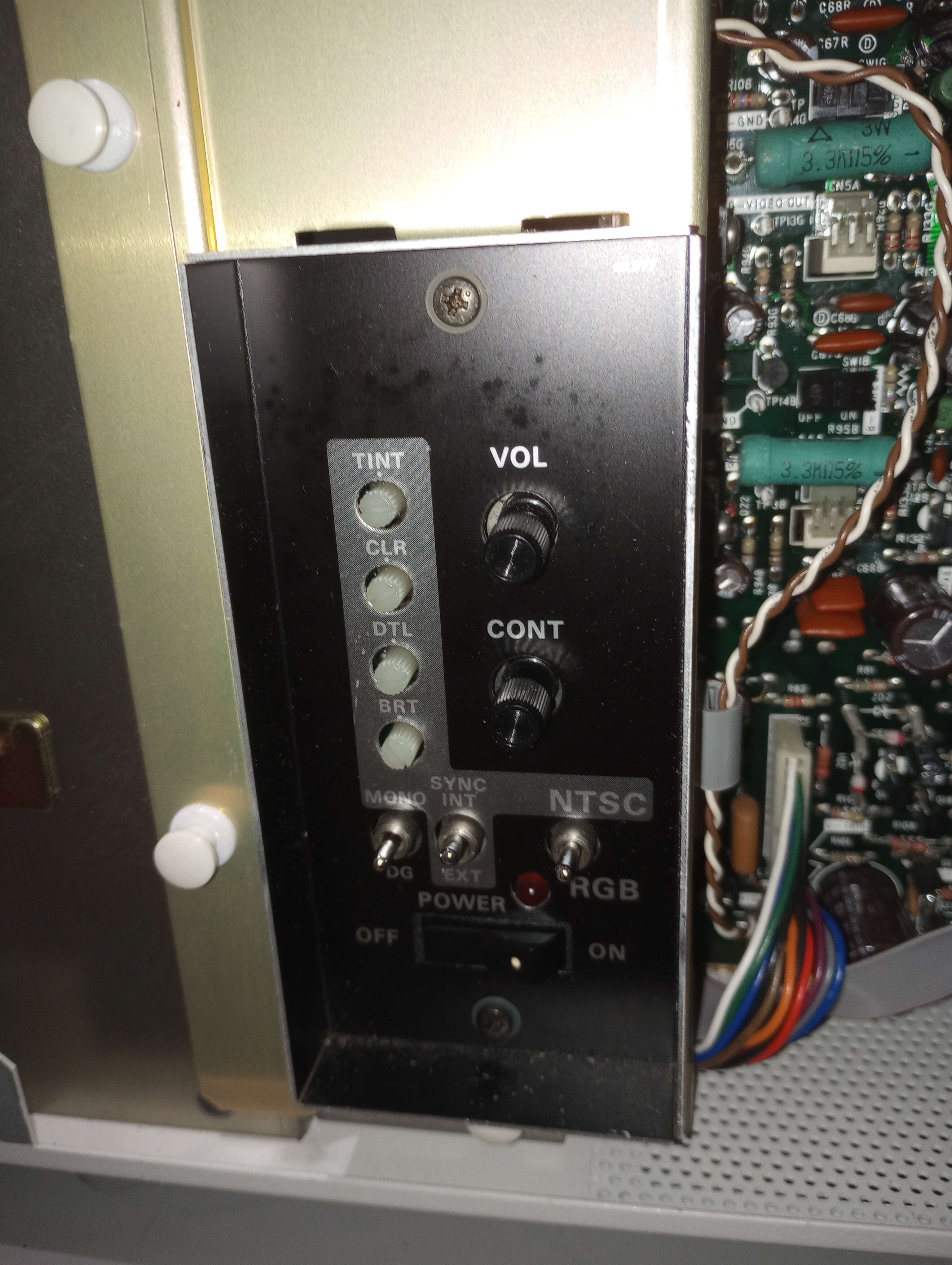

"The CDA-14N/201N desktop type high quality color monitors are offered to compliment the entire Ikegami color medical camera line, and are available in two different screen sizes; One is 13" (13V) configuration for model CFA-141N, and the other is 20" (19V) for model CDA-201N. Both configurations are operated at either NTSC signal or RGB signal by switch selection, and incorporate In-Line type black matrix P22 phosphor CRT with 0.43mm dot trio pitch and state-of-the-art electronics, giving 600 lines horizontal resolution at RGB operation or 400 lines at NTSC. Audio capability is optional. Other noteworthy features include ease of operation and high reliability . This monitor confirms to safety requirements for medical operations."

Literature

• Owner's Manual

Notes

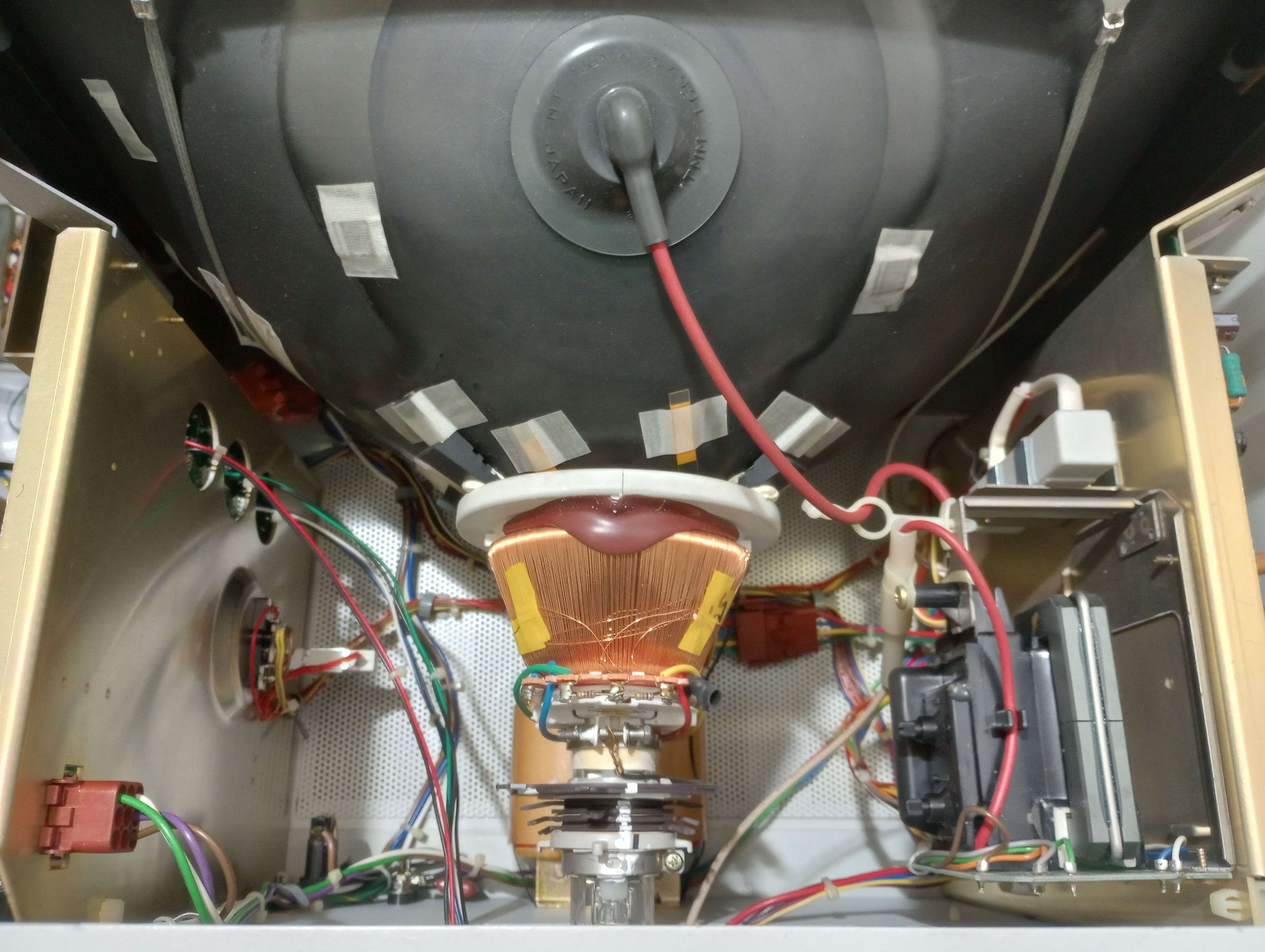

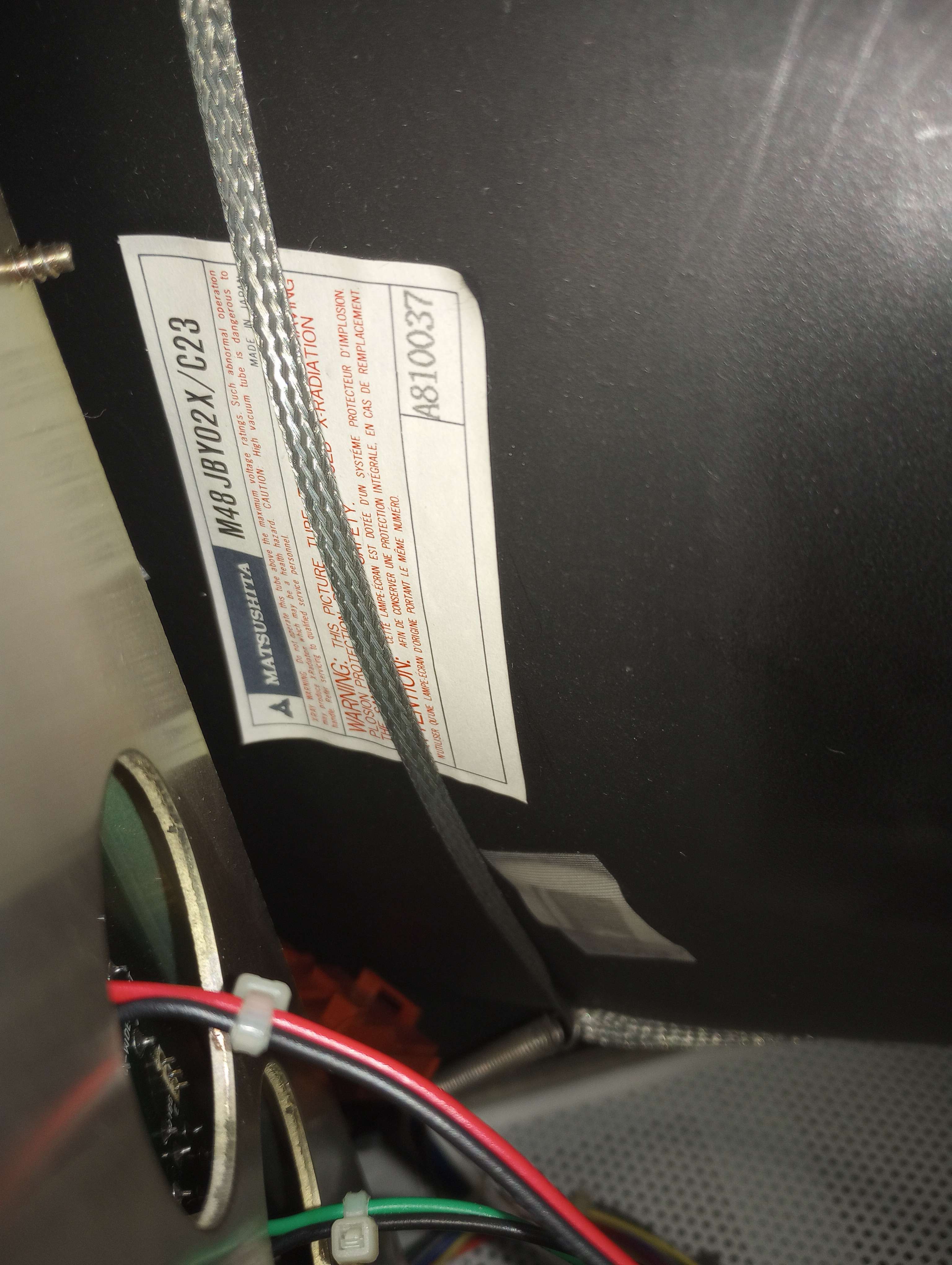

The tube pitch is marked as 0.43mm in Ikegami's specifications but Panasonic themselves confirmed the pitch of this tube to be 0.40mm with a maximum resolvable resoution of 865 TVL. The actual TVL will be limited by the bandwidth and other circuitry of a given chassis, which is why this monitor is only marked as 600 TVL despite having an 865 TVL tube inside. Source

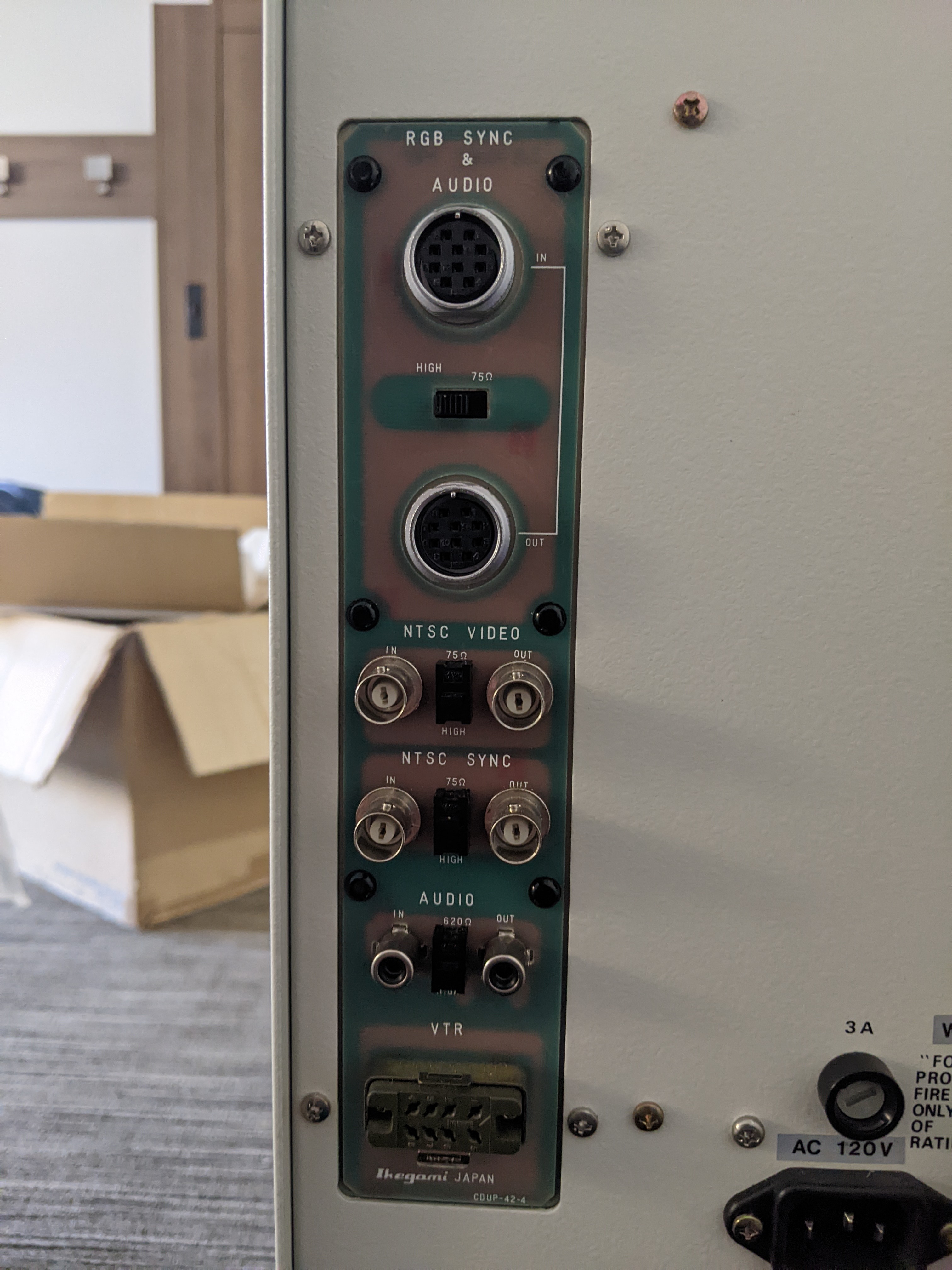

The RGB input on the back is a nonstandard XLR-type connector called a "Hirose 10 pin connector".
